  1. Chapter 13 Temperature and Kinetic Theory

  2. Topics in this Chapter • Atomic Theory of Matter • Temperature and Thermometers • Thermal Equilibrium and the Zeroth Law of Thermodynamics • Thermal Expansion • The Gas Laws and Absolute Temperature • The Ideal Gas Law • Ideal Gas Law in Terms of Molecules: Avogadro’s Number • Kinetic Theory and the Molecular Interpretation of Temperature

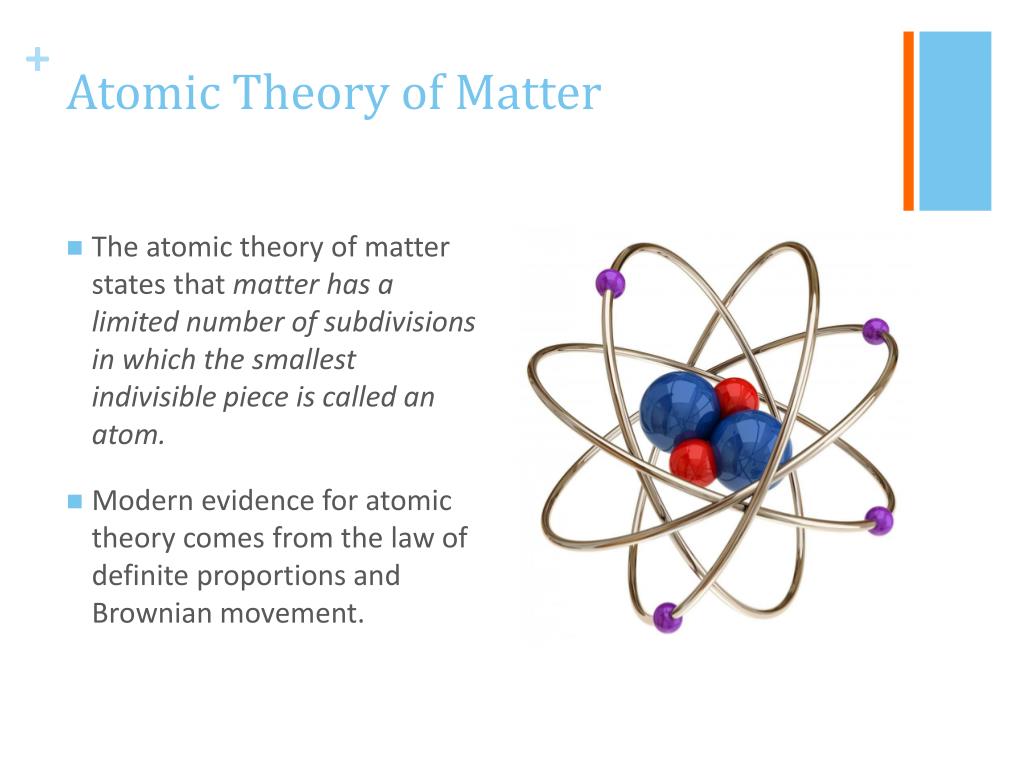

  3. Atomic Theory of Matter • The atomic theory of matter states that matter has a limited number of subdivisions in which the smallest indivisible piece is called an atom. • Modern evidence for atomic theory comes from the law of definite proportions and Brownian movement.

  4. Atomic Theory of Matter • Atomic and molecular masses are measured in unified atomic mass units (u). • This unit is defined so that the carbon-12 atom has a mass of exactly 12.0000 u. • Expressed in kilograms: • 1 u = 1.6605 x 10-27 kg • Remember: The molecular mass of a compound is the sum of atomic masses of the atoms making up the molecules of that compound.

  5. Atomic Theory of Matter • On a microscopic scale, the arrangements of molecules in solids (a), liquids (b), and gases (c) are quite different.

  6. Temperature and Thermometers • Temperature is a measure of how hot or cold something is. • The more physicsy definition: Temperature is the average kinetic energy of molecules. • Many properties of matter change with temperature. • Most materials expand when heated. • The color radiated by objects can change at high temperatures. • The electrical resistance of matter changes with temperature. (Ch.18)

  7. Temperature and Thermometers • Thermometers are instruments designed to measure temperature. • Their operation depends on some property of matter that changes with temperature: • Δ volume of a liquid • Δ length of a solid • Δ pressure of a gas held at a constant volume • Δ electric resistance of a conductor • Most thermometers rely on the expansion of a material with an increase in temperature. • For example the liquid-in-glass type and the bimetallic strip:

  8. Temperature Scales • In order to measure temperature quantitatively, a scale must be defined. • The most common scale is the Celsius scale, also called the centigrade scale. • We use the Fahrenheit scale in the United States. • The most important scale in science is the Kelvin scale, also called the absolute scale. • One way a temperature scale can be defined is to assign arbitrary values to two readily reproducible temperatures. • For both Celsius and Fahrenheit, these two fixed points are the freezing point (0°C, 32°F) and boiling point of water (100°C, 212 °F). • The Kelvin scale is based on absolute zero. It has the same intervals as Celsius, but it’s zero point is 0 K, the lowest theoretical possible temperature.

  9. Temperature Scales You may need to convert between the different scales in problems. In case you have forgotten them, the formulas are as follows: Fahrenheit to Celsius: Celsius to Fahrenheit: Celsius to Kelvin:

  10. Totally Obvious, Fifth Grade Stuff Oops, I mean: Thermal Equilibrium and the Zeroth Law of Thermodynamics Thermal Equilibrium The Zeroth Law of Thermodynamics • When two objects at different temperatures are placed in thermal contact, the two objects will reach the same temperature, or thermal equilibrium. • When two objects are in thermal equilibrium, no energy flows from one to the other, and their temperatures don't change. • If two substances are in thermal equilibrium with a third system, then the two substances are in thermal equilibrium with each other. • Kind of like: • If A=C and B=C, then A=B.

  11. Thermal Expansion • Most substances expand when heated and contract when cooled. • The expansion is due to an increased separation between molecules as they gain more energy from an increased in temperature. • Exactly how much expansion or contraction depends on the material of the object. • We will discuss how to calculate thermal expansion: • Linear Expansion (1D) • Volume Expansion (3D)

  12. Where: • Δl= change in length of the object (m) • α= coefficient of linear expansion (°C)-1 • Use the table on page 358. • Use a (+) for expansion. • Use a (–) for contraction. • l0= original length (m) • ΔT = change in temperature (°C) Linear Expansion Calculating Thermal Expansion • *Not for gases or liquids – no fixed shape.

  13. Where: • ΔV= change in area of the object (m2) • β= coefficient of volume expansion (°C)-1 • β ≈ 3α, usually (for isotropic solids) • Use the table on page 358. • Use a (+) for expansion. • Use a (–) for contraction. • V0= original area (m2) • ΔT = change in temperature (°C) Volume Expansion Calculating Thermal Expansion

  14. Thermal Expansion • Can you think of any substances that do not follow this trend (expand when heated and contract when cooled)? • WATER! • Water is weird. As it is heated from 0°C, it decreases in volume until the temperature reaches 4°C (about 40°F), then it behaves normally. • Without this strange property of water, life on this planet as we know it would not be possible.

  15. The Gas Laws • The volume of a gas depends on the pressure and temperature of the gas. Therefore, it is not always useful to use the equation for volume expansion for gases. • Therefore, it is valuable to determine a relationship between the mass, volume, pressure, and temperature of a gas – this relation is called an equation of state. • We will review: • Boyle’s Law • Charles’s Law • Gay-Lussac’s Law • The Ideal Gas Law

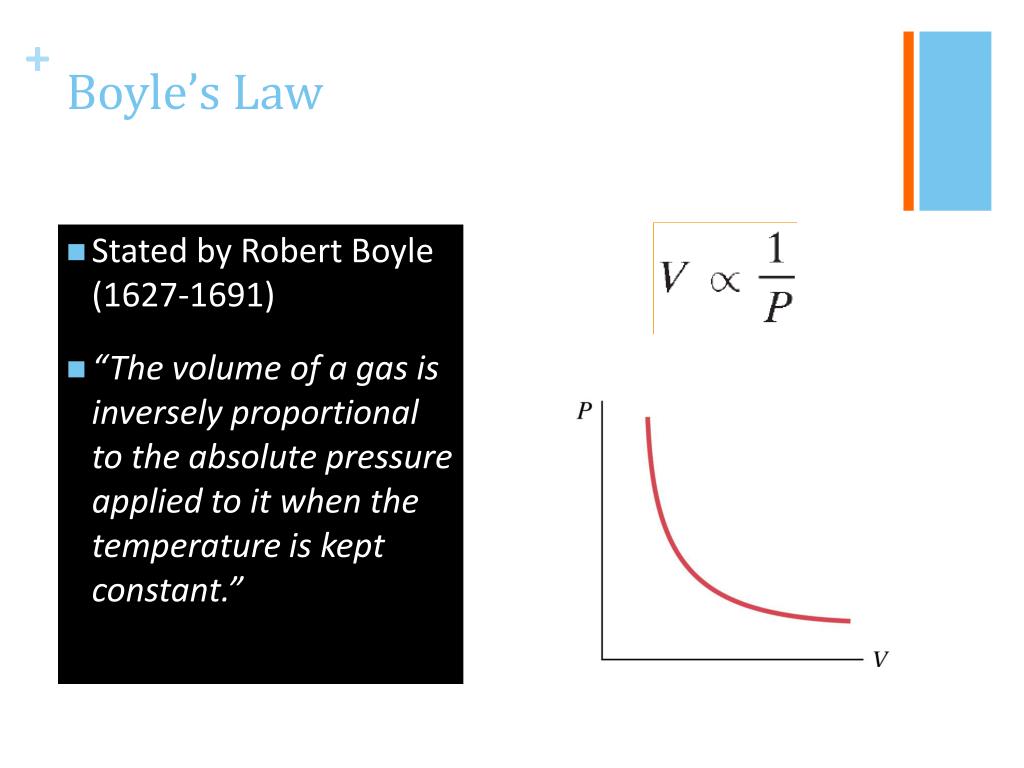

  16. Boyle’s Law • Stated by Robert Boyle (1627-1691) • “The volume of a gas is inversely proportional to the absolute pressure applied to it when the temperature is kept constant.”

  17. Charles’s Law • Stated by Jacques Charles (1746-1823) • “The volume of a given amount of gas is directly proportional to the absolute temperature when the pressure is kept constant.”

  18. Gay-Lussac’s Law • Stated by Joseph Gay-Lussac (1778-1850) • “At a constant volume, the absolute pressure of a gas is directly proportional to the absolute temperature.”

  19. The Ideal Gas Law • The ideal gas law is a combination of Boyle’s, Charles’s, and Gay-Lussac’s laws. • The ideal gas law also includes the mass of the substance and a proportionality constant. • The proportionality constant turns out to be the same for all gases if, instead of the mass, we use the number of moles. • Mole is the unit for amount of a substance. • One mole (mol) is defined as the number of grams of a substance numerically equal to the molecular mass of the substance. • Ex. The number of moles in 132 g of CO2 = 30. mol

  20. The Ideal Gas Law PV = nRT Where: • P = absolute pressure • V = volume • n= number of moles • R= universal gas constant • T = temperature (in K) • Values for R in various units: • 8.314 J/(mol·K) • 0.0821 (L·atm)/(mol·K) • 1.99 calories/(mol·K) • Standard temperature and pressure (STP): • T = 273 K • P = • 1 atm • 1.013 x 105 N/m2 • 101.3 kPa • FYI - The volume of 1 mol of an ideal gas at STP is 22.4 L.

  21. Ideal Gas Law in Terms of Avogadro’s Number • Since the gas constant is universal, the number of molecules in one mole is the same for all gases. • This number is called Avogadro’s number: (molecules/mol) • The number of molecules in a gas is the number of moles times Avogadro’s number:

  22. Ideal Gas Law in Terms of Avogadro’s Number • Therefore we can write the ideal gas law as: • PV = NkT • kis called Boltzmann’s constant:

  23. Kinetic Theory and the Molecular Interpretation of Temperature • The analysis of matter in terms of atoms in continuous random motion is called the kinetic theory. • Assumptions of kinetic theory: • large number of molecules, moving in random directions with a variety of speeds • molecules are far apart, on average • molecules obey laws of classical mechanics and interact only when colliding • collisions are perfectly elastic

  24. The Results of Kinetic Theory that are Important to Us: • The relationship between the internal energy of a gas and its temperature is: • This equation allows us to find the temperature of a gas given its internal energy, or vice versa. • The root-mean-square (rms) speed of gas molecules is: Where: • M = molar mass • μ = mass of molecule

  25. Chapter 13 - Practice Problemsp. 380-381 • Atomic Theory • #1 + 2 • Temp. and Thermometers • #3 • Thermal Expansion • #7, 11, 13, • Gas Laws • #26 + 27 • Ideal Gas Law • #29, 32, 33 • Ideal Gas Law in terms of Avogadro’s Number • #41, 42 • Molecular Interpretation of Temperature • #46, 47, 50
