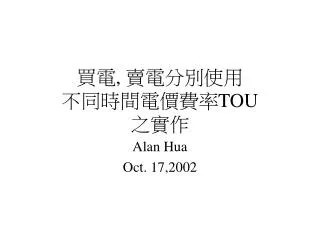

  1. 買電, 賣電分別使用不同時間電價費率TOU之實作 Alan Hua Oct. 17,2002

  2. ION8xxx電表 TOU相關framework配置

  3. 1. Energy部分 kWh del A kWh rec A kVARh del A kVARh rec A kVAh del A kVAh rec A 原配置 kW tot TOU Rate A integrator TOU AND Enable tst Mode Invert 修改為 TOU Rate A kWh del A kVARh del A kVAh del A Enable integrator TOU AND tst Mode Invert kW tot kWh rec A’ kVARh rec A’ kVAh rec A’ integrator TOU2 AND TOU Rate A’ Enable

  4. 2. Demand部分 原配置 kW del TOU Rate A S.W. kW sd del A TOU AND Enable tst Mode Invert Power up kW rec S.W. kW sd rec A’

  5. 2. Demand部分(續) 修改為 kW del TOU Rate A S.W. kW sd del A TOU AND Enable tst Mode Invert Power up kW rec TOU Rate A’ S.W. kW sd rec A’ TOU2 AND Enable tst Mode Invert Power up
