  1. Primer on Statistics for Interventional CardiologistsGiuseppe Sangiorgi, MDPierfrancesco Agostoni, MDGiuseppe Biondi-Zoccai, MD

  2. What you will learn • Introduction • Basics • Descriptive statistics • Probability distributions • Inferential statistics • Finding differences in mean between two groups • Finding differences in mean between more than 2 groups • Linear regression and correlation for bivariate analysis • Analysis of categorical data (contingency tables) • Analysis of time-to-event data (survival analysis) • Advanced statistics at a glance • Conclusions and take home messages

  3. What you will learn • Linear regression and correlation for bivariate analysis • Simple linear regression • Regression diagnostics • Correlation analysis • Non-parametric alternatives: Spearman rho

  4. Regression How can I assess the quantitative impact ofdilationpressureduring stenting on final minimum lumen diameter? In otherwords, can I quantitativelypredict the change in a dependentvariablegivenspecificchanges in anindependentvariable

  5. Beforehandplotting is pivotal Minimum lumen diameter (mm) Dilation pressure during stenting (ATM)

  6. Regression • We cannot define a specific mathematical function (eg F=m*a): there is no precise relationship • Regression means a relationship which is not very precise, where a given value of the independent variable corresponds to a distribution of values of the dependent variable

  7. Regression analysis • It models a continuous dependent variable and a continuous independent variable • The dependent variable in the regression equation is modeled as a function of the independent variable, a corresponding parameter (constant), and an error term (a random variable representing unexplained variation in the dependent variable) • Parameters are estimated so as to give a "best fit" of the data, by means of the least squares method

  8. Linear regression Distribution of the dependent variable Independent variable Average of the distribution of values of the dependent variable Regression line

  9. Linear regression • Throughregression I can estimate the averagevalueof the dependentvariablegiven a specificvalueof the independentvariable • To do it, I need a specificmodel: MLD = costant + β * dilationpressure whereβ is the angularcoefficient and shows the change in Y (MLD) given a unitchangeof X (dilationpressure) • β is the parametertoassess, in ordertoappraisewhetherit is differentfrom zero (ie if MLD steadilychangesgiven a change in dilationpressure) • How can we estimate β?

  10. Linear regression Which of these different possible lines that I can graphically trace and compute is the best regression line? It can be intuitively understood that it is the line that minimizes the differences between observed values (yi) and estimated values (yi’)

  11. Linear regression • Linear regression analysis computes a statistical test to assess whether the coefficient of the independent variable is significantly different from zero • If the test has a probability value lower than the critical value (p<0.050), the regression model is valid

  12. Linear regression: different models and precisions

  13. Linear regression The relationship between differences after squaring and further mathematical passage becomes: Total deviance = Residual deviance + Regression deviance The ratio (R2) can be used to test the statistical significance of the regression model, ie the null hypothesis that β equals zero

  14. Linear regression • The best index of regression accuracy is the coefficient of determination: R2 • It varies between 0 (no accuracy) and 1.0 (perfect accuracy) • In other words, R2 express the % of variability of the dependent variable which can be solely and directly explained by variations in the independent variable • Beware of R2>0.90 in biology, in most cases they are fraudulent

  15. Linear regression The difference between observed values and estimated values can be defined by:

  16. Regression Mauri et al, Circulation 2005

  17. Regression Mauri et al, Circulation 2005

  18. Regression Mauri et al, Circulation 2005

  19. What you will learn • Linear regression and correlation for bivariate analysis • Simple linear regression • Regression diagnostics • Correlation analysis • Non-parametric alternatives: Spearman rho

  20. Regression diagnostics • Once a regression model has been constructed, it may be important to confirm the goodness of fit of the model and its statistical significance • Common checks of goodness of fit are: R2, analyses of the pattern of residuals (must be randomly and normally distributed, and have non-constant variance) and hypothesis testing • Statistical significance can be checked by an F-test of the overall fit, followed by t-tests of individual parameters • Interpretations of these diagnostic tests rest heavily on the model assumptions

  21. Regression diagnostics • Although examination of the residuals can be used to invalidate a model, the results of a t-test or F-test are sometimes more difficult to interpret if the model's assumptions are violated • If the error term does not have a normal distribution, in small samples the estimated parameters will not follow normal distributions, which complicates inference • With relatively large samples, however, the central limit theorem (CLT) can be invoked such that hypothesis testing may proceed using asymptotic approximations

  22. Residuals • Residuals are the differences between the predicted values of Y at each value of X • They should be randomly and normally distributed, without any apparent trend or curvature • The plot of the residuals against X provides a visual assessment of the distribution of the residuals – this distribution should appear random (Crawley’s “sky at night”) if the model reasonably predicts the trend in Y

  23. Residual plots

  24. Residual plots

  25. Residual plots

  26. Checklist for linear regression To check that linear regression is an appropriate analysis for these data, ask yourself these questions • Q1: Can the relationship between X and Y be graphed as a straight line? In many experiments the relationship between X and Y is curved, making linear regression inappropriate. Either transform the data, or use a program that can perform nonlinear curve fitting • Q2: Is the scatter of data around the line Gaussian (at least approximately)?   Linear regression analysis assumes that the scatter is Gaussian • Q3: Is the variability the same everywhere? Linear regression assumes that scatter of points around the best-fit line has the same standard deviation all along the curve. The assumption is violated if the points with high or low X values tend to be further from the best-fit line. The assumption that the standard deviation is the same everywhere is termed homoscedasticity

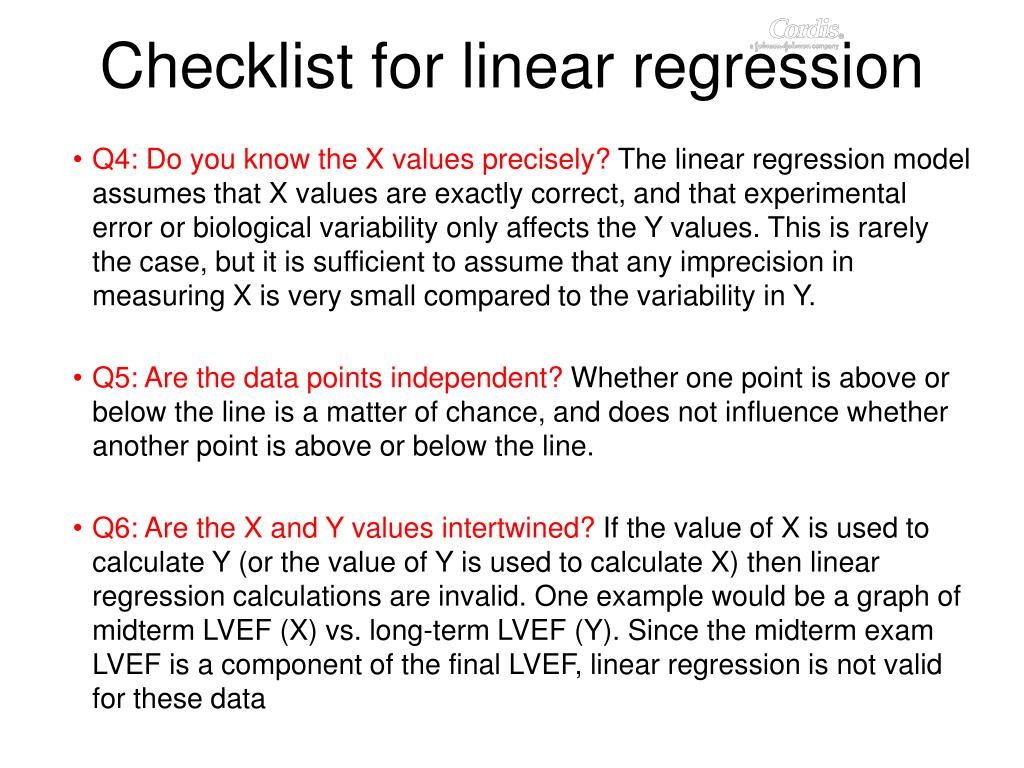

  27. Checklist for linear regression • Q4: Do you know the X values precisely? The linear regression model assumes that X values are exactly correct, and that experimental error or biological variability only affects the Y values. This is rarely the case, but it is sufficient to assume that any imprecision in measuring X is very small compared to the variability in Y. • Q5: Are the data points independent? Whether one point is above or below the line is a matter of chance, and does not influence whether another point is above or below the line. • Q6: Are the X and Y values intertwined? If the value of X is used to calculate Y (or the value of Y is used to calculate X) then linear regression calculations are invalid. One example would be a graph of midterm LVEF (X) vs. long-term LVEF (Y). Since the midterm exam LVEF is a component of the final LVEF, linear regression is not valid for these data

  28. Multiple linear regression • More thanoneindependentvariable can beincluded in the model, yielding a multiple linearregressionmodel: Y = a + β1X1 + β2X2 + β3X3 + …. • Statisticalanalysis can evensimultaneouslyappraise the quantitative contributionofeachβ!

  29. What you will learn • Linear regression and correlation for bivariate analysis • Simple linear regression • Regression diagnostics • Correlation analysis • Non-parametric alternatives: Spearman rho

  30. Correlation • The square root of the coefficient of determination (R2) is the correlation coefficient (R) and shows the degree of linear association between 2 continuous variables, but disregards causation K. Pearson • Assumes values between -1.0 (negative association), 0 (no association), and +1.0 (positive association) • It can be summarized as a point summary estimate, with specific standard error, 95% confidence interval, and p value

  31. Regression and correlation Briguori et al, Eur Heart J 2002

  32. Regression and correlation Briguori et al, Eur Heart J 2002

  33. Correlation Escolar et al, AJC 2007

  34. Correlation Escolar et al, AJC 2007

  35. What about non-linear associations? Each number correspond to the correlation coefficient for linear association (R)

  36. Dangers of not plotting data Four sets of data all with the same R=0.81

  37. What you will learn • Linear regression and correlation for bivariate analysis • Simple linear regression • Regression diagnostics • Correlation analysis • Non-parametric alternatives: Spearman rho

  38. Pearson vs Spearman • Whenever the independent and dependent variables can be assumed to belong to normal distributions, the Pearson linear correlation method can be used, maximizing statistical power and yield • Whenever the data are sparse, rare, and/or not belonging to normal distributions, the non-parametric Spearman correlation method should be used, which yields the rank correlation coefficient (rho), but not its R2 C. Spearman

  39. Spearman rho Abbate et al, JACC 2003

  40. Spearman rho Abbate et al, JACC 2003

  41. Regression and correlation:do-it-yourself with SPSS

  42. Linear regression

  43. Linear regression

  44. Linear regression

  45. Scatterplot

  46. Correlation

  47. Correlation

  48. Correlation

  49. Thank you for your attentionFor any correspondence: gbiondizoccai@gmail.comFor further slides on these topics feel free to visit the metcardio.org website:http://www.metcardio.org/slides.html
