Presentation Transcript


Intravenous sedation monitoring l.jpg

Intravenous Sedation Monitoring

59 AMDG/Dental Squadron

Technician Orientation Module


Training objectives l.jpg

Training Objectives

  • Verification of current BLS training

  • Use of automated monitoring equipment

  • Physiologic norms and overview of medications

  • Overview of medical emergencies

  • “Code Blue” procedures and “Crash Cart” familiarization


Levels of anesthesia l.jpg

Levels of Anesthesia

  • Local anesthesia

  • Conscious Sedation

  • Deep Sedation

  • General Anesthesia

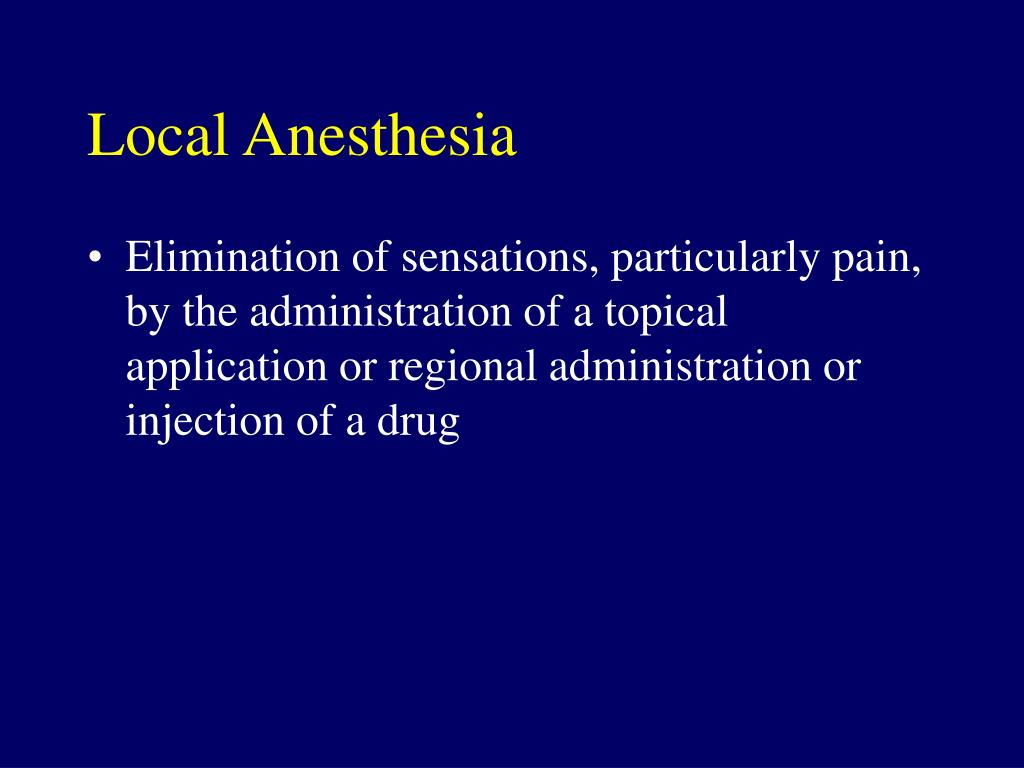

Local anesthesia l.jpg

Local Anesthesia

  • Elimination of sensations, particularly pain, by the administration of a topical application or regional administration or injection of a drug


Conscious sedation l.jpg

Conscious Sedation

  • A minimally depressed level of consciousness which allows the patient to independently and continuously maintain a patent airway and respond appropriately to verbal commands

    • Anxiolysis

    • Moderate Sedation


Deep sedation l.jpg

Deep Sedation

  • A controlled state of depressed consciousness accompanied by a partial loss of protective reflexes and the ability to respond appropriately to verbal commands


General anesthesia l.jpg

General Anesthesia

  • The elimination of all sensation accompanied by the loss of consciousness


Stages of general anesthesia l.jpg

Stages of General Anesthesia

  • Stage I

    • Analgesia

  • Stage II

    • Delirium

  • Stage III

    • Surgical anesthesia

      • 4 planes of surgical anesthesia


Stages of general anesthesia9 l.jpg

Stages of General Anesthesia

  • Stage IV

    • Medullary paralysis


Level of anesthesia l.jpg

Level of Anesthesia

  • In the OMFS clinic, Dunn Dental Clinic and MacKown Dental Clinic …..

    • Stage I

      • Otherwise known as “Conscious Sedation”

  • In the Wilford Hall Medical Center OSOR

    • Stage III

      • “Deep Sedation”

      • General Anesthesia


Provider training l.jpg

Provider Training

  • Must be able to safely manage 1 level of anesthesia beyond plane to be achieved

    • If practicing Deep Sedation you must be able to manage general anesthesia


Technician responsibilities l.jpg

Technician Responsibilities

  • Pre-Procedure

    • Equipment

      • Instruments

      • Venipuncture

      • Monitors

      • Emergency Supplies

        • “Crash Cart”

        • Cardiac Monitor

    • Medications


Technician responsibilities13 l.jpg

Technician Responsibilities

  • Pre-Procedure Patient Assessment

    • Vital Signs

    • Allergies

    • Contacts/Dentures

    • NPO status

    • Changes in medical history

      • URI

      • Hospitalizations

      • Sick family members


Special considerations l.jpg

Special Considerations

  • Pediatric patients

    • Not “little adults”

  • Geriatric patients

    • Unique subclass of patients with physiological changes complicating treatment


Show stoppers l.jpg

“Show Stoppers”

  • Food or fluid intake 6 hours prior to surgery

  • Clear fluid intake within 2 hours of surgery

    • Can read newspaper print when looking through liquid

  • Recent alcohol ingestion

  • Recreational drug use

  • Pregnancy

  • Thyroid Dysfunction


Show stoppers16 l.jpg

“Show Stoppers”

  • Recent asthma attack or respiratory failure

  • Treatment with MAO inhibitors

  • Tricyclic Antidepressants

  • Adrenal Dysfunction

  • Renal Dysfunction


Technician responsibilities17 l.jpg

Technician Responsibilities

  • Pre-Procedure Patient Assessment

    • Informed Consent

    • Escort Present

    • Establishes patient’s mental status

      • Under the influence of alcohol or drugs

      • Oriented to person, place, time

    • Document on AF 1417

      • Clinical Sedation record


Technician responsibilities19 l.jpg

Technician Responsibilities

  • Pre-Procedure Patient Assessment

    • Supplemental oxygen applied

    • Suction functioning


Technician responsibilities20 l.jpg

Technician Responsibilities

  • Intraoperative Responsibilities – “Float”

    • Informed consent signed prior to sedation

    • Name, dose, route and time of all medications documented

    • Procedure begin and end times

    • Prior adverse reactions

    • Pre-medication time and effect


Technician responsibilities21 l.jpg

Technician Responsibilities

  • Intraoperative Responsibilities – “Float”

    • Vital Signs

      • BP

      • Heart Rate

      • Respiratory Rate

      • Oxygen Saturation

      • Level of Consciousness


Technician responsibilities22 l.jpg

Technician Responsibilities

  • Post-operative Responsibilities – “Float”

    • Vital Signs at least every 5 minutes

      • BP

      • Heart Rate

      • Respiratory Rate

      • Oxygen Saturation

      • Level of Consciousness

  • Sedated patients must be continuously monitored until discharged


Slide23 l.jpg

The following values are indicative of the “normal” adult patient. Pediatric and Geriatric patients have different values and unique characteristics for which the anesthesiologist/surgeon must be aware

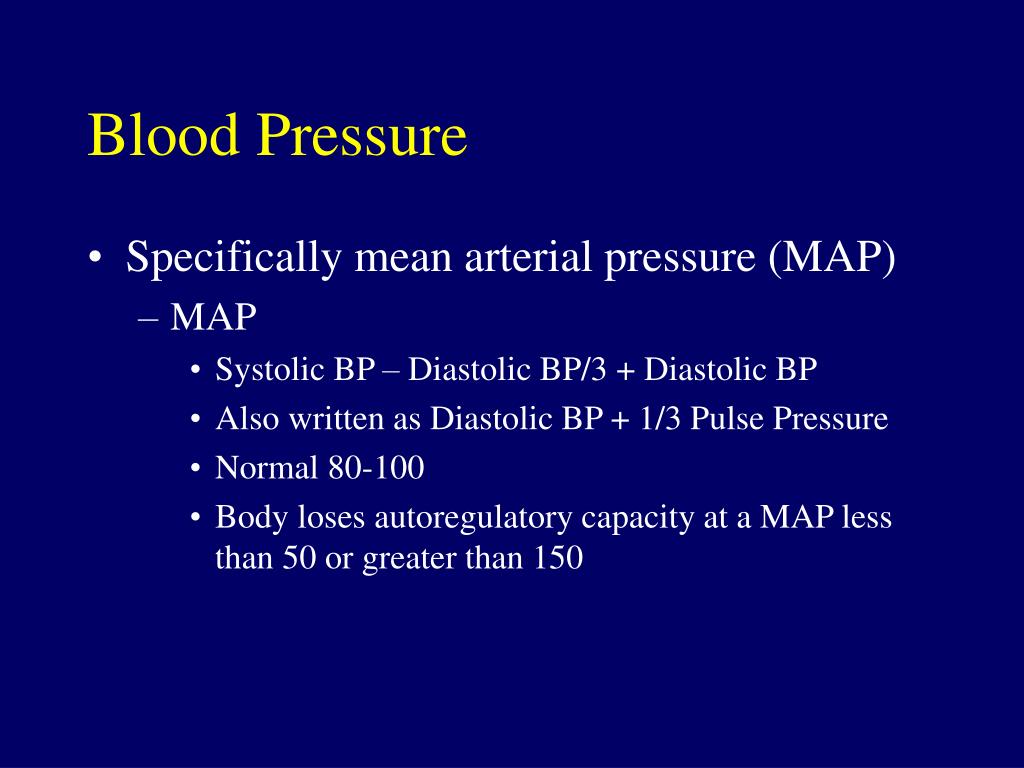

Blood pressure l.jpg

Blood Pressure

  • Specifically mean arterial pressure (MAP)

    • MAP

      • Systolic BP – Diastolic BP/3 + Diastolic BP

      • Also written as Diastolic BP + 1/3 Pulse Pressure

      • Normal 80-100

      • Body loses autoregulatory capacity at a MAP less than 50 or greater than 150


Heart rate l.jpg

Heart Rate

  • Normal range 60-90


Respiratory rate l.jpg

Respiratory Rate

  • Normal range 10-16 per minute


Oxygen saturation l.jpg

Oxygen Saturation

  • Must be greater than 90%

  • Supplemental oxygen via nasal cannula is required in the OMFS clinic during sedation

    • Initially 2-3 liters/minute

  • In the OSOR supplemental oxygen is supplied by nasal cannula or endotracheal tube


Recommended alarm limits l.jpg

Recommended Alarm Limits

  • LowHigh

  • Systolic BP85150

  • Diastolic BP50100

  • Rate BPM50110

  • SP O292100


  • Level of consciousness l.jpg

    Level of Consciousness

    • Must be able to respond to verbal stimuli by the surgeon in the clinic

    • May be greatly sedated or unable to arouse by verbal stimuli in the operating room

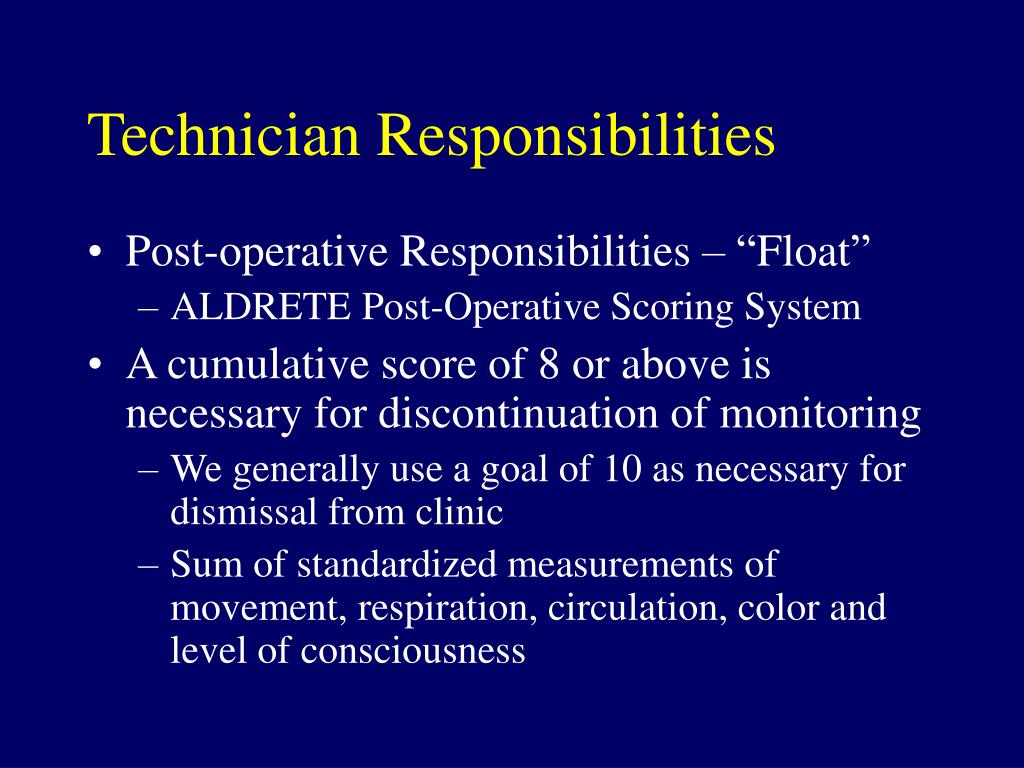

    Technician responsibilities30 l.jpg

    Technician Responsibilities

    • Post-operative Responsibilities – “Float”

      • ALDRETE Post-Operative Scoring System

    • A cumulative score of 8 or above is necessary for discontinuation of monitoring

      • We generally use a goal of 10 as necessary for dismissal from clinic

      • Sum of standardized measurements of movement, respiration, circulation, color and level of consciousness


    Movement l.jpg

    Movement

    • Move all 4 extremities2

    • Move 2 extremities1

    • No control0


    Respiration l.jpg

    Respiration

    • Breathe deep and cough2

    • Dyspnea1

    • No respirations0


    Circulation l.jpg

    Circulation

    • BP +/- 20% pre-sedation level2

    • BP +/- 21-50% pre-sedation level1

    • BP +/- > 50% pre-sedation level0


    Consciousness l.jpg

    Consciousness

    • Fully alert2

    • Arousable1

    • No response0


    Color l.jpg

    Color

    • Pink2

    • Pale, Dusky, Blotchy1

    • Cardboard0


    The key to sedation l.jpg

    The Key to Sedation

    • Local Anesthesia

      • If a poor local anesthetic block has been given, the patient will continue to feel pain throughout the procedure


    Valium diazepam l.jpg

    Valium (Diazepam)

    • Benzodiazepine

    • Produces sleepiness and relief of apprehension

    • Onset of action 1-5 minutes

    • Half-life

      • 30 hours

      • Active metabolites

    • Average sedative dose

      • 10-12 mg


    Versed midazolam l.jpg

    Versed (Midazolam)

    • Short acting benzodiazepine

      • 4 times more potent than Valium

    • Produces sleepiness and relief of apprehension

    • Onset of action 3-5 minutes

    • Half-life

      • 1.2-12.3 hours

    • Average sedative dose

      • 2.5-7.5 mg


    Demerol meperidine l.jpg

    Demerol (Meperidine)

    • Narcotic

    • Pain attenuation and some sedation

    • Onset of action

      • 3-5 minutes

    • Half-life

      • 30-45 minutes

    • Average dose

      • 20-50 mg


    Fentanyl sublimaze l.jpg

    Fentanyl (Sublimaze)

    • Narcotic/Opiod agonist

      • 100 times more potent than Morphine

    • Pain attenuation and some sedation

    • Onset of action around 1 minute

    • Half-life

      • 30-60 minutes

    • Average dose

      • 0.05 – 0.06 mg


    Additional medications l.jpg

    Additional Medications

    • Likely to be seen in scenarios where deeper levels of sedation are being performed

      • Propofol (Diprivan)

      • Robinul (Glycopyrrolate)

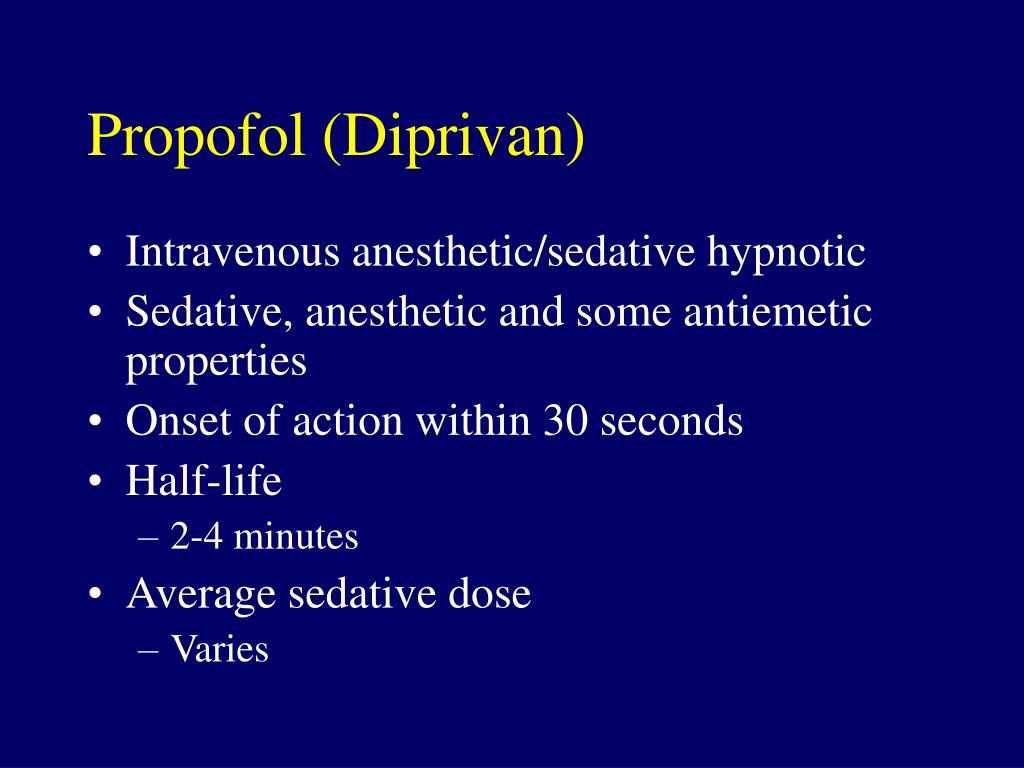

    Propofol diprivan l.jpg

    Propofol (Diprivan)

    • Intravenous anesthetic/sedative hypnotic

    • Sedative, anesthetic and some antiemetic properties

    • Onset of action within 30 seconds

    • Half-life

      • 2-4 minutes

    • Average sedative dose

      • Varies


    Robinul glycopyrrolate l.jpg

    Robinul (Glycopyrrolate)

    • Anticholinergic

      • Heart rate increases

      • Salivary secretions decrease

    • Dose 0.1-0.2 mg

    • Onset of action within 1 minute


    Medical emergency l.jpg

    Syncope

    Hypoglycemia

    Hypotension

    Hypertension

    Bronchospasm

    Laryngospasm

    Apnea

    Myocardial infarction

    Stroke

    Medical Emergency


    Medical emergency45 l.jpg

    Medical Emergency

    • Know when and how to activate a “Code Blue”

    • Location of Crash Cart

      • Medications

      • Monitors

    • Location of emergency medications

    • BLS


    Medical emergency46 l.jpg

    Medical Emergency

    • Know how to prevent, recognize, and treat syncope (fainting)

      • Supplemental O2

      • Elevation of lower extremities

      • Trendelenburg

    • Be prepared to assist in airway management


    Emergency drugs l.jpg

    Emergency Drugs

    • These are included for reference only

    • Technicians should not be administering medications to patients without advanced training in ACLS and direct provider supervision


    Emergency drugs48 l.jpg

    Emergency Drugs

    • Flumazenil (Romazicon)

    • Naloxone (Narcan)

    • Esmolol (Brevibloc)

    • Ephedrine

    • Epinephrine

    • Atropine


    Flumazenil romazicon l.jpg

    Flumazenil (Romazicon)

    • Benzodiazepine antagonist

      • Versed reversal agent

    • Initial dose – 0.2mg

      • May repeat at 1 minute intervals to dose of 1mg

    • Onset of action within 1-2 minutes

    • Must monitor for re-sedation

      • May be repeated at 20 minute intervals as needed


    Naloxone narcan l.jpg

    Naloxone (Narcan)

    • Narcotic antagonist

      • Fentanyl reversal agent

    • Initial dose – 0.4mg

      • May repeat every 2-3 minutes at doses of 0.4-2mg

    • Monitor for re-sedation


    Esmolol brevibloc l.jpg

    Esmolol (Brevibloc)

    • Antihypertensive

    • Beta blocker

    • Initial dose 0.25 –1.0 mg/kg over 30 seconds

      • Short half-life of approximately 10 minutes


    Ephedrine l.jpg

    Ephedrine

    • Used for hypotension

    • Sympathomimetic

    • Initial dose 5-10mg

    • Action may not be seen for several minutes


    Atropine l.jpg

    Atropine

    • Significant bradycardia or asystole

      • Slow heart beat or NO heartbeat

    • Anticholinergic

    • Initial dose 0.25 – 1.0 mg

      • May repeat every 3-5 minutes

      • Maximum total dose .03 mg/kg


    Epinephrine l.jpg

    Epinephrine

    • True emergency medication

    • Administration should be preceded by activation of the 911 emergency response system


    Questions l.jpg

    Questions
