Chapter 17 atmosphere

Chapter 17 Atmosphere

  • Page 365

  • What does the photograph show?

  • How does the quality of the air in the photograph compare to that of your community today?

  • How might the photograph be different if it was taken on the following day?

  • What makes up the atmosphere?

  • How do human activities affect the atmosphere?


Chapter 17 1

Chapter 17.1


The composition of the atmosphere

The composition of the Atmosphere


The atmosphere in balance

The atmosphere in Balance

  • The early atmosphere of the earth was primarily created through volcanic eruptions.

    • Consisted mostly of CO2, SO2, H2O, and Nitrogen

  • Oxygen was thought to have been created in the upper atmosphere by the destruction of water molecules through Photosynthesis

  • Today’s atmosphere (99%) is mostly nitrogen and oxygen

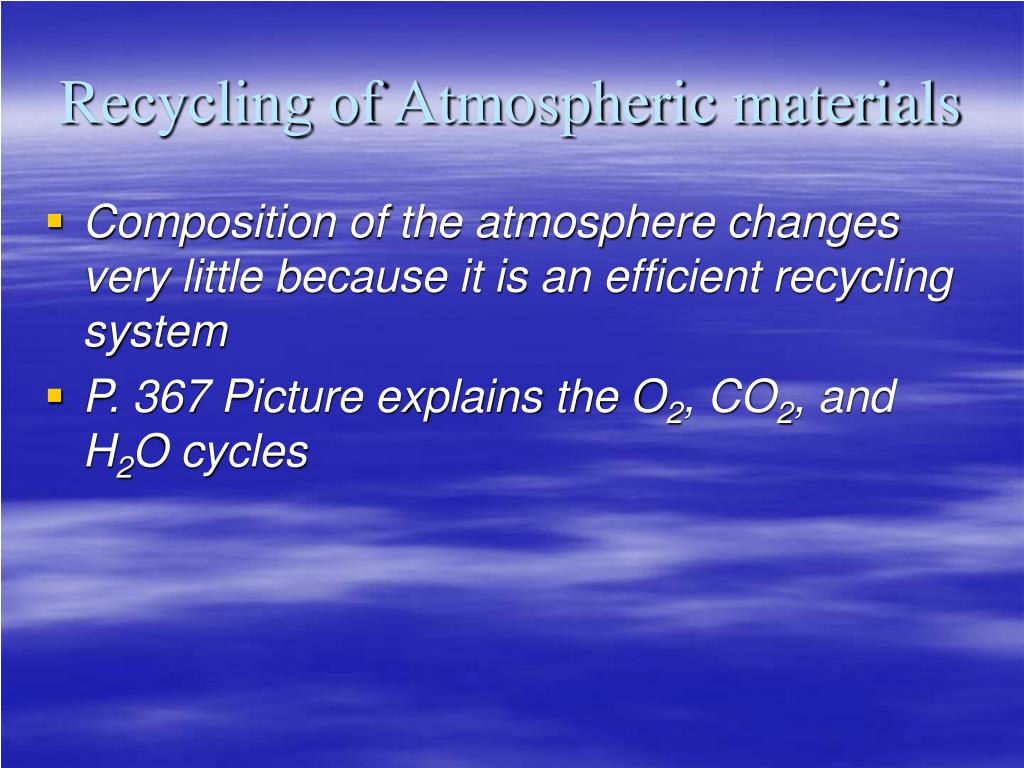

Recycling of atmospheric materials

Recycling of Atmospheric materials

  • Composition of the atmosphere changes very little because it is an efficient recycling system

  • P. 367 Picture explains the O2, CO2, and H2O cycles


A delicate balance

A Delicate Balance

  • The atmosphere may become unbalance by both natural and human origins

    • e.g. CO2 levels in Hawaii have rose 16% between 1959 and 1999


Environmental consultant

Environmental Consultant

Median annual earnings of environmental scientists were $51,080 in May 2004. The middle 50 percent earned between $39,100 and $67,360. The lowest 10 percent earned less than $31,610, and the highest 10 percent earned more than $85,940.

Median annual earnings of hydrologists were $61,510 in May 2004, with the middle 50 percent earning between $47,080 and $77,910, the lowest 10 percent earning less than $38,580, and the highest 10 percent earning more than $94,460.

Median annual earnings in the industries employing the largest number of environmental scientists in May 2004 were as follows:

Federal Government$73,530Management, scientific, and technical consulting services51,190Architectural, engineering, and related services49,160Local government48,870State government 46,850


Chapter 17 2

Chapter 17.2

  • Page 696

  • Convert 70°F  Celsius

  • When is the Fahrenheit Scale used?

  • The Celsius Scale?

  • Which do you prefer?


Heat and the atmosphere

Heat and the Atmosphere

  • Energy from the sun drives the atmosphere


How heat moves

How Heat Moves

  • Radiation – transfer of energy through space in the form of visible light

    • does not require a medium – pass through a vacuum

  • Conduction – transfer of heat energy by touch

    • e.g. air bough warm ground becomes warmer

  • Convection – Transfer of heat energy in a liquid or gas caused by differences in density

    • e.g. warm air heated by the surface of earth becomes less dense and rises


Heat and temperature

Heat and Temperature

  • Temperature – is the measure of the average K.E. of the atoms in the substance

  • Heat is the total KE of all the particles in a substance

    • e.g. A tablespoon of water at 100 Celsius has less heat than a cup of water at 100 Celsius

  • Thermometer is used to measure temperature

    • At sea level water freezes at 0 Celsius and Boils at 100° Celsius


Structure of the atmosphere

Structure of the Atmosphere

  • is divided into 4 layers based on temperature p. 371


Troposphere lowest layer of the atmosphere where all weather occurs

Troposphere – lowest layer of the atmosphere where all weather occurs

  • Temperature decreases with height


Stratosphere clear dry layer above the troposphere

Stratosphere – clear dry layer above the Troposphere

  • Contains the Ozone(O3) Which absorbs UV radiation

  • Temperature increases with increased height


Mesosphere the 3 rd layer

Mesosphere - the 3rd layer

  • Temperature decreases with height


Thermosphere 4 th layer

Thermosphere – 4th layer

  • very thin and separated by layers of different gasses

  • due to the intense solar radiation temperature increases with height

  • contain the ionosphere

  • Auroras are formed when electrically charged particles are attracted to the earth’s poles


Insulation and the atmosphere

Insulation and the Atmosphere

  • Incoming solar radiation is called insulation

  • Earth receives only two-billionths of the suns rays

  • Of 100 units (p. 373) of suns energy 30 reflected back into space, 19 Absorbed by the atmosphere, 51 absorbed by Earth’s surface

  • Unequal insulation caused temperature differences


Discussion global heat budget

Discussion – Global Heat Budget

  • Page 373

  • Explain why most of the atmosphere’s heat energy comes indirectly from the sun.


Chapter 17 3

Chapter 17.3

  • Which surface is likely to be hotter on a sunny day:

    • A parking lot blacktop

    • One with crushed white gravel


Local temperature variations

Local Temperature Variations

  • Caused by insulation (energy) heats Earth’s surface and atmosphere unequally


Intensity of insulation

Intensity of Insulation

  • The angle at which the suns rays strike the earth, the more overhead (90) the more energy

  • Time of day - Suns rays are closest to vertical at noon. However, the highest temperature occur later in the day because of time needed for the surface to create heat using the insulation

  • Latitude and equator 90 more insulation where as high latitude sun rays strike at more of an angle less insulation


Chapter 17 atmosphere

  • Time of year – mid latitude locations have higher temperatures in summer because the rays are more direct than in winter

    • Year’s maximum insulation occurs in June but max temperate are in July, weakest sunlight in December but lowest temps are in January

  • Cloud Cover – more insulation on clear days because clouds reflect sunlight. However, they hold the heat in at night.


Heating of water and land

Heating of Water and Land

  • Water and land warm up and cool off at different rates. Water warms more slowly than land and cools more slowly.

    • Suns energy penetrates water deeper spreading it out

    • Some energy is used in evaporation

    • Water has a higher specific heat

  • Different hard surfaces absorb radiation differently

    • light colored surfaces absorbs less than dark

      • e.g. blacktop gets warmer than grass


Temperature maps p 377

Temperature Maps (p. 377)

  • Land heats and cools off faster than water therefore continents are warmer than nearby oceans in summer and cooler than nearby oceans in winter

  • Isotherm lines on a map connect places of equal temperatures


Chapter 17 4

Chapter 17.4


Human impact on the atmosphere

Human impact on the Atmosphere


Common air pollutants

Common Air Pollutants

  • Air Pollution – any airborne gas or particle that occurs at a concentration capable of harming humans or the environment

  • Clean air act 1970 Identifies 6 key pollutants – CO, NO2, SO2 Pb, O3 and particulates


Chapter 17 atmosphere

Acid Rain – Forms when sulfur dioxide and nitrogen oxides react with water vapor in the air. Then falls out with rain and snow

  • Life forms are sensitive to pH

  • pH scale 0-14 each increase is 10x the prior

  • Increased Acid has killed off lakes in Canada and in upper New York

  • Can also damage limestone structures


Chapter 17 atmosphere

Smog - Photochemical Smog - brown haze that forms in air pollution with nitrogen oxides and hydro carbons that come mainly from cars

  • Creates ground level zones – irritant to lungs and stunts plant growth and yields

  • Temperature inversion – air at surface is colder than the air above trapping pollutants close to the ground


Ozone depletion

Ozone Depletion

  • Thought to be caused by Chlorofluorocarbons. CFC’S are used in aerosols, air conditioners, and solvents that are banned in the U.S.

  • Ozone absorbs UV form the sun that cause skin cancer in humans


Global warming

Global Warming

  • Green house gases such as CO2 trap heat at the earth’s surface

  • Gasses could be increased form the burning of fossil fuels and global deforestation.

  • Possible effects

    • Rising seal levels

    • Increasing frequency and severity of storms

    • More frequent heat waves and droughts

    • Relocation of major crop-growing areas
