Brain Signal Operated Technologies. Brain Signal Controlled Device January 2007. Presentation Outline. Project Background Our Product System Overview High Level Design Business Case Group Dynamics Conclusion Q&A. Roles In Project. Heng Wei Lester Lan (COO, CTO) Victor Yu (CEO, CFO)

Download Presentation

Brain Signal Operated Technologies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Brain Signal Operated Technologies Brain Signal Controlled Device January 2007 BSO Technologies

  2. Presentation Outline • Project Background • Our Product • System Overview • High Level Design • Business Case • Group Dynamics • Conclusion • Q&A BSO Technologies

  3. Roles In Project • Heng Wei Lester Lan (COO, CTO) • Victor Yu (CEO, CFO) • Missing Member 1 • Missing Member 2 • Missing Member 3 • Missing Member 4 BSO Technologies

  4. Project Motivation • Neurological diseases • Degeneration of nerve cells in brain and spinal cord • Cognitive abilities remain intact • 3000 Canadians diagnosed with ALS today • 2 to 3 die each day • Offer an alternative way of living for the disabled BSO Technologies

  5. Projection Motivation http://en.wikipedia.org/wiki/Image:Stephen_Hawking_050506.jpg BSO Technologies

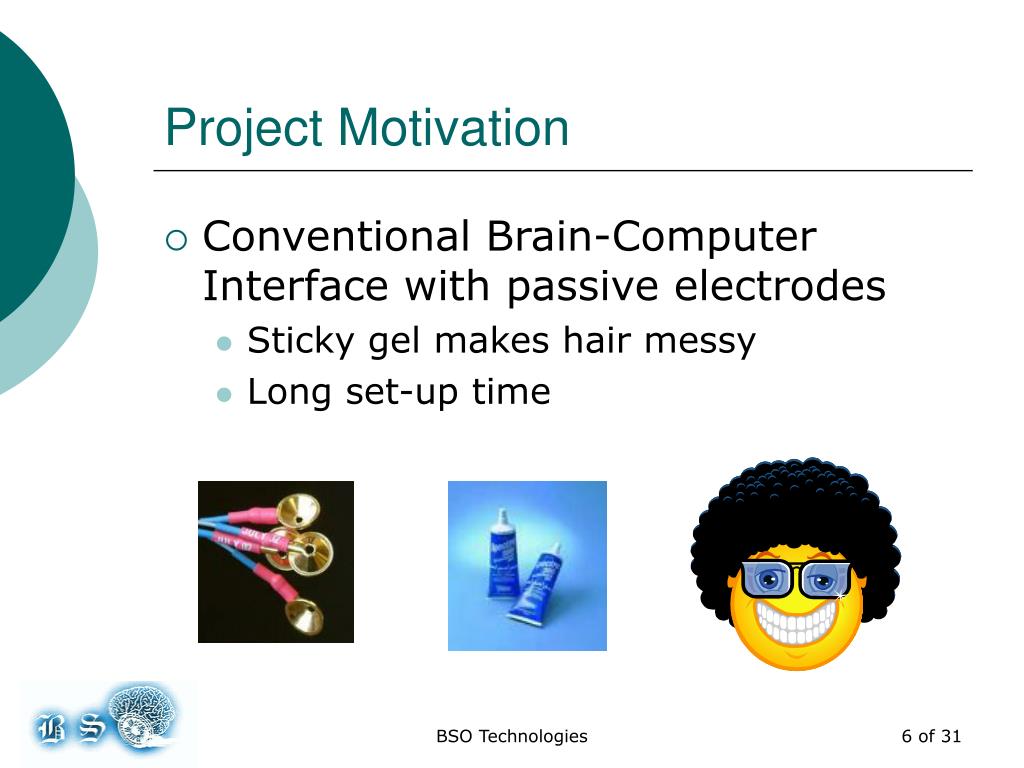

  6. Project Motivation • Conventional Brain-Computer Interface with passive electrodes • Sticky gel makes hair messy • Long set-up time BSO Technologies

  7. Electroencephalography • Place electrodes on scalp • Electrodes detect brain signals • Signals are processed by hardware and software • Alter signals by moving muscles, blinking eyes, sleeping, etc BSO Technologies

  8. System Overview • Modular EEG • Easy to set-up • 2 channels BSO Technologies

  9. Head Gear • Face shield as head gear • Gold pin array as electrode • Ear clip as reference electrode BSO Technologies

  10. Pin Electrodes • 2X5 gold pin arrays • Contact scalp directly • Pressure but no/little pain BSO Technologies

  11. Pre-Amplification • Extract brain signals via electrodes • Instrumentation amplifier increases signal strength • Op-amp prevents other body currents from entering instrumentation amplifier • Send to amp stage through a cable and D-sub connectors BSO Technologies

  12. Amplification and Filtering BSO Technologies

  13. Amplification and Filtering • 2 second-order low pass filters • Amplifier with fixed gain of 100 • Amplifier with variable gain of 1-150 • AC coupled high pass filter • Powered by batteries • Standard DC power supply works too BSO Technologies

  14. DAQ Software PCI Interface • PCI 6024E DAQ • 2 outputs from amp stage connect to 2 analog channels in DAQ • Ground signal from amp stage connect to analog input ground in DAQ Hardware BSO Technologies

  15. Software Implementation BSO Technologies

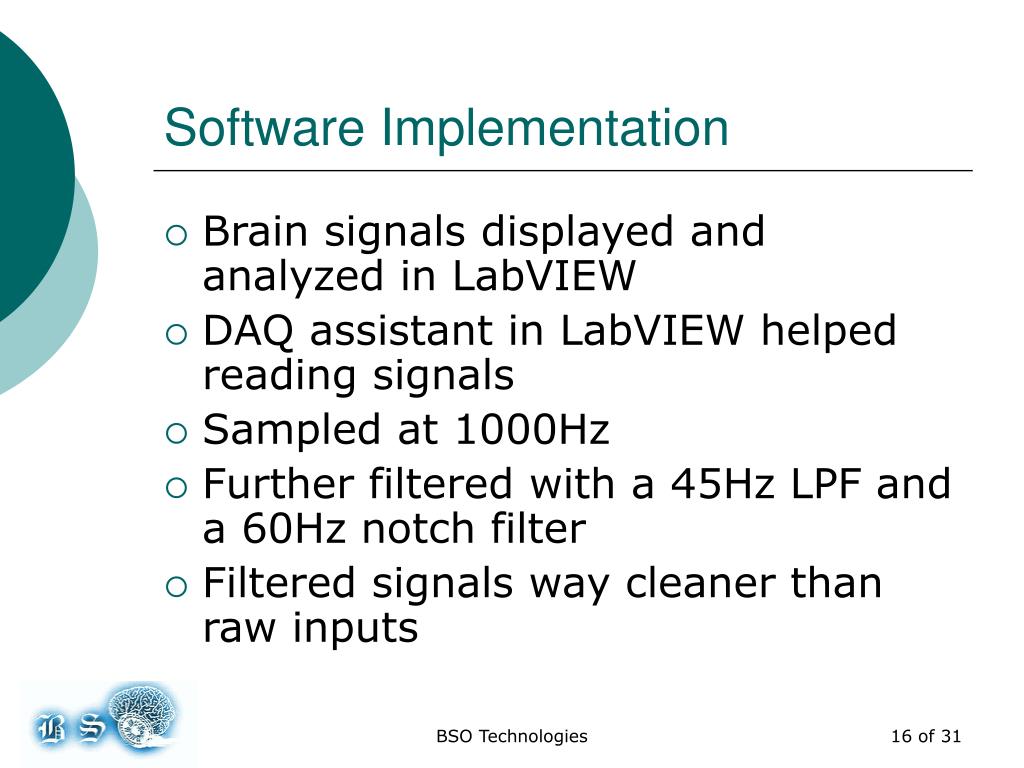

  16. Software Implementation • Brain signals displayed and analyzed in LabVIEW • DAQ assistant in LabVIEW helped reading signals • Sampled at 1000Hz • Further filtered with a 45Hz LPF and a 60Hz notch filter • Filtered signals way cleaner than raw inputs BSO Technologies

  17. Problems Encountered • Electrode placements • No prior biomedical knowledge • Low voltage signal • Interfered by noise • Hard to control brainwaves • Cannot turn on op-amps • AD625 -> INA128 • LabVIEW sampling rate • Long delay time if requesting too many samples BSO Technologies

  18. Results BSO Technologies

  19. Results http://en.wikipedia.org/wiki/Image:Eeg_raw.svg BSO Technologies

  20. Results – Sleepy but Awake BSO Technologies

  21. Marketing Plan • Targeting markets • Researchers • Hospitals • People with disabilities • Provide on-site training • Start in North America and expand worldwide BSO Technologies

  22. Budget Total Project Expense: $360.28 BSO Technologies

  23. Selling Price • Possible unit manufacturing cost of <$50 • Unit selling price of ~$100 • Much lower than that of commercial complex EEG systems • Raise price as more features are being added BSO Technologies

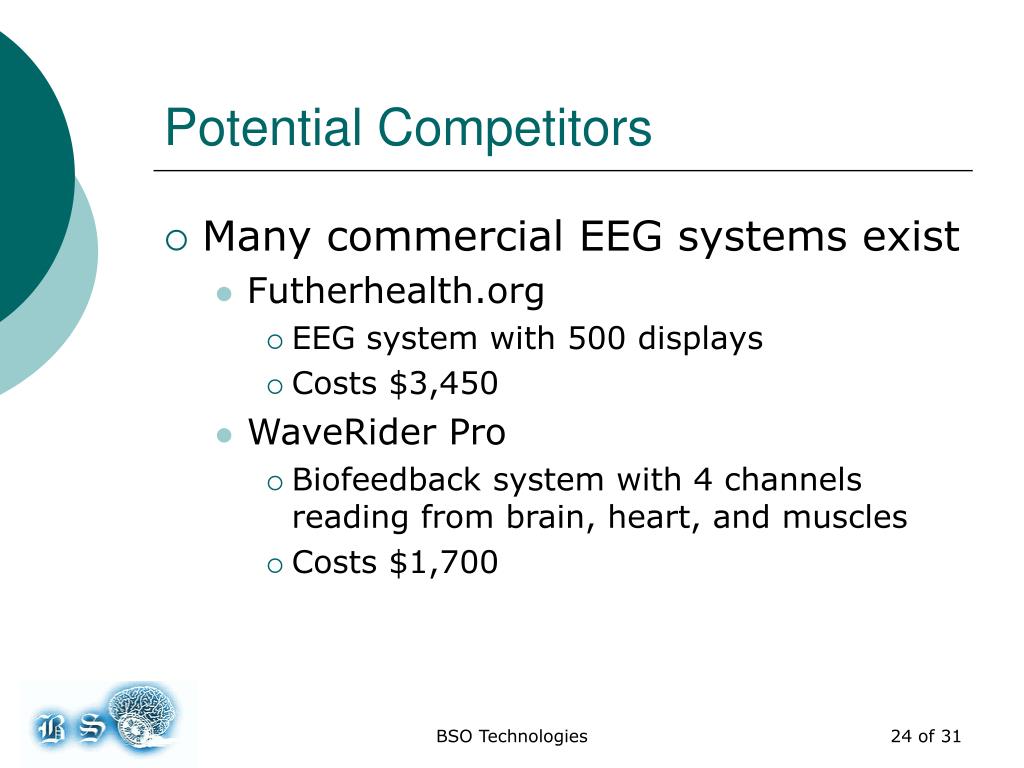

  24. Potential Competitors • Many commercial EEG systems exist • Futherhealth.org • EEG system with 500 displays • Costs $3,450 • WaveRider Pro • Biofeedback system with 4 channels reading from brain, heart, and muscles • Costs $1,700 BSO Technologies
