  1. Enhanced Guide to Oracle10g Chapter 6: Creating Custom Forms

  2. Data Block and Custom Forms • Data block form • Based on data blocks that are associated with specific database tables • Reflect the structure of the database • Custom form • Based on control blocks that process data from multiple tables • Reflect business processes rather than the database structure

  3. Creating a Custom Form • Create the form • Create the form window and canvas manually • Create a control block • Data block that is not associated with a specific table • Contains form items that you manually draw on the canvas • Create form triggers to process data

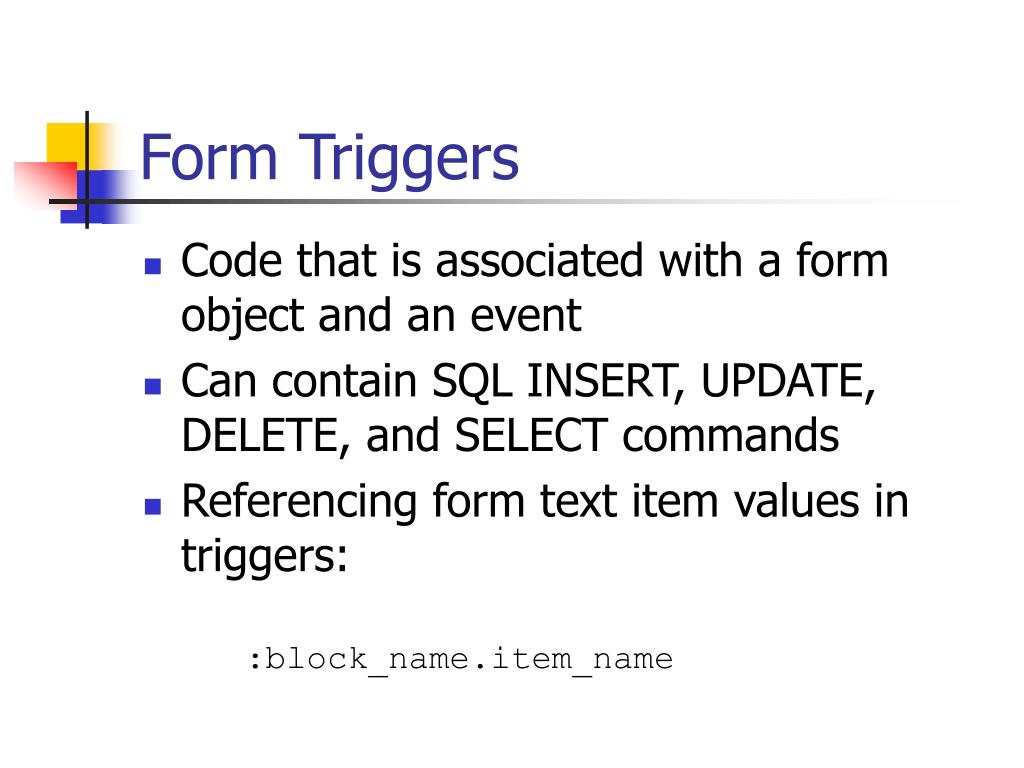

  4. Form Triggers • Code that is associated with a form object and an event • Can contain SQL INSERT, UPDATE, DELETE, and SELECT commands • Referencing form text item values in triggers: :block_name.item_name

  5. Program Units • Self-contained programs • Can be called from PL/SQL triggers • Used to make triggers more modular, and reuse code within triggers

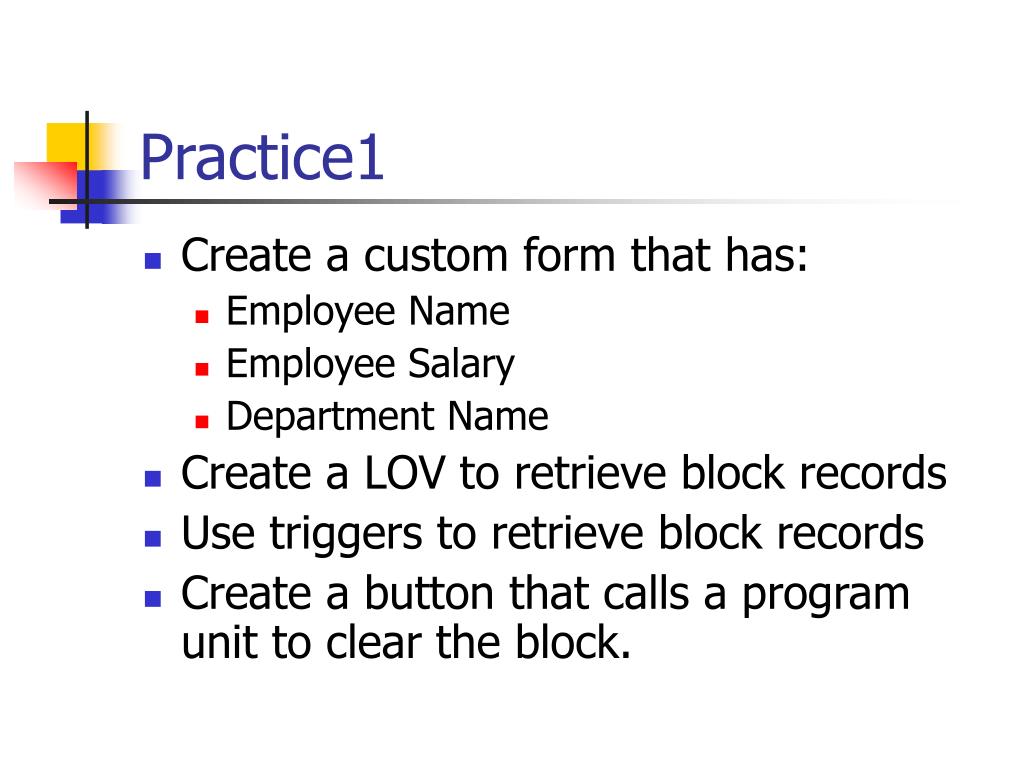

  6. Practice1 • Create a custom form that has: • Employee Name • Employee Salary • Department Name • Create a LOV to retrieve block records • Use triggers to retrieve block records • Create a button that calls a program unit to clear the block.

  7. Referencing System Date and Time Values in Forms

  8. Form Triggers • Categories • Block processing • Interface event • Master-detail processing • Message handling • Navigational • Query time • Transactional • Validation

  9. Trigger Timing • PRE- • Fires just before associated event occurs • POST- • Fires just after associated event occurs • ON-, WHEN-, KEY- • Fires immediately, in response to specific user actions, such as key presses

  10. Trigger Scope • Defines where an event must occur to make the trigger fire • Trigger scope includes the object to which the trigger is attached, as well as all objects within that object • Form-level: fires when event occurs within any block or item in the form • Block-level: fires when event occurs within any item in the form • Item-level: fires only when event occurs within that item

  11. Trigger Execution Hierarchy • If 2 related objects have the same trigger, the lower-level object’s trigger fires instead of the higher-level one. • Form & block, block’s trigger fires • Block & item, item’s trigger fires • You can specify a custom execution order using the Execution Hierarchy property of the trigger.

  12. Navigational Triggers • External navigation: occurs when user causes form focus to change • Internal navigation: occurs as a result of internal form triggers that fire in response to external navigation events

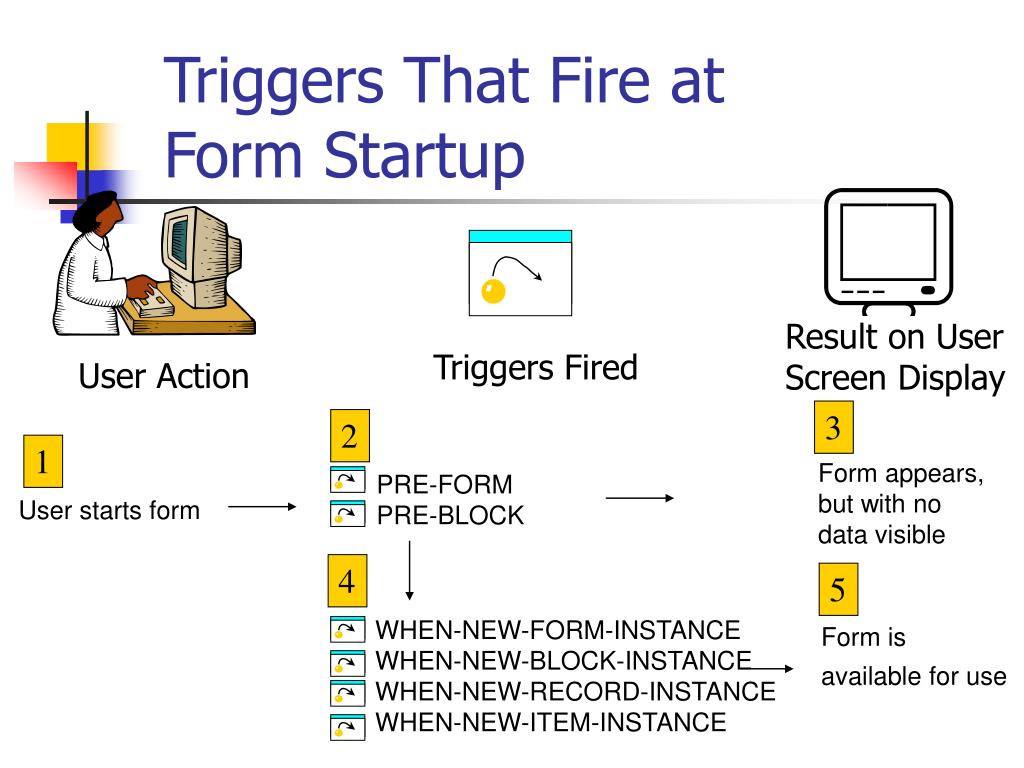

  13. Triggers That Fire at Form Startup Result on User Screen Display Triggers Fired User Action 3 2 1 Form appears, but with no data visible PRE-FORM PRE-BLOCK User starts form 4 5 WHEN-NEW-FORM-INSTANCE WHEN-NEW-BLOCK-INSTANCE WHEN-NEW-RECORD-INSTANCE WHEN-NEW-ITEM-INSTANCE Form is available for use

  14. Triggers That Fire as a Result Of External Navigation Result on User Screen Display Triggers Fired User Action User places the insertion point in a text item Insertion point appears in item WHEN-NEW-ITEM-INSTANCE User clicks the Next Record button Next record appears WHEN-NEW-RECORD-INSTANCE WHEN-NEW-ITEM-INSTANCE

  15. Triggers That Fire When a Form Closes Result on User Screen Display User Action Triggers Fired User closes the Forms Runtime window POST-BLOCK POST-FORM Forms Runtime window closes

  16. Practice2 • Create a department data block. • Create an Update button. • Create a Cancel button that uses a procedure.

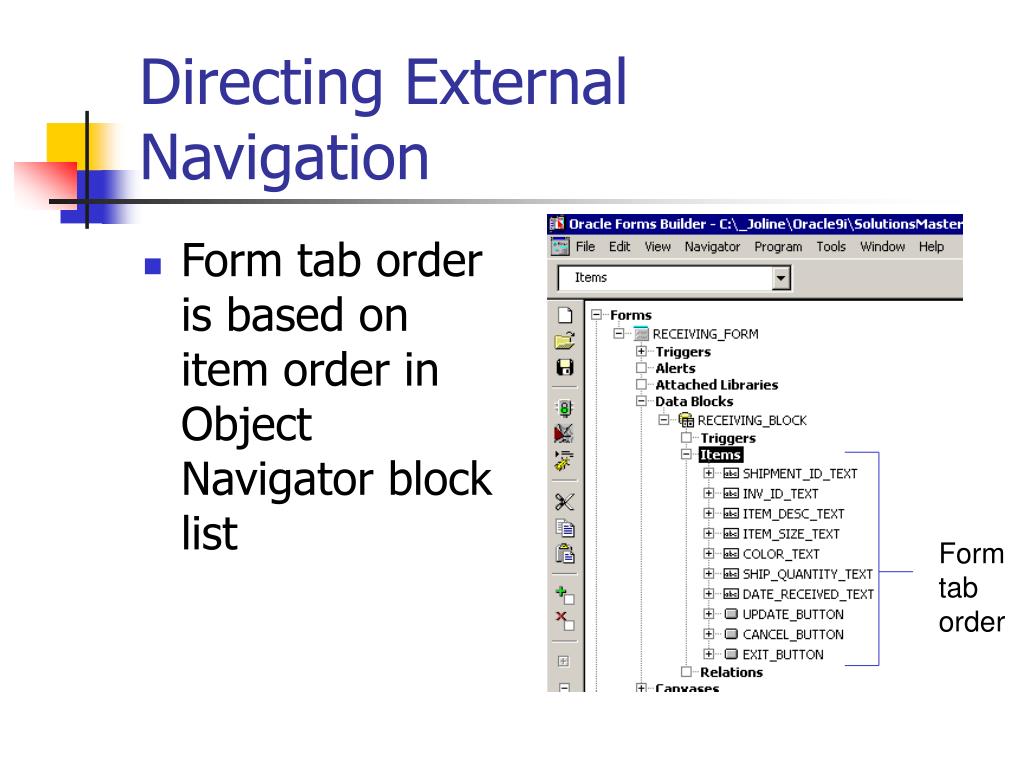

  17. Directing External Navigation • Form tab order is based on item order in Object Navigator block list Form tab order

  18. Moving to a Specific Form Item • GO_ITEM(‘block_name.item_name’); • Do not write colon(:) before the block name in this commnd. • E.g: • GO_ITEM(‘emp.sal’); • Other navigational instructions: • GO_BLOCK(‘block_name’) • GO_FORM(‘form_name’)

  19. Oracle Error Message Severity Levels • 5: informative message • 10: informative message advising user of procedural error • 20: condition that keeps trigger from working correctly • 25 condition that keeps form from working correctly • >25: extreme severity

  20. Suppressing Lower Level System Messages • Set :SYSTEM.MESSAGE_LEVEL variable to a higher level in PRE-FORM trigger :SYSTEM.MESSAGE_LEVEL := 25;

  21. Providing User Feedback in Forms • Message • Text in message line at bottom of form • Informational only; user doesn't have to respond • Alert • Dialog box • Allows user to choose different ways to proceed

  22. Messages • Syntax: MESSAGE(‘message text’); Message

  23. Alerts • Form-level object • Object properties define alert appearance Message Title Style icon Buttons

  24. Code for Displaying an Alert DECLARE alert_button NUMBER; BEGIN alert_button := SHOW_ALERT('alert_name'); IF alert_button = ALERT_BUTTON1 THEN program statements for first button; ELSE program statements for second button; END IF; END;

  25. Avoiding User Errors • Make primary and foreign key text items non-navigable (How?) • When user moves form focus to primary or foreign key text item, move focus to alternate form item (How?)

  26. How to make nonnavigable item? • Set the text item property Keyboard Navigable to NO • Use When New Item Instance or When Mouse Up triggers to make internal navigation from the nonnavigable item.

  27. Trapping Runtime Errors • Create an ON-ERROR event trigger • Form-level trigger • Executes whenever an FRM- or ORA- error occurs • -FRM errors: generated by Forms Runtime • -ORA errors: generated by database

  28. Form Procedures That Return System Error Information • DBMS_ERROR_CODE: The most recent -ORA error number. (Negative Number) • DBMS_ERROR_TEXT: -ORA error message and number. • ERROR_CODE: The most recent FRM error number. (Positive Number) • ERROR_TEXT: FRM error message and number.

  29. Structure of ON-ERROR Trigger BEGIN --trap FRM errors IF ERROR_CODE = FRM_error_code1 THEN error handler; ELSIF ERROR_CODE = FRM_error_code2 THEN error handler; … ELSE --trap ORA errors IF DBMS_ERROR_CODE = -ORA_error_code1 THEN error handler ELSIF DBMS_ERROR_CODE = -ORA_error_code2 THEN error handler … END IF END IF; END; Code to trap –FRM errors Code to trap –ORA errors

  30. Form Validation • Ensures that form data meets preset requirements so erroneous data is not sent to database • Using validation properties or using validation triggers.

  31. Form Validation Categories • Data • Specifies data types, lengths, and maximum and minimum values • Database • Specifies which operations a user can perform on a text item • List of Values • Specifies whether a data value must be validated against the text item’s LOV (Validate From List text item property)

  32. Validation Properties • Validation unit form property: specifies the largest data chunk that the user can enter before validation occurs • Can be performed at the form, block, record, or item level • Specified in the Validation Unit property on the form Property Palette • By default, it is set to item level.

  33. Cont. • You should use the item level with the custom forms, and the record or block level with the data block forms. • The validation properties that are checked always and before checking other properties and triggers are: format mask, required, datatype, range, and validate from list

  34. Text Item Validation Properties • Data Type • Minimum Value • Maximum Value • Validate From List • Insert Allowed • Query Allowed • Required • …

  35. Question Why do not we use validation properties instead of validation triggers?

  36. Answer We use validation triggers for more complex validations. (like what?)

  37. Validation Triggers • When Validate Item • It should be Item level trigger. • Executes when the item validation occurs depending on Validation Unit property. • E.g. : IF NOT :student.s_class IN (‘FR’,’SO’) THEN Message(‘Legal Values are FR and SO); RAISE FORM_TRIGGER_FAILURE; END IF;

  38. How To Disable Buttons • SET_ITEM_PROPERTY • E.g. : SET_ITEM_PROPERTY(‘Control.Delete’ , ENABLED, PROPERTY_FALSE);

  39. Data Blocks vs. Control Blocks • Data block • Easy to create and use • Is associated with a single table, and reflects the table’s structure • Control block • Requires a lot of custom programming • Can contain items from many different tables • You can link data and control blocks to take advantages of the strengths of each

  40. Linking Data Blocks and Control Blocks • Create the control block as the master block • Create the data block as the detail block, but do not create a master-detail relationship • Create a master-detail relationship manually in the WHERE Clause property of the detail block: data_block_field := control_block.text_item

  41. Displaying and Refreshing the Data Block Values • Create a trigger to: • Place the insertion point in the data block GO_BLOCK(‘block_name’); • Flush the data block to make its data consistent with the master block and the database: EXECUTE_QUERY;

  42. Converting a Data Block to a Control Block • Create a data block and layout that contains most of the required text items • Convert the data block to a control block by changing the following block properties: • Database Data Block = No • Required = No

  43. Creating a Form with Multiple Canvases • Users should be able to see all canvas text items without scrolling • For complex applications with many text items, divide application into multiple canvases

  44. Block Navigation Order • First block in Object Navigator Data Blocks list determines block items that first appear when form opens • Users can use the Tab key to navigate among different block items • Canvas that contains block items automatically appears

  45. Block Navigation Order Block order Canvas order doesn’t matter

  46. Controlling Block Navigation • Block Navigation Style property • Same Record: navigation cycles through items on same block • Change Data Block: navigation moves to next data block in list

  47. Canvas • It is the surface that has the form items on it. • It has many types: • Content (The default) • Tab • Stacked • … • To display the canvas at runtime, use the canvas property ‘Window’.

  48. Tab Canvases • Multiple-page canvases that allow users to move among different canvas surfaces by clicking tabs

  49. Tab Canvas Components • Tab canvas • Collection of related tab pages • Tab pages • Surfaces that display form items • Tab labels • Identifier at top of tab page • A tab canvas lies on top of a content canvas

  50. Creating a Tab Canvas • Use the Tab Canvas tool on the Layout Editor tool palette to draw a tab canvas on an existing content canvas • By default, a new tab canvas has 2 tab pages • Create new tab pages as needed • Adjust tab page properties
