Wifi direct

安卓系统下关于WiFi-Direct的研究

  • 姓名:龚强

  • 学号:10274003

  • 班级:思源1001

  • 指导老师:陈一帅


Contents

1

2

3

4

Wifi-direct的介绍

WiFi-Direct与快传、蓝牙等的比较

WiFi-Direct在多人通信时存在的问题

解决多人通信问题的中间件

Contents

Company Logo


Wifi direct1

WiFi-Direct的拓扑结构


Wifi direct2

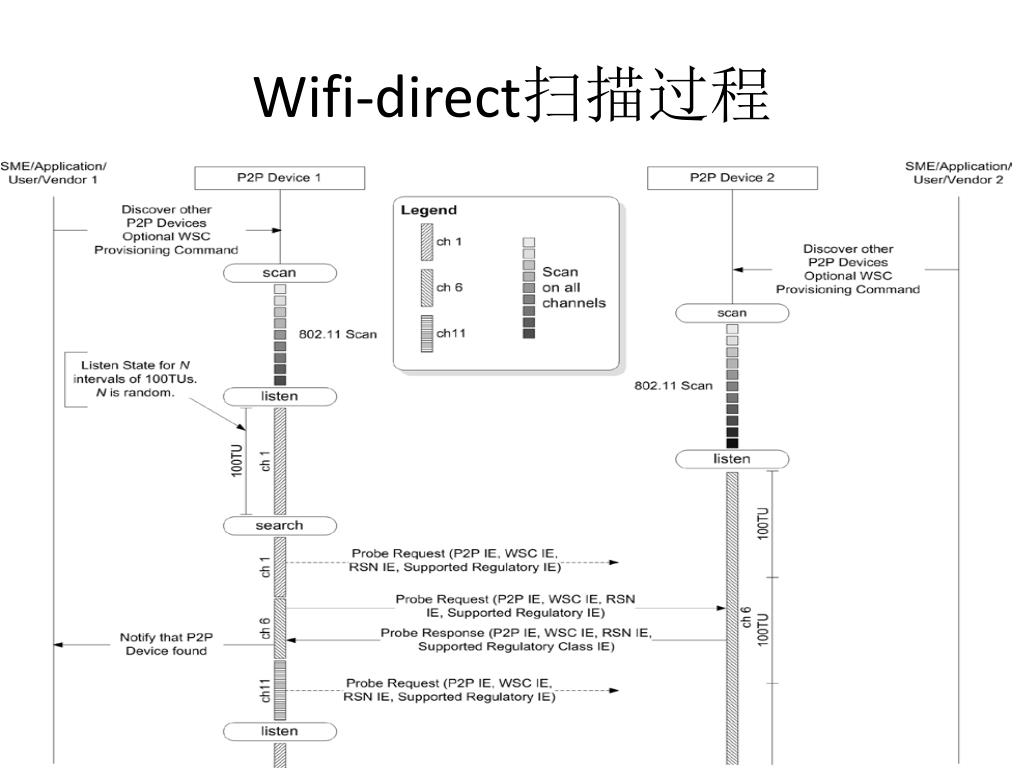

Wifi-direct扫描过程


Wifi direct3

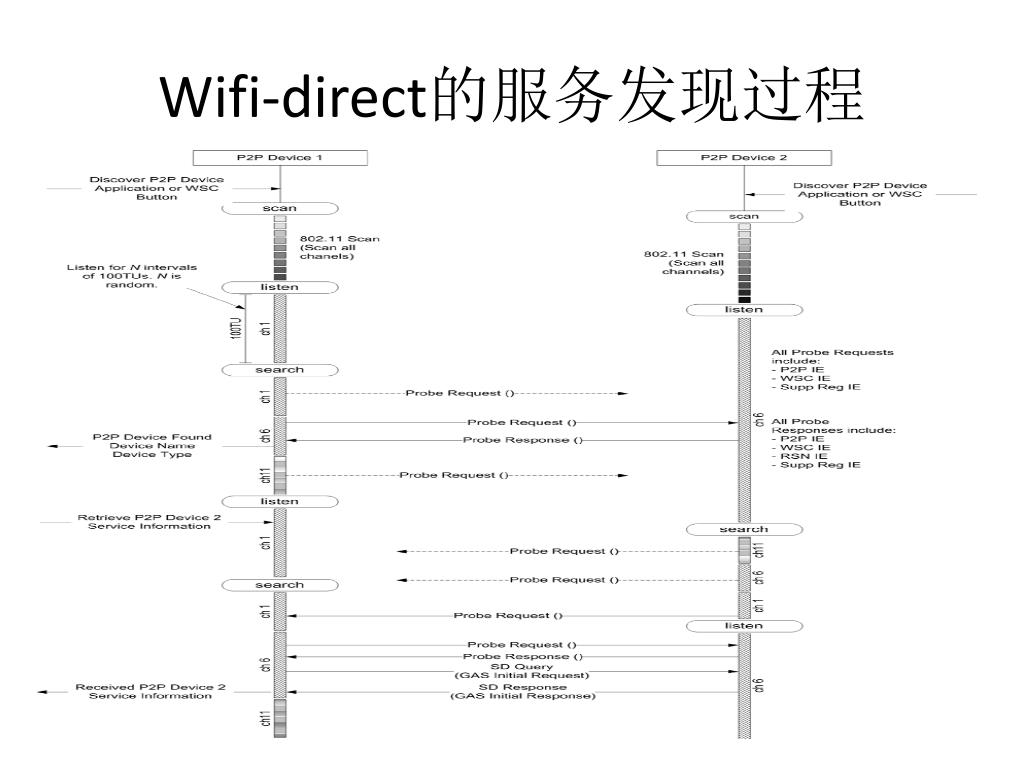

Wifi-direct的服务发现过程


Wifi direct4

Wifi-direct的小组建立过程


Wifi direct5

WiFi-Direct与茄子快传在待机功耗上的比较


Wifidirect

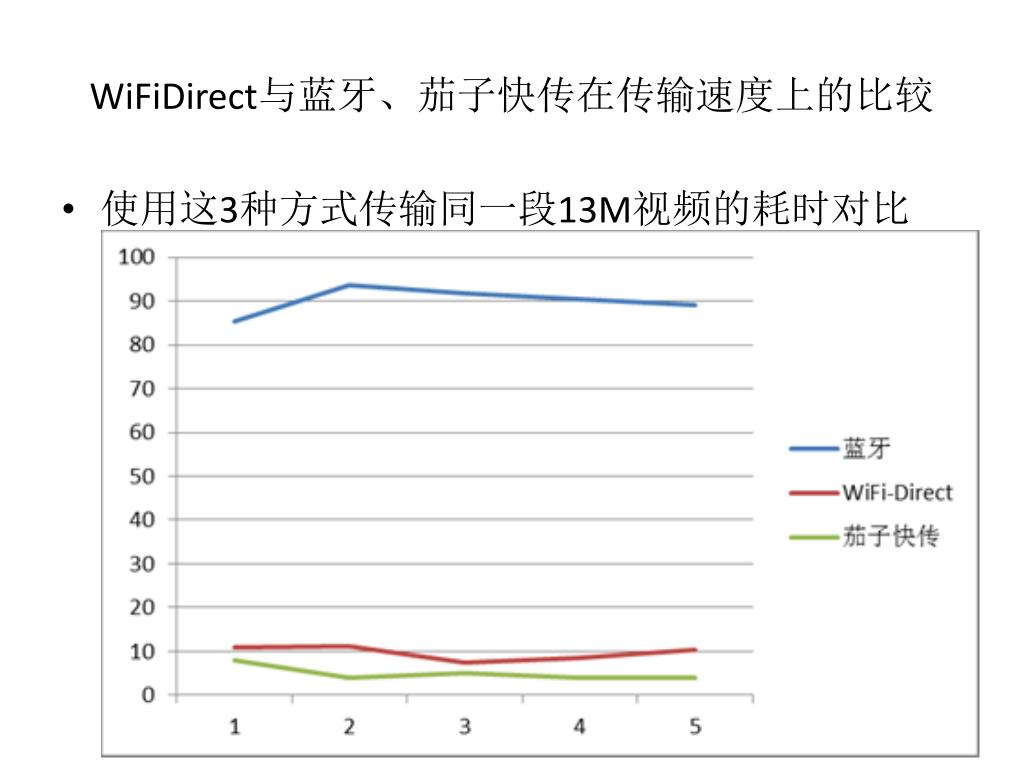

WiFiDirect与蓝牙、茄子快传在传输速度上的比较

  • 使用这3种方式传输同一段13M视频的耗时对比


Wifi direct6

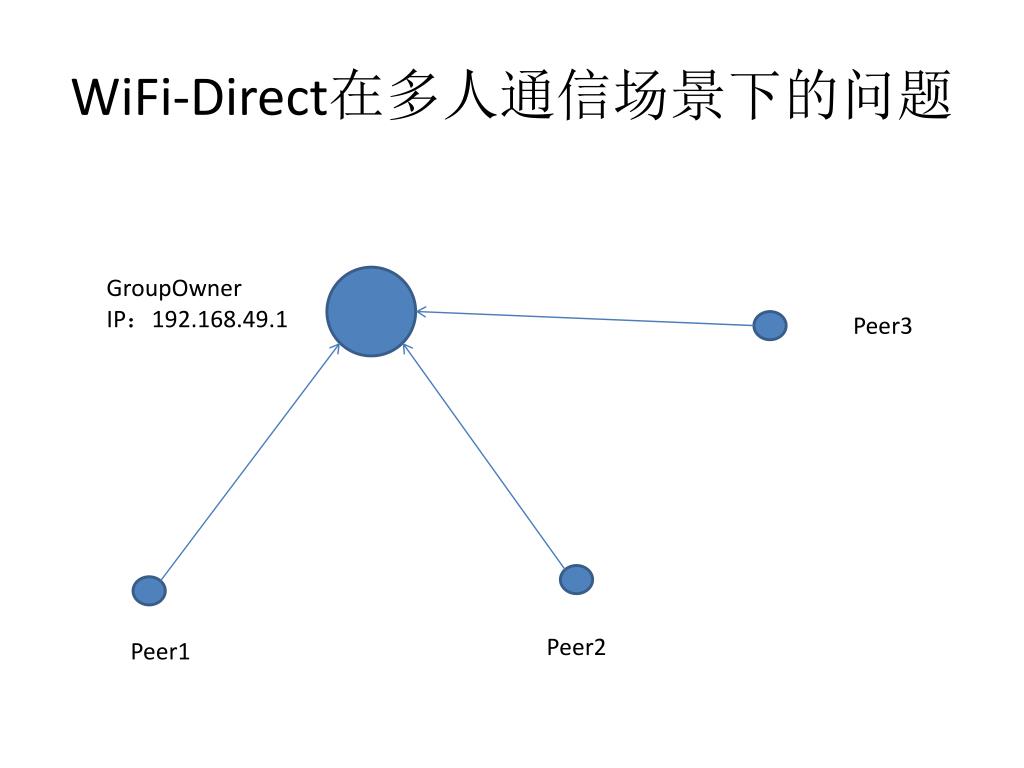

WiFi-Direct在多人通信场景下的问题

GroupOwner

IP:192.168.49.1

Peer3

Peer2

Peer1


Wifi direct

中间件的设计

  • 当设备成立或加入小组则给GO发送自己的MAC地址

GroupOwner

Mac3

Peer3

Mac1

Mac2

Peer1

Peer2


Go mac ip

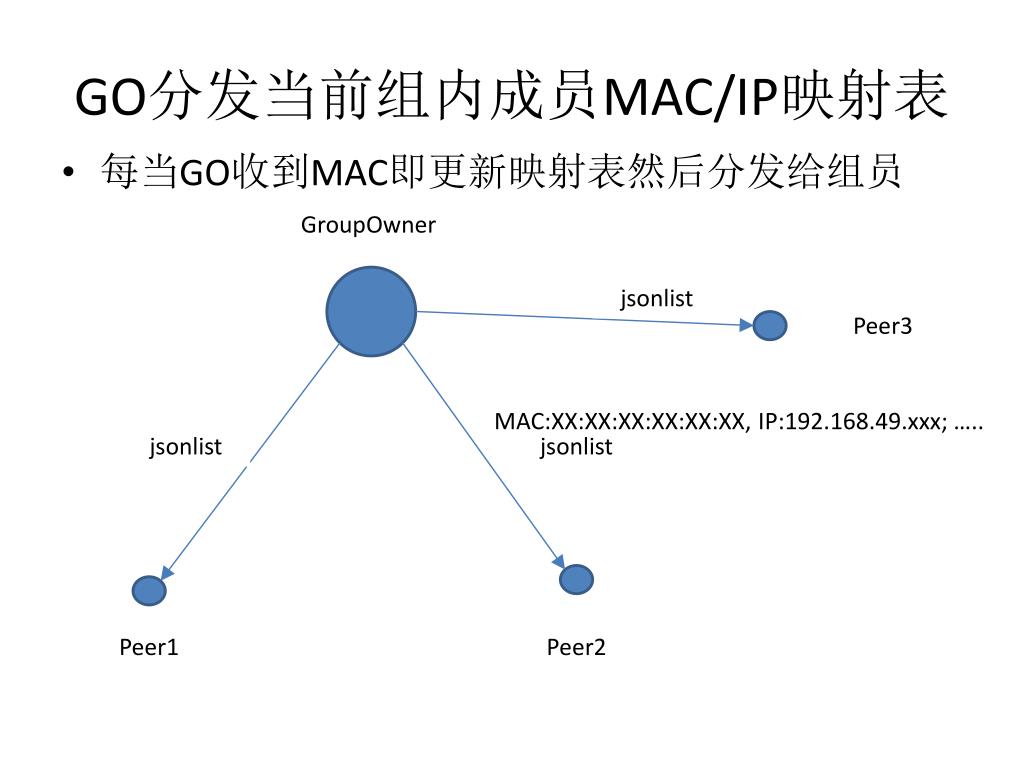

GO分发当前组内成员MAC/IP映射表

  • 每当GO收到MAC即更新映射表然后分发给组员

GroupOwner

jsonlist

Peer3

MAC:XX:XX:XX:XX:XX:XX, IP:192.168.49.xxx; …..

jsonlist

jsonlist

Peer1

Peer2
