  1. Jure Leskovec Machine Learning Department Carnegie Mellon University Dynamics of large networks Thesis defense, September 3 2008

  2. Web: Rich data • Today: Large on-line systems have detailed records of human activity • On-line communities: • Facebook (64 million users, billion dollar business) • MySpace (300 million users) • Communication: • Instant Messenger (~1 billion users) • News and Social media: • Blogging (250 million blogs world-wide, presidential candidates run blogs) • On-line worlds: • World of Warcraft (internal economy 1 billion USD) • Second Life (GDP of 700 million USD in ‘07) Can study phenomena and behaviors at scales that before were never possible

  3. Rich data: Networks c) Social networks b) Internet (AS) a) World wide web d) Communication e) Citations f) Biological networks

  4. Networks: What do we know? • We know lots about the network structure: • Properties: Scale free [Barabasi ’99], Clustering [Watts-Strogatz ‘98], Navigation [Adamic-Adar ’03, LibenNowell ’05],Bipartite cores [Kumar et al. ’99], Network motifs [Milo et al. ‘02], Communities [Newman ‘99], Conductance [Mihail-Papadimitriou-Saberi ‘06], Hubs and authorities [Page et al. ’98, Kleinberg ‘99] • Models: Preferential attachment [Barabasi ’99], Small-world [Watts-Strogatz ‘98], Copying model [Kleinberg el al. ’99], Heuristically optimized tradeoffs [Fabrikant et al. ‘02],Congestion [Mihail et al. ‘03], Searchability [Kleinberg ‘00],Bowtie [Broder et al. ‘00], Transit-stub [Zegura ‘97], Jellyfish [Tauro et al. ‘01] We know much less about processes and dynamics of networks

  5. This thesis: Network dynamics • Network evolution • How network structure changes as the network grows and evolves? • Diffusion and cascading behavior • How do rumors and diseases spread over networks? • Large data • Observe phenomena that is “invisible” at smaller scales

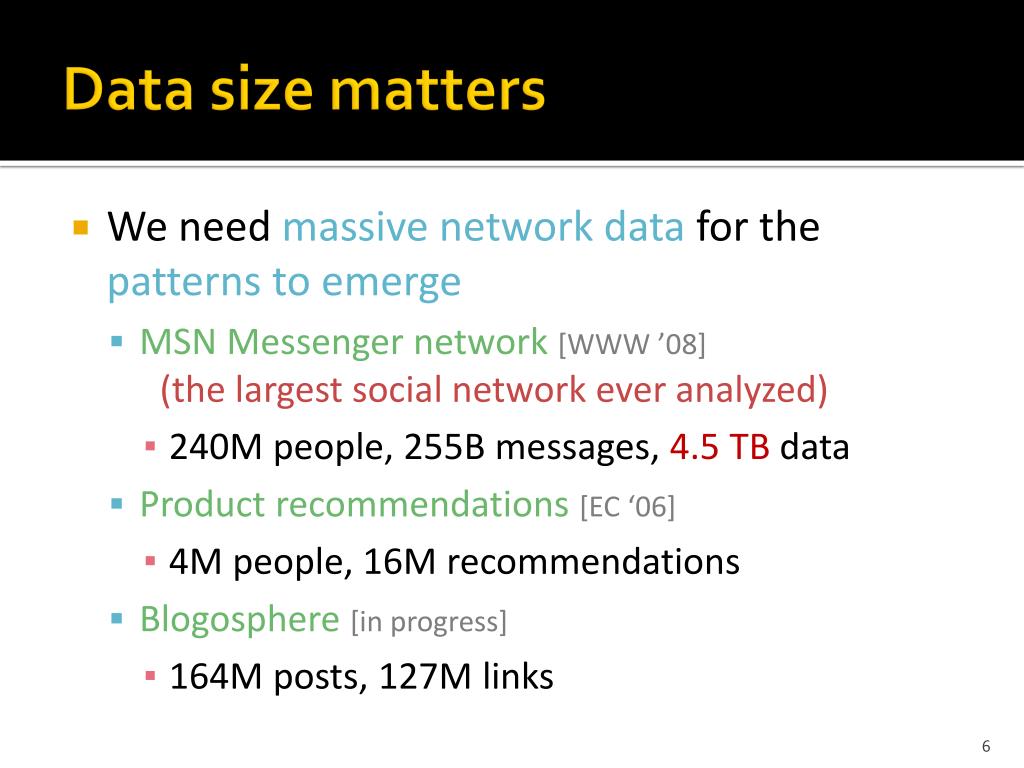

  6. Data size matters • We need massive network data for the patterns to emerge • MSN Messenger network[WWW ’08] (the largest social network ever analyzed) • 240M people, 255B messages, 4.5 TB data • Product recommendations [EC ‘06] • 4M people, 16M recommendations • Blogosphere[in progress] • 164M posts, 127M links

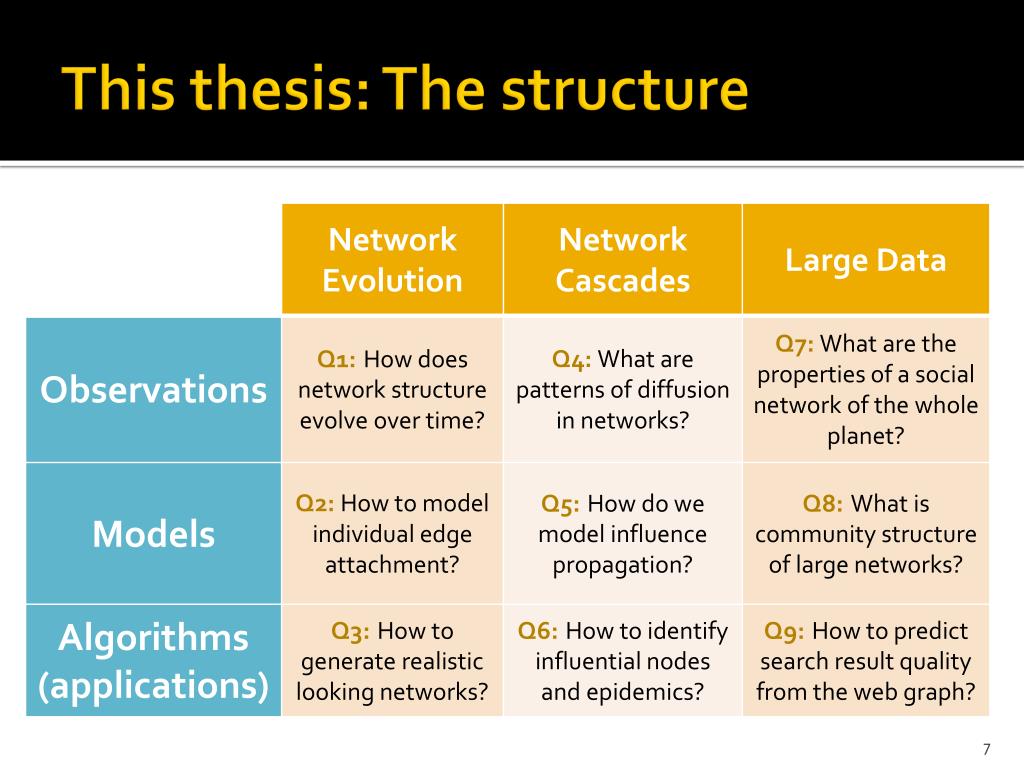

  7. This thesis: The structure

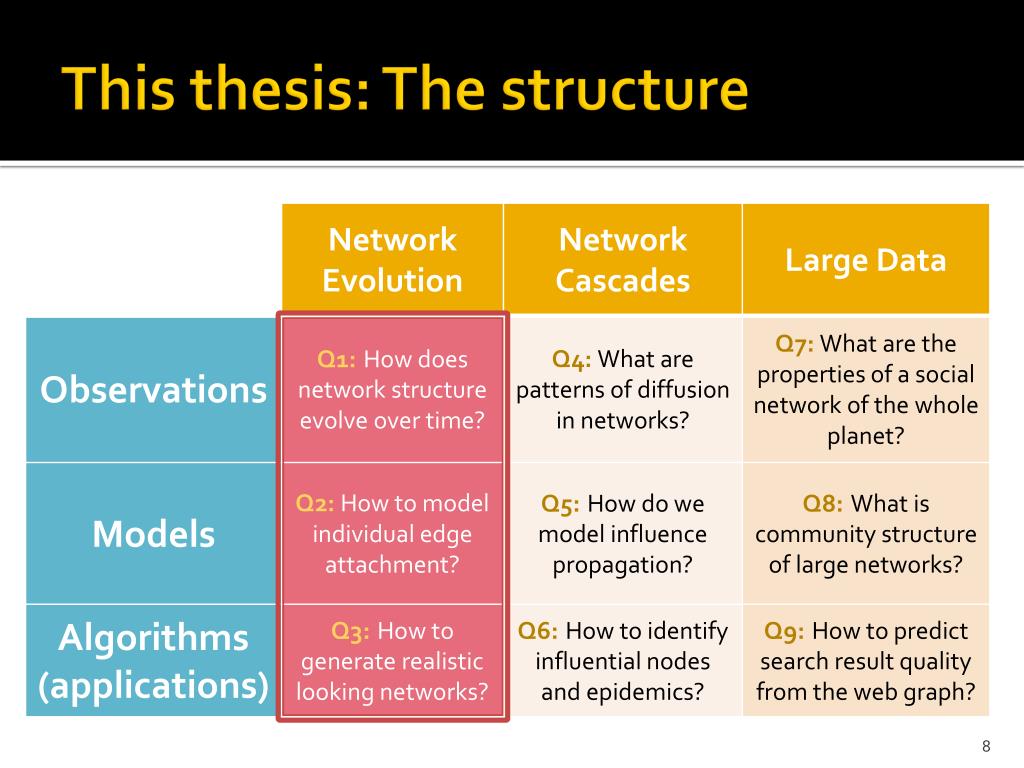

  8. This thesis: The structure

  9. Background: Network models • Empirical findings on real graphs led to new network models • Such models make assumptions/predictions about other network properties • What about network evolution? Model Explains log prob. Power-law degree distribution Preferential attachment log degree

  10. [w/ Kleinberg-Faloutsos, KDD ’05] Q1) Network evolution Internet • Networks are denser over time • Densification Power Law: a … densification exponent (1 ≤ a ≤ 2) • What is the relation between the number of nodes and the edges over time? • Prior work assumes: constant average degree over time E(t) a=1.2 N(t) Citations E(t) a=1.6 N(t)

  11. [w/ Kleinberg-Faloutsos, KDD ’05] Q1) Network evolution Internet • Prior models and intuition say that the network diameter slowly grows (like log N, log log N) • Diameter shrinks over time • as the network grows the distances between the nodes slowly decrease diameter size of the graph Citations diameter time

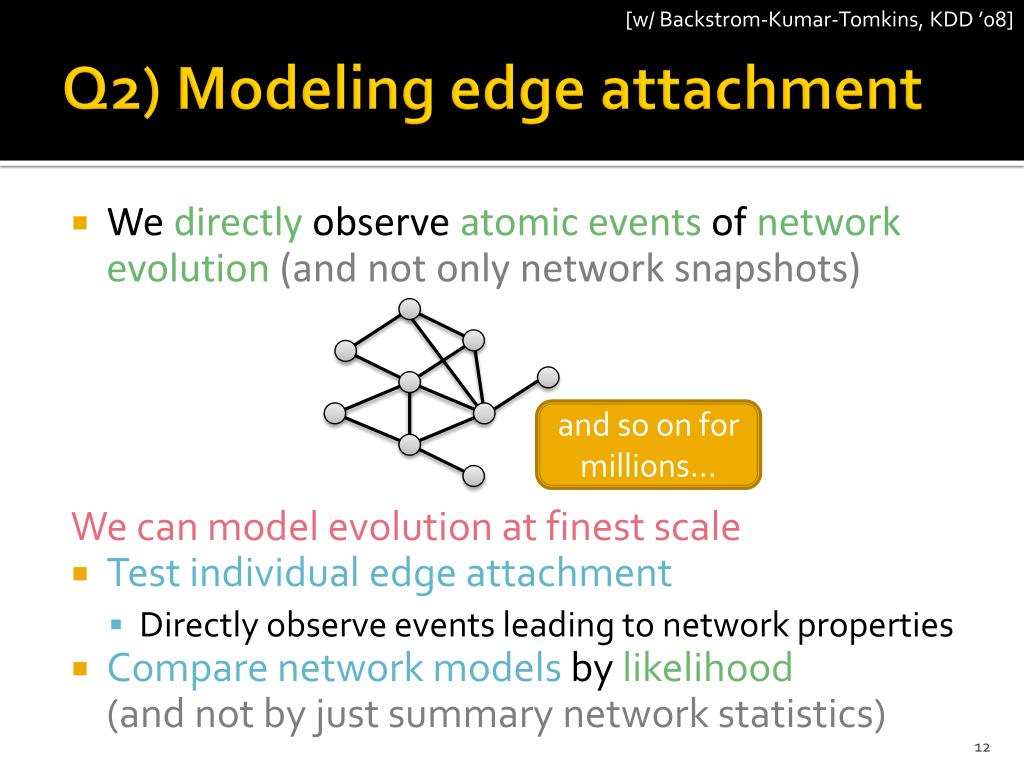

  12. [w/ Backstrom-Kumar-Tomkins, KDD ’08] Q2) Modeling edge attachment • We directly observe atomic events of network evolution(and not only network snapshots) and so on for millions… We can model evolution at finest scale • Test individual edge attachment • Directly observe events leading to network properties • Compare network models by likelihood (and not by just summary network statistics)

  13. [w/ Backstrom-Kumar-Tomkins, KDD ’08] Setting: Edge-by-edge evolution • Network datasets • Full temporal information from the first edge onwards • LinkedIn (N=7m, E=30m), Flickr (N=600k, E=3m), Delicious (N=200k, E=430k), Answers (N=600k, E=2m) • We model 3 processes governing the evolution • P1) Node arrival: node enters the network • P2) Edge initiation: node wakes up, initiates an edge, goes to sleep • P3) Edge destination: where to attach a new edge • Are edges more likely to attach to high degree nodes? • Are edges more likely to attach to nodes that are close?

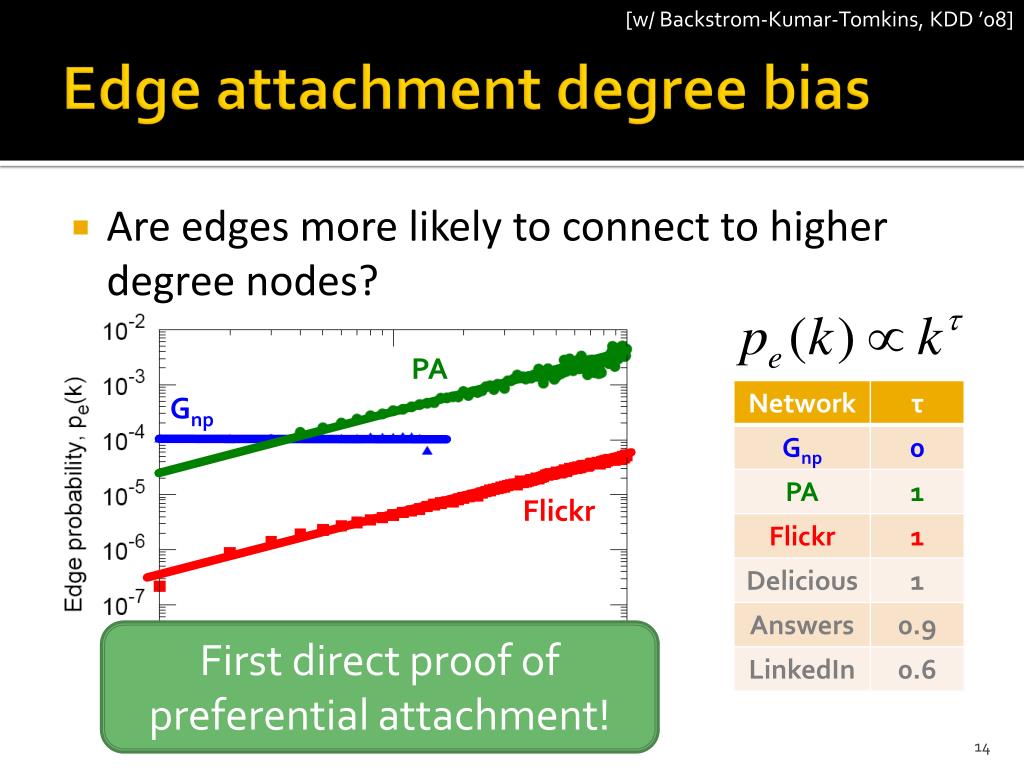

  14. [w/ Backstrom-Kumar-Tomkins, KDD ’08] Edge attachment degree bias • Are edges more likely to connect to higher degree nodes? PA Gnp Flickr First direct proof of preferential attachment!

  15. [w/ Backstrom-Kumar-Tomkins, KDD ’08] But, edges also attach locally • Just before the edge (u,w) is placed how many hops is between u and w? w Fraction of triad closing edges u PA v Gnp Flickr Real edges are local. Most of them close triangles!

  16. [w/ Backstrom-Kumar-Tomkins, KDD ’08] How to best close a triangle? • New triad-closing edge (u,w) appears next • We model this as: • uchooses neighbor v • v chooses neighbor w • Connect (u,w) • We consider 25 triad closing strategies • and compute their log-likelihood • Triad closing is best explained by • choosing a node based on the number of common friends and time since last activity • (just choosing random neighbor also works well) w u v

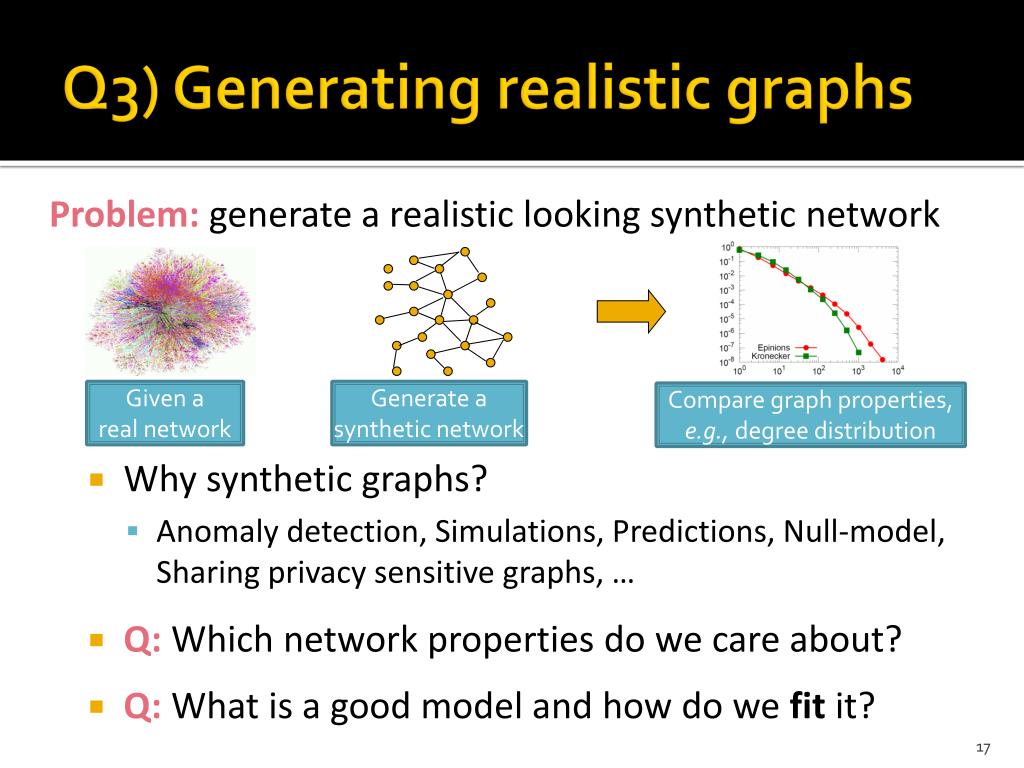

  17. Q3) Generating realistic graphs Problem: generate a realistic looking synthetic network • Why synthetic graphs? • Anomaly detection, Simulations, Predictions, Null-model, Sharing privacy sensitive graphs, … • Q:Which network properties do we care about? • Q:What is a good model and how do we fit it? Given a real network Generate a synthetic network Compare graph properties, e.g., degree distribution

  18. [w/ Chakrabarti-Kleinberg-Faloutsos, PKDD ’05] Q3) The model: Kronecker graphs Edge probability Edge probability • We prove Kronecker graphs mimic real graphs: • Power-law degree distribution, Densification, Shrinking/stabilizing diameter, Spectral properties pij (3x3) (9x9) (27x27) Initiator Given a real graph. How to estimate the initiator G1? Kronecker product of graph adjacency matrices

  19. [w/ Faloutsos, ICML ’07] Q5) Kronecker graphs: Estimation • Maximum likelihood estimation • Naïve estimation takes O(N!N2): • N!for different node labelings: • Our solution: Metropolis sampling: N! (big) const • N2 for traversing graph adjacency matrix • Our solution: Kronecker product (E << N2):N2E • Do stochastic gradient descent P( | ) Kronecker arg max We estimate the model in O(E)

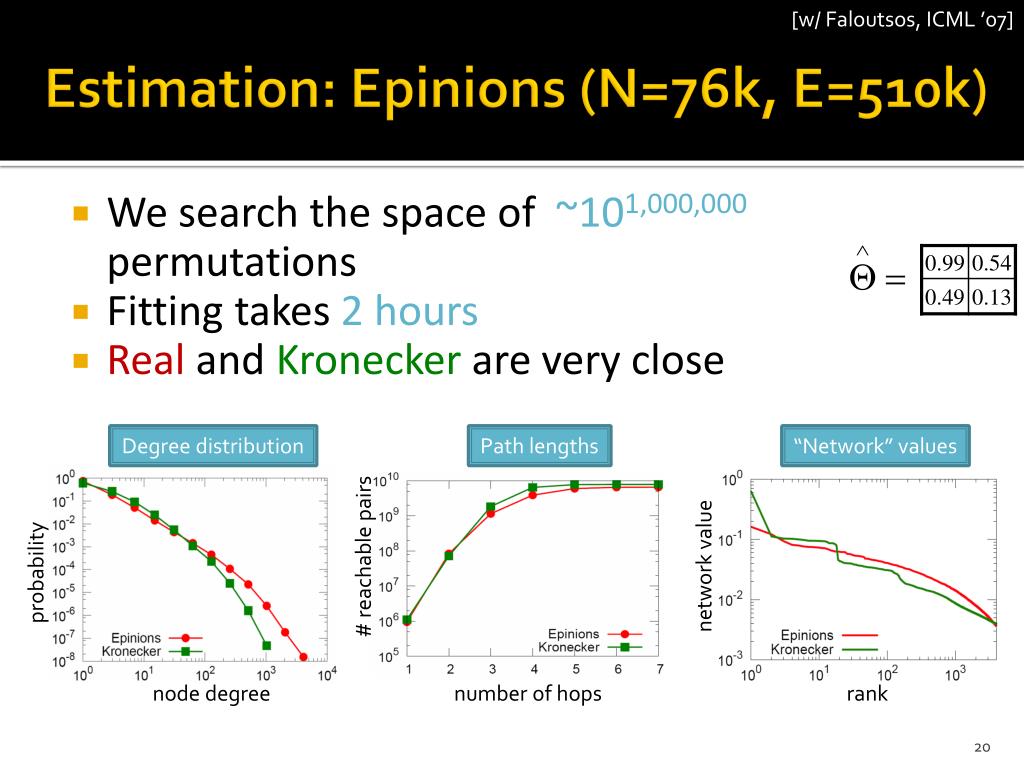

  20. [w/ Faloutsos, ICML ’07] Estimation: Epinions (N=76k, E=510k) • We search the space of ~101,000,000 permutations • Fitting takes 2 hours • Real and Kronecker are very close Degree distribution Path lengths “Network” values probability # reachable pairs network value node degree rank number of hops

  21. Thesis: The structure

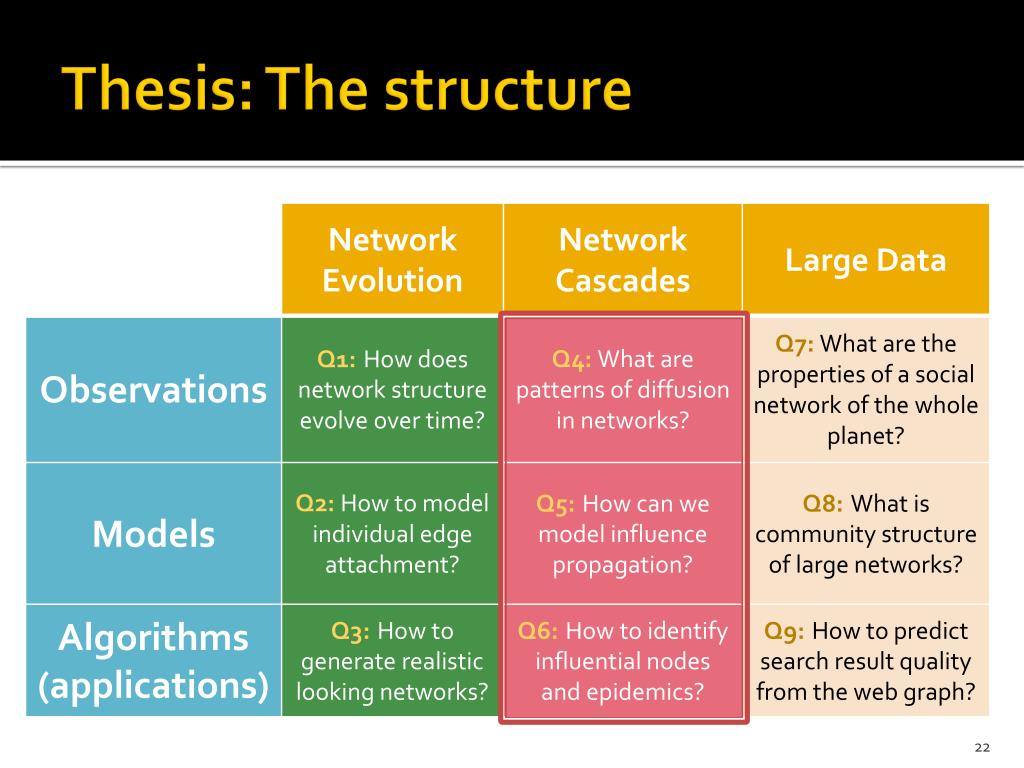

  22. Thesis: The structure

  23. Part 2: Diffusion and Cascades • Behavior that cascades from node to node like an epidemic • News, opinions, rumors • Word-of-mouth in marketing • Infectious diseases • As activations spread through the network they leave a trace – a cascade We observe cascading behavior in large networks Cascade (propagation graph) Network

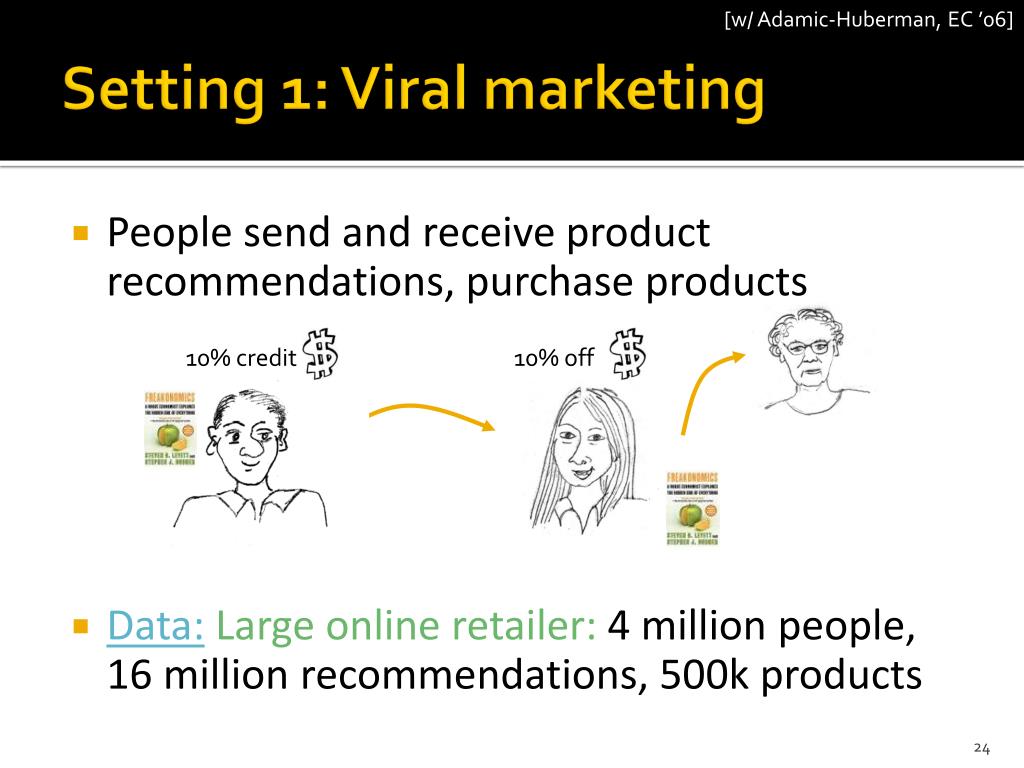

  24. [w/ Adamic-Huberman, EC ’06] 10% credit 10% off Setting 1: Viral marketing • People send and receive product recommendations, purchase products • Data:Large online retailer:4 million people, 16 million recommendations, 500k products

  25. [w/ Glance-Hurst et al., SDM ’07] Setting 2: Blogosphere • Bloggers write posts and refer (link) to other posts and the information propagates • Data:10.5 million posts, 16 million links

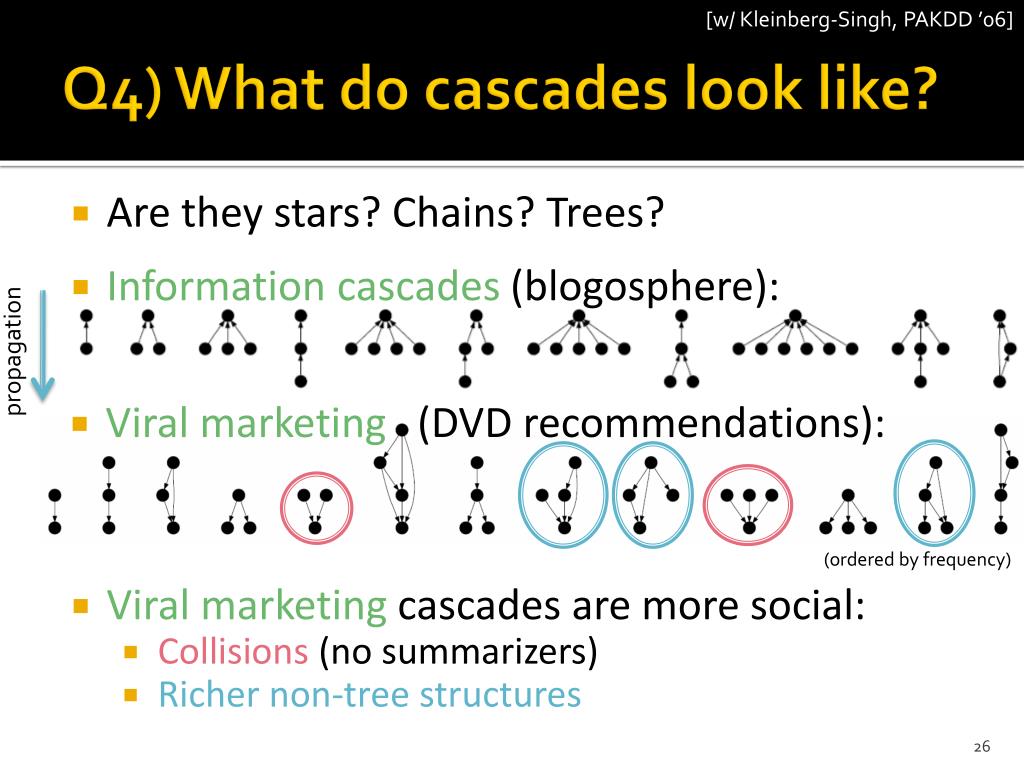

  26. [w/ Kleinberg-Singh, PAKDD ’06] Q4) What do cascades look like? • Are they stars? Chains? Trees? • Information cascades (blogosphere): propagation • Viral marketing (DVD recommendations): (ordered by frequency) • Viral marketing cascades are more social: • Collisions (no summarizers) • Richer non-tree structures

  27. Q5) Human adoption curves • Prob. of adoption depends on the number of friends who have adopted [Bass ‘69, Granovetter ’78] • What is the shape? • Distinction has consequences for models and algorithms To find the answer we need lots of data Prob. of adoption Prob. of adoption k = number of friends adopting k = number of friends adopting Diminishing returns? Critical mass?

  28. [w/ Adamic-Huberman, EC ’06] Q5) Adoption curve: Validation DVD recommendations (8.2 million observations) Probability of purchasing # recommendations received Adoption curve follows the diminishing returns. Can we exploit this? Later similar findings were made for group membership [Backstrom-Huttenlocher-Kleinberg ‘06], and probability of communication [Kossinets-Watts ’06]

  29. Q6) Cascade & outbreak detection • Blogs – information epidemics • Which are the influential/infectious blogs? • Viral marketing • Who are the trendsetters? • Influential people? • Disease spreading • Where to place monitoring stations to detect epidemics?

  30. [w/ Krause-Guestrin et al., KDD ’07] Q6) The problem: Detecting cascades How to quickly detect epidemics as they spread? c1 c3 c2

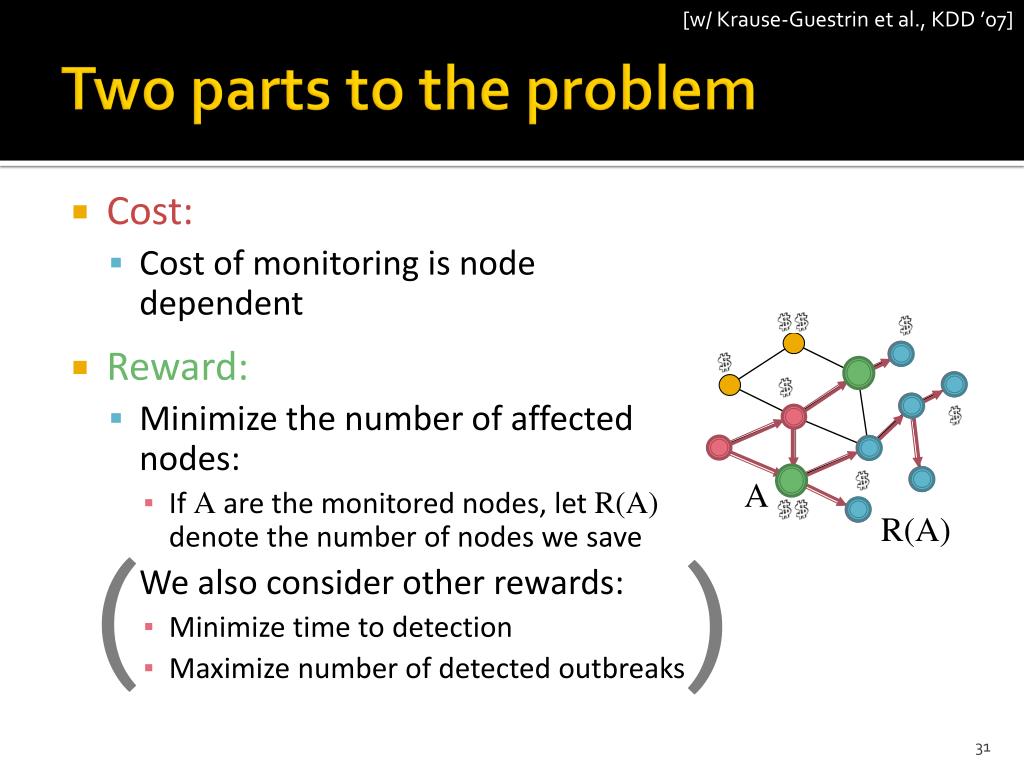

  31. [w/ Krause-Guestrin et al., KDD ’07] Two parts to the problem • Cost: • Cost of monitoring is node dependent • Reward: • Minimize the number of affected nodes: • If A are the monitored nodes, let R(A) denote the number of nodes we save We also consider other rewards: • Minimize time to detection • Maximize number of detected outbreaks A R(A) ( )

  32. Optimization problem • Given: • Graph G(V,E), budget M • Data on how cascades C1, …, Ci,…,CKspread over time • Select a set of nodes A maximizing the reward subject to cost(A) ≤ M • Solving the problem exactly is NP-hard • Max-cover [Khuller et al. ’99] Reward for detecting cascade i

  33. [w/ Krause-Guestrin et al., KDD ’07] Solution: CELF Algorithm • We develop CELF(cost-effective lazy forward-selection) algorithm: • Two independent runs of a modified greedy • Solution set A’: ignore cost, greedily optimize reward • Solution set A’’: greedily optimize reward/cost ratio • Pick best of the two: arg max(R(A’), R(A’’)) • Theorem: If R is submodular then CELF is near optimal • CELF achieves ½(1-1/e) factor approximation

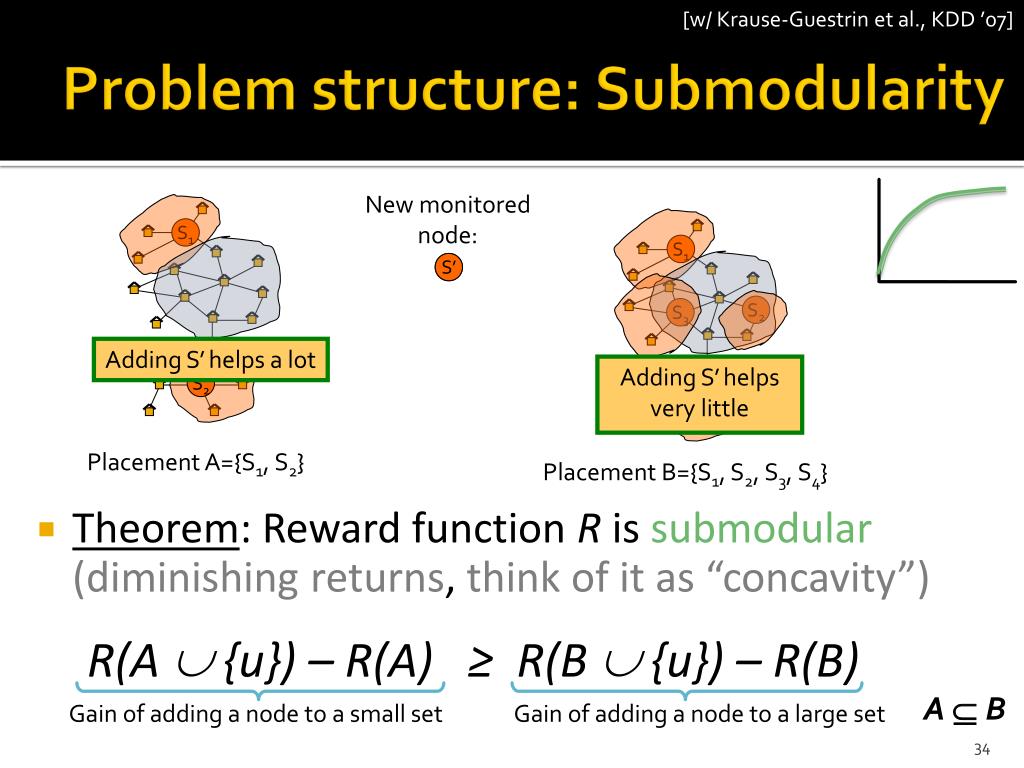

  34. [w/ Krause-Guestrin et al., KDD ’07] Problem structure: Submodularity New monitored node: • Theorem: Reward function R is submodular(diminishing returns, think of it as “concavity”) S1 S1 S’ S’ R(A  {u}) – R(A) ≥ R(B  {u}) – R(B) S2 S3 Adding S’helps a lot Adding S’helps very little Gain of adding a node to a small set Gain of adding a node to a large set S2 S4 Placement A={S1, S2} Placement B={S1, S2, S3, S4} A B

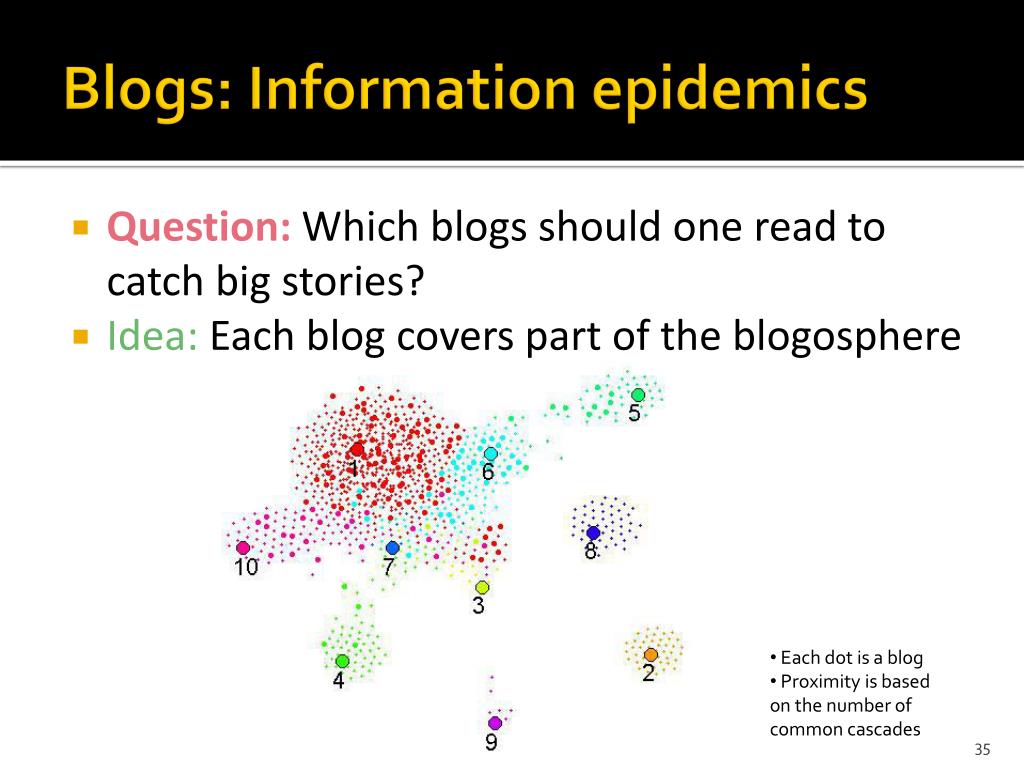

  35. Blogs: Information epidemics • Question: Which blogs should one read to catch big stories? • Idea: Each blog covers part of the blogosphere • Each dot is a blog • Proximity is based on the number of common cascades

  36. Blogs: Information epidemics • Which blogs should one read to catch big stories? For more info see our website: www.blogcascade.org CELF Reward (higher is better) In-links (used by Technorati) Out-links # posts Random Number of selected blogs (sensors)

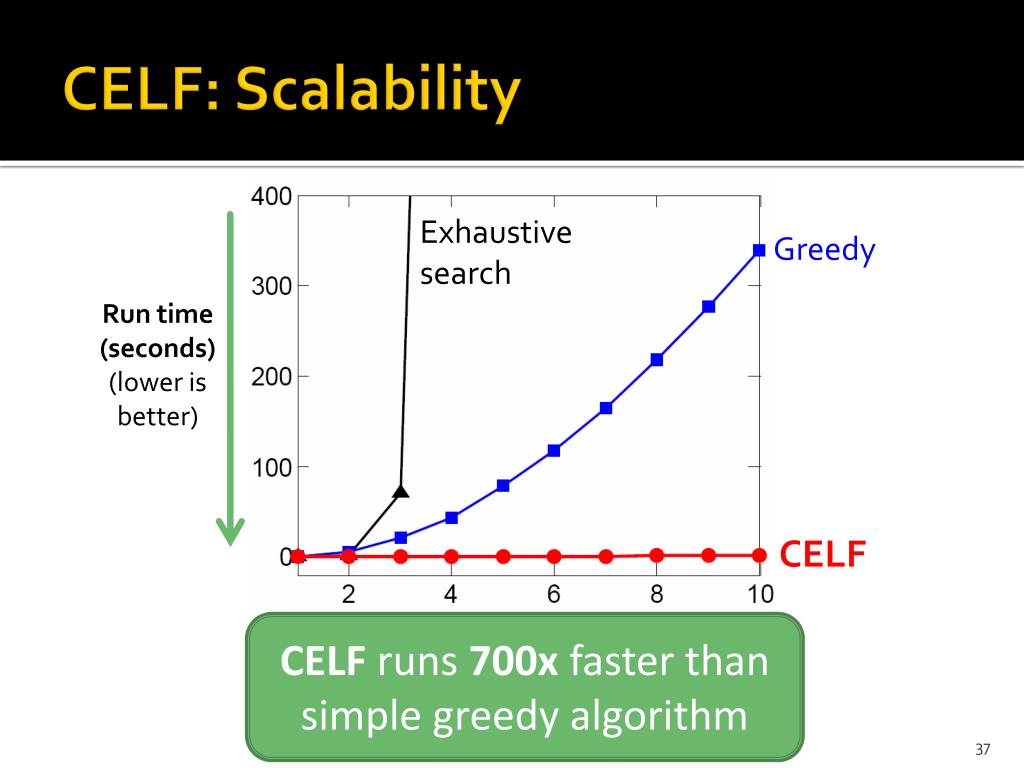

  37. CELF: Scalability Exhaustive search Greedy Run time (seconds) (lower is better) CELF Number of selected blogs (sensors) CELF runs 700x faster than simple greedy algorithm

  38. [w/ Krause et al., J. of Water Resource Planning] Same problem: Water Network • Given: • a real city water distribution network • data on how contaminants spread over time • Place sensors (to save lives) • Problem posed by the US Environmental Protection Agency c1 S S c2

  39. [w/ Krause et al., J. of Water Resource Planning] Water network: Results CELF • Our approach performed best at the Battle of Water Sensor Networks competition Degree Random Population saved (higher is better) Population Flow Number of placed sensors

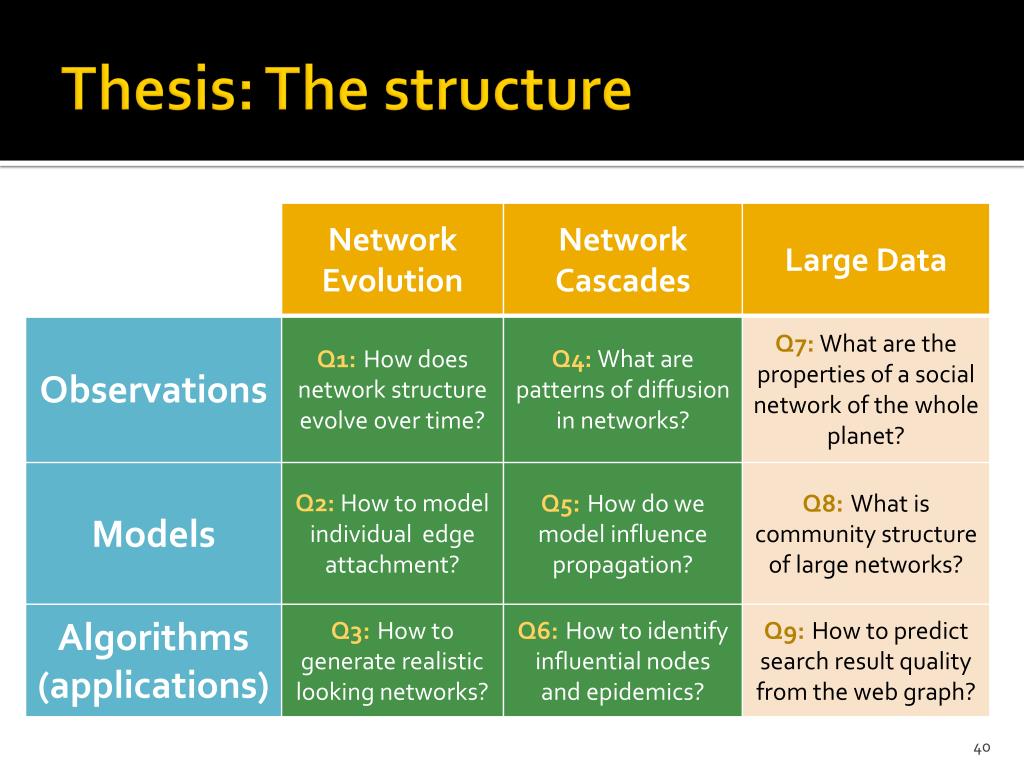

  40. Thesis: The structure

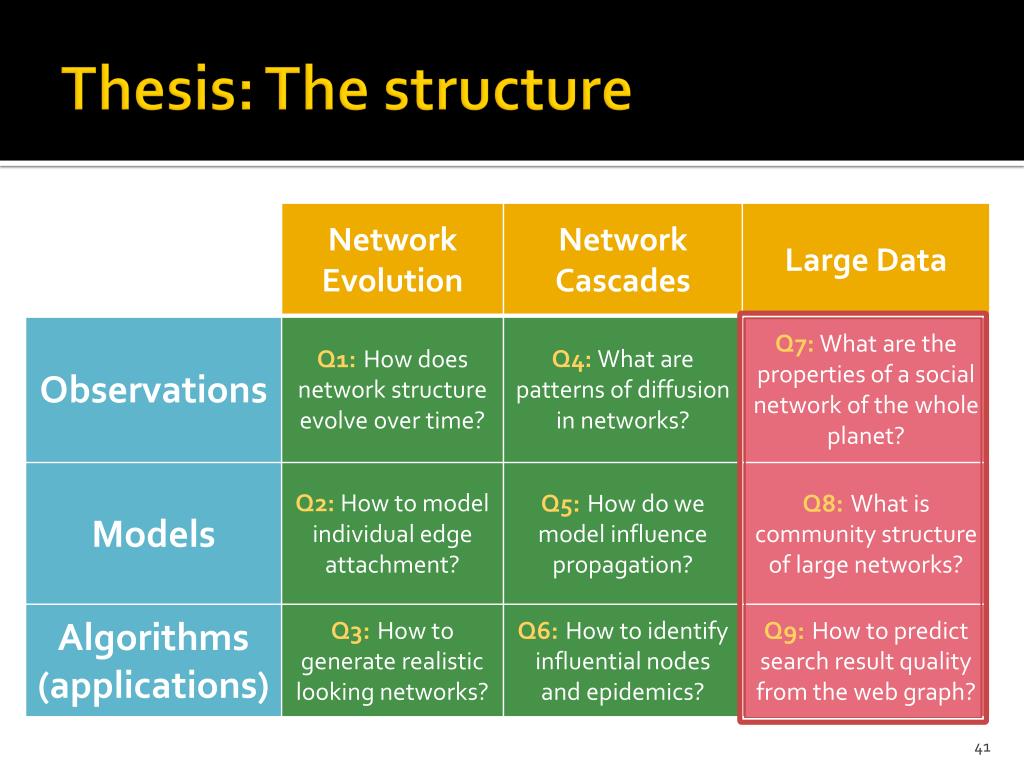

  41. Thesis: The structure

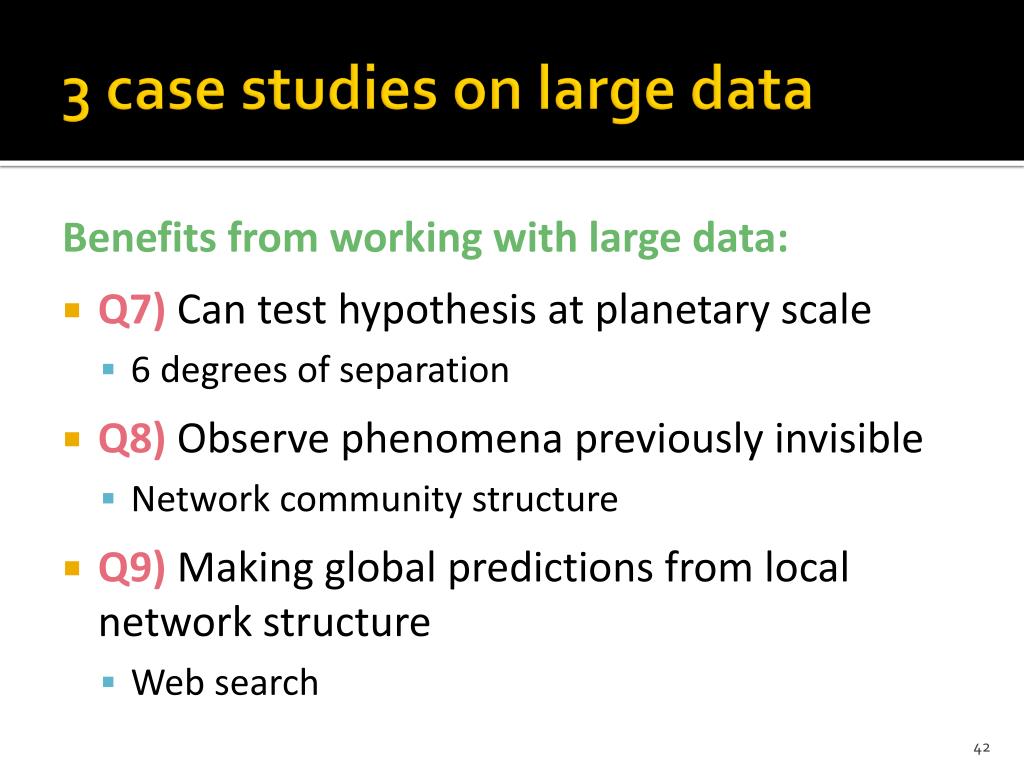

  42. 3 case studies on large data Benefits from working with large data: • Q7) Can test hypothesis at planetary scale • 6 degrees of separation • Q8) Observe phenomena previously invisible • Network community structure • Q9) Making global predictions from local network structure • Web search

  43. [w/ Horvitz, WWW ’08] Q7) Planetary look on a small-world • Small-world experiment [Milgram ‘67] • People send letters from Nebraska to Boston • How many steps does it take? • Messenger social network – largest network analyzed • 240M people, 255B messages, 4.5TB data MSN Messenger network Milgram’s small world experiment Avg. is 6.2. Thus, 6 degrees of separation Avg. is 6.6! Wikipedia calls it 7 degrees of separation (i.e., hops + 1)

  44. [w/ Dasgupta-Lang-Mahoney, WWW ’08] Q8) Network community structure S • How community like is a set of nodes? • Need a natural intuitive measure • Conductance: S’ • Φ(S) = # edges cut / # edges inside • Plot: Score of best cut of volume k=|S|

  45. Example: Small network Collaborations between scientists (N=397, E=914) log Φ(k) Cluster size, log k

  46. [w/ Dasgupta-Lang-Mahoney, WWW ’08] Example: Large network Collaboration network (N=4,158, E=13,422) log Φ(k) Cluster size, log k

  47. Q8) Suggested network structure Denser and denser core of the network 100 Network structure: Core-periphery (jellyfish, octopus) Expander like core contains 60% of the nodes and 80% edges • Good cuts exist at small scales • Communities blend into the core as they grow • Consequences: There is a scale to a cluster (community) size Good cuts exist only to size of 100 nodes

  48. [w/ Dumais-Horvitz, WWW ’07] Q9) Web Projections • User types in a query to a search engine • Search engine returns results: Result returned by the search engine Hyperlinks Non-search results connecting the graph Is this a good set of search results?

  49. [w/ Dumais-Horvitz, WWW ’07] Q9) Web Projections: Results • We can predict search result quality with 80% accuracyjust from the connection patterns between the results Good? Poor? Predict “Good” Predict “Poor”

  50. Thesis: The structure
