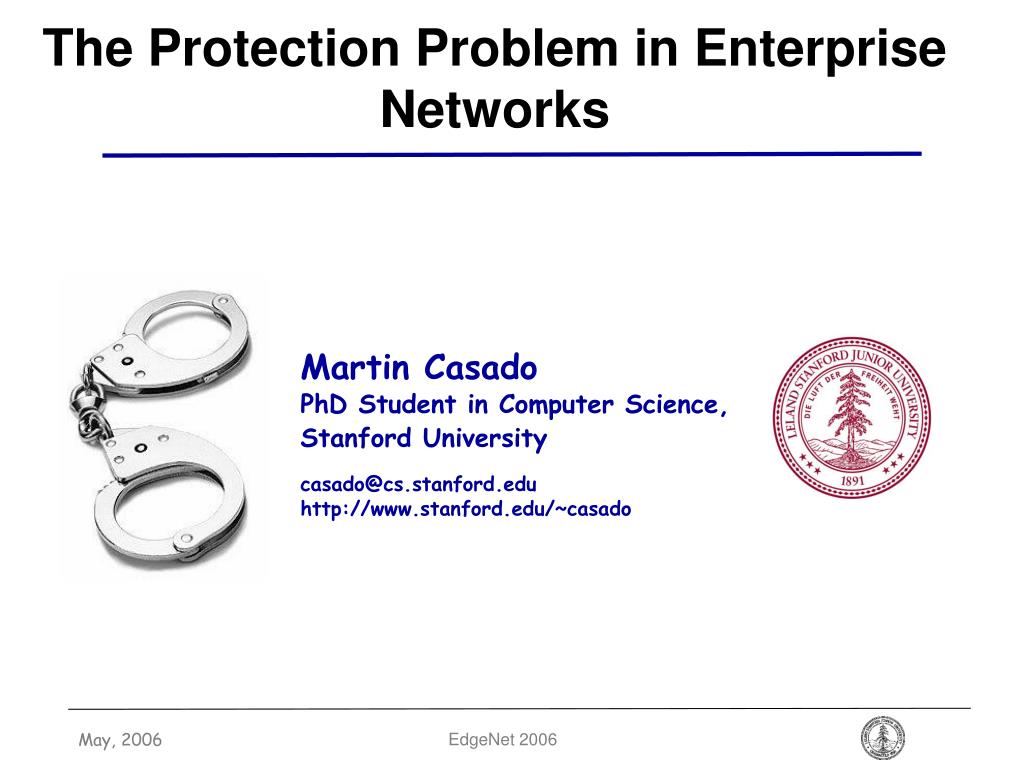

  1. The Protection Problem in EnterpriseNetworks Martin Casado PhD Student in Computer Science, Stanford University casado@cs.stanford.edu http://www.stanford.edu/~casado

  2. Talk Focus • Negative affects of protection measures on edge networks • Motivated by anecdotes from real networks • Introduce Ethane

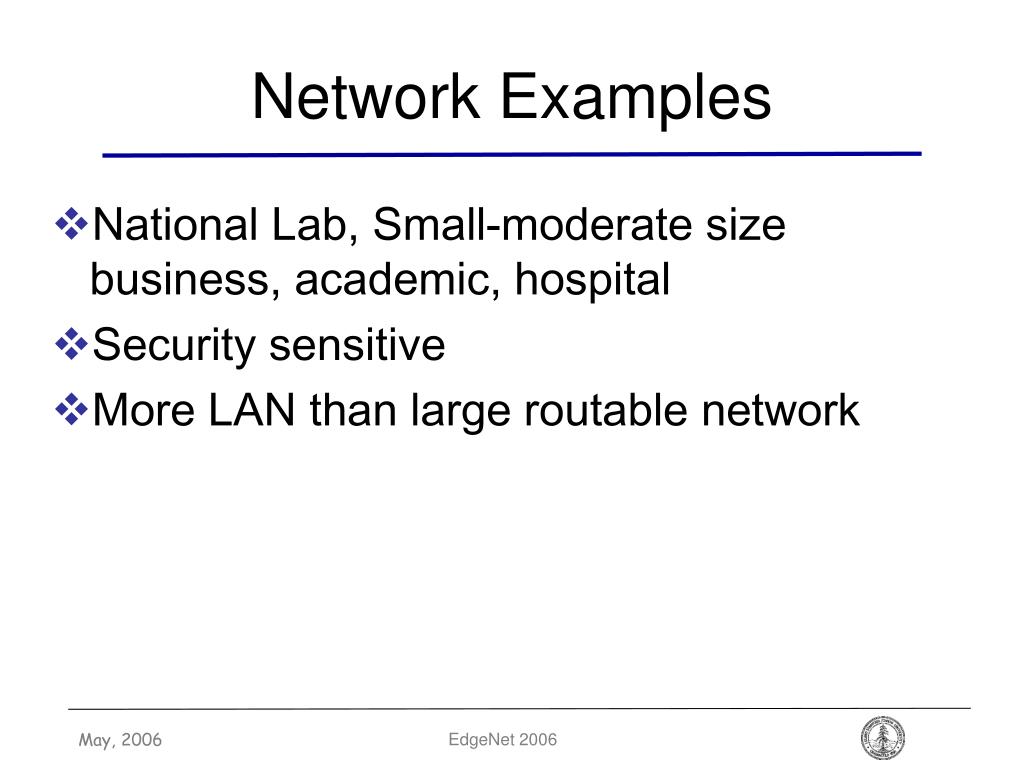

  3. Network Examples • National Lab, Small-moderate size business, academic, hospital • Security sensitive • More LAN than large routable network

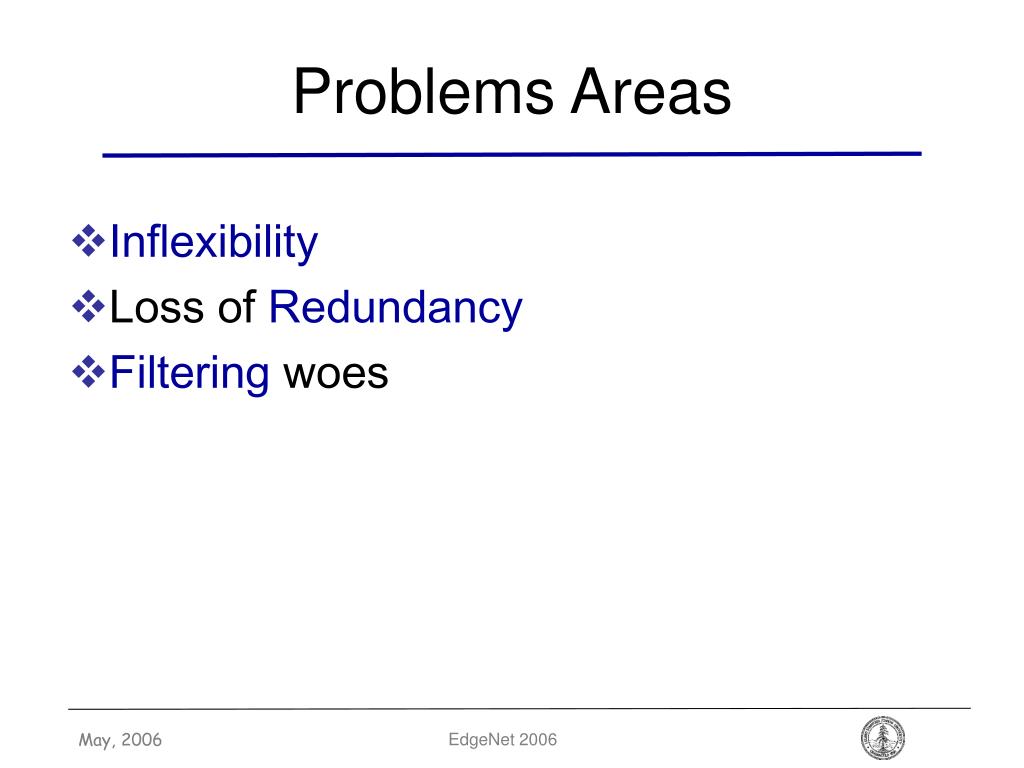

  4. Problems Areas • Inflexibility • Loss of Redundancy • Filtering woes

  5. Problems • Inflexibility • Loss of Redundancy • Filtering Woes

  6. Inflexibility Firewall + Router L2 Switch • If one is compromised, can’t sniff traffic of others • Can’t enumerate how many hosts on network • Can only get “out” through proxy • Prevent rogue connections

  7. Inflexibility Firewall rulesACCEPT 192.168.1.20 Firewall + Router L2 Switch • If one is compromised, can’t sniff traffic of others • Can’t enumerate how many hosts on network • Can only get “out” through proxy • Prevent rogue connections

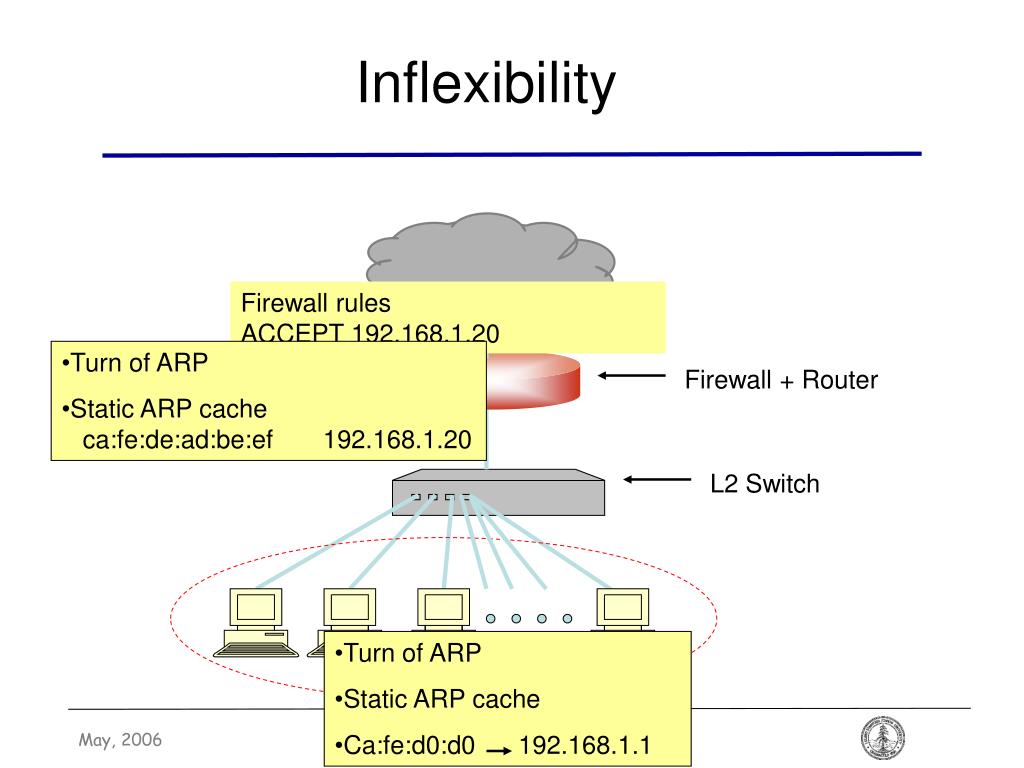

  8. Inflexibility Firewall rulesACCEPT 192.168.1.20 • Turn of ARP • Static ARP cache ca:fe:de:ad:be:ef 192.168.1.20 Firewall + Router L2 Switch • Turn of ARP • Static ARP cache • Ca:fe:d0:d0 192.168.1.1

  9. Inflexibility • No DHCP • Also insecure • Might undermine firewall rules • Might undermine static ARP cache Firewall rulesACCEPT 192.168.1.20 • Turn of ARP • Static ARP cache ca:fe:de:ad:be:ef 192.168.1.20 Firewall + Router • Turn of ARP • Static ARP cache • Ca:fe:d0:d0 192.168.1.1

  10. Inflexibility • No DHCP • Might undermine firewall rules • Might undermine static ARP cache Firewall rulesACCEPT 192.168.1.20 • Turn of ARP • Static ARP cache ca:fe:de:ad:be:ef 192.168.1.20 Firewall + Router • Port Security • Tie MAC address to Port ca:fe:de:ad:be:ef 192.168.1.20 L2 Switch • Turn of ARP • Static ARP cache • Ca:fe:d0:d0 192.168.1.1

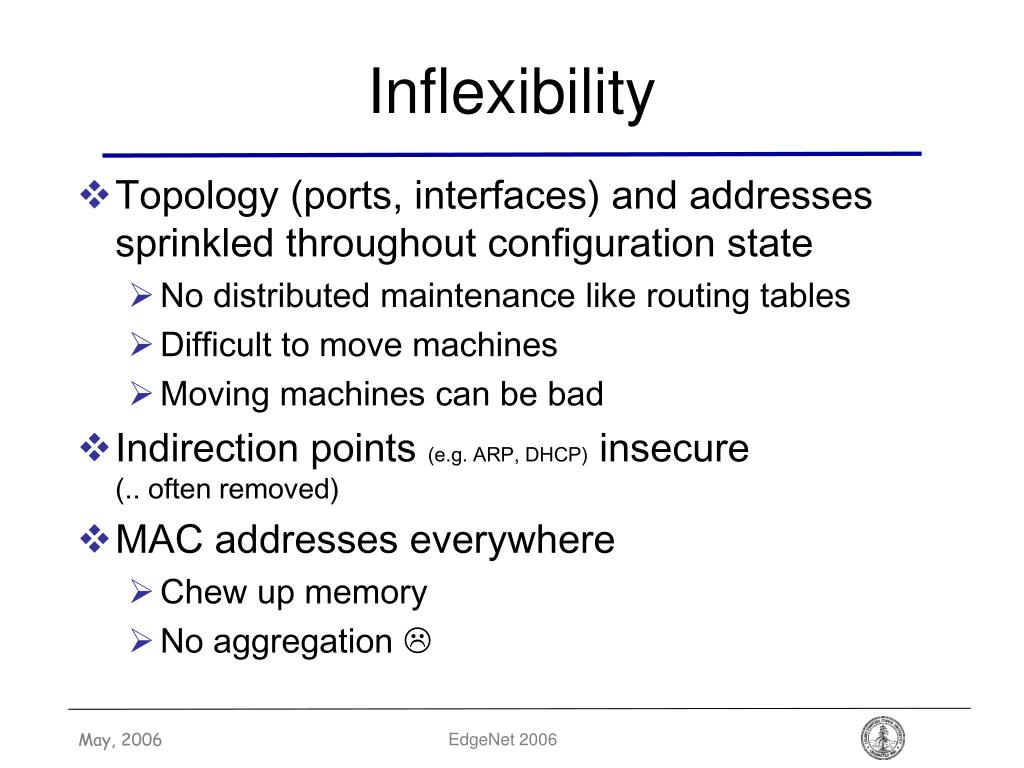

  11. Inflexibility • Topology (ports, interfaces) and addresses sprinkled throughout configuration state • No distributed maintenance like routing tables • Difficult to move machines • Moving machines can be bad • Indirection points (e.g. ARP, DHCP) insecure(.. often removed) • MAC addresses everywhere • Chew up memory • No aggregation 

  12. Problems • Inflexibility • Loss of Redundancy • Filtering Woes

  13. Loss of Redundancy

  14. Loss of Redundancy • Easier to reason about/verify • Proxies are a catalyst • Distributed firewalls are not the solution • Lack of good support for L5 routing (does anyone have this turned on?) • Existing solutions exacerbate the problem • “do everything” proxies • Single bridge NACs

  15. Problems • Inflexibility • Loss of Redundancy • Filtering Woes

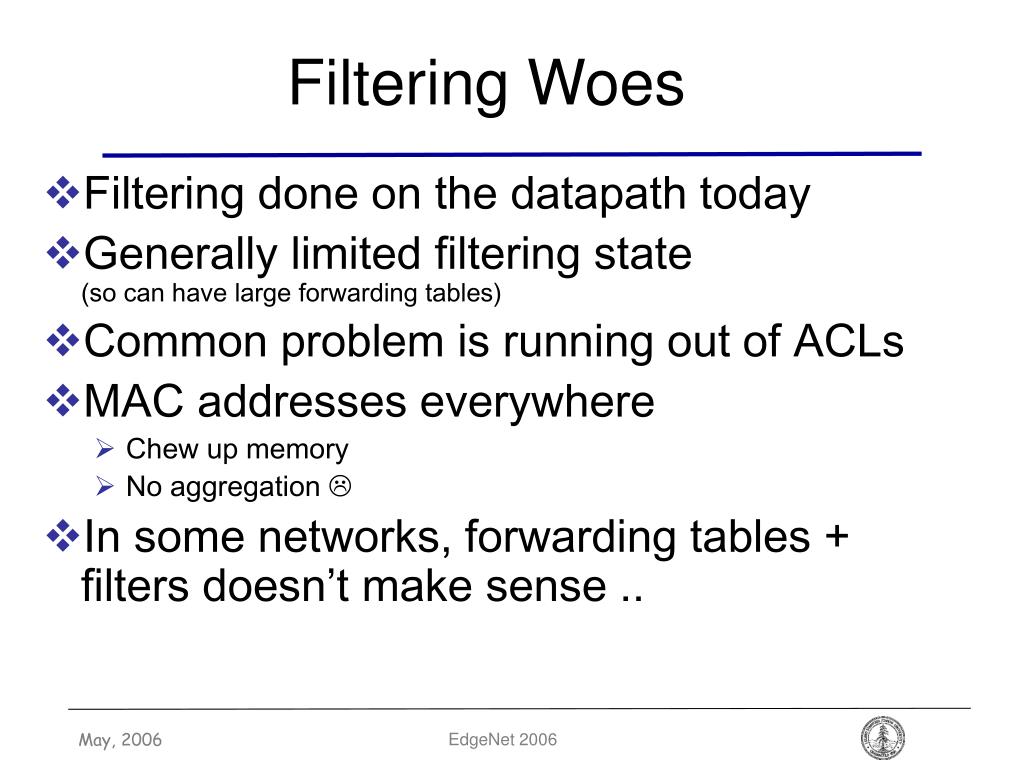

  16. Filtering Woes • Filtering done on the datapath today • Generally limited filtering state (so can have large forwarding tables) • Common problem is running out of ACLs • MAC addresses everywhere • Chew up memory • No aggregation  • In some networks, forwarding tables + filters doesn’t make sense ..

  17. Ethane: Towards a Solution • Centrally declare network policy • Authenticated end-hosts • Central-arbiter grants permission to connect on a per flow basis • Central-arbiter has fine grained control of routes

  18. Ethane martin.friends.ambient-streams Authenticatehi, I’m tal, my password is Publishmartin.friends.ambient-streamsallow tal, sundar, aditya First packet tomartin.friends.ambient-streams Authenticatehi, I’m martin, my password is Global Network Policy: (allow all martin using rtp)

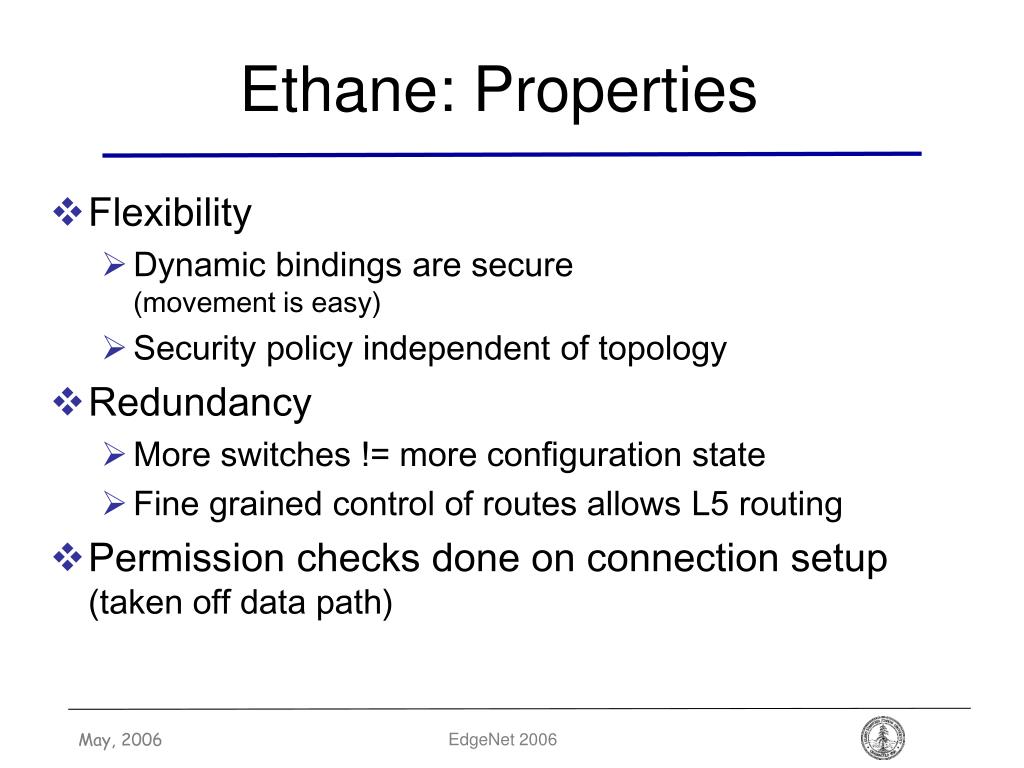

  19. Ethane: Properties • Flexibility • Dynamic bindings are secure(movement is easy) • Security policy independent of topology • Redundancy • More switches != more configuration state • Fine grained control of routes allows L5 routing • Permission checks done on connection setup(taken off data path)

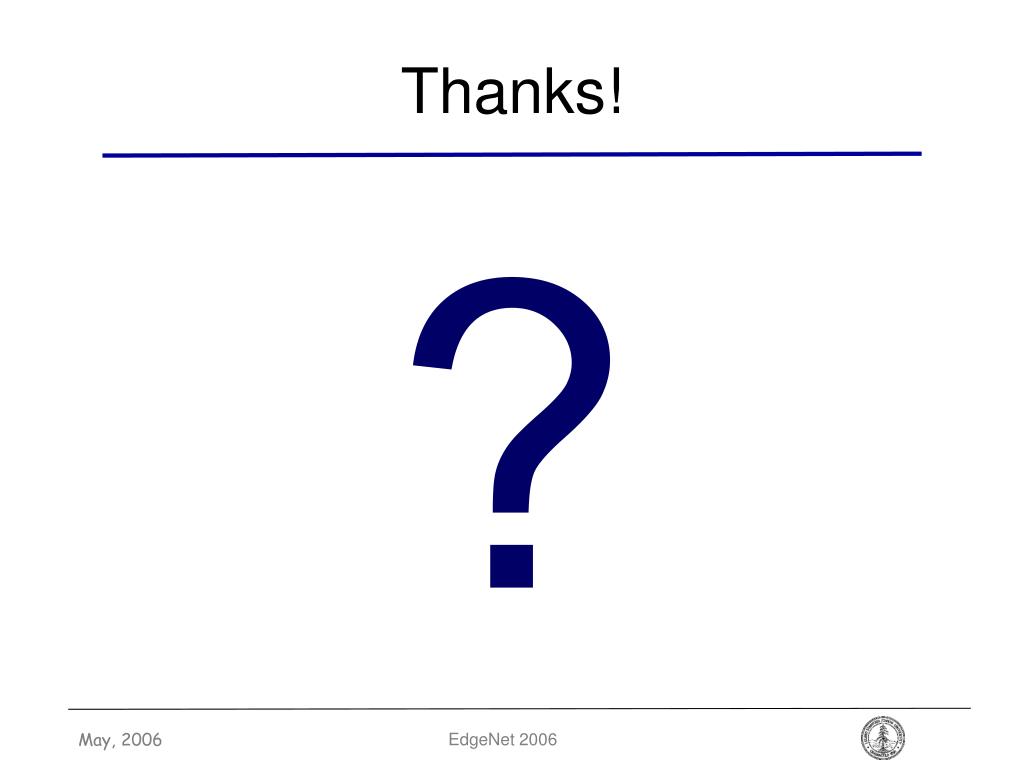

  20. Thanks! ?

  21. Isolation • Networks exist today with differing levels of sensitivity • Casino • Financial • Medical • Government/Military • Want reasonable Isolation • No DDoS from less secure to more • No data exfiltration from more secure to less • Note, VLANs generally insufficient This is not solely a governmentnetwork problem

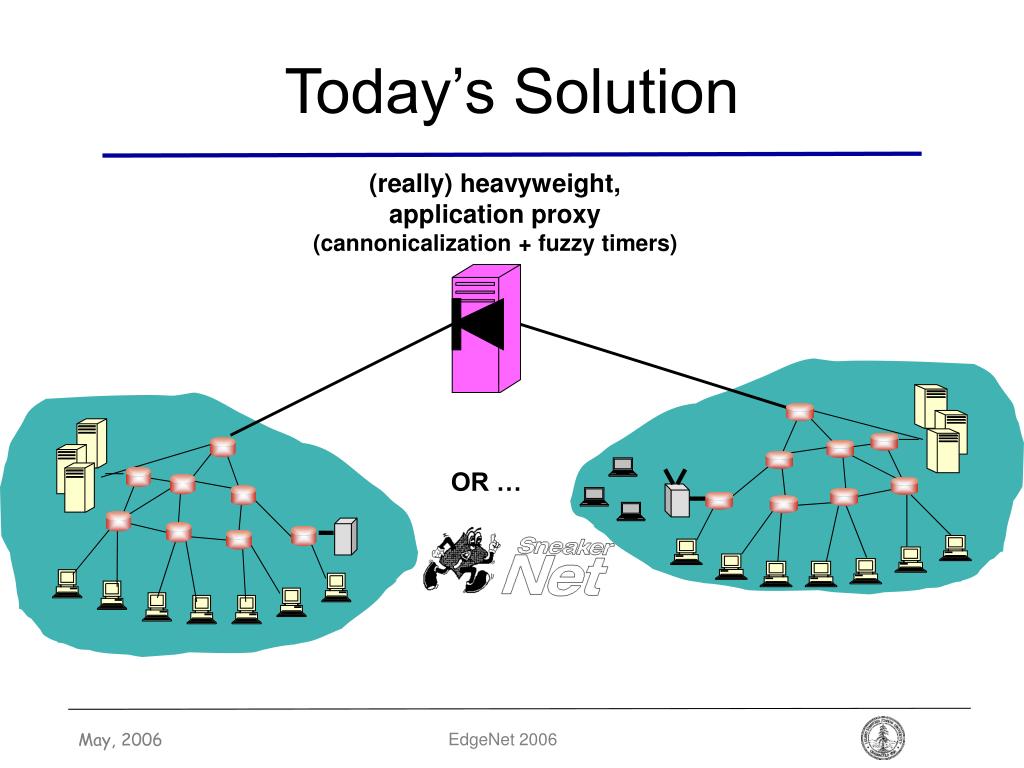

  22. Today’s Solution (really) heavyweight,application proxy(cannonicalization + fuzzy timers) OR …

  23. Isolation Cont … • Obviously suboptimal • Management • Number of components (MTTF) • Could use same components, separate queues, TDM • Consolidation on the road-map for some very large networks
