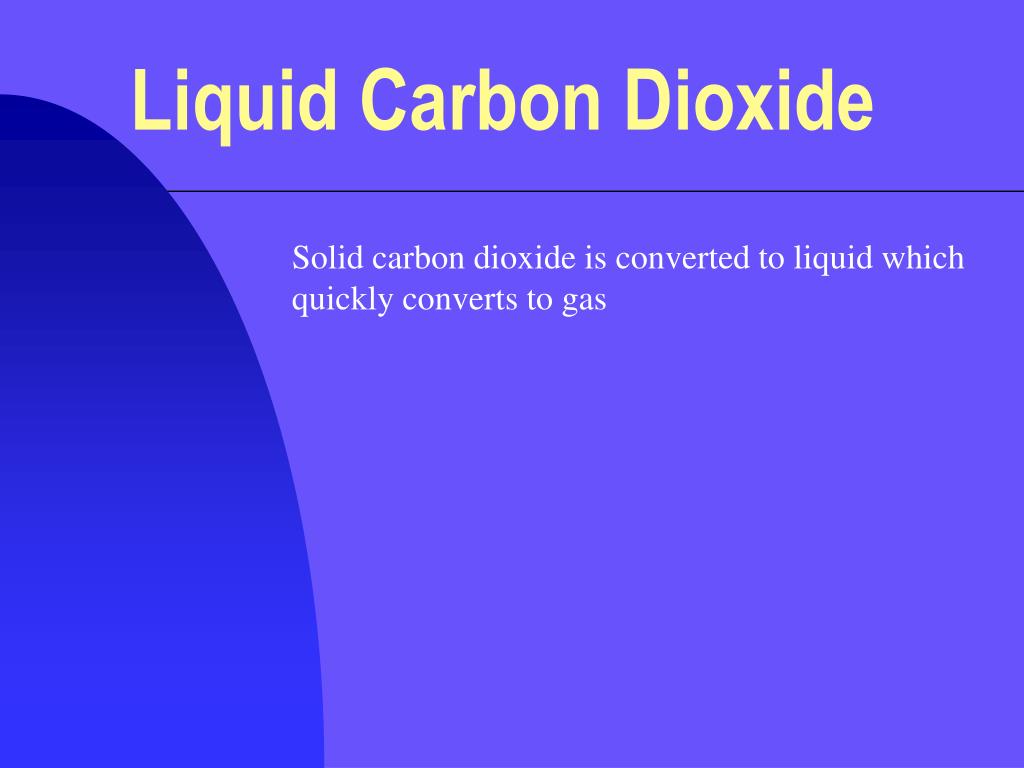

  1. Liquid Carbon Dioxide Solid carbon dioxide is converted to liquid which quickly converts to gas

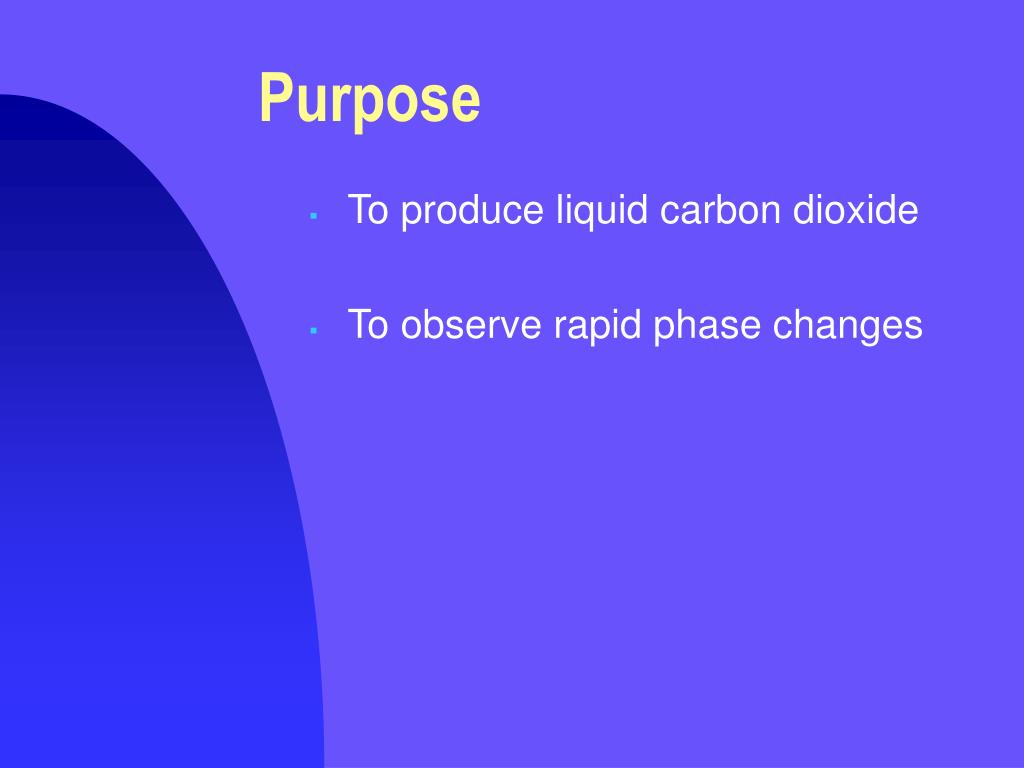

  2. Purpose • To produce liquid carbon dioxide • To observe rapid phase changes

  3. Demonstration • The solid dioxide sublimed to the gaseous form when inside the balloon • The dry ice cooled the gas, under pressure within the balloon, to conditions known as the ‘triple point’ • The liquid carbon dioxide rapidly vaporized when poured out of the balloon

  4. Concepts 1. Intermolecular Attractions 2. Physical Changes 3. Triple Point

  5. 1. Intermolecular Attractions • Attractions between molecules of carbon dioxide keep the substance together in both the liquid and solid state • The intermolecular attractions in carbon dioxide are exceptionally weak • Sublimation is possible because of such weak attractions

  6. 2. Physical Changes • Changes in which no new substance is produced • Changes of state • CO2(s) CO2(l) CO2(g) sublimation

  7. 3. Triple Point (I) • The temperature and pressure at which the solid, liquid, and gas phases of a substance coexist • For carbon dioxide the triple point occurs at -56.6 degrees Celsius and 5.11 atmospheres of pressure

  8. Triple Point Triple Point (II) • A phase diagram tells what phase a substance will have at a given temperature and pressure Pressure in atm LIQUID SOLID 5.11 atm GAS -56.6 degrees Temperaturein degrees Celsius

  9. Conclusions • Dry ice will normally sublime at room temperature and pressure • Being contained in a balloon increased the pressure and cooled the temperature • Conditions of the triple point were induced within the balloon

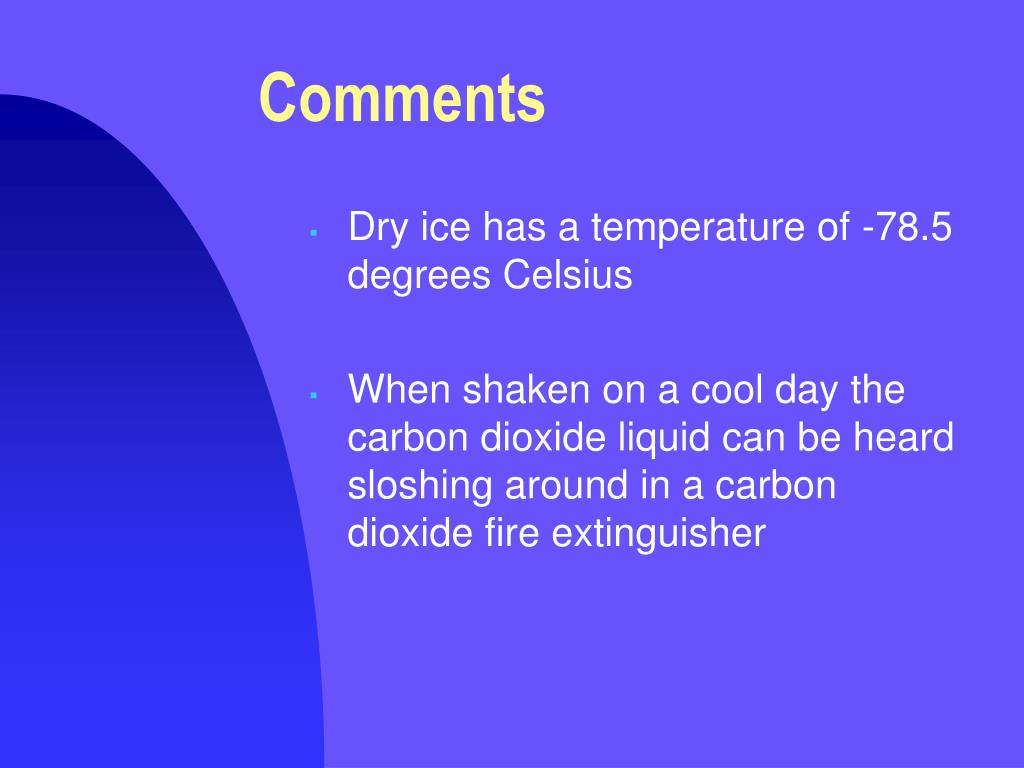

  10. Comments • Dry ice has a temperature of -78.5 degrees Celsius • When shaken on a cool day the carbon dioxide liquid can be heard sloshing around in a carbon dioxide fire extinguisher
