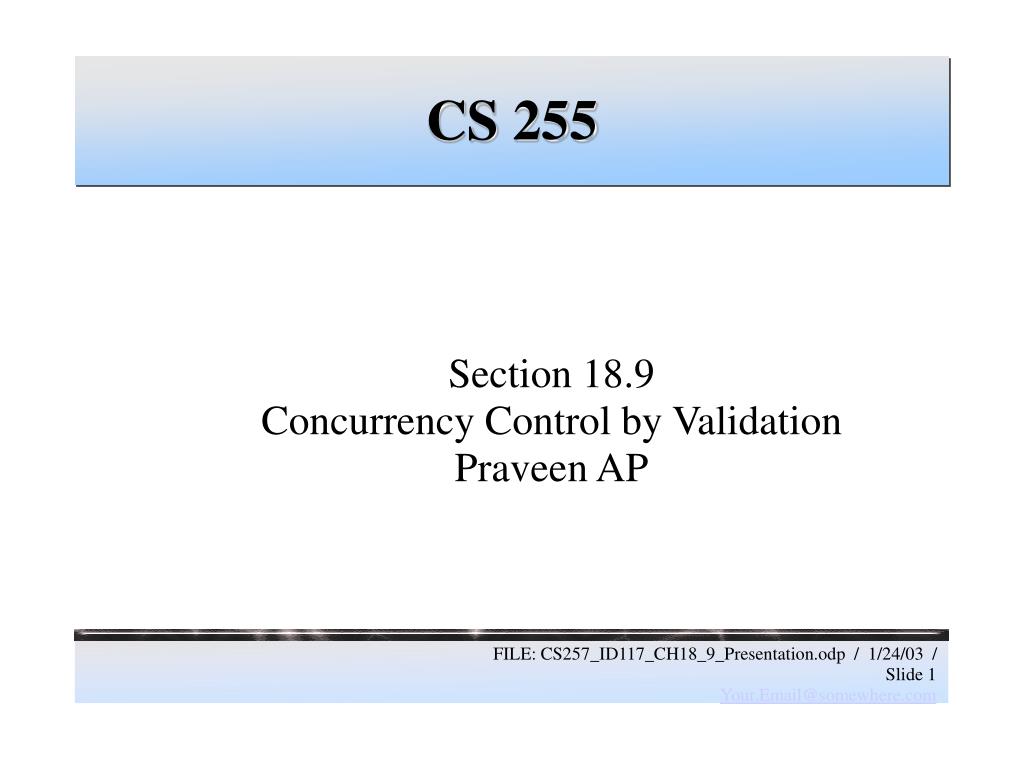

  1. Section 18.9 Concurrency Control by Validation Praveen AP CS 255

  2. Validation • Optimistic concurrency control • Scheduler maintains record of active transactions • Concurrency Control assumes that conflicts between transactions are rare • Does not require locking • Check for conflicts just before commit

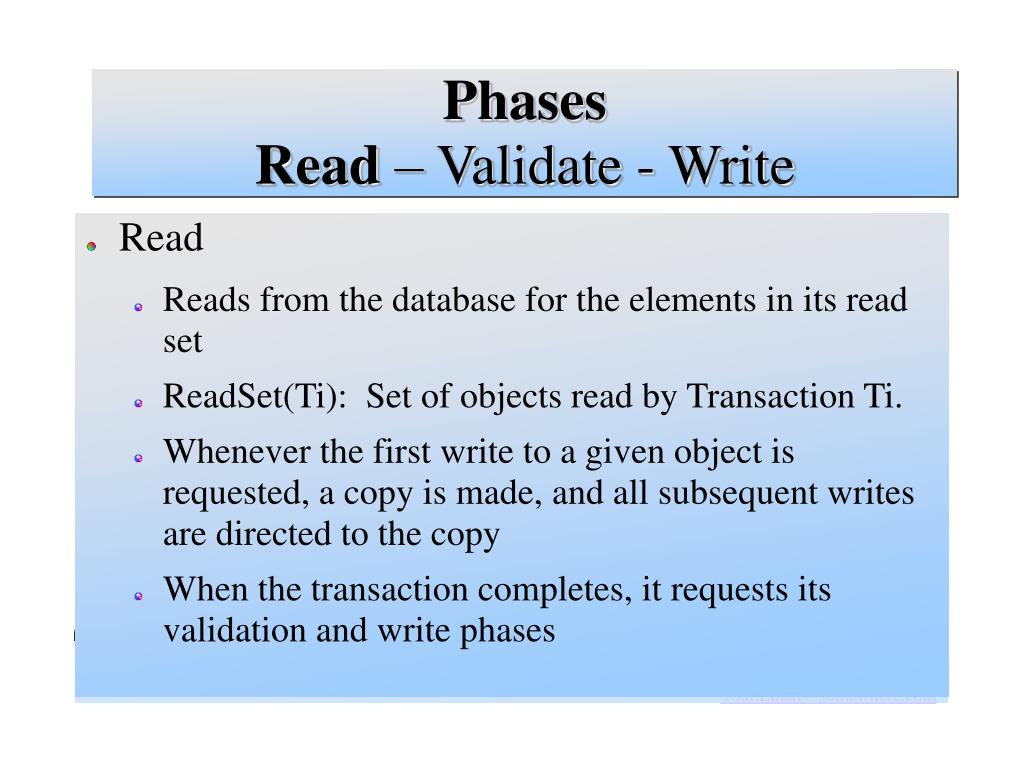

  3. PhasesRead – Validate - Write • Read • Reads from the database for the elements in its read set • ReadSet(Ti): Set of objects read by Transaction Ti. • Whenever the first write to a given object is requested, a copy is made, and all subsequent writes are directed to the copy • When the transaction completes, it requests its validation and write phases

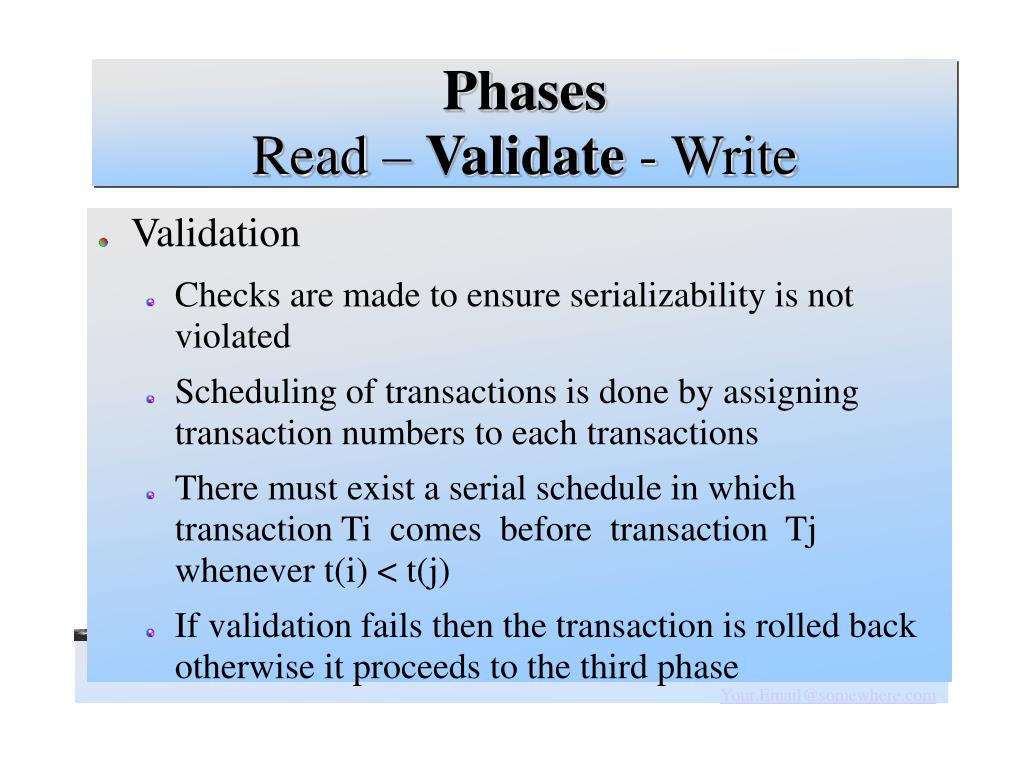

  4. PhasesRead– Validate - Write • Validation • Checks are made to ensure serializability is not violated • Scheduling of transactions is done by assigning transaction numbers to each transactions • There must exist a serial schedule in which transaction Ti comes before transaction Tj whenever t(i) < t(j)‏ • If validation fails then the transaction is rolled back otherwise it proceeds to the third phase

  5. PhasesRead- Validate - Write • Write • Writes the corresponding values for the elements in its write set • WriteSet(Ti): Set of objects where Transaction Ti has intend to write on it. • Locally written data are made global

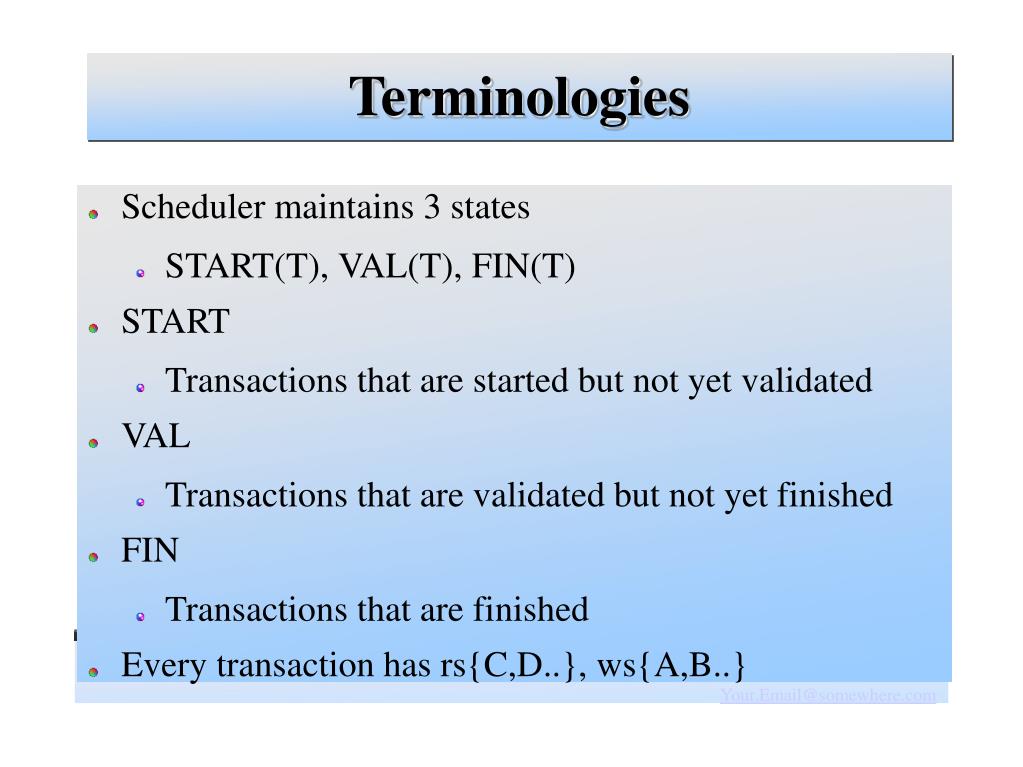

  6. Terminologies • Scheduler maintains 3 states • START(T), VAL(T), FIN(T)‏ • START • Transactions that are started but not yet validated • VAL • Transactions that are validated but not yet finished • FIN • Transactions that are finished • Every transaction has rs{C,D..}, ws{A,B..}

  7. Validation Rule 1 • T1 • T2 • T2 starts before T1 finishes • FIN(T1) > START(T2)‏ • RS(T2)  WS(T1) =  TimeLine Write Validation Read

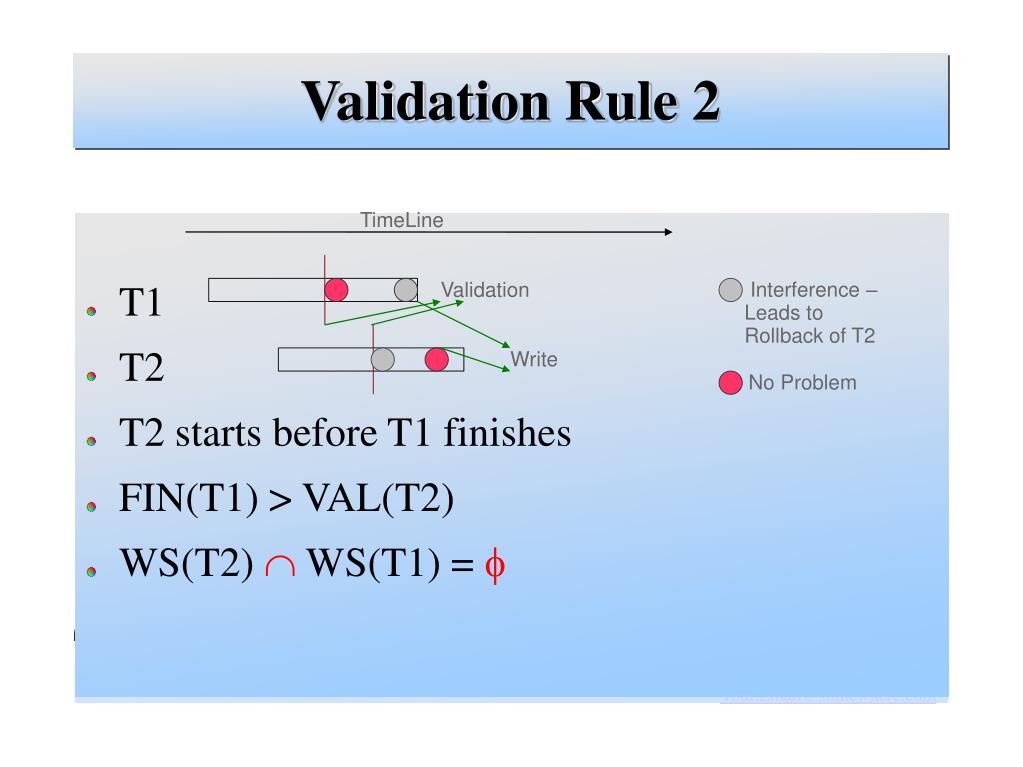

  8. Validation Rule 2 TimeLine T1 T2 T2 starts before T1 finishes FIN(T1) > VAL(T2)‏ WS(T2)  WS(T1) =  Interference – Leads to Rollback of T2 Validation Write No Problem

  9. RS(Tj)  WS(Ti) =  FIN(Ti) > START(Tj) Rule 1WS(Tj)  WS(Ti) = FIN(Ti) > VAL(Tj) Rule 2 where j > i TimeLine RS Validation WS T1 A,B A,C T2 B D T3 B D,E T4 A,D A,C

  10. Validation • T2 & T1 • RS(T2)  WS(T1) = {B}  {A,C} =  • WS(T2)  WS(T1) = {D}  {A,C} =  • T3 & T1 • RS(T3)  WS(T1) = {B}  {A,C} =  • WS(T3)  WS(T1) = {D,E}  {A,C} =  • T3 & T2 • RS(T3)  WS(T2) = {B}  {D} =  • WS(T3)  WS(T2) = {D,E}  {D} = D// Rule 2 Can't be applied; FIN(T2) < VAL(T3)

  11. Validation • T4 Starts before T1 and T3 finishes. So T4 has to be checked against the sets of T1 and T3 • T4 & T1 • RS(T4)  WS(T1) = {A,D}  {A,C} = {A} • Rule 2 can not be applied • T4 & T3 • RS(T4)  WS(T3) = {A,D}  {D,E} = {D} • WS(T4)  WS(T3) = {A,C}  {D,E} = 

  12. Comparison • Validation • Optimistic Concurrency Control is superior to locking methods for systems where transaction conflict is highly unlikely, e.g query dominant systems. • Avoids locking overhead • Starvation: What should be done when validation repeatedly fails ? • Solution: If the concurrency control detects a starving transaction, it will be restarted, but without releasing the critical section semaphore, and transaction is run to the completion by write locking the database

  13. Comparison • Lock • Lock management overhead • Deadlock detection/resolution. • Concurrency is significantly lowered, when congested nodes are locked. Locks can not be released until the end of a transaction • Conflicts are rare. (We might get better performance by not locking, and instead checking for conflicts at commit time.)?

  14. Comparison • Timestamp • Deadlock is not possible • Prone to restart

  15. Questions Thank you
