Design of the processor control unit design

Design of the Processor

Control Unit Design

ITCS 3181 Logic and Computer Systems 2014 B. Wilkinson Slides7.ppt Modification date: March 27, 2014


Design of the processor control unit design

Control Unit

Control unit needs to:

Generate signals for each register transfer action and other operations specified, and

Be able to sequence through the steps for fetching/ executing the instructions in the program


Design of the processor control unit design

Implementing Register Transfer Actions

First consider

P  Q

Pis the destination register and Q is the source register. There may be many sources and destinations. Convenient to attached all sources and destinations to a common set of wires:


Design of the processor control unit design

Two logic signals required, one to select source, one to select destination:

Transfer takes place when destination register activated with clock.


Design of the processor control unit design

Timing

Suppose need a sequence of steps to execute a particular instruction is:

T0: S  T

T1: P  Q

T2: R  P

.

.

at times T0, T1, T2 ... , where S, P, and R are destinations and T, Q, and P are sources connected to the internal bus.

Strictly, the action S  T is done when T0 = 1


Design of the processor control unit design

Could use a logic circuit to generate T0, T1, T2, ...:


Design of the processor control unit design

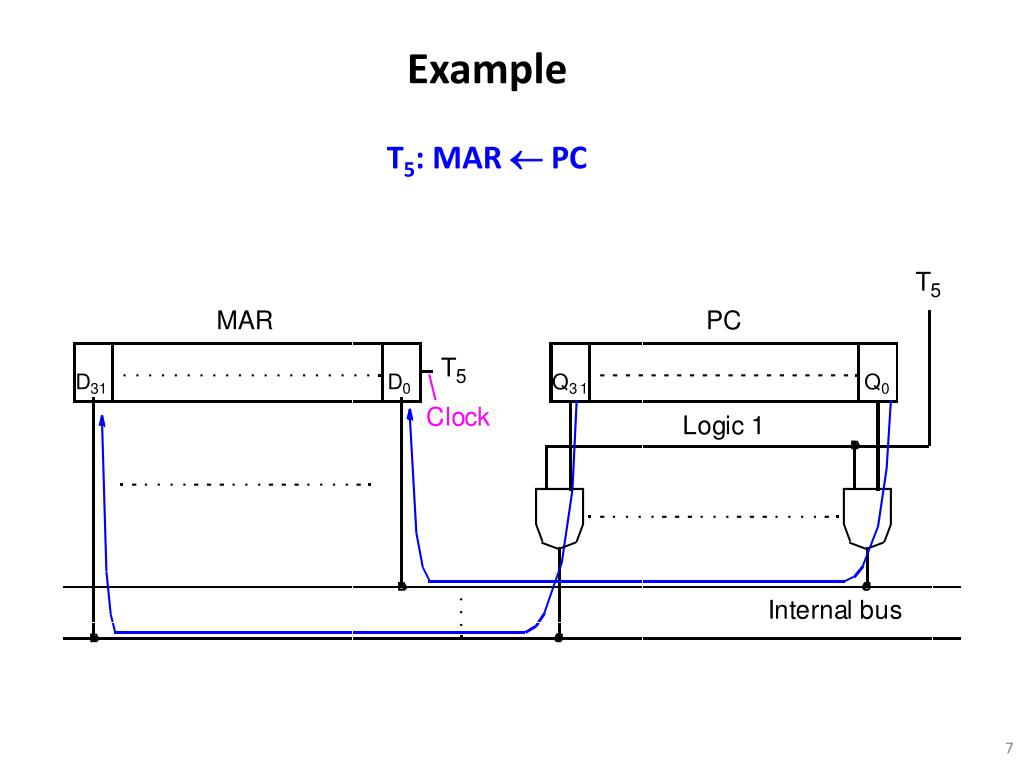

Example

T5: MAR  PC


Design of the processor control unit design

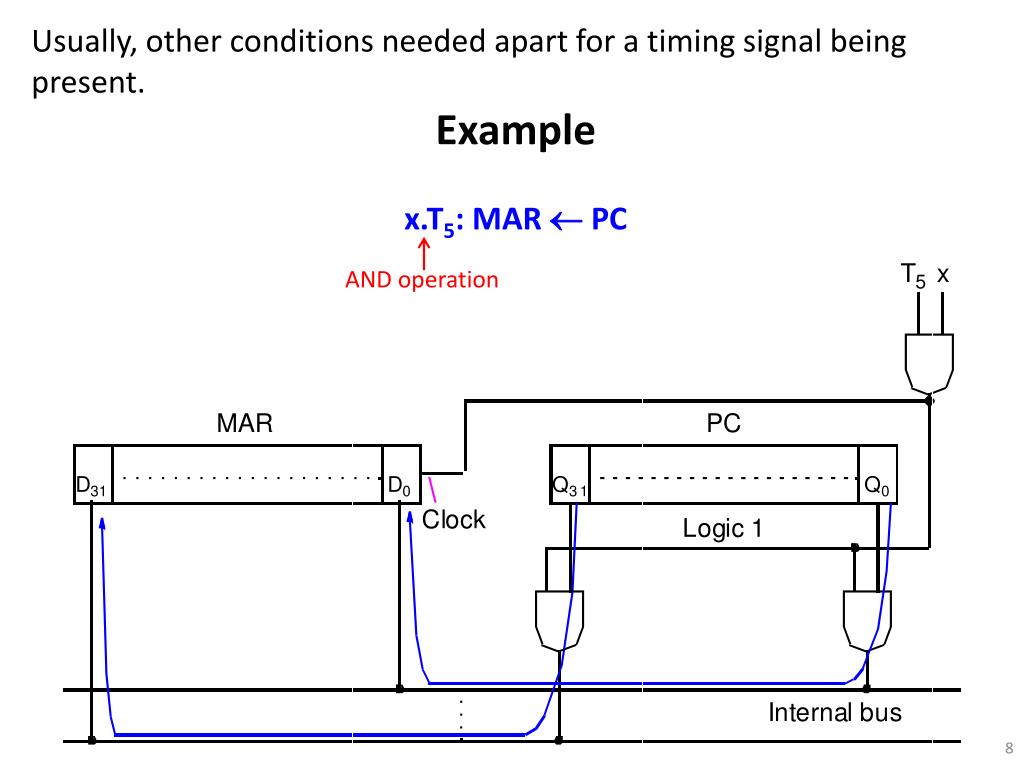

Usually, other conditions needed apart for a timing signal being present.

Example

x.T5: MAR  PC

AND operation


Design of the processor control unit design

Operations other than register transfer

Sometimes, operations other than register transfer are specified.

Example

R  P + R

specifies an addition to be performed prior to the register transfer.

Depending upon implementation, may need to be decomposed into a series of elementary steps.

If we provide three separate buses, one for each source and one for the destination, possible to implement step in one time period - see next slide.


Design of the processor control unit design

Processor with Three Internal Buses

Control unit still has to provide necessary signals at correct times.


Design of the processor control unit design

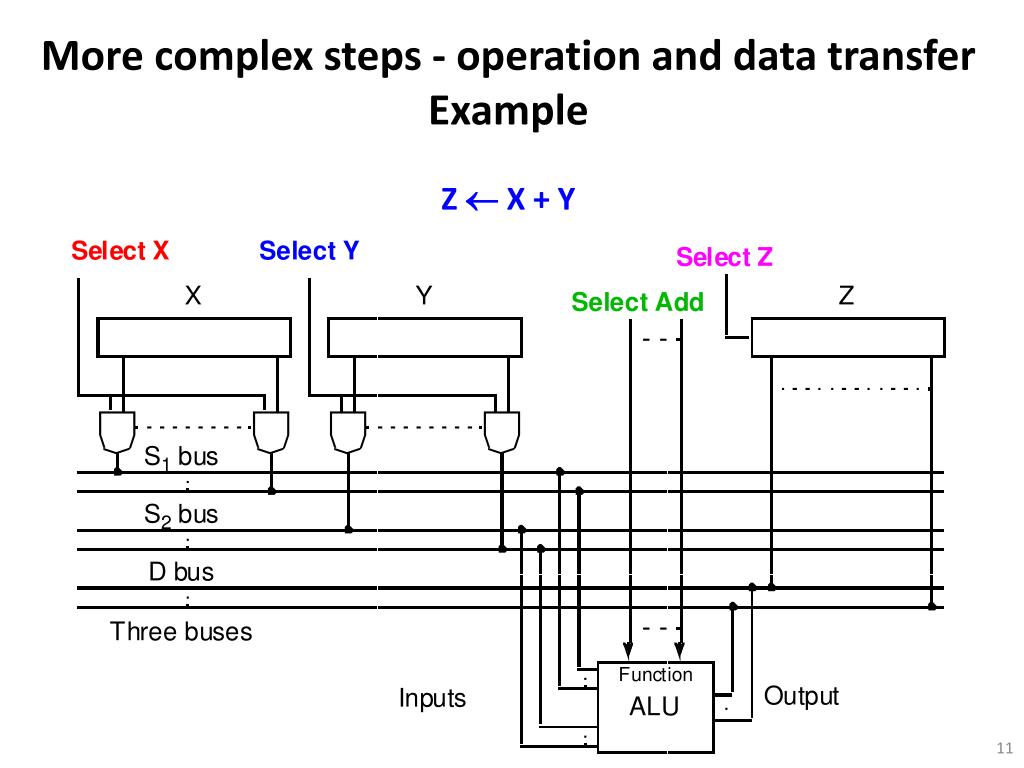

More complex steps - operation and data transfer

Example

Z  X + Y


Design of the processor control unit design

INSTRi . Tj: Z  X + Y

Similar logic circuits for each step.


Design of the processor control unit design

Selecting source and destination registers

- directly from instruction:


Design of the processor control unit design

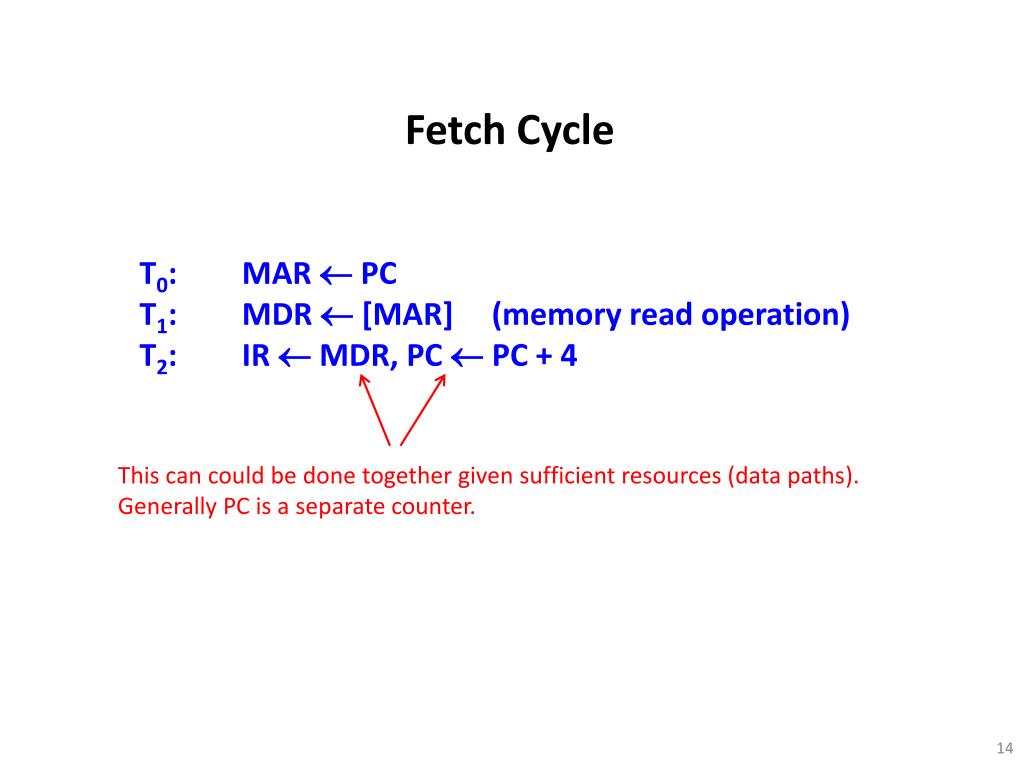

Fetch Cycle

T0:MAR  PC

T1:MDR  [MAR] (memory read operation)

T2:IR  MDR, PC  PC + 4

This can could be done together given sufficient resources (data paths). Generally PC is a separate counter.


Design of the processor control unit design

Implementing Execute Cycle

Depends upon fetched instruction (in IR) Incorporating a signal to indicate particular instruction has been decoded, say INSTRi, in general we have:

INSTRi.T3: S  T

INSTRi.T4: P  Q

INSTRi.T5: R  P

Execute cycle assumed to start at clock period T3.

AND operation


Design of the processor control unit design

General Arrangement for Execute Cycle

Assumed to start at clock period T3:INSTRi.T3: S  T

INSTRi.T4: P  Q

INSTRi.T5: R  P


Design of the processor control unit design

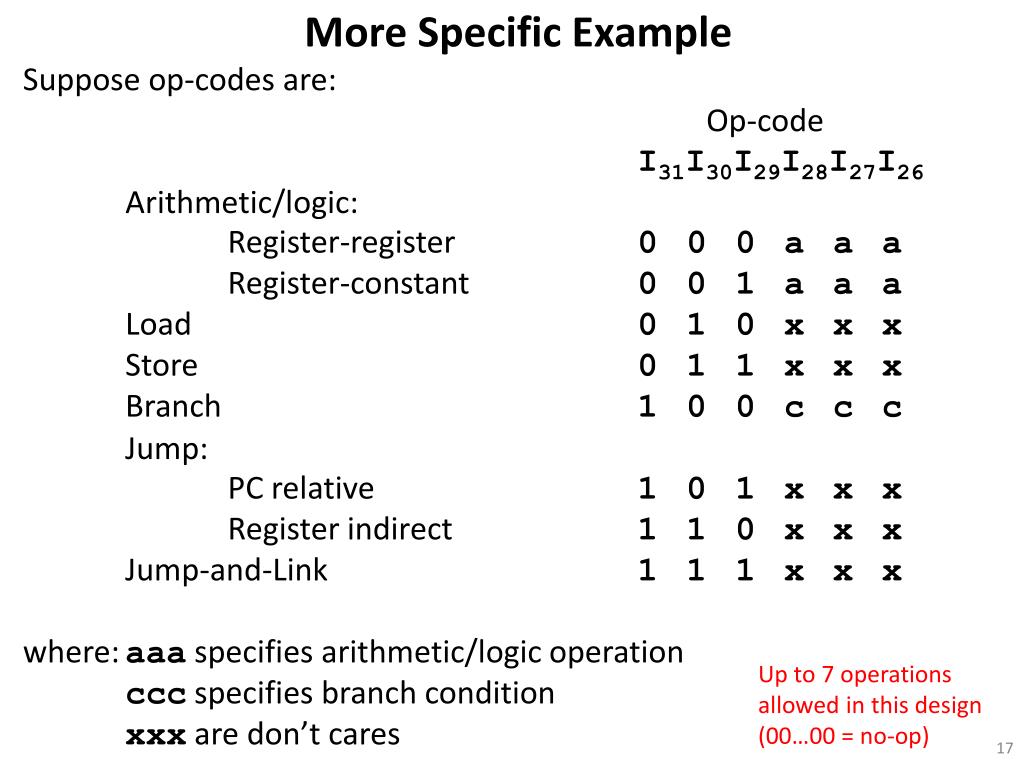

More Specific Example

Suppose op-codes are:

Op-code

I31I30I29I28I27I26

Arithmetic/logic:

Register-register000aaa

Register-constant001aaa

Load010xxx

Store011xxx

Branch100ccc

Jump:

PC relative101xxx

Register indirect110xxx

Jump-and-Link111xxx

where:aaa specifies arithmetic/logic operation

ccc specifies branch condition

xxx are don’t cares

Up to 7 operations allowed in this design

(00…00 = no-op)


Design of the processor control unit design

In this particular case, can simply use a 3-8 line decoder:


Design of the processor control unit design
