Hand and power tools unit 11

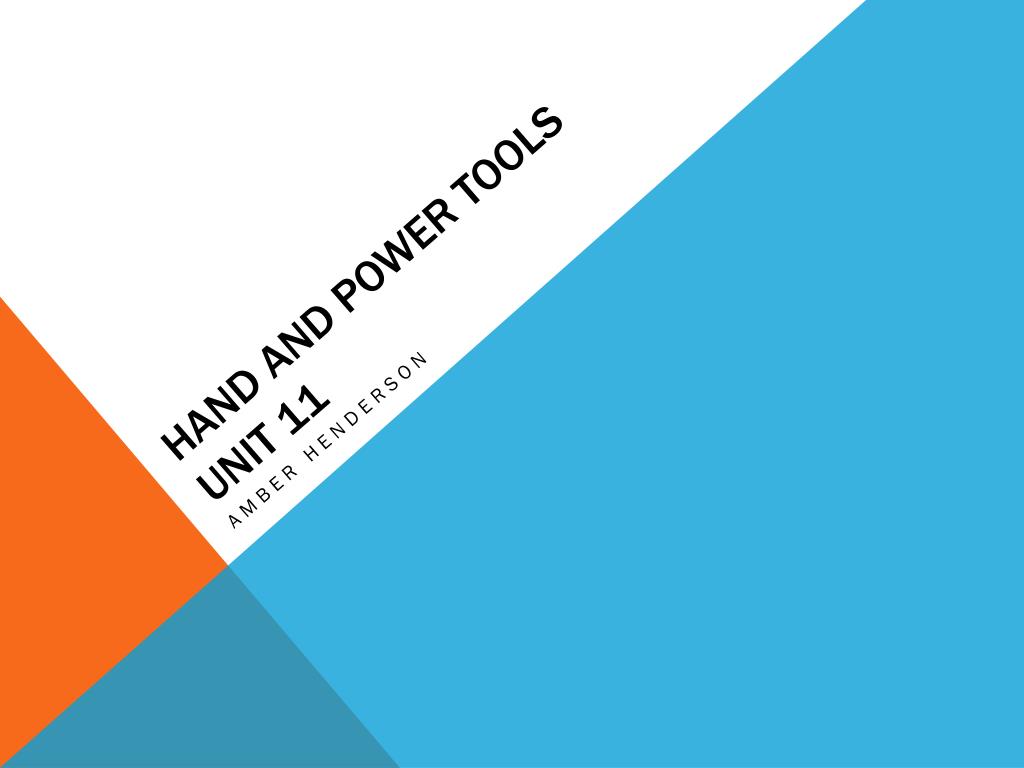

Hand and Power Toolsunit 11

Amber Henderson


Objectives

Objectives

  • 1.) Identify the key terms for the unit.

  • 2.) Identify common hand and power tools used in agricultural mechanics.

  • 3.) Select hand tools needed for a particular job.

  • 4.) Determine the cost of acquiring each tool.


Terms

terms

  • Blade Balance- a device used to balance a lawn mower blade to prevent excess vibration during operation.

  • Board Foot- Circular Saw- a motor- driven power hand saw with round blade.

  • Circular Saw- a motor- driven power hand saw with round blade.

  • Common Nail- A kind of nail with a flat head that is used in general construction.

  • Concave Bevel- a bevel, which is hollowed or curved inward.

  • Convex Bevel- A bevel which is raised or curved outward

  • Crosscut- to cut across the grain of wood

  • Crosscut Hand Saw- A saw with small teeth (more teeth per inch) for cutting across the grain of wood.

  • Dado- A square or rectangular groove in the face of the board


Terms1

Terms

  • Double Inclined Plane- A plane made by two bevels creating a point similar to that of an axe

  • Finishing Nail- A slender nail with a small head used for interior trim work

  • High Speed Drill- Twist drill made tempered specially to drill holes in steel

  • Hollow Ground- A single inclined plane which is concave ground

  • Hone- the process of finely sharpening a cutting edge with a bench stone or hand stone

  • Kerf- Opening in board made by the cutting of a saw blade; also referred to as saw kerf

  • Kickback- A safety hazard that results when a saw blade binds in the material being cut resulting in uncontrollable throwing of the material or saw

  • Rabbet- A cut or groove at the end of a board made to receive another board and form a joint


  • Terms2

    Terms

    • Rip- To cut along the grain of wood

    • Rip Hand Saw- A saw with larger teeth (fewer teeth per inch) for cutting with the grain of wood

    • Revolutions Per Minute (RPM)- the number of times a rotating shaft or blade turns or rotates in sixty (60) seconds

    • Single Incline Plane- A type of bevel with one edge; used on wood chisels and plane irons

    • Twist Drill- Common drill bit used for making round holes in wood and metal


    Hammers 5 60

    Hammers ($5-$60)

    • Carpenter Hammer

      • Used to drive or pull nails

      • Can have either a curved or straight claw


    Hammers

    hammers

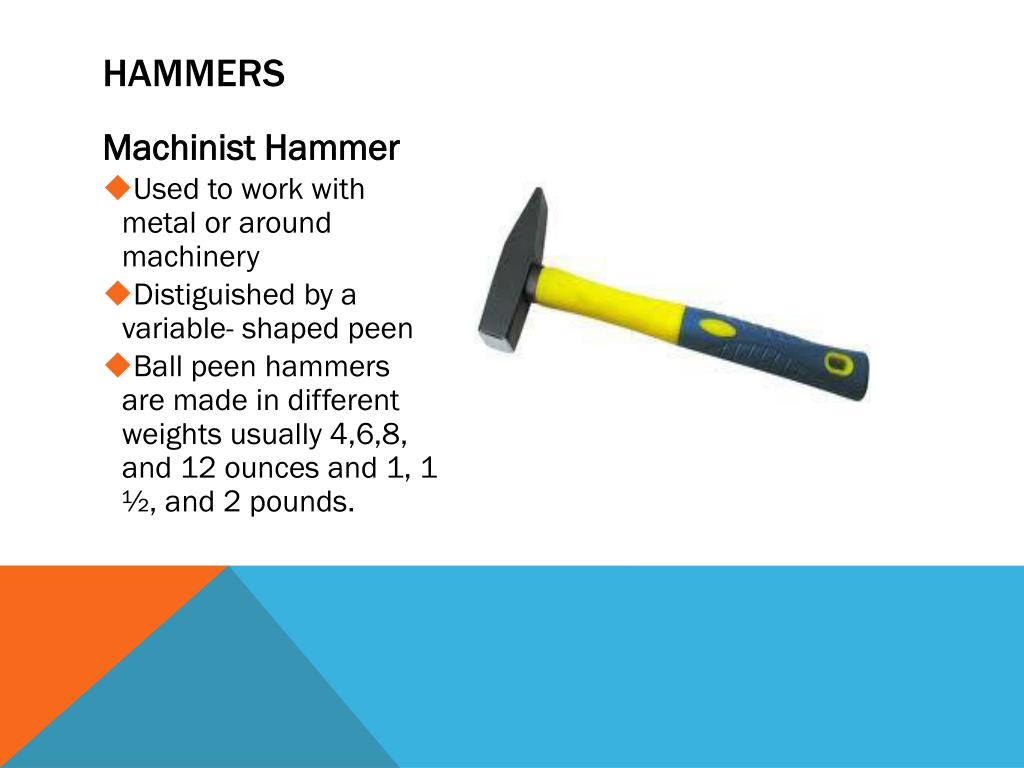

    • Machinist Hammer

      • Used to work with metal or around machinery

      • Distiguished by a variable- shaped peen

      • Ball peen hammers are made in different weights usually 4,6,8, and 12 ounces and 1, 1 ½, and 2 pounds.


    Wrenches 20 300

    Wrenches ($20-$300)

    • Open-end

    • Solid, adjustable wrench with openings in one or both ends

    • Usually come in sets ranging for 5/16’’ to 1 inch.

    • Handles are usually straight but may be curved.


    Wrenches

    wrenches

    • Box Wrench

    • Less likely to slip off the work.

    • Most likely to have 12 points

      • 6-8 points used for heavy

      • 12 points used for medium

      • 16 points used for light duty

  • Disadvantage of this wrench is loss of time


  • Wrench

    Wrench

    • Combination Wrench

    • Has both an open- end and a box end.


    Wrench1

    wrench

    • Adjustable open-end wrench

    • An open- end wrench with an adjustable opening.

    • Can fit variety of different sized nuts and bolts


    Wrench2

    wrench

    • Pipe Wrench

    • An adjustable wrench with curved jaws used to grip pipe or round stock.

    • Come in variety of different sizes.


    Wrench3

    wrench

    • Socket Wrench

    • Cylindrical wrench attached to a breaker bar, ratchet, or air wrench.

    • Offers secure fast and speedy operation.

    • Sized by the millimeter or by inches and fractions of an inch

    • Sets come in different sizes based on the size of the driver.

      • Common sizes: ¼”, ½”, ¾”, and 1”.


    Screwdriver 5 20

    Screwdriver ($5- $20)

    • Philips Screwdriver

      • Named after Henry F. Phillips

      • Used with the most popular screw, which is referred to as a Philips screw.


    Screwdriver

    screwdriver

    • Ratchet off-set screwdriver

      • Manual screwdriver that has a ratcheting action.


    Screwdriver1

    screwdriver

    • Standard screwdriver

      • Also known as a “flat head”

      • Has a single blade


    Rulers tapes 10 30

    Rulers/ tapes ($10-$30)

    • Measure in Inches or Centimeters

    • Used for wood work or metal work


    Squares 10 30

    Squares ($10-$30)

    Carpenter’s Square

    • Usually 12 in X 8 in, 24 in X 16 in, or 24 inX 18 in.

    • Flat sides of the blade and the tonged are graduated in inches and fractions of an inch

    • Used for laying out and squaring up large patterns


    Squares

    Squares

    Try Square

    • Consists of two parts at the right angles to each other


    Square

    square

    Sliding T Bevel

    • Adjustable with a slotted beveled blade

    • Primary use is laying out angles other than right angles


    Square1

    square

    Combination Square

    • Is equipped with moveable heads called square head, protractor head, and center head.


    Hand saw 10 20

    Hand saw ($10-$20)

    Cross cut

    • This saw has a steel blade with a handle at one end

    • The blade is narrower at the end opposite the handle

    • The major difference between ripsaw and crosscut is the shape of the teeth.

      Back saw

    • Is a crosscut saw designed for sawing a perfectly straight line

      Key hold saw

    • Has a long narrow, tapering ripsaw, used to cut from the bored hold


    Chisels 10 20

    Chisels ($10-$20)

    Cold chisels

    • Tools that can be used for chipping or cutting metal or wood

    • They only cut metal that is softer than the metal they are made of

    • Classified according to the shape of their heads and the width of the cutting edge

    • Match hammer to the chisel


    Chisels

    chisels

    Wood Chisels

    • Used with wood working jobs


    Files 5 20

    Files ($5- $20)

    • Files are graded according to their degree of fineness and whether they have single or double- cut teeth.

    • Files remove small amount of metal, plastic, or wood.

    • Used for tooth sharpening

    • Files come in different shapes


    Pliers 14 30

    Pliers ($14-$30)

    • Made in many styles and sizes

    • Used for cutting purposes as well as holding and gripping small articles.

    • Major types:

      • Slip- joint

      • Vice grip

      • Water pump

      • Slide cutter

      • Diagonal pliers

      • Needle- nose pliers


    Hand drill 100 500

    Hand drill ($100-$500)

    • The hand drill is used to drill holes into different material.

    • Made in various sizes and vary in power from light to heavy and in speeds from slow to fast.


    Belt sander 50 200

    Belt sander ($50-$200)

    • Used to sand down wood and other material for finishing purposes.


    Grinder 30 150

    Grinder ($30-$150)

    • Used for cutting, grinding, and polishing

    • Used for removal of excess material from a job or cutting into.


    Portable circular saw 200 400

    Portable Circular Saw ($200- $400)

    • Can be used for crosscutting, ripping, mitering, beveling, chamfering, rabbeting, cove cutting, tapering, shaping, and molding cutting.

    • Used in situations where the work cannot be moved to the shop or in a shop where table saws are not available.

    • Circular saws come in a variety of blade sizes ranging from 6 1/4” to 8 ½”.


    Jig saw 30 200

    Jig Saw ($30-$200)

    • A tool used for cutting arbitrary curves into wood, metal, or other material.

    • Used for artistic fashion than other saws.


    Chop saw 200 900

    Chop Saw ($200- $900)

    • Used to cut hard materials, such as metals

    • Typically 14 inch in diameter and 7/64 inch thick.


    Drill press 40 400

    Drill Press ($40-$400)

    • Is a fixed drill that may be mounted on a stand or bolted to the floor.

    • Can be used for drilling holes, sanding, honing, and polishing


    Table saw 200 700

    Table Saw ($200-$700)

    • Woodworking tool consisting of a circular saw blade.

    • The higher the blade protrudes above the table the deeper the cut that is made into the wood.


    Radial arm saw 200 600

    Radial Arm Saw ($200- $600)

    • Cutting machine consisting of a circular saw mounted on a sliding horizontal arm

    • Used for making length cuts and can be configured with a dado blade to create cuts for dado, rabbet, and half lap joints


    Compound miter 200 600

    Compound Miter ($200-$600)

    • Has a rotating vertical pivot allowing the cutter head and blade to be tilted sideways in addition to the horizontal rotation table.

    • It allows vertical and horizontal angled cuts as well as cuts angled in both planes.


    Band saw 120 500

    Band Saw ($120- $500)

    • Blade consists of continuous band of metal with teeth along one edge to cut various workspaces.

    • Used for woodworking, metalworking, or for cutting variety of other materials.

    • Useful for cutting irregular or curved shapes but also cut straight cuts as well.


    Oxy acetylene 200 5000

    Oxy- Acetylene ($200- $5000)

    • Used for both welding and cutting metal.

    • Has two cylinders- Oxygen and Acetylene


    Mig welder 200 5000

    MIG Welder ($200- $5000)

    • 1. The wire acts as an electrode and is also the source of the filler metal

    • 2. Combines an inert gas shielding with a continuously fed consumable wire electrode.

    • 3. Fast, portable, vertical process


    Arc welder 200 5000

    Arc Welder ($200- $5000)

    • Used to join pieces of metal together

    • The arc is formed between the actual work and an electrode (stick or wire) that is manually or mechanically guided along the joint.


    Plasma cutter 1000

    Plasma Cutter ($1000)

    • 1.Used to cut steel and other metals of different thickness.

    • 2. Uses a plasma torch

    • 3. An inert gas is blown at high speed out of a nozzle; an electrical arc is formed through the gas from the nozzle to the surface being cut turning some of the gas to plasma.
