multiplexers

Multiplexers

Section 4.11-4.12

topics
Topics
  • Multiplexers
    • Definition
    • Examples
    • Verilog Modeling
definition
Definition
  • A multiplexer (“mux” for short) has M data inputs and 1 output, and allows only one input to pass through that output.
  • A set of additional inputs, known as select inputs, determines which input to pass through.
railyard switch
Railyard Switch

(data inputs)

(output)

(selector inputs)

2 to 1 mux
2-to-1 mux

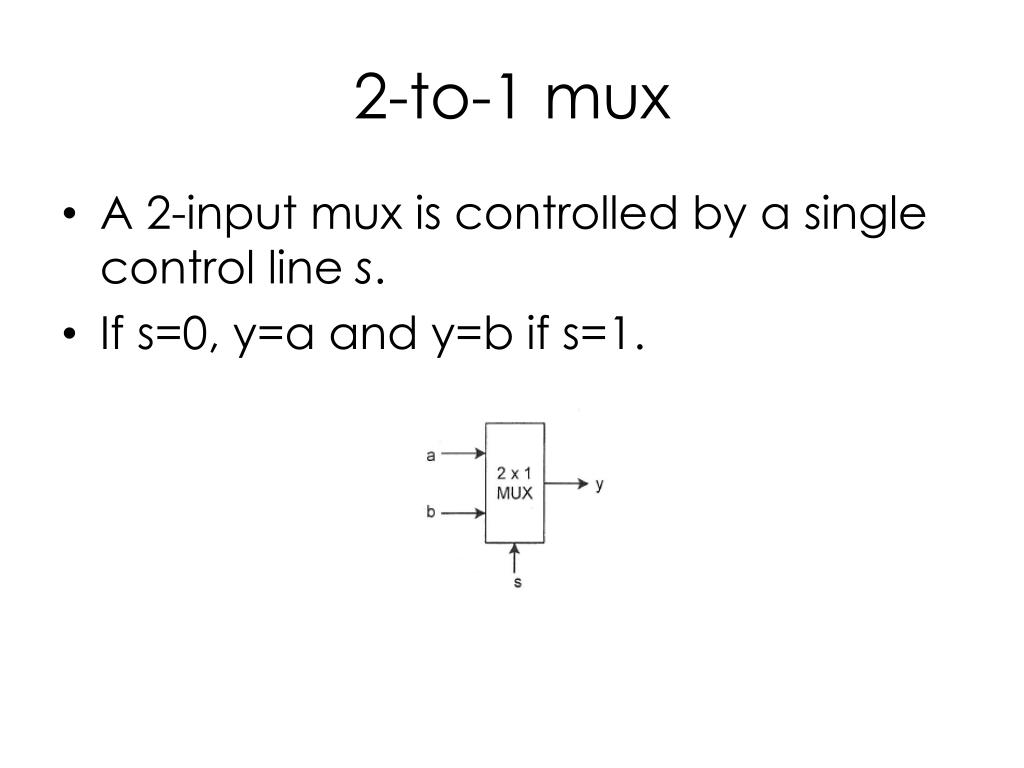

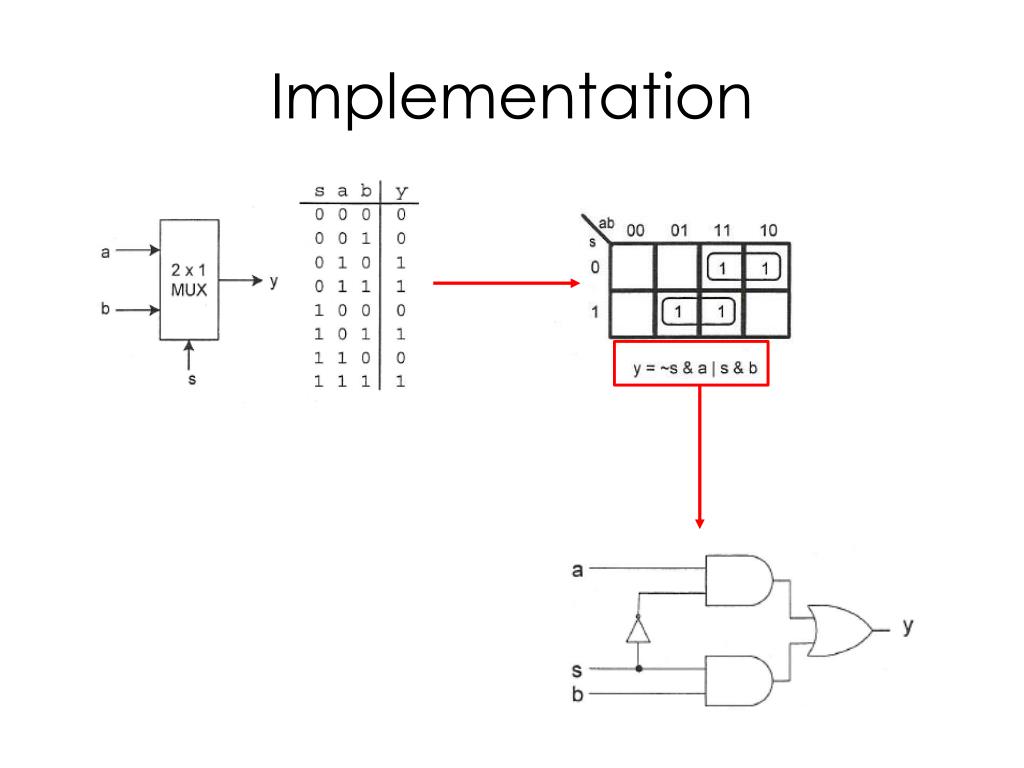

  • A 2-input mux is controlled by a single control line s.
  • If s=0, y=a and y=b if s=1.
verilog modeling
Verilog Modeling

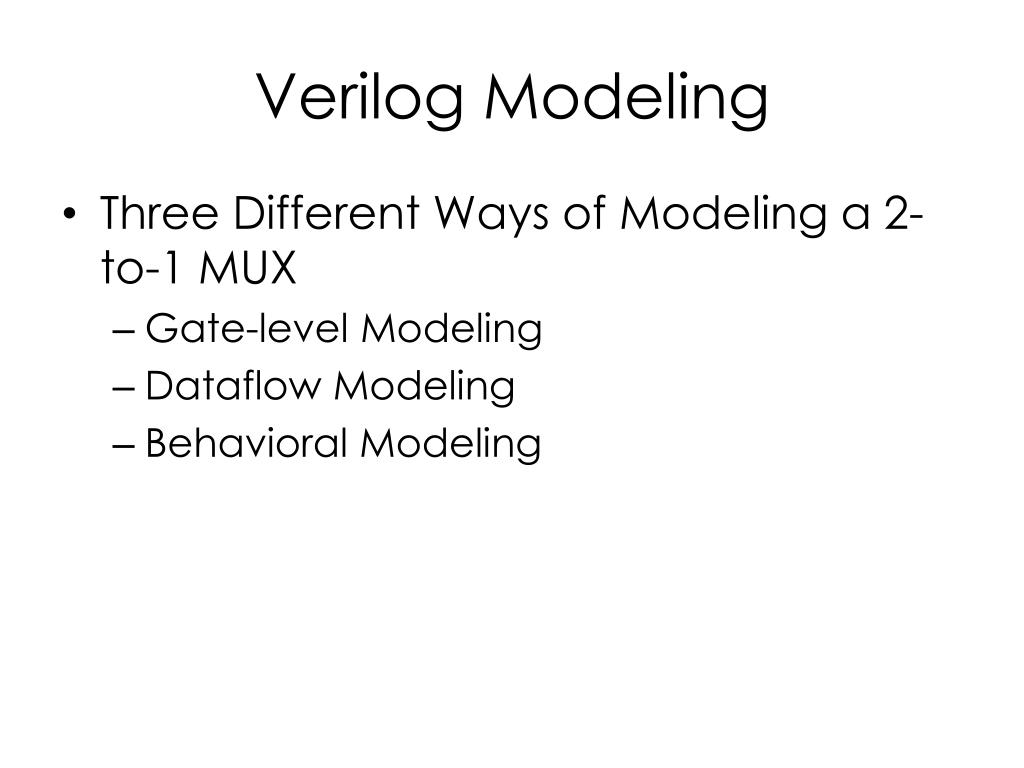

  • Three Different Ways of Modeling a 2-to-1 MUX
    • Gate-level Modeling
    • Dataflow Modeling
    • Behavioral Modeling
gate level modeling
Gate-Level Modeling

A1

sb

O1

N1

A2

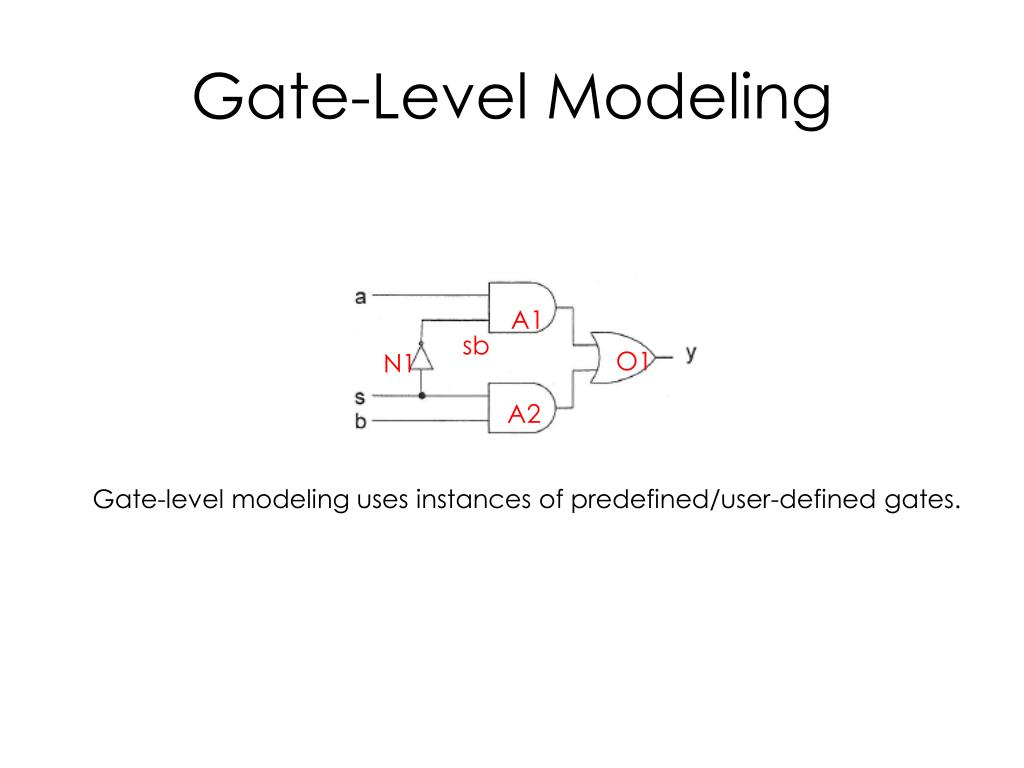

Gate-level modeling uses instances of predefined/user-defined gates.

module template

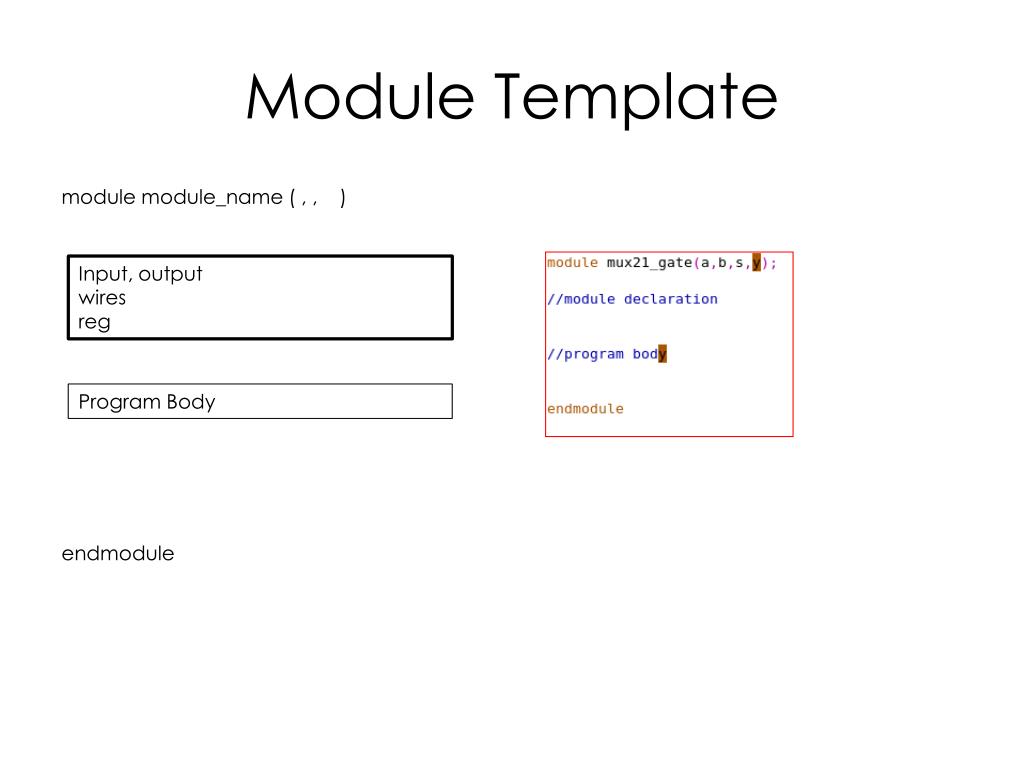

Module Template

module module_name ( , , )

endmodule

Input, output

wires

reg

Program Body

choosing a module name

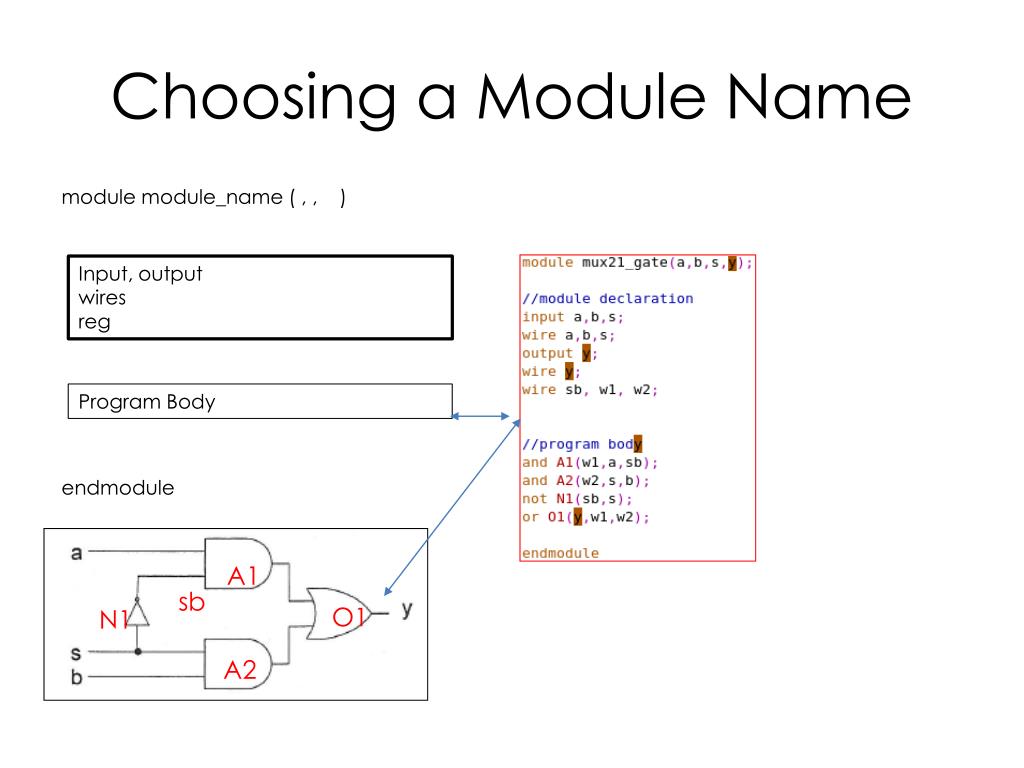

Choosing a Module Name

module module_name ( , , )

endmodule

Input, output

wires

reg

Program Body

choosing a module name1
Choosing a Module Name

module module_name ( , , )

endmodule

Input, output

wires

reg

Program Body

A1

sb

O1

N1

A2

output of mux21
Output of MUX21

A1

sb

O1

N1

A2

data flow modeling of mux21
Data Flow Modeling of MUX21

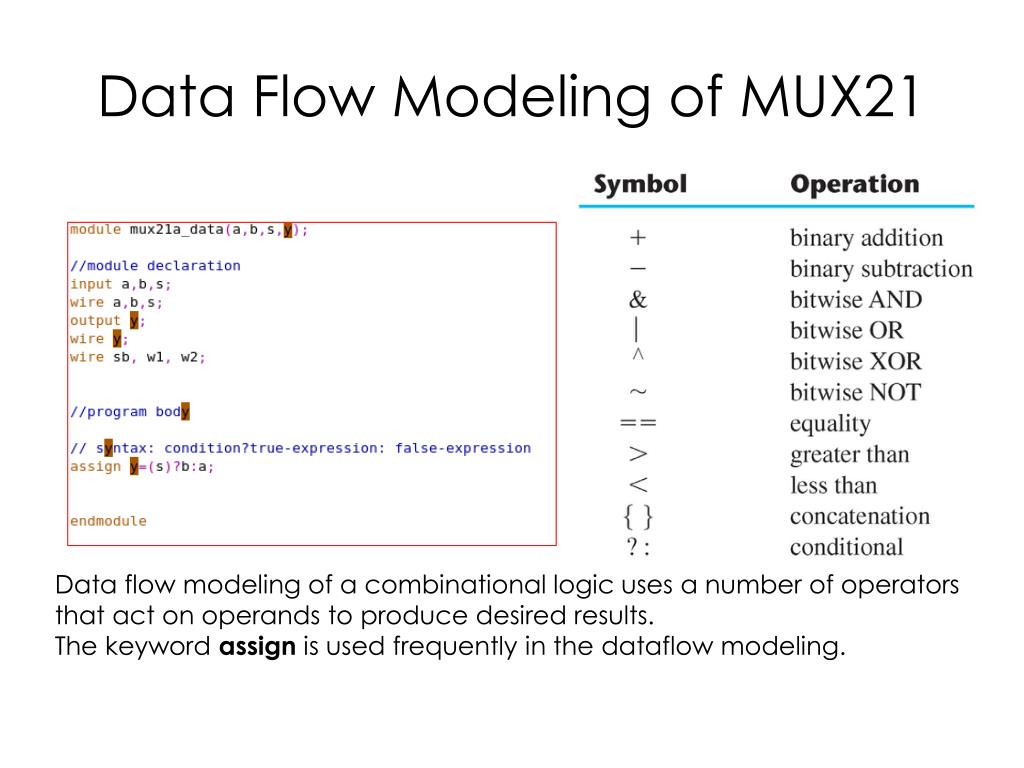

Data flow modeling of a combinational logic uses a number of operators

that act on operands to produce desired results.

The keyword assign is used frequently in the dataflow modeling.

behavior modeling of mux21
Behavior Modeling of MUX21

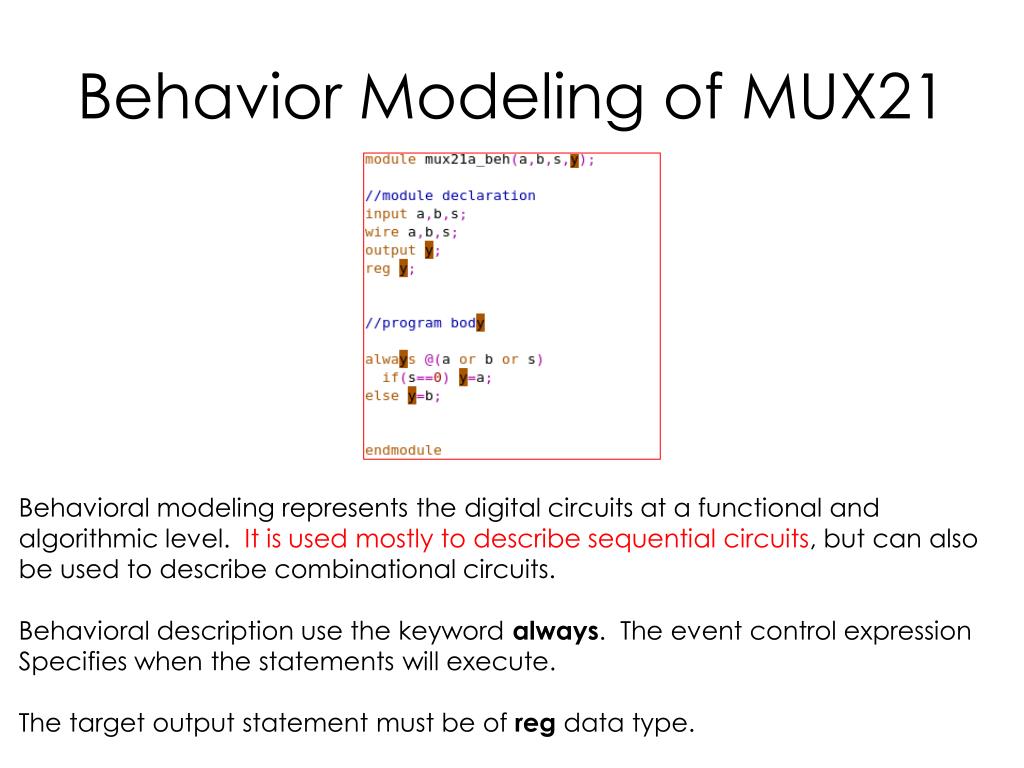

Behavioral modeling represents the digital circuits at a functional and algorithmic level. It is used mostly to describe sequential circuits, but can also be used to describe combinational circuits.

Behavioral description use the keyword always. The event control expression

Specifies when the statements will execute.

The target output statement must be of reg data type.
