Waves and Wind Shape Land

1. Waves and Wind Shape Land Section 5.3

2. Waves formed the pillars. Pillars were made of hard rock and softer rock….the softer was weathered and disintegrated (washed away). How did these pillars of rock form?

3. Pillars, continued • Visualization on wave action • http://www.classzone.com/redirect_science/esm05_pg158_es1606.html

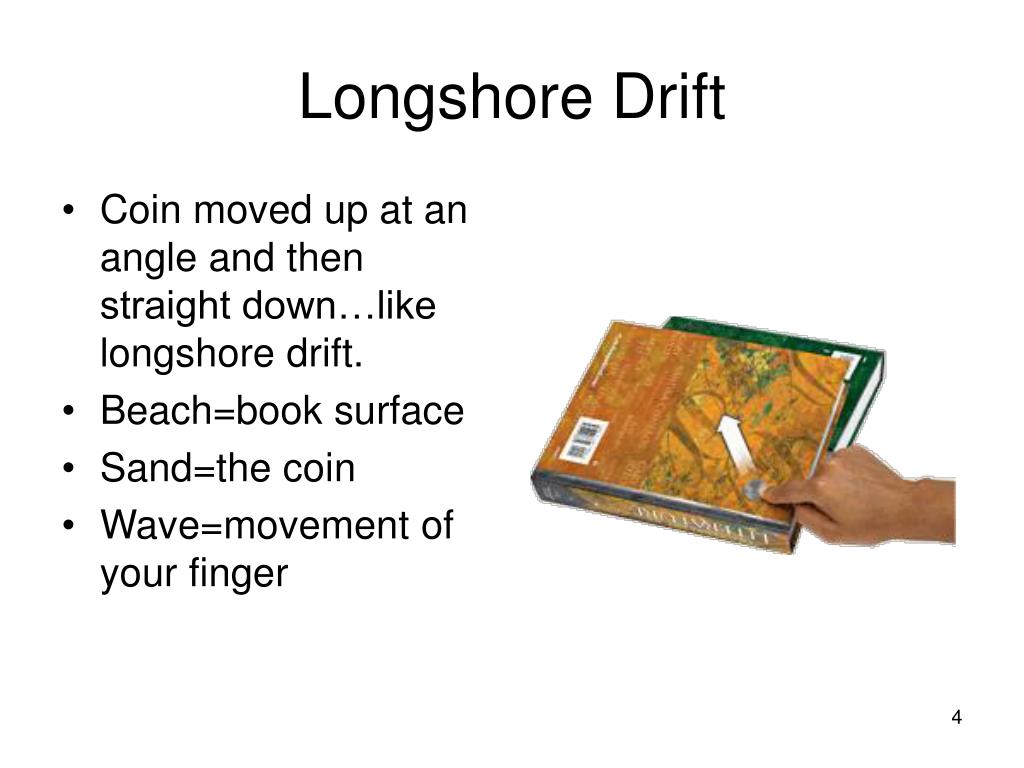

4. Coin moved up at an angle and then straight down…like longshore drift. Beach=book surface Sand=the coin Wave=movement of your finger Longshore Drift

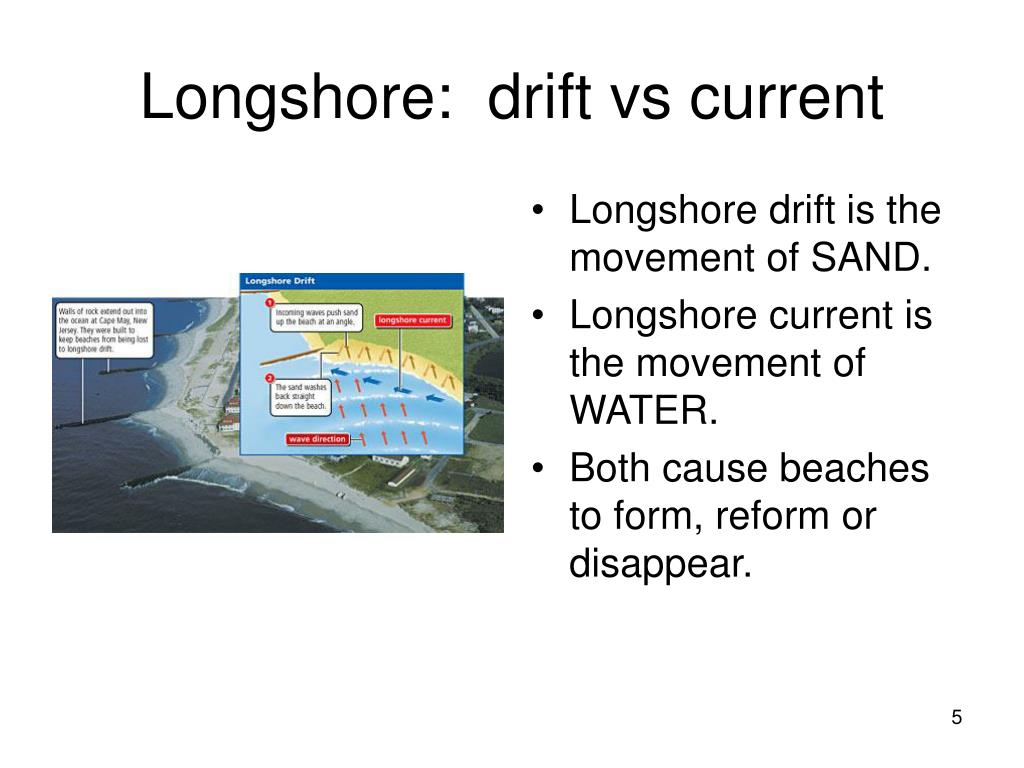

5. Longshore drift is the movement of SAND. Longshore current is the movement of WATER. Both cause beaches to form, reform or disappear. Longshore: drift vs current

6. Beach sand? • Where does beach sand come from to form the beaches? • They come from SEDIMENT brought to the shore by rivers and from rocks eroded (weathered) along the shoreline. • Remember 5.2?????

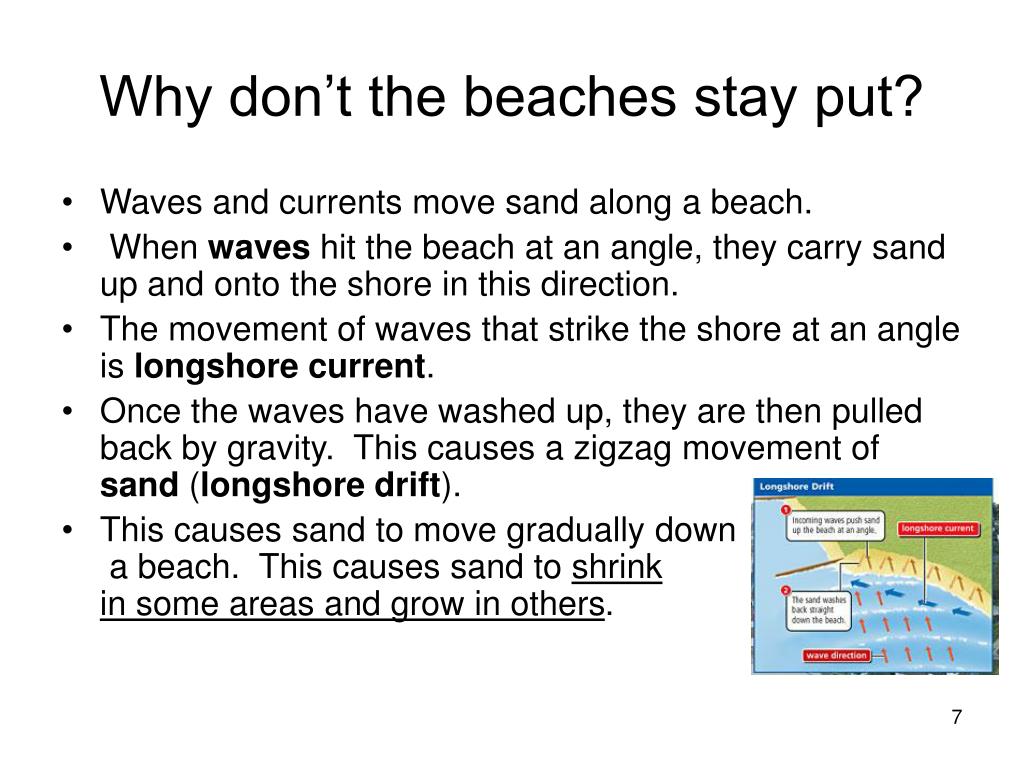

7. Why don’t the beaches stay put? • Waves and currents move sand along a beach. • When waves hit the beach at an angle, they carry sand up and onto the shore in this direction. • The movement of waves that strike the shore at an angle is longshore current. • Once the waves have washed up, they are then pulled back by gravity. This causes a zigzag movement of sand (longshore drift). • This causes sand to move gradually down a beach. This causes sand to shrink in some areas and grow in others.

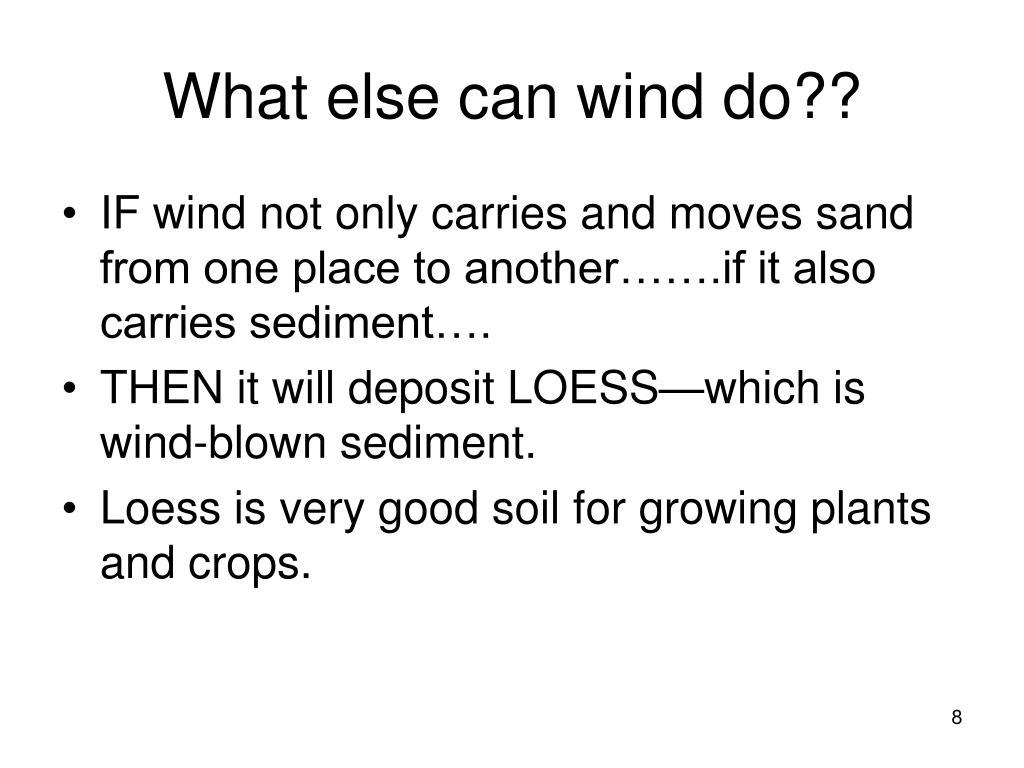

8. What else can wind do?? • IF wind not only carries and moves sand from one place to another…….if it also carries sediment…. • THEN it will deposit LOESS—which is wind-blown sediment. • Loess is very good soil for growing plants and crops.

9. Sometimes WIND just picks up the small sand, dust and silt and leaves the gravel and rocks. These not removed rocks and gravel in a desert are called: Desert Pavement Just the small stuff………

10. Which one ends up above the surface of the water? Answer: The Barrier Island From which structure do both spits and barrier islands form? Answer: Sandbars Sandbars and Barrier Islands

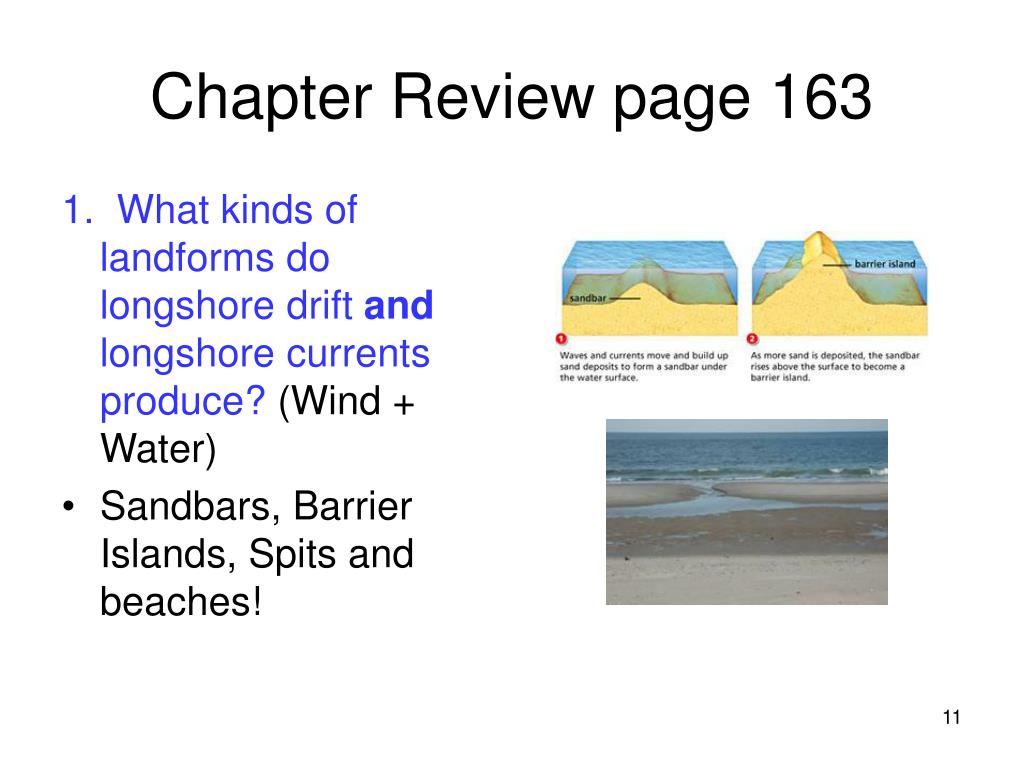

11. 1. What kinds of landforms do longshore drift and longshore currents produce? (Wind + Water) Sandbars, Barrier Islands, Spits and beaches! Chapter Review page 163

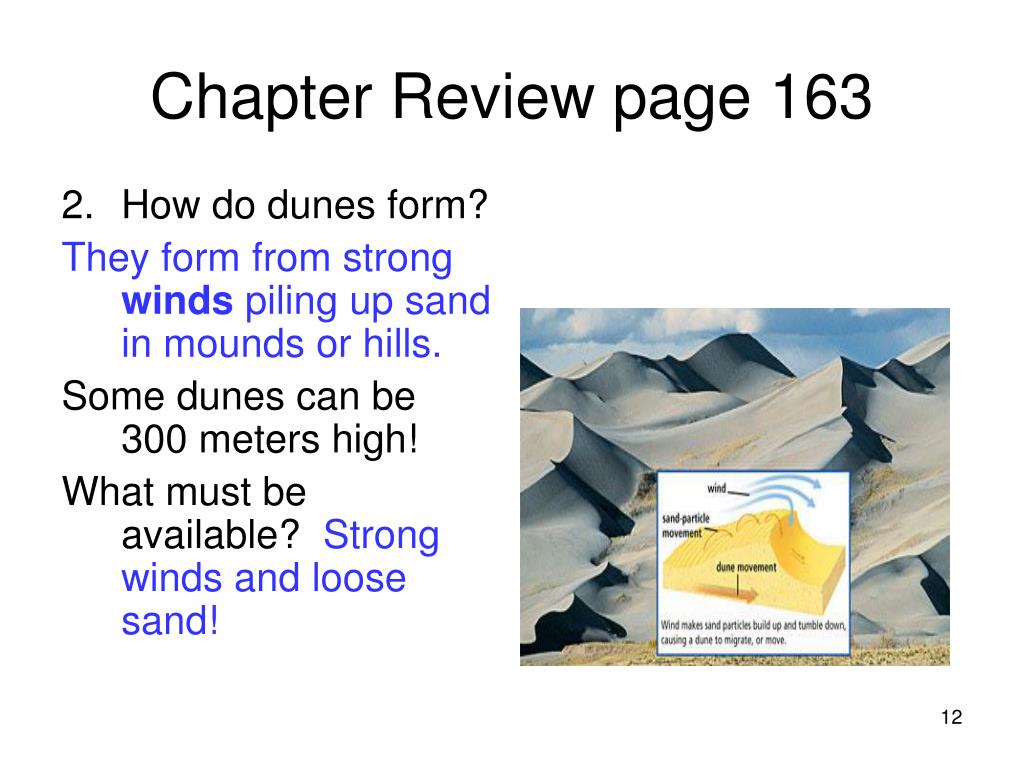

12. How do dunes form? They form from strong winds piling up sand in mounds or hills. Some dunes can be 300 meters high! What must be available? Strong winds and loose sand! Chapter Review page 163

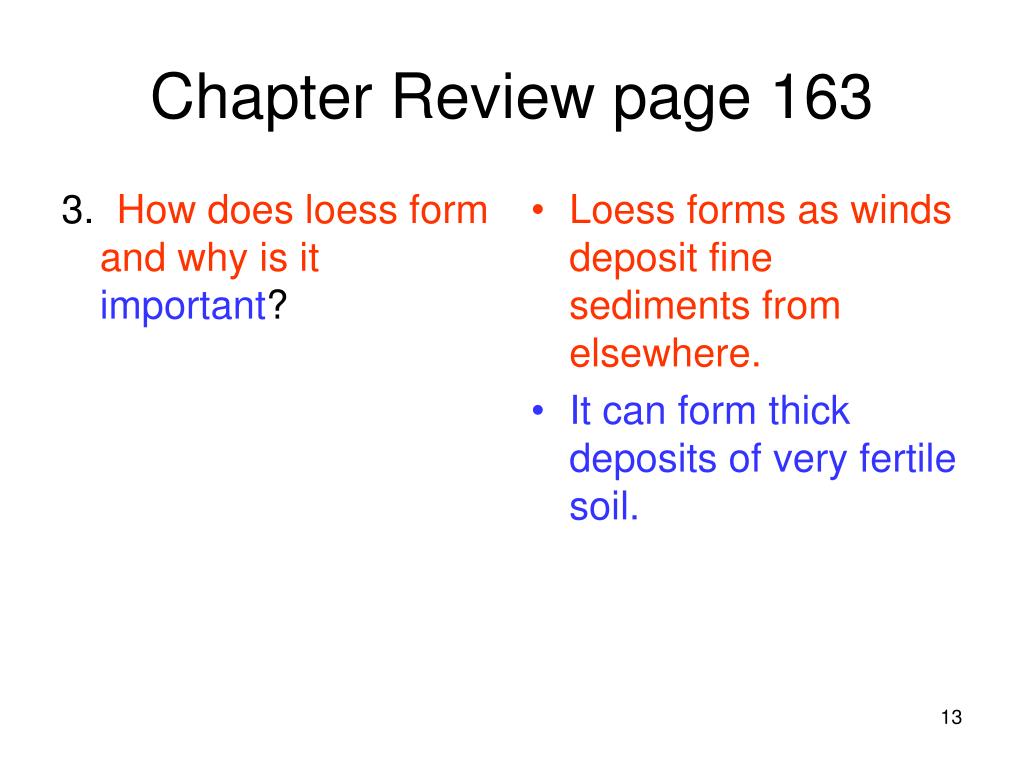

13. 3. How does loess form and why is itimportant? Loess forms as winds deposit fine sediments from elsewhere. It can form thick deposits of very fertile soil. Chapter Review page 163

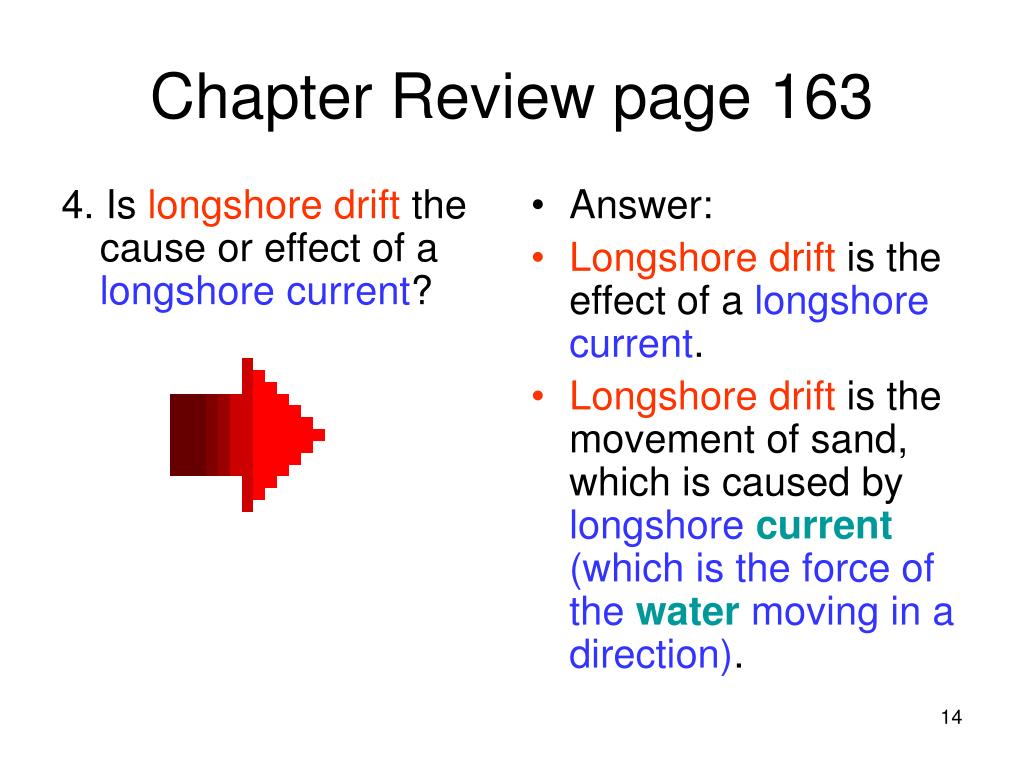

14. 4. Is longshore drift the cause or effect of a longshore current? Answer: Longshore drift is the effect of a longshore current. Longshore drift is the movement of sand, which is caused by longshore current (which is the force of the water moving in a direction). Chapter Review page 163

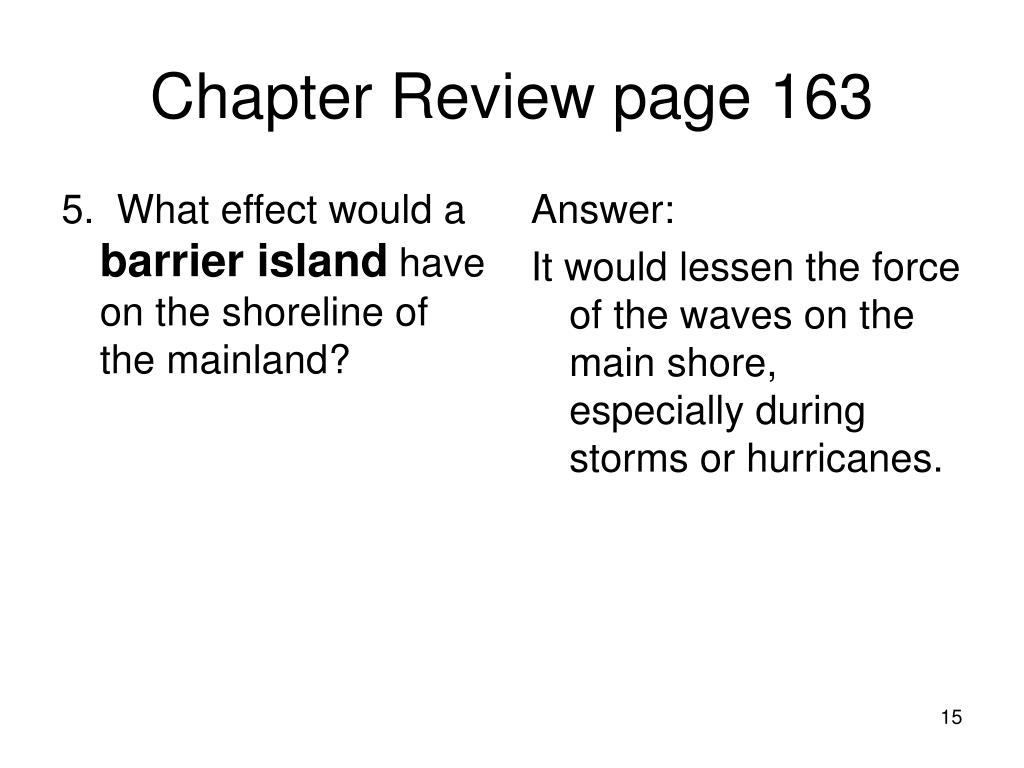

15. 5. What effect would a barrier island have on the shoreline of the mainland? Answer: It would lessen the force of the waves on the main shore, especially during storms or hurricanes. Chapter Review page 163

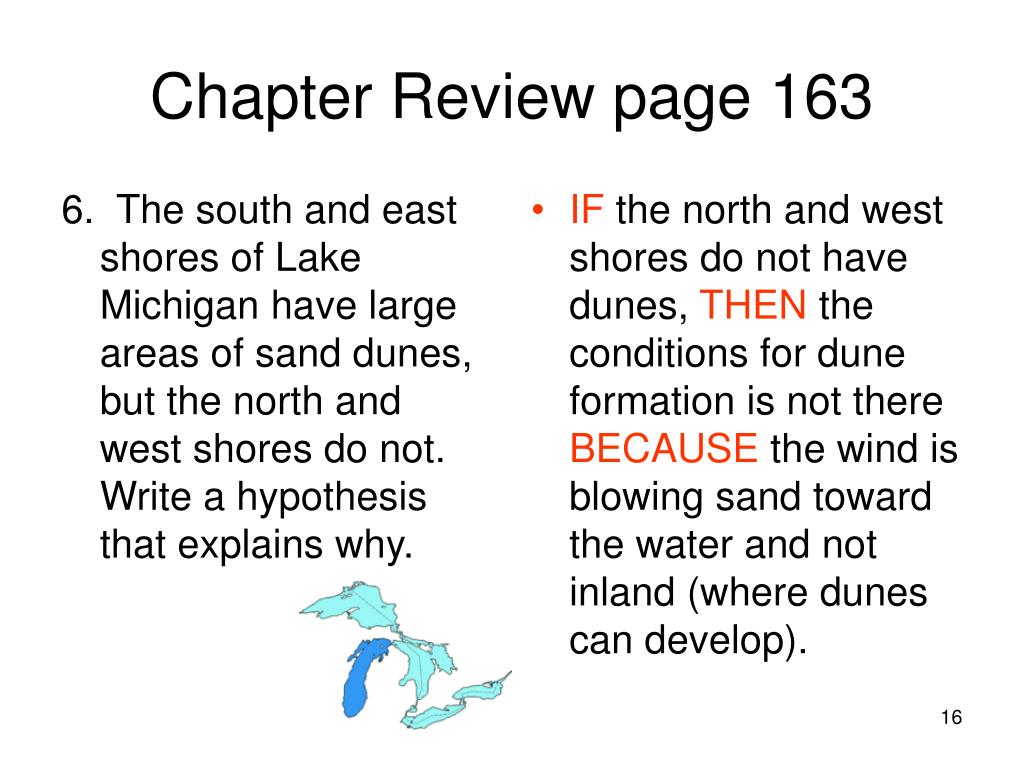

16. 6. The south and east shores of Lake Michigan have large areas of sand dunes, but the north and west shores do not. Write a hypothesis that explains why. IF the north and west shores do not have dunes, THEN the conditions for dune formation is not there BECAUSE the wind is blowing sand toward the water and not inland (where dunes can develop). Chapter Review page 163

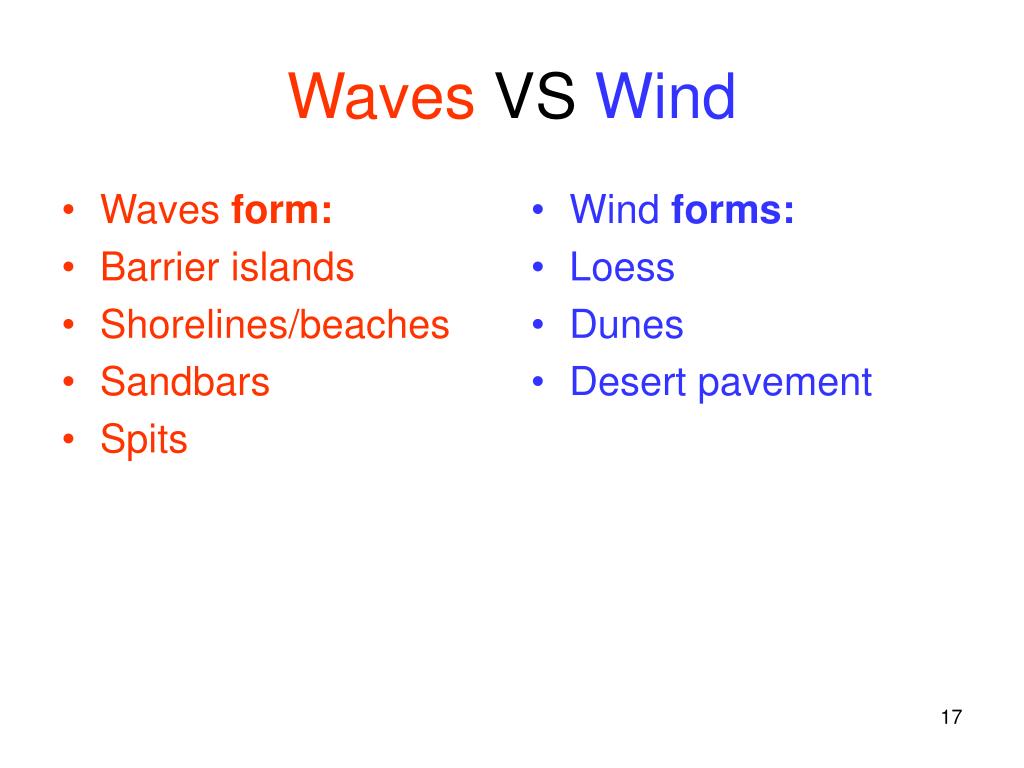

17. Waves form: Barrier islands Shorelines/beaches Sandbars Spits Wind forms: Loess Dunes Desert pavement Waves VS Wind
