Nerve injuries of upper limb

NERVE INJURIES OF UPPER LIMB

Dr. Mujahid Khan


Brachial plexus injuries upper lesions

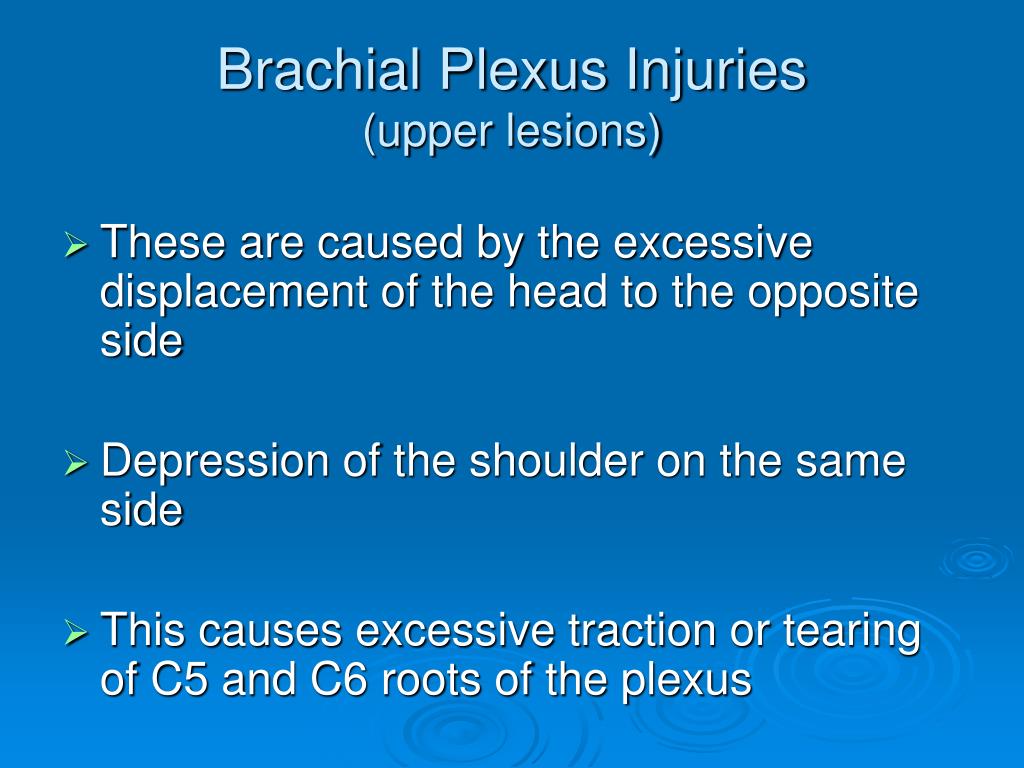

Brachial Plexus Injuries(upper lesions)

  • These are caused by the excessive displacement of the head to the opposite side

  • Depression of the shoulder on the same side

  • This causes excessive traction or tearing of C5 and C6 roots of the plexus


Nerves to be affected

Nerves To be Affected

  • The suprascapular nerve

  • The nerve to the subclavius

  • The musculocutaneous nerve

  • Axillary nerve

  • All possess nerve fibers derived from C5 and 6 roots and will therefore be functionless


Muscles to be paralyzed

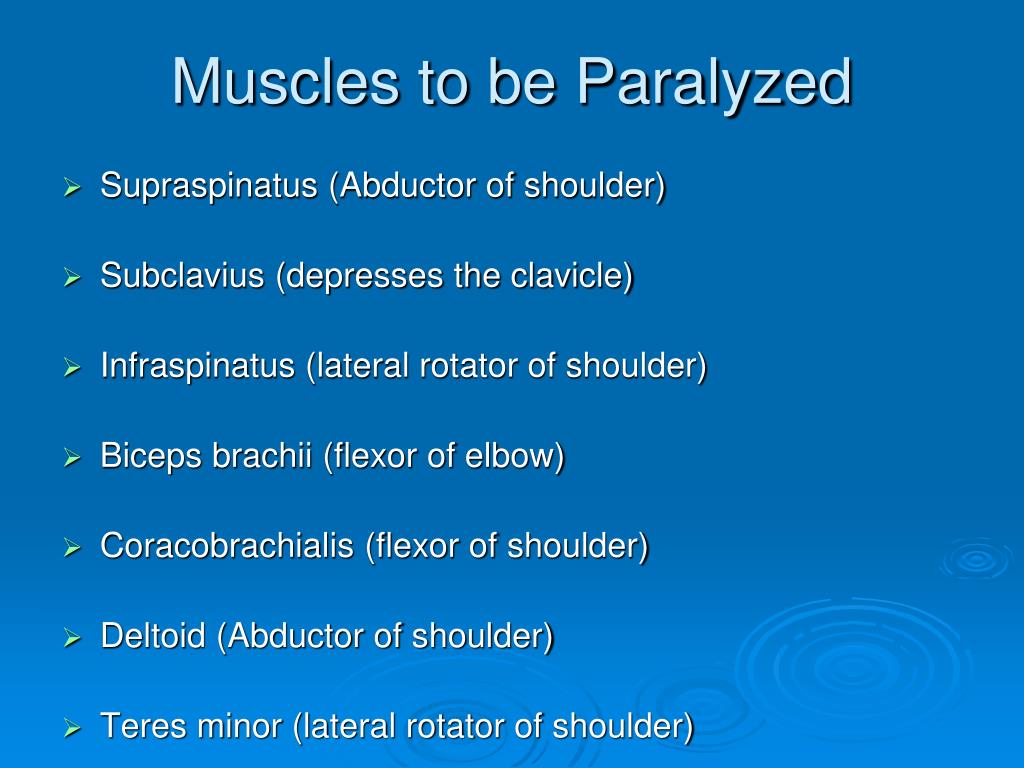

Muscles to be Paralyzed

  • Supraspinatus (Abductor of shoulder)

  • Subclavius (depresses the clavicle)

  • Infraspinatus (lateral rotator of shoulder)

  • Biceps brachii (flexor of elbow)

  • Coracobrachialis (flexor of shoulder)

  • Deltoid (Abductor of shoulder)

  • Teres minor (lateral rotator of shoulder)


Erb duchenne palsy

Erb-Duchenne Palsy

  • The limb hangs limply

    by the side likened

    to a waiter or porter

    hinting for a tip

  • There will be a loss of

    sensation down the

    lateral side of arm


Brachial plexus injuries lower lesions

Brachial Plexus Injuries(Lower lesions)

  • Are usually a traction injuries caused by excessive abduction of the arm

  • The first thoracic nerve is usually torn

  • The hand has a clawed appearance caused by hyperextension of metacarpophalangeal joints & flexion of interphalangeal joints


Brachial plexus injuries lower lesions1

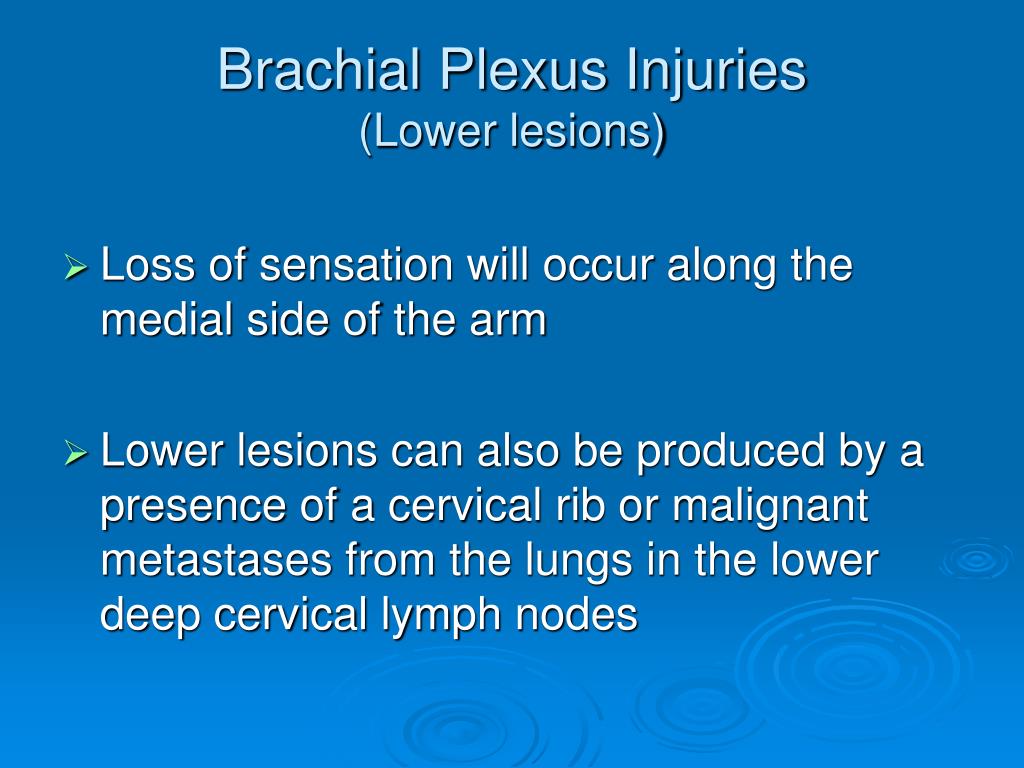

Brachial Plexus Injuries(Lower lesions)

  • Loss of sensation will occur along the medial side of the arm

  • Lower lesions can also be produced by a presence of a cervical rib or malignant metastases from the lungs in the lower deep cervical lymph nodes


Injuries of long thoracic nerve

Injuries of Long Thoracic Nerve

  • Can be injured by blows to or pressure on the posterior triangle of the neck

  • During the surgical procedure of radical mastectomy

  • Paralysis of the serratus anterior results in the inability to rotate the scapula during the movement of abduction of the arm above a right angle


Injuries of long thoracic nerve1

Injuries of Long Thoracic Nerve

  • The patient feels difficulty in raising the arm

  • The vertebral border & inferior angle of scapula protrude posteriorly

  • Known as winged scapula


Injuries of axillary nerve

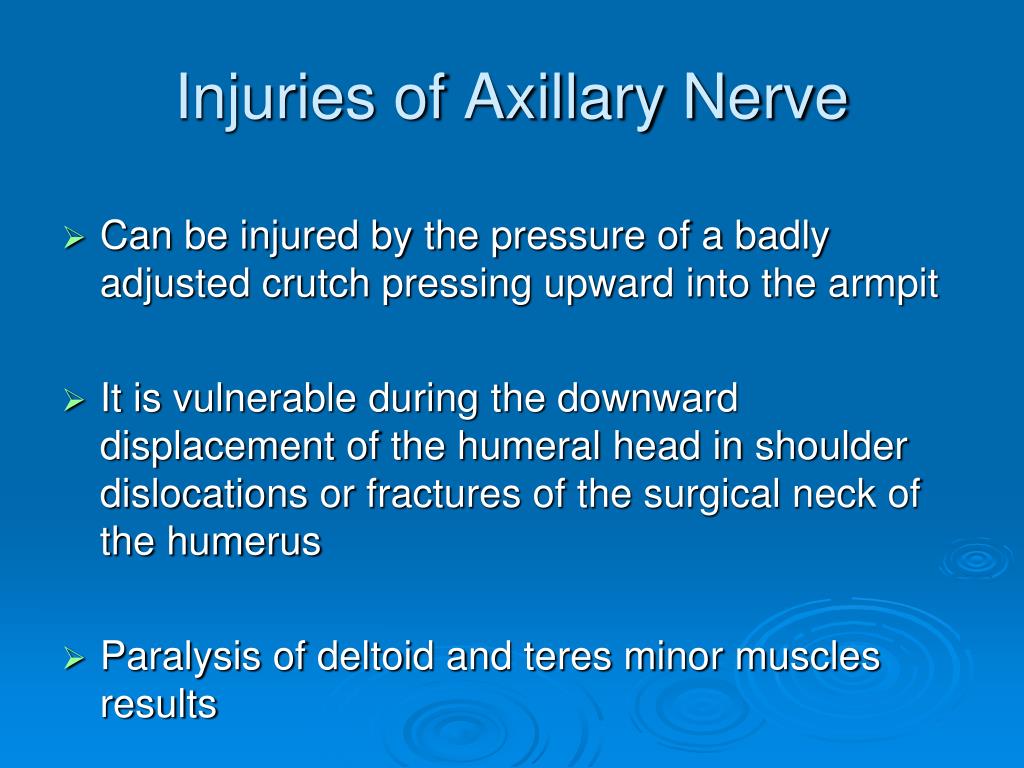

Injuries of Axillary Nerve

  • Can be injured by the pressure of a badly adjusted crutch pressing upward into the armpit

  • It is vulnerable during the downward displacement of the humeral head in shoulder dislocations or fractures of the surgical neck of the humerus

  • Paralysis of deltoid and teres minor muscles results


Axillary nerve

Axillary Nerve

  • Loss of skin sensation over the lower half of the deltoid muscle

  • Paralyzed deltoid wastes rapidly

  • Underlying greater tuberosity can be palpated

  • Abduction of the shoulder is impaired

  • Paralysis of teres minor is not recognizable clinically


Injuries of radial nerve

Injuries of Radial Nerve

Can be injured by:

  • Pressure of badly fitting crutches

  • Drunkard falling asleep with one arm over the back of a chair

  • Fractures or dislocation of the proximal end of the humerus


Findings in radial n injury

Findings in Radial N. Injury

  • Triceps, anconeus and long extensors of the wrist are paralyzed

  • Unable to extend the elbow joint, wrist joint and fingers

  • Wrist drop or flexion of wrist occurs

  • Unable to flex the fingers firmly for gripping

  • Brachioradialis & supinator are paralyzed


Sensory findings

Sensory Findings

  • Small loss of skin sensation over posterior surface of lower part of the arm

  • Sensory loss on the lateral part of dorsum of the hand

  • Sensory loss on the dorsal surface of the roots of the lateral 3 & ½ fingers


In the spiral groove

In the Spiral Groove

  • Radial nerve can be injured in the spiral groove at the time of fracture of shaft of the humerus

  • Wrist drop occurs

  • Sensory loss on the dorsal surface of the roots of the lateral 3 & ½ fingers


Deep branch of radial nerve

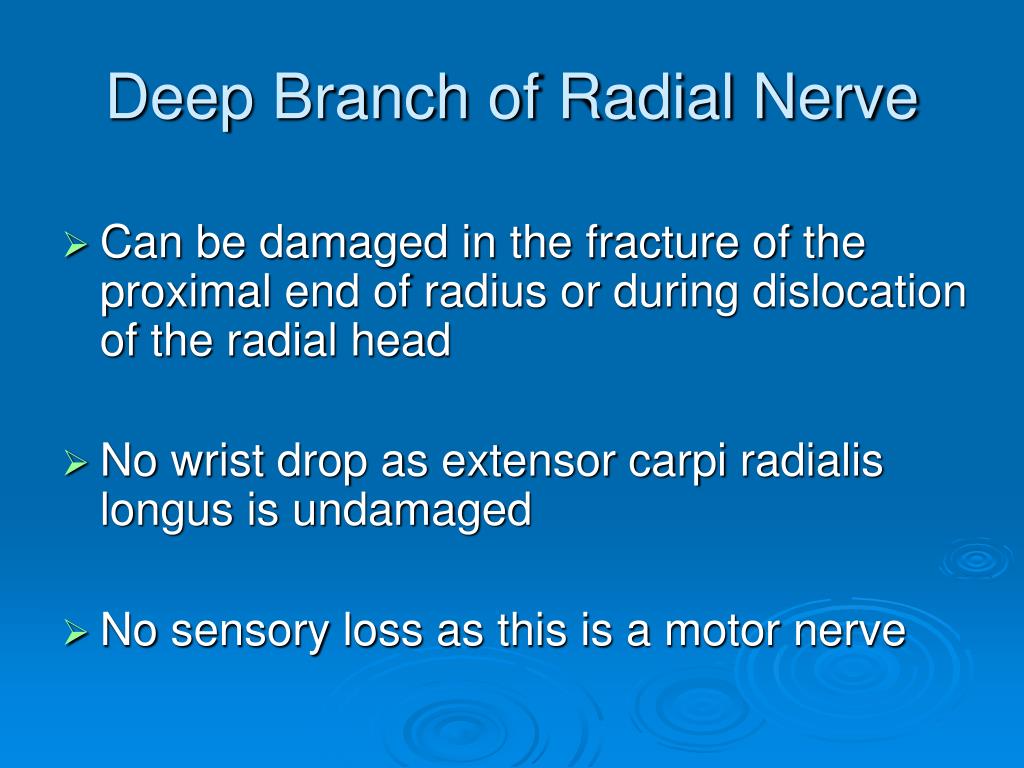

Deep Branch of Radial Nerve

  • Can be damaged in the fracture of the proximal end of radius or during dislocation of the radial head

  • No wrist drop as extensor carpi radialis longus is undamaged

  • No sensory loss as this is a motor nerve


Injuries of musculocutaneous nerve

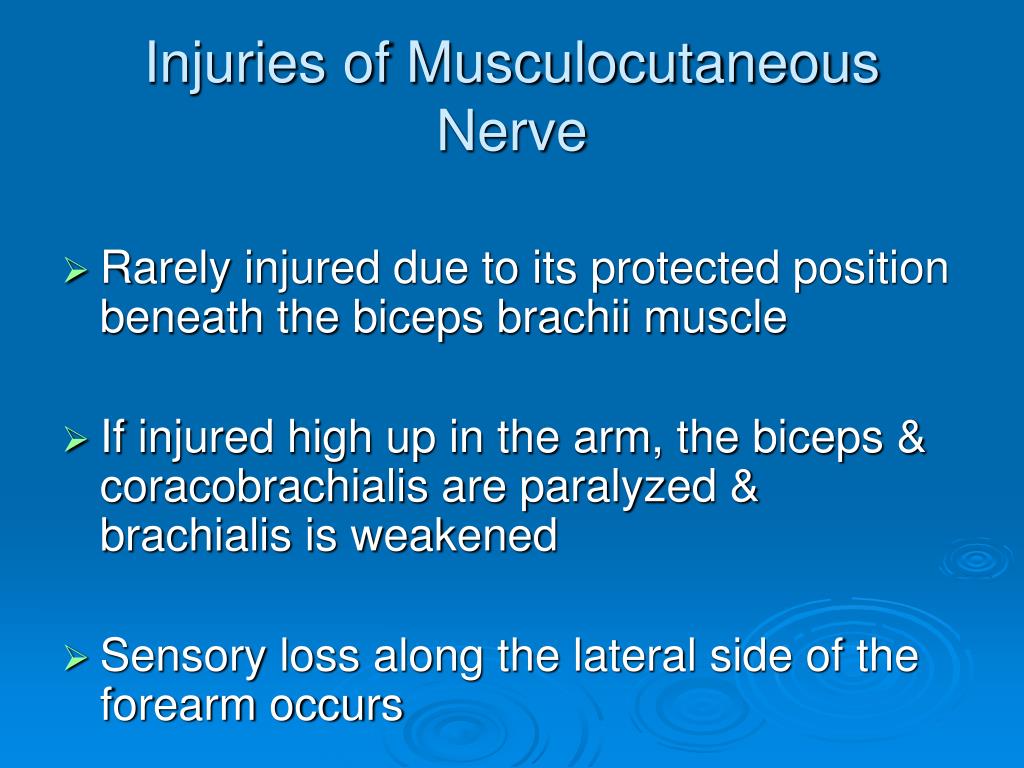

Injuries of Musculocutaneous Nerve

  • Rarely injured due to its protected position beneath the biceps brachii muscle

  • If injured high up in the arm, the biceps & coracobrachialis are paralyzed & brachialis is weakened

  • Sensory loss along the lateral side of the forearm occurs


Injuries of median nerve

Injuries of Median Nerve

Can be injured:

  • Occasionally in the elbow region in supracondylar fractures of the humerus

  • Commonly injured by stab wounds or broken glass just proximal to the flexor retinaculum

  • Here it lies between the tendons of flexor carpi radialis and flexor digitorum superficialis


Injury at elbow motor

Injury at Elbow(motor)

  • Pronator muscles of forearm, long flexor muscles of the wrist & fingers will be paralyzed

  • Forearm is kept in supine position

  • Wrist flexion is weak & accompanied by adduction

  • No flexion at interphalangeal joints of index & middle fingers


Injury at elbow motor1

Injury at Elbow(motor)

  • When the patient tries to make a fist, the index & middle fingers tend to remain straight

  • Only ring & little fingers flex

  • Flexion in these fingers is weakened by the loss of the flexor digitorum superficialis


Injury at elbow motor2

Injury at Elbow(motor)

  • Flexion of terminal phalanx of thumb is lost because of paralysis of flexor policis longus

  • The thumb is laterally rotated and adducted

  • Muscles of thenar eminence are paralyzed

  • The hand looks flattened and ape like


Injury at elbow sensory

Injury at Elbow(sensory)

  • Skin sensation is lost on the palmar aspect of the lateral 3 & ½ fingers

  • Sensory loss occurs on the skin of the distal part of the dorsal surfaces of the lateral 3 & ½ fingers

  • Total area of anesthesia is less


Injury at elbow vasomotor changes

Injury at Elbow(vasomotor changes)

  • The skin areas involved in sensory loss are warmer and drier than normal

  • Arteriolar dilatation and absence of sweating resulting from loss of sympathetic control


Injury at elbow trophic changes

Injury at Elbow(Trophic changes)

In long standing cases:

  • Skin is dry and scaly

  • Nails crack easily

  • Atrophy of the pulp of the fingers


Injury at wrist

Injury at Wrist

  • Almost all the clinical findings are same as injury of the median nerve at elbow

  • In addition a delicate pincer like movement is not possible


Carpal tunnel syndrome

Carpal Tunnel Syndrome

  • The carpal tunnel is formed by the concave anterior surface of carpal bones and closed by flexor retinaculum

  • Clinically, the syndrome consists of a burning pain or pins & needles along the distribution of the median nerve

  • Lateral 3 & ½ fingers are involved


Carpal tunnel syndrome1

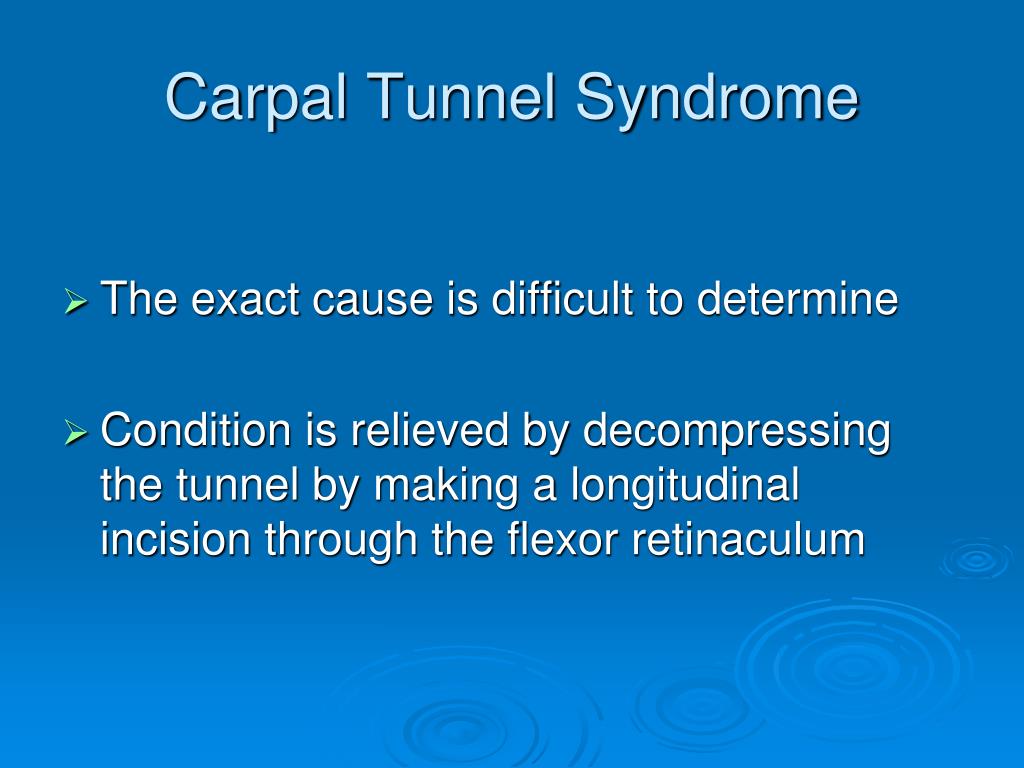

Carpal Tunnel Syndrome

  • The exact cause is difficult to determine

  • Condition is relieved by decompressing the tunnel by making a longitudinal incision through the flexor retinaculum


Injury to the ulnar nerve motor at elbow

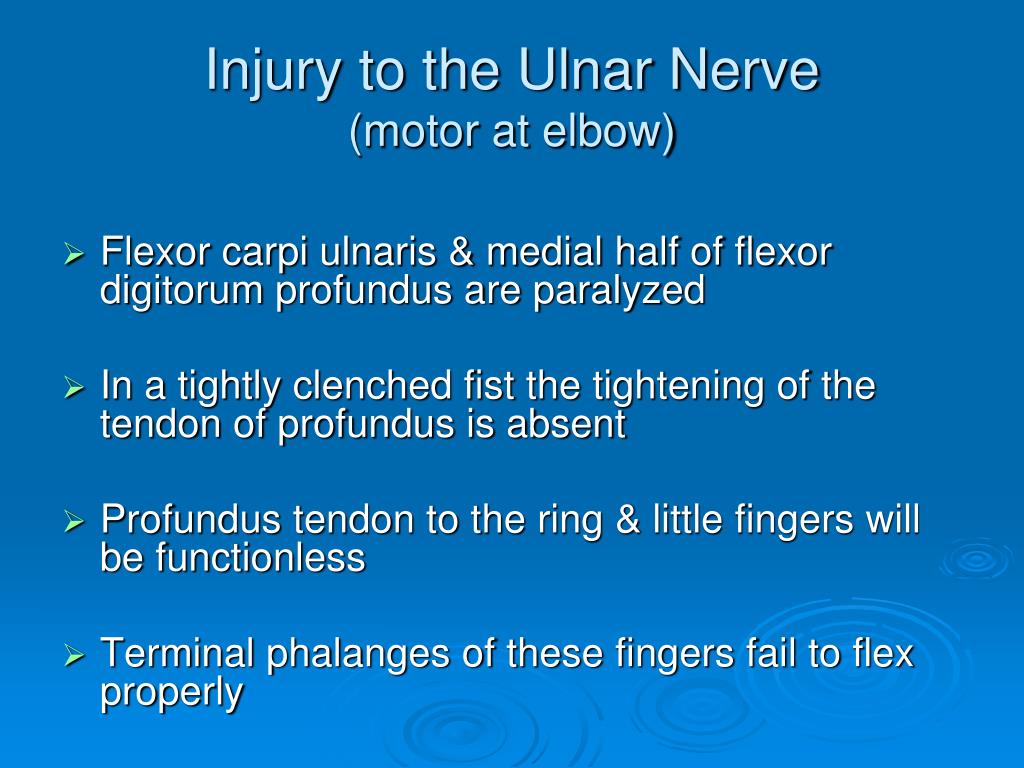

Injury to the Ulnar Nerve(motor at elbow)

  • Flexor carpi ulnaris & medial half of flexor digitorum profundus are paralyzed

  • In a tightly clenched fist the tightening of the tendon of profundus is absent

  • Profundus tendon to the ring & little fingers will be functionless

  • Terminal phalanges of these fingers fail to flex properly


Injury to the ulnar nerve motor at elbow1

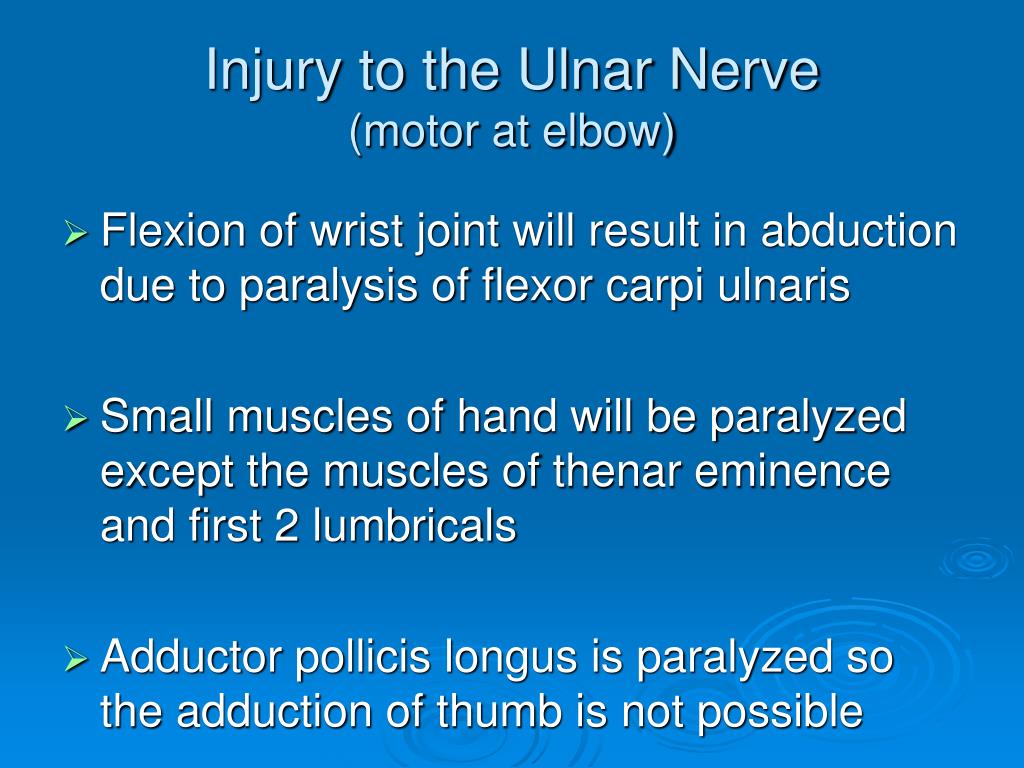

Injury to the Ulnar Nerve(motor at elbow)

  • Flexion of wrist joint will result in abduction due to paralysis of flexor carpi ulnaris

  • Small muscles of hand will be paralyzed except the muscles of thenar eminence and first 2 lumbricals

  • Adductor pollicis longus is paralyzed so the adduction of thumb is not possible


Injury to the ulnar nerve motor at elbow2

Injury to the Ulnar Nerve(motor at elbow)

  • Metacarpophalangeal joints become hyperextended due to the paralysis of lumbrical and interosseous muscles

  • Interphalangeal joints are flexed due to the same reason as mentioned above

  • Dorsum of hand will show hollowing due to the wasting of dorsal interosseous muscles


Injury to the ulnar nerve sensory at elbow

Injury to the Ulnar Nerve(sensory at elbow)

  • Loss of skin sensation of anterior & posterior surfaces of the medial 3rd of the hand and medial 1 & ½ fingers

  • The skin areas involved in sensory loss are warmer and drier than normal

  • Arteriolar dilatation and absence of sweating resulting from loss of sympathetic control


Injury to the ulnar nerve motor at wrist

Injury to the Ulnar Nerve(motor at wrist)

  • Small muscles of the hand will be paralyzed

  • Claw hand is more obvious as flexor digitorum profundus is not paralyzed

  • Marked flexion of the terminal phalanges occur


Injury to the ulnar nerve sensory at wrist

Injury to the Ulnar Nerve(sensory at wrist)

  • The sensory loss is usually confined to the palmar surface of medial 3rd of the hand and the medial 1 & ½ finger

  • Trophic changes are same as that injuries of ulnar nerve at elbow

  • Unlike median nerve injuries, lesions of ulnar nerve leave a relatively efficient hand

  • Pincer like action is good
