Fibers textiles

Fibers & Textiles


Fibers textiles1

Fibers & Textiles

  • Fiber - the smallest indivisible unit of a textile.

  • Textile - flexible, flat material made by interlacing yarns or threads.


Fabric production

Fabric Production

Fabrics are composed of individual threads or yarns that have been woven or knittedtogether.

The degree of stretch, absorbency, water repellence, softness and durability are all individual qualities of the different fabrics.


Weave terminology

Weave Terminology

  • Yarn - a continuous strand of fibers or filaments that have been spun together

  • Warp- lengthwise yarn

  • Weft - crosswise yarn

  • Blend - a fabric made up of two or more different types of fiber.


Plain weave

Plain Weave

  • The simplest and most common weave pattern

  • The warp and weft yarns pass under each other alternately

  • Design resembles a checkerboard

Weave Patterns


Basket weave

Basket weave

  • Alternating pattern of two warp & two weft threads

  • Open & porous weave

  • Not very durable

Weave Patterns

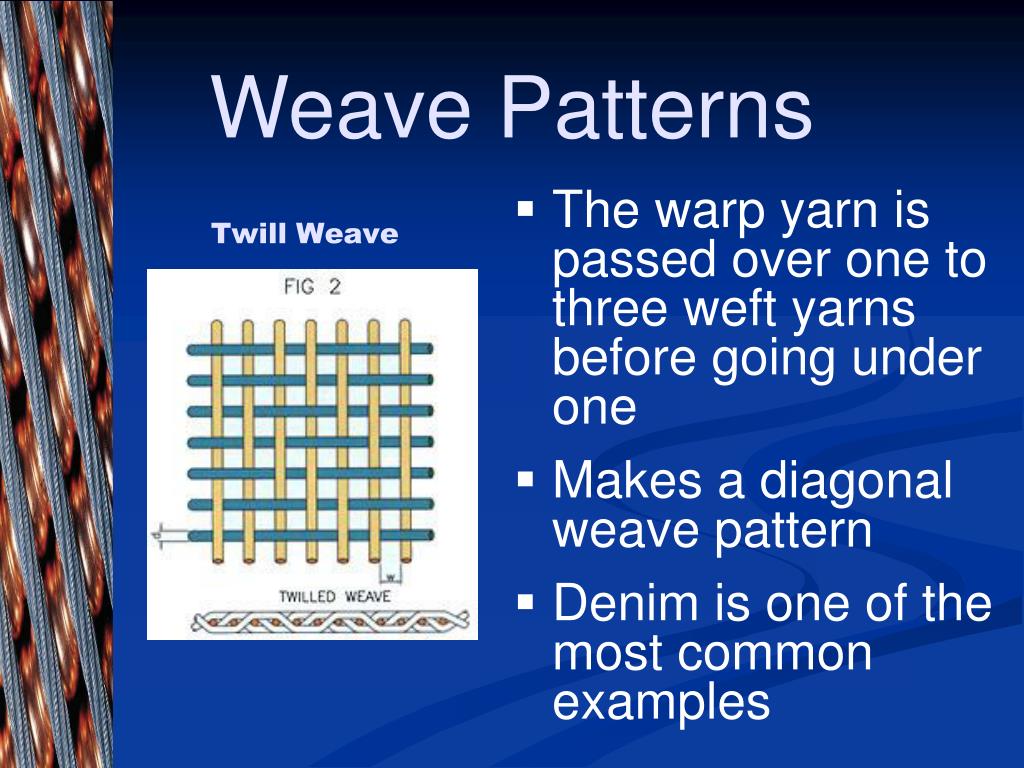

Twill weave

Twill Weave

  • The warp yarn is passed over one to three weft yarns before going under one

  • Makes a diagonal weave pattern

  • Denim is one of the most common examples

Weave Patterns


Satin weave

Satin Weave

  • The yarn interlacing is not uniform

  • Creates long floats

  • Interlacing weave passes over four or more yarns

Weave Patterns


Fibers

Fibers

Natural or Synthetic?


Fiber classification

Fiber Classification

  • Natural Fibers– come from animals, plants & minerals that are mined from the ground.


Natural fibers

Natural Fibers

  • Animal Fibers – provide fibers from 3 sources: hair, fur & webbing.

  • All animal fibers are made of proteins.

Silk is made from the cocoon part of the silk moth.


Natural fibers1

Natural Fibers

  • Plant Fibers – grouped according to the part of the plant they come from.

  • All plant fibers are made of cellulose.

  • Include: seed fibers, fruit fibers, stem fibers & leaf fibers.

Flax is the fiber used to make linen.


Plant fibers

Plant Fibers

  • Seed Fibers – come from the seed of a plant

  • Cotton - from seed hairs, looks like a flattened, twisted ribbon.

A cotton fiber


Plant fibers1

Plant Fibers

  • Stem Fibers – come from the stem of a plant.

  • Grow as bundles.

  • Common examples include: jute, flax & hemp (seen at right).


Natural fibers2

Natural Fibers

  • Mineral Fibers – neither proteins nor cellulose.

  • Fiberglass – a fiber form of glass.

  • Asbestos – naturally occurring mineral.

Asbestos as seen with a scanning electron microscope.


Fiber classification1

Fiber Classification

  • Synthetic Fibers(man-made) regenerated fibers or polymer fibers

A scanning electron micrograph of fibers of a dacron polyester material used in sleeping bags. The core of each fiber has up to seven air cavities that increase its insulating ability.


Synthetic fibers

Synthetic Fibers

  • Produced by joining many monomers together to form polymers

  • Polymer – substance composed of long chains of repeating units

  • Monomers – small molecule that may bond to other monomers to form a polymer


Synthetic fibers1

Synthetic Fibers

  • Regenerated fibers (or modified natural fibers) derived from cellulose, mostly plant in origin

  • Imitate natural fibers, generally smooth & silky in appearance

  • Rayon – most common example


Synthetic fibers2

Synthetic Fibers

  • Polymer fibers – originate with petroleum products & are non-cellulose based fibers

  • Shape determined by manufacturing process

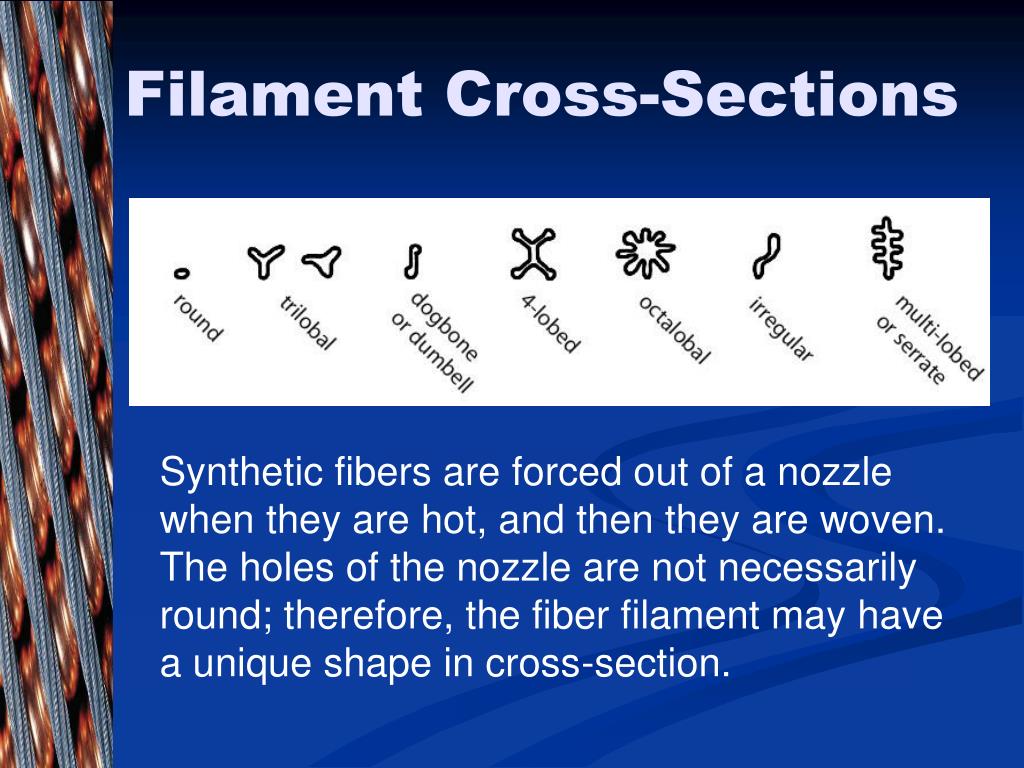

Filament cross sections

Filament Cross-Sections

Synthetic fibers are forced out of a nozzle when they are hot, and then they are woven. The holes of the nozzle are not necessarily round; therefore, the fiber filament may have a unique shape in cross-section.


Polymer fibers

Polymer Fibers

  • Polyester - made of ester monomers, added to many natural fibers to provide additional strength

  • Nylon - first introduced as artificial silk

  • Acrylic

  • Spandex


Testing for identification

Testing for Identification

  • Microscopic observation

  • Burning- observation of how a fiber burns, the odor, color of flame, smoke and the appearance of the residue

  • Thermal decomposition - gently heating to break down the fiber to the basic monomers

  • Chemical tests - solubility and decomposition
