Presentation Transcript


Curved mirror applications

Curved Mirror Applications


In the home

In the home

Concave makeup mirrors / shaving mirrors magnify the image (when you are in front of the focal point)


Curved mirror applications

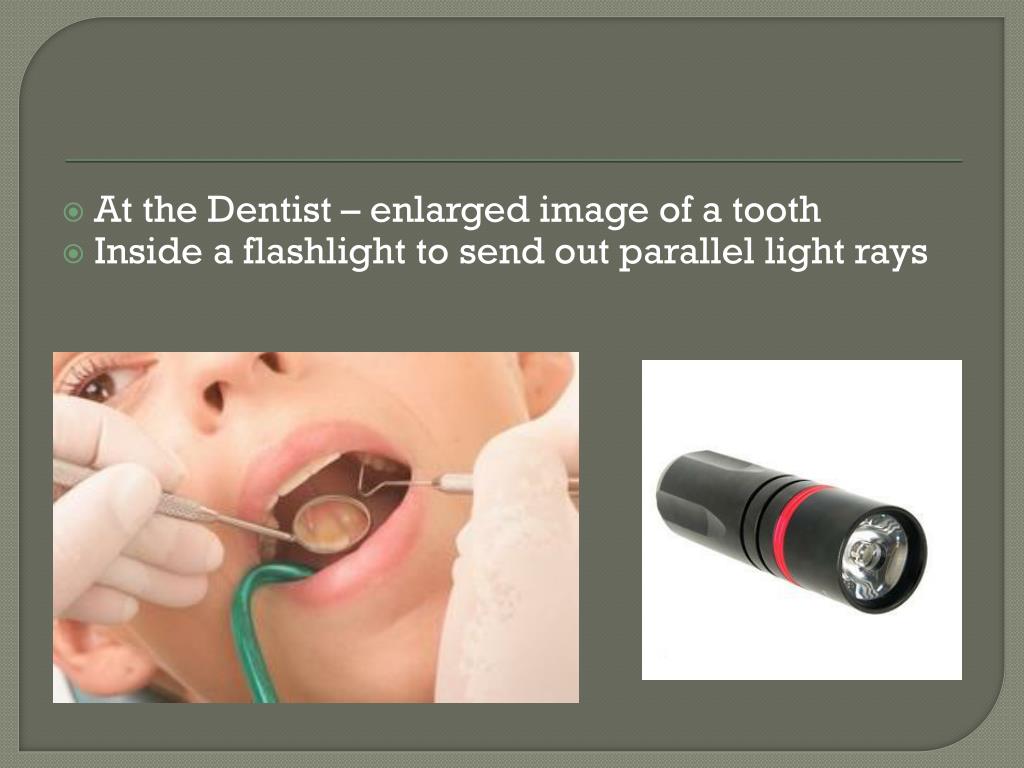

At the Dentist – enlarged image of a tooth

Inside a flashlight to send out parallel light rays


Solar ovens

Solar Ovens

Sunlight is free!

Solar radiation is reflected from a concave mirror to the focal point

Temperatures can reach up to 200 deg. C


Archimedes death ray

Archimedes “Death Ray”

The Mythbusters have tried three times but with little success……..

Legend is that ancient Greeks lit attacking ships on fire using concave mirrors.


Acoustic mirrors sound waves

Acoustic Mirrors (sound waves)

Built and used before World War 2 in Britain to hearenemy aircraft (1930s)

Sound (not light) reflected to microphone

No longer used after radar was invented


Radar technology

Radar Technology

Concave “dish” that sends and receives radio waves

Radio waves are sent out and any waves bounce off of aircraft are reflected from the mirror to the receiver at the focal point.

Stealth aircraft can be constructed with small flat surfaces and many angles so they can avoid detection


Security convex mirrors

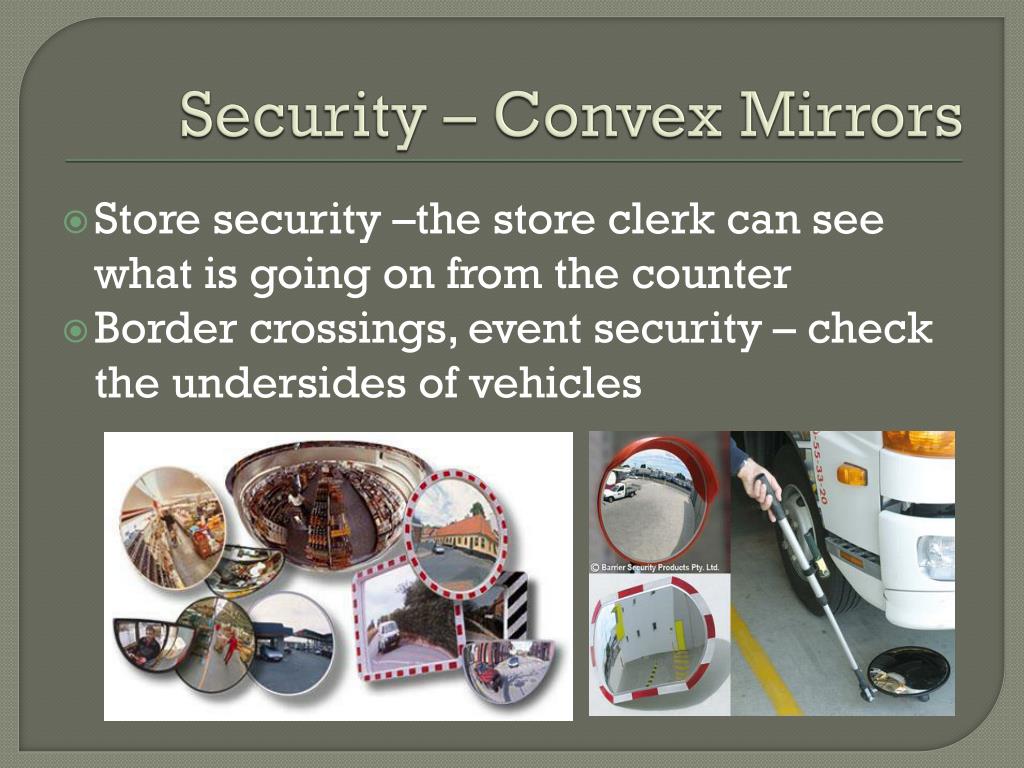

Security – Convex Mirrors

Store security –the store clerk can see what is going on from the counter

Border crossings, event security – check the undersides of vehicles


Transportation safety

Transportation Safety

School buses – allows driver to see in front of the bus

Side view mirrors – allow a wider view of the road beside/behind the driver

“Objects in mirror are closer than they appear”


Eye protection sunglasses

Eye Protection - Sunglasses

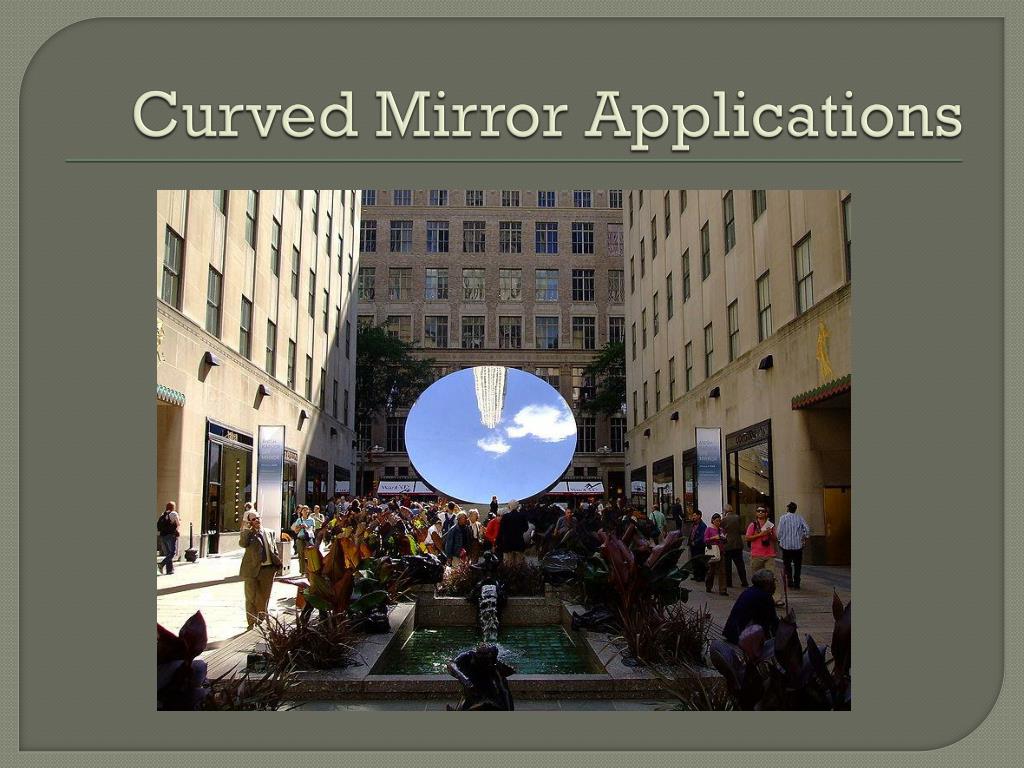

Curved mirror applications

Art!
