Presentation Transcript


Ast 111 lecture 7

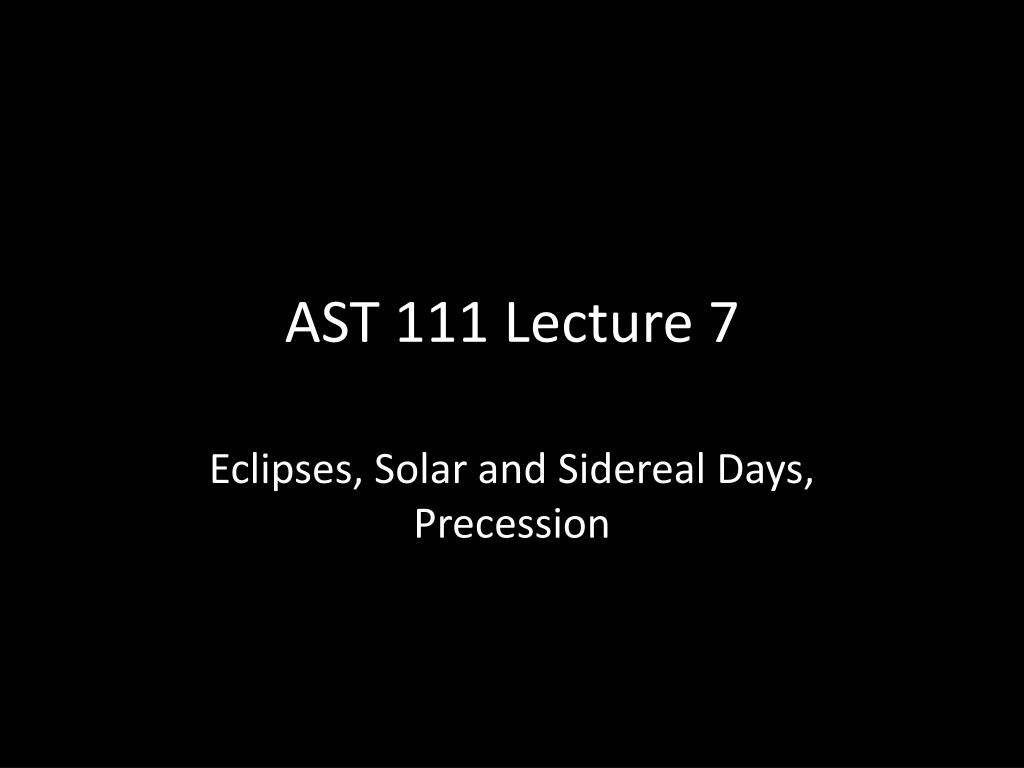

AST 111 Lecture 7

Eclipses, Solar and Sidereal Days, Precession


Eclipses

Eclipses

An eclipse is when one celestial object passes in front of another.


Eclipses1

Eclipses


Eclipses2

Eclipses

Transit: Small object in front of large

Occultation: Large object in front of small


Eclipses3

Eclipses


Eclipses4

Eclipses


Lunar eclipses

Lunar Eclipses

  • Sun, Earth, and Moon in a straight line

    • The Earth gets between the Sun and the Moon

    • Must be a Full Moon


Lunar eclipses1

Lunar Eclipses

  • Why don’t we see a lunar eclipse during every full moon?


Lunar eclipses2

Lunar Eclipses

  • The plane of the Moon’s orbit is inclined by 5 degrees to the ecliptic

  • If Earth orbits the Sun in a pond, the moon spends half its time above and half its time below the pond’s surface


Lunar eclipses3

Lunar Eclipses


Lunar eclipses4

Lunar Eclipses


Lunar eclipses5

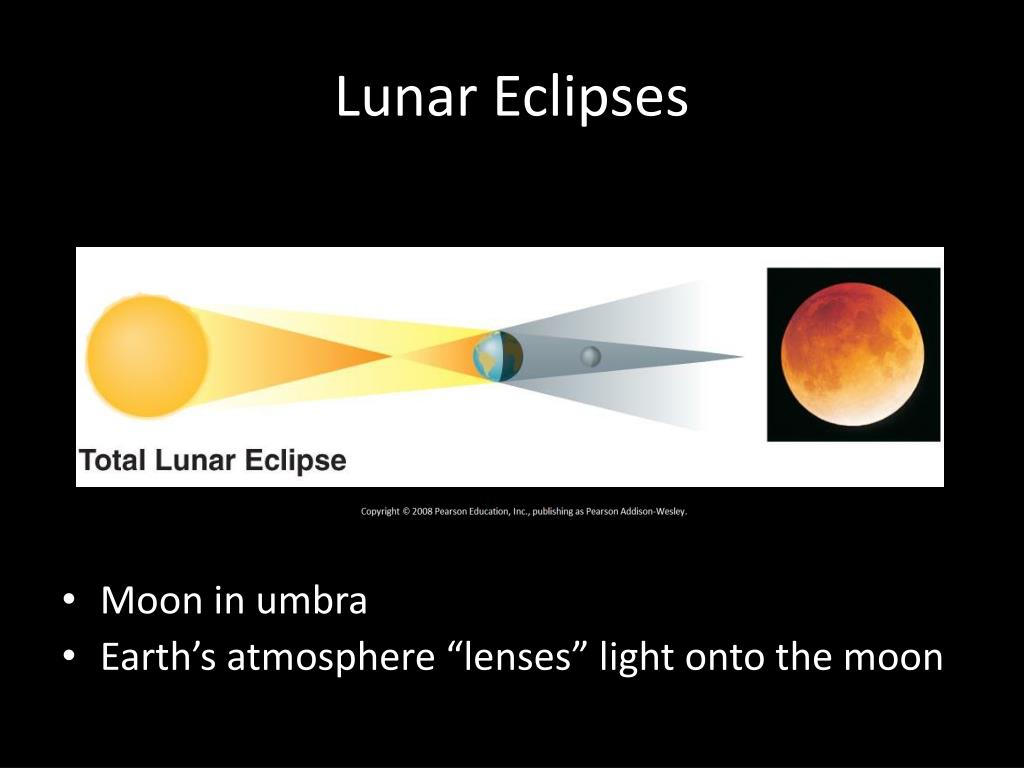

Lunar Eclipses

  • Moon in umbra

  • Earth’s atmosphere “lenses” light onto the moon


Lunar eclipses6

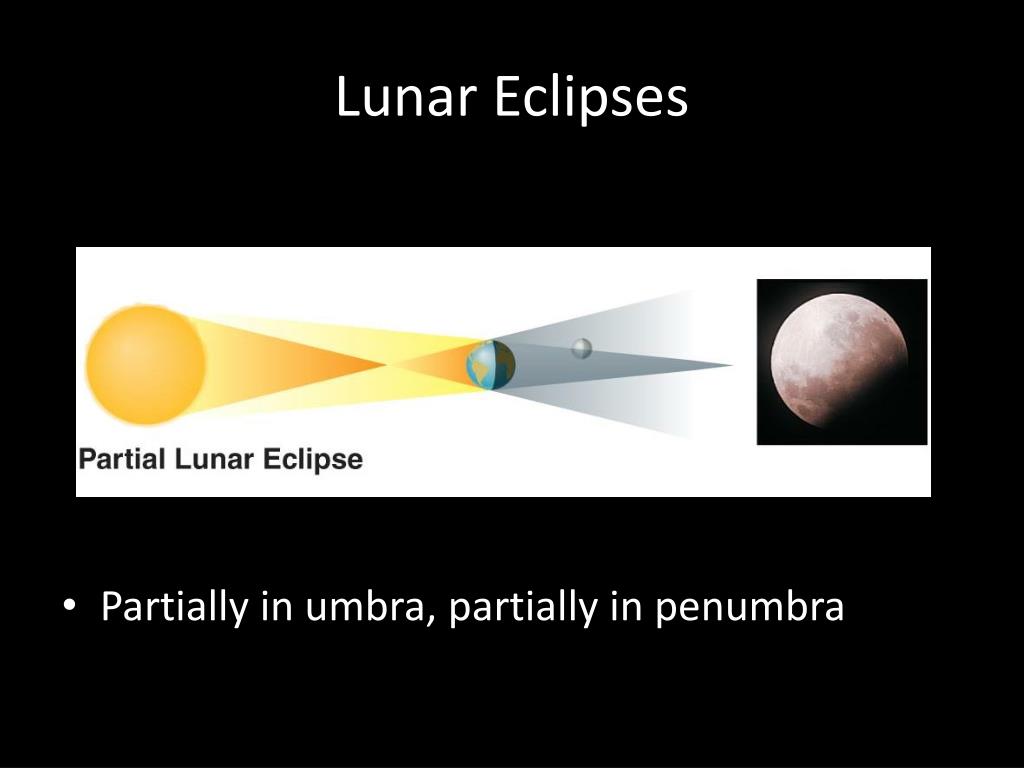

Lunar Eclipses

  • Partially in umbra, partially in penumbra


Lunar eclipses7

Lunar Eclipses

  • Moon in penumbra

  • Almost can’t tell it’s an eclipse


Solar eclipses

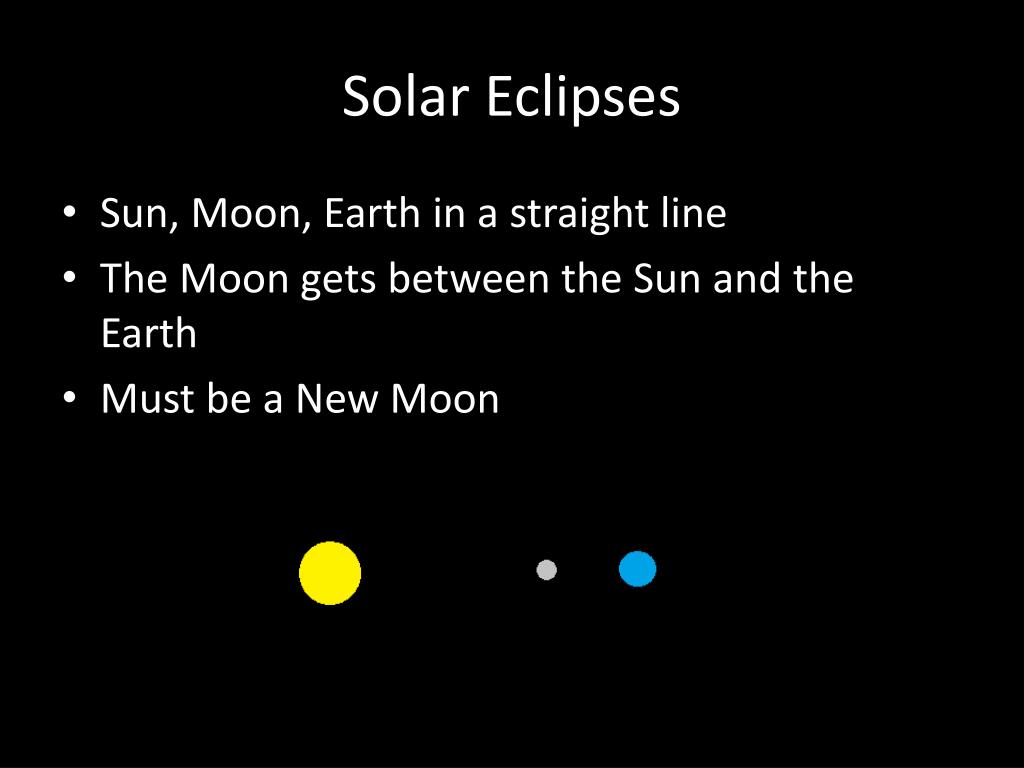

Solar Eclipses

  • Sun, Moon, Earth in a straight line

  • The Moon gets between the Sun and the Earth

  • Must be a New Moon


Solar eclipses1

Solar Eclipses


Solar eclipses2

Solar Eclipses


Solar vs sidereal day

Solar vs. Sidereal Day

  • Imagine you’re where Earth is – but there’s no Earth.

    • You’re rotating in place. You see the Celestial Sphere rotating.

    • How many degrees do you need to rotate through to get back to the same view?

      • Yes, this is as simple as you think it is!


The sidereal day

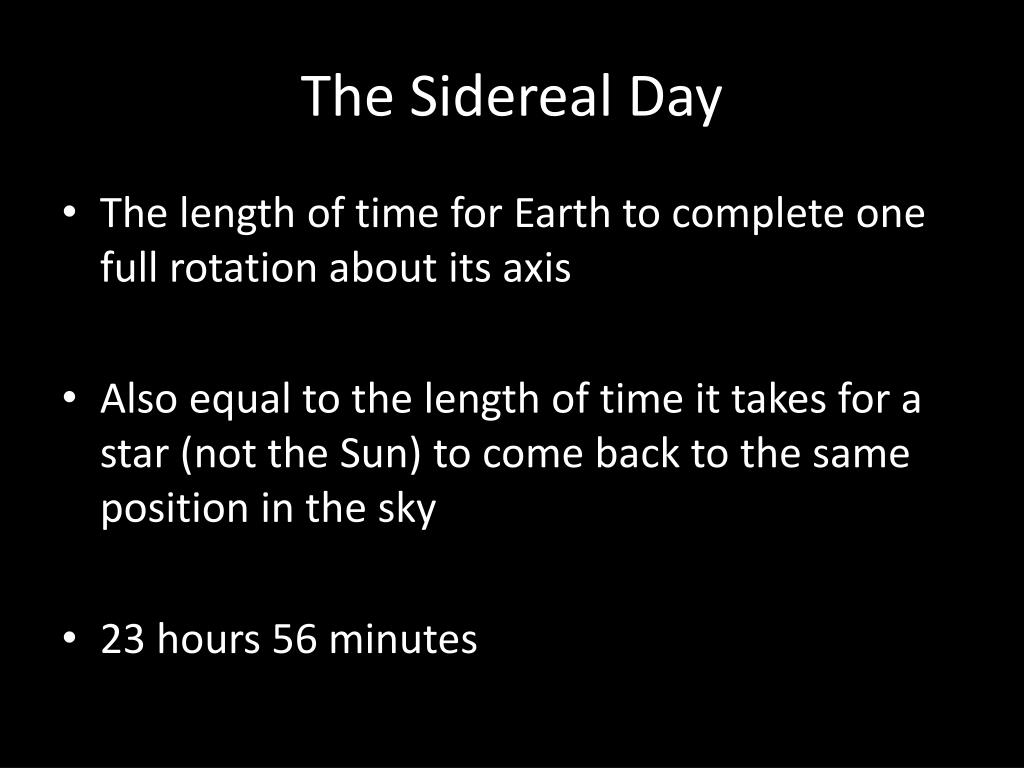

The Sidereal Day

  • The length of time for Earth to complete one full rotation about its axis

  • Also equal to the length of time it takes for a star (not the Sun) to come back to the same position in the sky

  • 23 hours 56 minutes


The solar day

The Solar Day

  • Say it’s noon, and the Sun is on the meridian.

  • If Earth rotates 360 degrees:

    • Is the Sun back on the meridian?

    • Why or why not?


The solar day1

The Solar Day

  • The length of time for the Sun to start at the Meridian and return to the Meridian

  • 24 hours on average


The sidereal day1

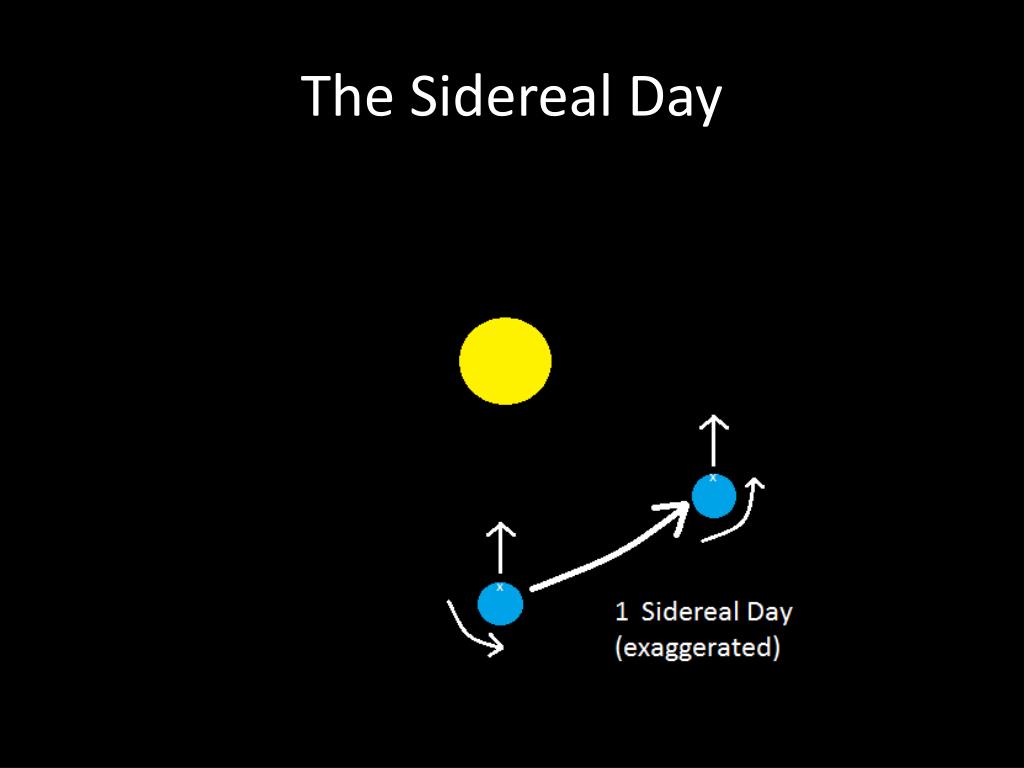

The Sidereal Day


The solar day2

The Solar Day


Solar and sidereal days

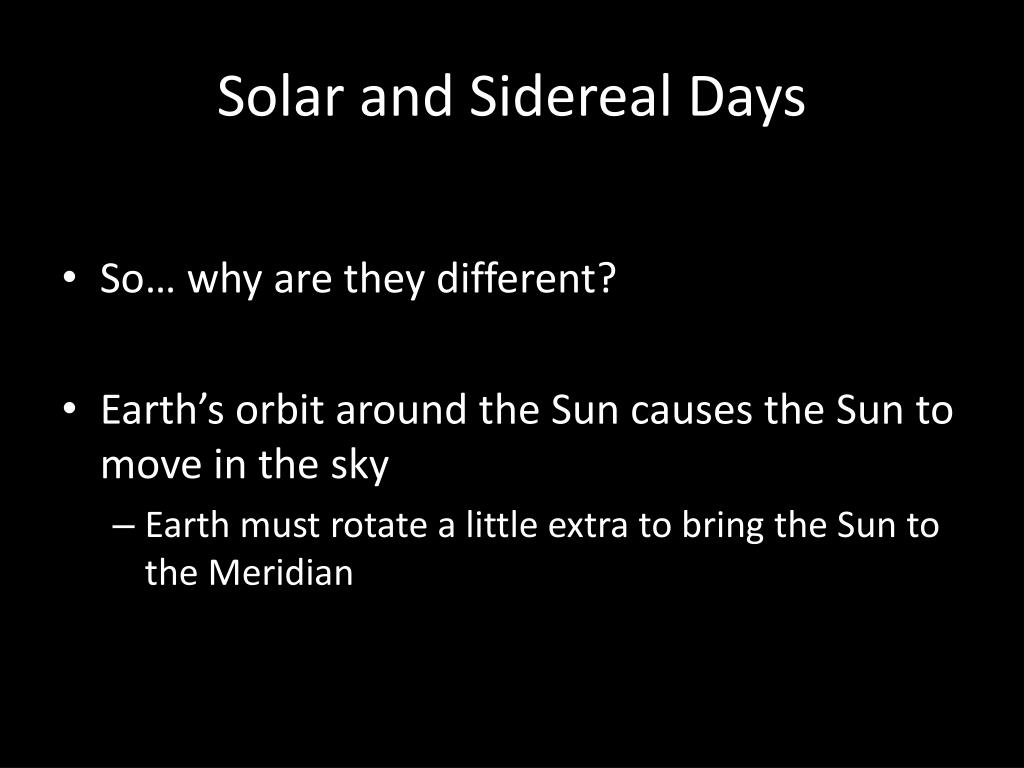

Solar and Sidereal Days

  • So… why are they different?

  • Earth’s orbit around the Sun causes the Sun to move in the sky

    • Earth must rotate a little extra to bring the Sun to the Meridian

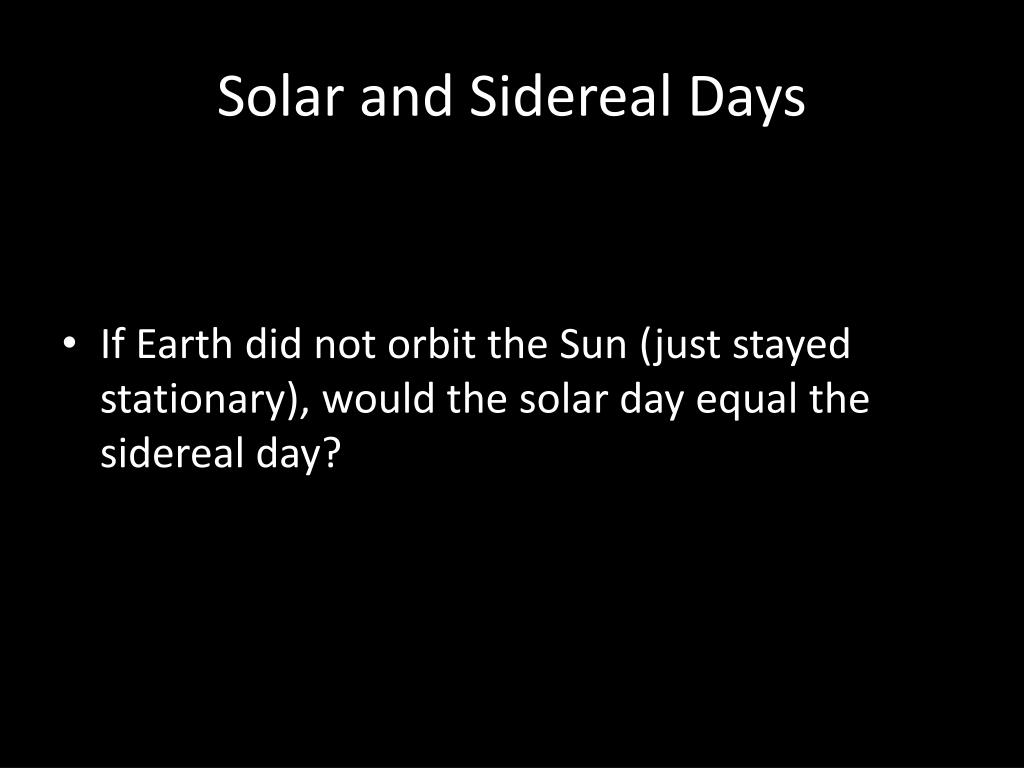

Solar and sidereal days1

Solar and Sidereal Days

  • If Earth did not orbit the Sun (just stayed stationary), would the solar day equal the sidereal day?


Solar and sidereal days2

Solar and Sidereal Days

  • Length of solar day varies throughout a year

    • This is due to the ellipticity of Earth’s orbit

    • This causes the horizontal motion of the analemma

  • Length of sidereal day does not

    • The time it takes Earth to rotate once does not vary


Earth s axis precesses

Earth’s axis precesses.

  • Just like a wobbling, spinning top

  • Every 26,000 years


The north star

The North Star

  • Precession of Earth’s axis causes the North Star to change after long periods of time

    • Current North Star: Polaris

    • Vega was the north star in 12000 BC

    • We will have a new north star in AD 3000
