Solids liquids and gases

Solids, Liquids, and Gases

Chapter 14


14 1 matter and thermal energy

14-1 – Matter and Thermal Energy

  • Kinetic Theory -

    • All matter is composed of tiny particles

    • These particles are in constant, random motion

    • The particles collide with each other and with the walls of any container in which they are held

    • The amount of energy that the particles lose from these collisions is negligible.


14 1 matter and thermal energy1

14-1 – Matter and Thermal Energy

  • State of matter depends on arrangement of particles

  • Thermal energy and temperature affect arrangement of particles


14 1 matter and thermal energy2

14-1 – Matter and Thermal Energy

  • Changes of state

    • Melting point –

    • Melting –

    • Heat of fusion –

    • Freezing point –

    • Freezing -


14 1 matter and thermal energy3

14-1 – Matter and Thermal Energy

  • Changes of state

    • Boiling point –

    • Evaporation –

    • Heat of vaporization –

    • Condensation -

    • Sublimation-


14 1 matter and thermal energy4

14-1 – Matter and Thermal Energy

  • Heating Curves

    • A graph of temperature vs. time for heating a substance


14 1 matter and thermal energy5

14-1 – Matter and Thermal Energy

  • Plasma State –

  • Gas heated to where electrons are stripped off atoms


14 1 matter and thermal energy6

14-1 – Matter and Thermal Energy

  • Thermal Expansion –

  • Substances expand when heated and contract when cooled

    • Thermometers –

    • Hot air balloons –

    • What’s with water?


14 1 matter and thermal energy7

14-1 – Matter and Thermal Energy

  • Solid or Liquid?

    • Amorphous Solids –

      • Not cyrstalline structure, no set melting point

      • Ex….Butter, glass

    • Liquid Crystals –

      • Retain geometric order during melting phase


14 2 properties of fluids

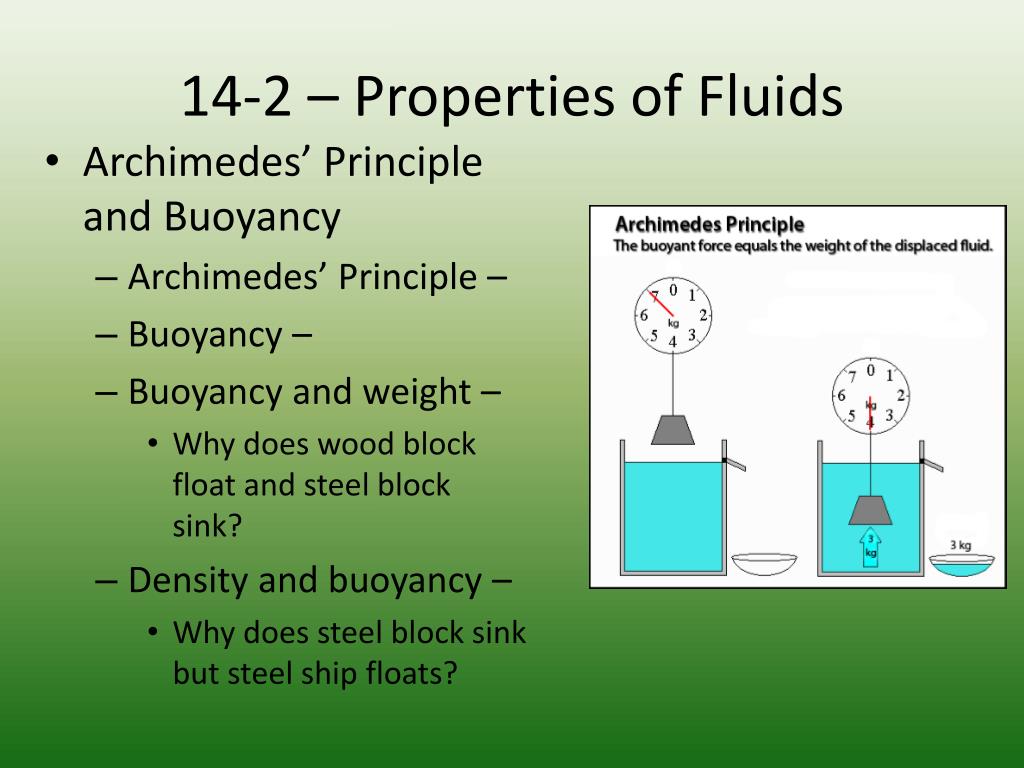

14-2 – Properties of Fluids

  • Archimedes’ Principle and Buoyancy

    • Archimedes’ Principle –

    • Buoyancy –

    • Buoyancy and weight –

      • Why does wood block float and steel block sink?

    • Density and buoyancy –

      • Why does steel block sink but steel ship floats?


14 2 properties of fluids1

14-2 – Properties of Fluids

  • Pascal’s Principle and Pressure

    • Pressure applied to fluid is transmitted throughout the fluid

    • Pressure –

    • SI unit of pressure is the pascal (Pa)

    • 1 pascal is 1 newton per square meter (N/m2)

  • Pressure (Pa) = force (N)

    area (m2)


Let s practice

Let’s Practice !!!

  • Calculate the pressure of an enclosed fluid on which 1500 N is exerted of an area of 10 m2.


Let s practice1

Let’s Practice !!!

  • Calculate the pressure of an enclosed fluid on which 43,000 N is exerted of an area of 5 m2.


Let s practice2

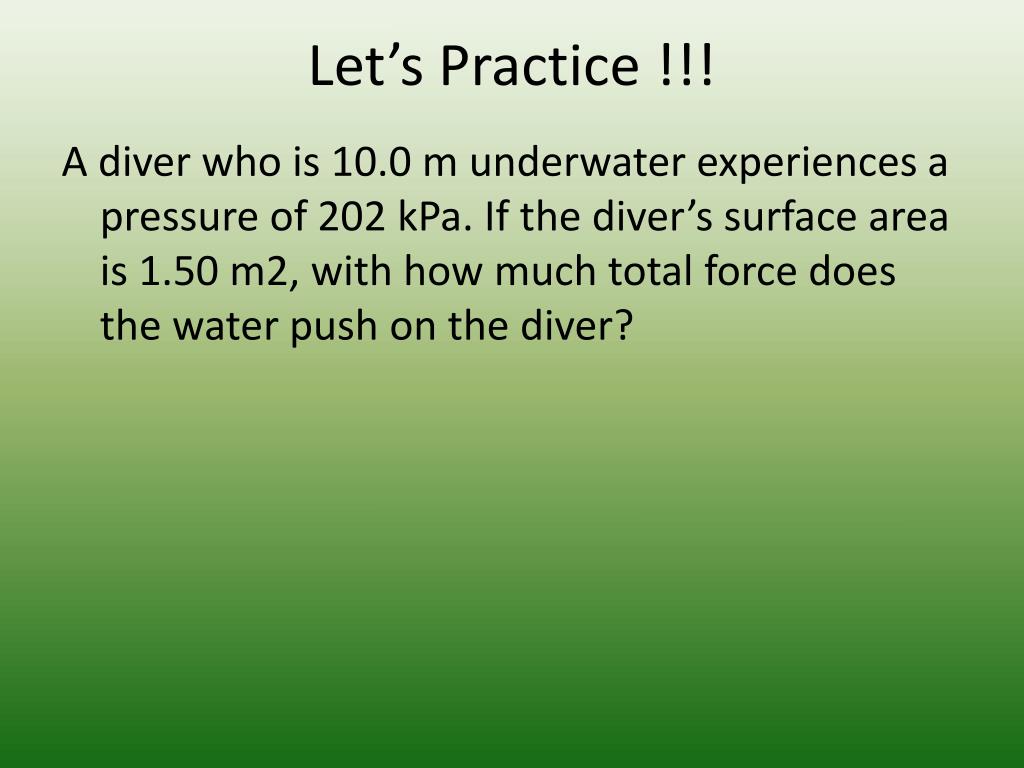

Let’s Practice !!!

  • A diver who is 10.0 m underwater experiences a pressure of 202 kPa. If the diver’s surface area is 1.50 m2, with how much total force does the water push on the diver?


14 2 properties of fluids2

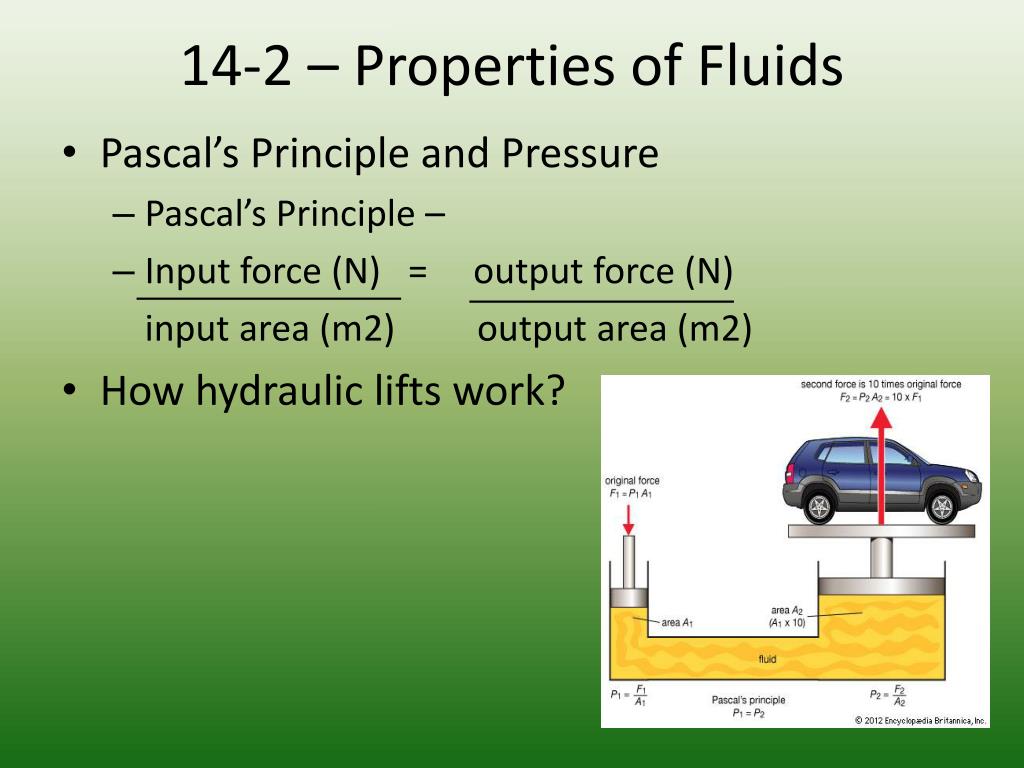

14-2 – Properties of Fluids

  • Pascal’s Principle and Pressure

    • Pascal’s Principle –

    • Input force (N) = output force (N)

      input area (m2) output area (m2)

  • How hydraulic lifts work?


Let s practice3

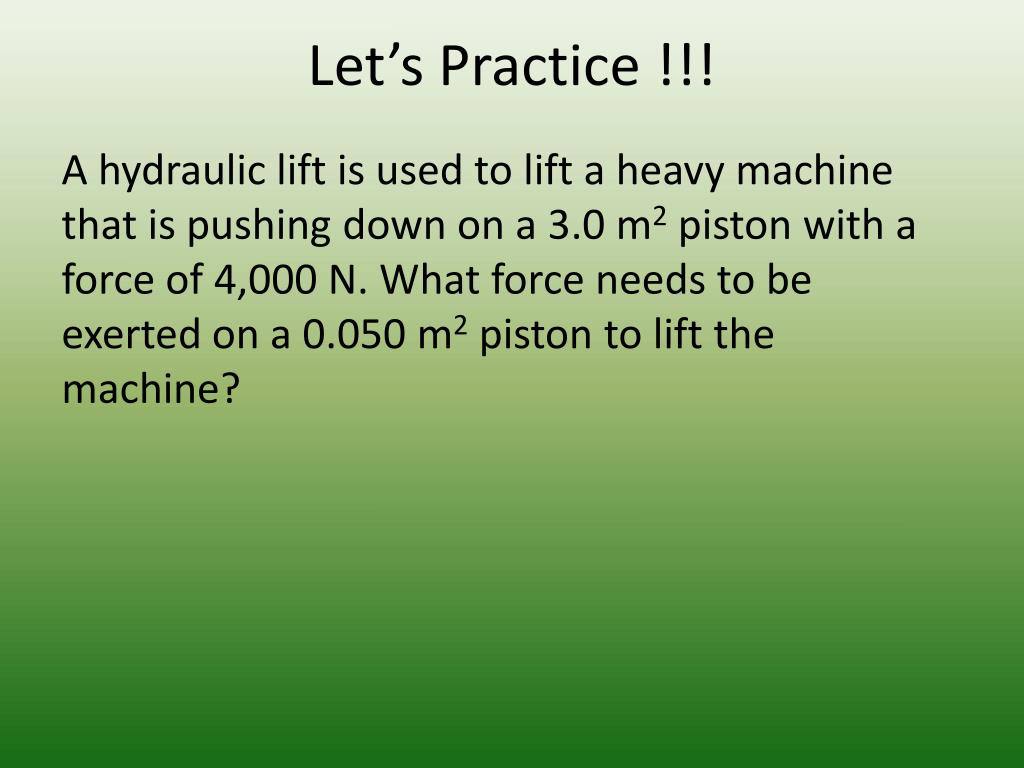

Let’s Practice !!!

A hydraulic lift is used to lift a heavy machine that is pushing down on a 3.0 m2 piston with a force of 4,000 N. What force needs to be exerted on a 0.050 m2 piston to lift the machine?


Let s practice4

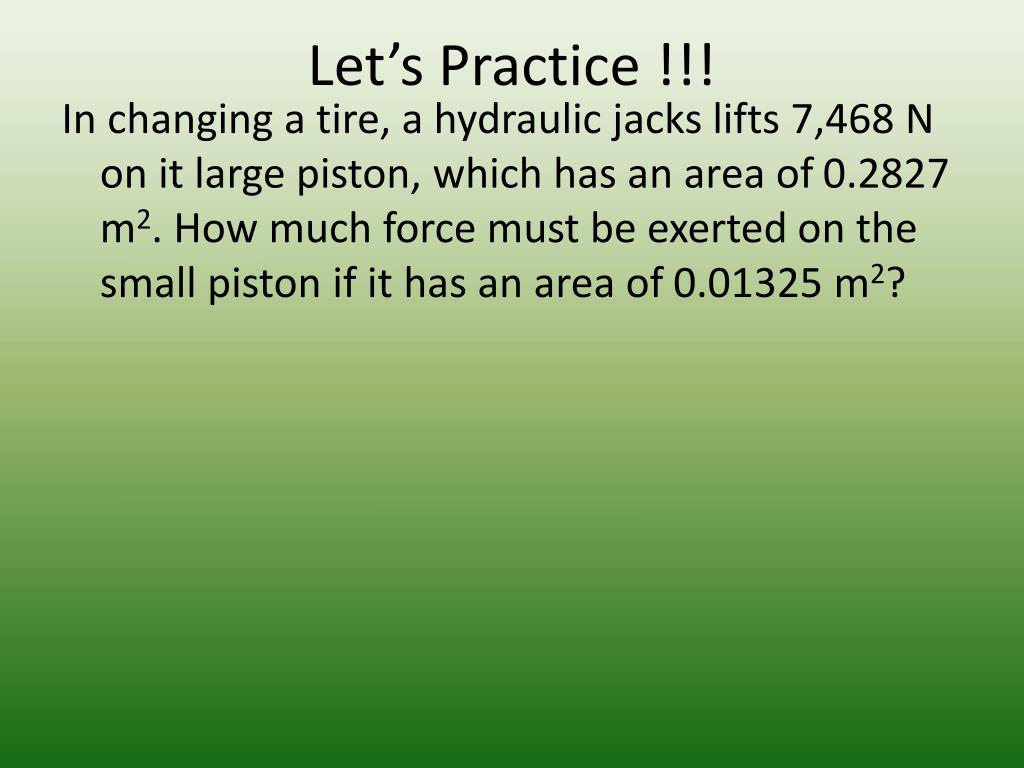

Let’s Practice !!!

  • In changing a tire, a hydraulic jacks lifts 7,468 N on it large piston, which has an area of 0.2827 m2. How much force must be exerted on the small piston if it has an area of 0.01325 m2?


Let s practice5

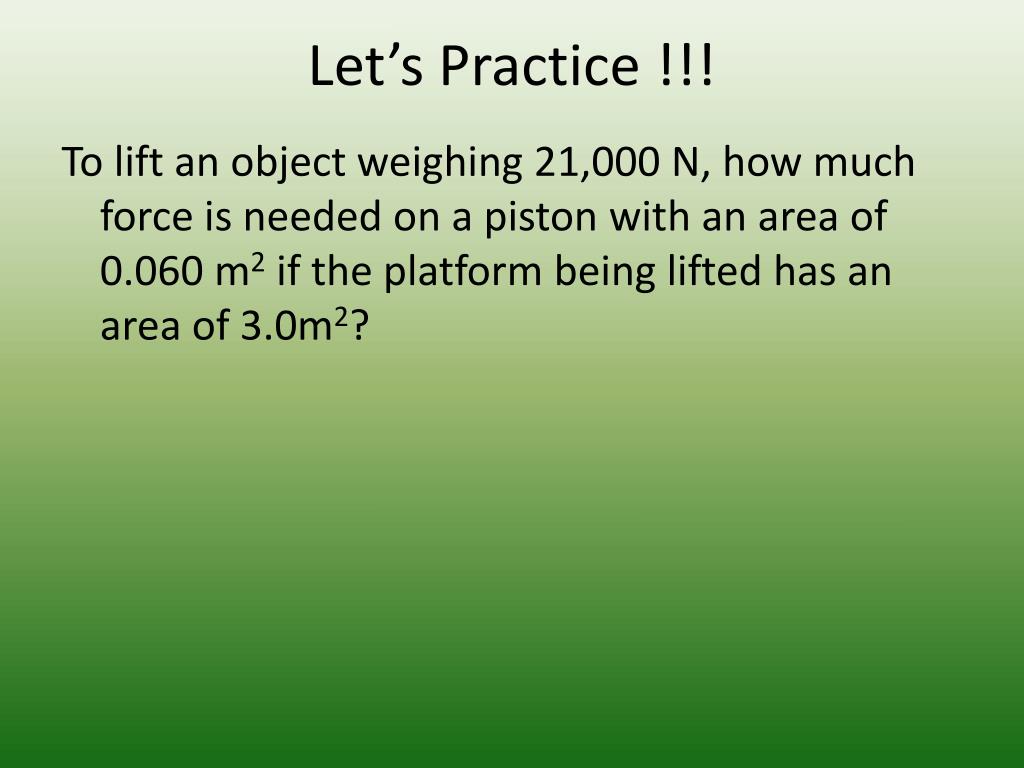

Let’s Practice !!!

  • To lift an object weighing 21,000 N, how much force is needed on a piston with an area of 0.060 m2 if the platform being lifted has an area of 3.0m2?


14 2 properties of fluids3

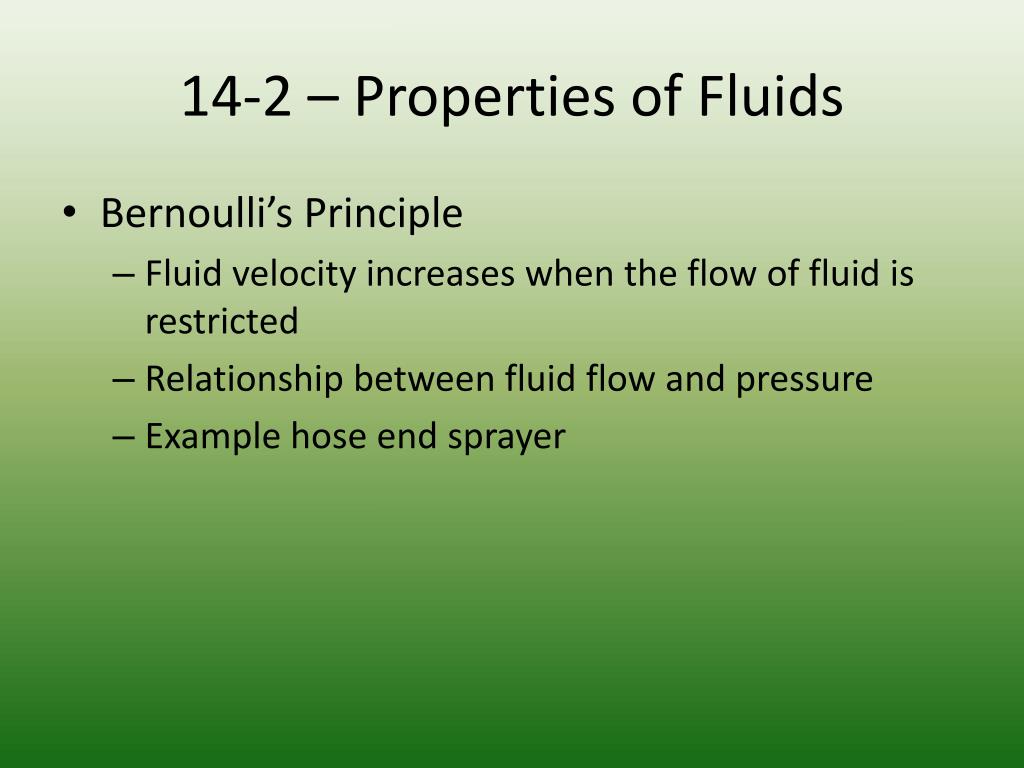

14-2 – Properties of Fluids

  • Bernoulli’s Principle

    • Fluid velocity increases when the flow of fluid is restricted

    • Relationship between fluid flow and pressure

    • Example hose end sprayer


14 2 properties of fluids4

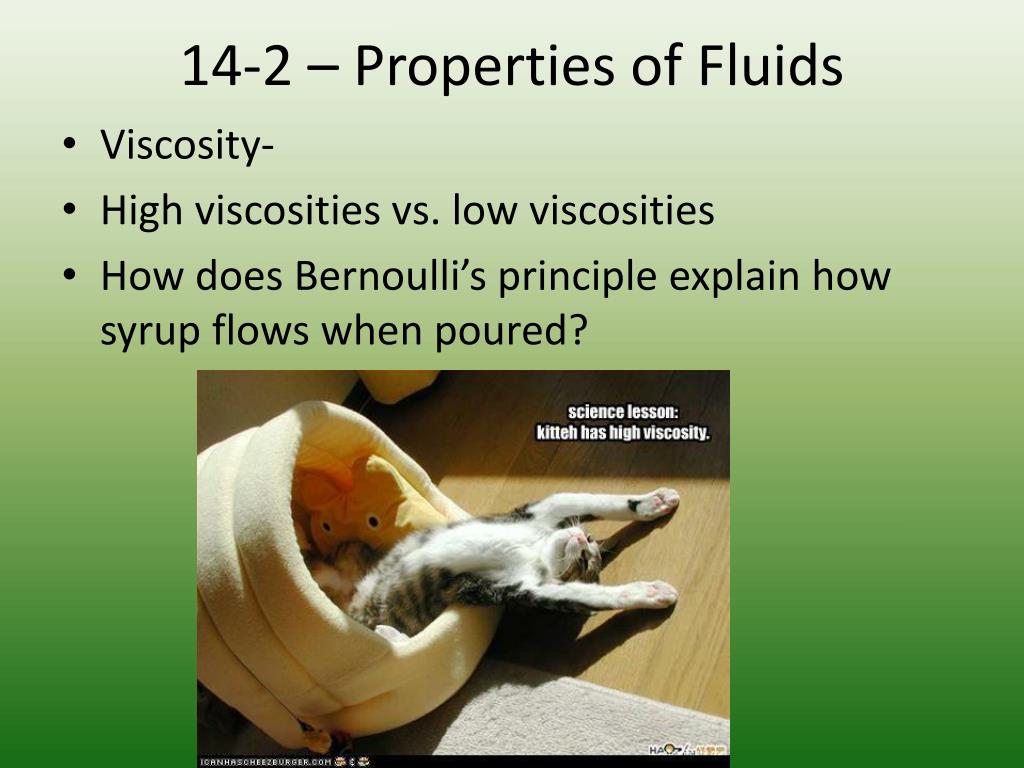

14-2 – Properties of Fluids

  • Viscosity-

  • High viscosities vs. low viscosities

  • How does Bernoulli’s principle explain how syrup flows when poured?


Behavior of gases

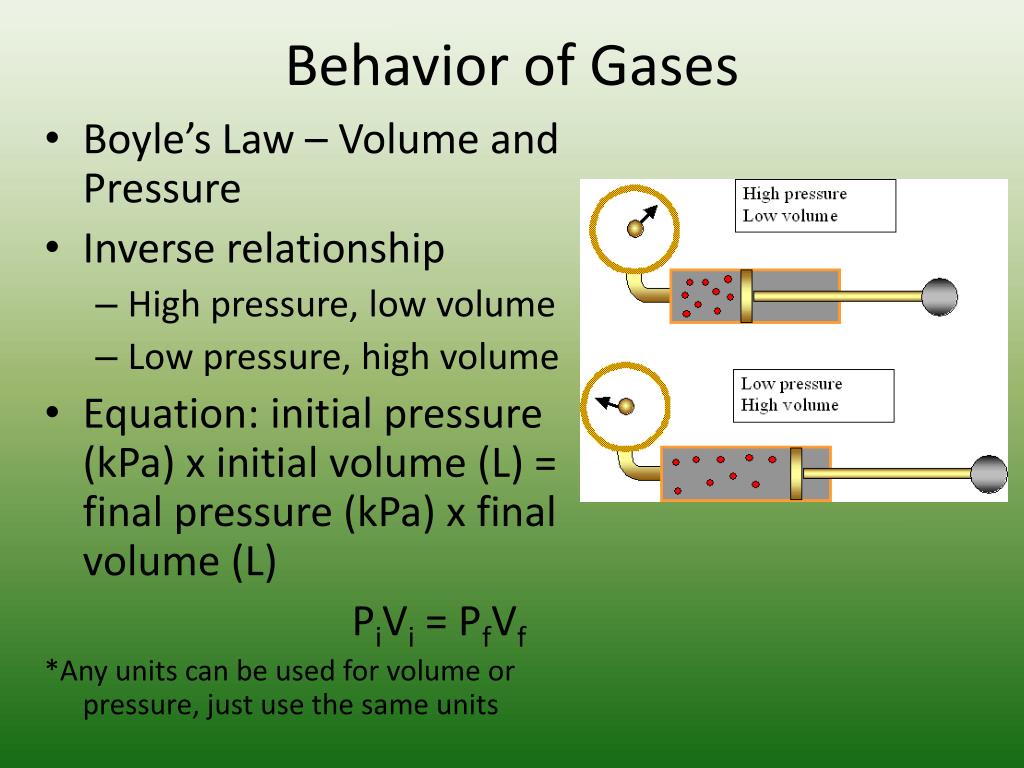

Behavior of Gases

  • Boyle’s Law – Volume and Pressure

  • Inverse relationship

    • High pressure, low volume

    • Low pressure, high volume

  • Equation: initial pressure (kPa) x initial volume (L) = final pressure (kPa) x final volume (L)

    PiVi = PfVf

    *Any units can be used for volume or pressure, just use the same units


Let s practice6

Let’s Practice !!!

  • A 1.75 L sample of Neon had its pressure changed from 75 kPa to 150 kPa. What is the new volume?


Let s practice7

Let’s Practice !!!

  • A sample of oxygen gas occupies a volume of 250 mL at 740. torr pressure. What volume will it occupy at 800. torr pressure?


Let s practice8

Let’s Practice !!!

  • A helium balloon has a volume of 2.00 L at 101 kPa. As the balloon rises the pressure drops to 97.0 kPa. What is the new volume?


Behavior of gases1

Behavior of Gases

  • Charles’s Law– Temperature and Volume

  • Direct relationship (as long as the pressure does not change)

    • High temperature, high volume

    • Low temperature, low volume

  • Equation:

    initial volume (L) = final volume (L)

    initial temp (K) final temp (K)

    Vi=Vf

    TiTf


Let s practice9

Let’s Practice !!!

  • A sample of nitrogen occupies a volume of 250 mL at 298 K. What volume will it occupy at 368 K?


Let s practice10

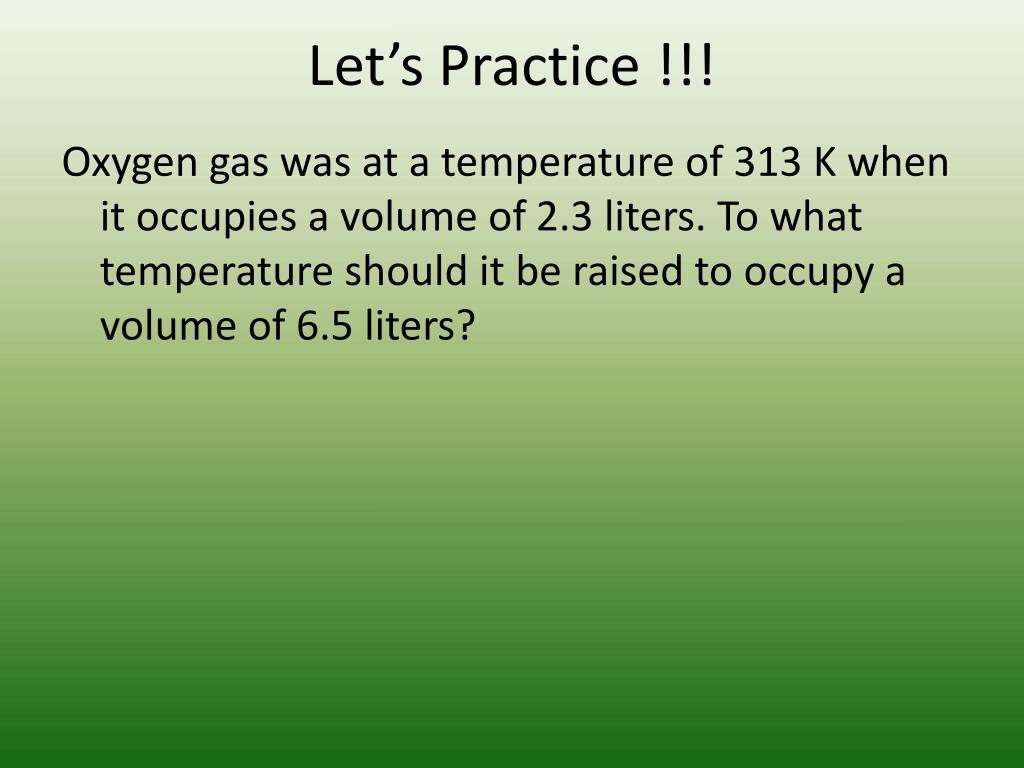

Let’s Practice !!!

  • Oxygen gas was at a temperature of 313 K when it occupies a volume of 2.3 liters. To what temperature should it be raised to occupy a volume of 6.5 liters?


Let s practice11

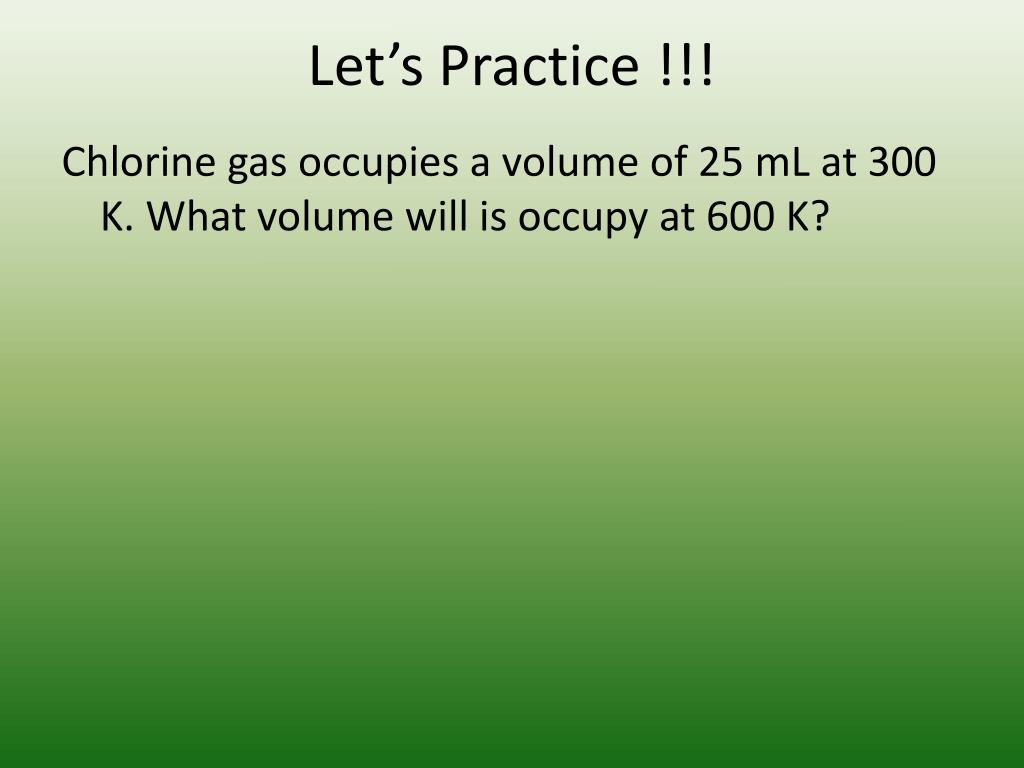

Let’s Practice !!!

  • Chlorine gas occupies a volume of 25 mL at 300 K. What volume will is occupy at 600 K?
