Presentation Transcript


Unit 1 concept 3 angles and their measurements

Unit #1, Concept #3Angles and their Measurements

  • What are angles and how are they classified?

  • How are the measures of angles used to determine their congruency?

  • What is angle addition and how is it used?

Free Template from www.brainybetty.com

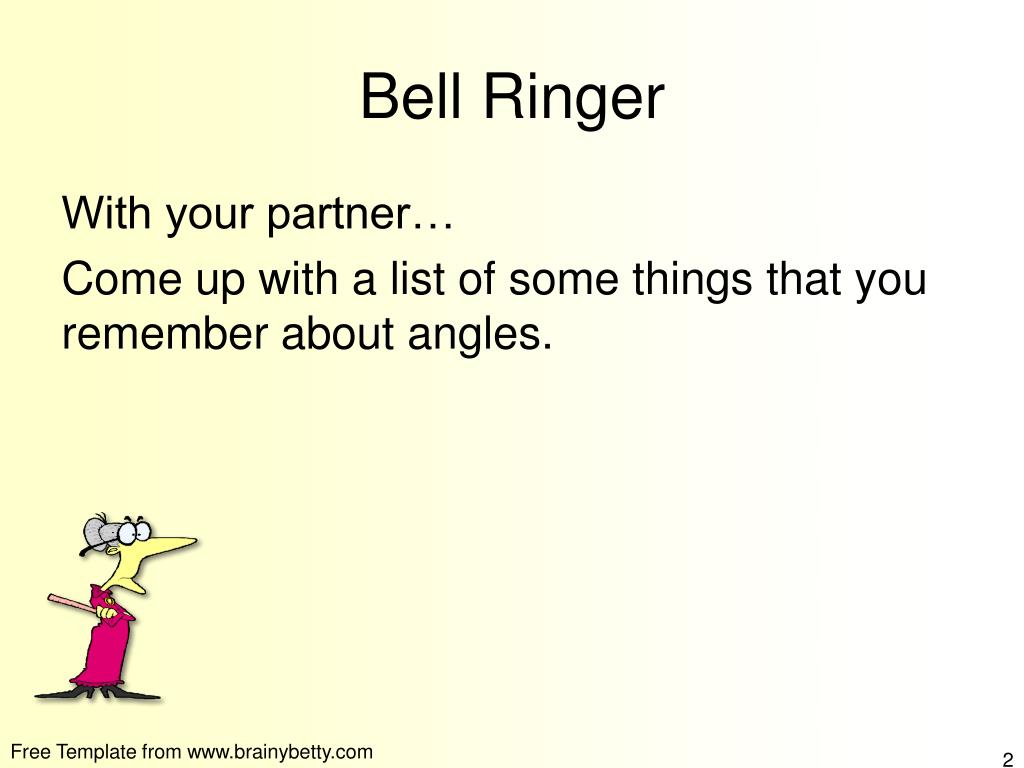

Bell ringer

Bell Ringer

With your partner…

Come up with a list of some things that you remember about angles.

Free Template from www.brainybetty.com

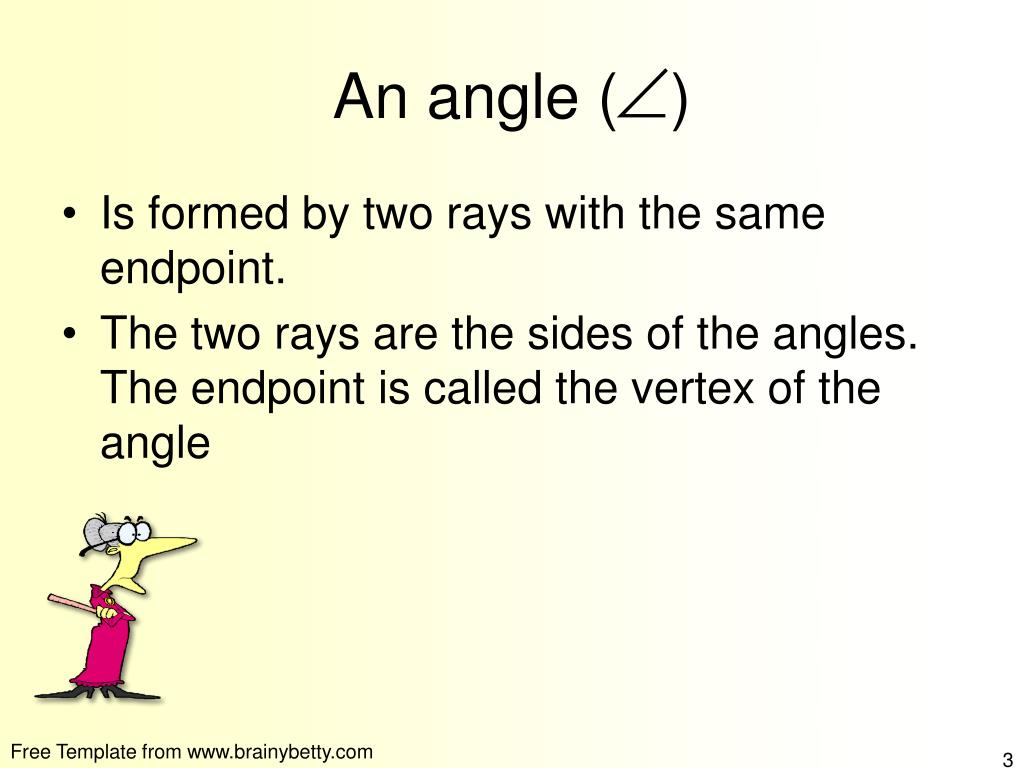

An angle

An angle ( )

  • Is formed by two rays with the same endpoint.

  • The two rays are the sides of the angles. The endpoint is called the vertex of the angle

Free Template from www.brainybetty.com


Naming angles

Naming Angles

  • 1

  • Naming Angles

C

B

A

Free Template from www.brainybetty.com


Postulate 1 7 protractor postulate

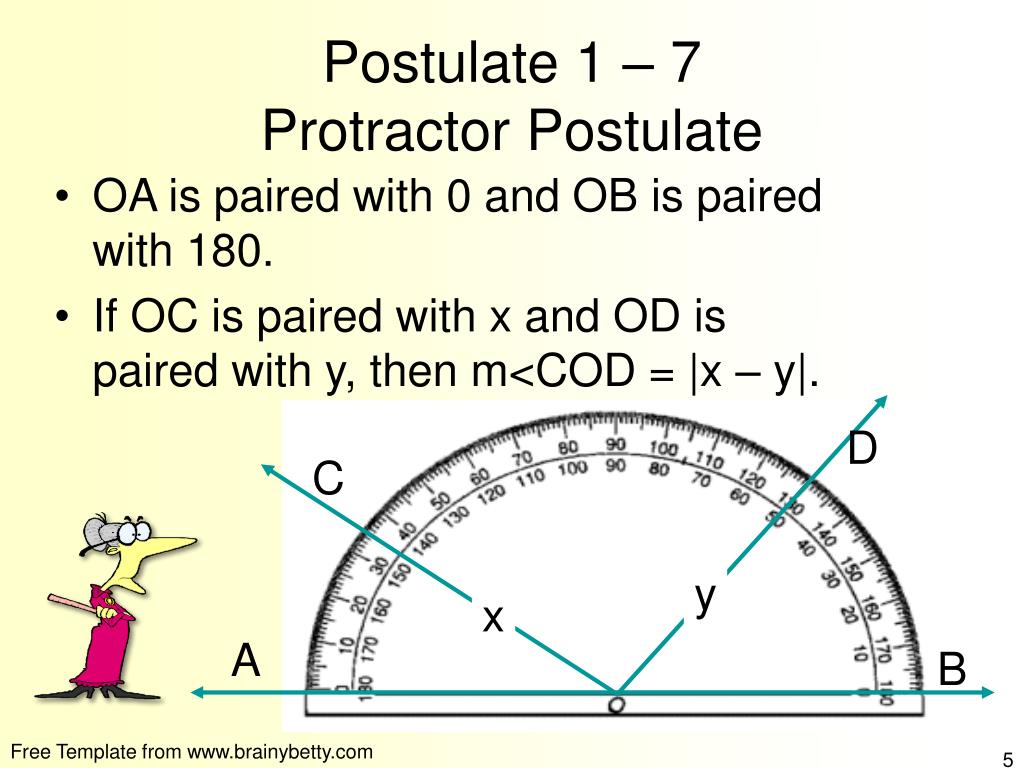

Postulate 1 – 7Protractor Postulate

  • OA is paired with 0 and OB is paired with 180.

  • If OC is paired with x and OD is paired with y, then m<COD = |x – y|.

D

C

y

x

A

B

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

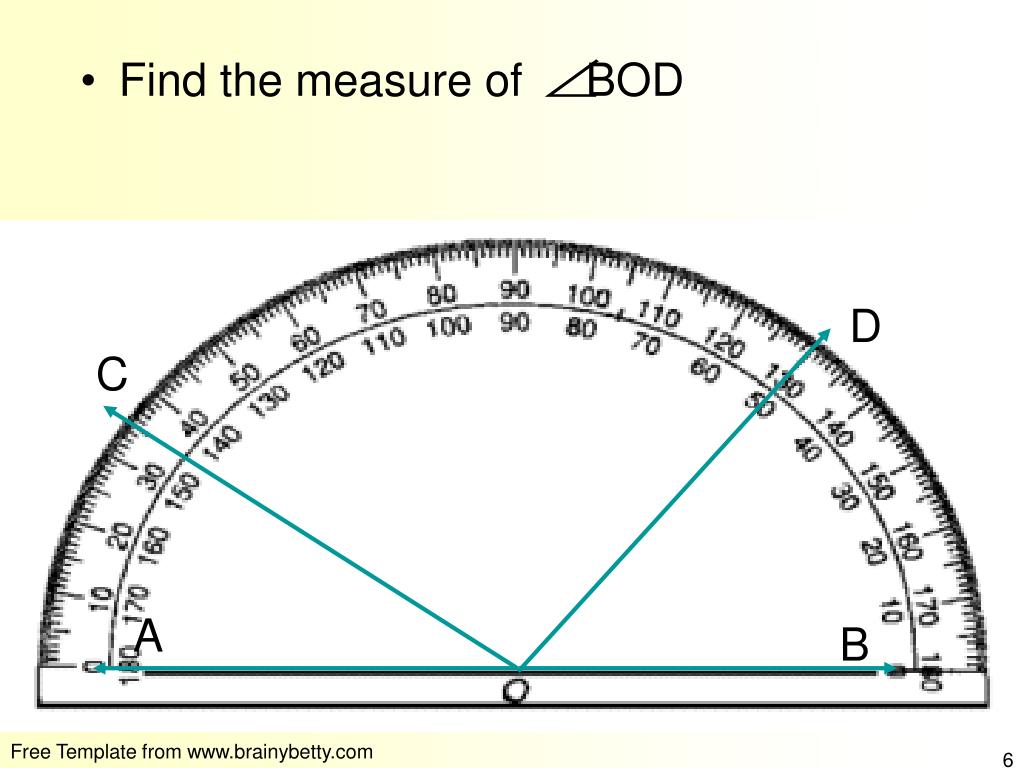

  • Find the measure of BOD

D

C

A

B

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

  • Find the measure of AOD

D

C

A

B

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

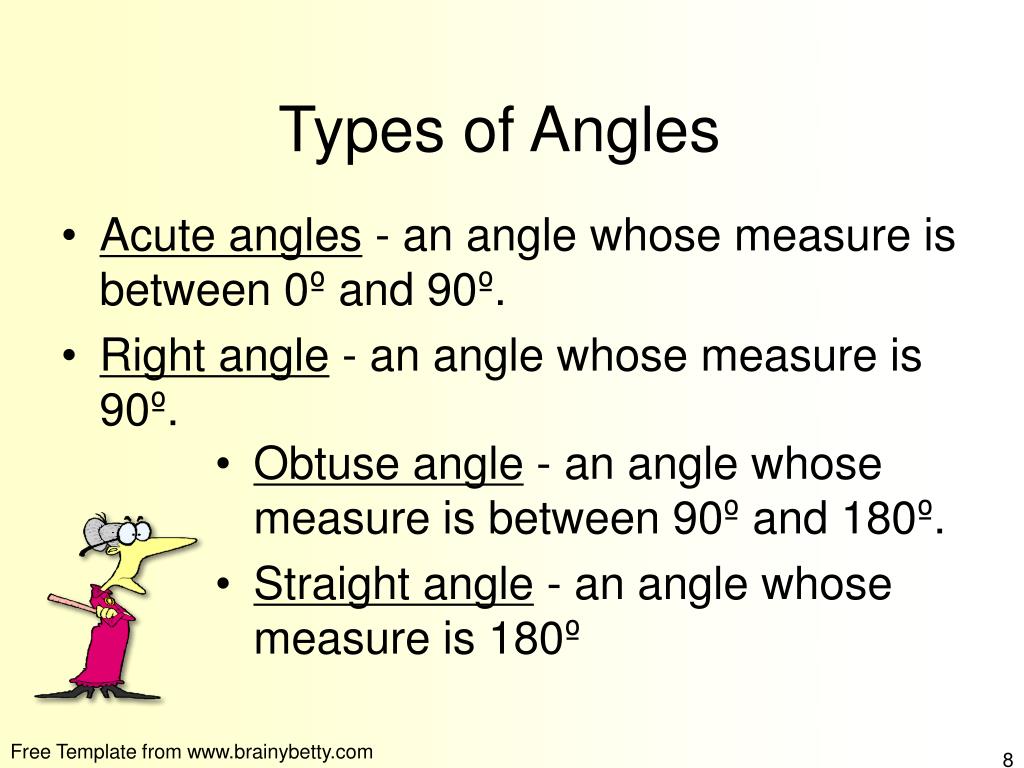

Types of Angles

  • Acute angles - an angle whose measure is between 0º and 90º.

  • Right angle - an angle whose measure is 90º.

  • Obtuse angle - an angle whose measure is between 90º and 180º.

  • Straight angle - an angle whose measure is 180º

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

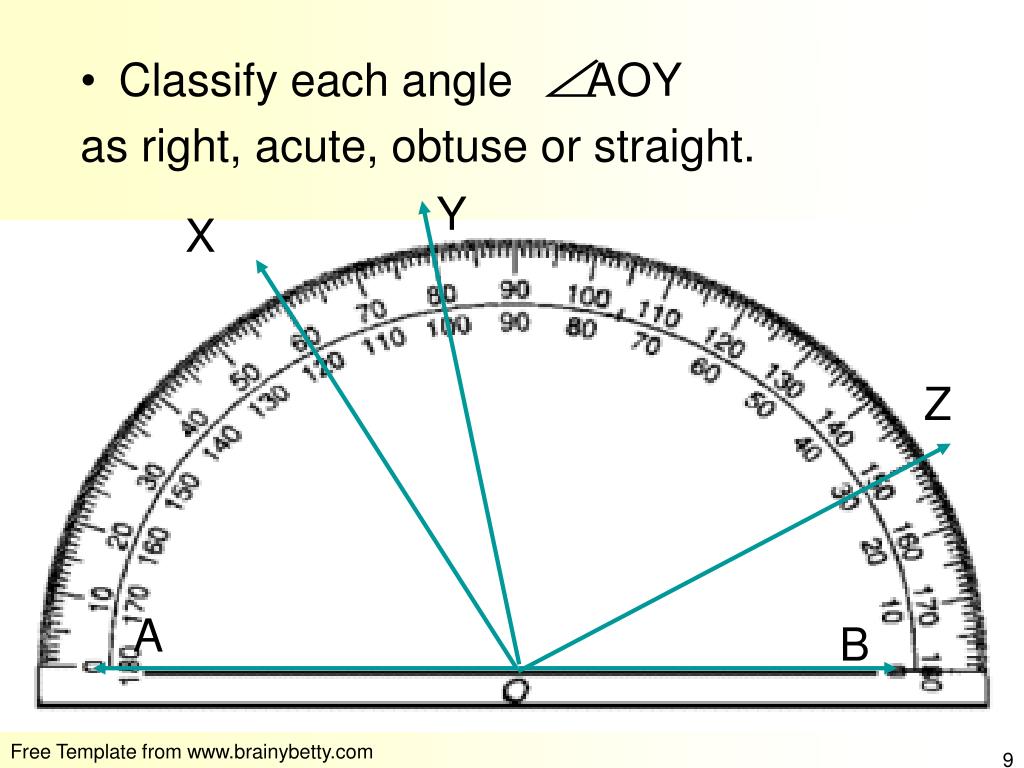

  • Classify each angle AOY

  • as right, acute, obtuse or straight.

Y

X

Z

A

B

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

  • Classify each angle BOY

  • as right, acute, obtuse or straight.

Y

X

Z

A

B

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

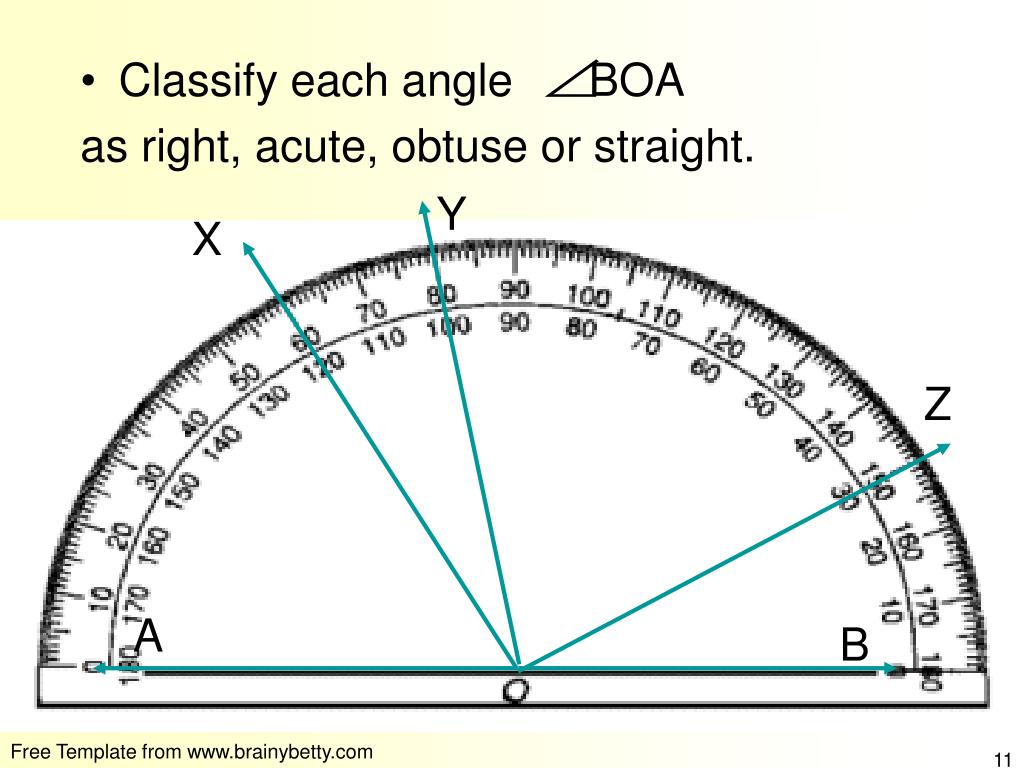

  • Classify each angle BOA

  • as right, acute, obtuse or straight.

Y

X

Z

A

B

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

  • Classify each angle XOZ

  • as right, acute, obtuse or straight.

Y

X

Z

A

B

Free Template from www.brainybetty.com

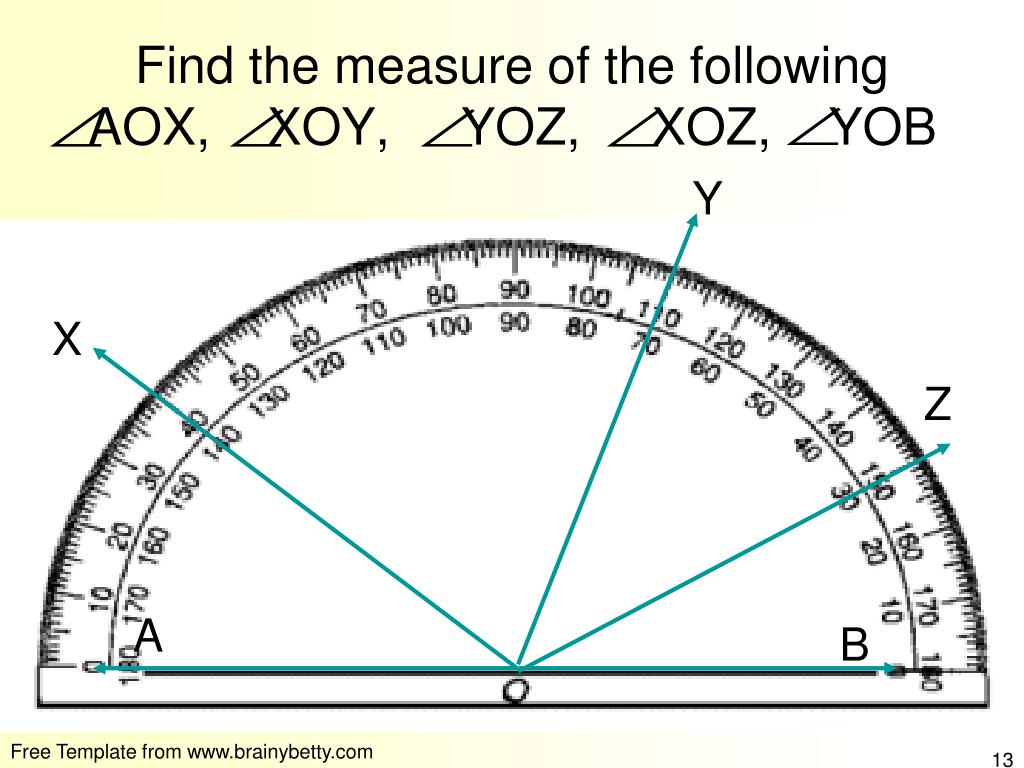

Find the measure of the following aox xoy yoz xoz yob

Find the measure of the followingAOX, XOY, YOZ, XOZ, YOB

Y

X

Z

A

B

Free Template from www.brainybetty.com

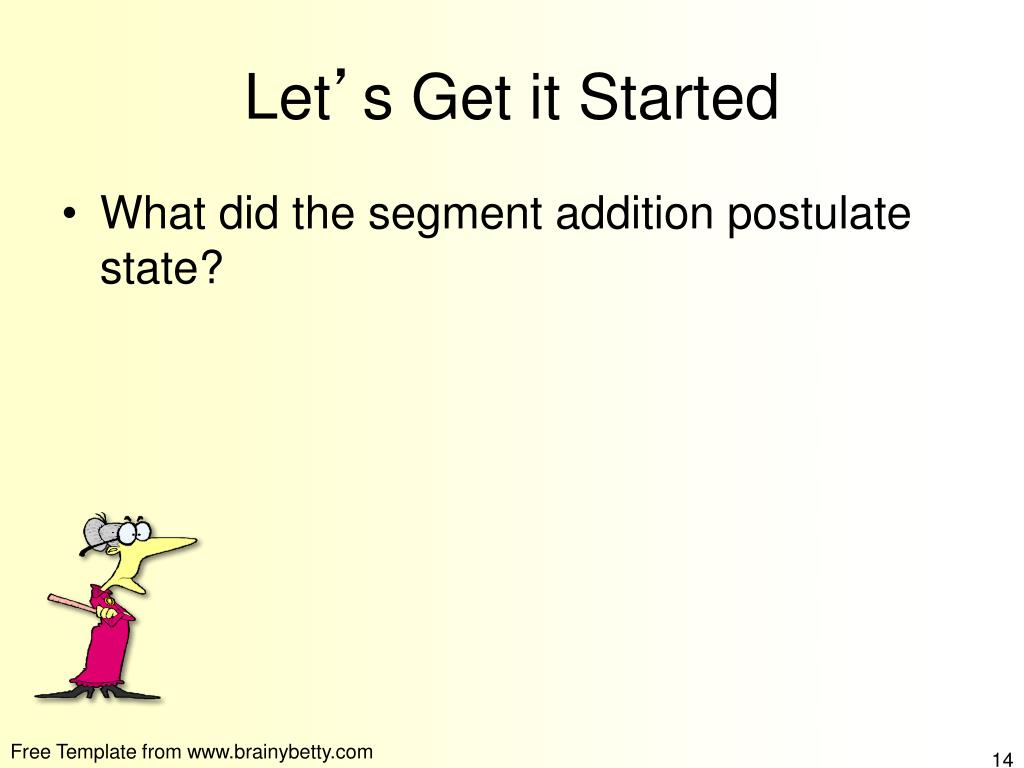

Let s get it started

Let’s Get it Started

  • What did the segment addition postulate state?

Free Template from www.brainybetty.com


Postulate 1 8 angle addition postulate

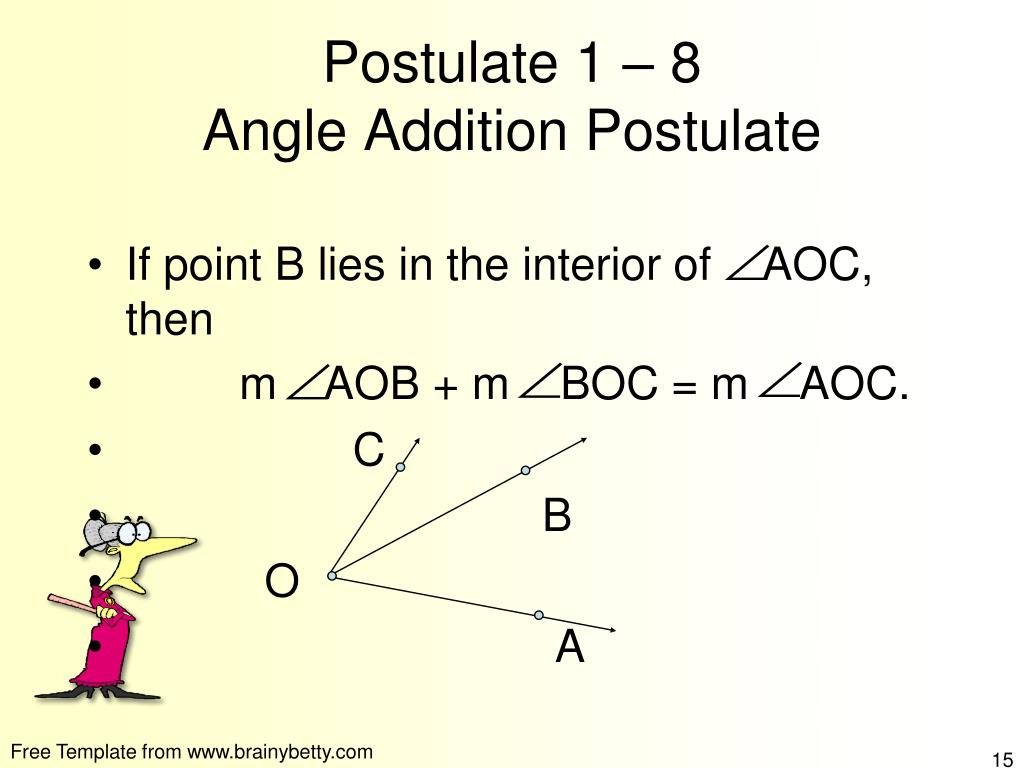

Postulate 1 – 8 Angle Addition Postulate

  • If point B lies in the interior of AOC, then

  • m AOB + m BOC = m AOC.

  • C

  • B

  • O

  • A

Free Template from www.brainybetty.com


Using the angle addition postulate

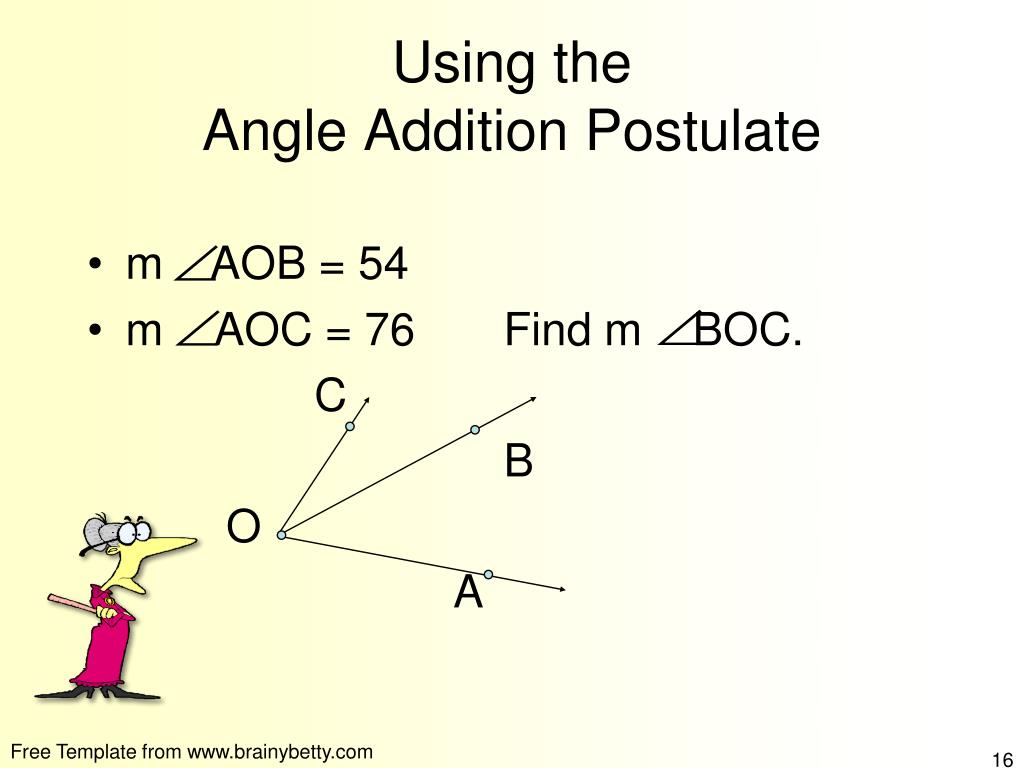

Using the Angle Addition Postulate

  • m AOB = 54

  • m AOC = 76 Find m BOC.

    C

    B

    O

    A

Free Template from www.brainybetty.com


Using the angle addition postulate1

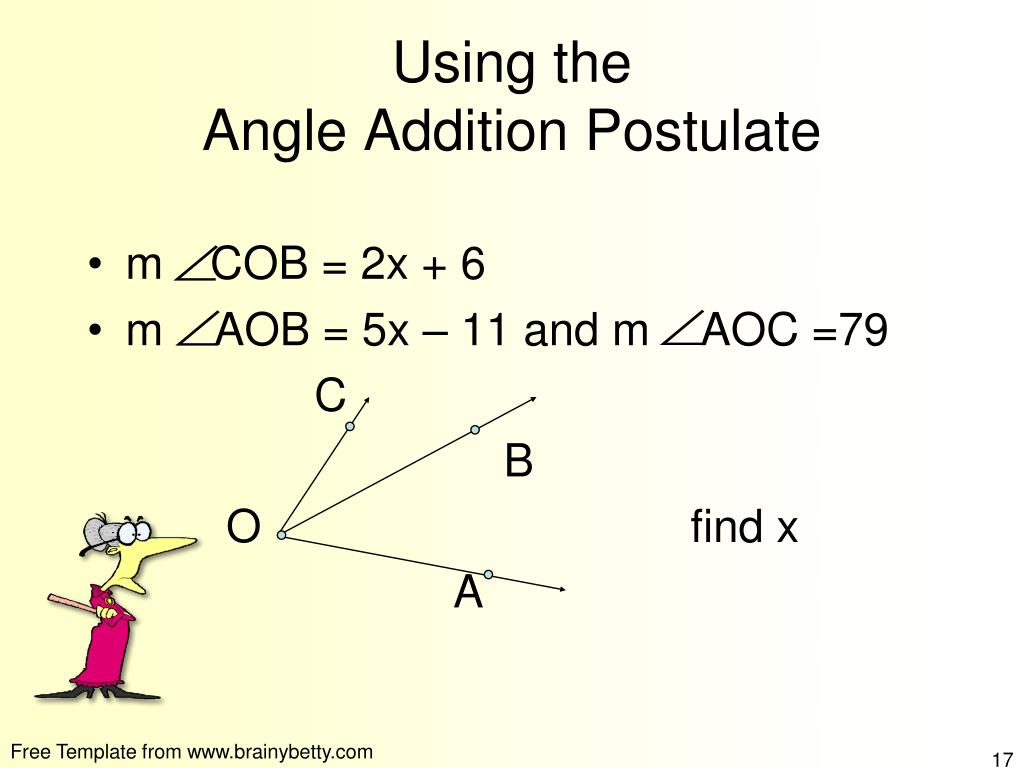

Using the Angle Addition Postulate

  • m COB = 2x + 6

  • m AOB = 5x – 11 and m AOC =79

    C

    B

    O find x

    A

Free Template from www.brainybetty.com


Using the angle addition postulate2

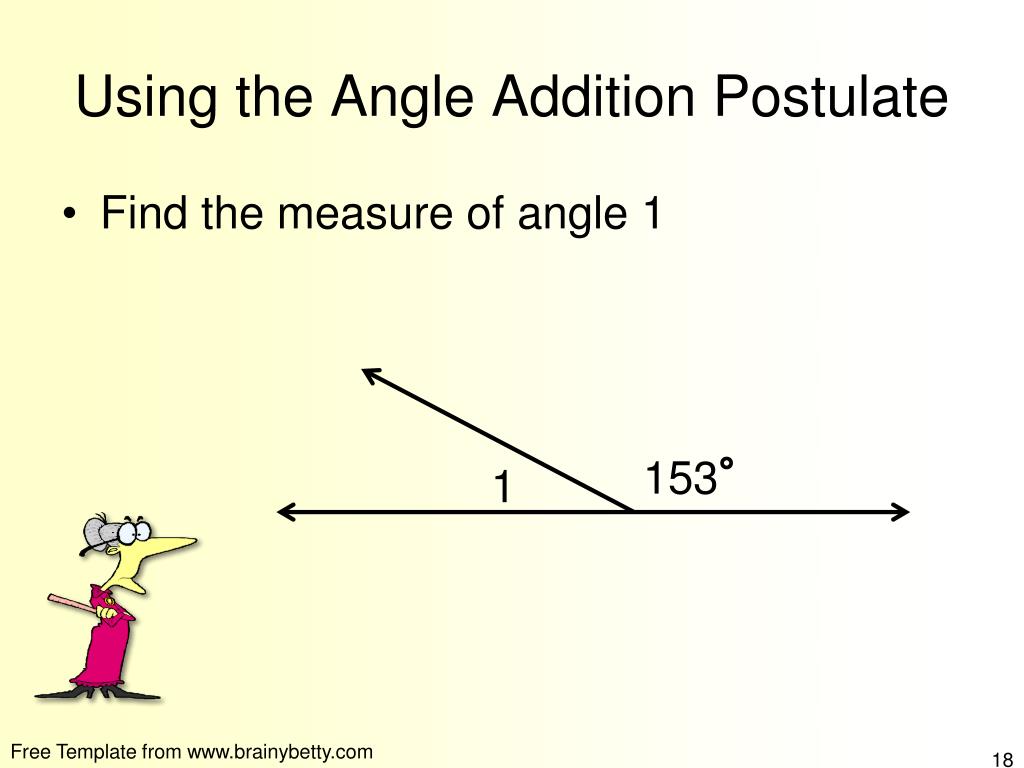

Using the Angle Addition Postulate

  • Find the measure of angle 1

153°

1

Free Template from www.brainybetty.com


Using the angle addition postulate3

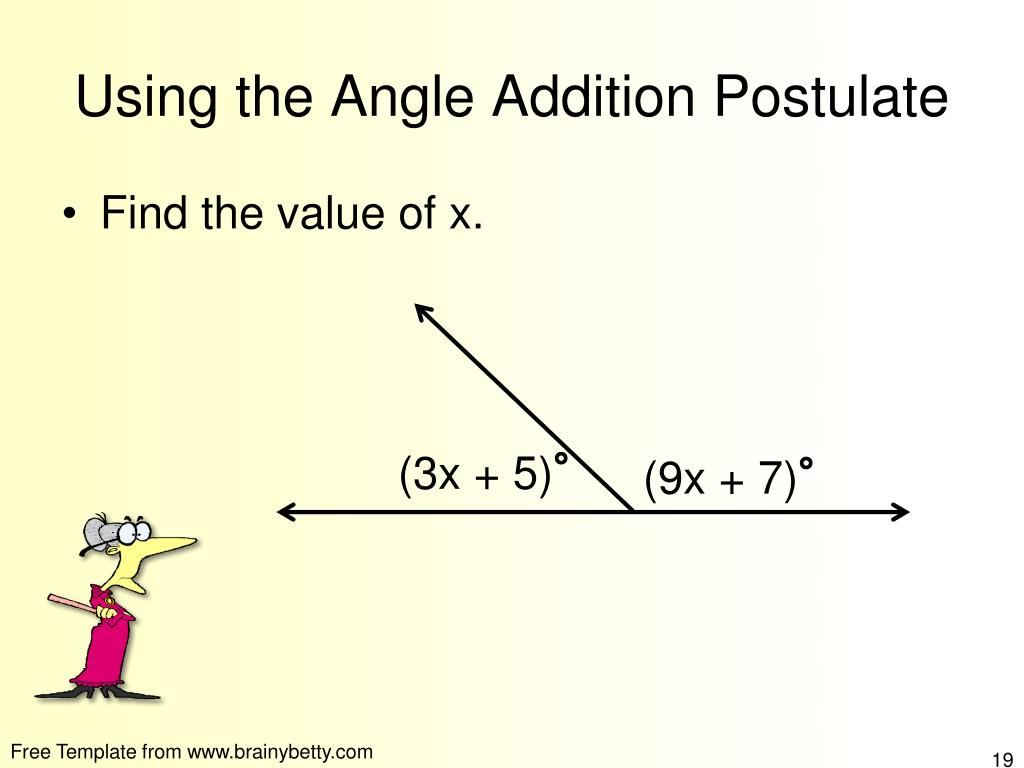

Using the Angle Addition Postulate

  • Find the value of x.

(3x + 5)°

(9x + 7)°

Free Template from www.brainybetty.com


Congruent angles

Congruent Angles

  • Are angles with the same measure.

1

2

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

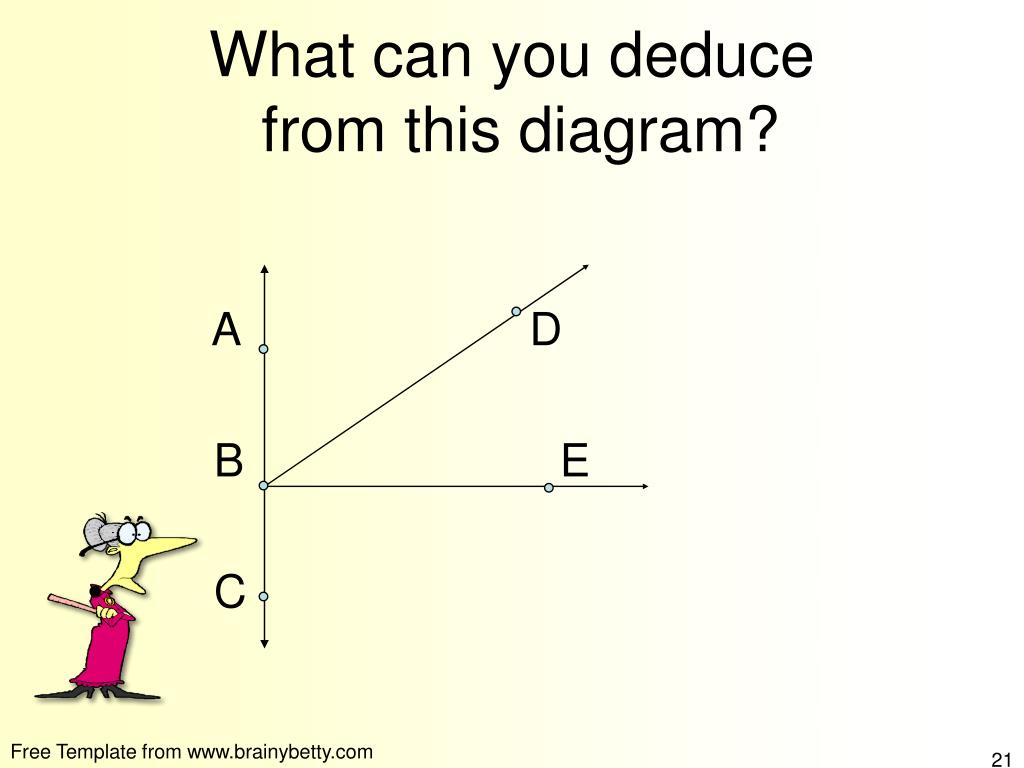

What can you deduce from this diagram?

  • A D

  • B E

  • C

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

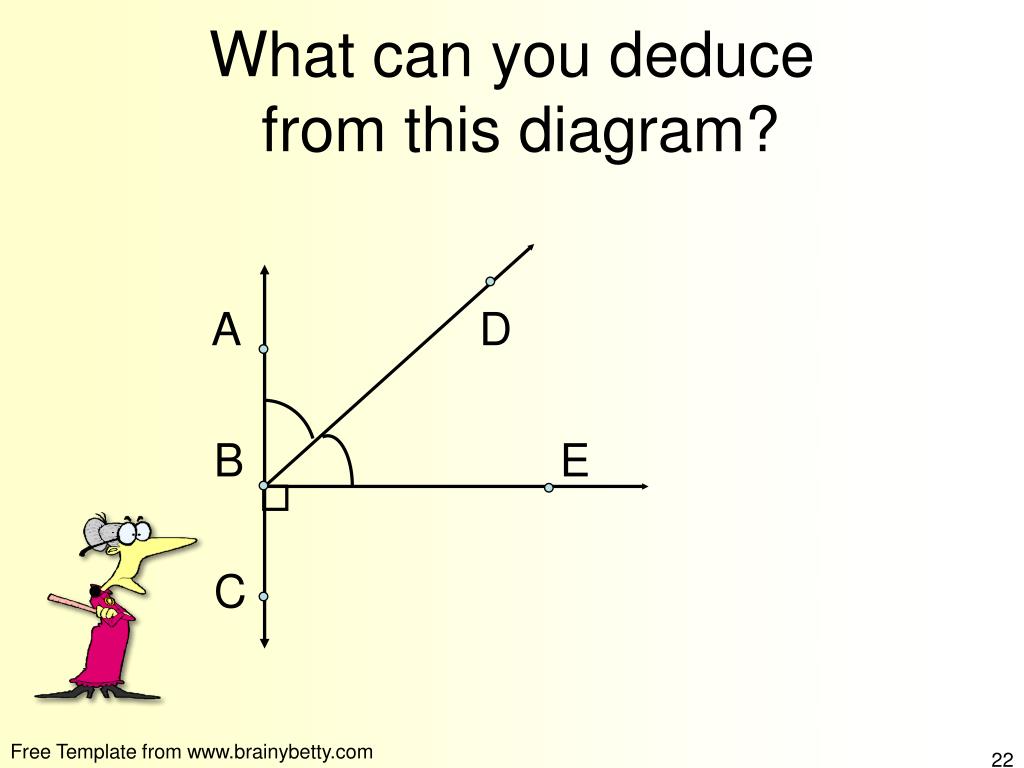

What can you deduce from this diagram?

  • A D

  • B E

  • C

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements

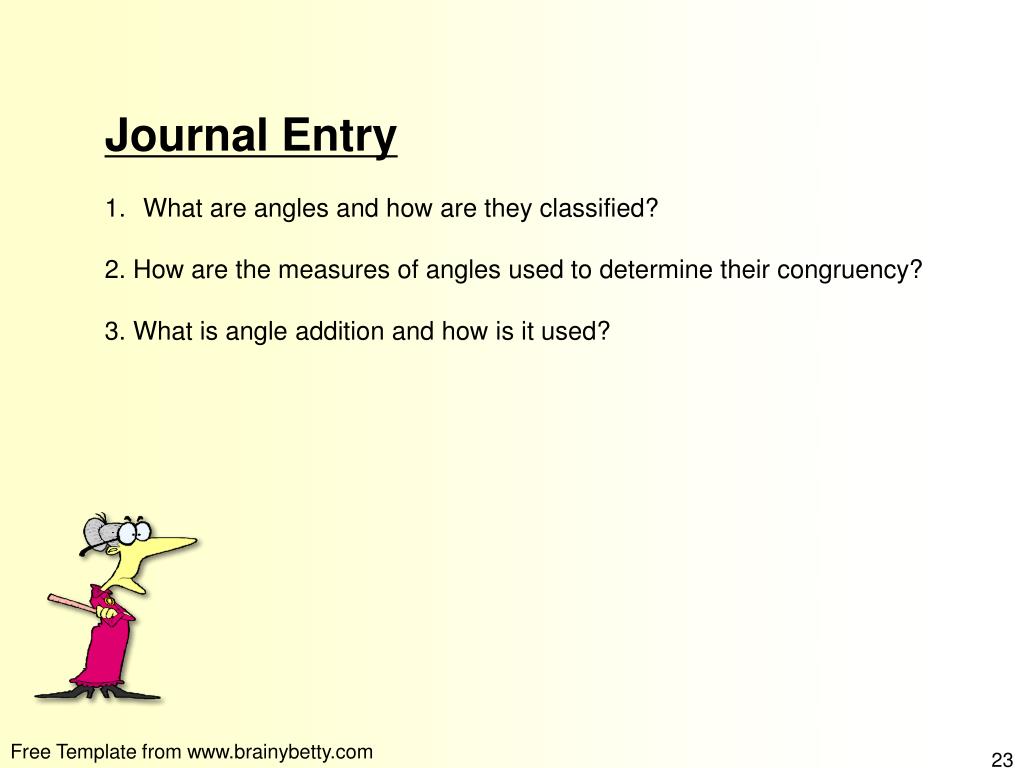

  • Journal Entry

  • What are angles and how are they classified?

  • 2. How are the measures of angles used to determine their congruency?

  • 3. What is angle addition and how is it used?

Free Template from www.brainybetty.com

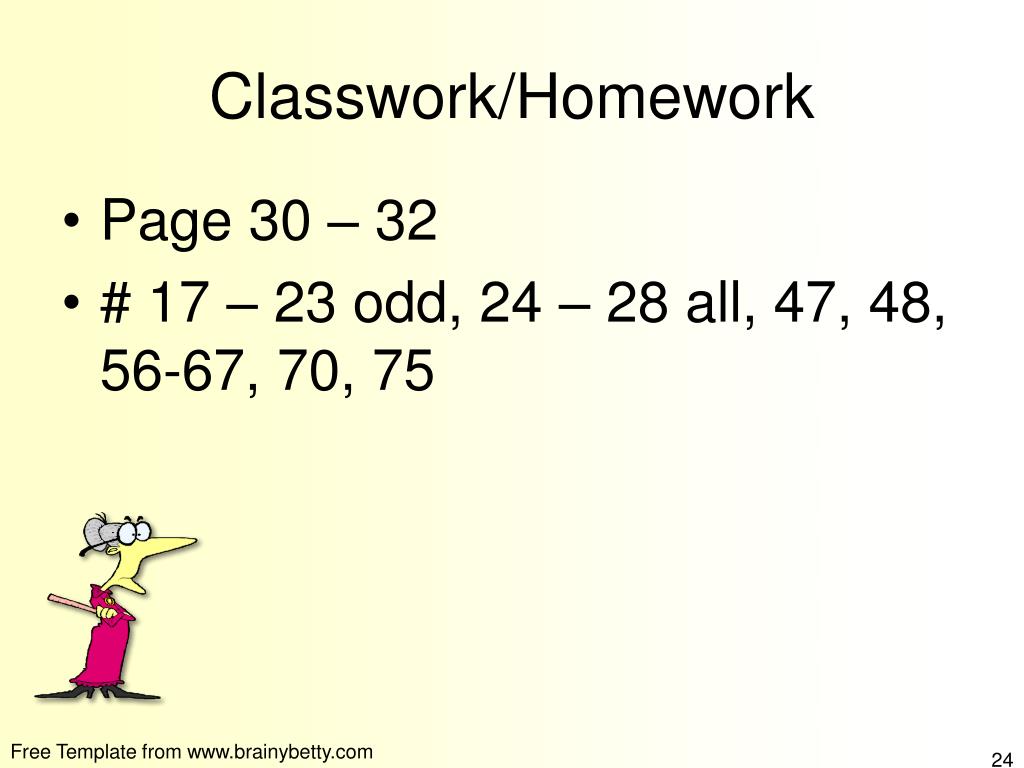

Classwork homework

Classwork/Homework

  • Page 30 – 32

  • # 17 – 23 odd, 24 – 28 all, 47, 48, 56-67, 70, 75

Free Template from www.brainybetty.com


Unit 1 concept 3 angles and their measurements1

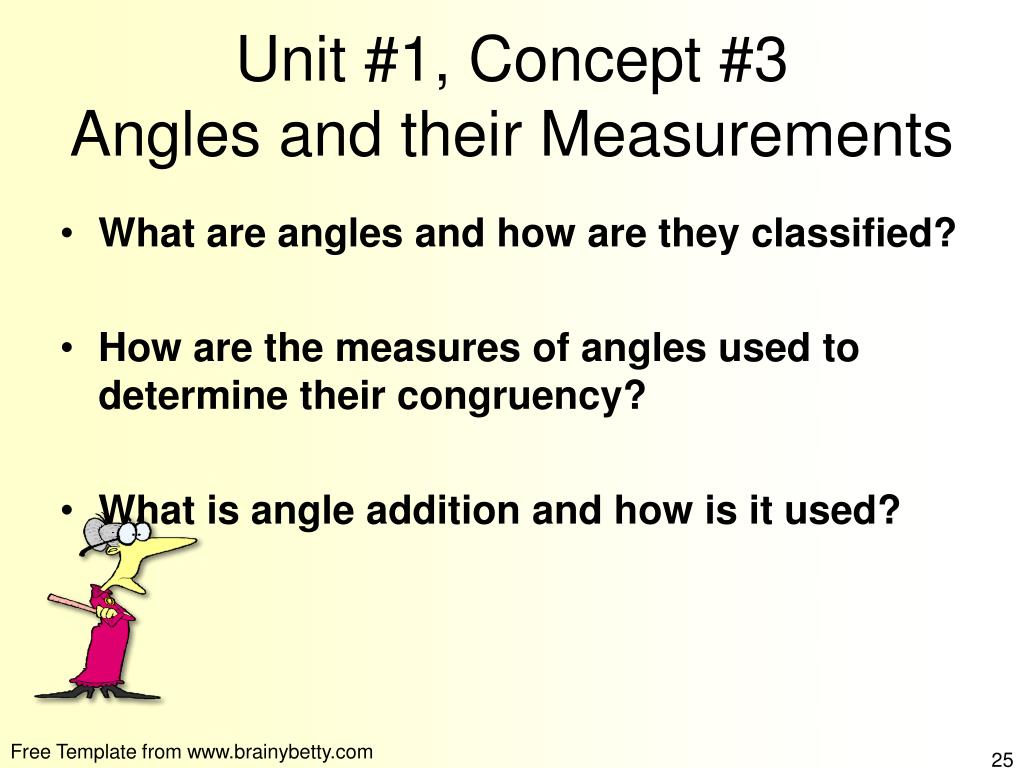

Unit #1, Concept #3Angles and their Measurements

  • What are angles and how are they classified?

  • How are the measures of angles used to determine their congruency?

  • What is angle addition and how is it used?
