Station fire

Station Fire

Project Status

Presented by

Los Angeles County Flood Control District


Station fire

Pickens Debris Basin

  • Project Location:

    • Pickens Debris Basin is located in La Crescenta, east of the intersection of Briggs Avenue and Cross Street.

  • Project Scope:

    • Remove existing timber planking on top of spillway

    • Raise spillway by 5 feet

    • Extend outlet tower by 5.5 feet

    • Raise channel wall by 2 feet

    • Regrade access road

  • Capacity:

    • Before (fall of 2009) 125,000 cubic yards

    • After enlargement156,000 cubic yards

  • Construction Dates:

    • Start 07/31/2010

    • End10/11/2010


Station fire

Pickens Debris Basin


Station fire

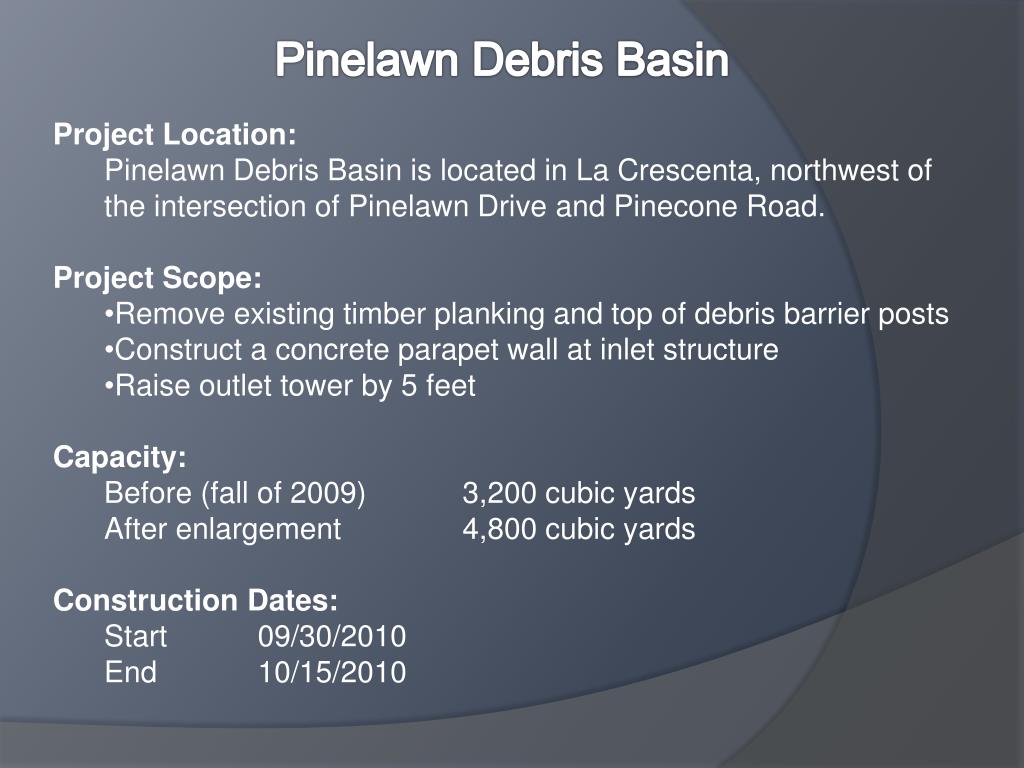

Pinelawn Debris Basin

  • Project Location:

    • Pinelawn Debris Basin is located in La Crescenta, northwest of the intersection of Pinelawn Drive and Pinecone Road.

  • Project Scope:

    • Remove existing timber planking and top of debris barrier posts

    • Construct a concrete parapet wall at inlet structure

    • Raise outlet tower by 5 feet

  • Capacity:

    • Before (fall of 2009) 3,200 cubic yards

    • After enlargement 4,800 cubic yards

  • Construction Dates:

    • Start 09/30/2010

    • End 10/15/2010


Station fire

Pinelawn Debris Basin


Station fire

Pinelawn Debris Basin


Station fire

Starfall Debris Basin

  • Project Location:

    • Starfall Debris Basin is located in La Crescenta, northeast of Pinecone Avenue and Starfall Drive.

  • Project Scope:

    • Remove existing debris barrier posts and timber planking at spillway

    • Raise spillway by 7 feet

    • Raise spillway wall by 4 feet

    • Construct an access ramp

    • Construct a front wall and access ramp wall

    • Reconstruct access road

    • Raise outlet tower by 3 feet

  • Capacity:

    • Before (fall of 2009) 15,000 cubic yards

    • After enlargements 28,300 cubic yards

  • Construction Dates:

    • Start 07/29/2010

    • End 10/15/2010


Station fire

Starfall Debris Basin


Station fire

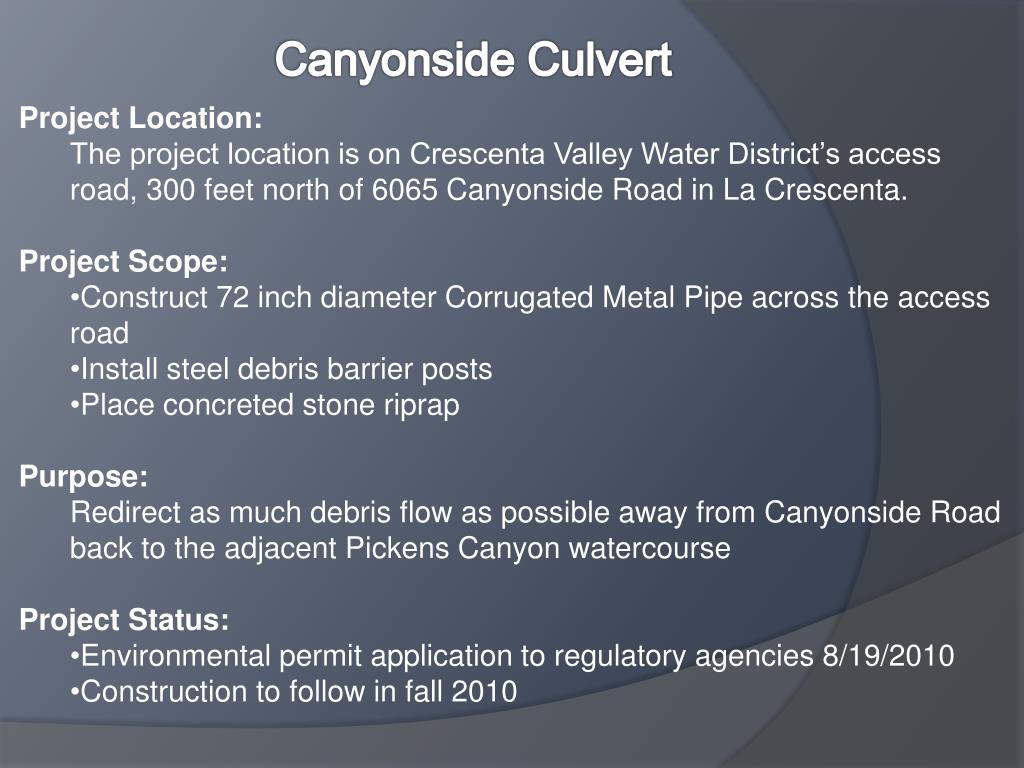

Canyonside Culvert

  • Project Location:

    • The project location is on Crescenta Valley Water District’s access road, 300 feet north of 6065 Canyonside Road in La Crescenta.

  • Project Scope:

    • Construct 72 inch diameter Corrugated Metal Pipe across the access road

    • Install steel debris barrier posts

    • Place concreted stone riprap

  • Purpose:

    • Redirect as much debris flow as possible away from Canyonside Road back to the adjacent Pickens Canyon watercourse

  • Project Status:

    • Environmental permit application to regulatory agencies 8/19/2010

    • Construction to follow in fall 2010


Station fire

Canyonside Culvert


Station fire project status

Station Fire Project Status

This presentation is available at:

http://dpw.lacounty.gov/wrd/fire/

http://dpw.lacounty.gov/care/
