Figure 8-1 (p. 491) Adaptive channel equalizer.

Figure 8-1 (p. 491) Adaptive channel equalizer. Figure 8-2 (p. 493) Equalizer performance with the LMS algorithm. Figure 8-3 (p. 493) Equalizer performance with the RLS algorithm. Figure 8-4 (p. 500) Weight for conventional least-squares cost function.

blithe
Download Presentation

Figure 8-1 (p. 491) Adaptive channel equalizer.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Figure 8-1 (p. 491)Adaptive channel equalizer.

  2. Figure 8-2 (p. 493)Equalizer performance with the LMS algorithm.

  3. Figure 8-3 (p. 493) Equalizer performance with the RLS algorithm.

  4. Figure 8-4 (p. 500)Weight for conventional least-squares cost function.

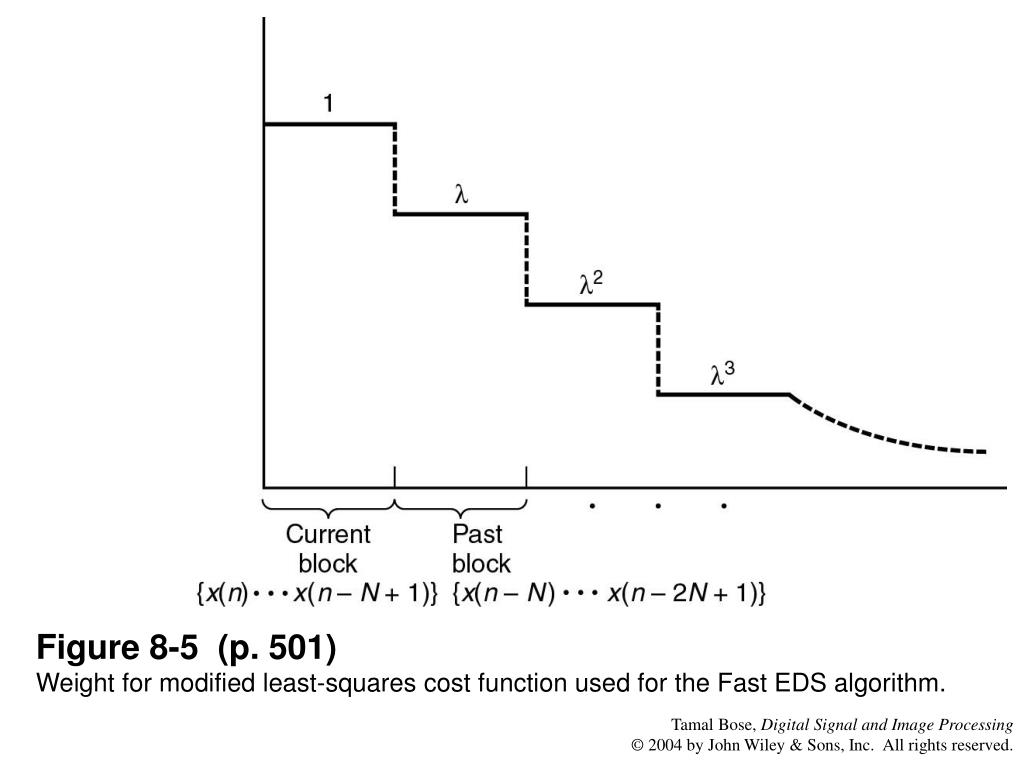

  5. Figure 8-5 (p. 501)Weight for modified least-squares cost function used for the Fast EDS algorithm.

  6. Figure 8-6 (p. 504)Channel Equalization with the Fast EDS algorithm.

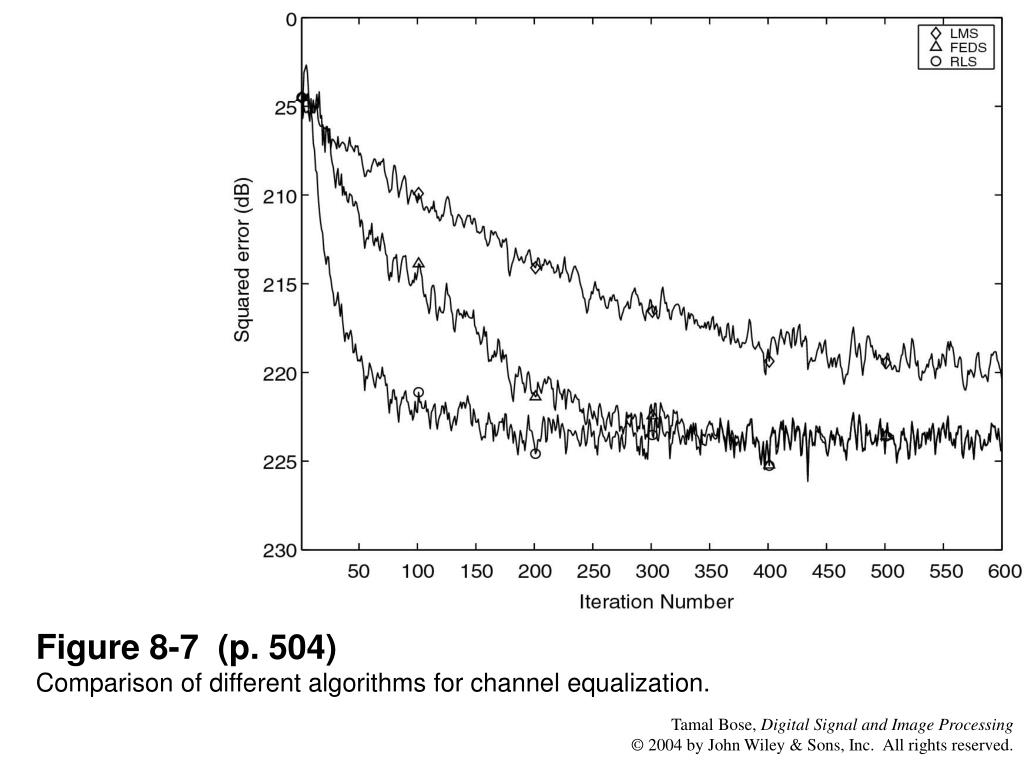

  7. Figure 8-7 (p. 504)Comparison of different algorithms for channel equalization.

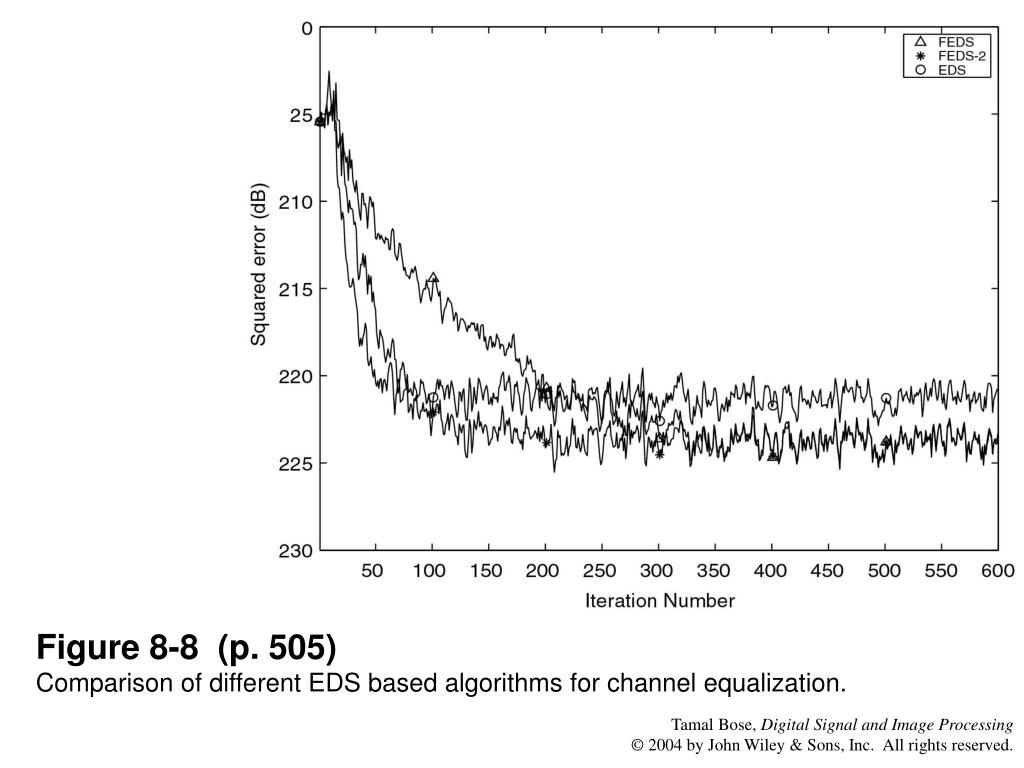

  8. Figure 8-8 (p. 505)Comparison of different EDS based algorithms for channel equalization.

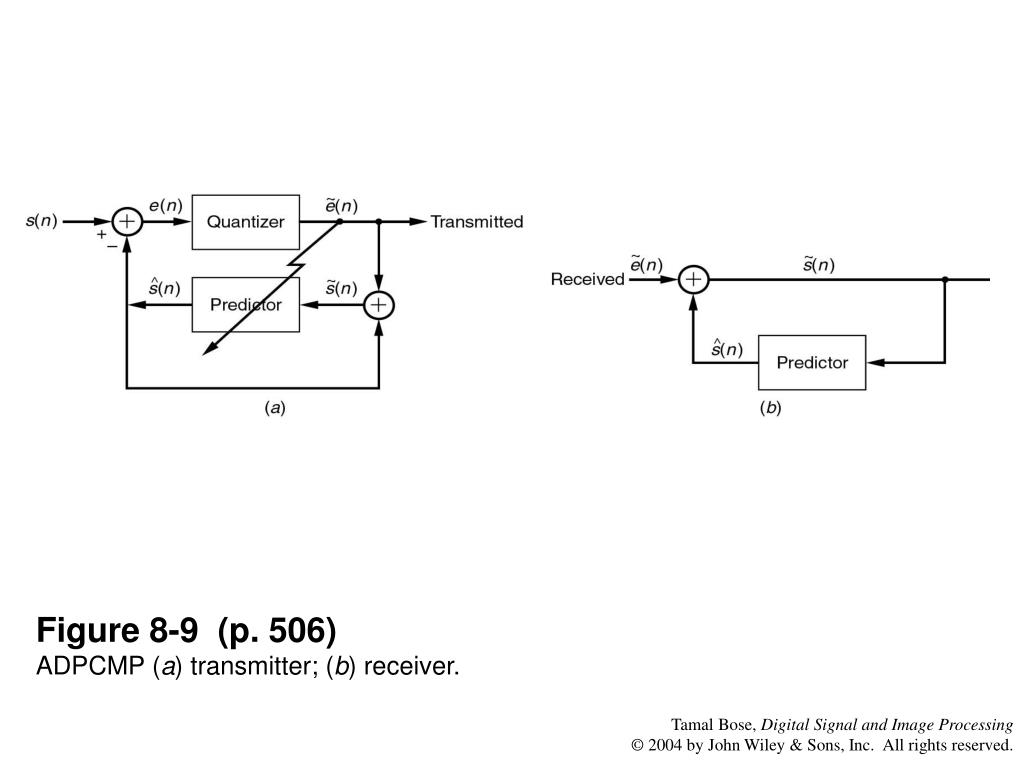

  9. Figure 8-9 (p. 506)ADPCMP (a) transmitter; (b) receiver.

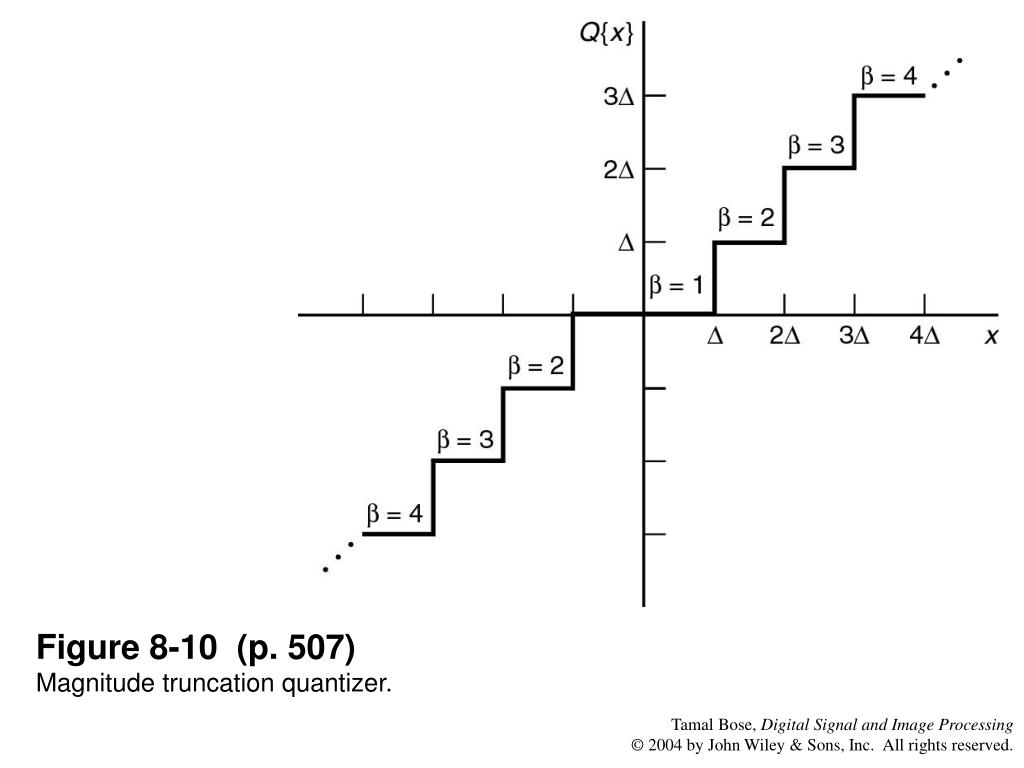

  10. Figure 8-10 (p. 507)Magnitude truncation quantizer.

  11. Figure 8-11 (p. 508)ADPCM using the RLS algorithm; (a) input signal; (b) directly quantized input signal to 4 bits resolution; (c) recovered signal after ADPCM.

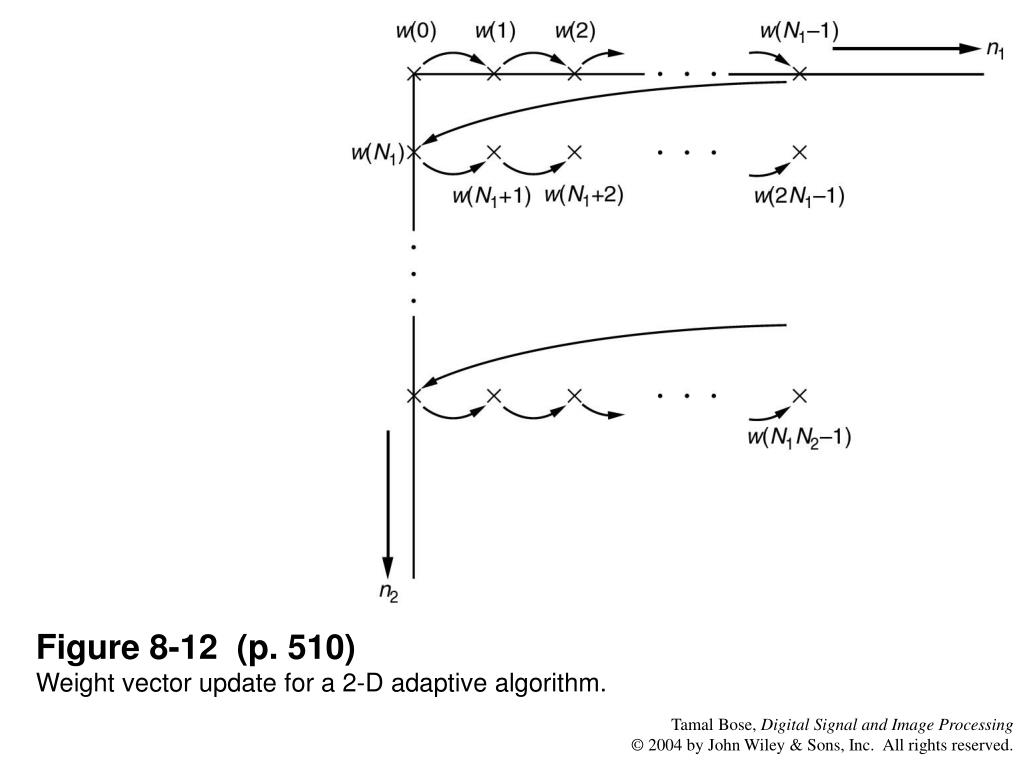

  12. Figure 8-12 (p. 510)Weight vector update for a 2-D adaptive algorithm.

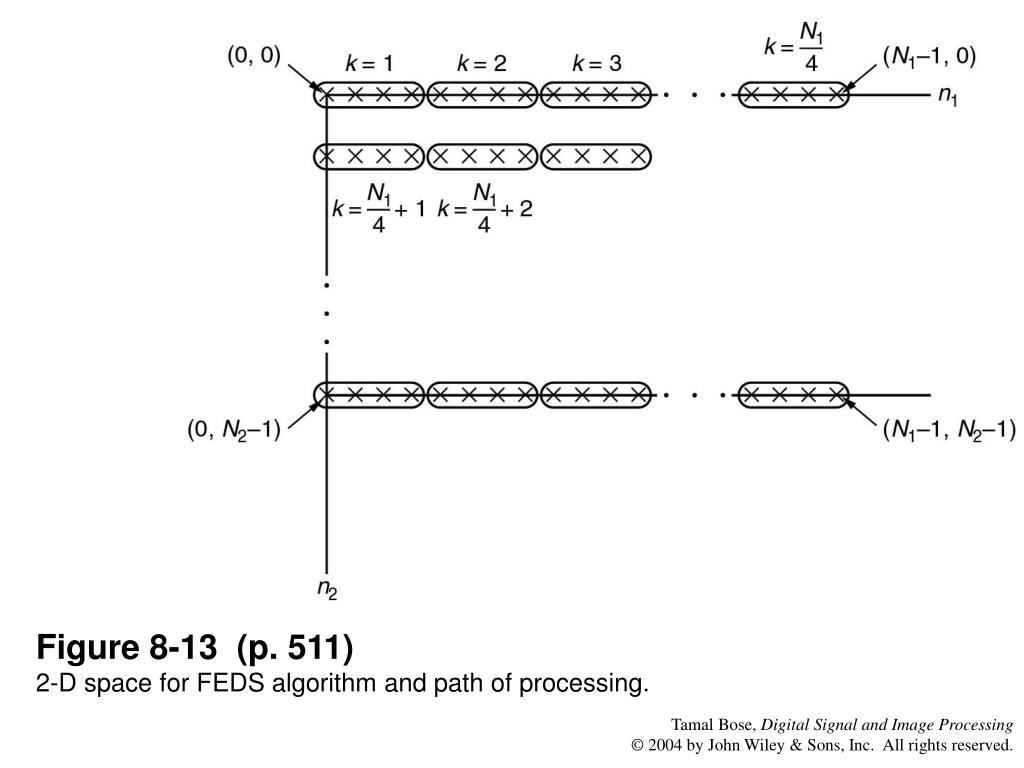

  13. Figure 8-13 (p. 511)2-D space for FEDS algorithm and path of processing.

  14. Figure 8-14 (p. 513)2-D line enhancer for image restoration.

  15. Figure 8-15 (p. 514)Image restoration by 2-D linear prediction: (a) original image; (b) image corrupted by 1.8 SNR with Gaussian noise; (c) image restored by 2-D LMS; (d) image restored by 2-D FEDS.
