Team tesla

Team Tesla

Wirelessly Powered Sensor Network

Damian Manda

Leo Ascarrunz

Brian Fairburn

Sarah McNamara


Review project description
Review: Project Description

Power Transmitter

Wireless Sensor

Wireless Sensor

Wireless Sensor

Wireless Sensor

Wireless Sensor

Wireless Sensor

Extended

Internet

GUI

Base Station


System block diagram
System Block Diagram

Sensor Module

Web-based

Interface

Analog & Digital Lines

Power / Processing Board

ANT (2.45 GHz RF)

REST

5.8 GHz RF

Computer

USB

Base Station

Power Transmitter


Power system block diagram
Power System Block Diagram

Power Source Selection

Rectenna

Processor Transceiver Sensors

DC-DC

Converter

Battery Charging


Power receiving antenna
Power Receiving Antenna

  • Dual polarized microstrip patch rectenna

  • 5.8GHz

3.8cm

3.8cm


Rectenna peak power

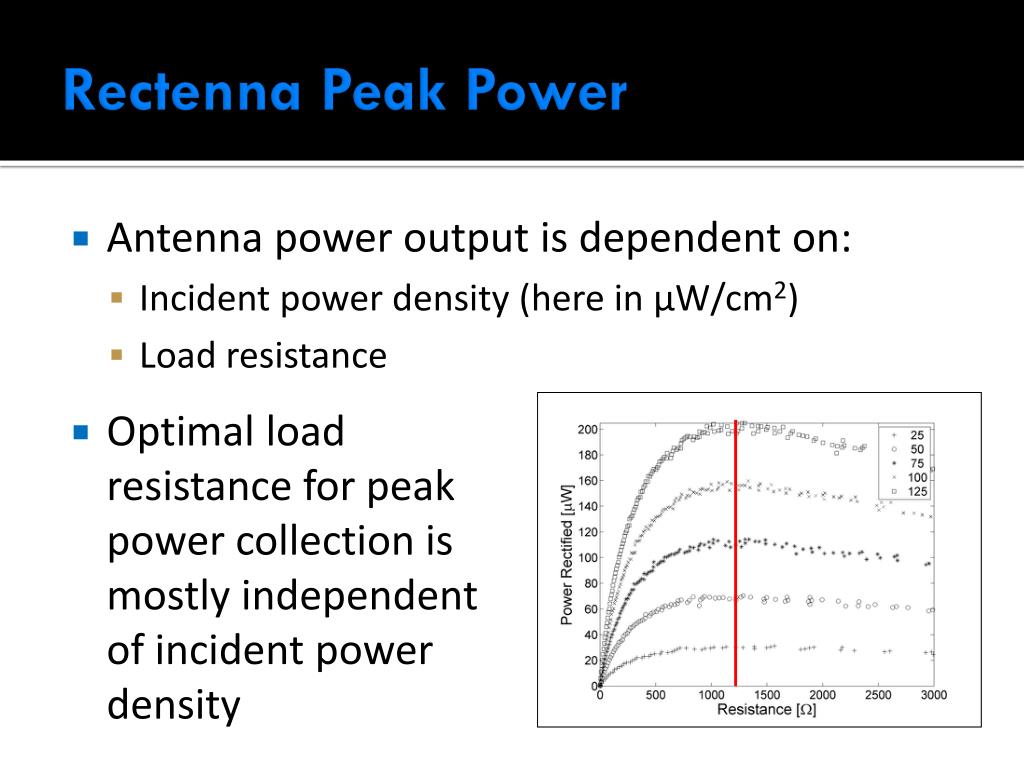

Rectenna Peak Power

  • Antenna power output is dependent on:

    • Incident power density (here in μW/cm2)

    • Load resistance

  • Optimal load resistance for peak power collection is mostly independent of incident power density


Emulated resistance
Emulated Resistance

  • Desired Emulated Resistance: 1.2kΩ – 1.5kΩ

  • Want to be on the right side of the curve


Power system block diagram1
Power System Block Diagram

Power Source Selection

Rectenna

Processor Transceiver Sensors

DC-DC Converter

Battery Charging

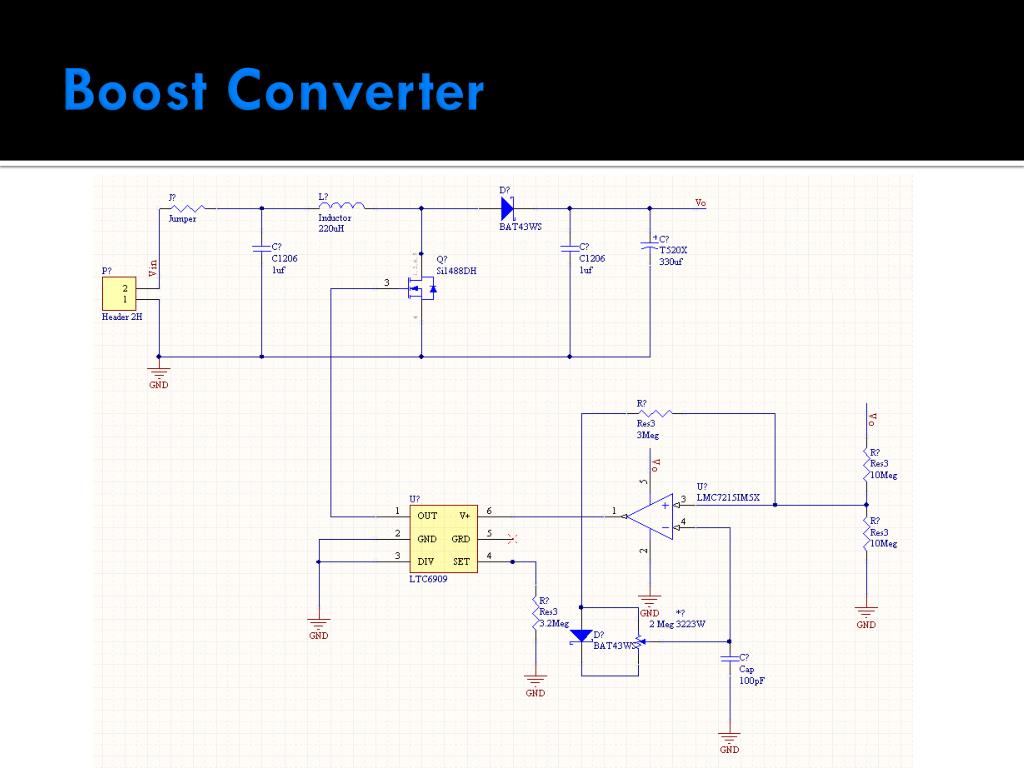

Boost converter
Boost Converter

  • Operates in pulsed fixed frequency discontinuous conduction mode



Boost converter problems

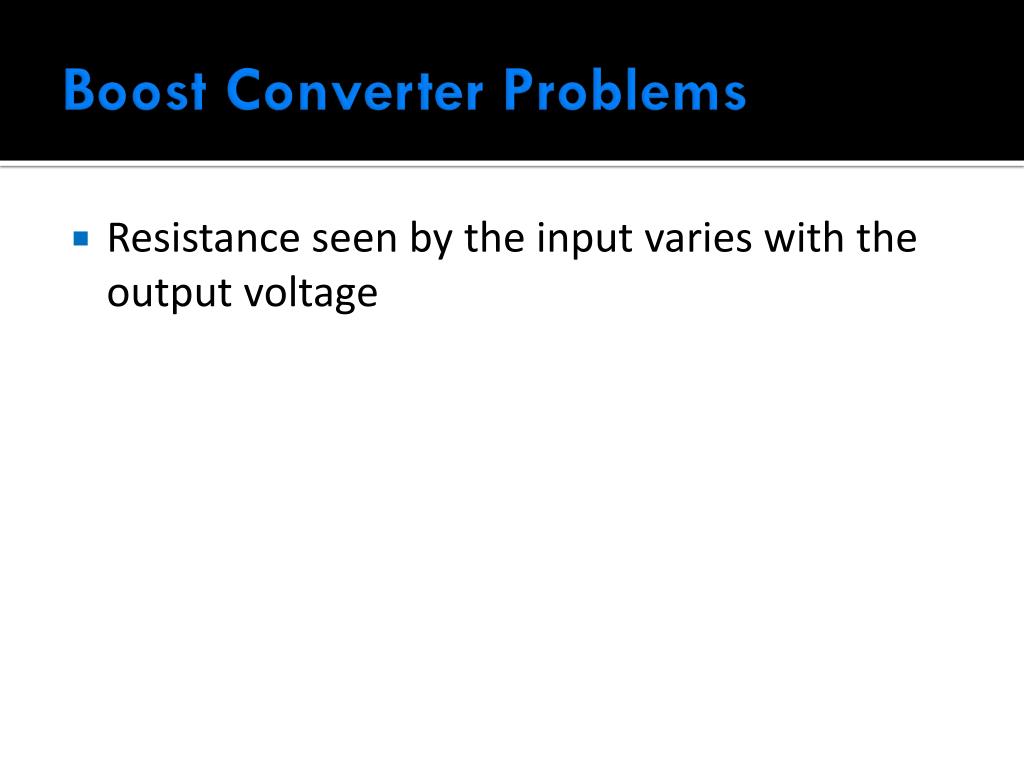

Boost Converter Problems

  • Resistance seen by the input varies with the output voltage


Buck boost converter
Buck-Boost Converter

  • Also operates in pulsed fixed frequency discontinuous conduction mode

  • Requires a floating input voltage source to allow non-inverted output



Buck boost converter2
Buck-Boost Converter

  • Choice of parameter settings based on:

    • expected input power level

    • desired emulated resistance

  • Expected input power: 50 μW – 200 μW

  • Emulated resistance: 1.2kΩ – 1.5kΩ


Spice simulation results
Spice Simulation Results

  • Output Voltage between 3.3 and 2.6 V

  • Input power independent of output


Spice simulation details

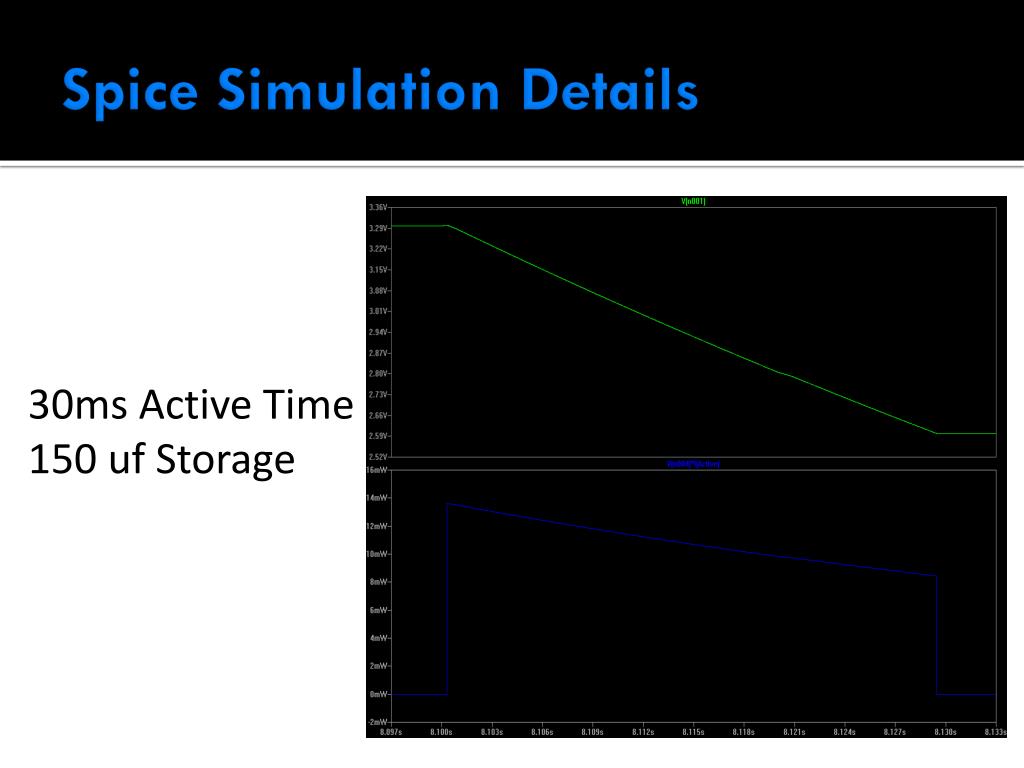

Spice Simulation Details

30ms Active Time

150 uf Storage


Power system block diagram2
Power System Block Diagram

Power Source Selection

Rectenna

Processor Transceiver Sensors

DC-DC

Converter

Battery Charging


Power source selection

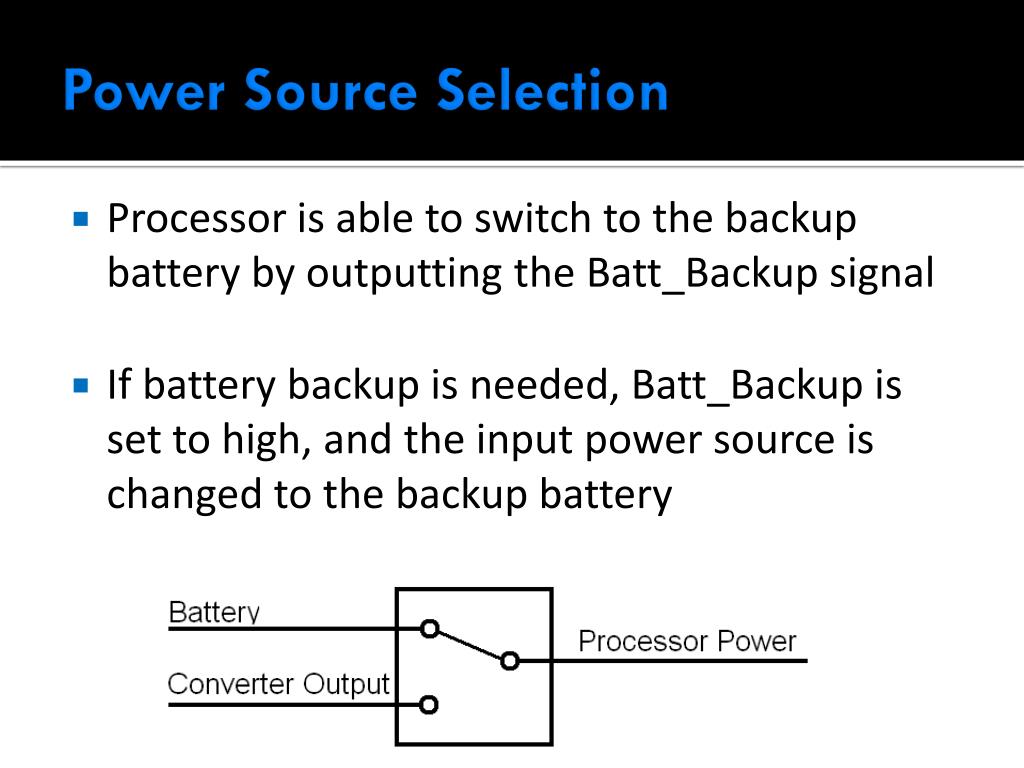

Power Source Selection

  • Processor is able to switch to the backup battery by outputting the Batt_Backup signal

  • If battery backup is needed, Batt_Backup is set to high, and the input power source is changed to the backup battery


Power source selection1
Power Source Selection

  • Using Si151DL

  • Complementary 20-V (D-S) Low-Threshold MOSFET


Power system block diagram3
Power System Block Diagram

Power Source Selection

Rectenna

Processor Transceiver Sensors

DC-DC

Converter

Battery Charging

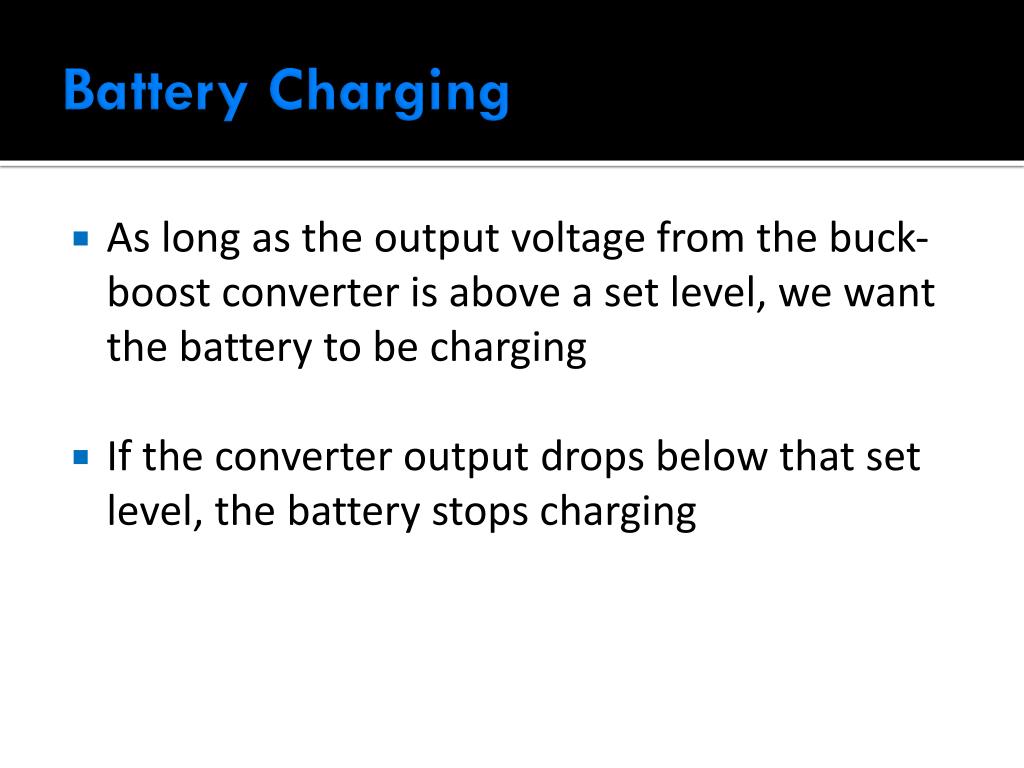

Battery charging
Battery Charging

  • As long as the output voltage from the buck-boost converter is above a set level, we want the battery to be charging

  • If the converter output drops below that set level, the battery stops charging


Battery charging1
Battery Charging

  • Using ISL88001

  • Ultra Low Power 3 Ld Voltage Supervisors

  • Fixed-voltage options allow precise monitoring of +1.8V, +2.5V, +3.0V, +3.3V and +5.0V power inputs

  • 160nA supply current


Battery charging system

Power Source Selection

Schematic View

Battery Charging System


Sensors transmission
Sensors & Transmission

Data Collection & Dissemination


Sensor board diagram
Sensor Board Diagram

Universal Header Connection

Sensor

IC

Sensor

ID

Micro Pitch

Connector

Samtec

LSHM–120–01–L–DH–A–S–K–TR

Power / Processor Board


Circuit diagrams sensor board

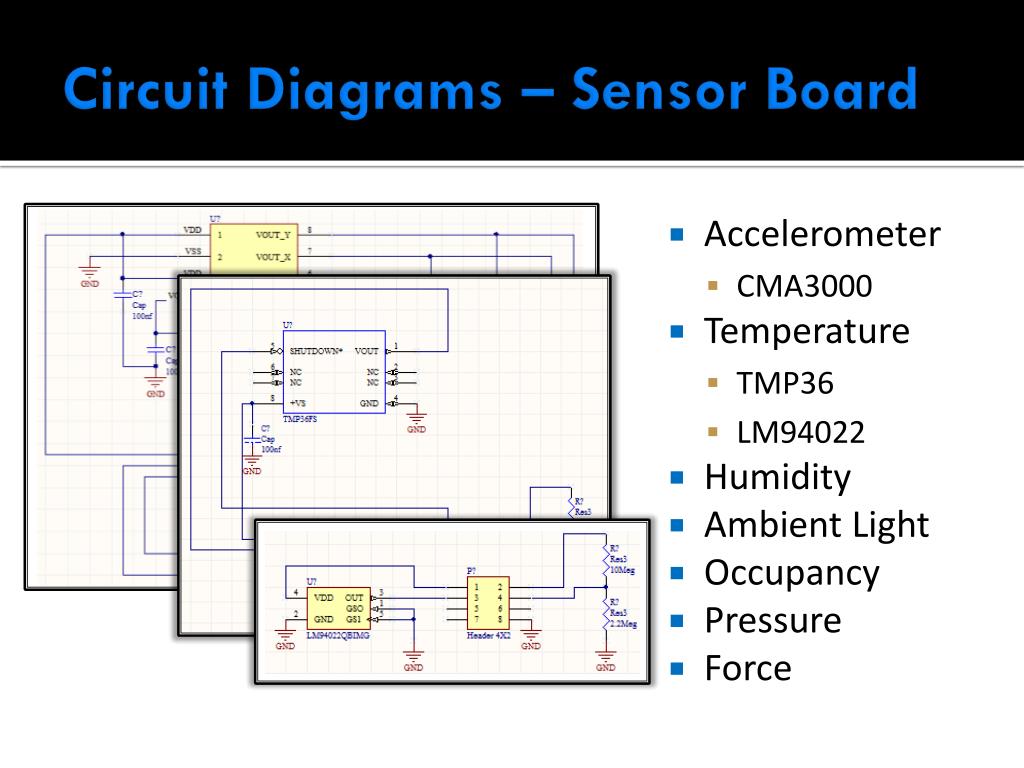

Circuit Diagrams – Sensor Board

  • Accelerometer

    • CMA3000

  • Temperature

    • TMP36

    • LM94022

  • Humidity

  • Ambient Light

  • Occupancy

  • Pressure

  • Force



Transmission operation
Transmission Operation

Using asynchronous communication mode w/ modules as masters

Connection Configuration

[UART]

Data Packet

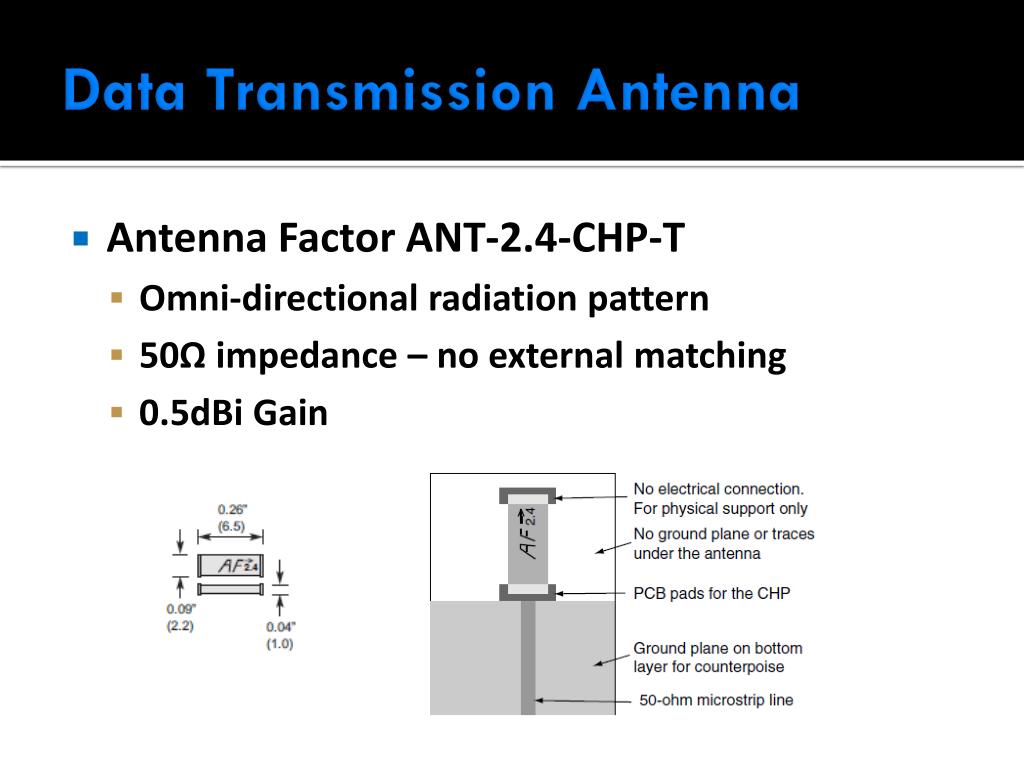

Data transmission antenna
Data Transmission Antenna

  • Antenna Factor ANT-2.4-CHP-T

    • Omni-directional radiation pattern

    • 50Ω impedance – no external matching

    • 0.5dBi Gain


Processor pinout

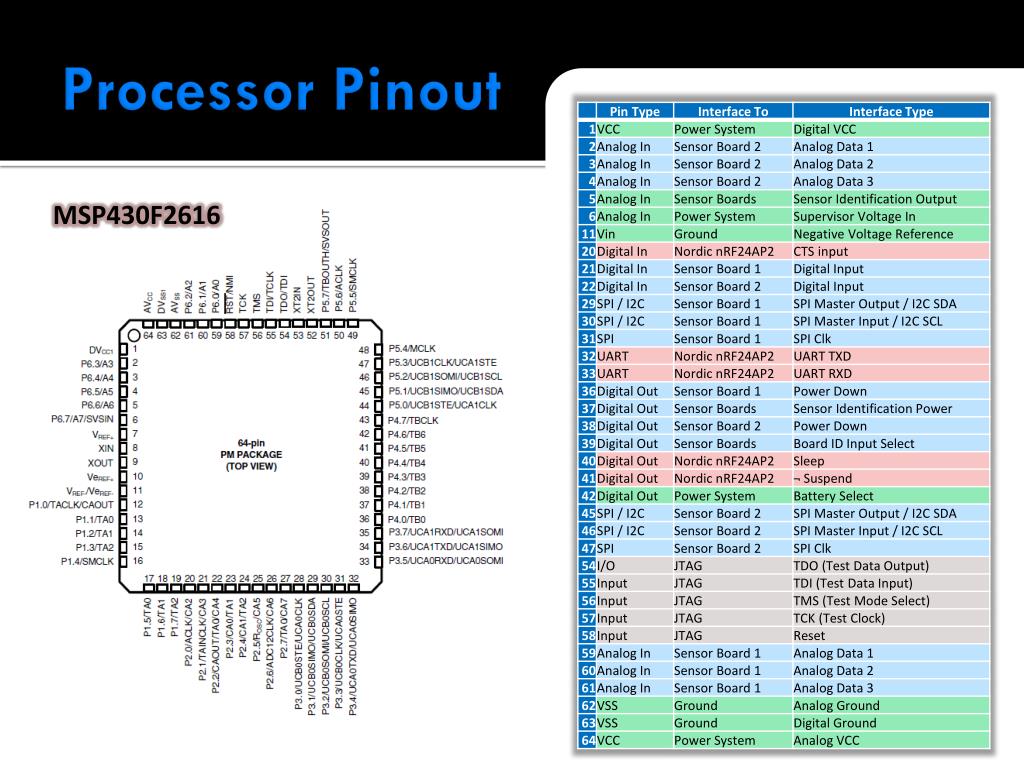

Processor Pinout

MSP430F2616



Programming
Programming

  • Setup

  • Get Data

  • Process Data

  • Transmit Data

  • Sleep


Setup
Setup

  • Lock all Unused Pins

    • Set to Input with pull down/up Resistor active

  • Set on Used Pins

  • Built in UART enabled

    • 9600 baud

  • Built in A/D enabled

  • Watchdog and Interrupts configured

  • Set voltage supervisor trip point


Get data
Get Data

  • Temperature and Accelerometer

    • Both are analog devices

  • Use the Built in 12 bit A/D convertor.

  • Sample and Hold

  • Possible use of the on board DMA controller to transfer data


Process data

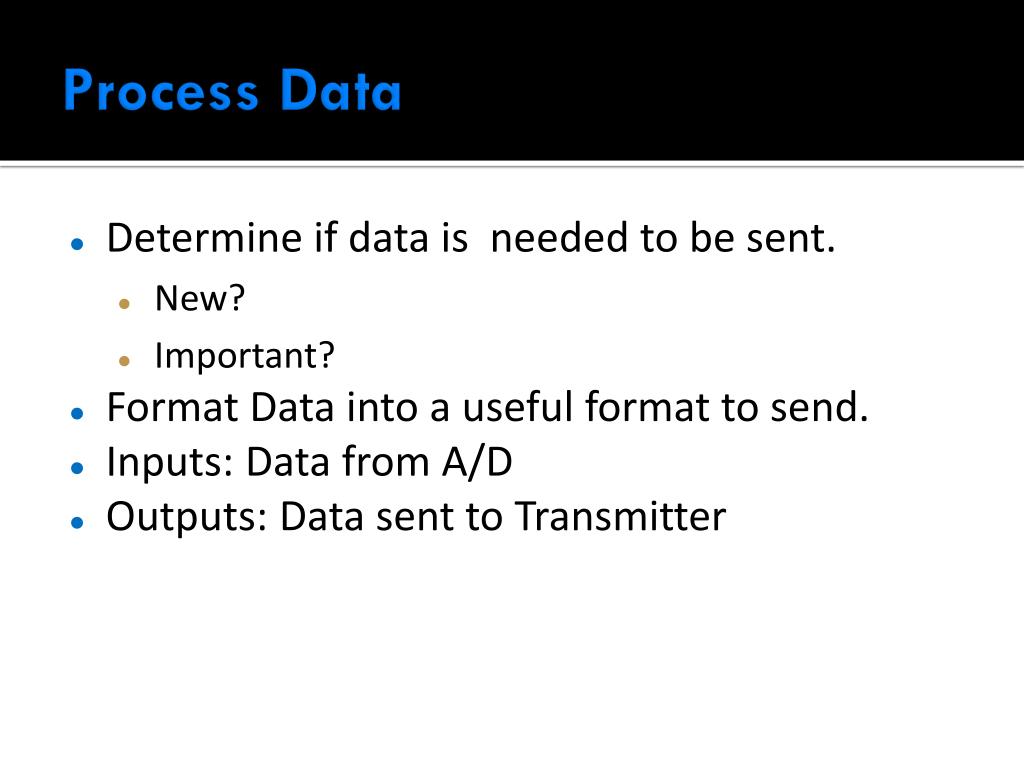

Process Data

  • Determine if data is needed to be sent.

    • New?

    • Important?

  • Format Data into a useful format to send.

  • Inputs: Data from A/D

  • Outputs: Data sent to Transmitter


Transmit data
Transmit Data

  • Use Built in UART to communicate with our transceiver.

  • Asynchronous communication at currently 9600 Baud

  • Input: Data from Process Data

  • Output: UART communication

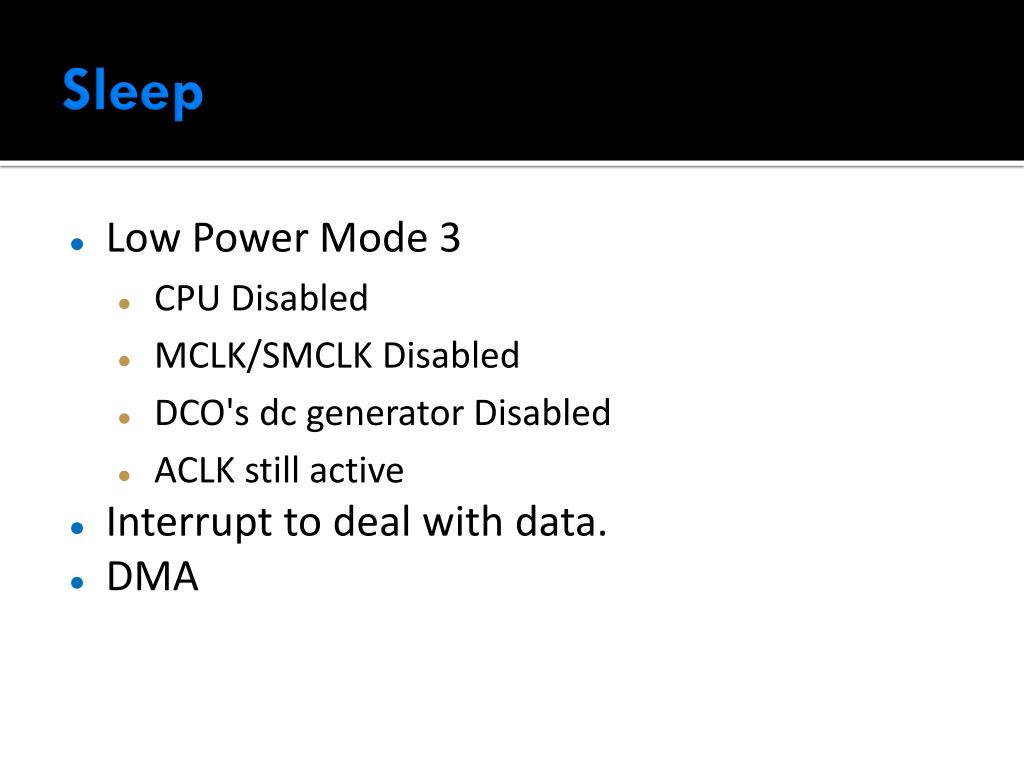

Sleep
Sleep

  • Low Power Mode 3

    • CPU Disabled

    • MCLK/SMCLK Disabled

    • DCO's dc generator Disabled

    • ACLK still active

  • Interrupt to deal with data.

  • DMA


Computer software
Computer Software

  • GUI Programmed in C#

    • Native USB Libraries

    • Easy to display output

    • Knowledge of developer

  • Web interface

    • Communication to a REST PHP based server

    • Output to flash charts / PHP dynamic pages





Update on cdr goals
Update on CDR Goals

Original

Progress

Circuit diagrams complete

Revision in development by grad students

PCB created, but have since revised converter design

Various sample code run, basic setup code created

  • Sensor testing boards

  • Initial antenna design

  • First power supply boards done & testing begun

  • Development board learning

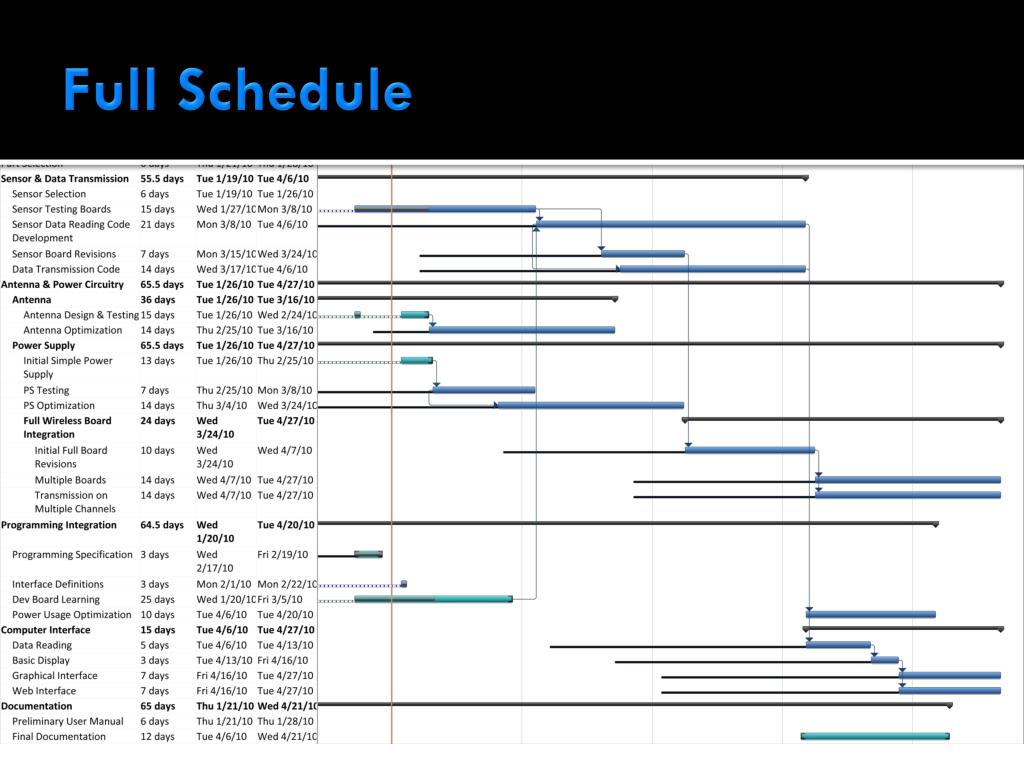

Forward schedule summary

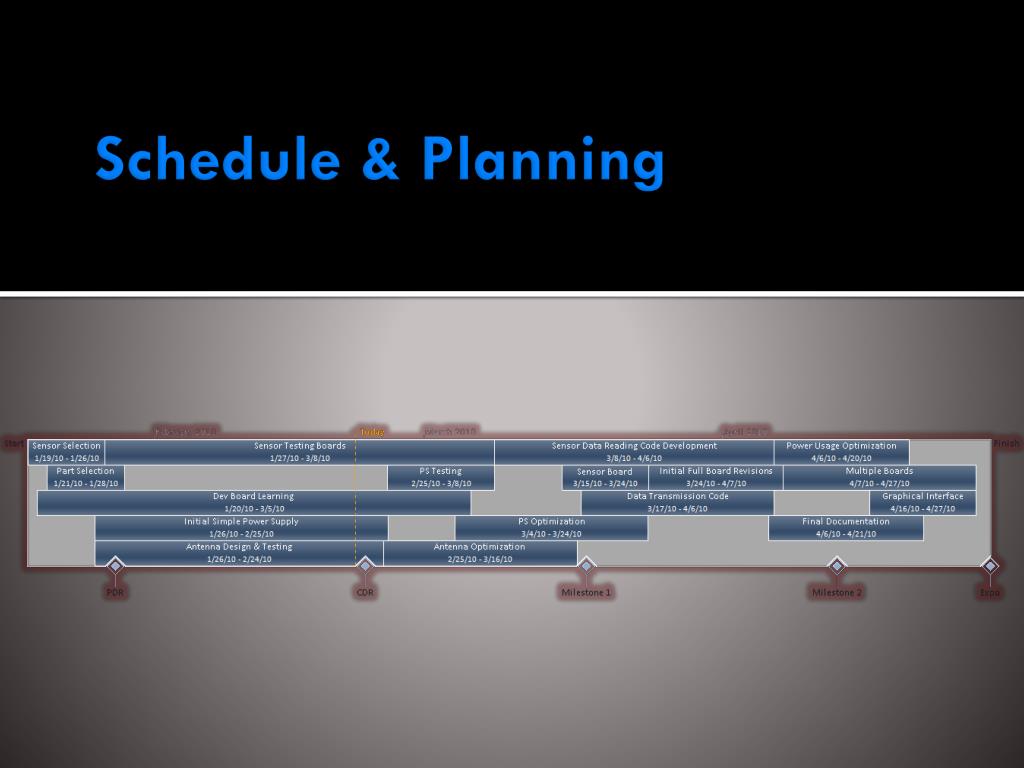

Forward Schedule Summary

  • Milestone 1

    • Sensor boards physically constructed

    • Final antenna design

    • Power supply optimization

  • Milestone 2

    • Full sensor reading & data transmission

    • Full PCB w/ all parts integrated

    • Computer interface developed

  • Expo

    • Documentation

    • Final board revisions


Ongoing risks solutions
Ongoing Risks & Solutions

  • Boost Converter Needs 2.2V to start switching

  • Can use S-882Z charge pump to pre-charge output capacitor to 2.2V

  • Use a battery as storage element



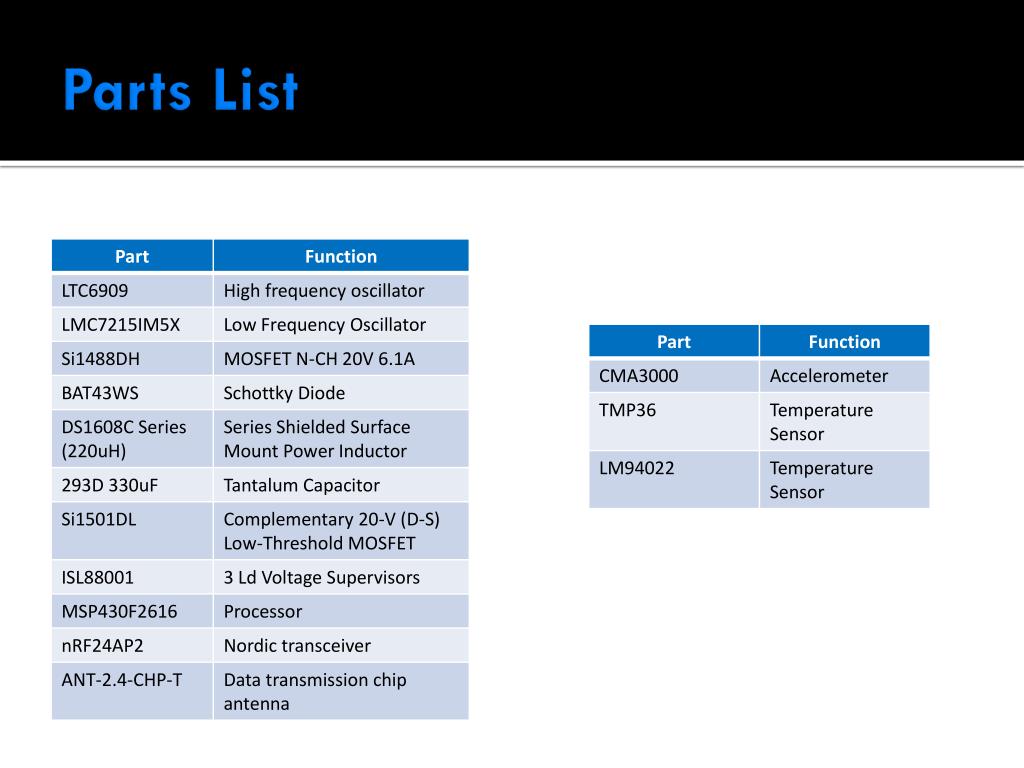

Questions
Questions?

Team Tesla

In order of presentation:

Sarah McNamara

Leo Ascarrunz

Damian Manda

Brian Fairburn
