MAGNETISM

MAGNETISM . Historical background : lodestone (magnetite) known for 1000s of years; Thales of Miletus studied lodestones (590 BC); magnetic compass invented by Chinese around 200 AD;

blaze
Download Presentation

MAGNETISM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. MAGNETISM • Historical background: • lodestone (magnetite) known for 1000s of years; • Thales of Miletus studied lodestones (590 BC); • magnetic compass invented by Chinese around 200 AD; • Pierre de Maricourt a.k.a. Petrus Peregrinus (1269) studied magnets, Earth's magnetism; concept of poles, tried to isolate single pole; • William Gilbert (1544-1603) (court physician of Elizabeth I and James I) • first serious studies of magnets • two “poles” of magnets • Earth is a magnet • iron can be magnetized • magnetism destroyed by heating • Hans Christian Oersted (1777-1851) • electric current generates magnetic field (1820) • Essentials of magnetism: • every magnet has two poles - “dipole''-- there are no magnetic monopoles • like poles repel each other, unlike poles attract • magnetic field: • magnetic forces due to “magnetic field” (Faraday), caused by magnet in its surrounding • magnetic field lines describe direction, density of lines represents magnitude of field; • field due to one pole obeys “Coulomb-like” law, total field of magnetic dipole = superposition of the two fields • moving charges (currents) generate magnetic fields

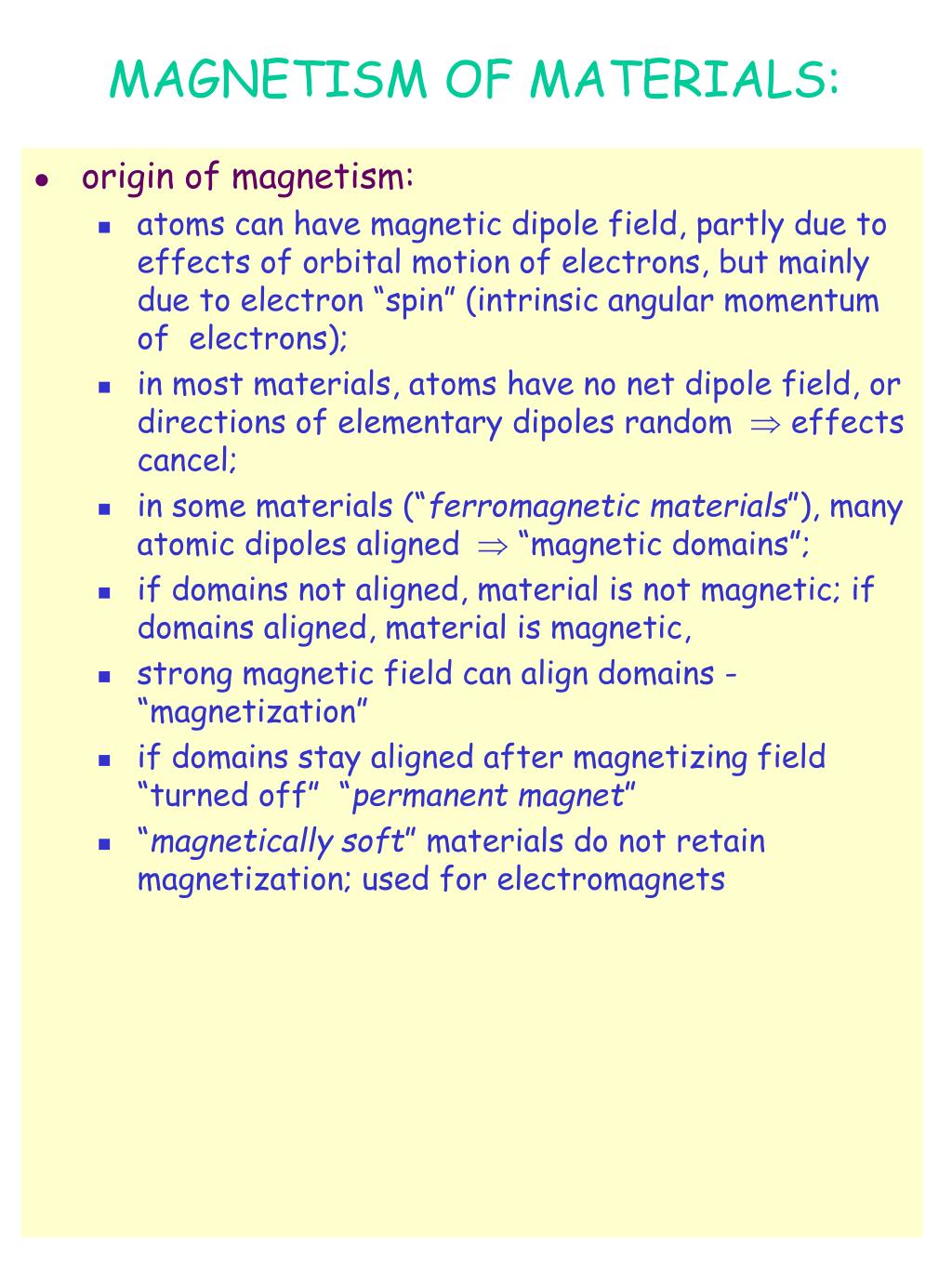

  2. MAGNETISM OF MATERIALS: • origin of magnetism: • atoms can have magnetic dipole field, partly due to effects of orbital motion of electrons, but mainly due to electron “spin” (intrinsic angular momentum of electrons); • in most materials, atoms have no net dipole field, or directions of elementary dipoles random  effects cancel; • in some materials (“ferromagnetic materials”), many atomic dipoles aligned  “magnetic domains”; • if domains not aligned, material is not magnetic; if domains aligned, material is magnetic, • strong magnetic field can align domains - “magnetization” • if domains stay aligned after magnetizing field “turned off” “permanent magnet” • “magnetically soft” materials do not retain magnetization; used for electromagnets

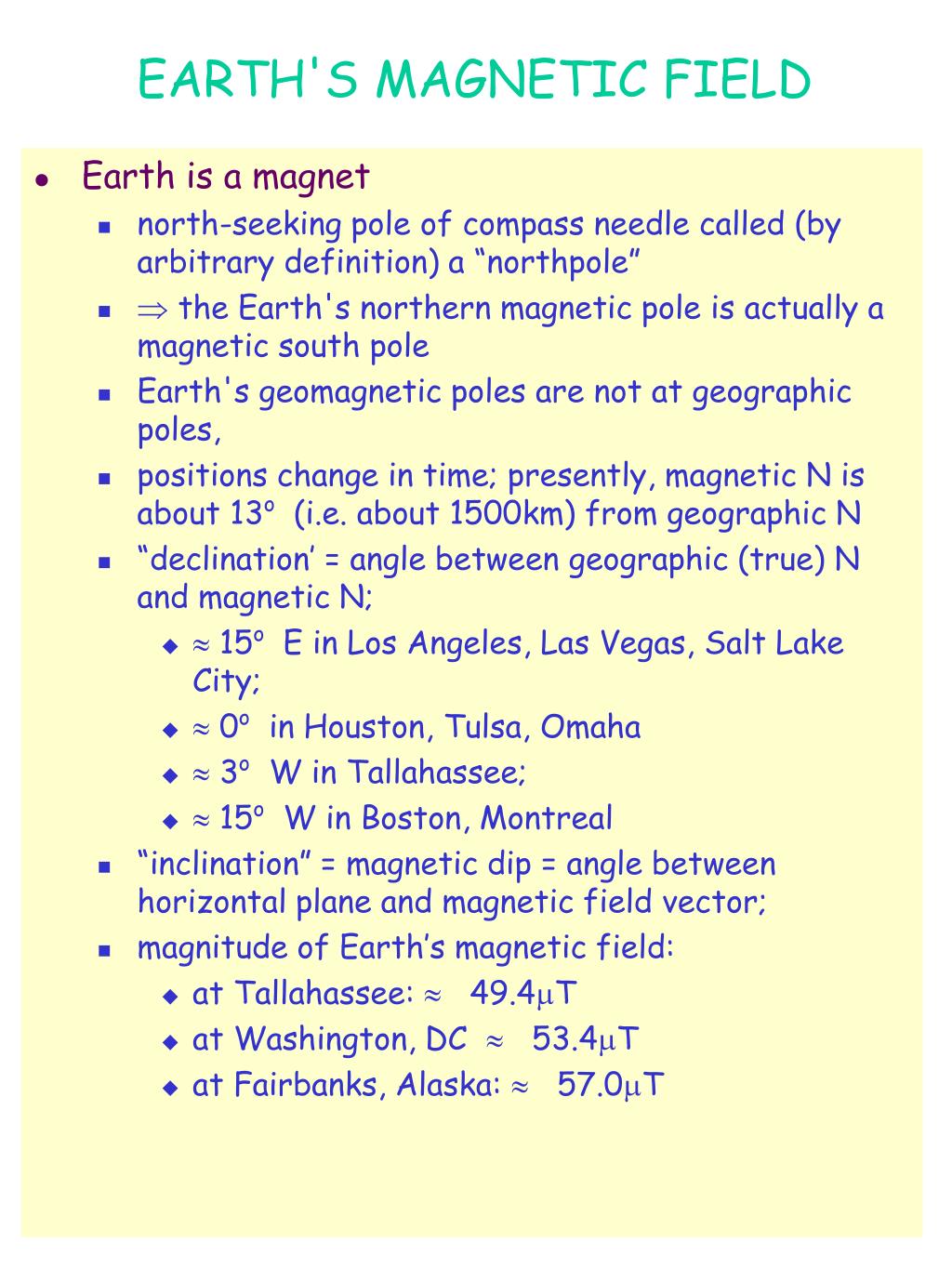

  3. EARTH'S MAGNETIC FIELD • Earth is a magnet • north-seeking pole of compass needle called (by arbitrary definition) a “northpole” •  the Earth's northern magnetic pole is actually a magnetic south pole • Earth's geomagnetic poles are not at geographic poles, • positions change in time; presently, magnetic N is about 13o (i.e. about 1500km) from geographic N • “declination’ = angle between geographic (true) N and magnetic N; •  15o E in Los Angeles, Las Vegas, Salt Lake City; •  0o in Houston, Tulsa, Omaha •  3o W in Tallahassee; •  15o W in Boston, Montreal • “inclination” = magnetic dip = angle between horizontal plane and magnetic field vector; • magnitude of Earth’s magnetic field: • at Tallahassee:  49.4T • at Washington, DC  53.4T • at Fairbanks, Alaska:  57.0T
