Systems Analysis and Design. Opening slide. Harry J. Rosenblatt College of the Albemarle. Welcome. Introductions About me About you About the course Nine instructional units – four today and five tomorrow

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Opening slide' - blaze-hancock


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
opening slide

Systems Analysis and Design

Opening slide

Harry J. Rosenblatt College of the Albemarle

slide2

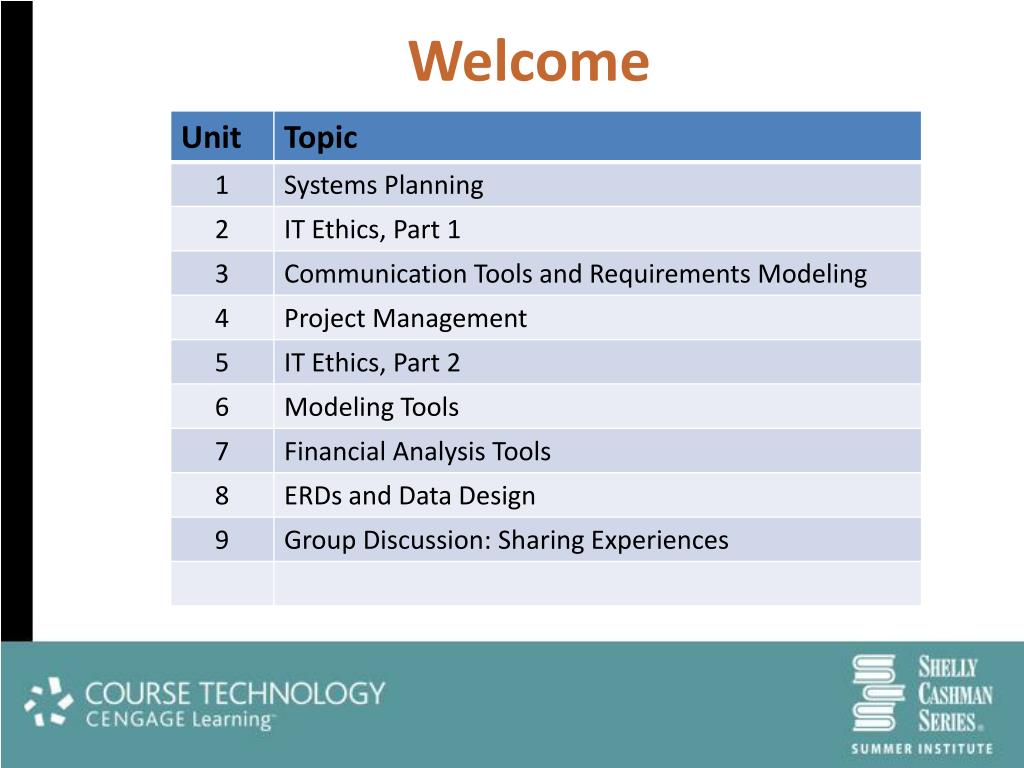

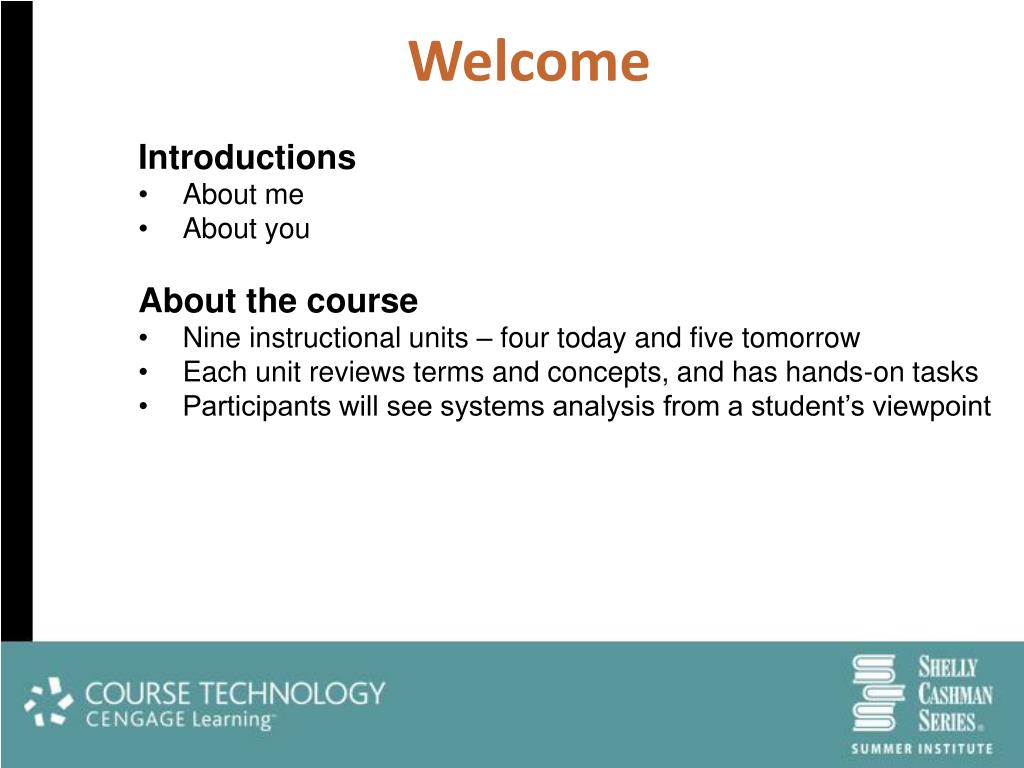

Welcome

  • Introductions
    • About me
    • About you
  • About the course
    • Nine instructional units – four today and five tomorrow
    • Each unit reviews terms and concepts, and has hands-on tasks
    • Participants will see systems analysis from a student’s viewpoint
slide4

Welcome

  • Some Thoughts …
  • Systems analysis is similar to finding the ideal spouse. Methods and procedures might change over time, but the main goals remain the same.
  • You cannot teach students to be systems analysts in a semester.
  • You can teach students basic systems analysis concepts and transferable skills that will help them succeed in the workplace.
slide5

Welcome

  • Workplace Success Skills
  • IT literacy and basic SAD concepts
  • Communications skills, oral and written
  • Logic, problem-solving, and critical-thinking skills
  • Basic financial analysis skills
  • Ethics awareness
  • Ability to work in teams
  • Business savvy
  • Exposure to various systems development methods, from traditional to agile, because one size does not fit all
slide6

Welcome

  • Before we begin …
  • Set up teams
  • View a presentation that describes the new book
  • Hold initial team meetings and work on tasks
slide7

Initial Team Tasks

  • Pretend that your team is a small IT consulting firm
  • Get to know your team members
  • Choose a name for your firm and create a letterhead with a slogan and a logo, using MS Word
slide19

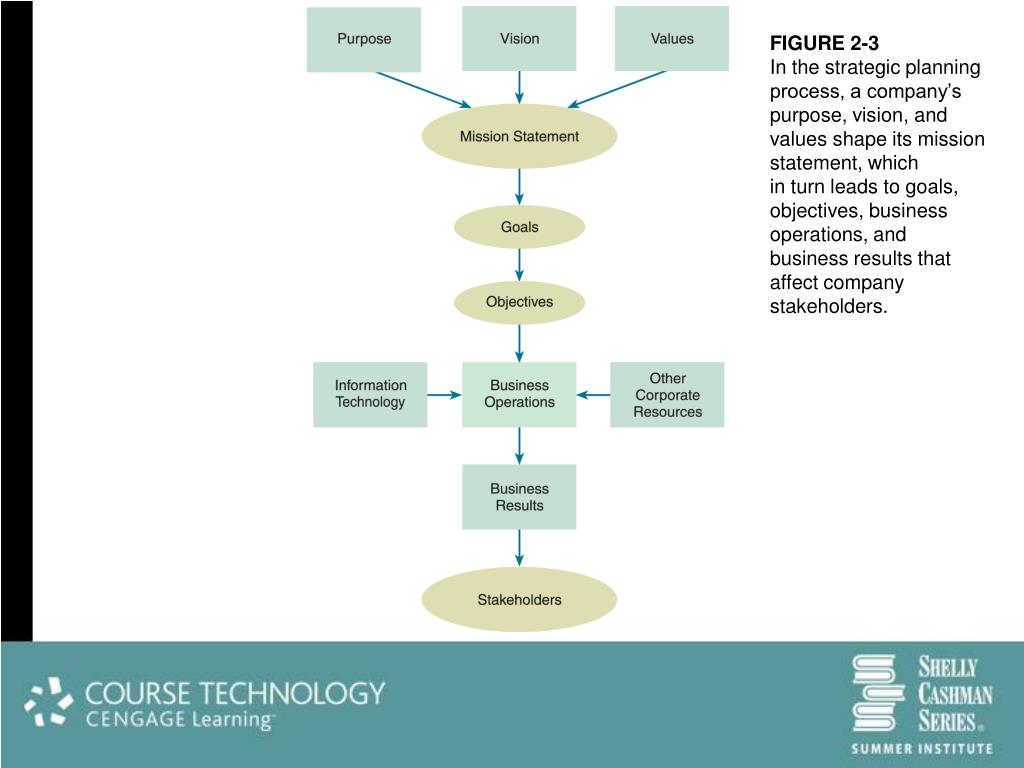

FIGURE 2-3

In the strategic planning process, a company’s

purpose, vision, and values shape its mission statement, which

in turn leads to goals, objectives, business operations, and

business results that affect company stakeholders.

slide28

Unit 1 Tasks

  • Visit the SCR site and explore the SCR home page and public links. Does it seem realistic? Is it user-friendly? Would you like to work for this company?
    • www.scsite.com/sad8e/scr or www.scsite.com/sad8e/scr/internet
    • Read Discussion Topic 3 on page 37. How would you answer?
    • Create a mission statement for your team.
    • Review the four types of feasibility on pages 64-66. Which type would be the easiest to assess? Which would be the most difficult?
slide36

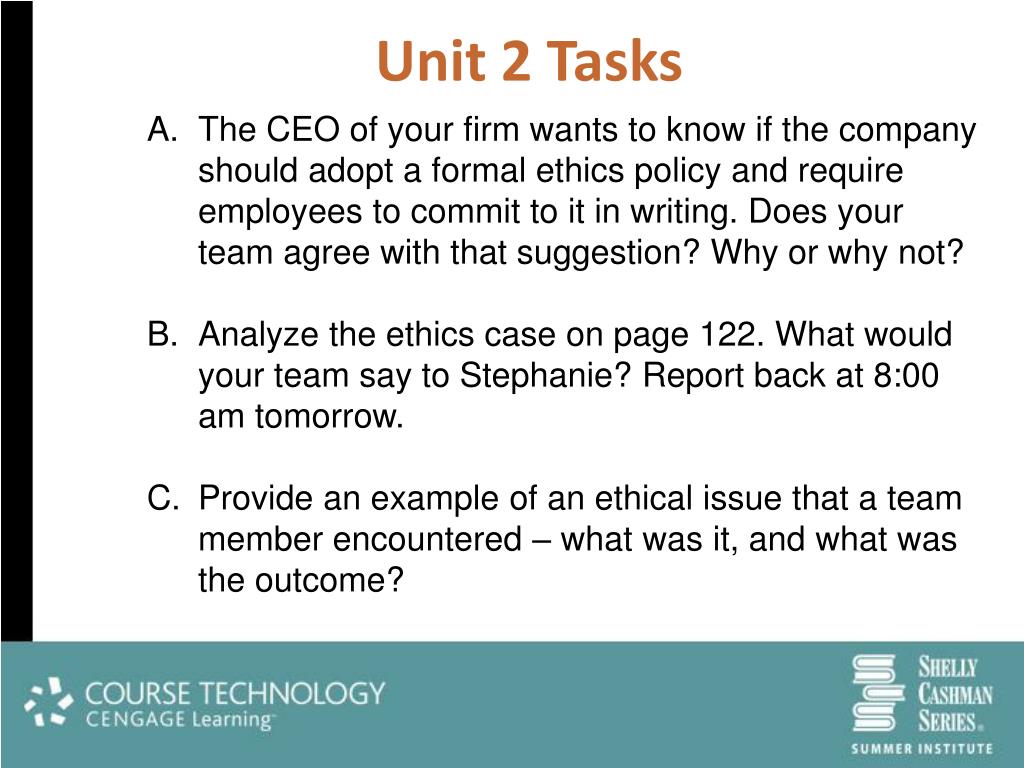

Unit 2 Tasks

  • The CEO of your firm wants to know if the company should adopt a formal ethics policy and require employees to commit to it in writing. Does your team agree with that suggestion? Why or why not?
  • Analyze the ethics case on page 122. What would your team say to Stephanie? Report back at 8:00 am tomorrow.
  • Provide an example of an ethical issue that a team member encountered – what was it, and what was the outcome?
slide40

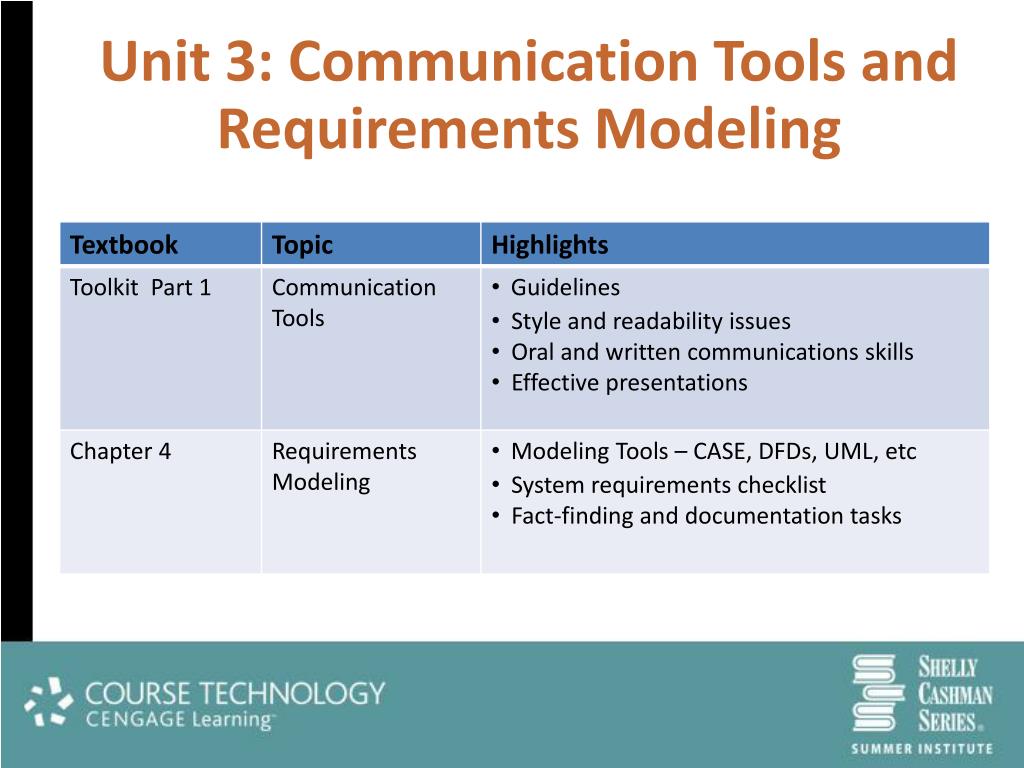

Readability Examples

Sample Answer to Project 3 on page 631

Sample Answer to the Ethical Question example in Unit 3

Prescription Drug Label

Gettysburg Address

Jane\'s Run

slide53

Unit 3 Tasks

  • Write a short paragraph (3 or 4 sentences) to describe the basic concept of bandwidth. You can use an analogy if that helps. The readability goals is 10th Grade level or lower.
  • Read about the three types of interview questions on page 156. Submit an example of each type.
  • Your school wants to know how users like the student registration system. Review the guidelines and sample on pages 162-163. Design a one-page questionnaire to gather the data.
slide75

Unit 4 Tasks

Read Case in Point 3.3 on page 103 and answer the questions in the final paragraph. Explain your reasons.

Study the Lightfoot Industries case on page 129. Then prepare a task list similar to Figure 3-17 on page 110. Using the task list, create a PERT chart. Use sticky notes to show task durations and the critical path. Sample answer (handout).

slide76

Unit 4 Sample Answers

1. Prepare a list showing all tasks and their durations.

Contact participants 1 day

Obtain approval 5 days

Arrange meeting room 4 days

Prepare agenda 11 days

Prepare information packets 4 days

Create visual aids 8 days

E-mail participants 1 day

Conduct JAD sessions 5 days

slide77

Unit 4 Sample Answers

2. Analyze the fact situation carefully to determine which tasks are concurrent, and which ones are dependent on other tasks.

slide79

Unit 4 Sample Answers

  • Additional handout: Countrywide Construction (page 128)
  • Good example of building construction task sequence.
  • Has a “sleeper” task that occurs early in the project, has a long duration, and is a predecessor task for the project’s final task.
slide91

Sequence Structure

Selection Structure

Iteration Structure

slide92

A Sales Policy with Two Conditions and Two Outcomes:

    • “If the customer’s credit status is OK and the product is in stock, accept the order. Otherwise, reject the order.”
  • Now Follow the Steps on page 224 to Create the Table:
slide93

A Sales Policy with Two Conditions and Two Outcomes:

    • “If the customer’s credit status is Ok and the product is in stock, accept the order. Otherwise, reject the order.”
  • Now Follow the Steps on page 224 to Create the Table:

Place the name of the process in a heading at the top left.

Enter the conditions under the heading, with one condition per line, to represent the customer status and availability of products.

Enter all potential combinations of Y/N (for yes and no) for the conditions.

Place an X in the action entries area for each rule to indicate whether to accept or reject the order.

slide94

The Same Policy with One More Condition …

    • “If the customer’s credit status is OK (or if the Credit Manager grants a waiver) and the product is in stock, accept the order. Otherwise, reject the order.”
slide95

The Same Policy with One More Condition …

    • “If the customer’s credit status is OK (or if the Credit Manager grants a waiver) and the product is in stock, accept the order. Otherwise, reject the order.”
  • Now the Table Has Eight Possible Rules Instead of Four
slide96

Now look for redundant or unrealistic rules

    • “If the customer’s credit status is OK (or if the Credit Manager grants a waiver) and the product is in stock, accept the order. Otherwise, reject the order.”
slide118

Unit 6 Tasks

Data and Process Modeling tasks

Study Figure 5-22 on page 215. List all the things wrong in this diagram.

Study the Claremont School case on page 235. Perform Tasks 1, 2, and 3. Sample answer (handout).

Object Modeling Tasks

Study the Pleasant Creek Bookstore case at the bottom of page 272. List all objects, attributes, and methods. Sample answer.

Identify possible use cases & actors.Sample answer.

Agile Modeling Task

Study Figure 1-29 on page 23. You also can do research on the Web. Is the Agile approach really meaningful, or is it just a fad?

slide132

Unit 7 Tasks

Read Discussion Topic 3 on page 672. Explain your answer, and provide an example of a real-life situation.

Read Project 2 on page 672. You will do a net present value analysis of two lease proposals to see which one would be less expensive. To get you started, you will use an Excel spreadsheet template, so all you have to do is add the formulas and values. The adjustment factors you will need are in the table on page 667. Sample Answer (handout).

Read Discussion Topic 4 on page 672. What does your team think, and why?

slide138

Definitions

  • Entity
  • Table or file
  • Field, Primary Key, Common Field, Foreign Key
  • Record
slide140

Drawing an ERD

  • The first step is to list the entities and consider the relationship that links them
  • You can represent entities as rectangles and relationships as diamond shapes
slide141

Three types of relationships can exist among entities

    • One-to-one relationship (1:1)
    • One-to-many relationship (1:M)
    • Many-to-many relationship (M:N)
    • Note: The two entities in a M:N relation must be linked by another entity, called an Associative Entity
slide149

ORDER TABLE (UNNORMALIZED)

ORDER (ORDER-NUM, ORDER-DATE, (PRODUCT-NUM, PRODUCT-DESC, NUM-ORDERED))

Repeating Group

slide150

STUDENT TABLE (UNNORMALIZED)

STUDENT (STUDENT-NUMBER , NAME, CREDITS, GPA, ADVISOR (COURSE-NUM, DESC, CREDITS, GRADE))

Repeating Group

slide151

STUDENT TABLE IN 1NF

STUDENT (STUDENT-NUMBER, NAME, CREDITS, GPA, ADVISOR, COURSE-NUM, CREDITS, GRADE)

The repeating group has been removed by creating a separate record for each instance of a certain student taking a certain course. Now, all fields do depend on the primary key. But there is a problem: The primary key is NOTUNIQUE, and a properly designed table MUST have a unique primary key!

SOLUTION: Break the table into three separate tables, one for STUDENT, one for COURSE,

and one for GRADE.

slide152

STUDENT

COURSE

GRADE

SOLUTION: Break the table into three separate tables, one for STUDENT, one for COURSES, and one for GRADE. Then ALL fields will be dependent on the primary key – the WHOLE key.

STUDENT(STUDENT-NUMBER, NAME, CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME)

COURSE(COURSE-NUMBER, COURSE-DESC, NUM-CREDITS)

GRADE(STUDENT-NUMBER, COURSE-NUMBER)

slide153

STUDENT TABLE IN 2NF –

Notice that in each table, all fields are functionally dependent on the primary key.

But there is still a problem:

At least one field is also dependent on another non-key field.

SOLUTION: Create a separate table for that field, with its own primary key.

slide154

STUDENT TABLE IN 3NF –

Notice that ADVISOR-NUMBER and ADVISOR-NAME have been moved to a separate table, and linked with a common field – ADVISOR-NUM.

Now, all fields are functionally dependent on the primary key, the whole key, and nothing but the key!

ADVISOR (ADVISOR-NUMBER, ADVISOR-NAME,ETC.)

slide157

Unit 8 Tasks

Read SWL Team Task 1 on page 444. Can your team summarize the idea of normalization in three or four minutes, using plain English and simple examples?

Read Case in Point 9.1 on page 406. Draw an ERD for TopText Publishing. Sample answers for Tasks B and C (handout).

Read Project 3 on page 437. Using the sample ERD, design a table for each TopText Publishing entity, and add three sample records to each table.

opening slide1
