  1. Bilge Water Separators

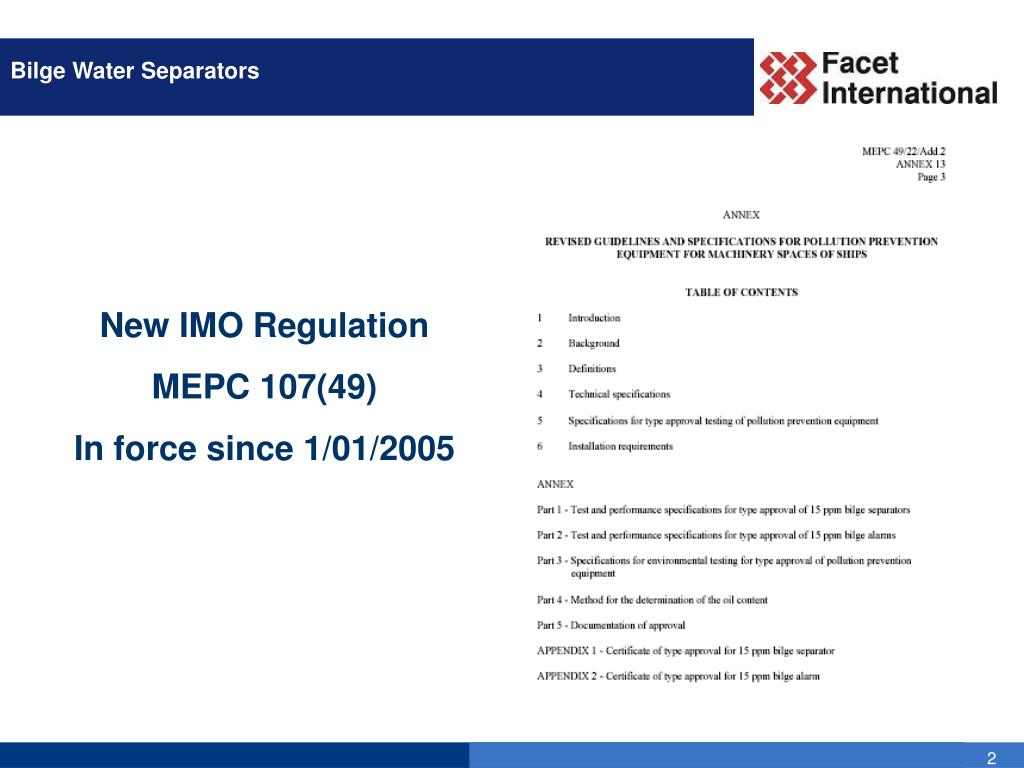

  2. Bilge Water Separators New IMO Regulation MEPC 107(49) In force since 1/01/2005

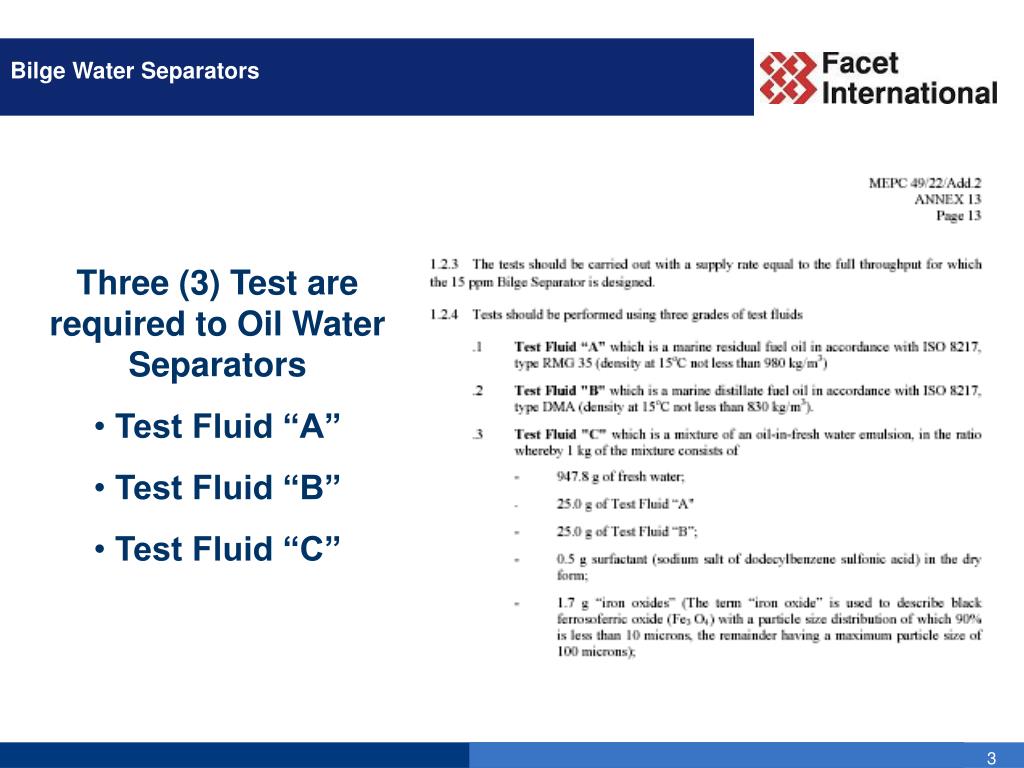

  3. Bilge Water Separators • Three (3) Test are required to Oil Water Separators • Test Fluid “A” • Test Fluid “B” • Test Fluid “C”

  4. Bilge Water Separators • IMO test rig Test of liquid “C”, an oil emulsion in water, requires a second stage of membranes to remove dissolved and emulsified oil, meanwhile free oil is still removed by the CPS (first stage)

  5. Bilge Water Separators • IMO test bench

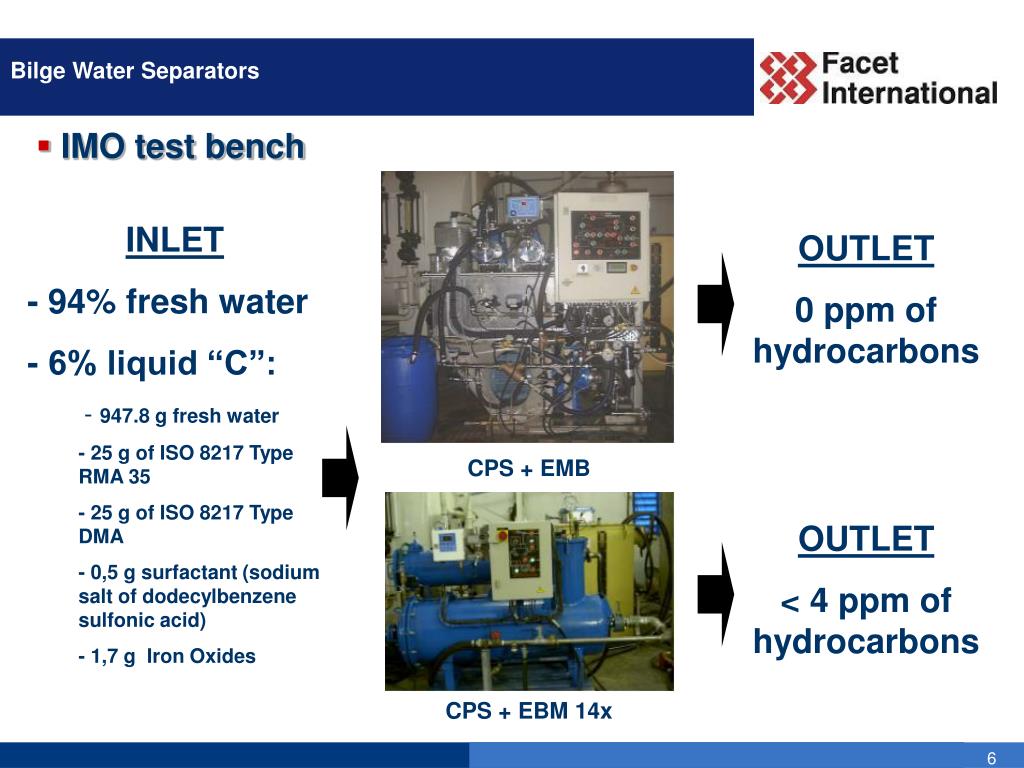

  6. Bilge Water Separators • IMO test bench • INLET • - 94% fresh water • - 6% liquid “C”: • - 947.8 g fresh water • - 25 g of ISO 8217 Type RMA 35 • - 25 g of ISO 8217 Type DMA • - 0,5 g surfactant (sodium salt of dodecylbenzene sulfonic acid) • - 1,7 g Iron Oxides OUTLET 0 ppm of hydrocarbons CPS + EMB OUTLET < 4 ppm of hydrocarbons CPS + EBM 14x

  7. Bilge Water Separators • IMO test results Treated water samples Liquid C sample

  8. Bilge Water Separators • FACET CPS B MKIII + EBM 14x Coalescing + Disposable membrane technology

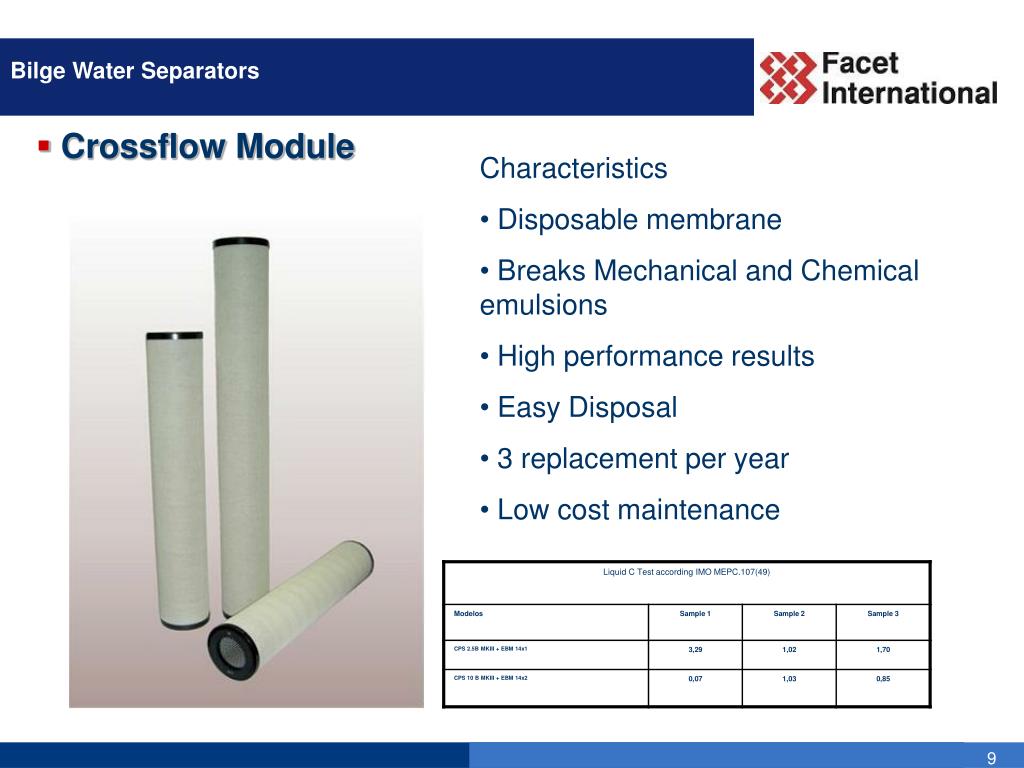

  9. Bilge Water Separators • Crossflow Module • Characteristics • Disposable membrane • Breaks Mechanical and Chemical emulsions • High performance results • Easy Disposal • 3 replacement per year • Low cost maintenance

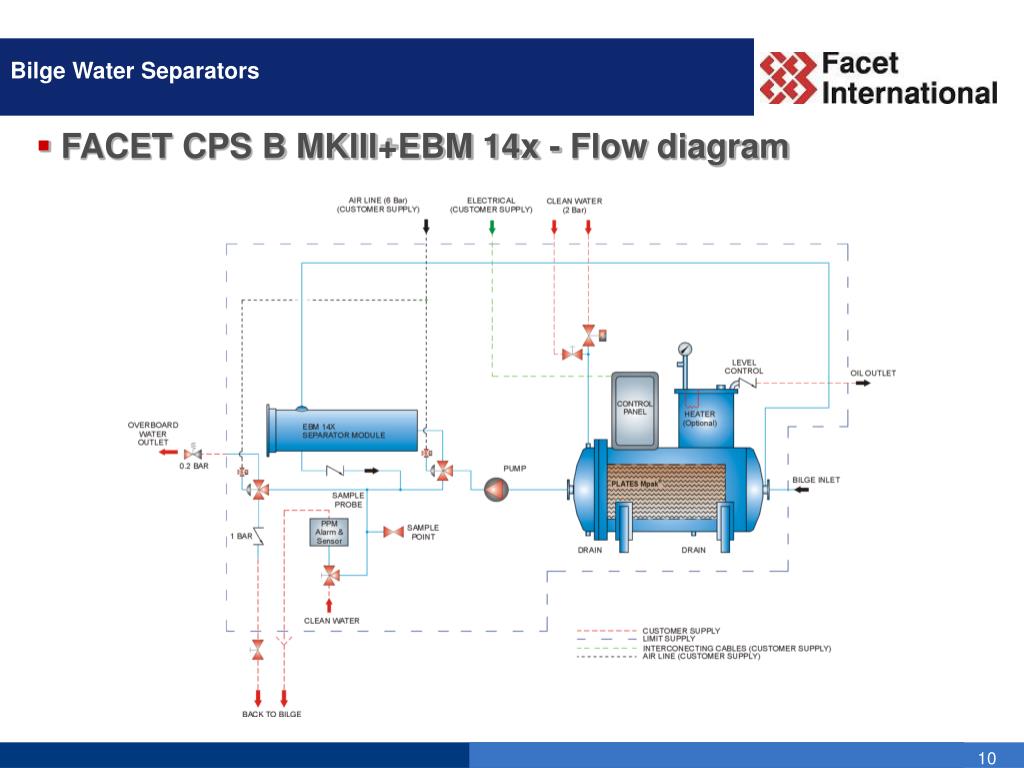

  10. Bilge Water Separators • FACET CPS B MKIII+EBM 14x - Flow diagram

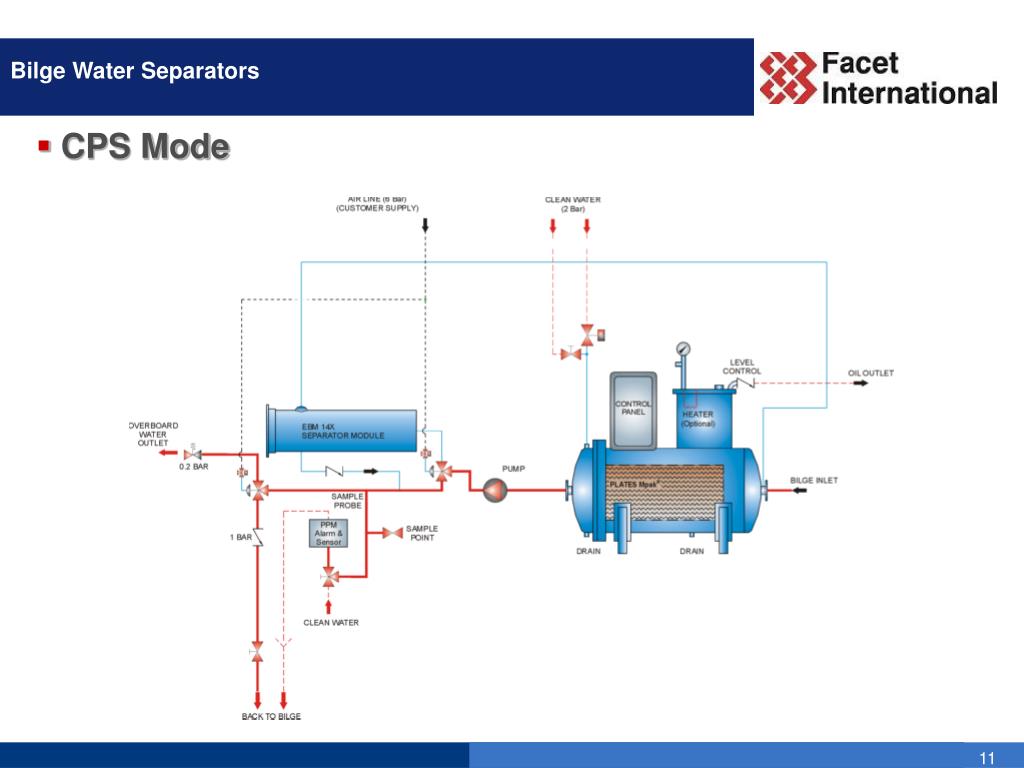

  11. Bilge Water Separators • CPS Mode

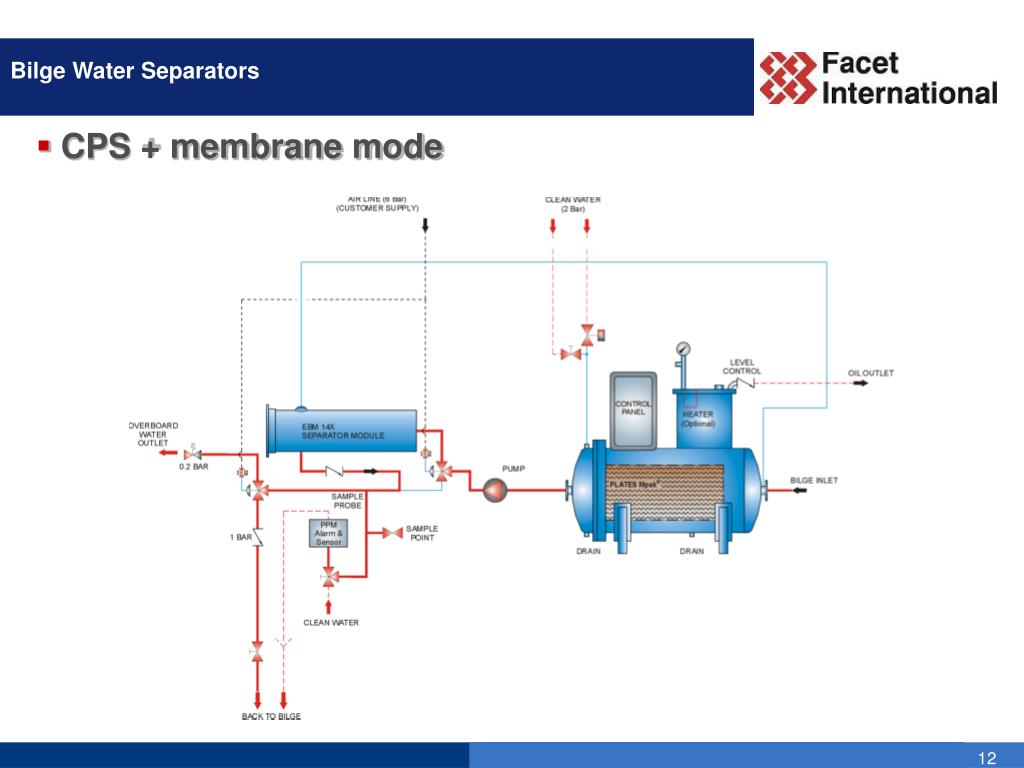

  12. Bilge Water Separators • CPS + membrane mode

  13. Bilge Water Separators • CPS concentrate discharge

  14. Bilge Water Separators • FACET CPS B MKIII + EBM 14x – Models & Main components

  15. Bilge Water Separators • FACET CPS B MKIII + EBM 14 x • Operating features of the equipment: • Simple and compact design • Easy installation • Light • Small sized • Fully automatic operation, programmed with a PLC • Not chemical consumables; not chemicals on board • Low pressure system • Low power requirements • Easy maintenance

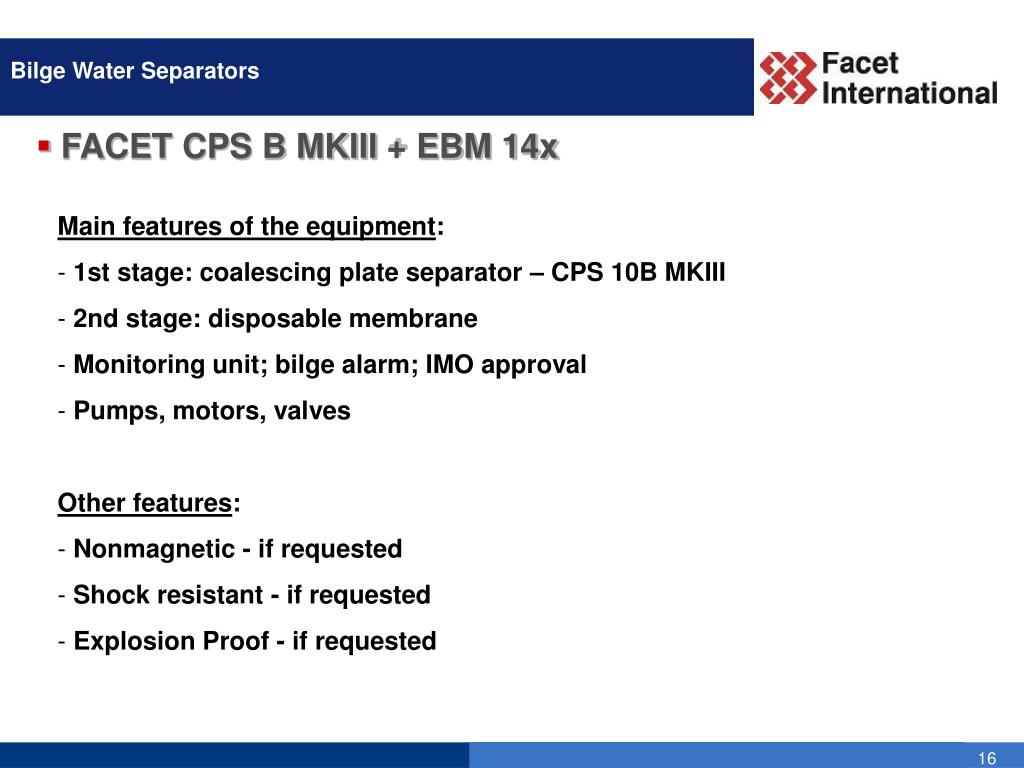

  16. Bilge Water Separators • FACET CPS B MKIII + EBM 14x • Main features of the equipment: • 1st stage: coalescing plate separator – CPS 10B MKIII • 2nd stage: disposable membrane • Monitoring unit; bilge alarm; IMO approval • Pumps, motors, valves • Other features: • Nonmagnetic - if requested • Shock resistant - if requested • Explosion Proof - if requested

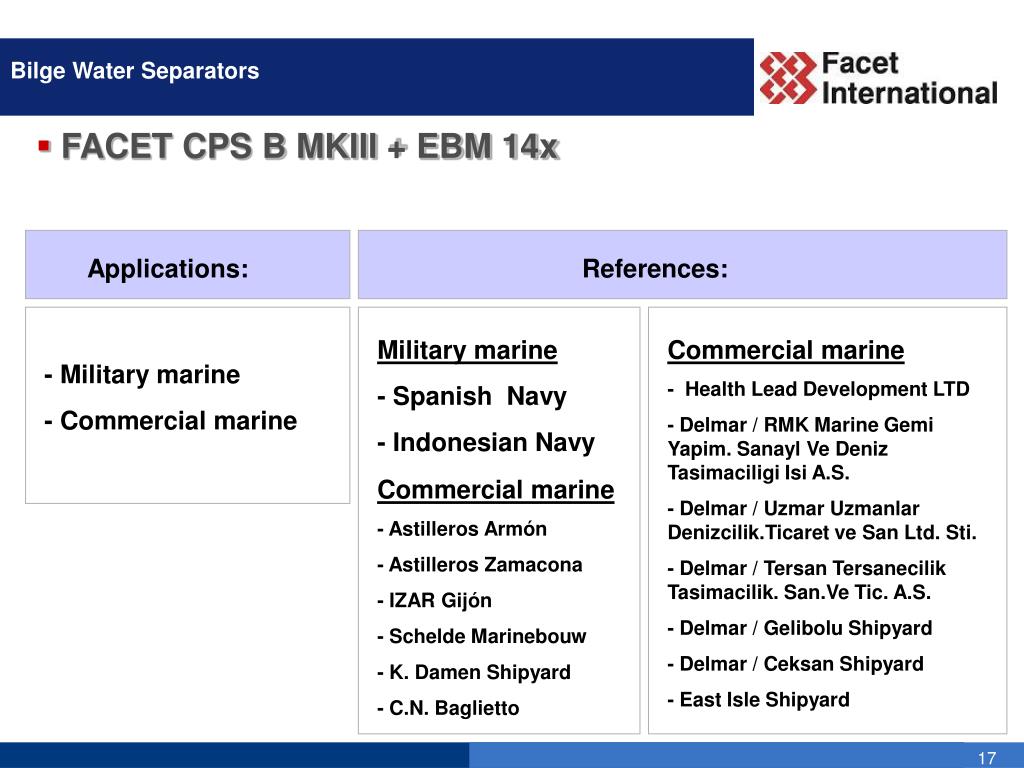

  17. Bilge Water Separators • FACET CPS B MKIII + EBM 14x Applications: References: - Military marine - Commercial marine Military marine - Spanish Navy - Indonesian Navy Commercial marine - Health Lead Development LTD - Delmar / RMK Marine Gemi Yapim. Sanayl Ve Deniz Tasimaciligi Isi A.S. - Delmar / Uzmar Uzmanlar Denizcilik.Ticaret ve San Ltd. Sti. - Delmar / Tersan Tersanecilik Tasimacilik. San.Ve Tic. A.S. - Delmar / Gelibolu Shipyard - Delmar / Ceksan Shipyard - East Isle Shipyard • Commercial marine • - Astilleros Armón • - Astilleros Zamacona • - IZAR Gijón • - Schelde Marinebouw • - K. Damen Shipyard • - C.N. Baglietto

  18. Bilge Water Separators • Type approval CPS B MKIII + EBM 14x

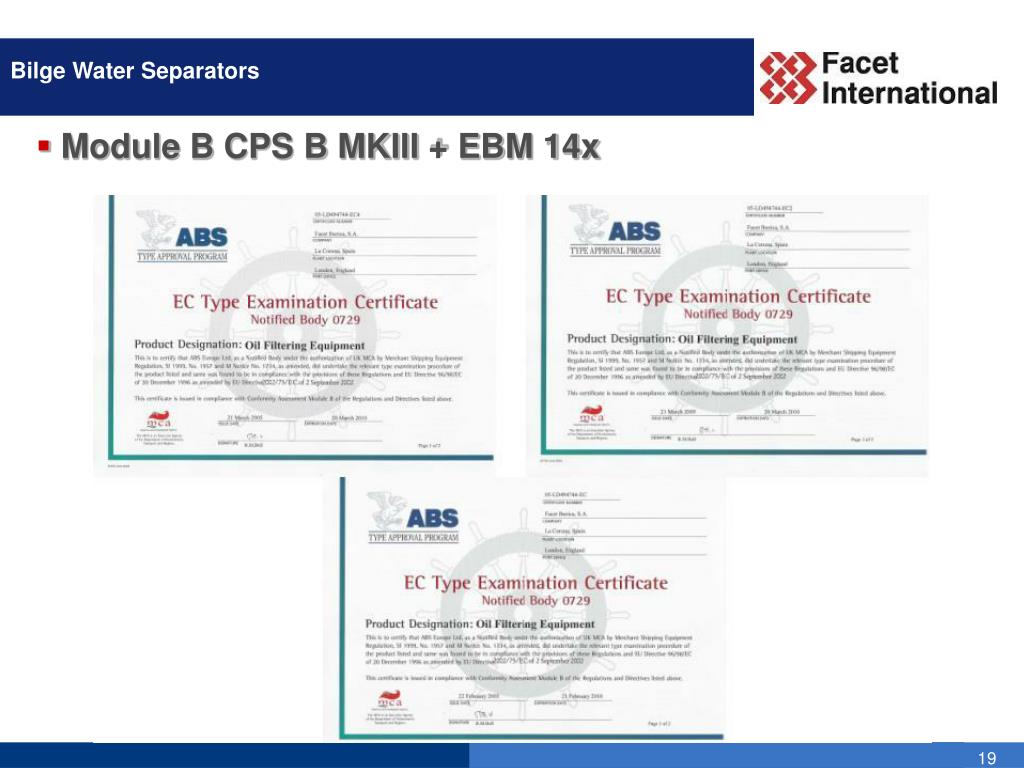

  19. Bilge Water Separators • Module B CPS B MKIII + EBM 14x

  20. Bilge Water Separators • Module D CPS B MKIII + EBM 14x

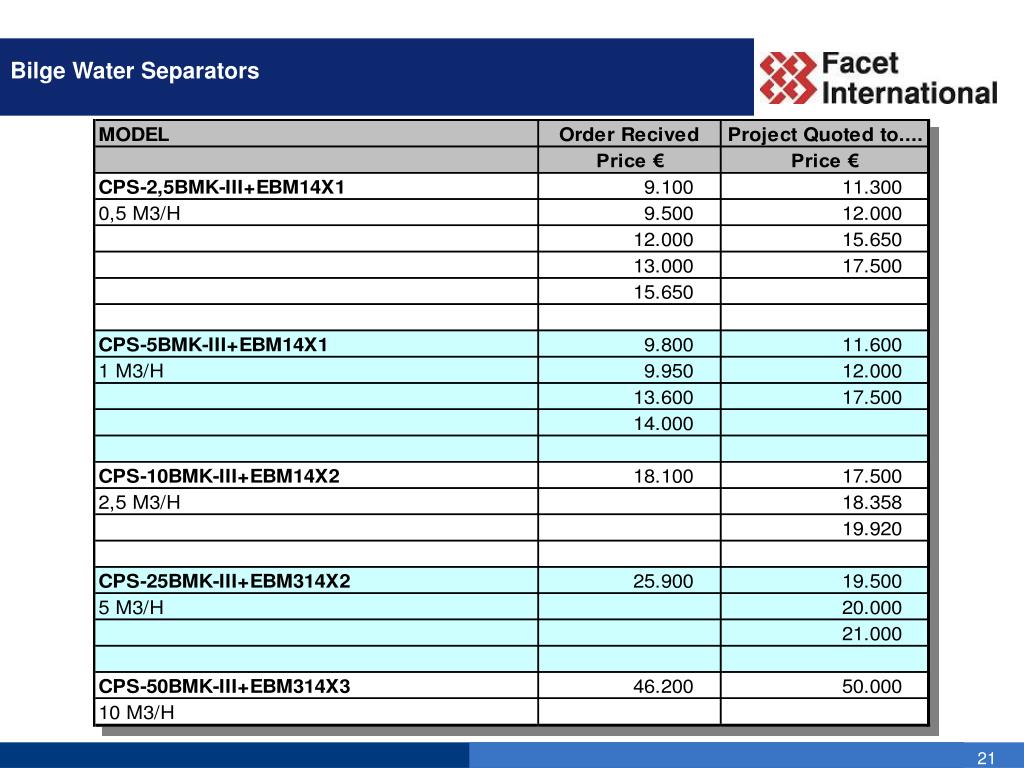

  21. Bilge Water Separators

  22. Thank you for your kind attention www.facetinternational.net
