Musical modality in spontaneous and acted speech

Musical Modality in Spontaneous and Acted Speech

Dicky Gilbers & Laura van Eerten

in cooperation with Maartje Schreuder and the MA students Astrid Menninga, Frida Koopmans,

Jolien Zoodsma, Henk Leo Deuzeman, Nynke Broersma, Judith Meijer, Marleen Broekema, Jenne Klimp, Jan-Maarten Bomhof, Noreen Dijkmeijer, Ria Visscher, Trudy Krajenbrink, Judith Reedeker, Klarien Haan, Laura Bos, Tim Heeres, Menke Muller, Nora de Vries and Ellis Wierenga

University of Groningen

The Netherlands

Seattle, ICMPC11, August 2010

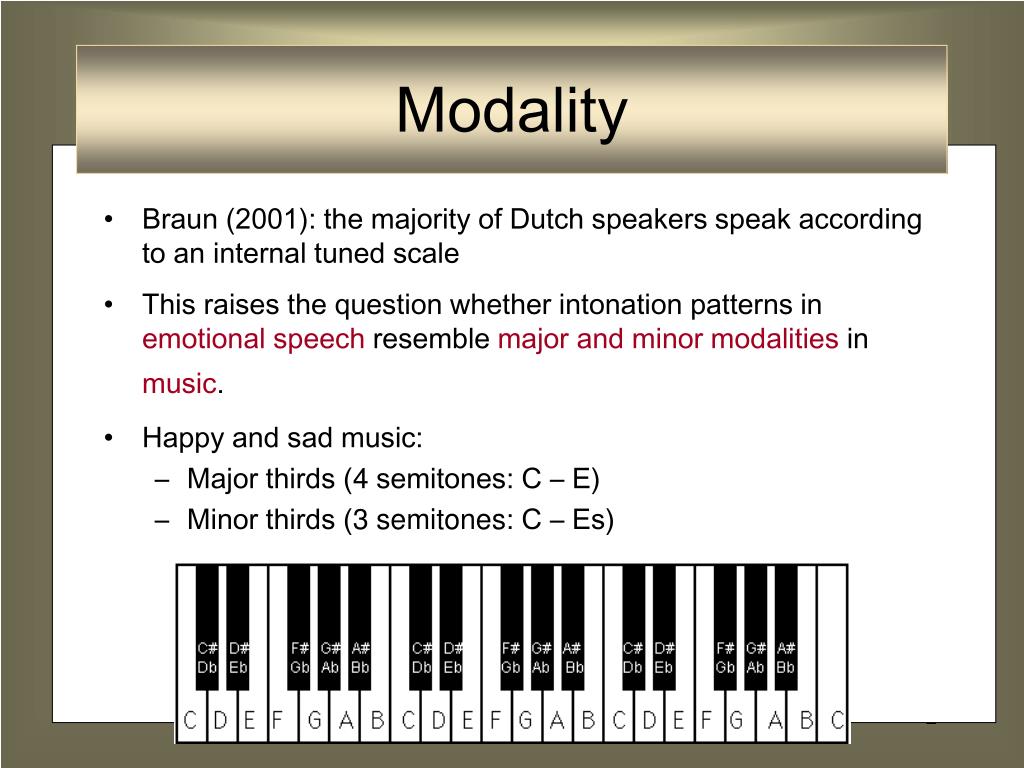

  • Braun (2001): the majority of Dutch speakers speak according to an internal tuned scale

  • This raises the question whether intonation patterns in emotional speech resemble major and minor modalities in music.

  • Happy and sad music:

    • Major thirds (4 semitones: C – E)

    • Minor thirds (3 semitones: C – Es)



  • Pilot study (Schreuder, Van Eerten & Gilbers, 2006)

  • Emotional speech (MA-students Phonology 2008-2009)

    • Soccer coaches

    • Bert & Ernie (Sesame Street)

    • Methodological problems

  • Modality in spontaneous happy speech and acted happy speech (MA-students Phonology 2009-2010)

Selective references emotional speech

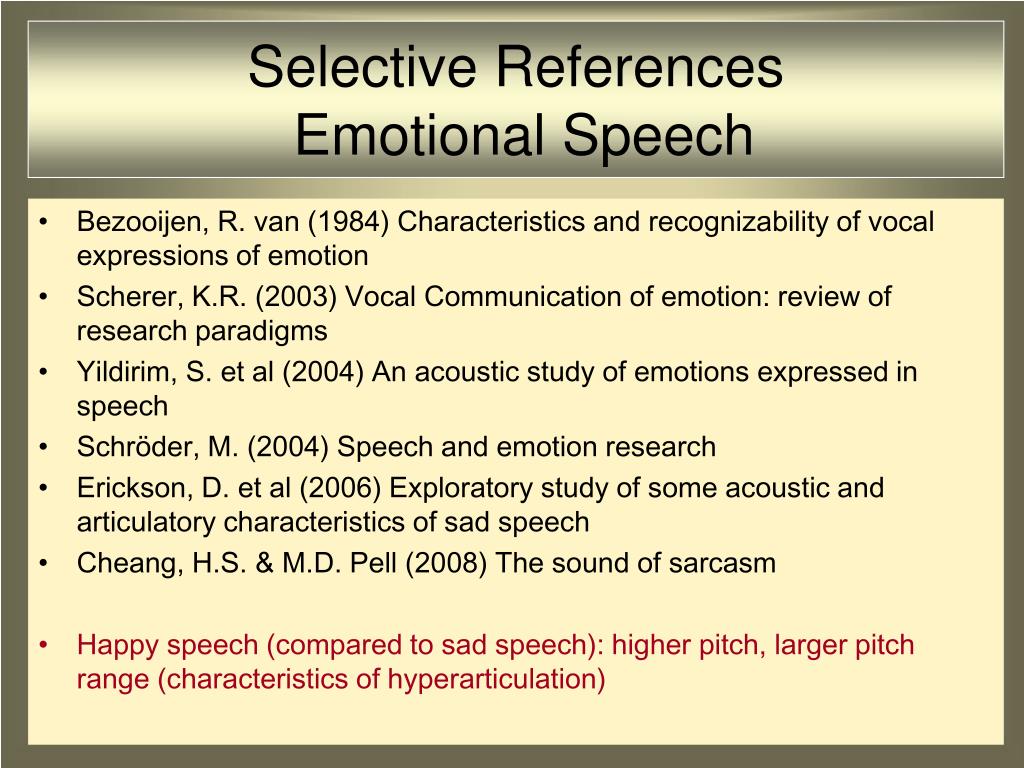

Selective References Emotional Speech

  • Bezooijen, R. van (1984) Characteristics and recognizability of vocal expressions of emotion

  • Scherer, K.R. (2003) Vocal Communication of emotion: review of research paradigms

  • Yildirim, S. et al (2004) An acoustic study of emotions expressed in speech

  • Schröder, M. (2004) Speech and emotion research

  • Erickson, D. et al (2006) Exploratory study of some acoustic and articulatory characteristics of sad speech

  • Cheang, H.S. & M.D. Pell (2008) The sound of sarcasm

  • Happy speech (compared to sad speech): higher pitch, larger pitch range (characteristics of hyperarticulation)

Schreuder van eerten gilbers 2006 cook fujisawa takami 2004

Schreuder Van Eerten & Gilbers (2006)Cook Fujisawa & Takami (2004)

  • Modality in speech

Emotional intonation

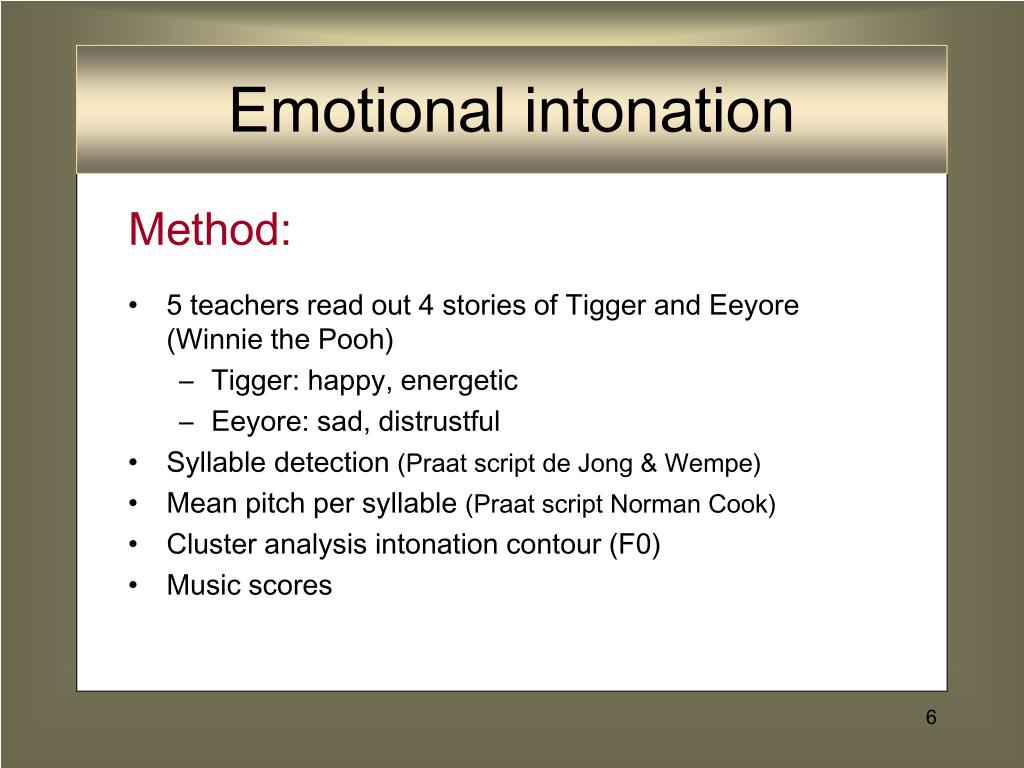

Emotional intonation


  • 5 teachers read out 4 stories of Tigger and Eeyore (Winnie the Pooh)

    • Tigger: happy, energetic

    • Eeyore: sad, distrustful

  • Syllable detection (Praat script de Jong & Wempe)

  • Mean pitch per syllable (Praat script Norman Cook)

  • Cluster analysis intonation contour (F0)

  • Music scores

Semitones in frequencies

Semitones in frequencies

Emotional intonation1

Emotional intonation

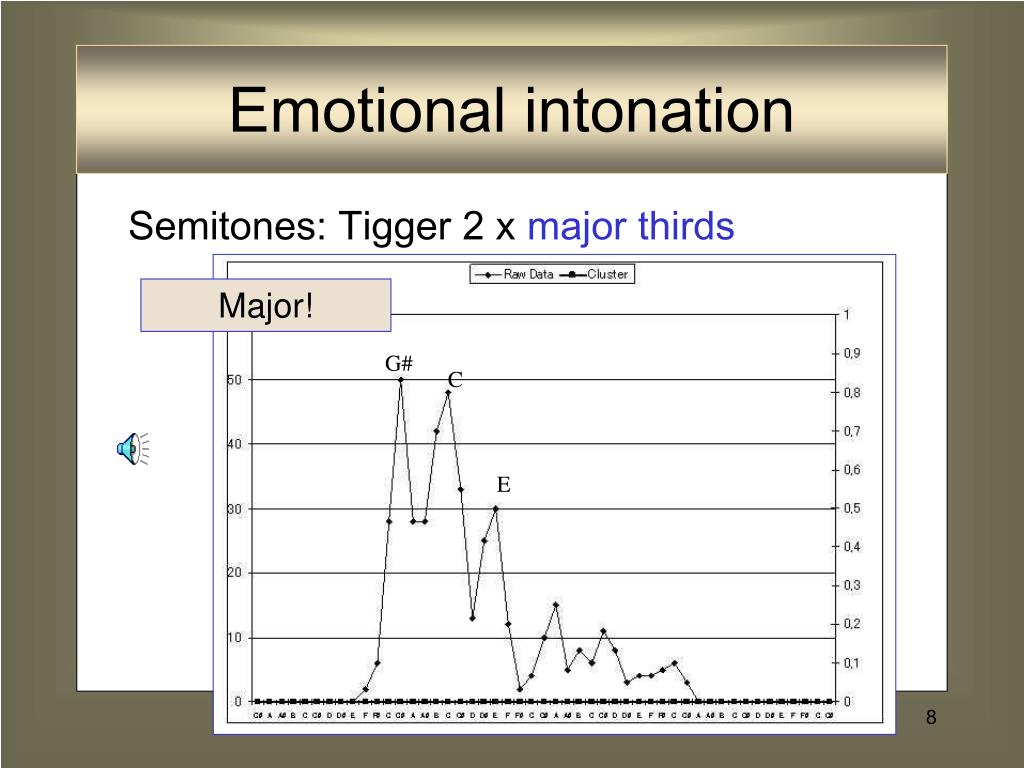

Semitones: Tigger 2 x major thirds

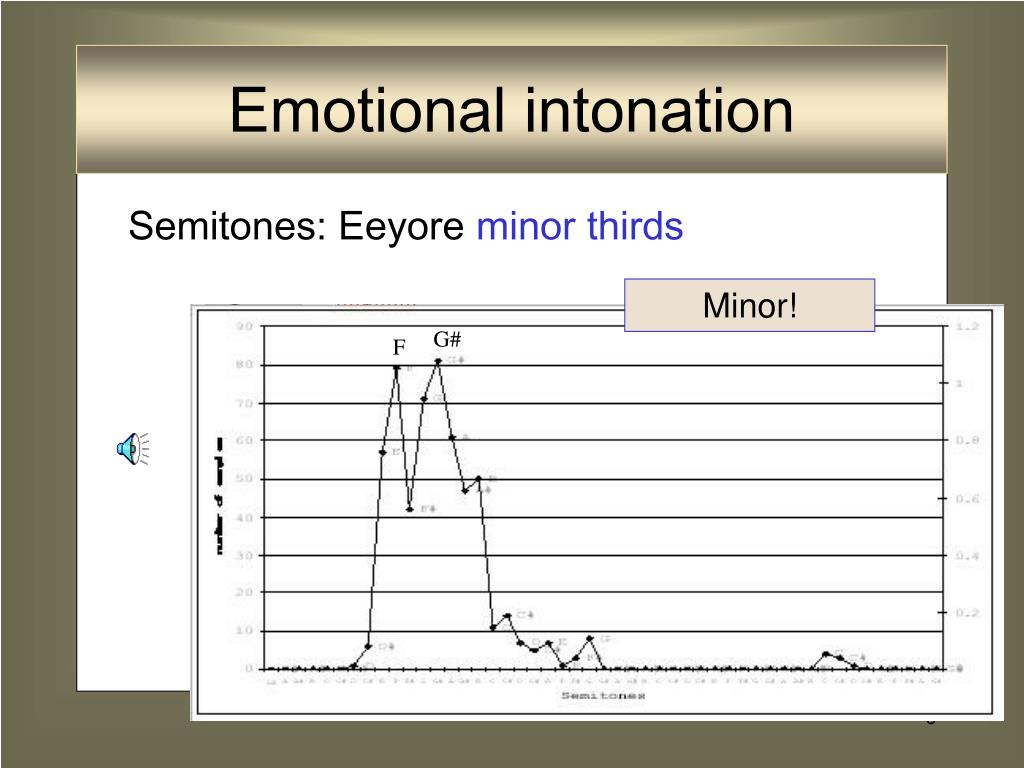

Emotional intonation2

Emotional intonation

Semitones: Eeyore minor thirds




Emotional intonation3

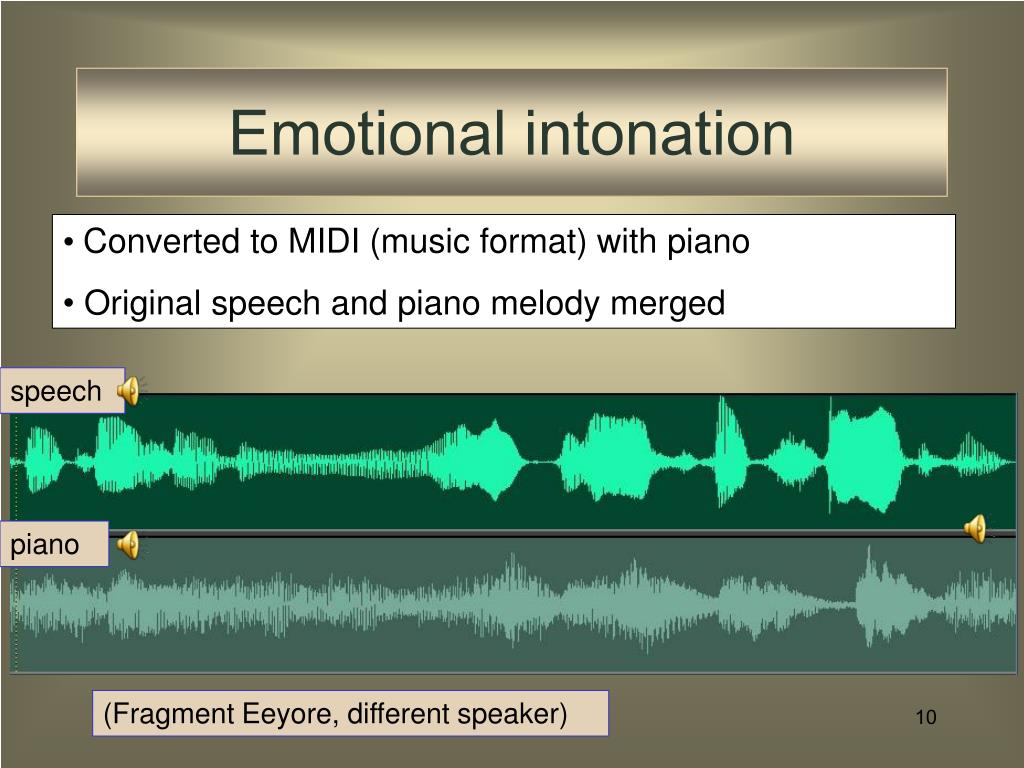

Emotional intonation

  • Converted to MIDI (music format) with piano

  • Original speech and piano melody merged



(Fragment Eeyore, different speaker)


Gb - A

G# - E

C# - A

F - Ab

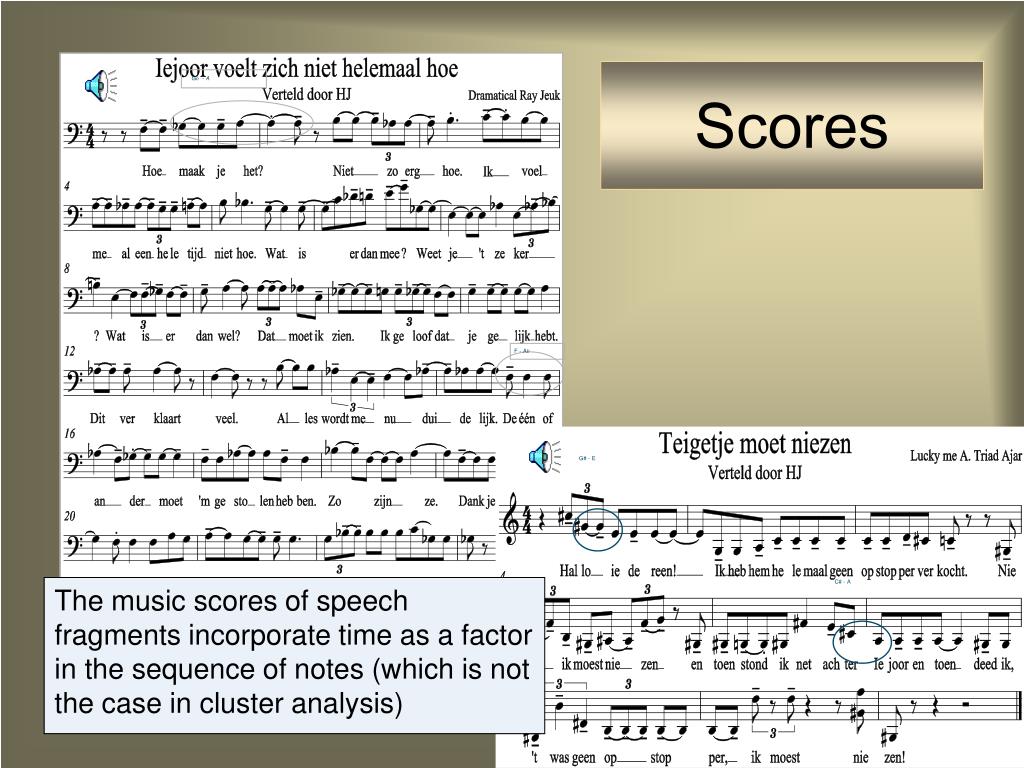

The music scores of speech fragments incorporate time as a factor in the sequence of notes (which is not the case in cluster analysis)

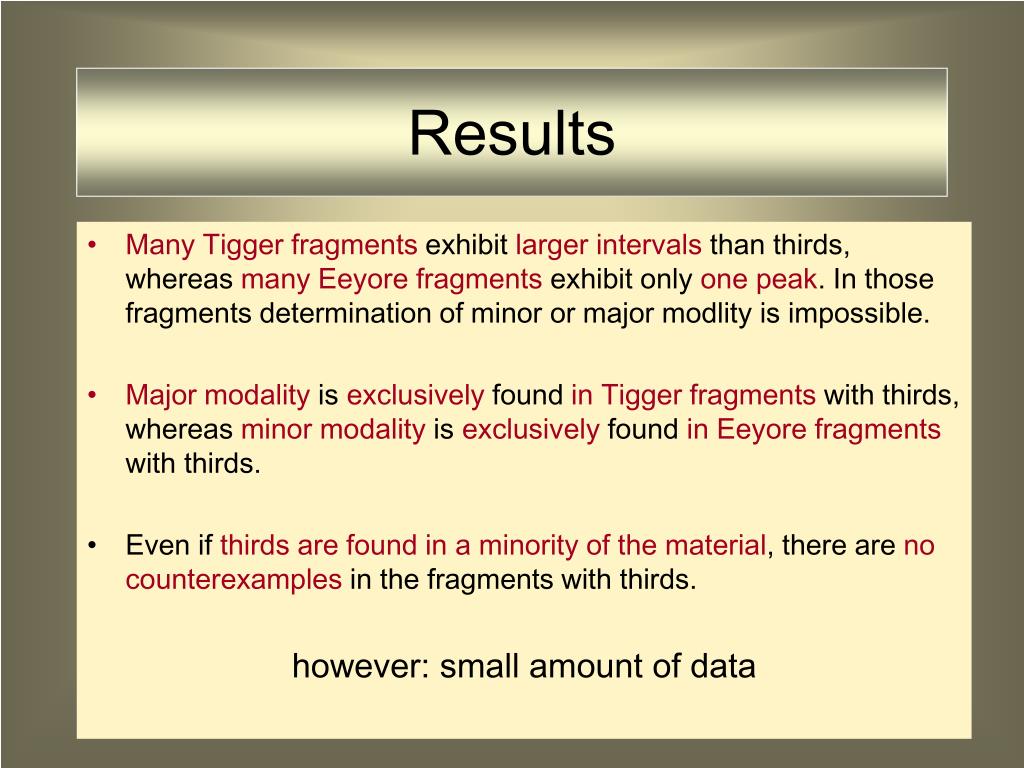

  • Many Tigger fragments exhibit larger intervals than thirds, whereas many Eeyore fragments exhibit only one peak. In those fragments determination of minor or major modlity is impossible.

  • Major modality is exclusively found in Tigger fragments with thirds, whereas minor modality is exclusively found in Eeyorefragments with thirds.

  • Even if thirds are found in a minority of the material, there are no counterexamples in the fragments with thirds.

    however: small amount of data

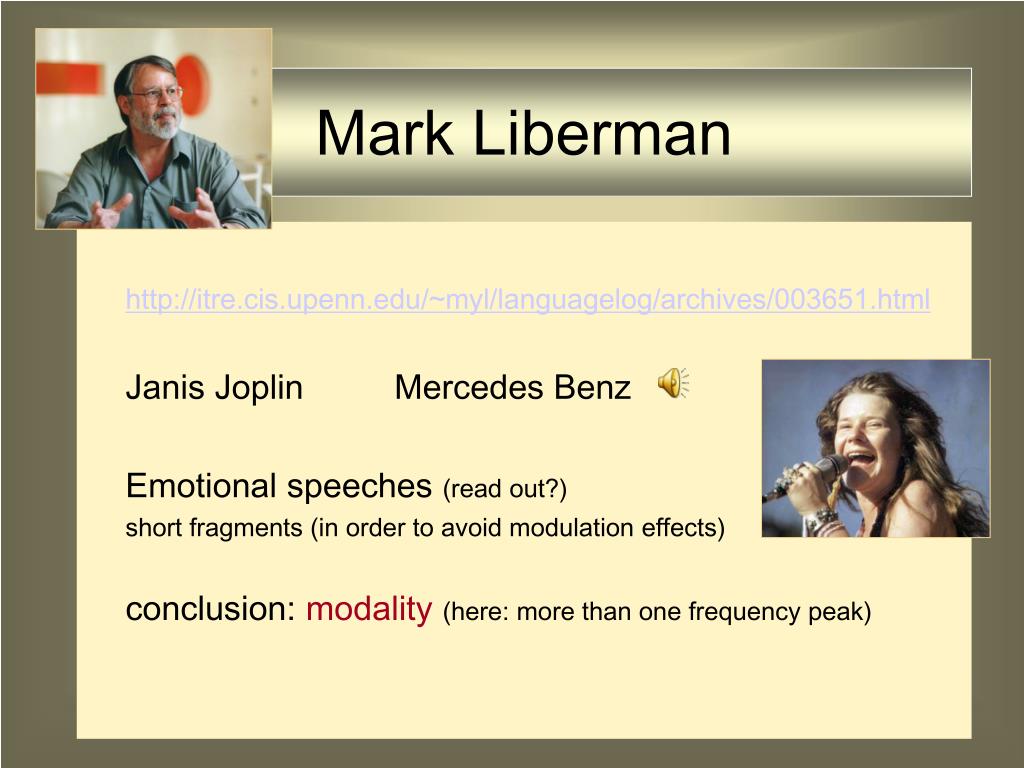

Mark liberman

Mark Liberman

Janis Joplin Mercedes Benz

Emotional speeches (read out?)

short fragments (in order to avoid modulation effects)

conclusion: modality(here: more than one frequency peak)

Spontaneous emotional speech winners and losers in sports

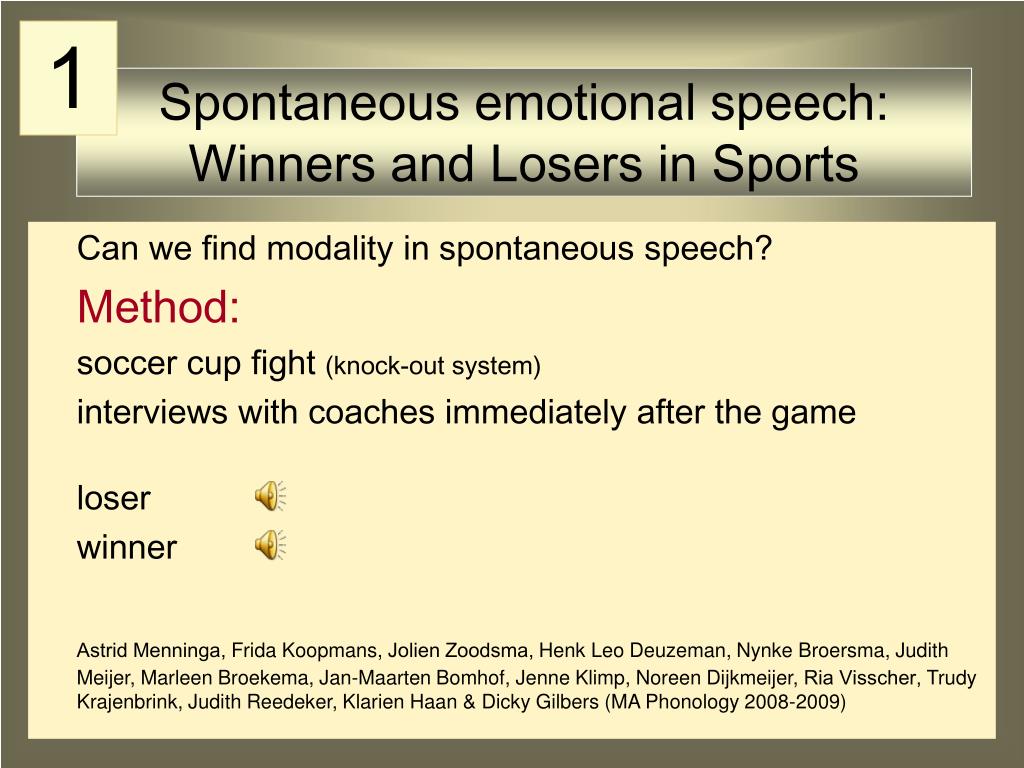

Spontaneous emotional speech: Winners and Losers in Sports

Can we find modality in spontaneous speech?


soccer cup fight (knock-out system)

interviews with coaches immediately after the game



Astrid Menninga, Frida Koopmans, Jolien Zoodsma, Henk Leo Deuzeman, Nynke Broersma, Judith Meijer, Marleen Broekema, Jan-Maarten Bomhof, Jenne Klimp, Noreen Dijkmeijer, Ria Visscher, Trudy Krajenbrink, Judith Reedeker, Klarien Haan & Dicky Gilbers (MA Phonology 2008-2009)

Modality mainly in acted speech

Modality mainly in acted speech?

Does acted speech exhibit more modality than spontaneous speech?

If so, (an excessive number of fragments exhibiting) modality can be a cue for(over)acting

Bert ernie


Bert & Ernie

  • Hypothesis 1: both Bert and Ernie exhibit modality

  • Hypothesis 2: Bert’s speech is characterised by minor modality, whereas Ernie’s speech is characterised by major modality

  • Material: 30 fragments of Bert and 30 fragments of Ernie

    • DVD ‘Het beste van Bert & Ernie’

    • Several fragments from YouTube

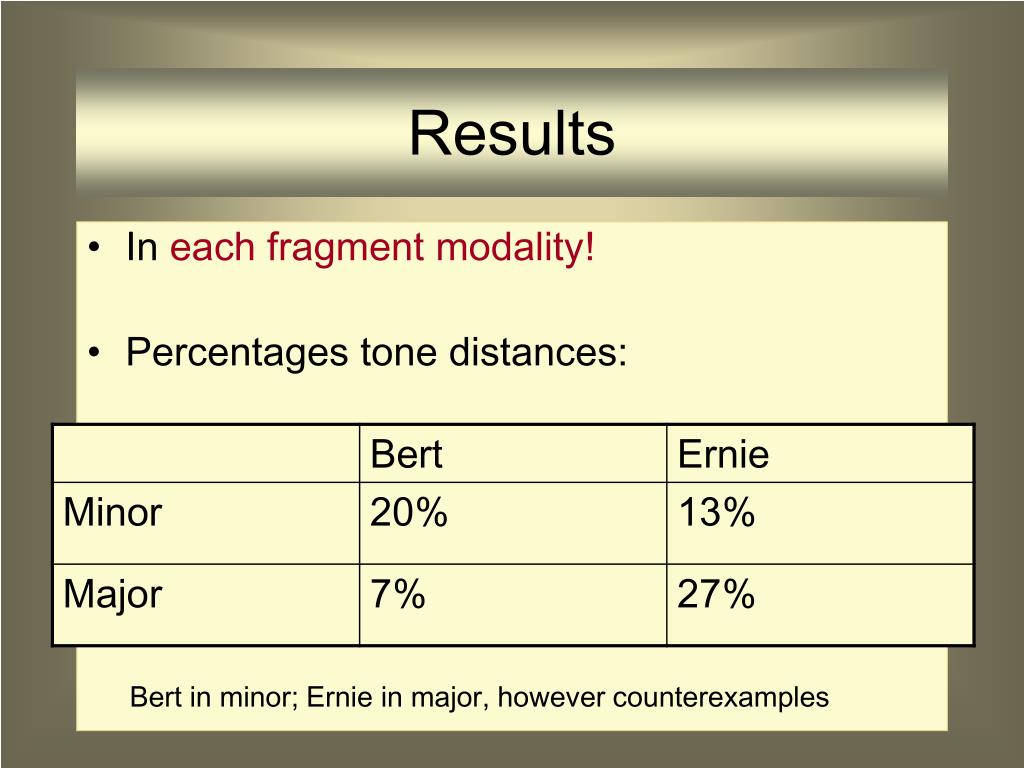

  • In each fragment modality!

  • Percentages tone distances:

Bert in minor; Ernie in major, however counterexamples

Methodological problems

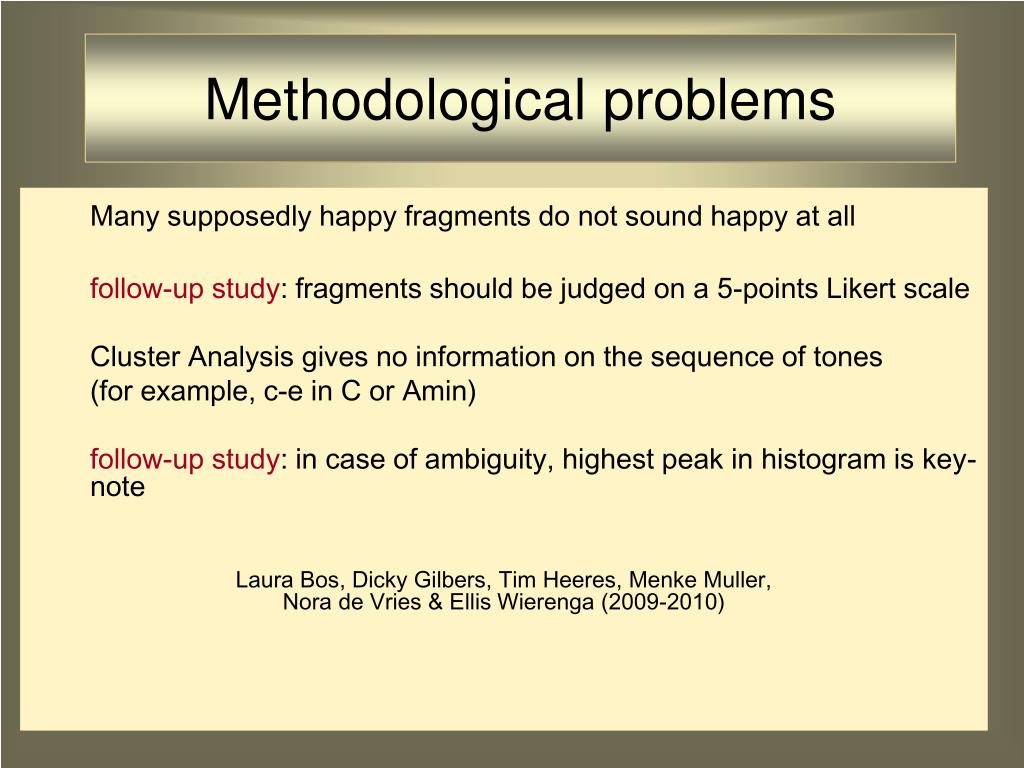

Methodological problems

Many supposedly happy fragments do not sound happy at all

follow-up study: fragments should be judged on a 5-points Likert scale

Cluster Analysis gives no information on the sequence of tones

(for example, c-e in C or Amin)

follow-up study: in case of ambiguity, highest peak in histogram is key-note

Laura Bos, Dicky Gilbers, Tim Heeres, Menke Muller,

Nora de Vries & Ellis Wierenga (2009-2010)

Musical modality in spontaneous and acted speech

Modality formula

Vertically: ratio freq.peaks 2,5 (language-specific?)

Horizontally: distance > 1 semitone

Modality in spontaneous and in acted speech

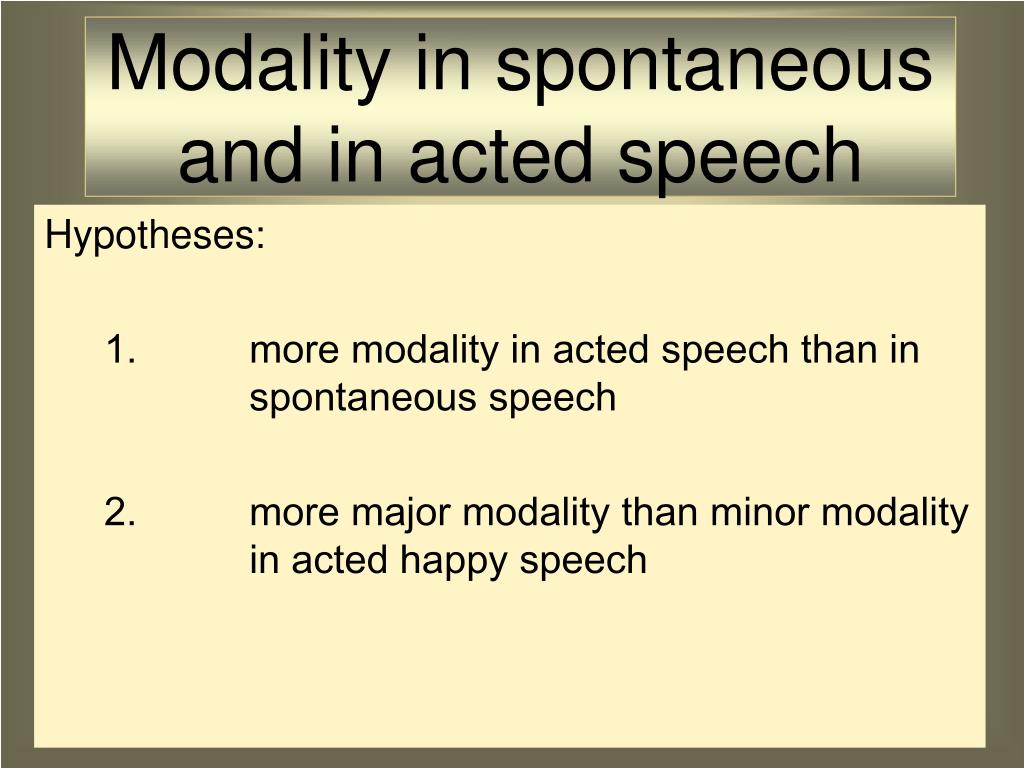

Modality in spontaneous and in acted speech


1. more modality in acted speech than in spontaneous speech

2. more major modality than minor modality in acted happy speech

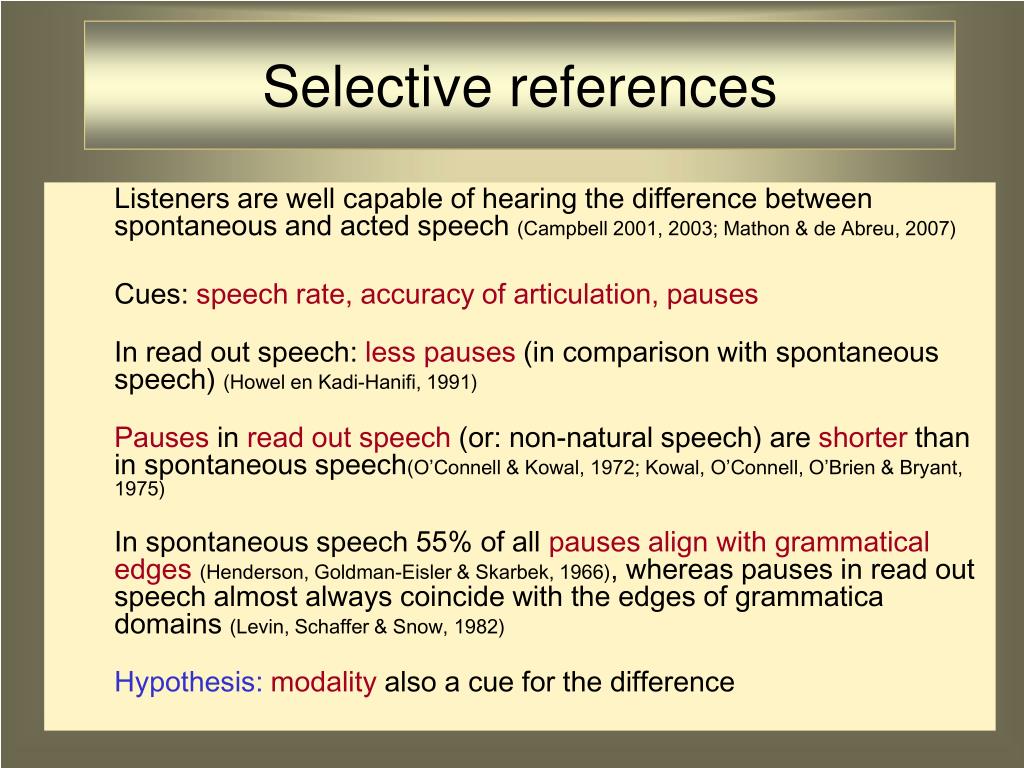

Selective references

Selective references

Listeners are well capable of hearing the difference between spontaneous and acted speech (Campbell 2001, 2003; Mathon & de Abreu, 2007)

Cues: speech rate, accuracy of articulation, pauses

In read out speech: less pauses (in comparison with spontaneous speech) (Howel en Kadi-Hanifi, 1991)

Pauses in read out speech (or: non-natural speech) are shorter than in spontaneous speech(O’Connell & Kowal, 1972; Kowal, O’Connell, O’Brien & Bryant, 1975)

In spontaneous speech 55% of all pauses align with grammatical edges (Henderson, Goldman-Eisler & Skarbek, 1966), whereas pauses in read out speech almost always coincide with the edges of grammatica domains (Levin, Schaffer & Snow, 1982)

Hypothesis: modality also a cue for the difference

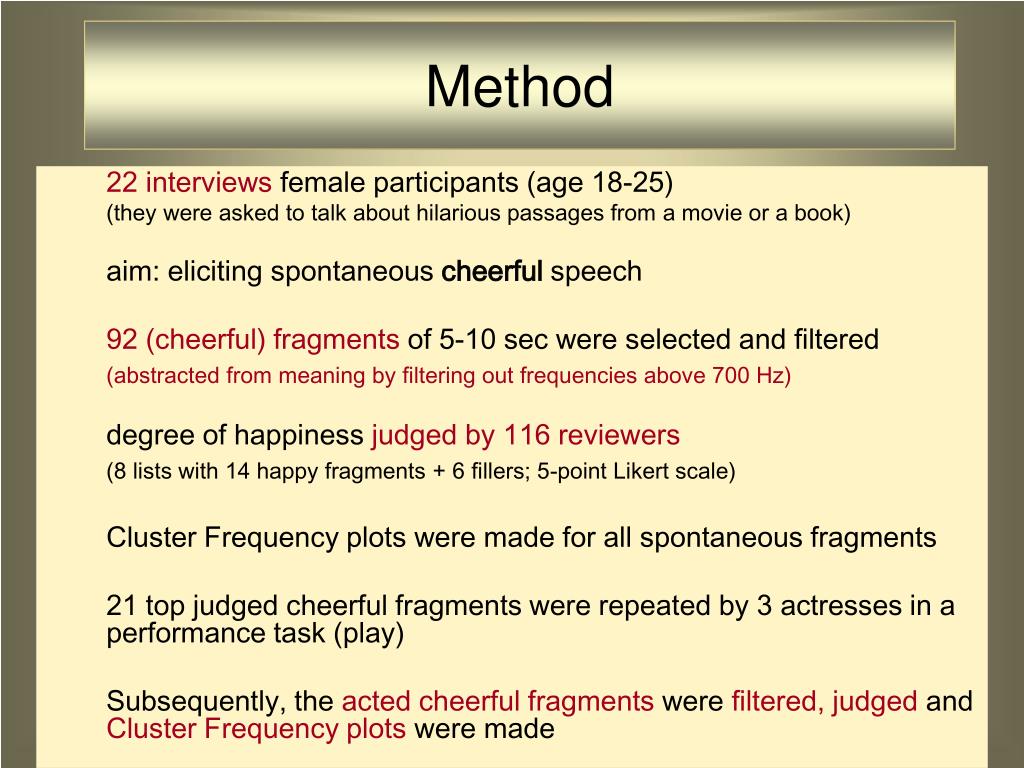

22 interviews female participants (age 18-25)

(they were asked to talk about hilarious passages from a movie or a book)

aim: eliciting spontaneous cheerful speech

92 (cheerful) fragments of 5-10 sec were selected and filtered

(abstracted from meaning by filtering out frequencies above 700 Hz)

degree of happiness judged by 116 reviewers

(8 lists with 14 happy fragments + 6 fillers; 5-point Likert scale)

Cluster Frequency plots were made for all spontaneous fragments

21 top judged cheerful fragments were repeated by 3 actresses in a performance task (play)

Subsequently, the acted cheerful fragments were filtered, judged and Cluster Frequency plots were made




actress 1

actress 2

actress 3

Likert scale:not at all happy

not very happy



very happy

Results hypothesis 1

Results Hypothesis 1

no modality

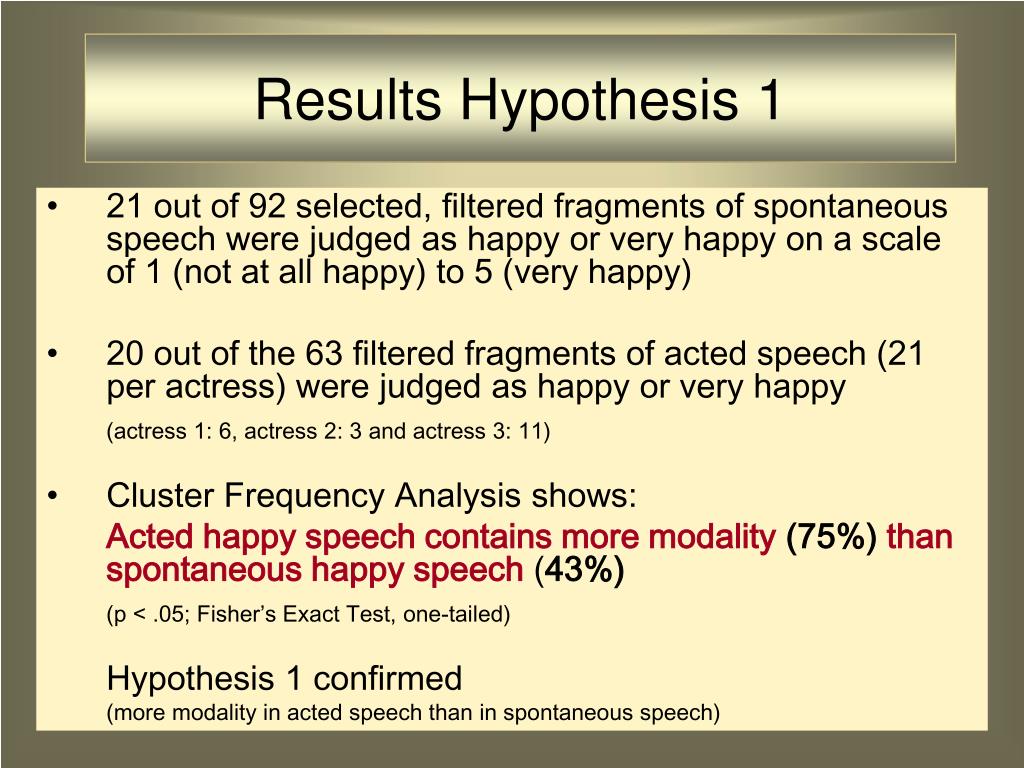

Results hypothesis 11

Results Hypothesis 1

  • 21 out of 92 selected, filtered fragments of spontaneous speech were judged as happy or very happy on a scale of 1 (not at all happy) to 5 (very happy)

  • 20 out of the 63 filtered fragments of acted speech (21 per actress) were judged as happy or very happy

    (actress 1: 6, actress 2: 3 and actress 3: 11)

  • Cluster Frequency Analysis shows:

    Acted happy speech contains more modality (75%) than spontaneous happy speech (43%)

    (p < .05; Fisher’s Exact Test, one-tailed)

    Hypothesis 1 confirmed

    (more modality in acted speech than in spontaneous speech)

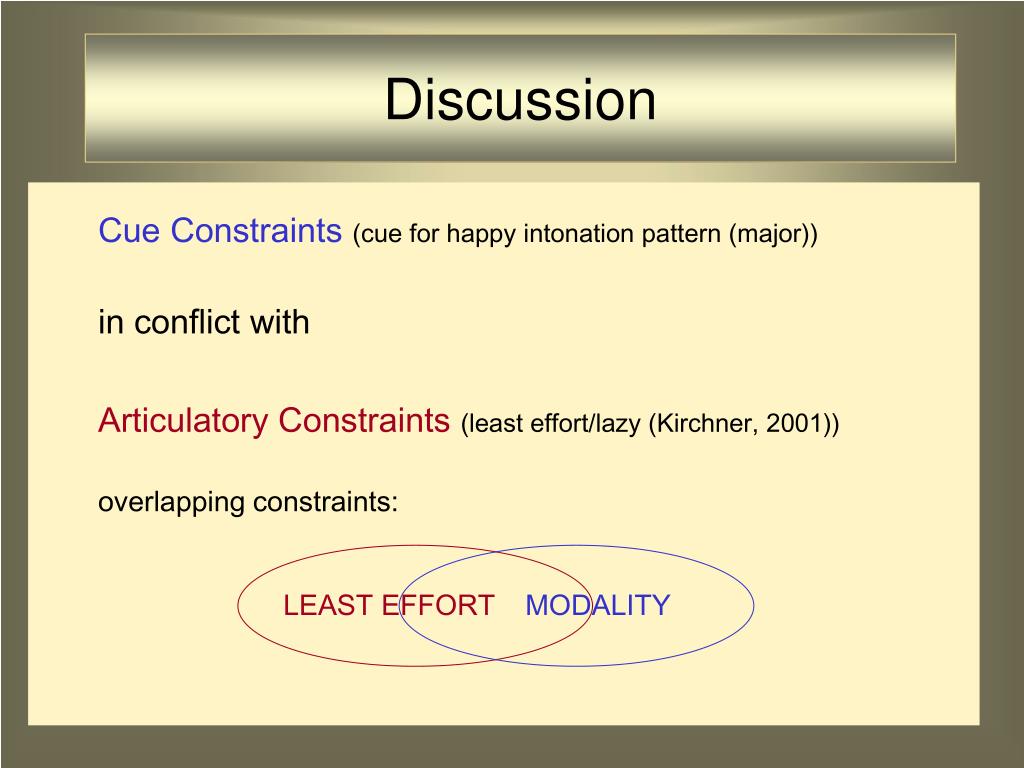

Cue Constraints(cue for happy intonation pattern (major))

in conflict with

Articulatory Constraints (least effort/lazy (Kirchner, 2001))

overlapping constraints:




43% modality in spontaneous, happy speech






75% modality in acted, happy speech



Results hypothesis 2

Results Hypothesis 2

  • Of the 20 fragments of acted happy speech there were:

    5 without modality

    10 with undefined modality

    4 with major modality

    1 with minor modality (= counterexample)

    Most of the attested modality is undefined

  • Because there is one counterexample, there is no significant difference between the three types of modality (major, minor, undefined) in acted happy speech. They were judged equally happy (Kruskall Wallis test; χ=2,5; df = 2, p=0,3)

  • Hypothesis 2 not confirmed

    (more major modality in acted happy speech)

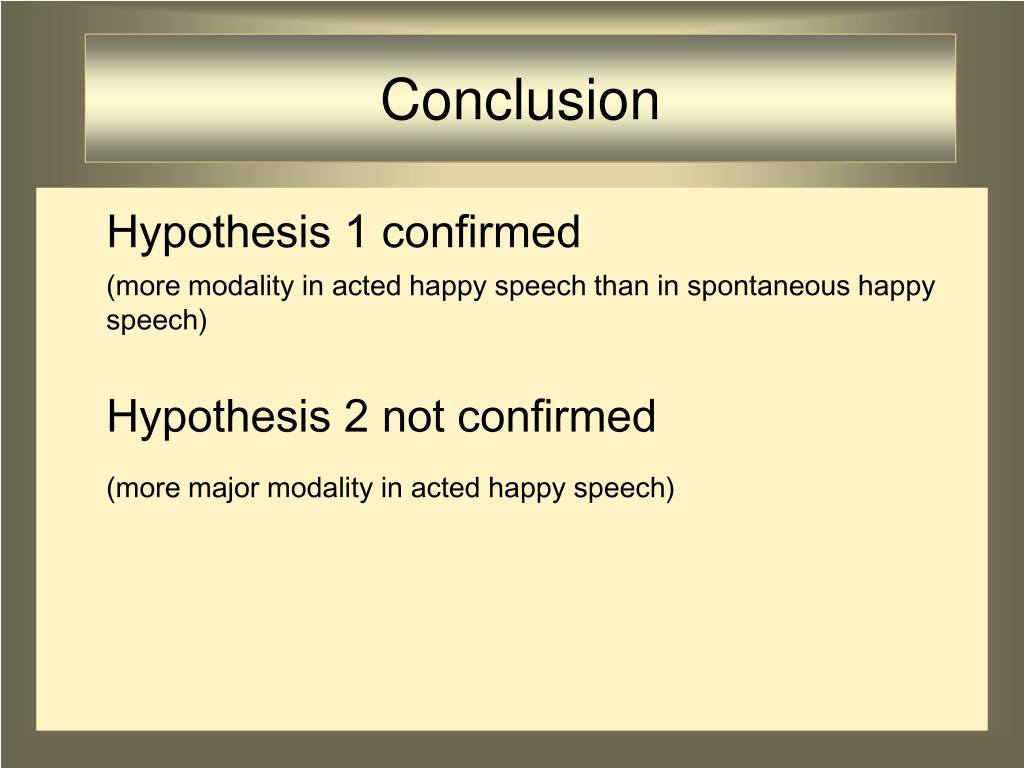

Hypothesis 1 confirmed

(more modality in acted happy speech than in spontaneous happy speech)

Hypothesis 2 not confirmed

(more major modality in acted happy speech)

Appendix 1 method

Appendix 1: Method

Adobe Audition 1.5

Praat: syllable script (Nivka de Jong)

Sample script (Norman Cook)

Excel macro (Norman Cook)

Method analysis

Method: Analysis

1.Edit wav.files

2.Normalise the sound fragments in Adobe

3.Noise reduction

  • Save sound files in the same directory:


    fragment #

    mothereseinitials speakerk (=child) age years months

    b (=baby)?

Method analysis1

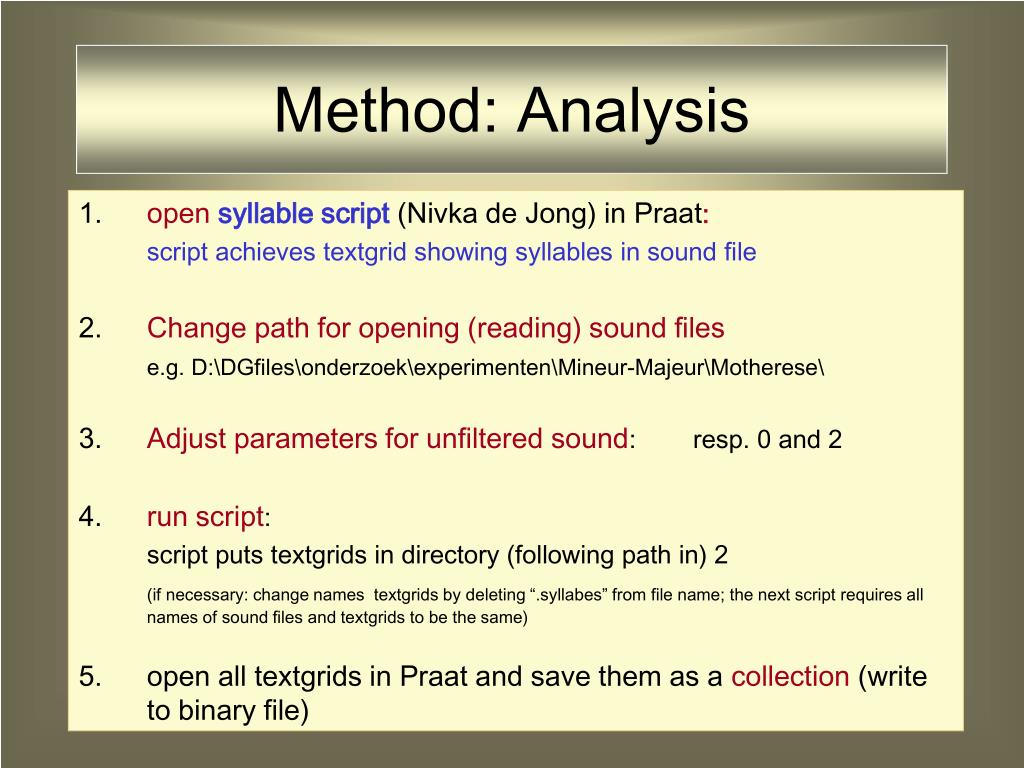

Method: Analysis syllable script(Nivka de Jong) in Praat:

script achieves textgrid showing syllables in sound file

2.Change path for opening (reading) sound files

e.g. D:\DGfiles\onderzoek\experimenten\Mineur-Majeur\Motherese\

3.Adjust parameters for unfiltered sound:resp. 0 and 2 script:

script puts textgrids in directory (following path in) 2

(if necessary: change names textgrids by deleting “.syllabes” from file name; the next script requires all names of sound files and textgrids to be the same) all textgrids in Praat and save them as a collection (write to binary file)

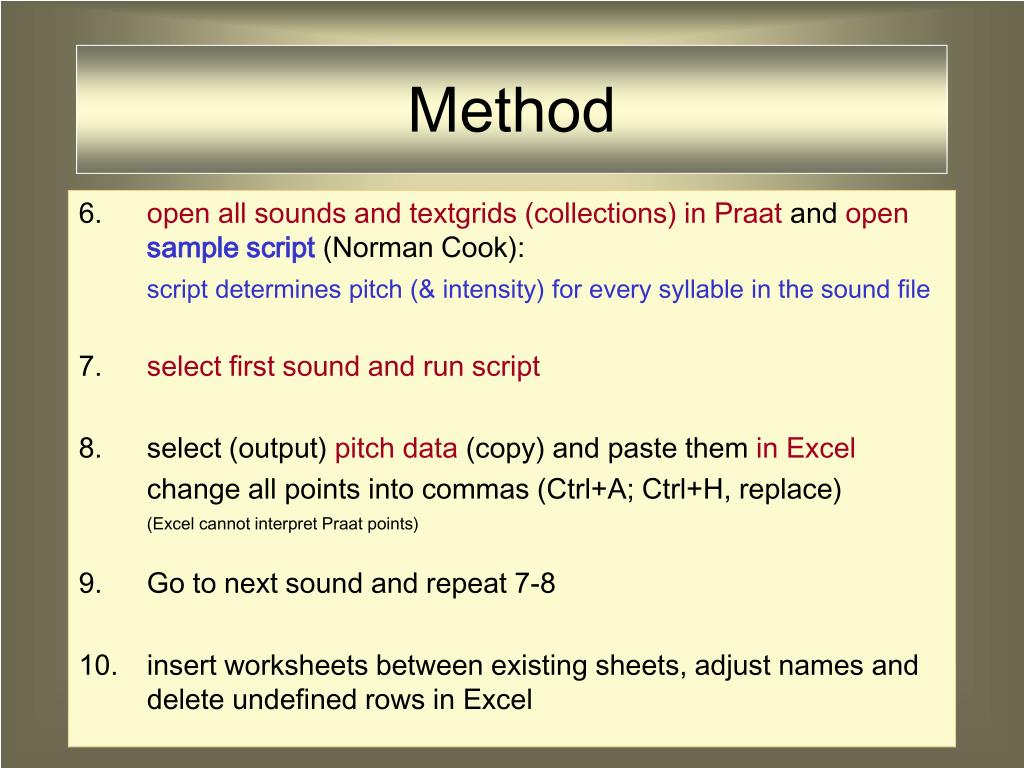

Method all sounds and textgrids (collections) in Praat and opensample script(Norman Cook):

script determines pitch (& intensity) for every syllable in the sound file first sound and run script

  • select (output) pitch data (copy) and paste them in Excel

    change all points into commas (Ctrl+A; Ctrl+H, replace)

    (Excel cannot interpret Praat points)

  • Go to next sound and repeat 7-8

    10.insert worksheets between existing sheets, adjust names and delete undefined rows in Excel

Excel step 8

Excel Step 8

NB change points into commas (Ctrl H)


Method macro(in Excel): (Cluster Analysis English)

macro clusters pitches and achieves histograms showing the most frequent frequencies

12.Go to most left sheet (|<) (data conversion)

13.paste Excel pitch data in column A (data row 3)

(ENTER (only if asked for)

14.copy histograms and paste in Word

15.give name code soundfile for every histogram

Excel macro step 11

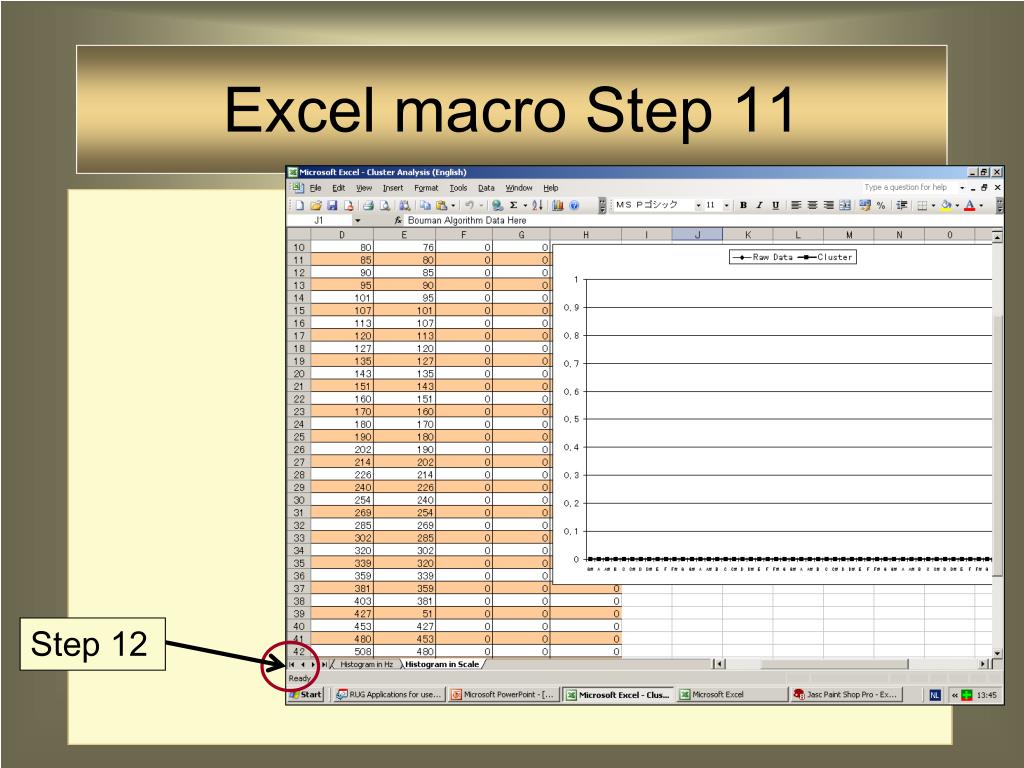

Excel macro Step 11

Step 12

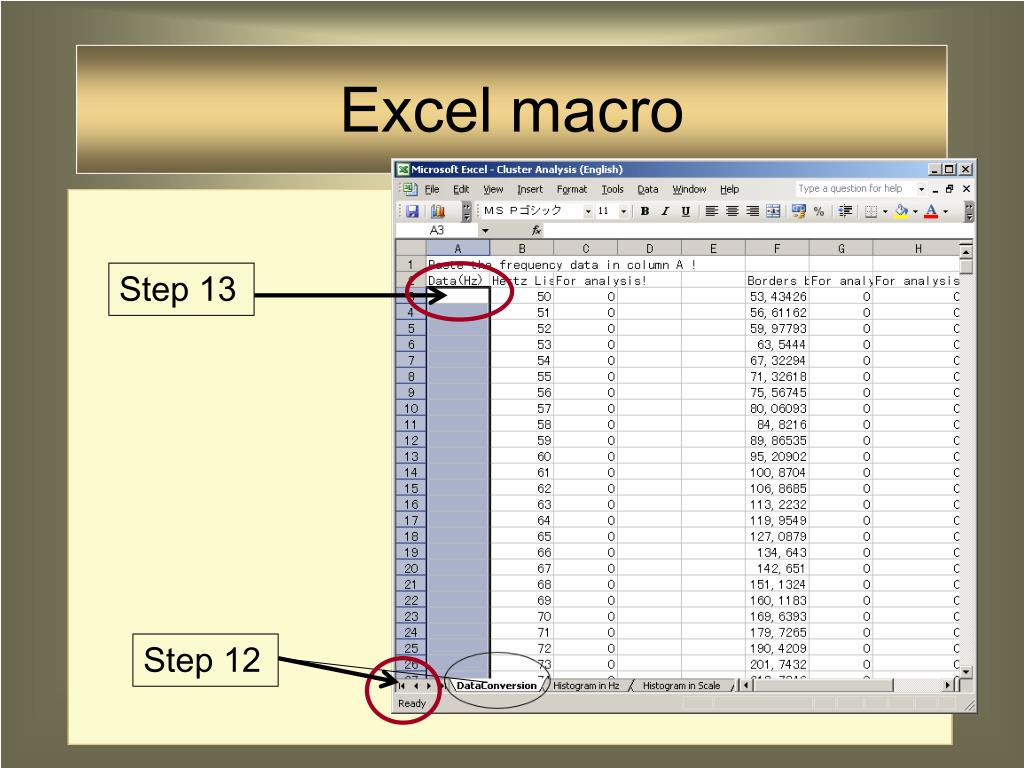

Excel macro

Excel macro

Step 13

Step 12

Excel macro1

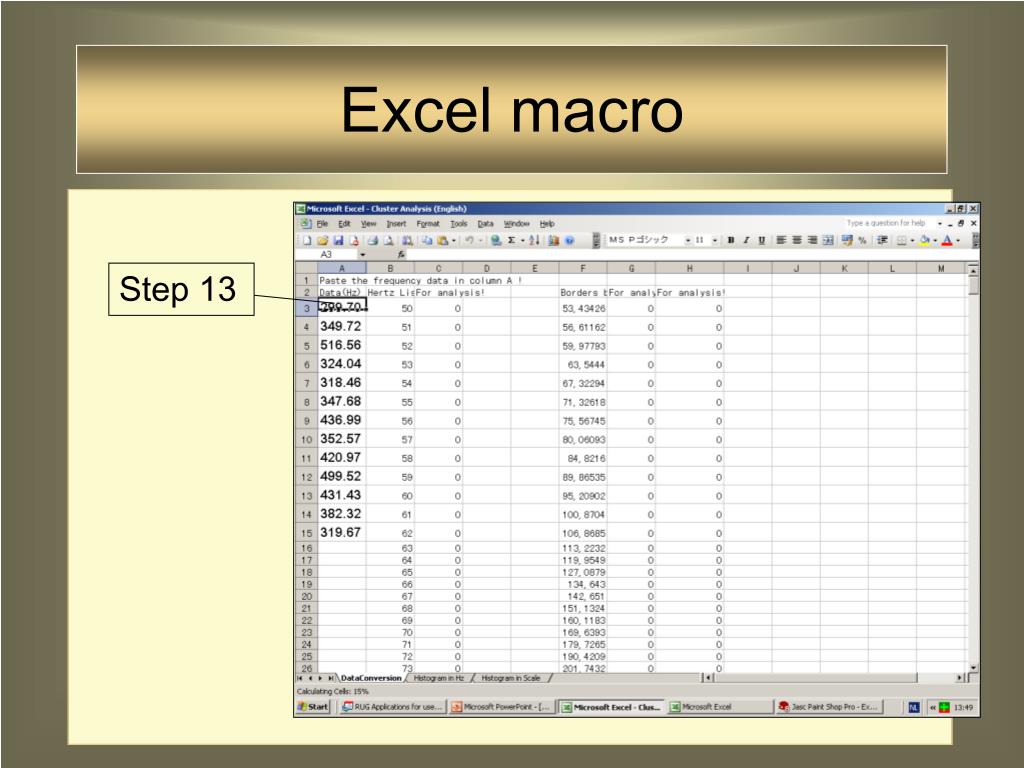

Excel macro

Step 13

Excel macro2

Excel macro

Step 14
