  1. The “Crib”…. Christa Wheeler Sirin Yaemsiri Vidya Goli

  2. What are we designing? • Orientation game for visually impaired babies and toddlers • Sound orientation game helps to encourage movement and exploration

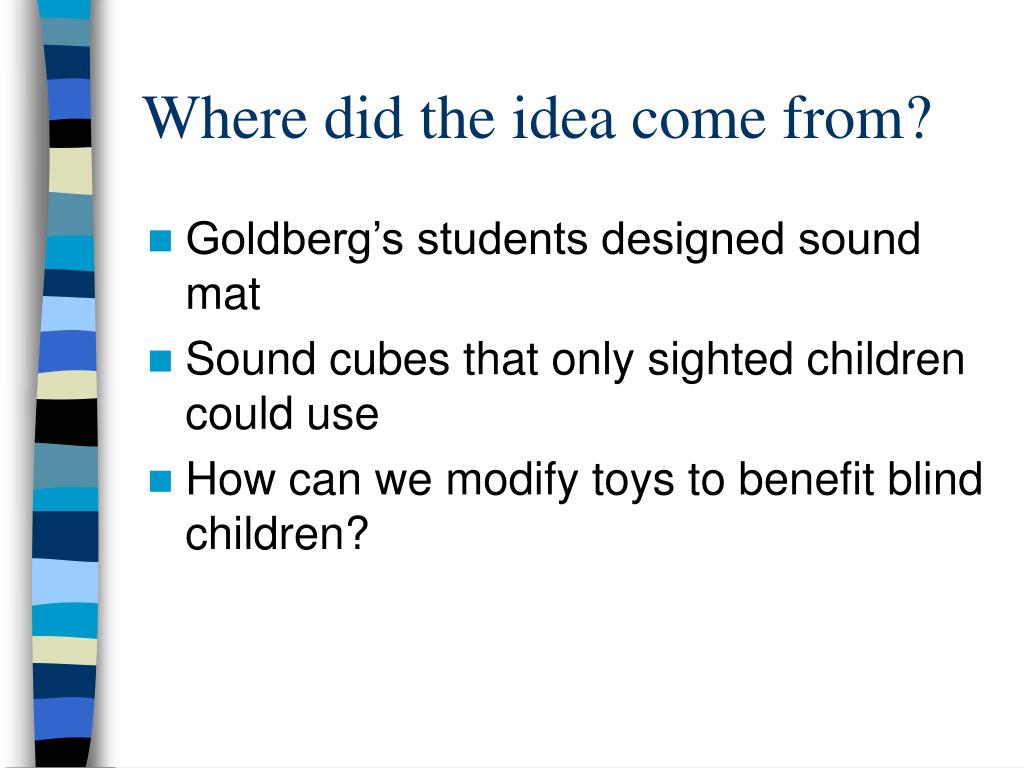

  3. Where did the idea come from? • Goldberg’s students designed sound mat • Sound cubes that only sighted children could use • How can we modify toys to benefit blind children?

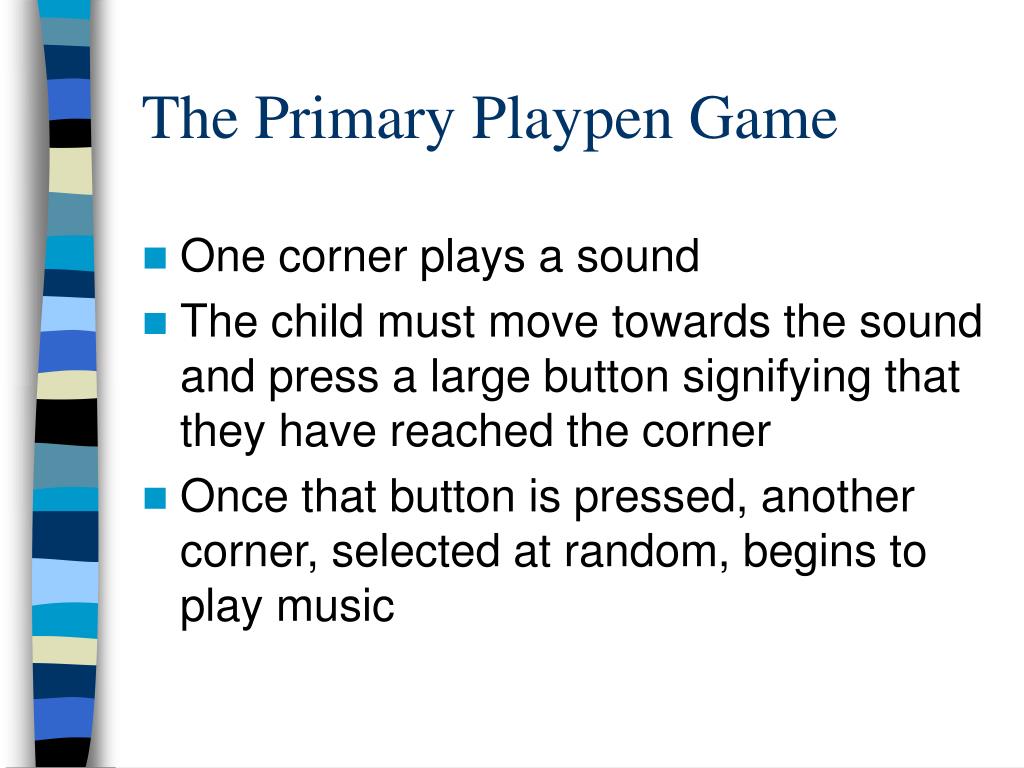

  4. The Primary Playpen Game • One corner plays a sound • The child must move towards the sound and press a large button signifying that they have reached the corner • Once that button is pressed, another corner, selected at random, begins to play music

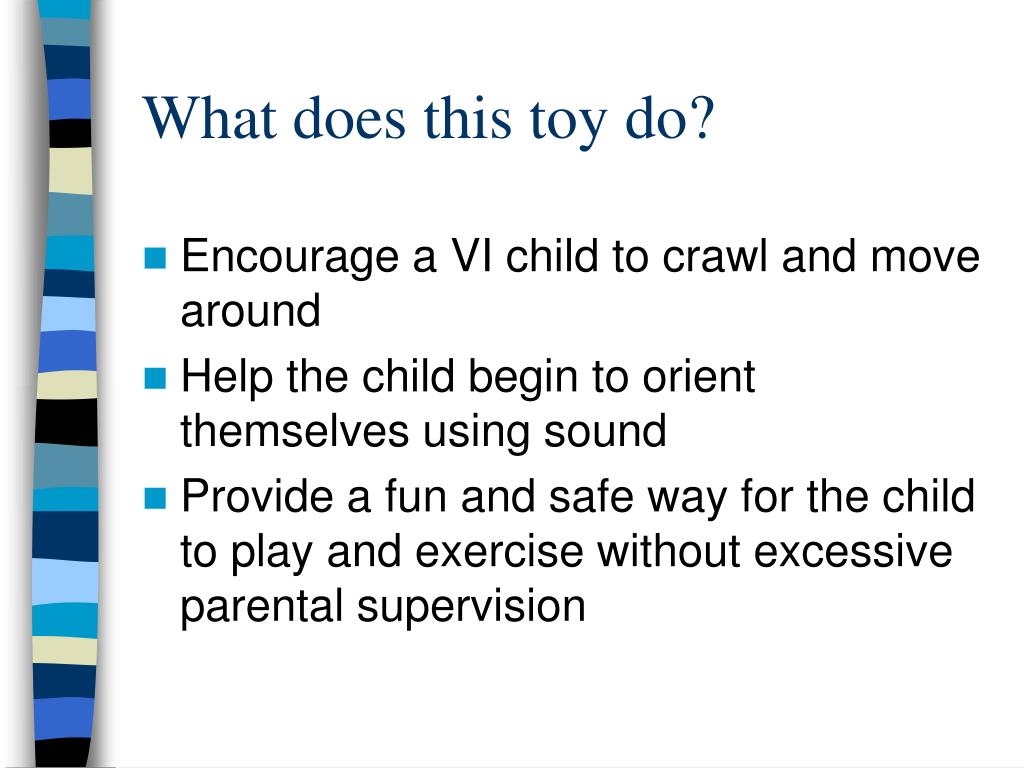

  5. What does this toy do? • Encourage a VI child to crawl and move around • Help the child begin to orient themselves using sound • Provide a fun and safe way for the child to play and exercise without excessive parental supervision

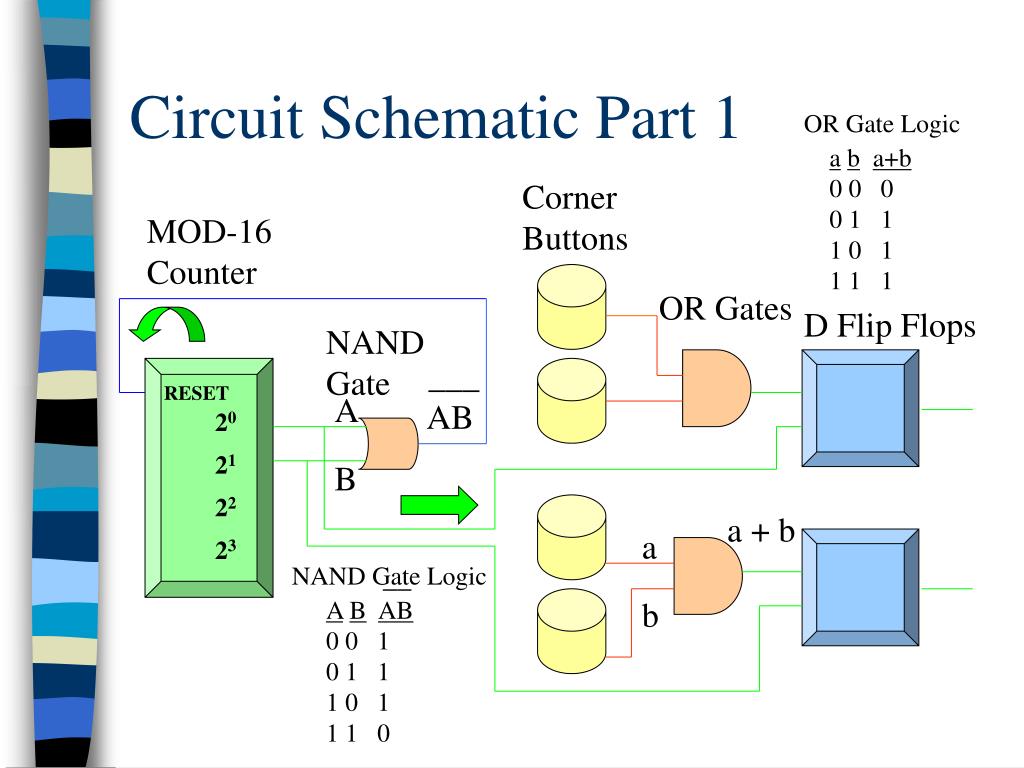

  6. Circuit Schematic Part 1 OR Gate Logic aba+b 0 0 0 0 1 1 1 0 1 1 1 1 Corner Buttons MOD-16 Counter OR Gates D Flip Flops NAND Gate ___ AB RESET A 20 21 B 22 a + b a 23 NAND Gate Logic __ ABAB 0 0 1 0 1 1 1 0 1 1 1 0 b

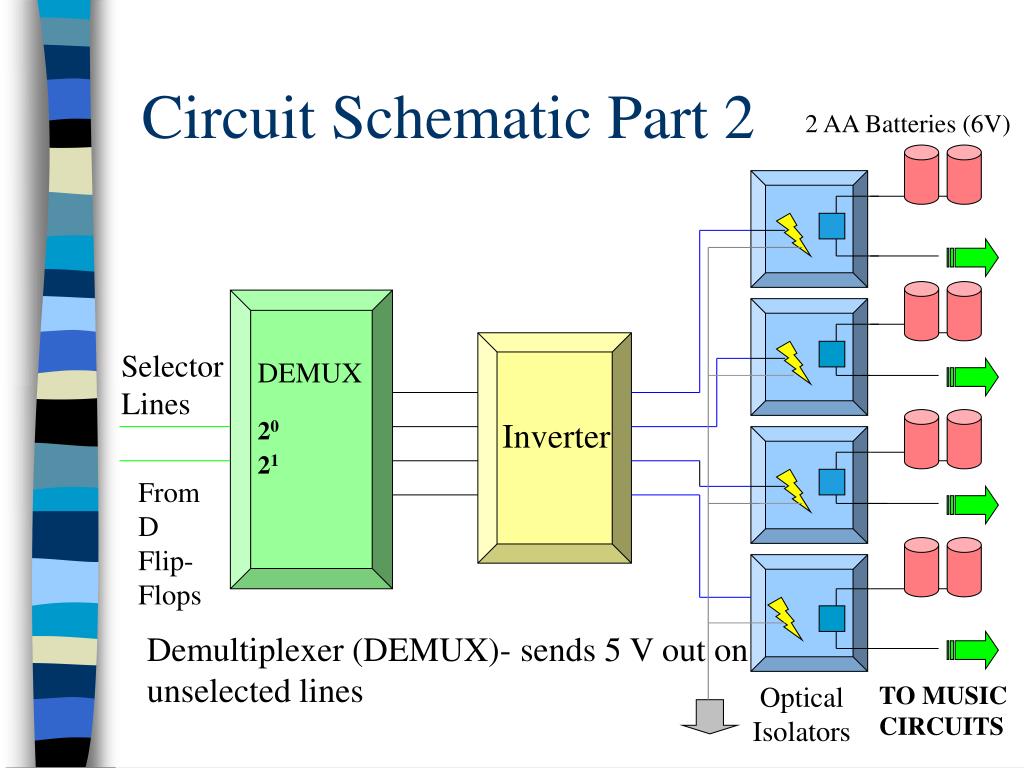

  7. Circuit Schematic Part 2 2 AA Batteries (6V) Selector Lines DEMUX 20 Inverter 21 From D Flip- Flops Demultiplexer (DEMUX)- sends 5 V out on unselected lines Optical Isolators TO MUSIC CIRCUITS

  8. Prototype II • New design for music player • Switches that are easier to use and have less bouncing • Hide circuitry under mat • Moveable speakers and switches • Retractable cords (?) • Infrared (?)

  9. The Future… • Internship - Summer Undergraduate Research Fellowship http://www.unc.edu/depts/our/summer_research.html • Governor Morehead Preschool • National Science Foundation Senior Design Projects Publicationhttp://nsf-pad.bme.uconn.edu/ • RESNA (Rehab Engineering and Assistive Technology Society of N. America) - Conferences in 2003 and 2004 - Competition - http://www.resna.org/

  10. Acknowledgements • Richard Goldberg • Sean Washburn • Hugon Karwowski
