  1. 19 + 20/21 Transformers Starter : Sketch or make a set of bullet points showing the steps of getting electricity from a power station to a house. What are transformers and how do they work?

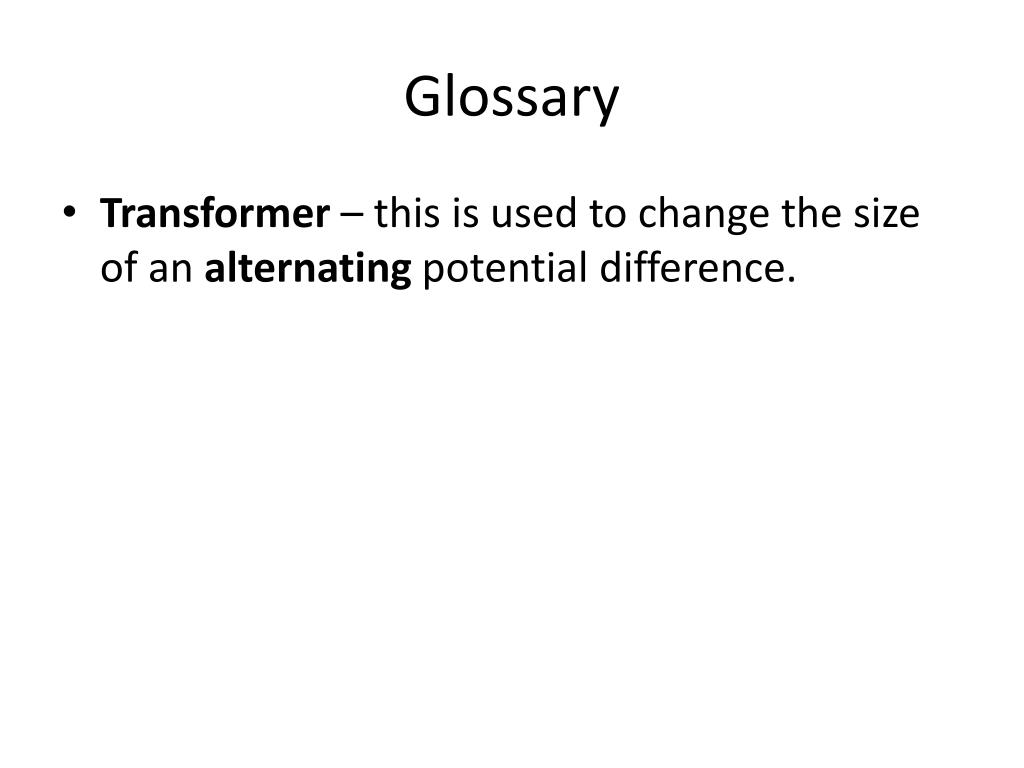

  2. Glossary • Transformer– this is used to change the size of an alternating potential difference.

  3. Transformers

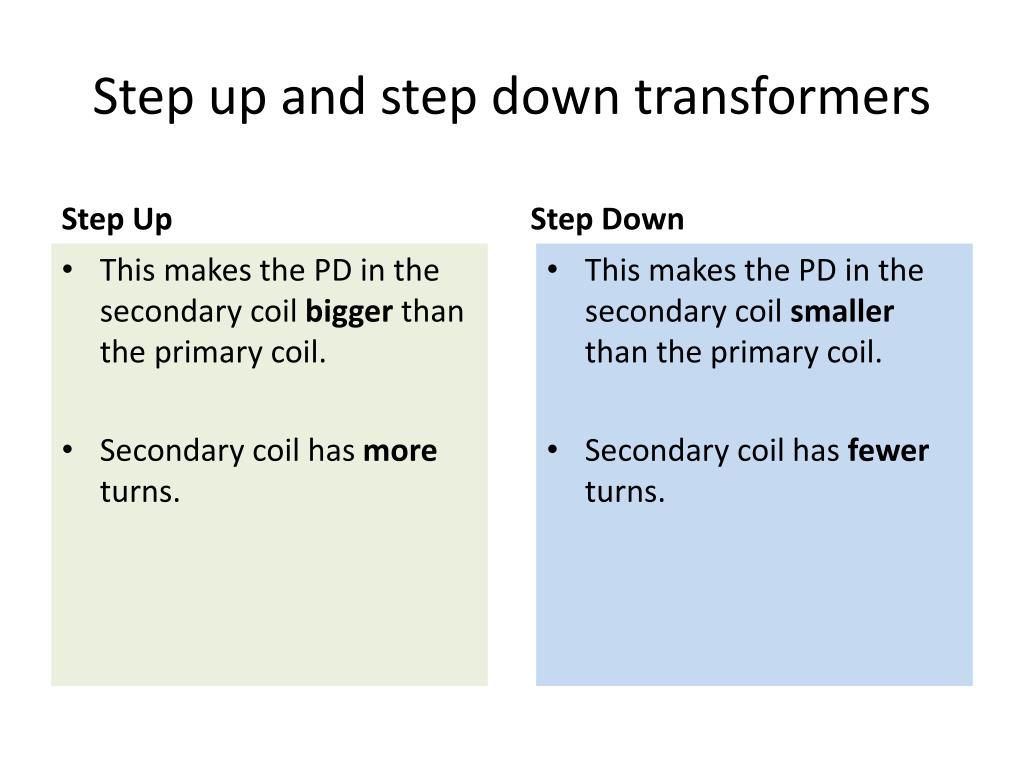

  4. Step up and step down transformers Step Up Step Down This makes the PD in the secondary coil smaller than the primary coil. Secondary coil has fewer turns. • This makes the PD in the secondary coil bigger than the primary coil. • Secondary coil has more turns.

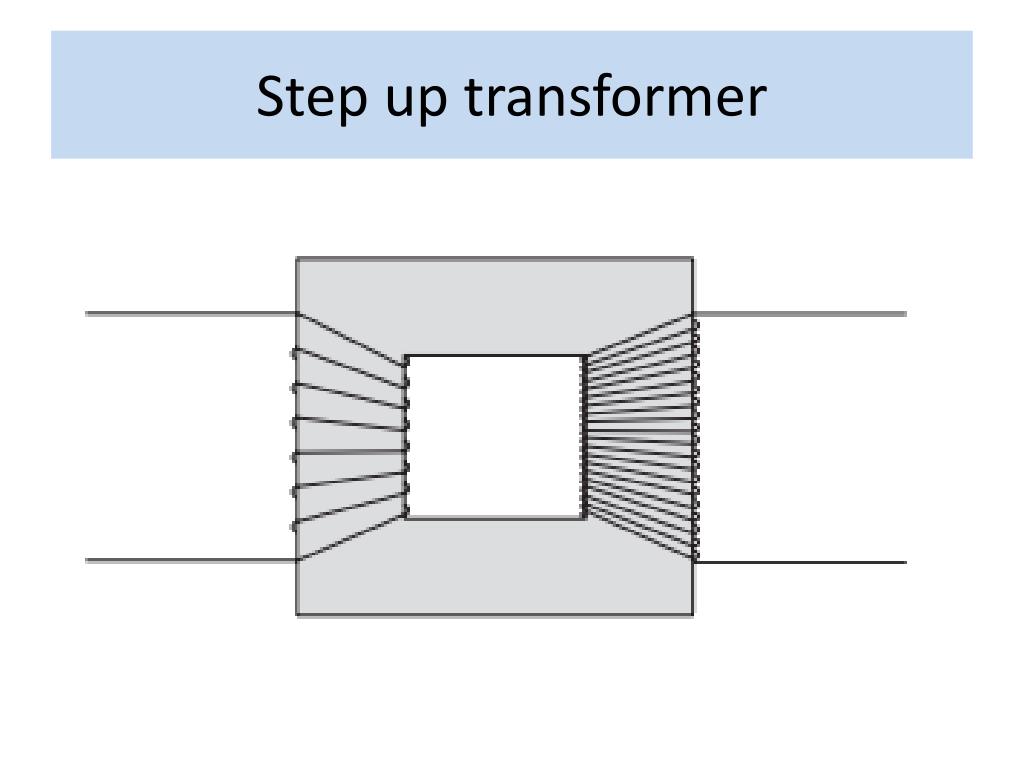

  5. Step up transformer

  6. Step down transformer

  7. Transformer Equations The higher the pd the greater the efficiency of transferring electrical power through the grid. A lower pd would need a higher current and energy would be lost as heat. pd across primary Vp = no. turns on primary, np pd across secondary Vsno. turns on secondary ns

  8. Efficiency of Transformers • A transformer is 100% efficient if 100% of the electrical power given to the primary coil is the same as that given to the appliance. Power supplied to transformer = power delivered by transformer Primary pd x primary current = secondary pd x secondary current. Vp X Ip= Vs X Is

  9. Key point • Transformers only work with AC not DC. With DC there is no changing magnetic field.

  10. “Switch Mode” transformers • These are suitable for appliances like phone chargers. • They work at much higher frequencies 50KHz (50’000 Hz) to 20KHz. Benefits: Smaller and lighter than traditional transformer because they contain a ferrite core not iron. Use little power when the device is not connected.

  11.  Now complete the questions
