The work of gem foil at ciae

The work of GEM foil at CIAE

Li Ye, Xiaomei Li

Science and Technology

on Nuclear Data Laboratory

China Institute of Atomic Energy

2011.08 weihai


Outline

outline

Patr 1: Motivation

Part 2: The structure of GEM foil

Part 3:Gem foil researches at CIAE

Part 4: THGEM detector and test at IHEP

Part 5: Next step


The work of gem foil at ciae

Part 1:Motivation


Jlab 12gev upgrade

JLab 12GeV Upgrade

Add 5 cryomodules

20 cryomodules

Add 5 cryomodules

20 cryomodules

New Hall

Enhanced capabilities

in existing Halls

Add arc


Solid spectrometer

SoLID spectrometer

Transversity

PVDIS

longitudinal


The work of gem foil at ciae

CIAE,USTC,TSinghua,Peking,HUST,Shandong,Lanzhou,Huangshan,and so on


The work of gem foil at ciae

Part 2: The Structure of GEM Foil


Gem gas electron multiplier structure

GEM (Gas Electron Multiplier) Structure

  • Avalanche Gaseous Detector

  • Core part: GEM Foil

  • Sealed by the window and the substrate to form a pressure-tight gaseous chamber

Ar+CO2

Structure of detector with single GEM foil

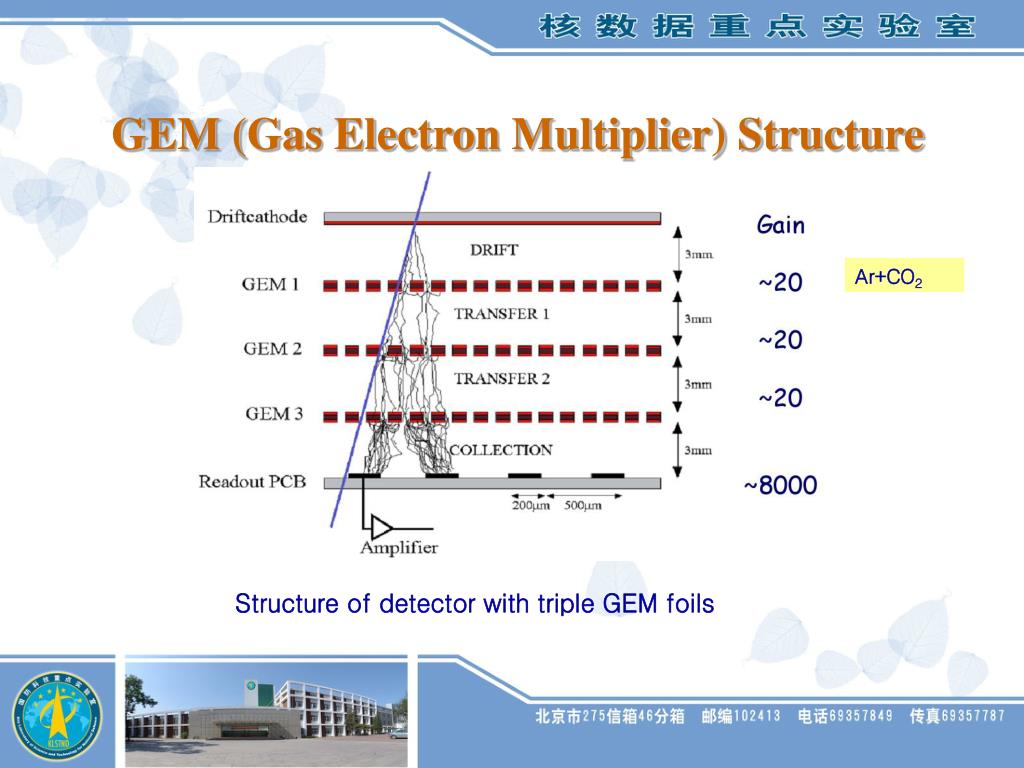

Gem gas electron multiplier structure1

GEM (Gas Electron Multiplier) Structure

Ar+CO2

Structure of detector with triple GEM foils


Gem foil structure

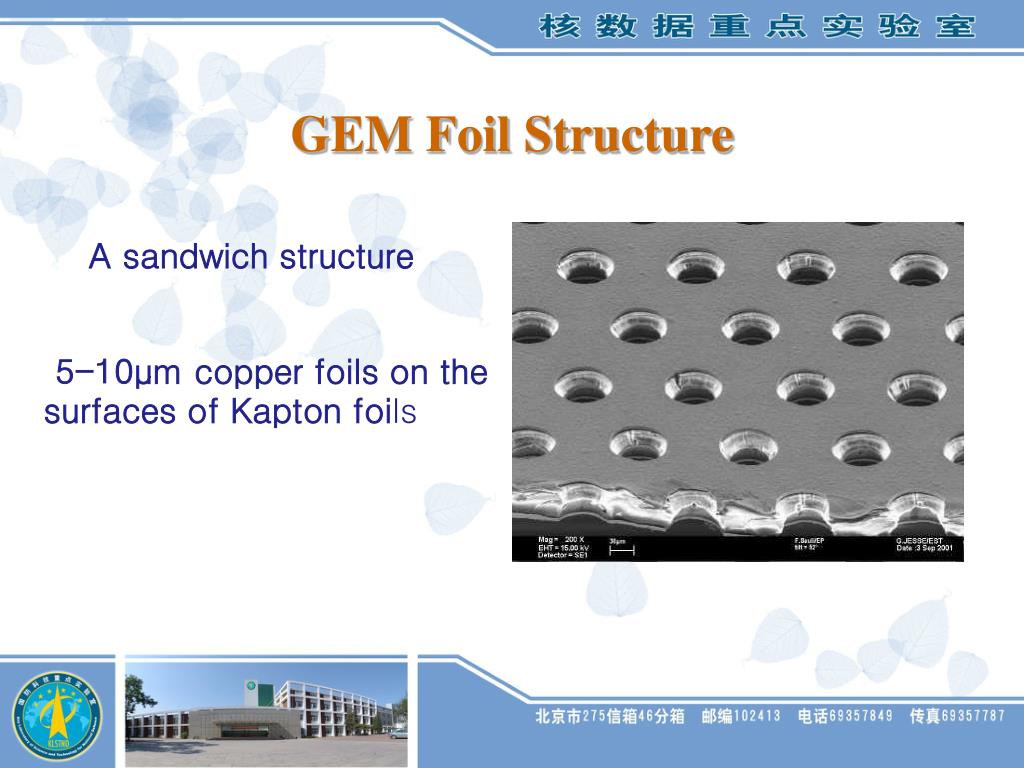

GEM Foil Structure

A sandwich structure

5-10μm copper foils on the surfaces of Kapton foils

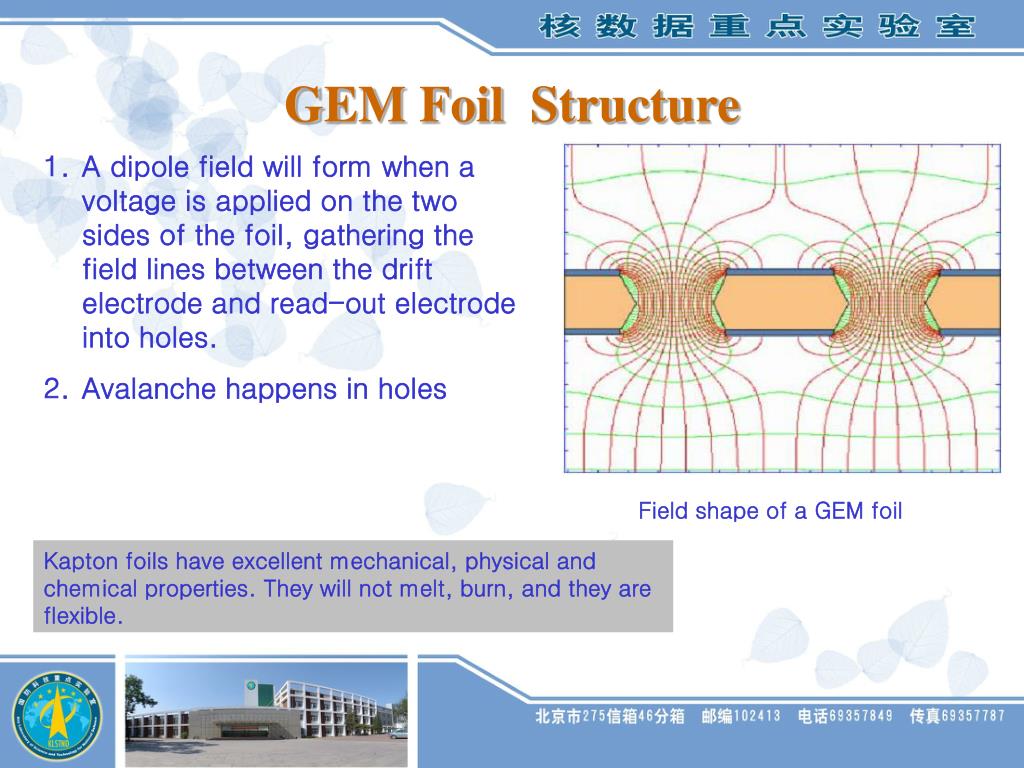

Gem foil structure1

GEM Foil Structure

  • A dipole field will form when a voltage is applied on the two sides of the foil, gathering the field lines between the drift electrode and read-out electrode into holes.

  • Avalanche happens in holes

Field shape of a GEM foil

Kapton foils have excellent mechanical, physical and chemical properties. They will not melt, burn, and they are flexible.


Process f low d iagram of gem m anufacture

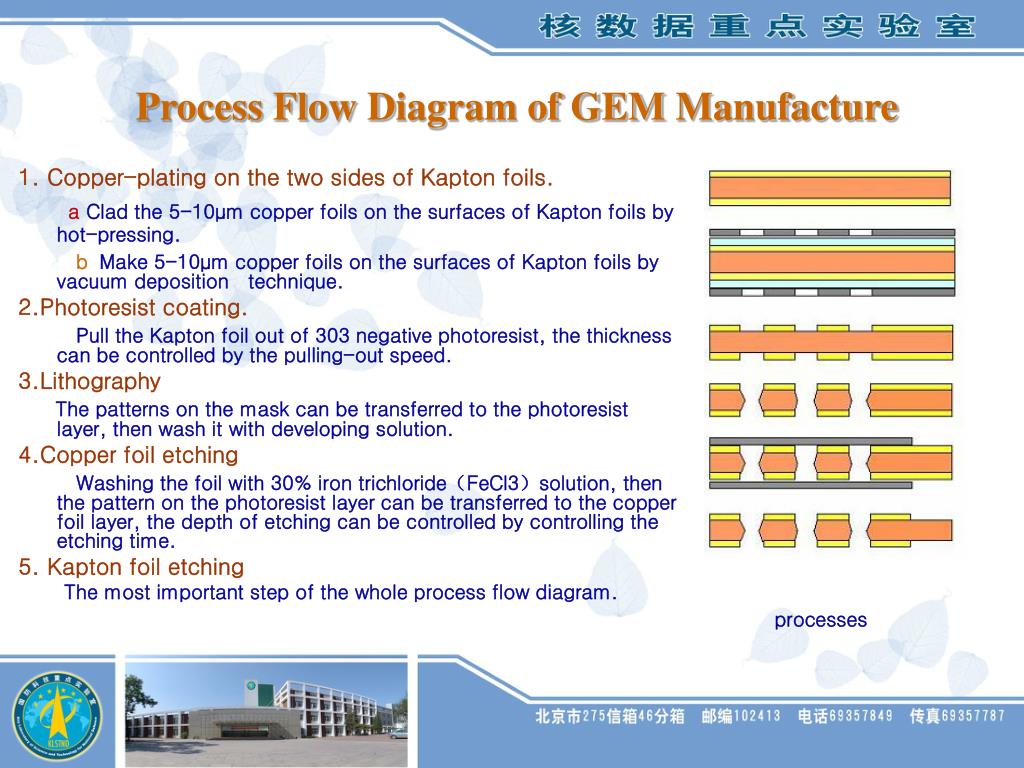

Process Flow Diagram of GEM Manufacture

1. Copper-plating on the two sides of Kapton foils.

a Clad the 5-10μm copper foils on the surfaces of Kapton foils by hot-pressing.

bMake 5-10μm copper foils on the surfaces of Kapton foils by vacuum deposition technique.

2.Photoresist coating.

Pull the Kapton foil out of 303 negative photoresist, the thickness can be controlled by the pulling-out speed.

3.Lithography

The patterns on the mask can be transferred to the photoresist layer, then wash it with developing solution.

4.Copper foil etching

Washing the foil with 30% iron trichloride(FeCl3)solution, then the pattern on the photoresist layer can be transferred to the copper foil layer, the depth of etching can be controlled by controlling the etching time.

5. Kapton foil etching

The most important step of the whole process flow diagram.

processes

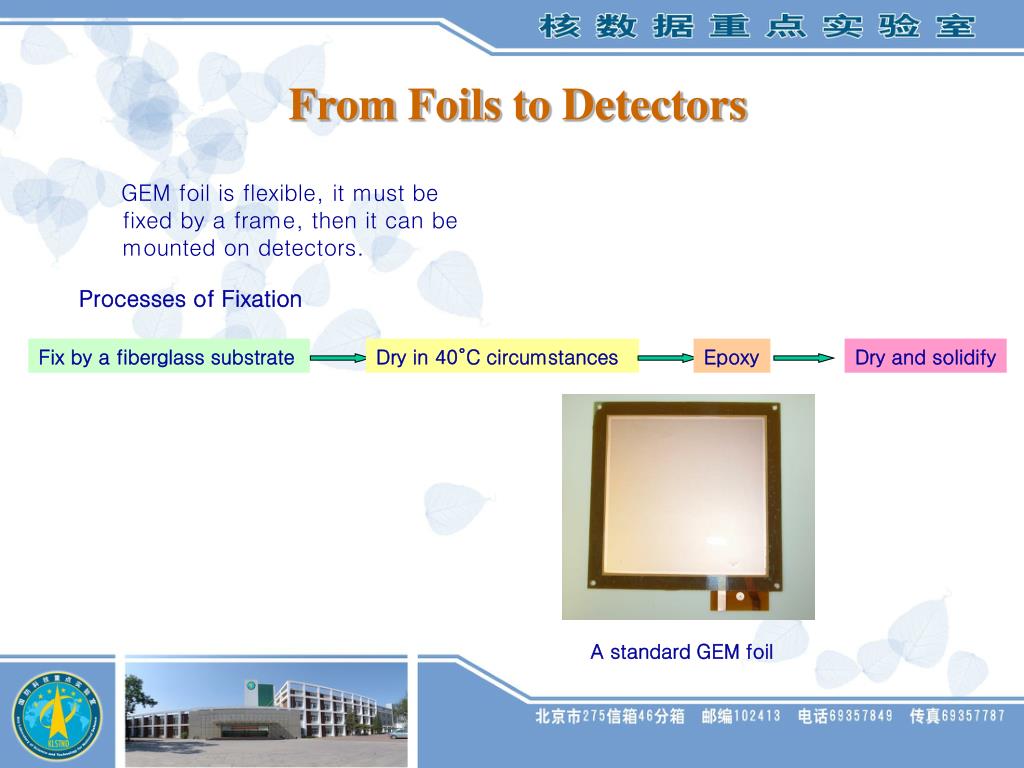

From f oils to d etectors

From Foils to Detectors

GEM foil is flexible, it must be fixed by a frame, then it can be mounted on detectors.

Processes of Fixation

Fix by a fiberglass substrate

Dry in 40°C circumstances

Epoxy

Dry and solidify

A standard GEM foil


Read out

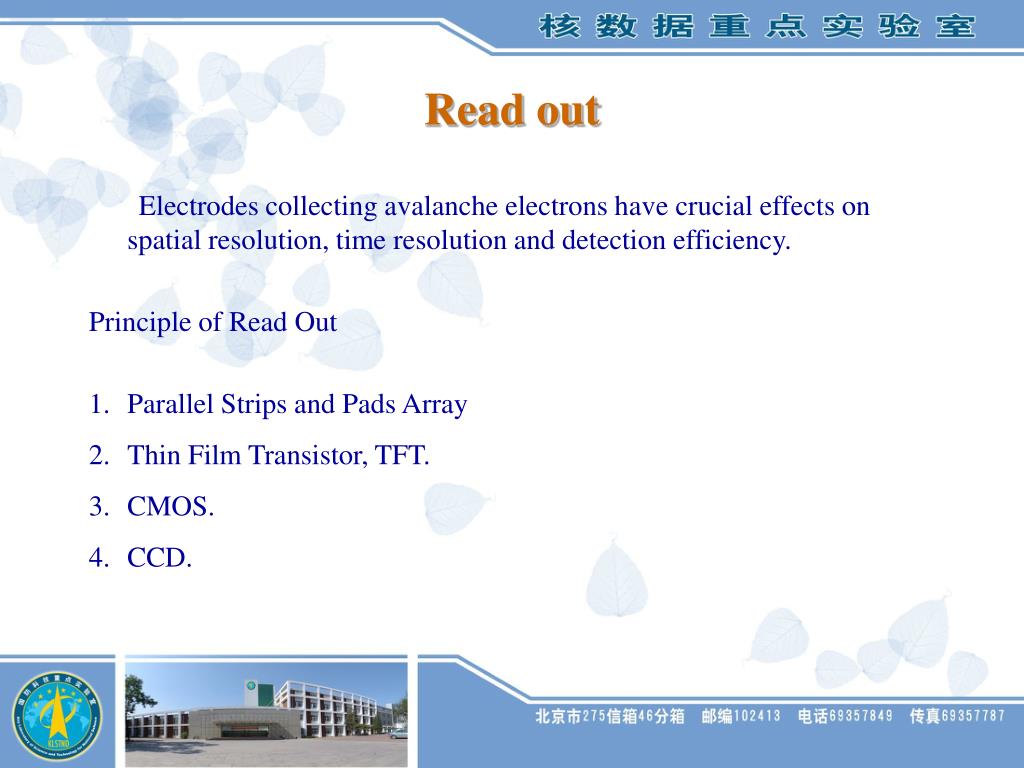

Read out

Electrodes collecting avalanche electrons have crucial effects on spatial resolution, time resolution and detection efficiency.

Principle of Read Out

Parallel Strips and Pads Array

Thin Film Transistor, TFT.

CMOS.

CCD.


The work of gem foil at ciae

Part 3:GEM FoilResearches at CIAE


Agreement with cern

Agreement with CERN

Prof. Xiaomei LI has visited CERN PCB factory and GEM group in Feb. 2011 .

We got two GEM foil samples and two mask plates from CERN.

CERN PCB factory has agreedthat they would transfer the GEM foil production technology to CIAE for free for the research of high energy physics. Now we are doing the paper work.

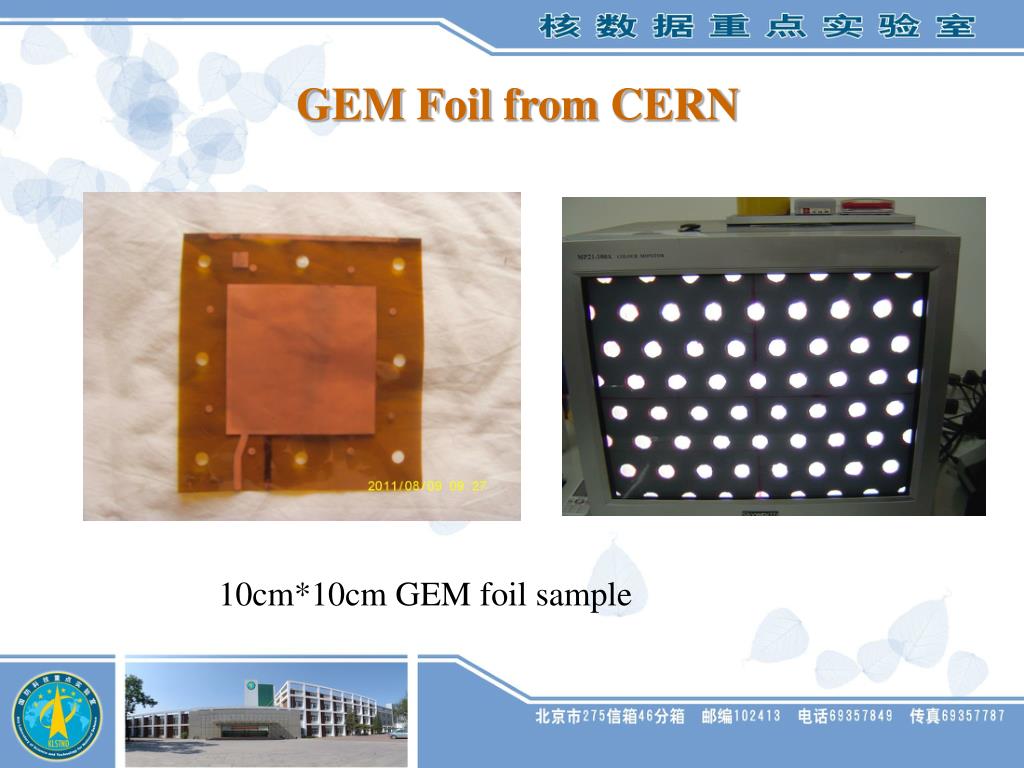

Gem f oil from cern

GEM Foil from CERN

10cm*10cm GEM foil sample


Gem m ask p late from cern

GEM Mask Plate from CERN

10cm*10cm mask plate

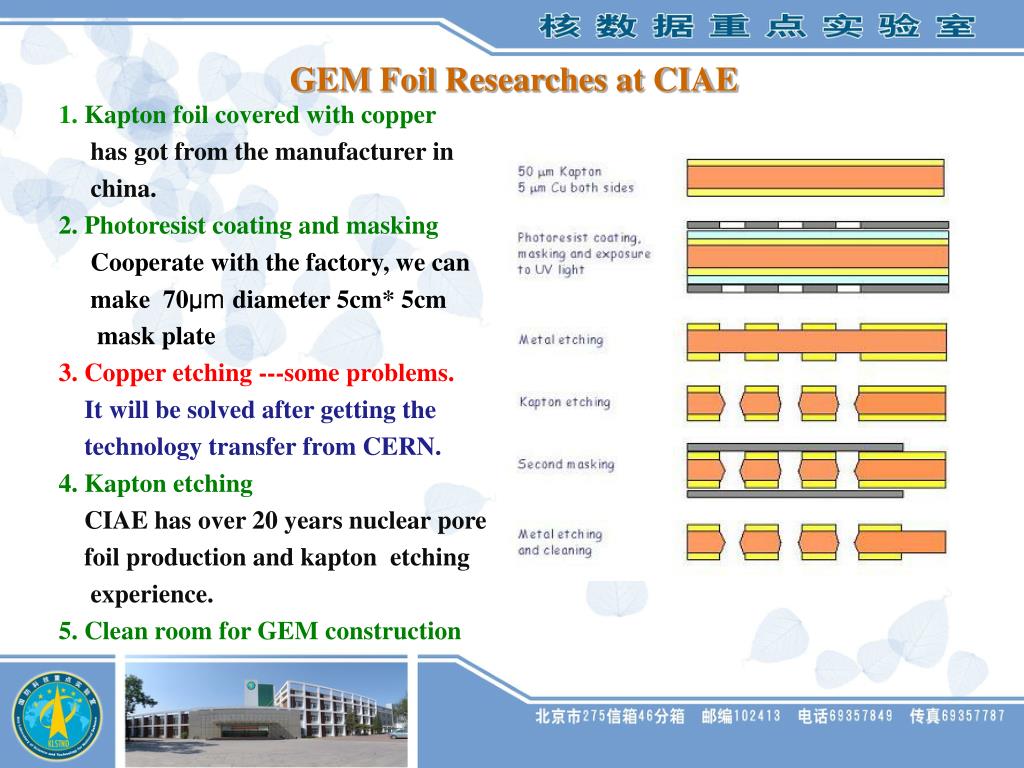

Gem f oil researches at ciae

GEM Foil Researches at CIAE

1. Kapton foil covered with copper

has got from the manufacturer in

china.

2. Photoresist coating and masking

Cooperate with the factory, we can

make 70μm diameter 5cm* 5cm

mask plate

3. Copper etching ---some problems.

It will be solved after getting the

technology transfer from CERN.

4. Kapton etching

CIAE has over 20 years nuclear pore

foil production and kapton etching

experience.

5. Clean room for GEMconstruction


Mask plate m ade in china

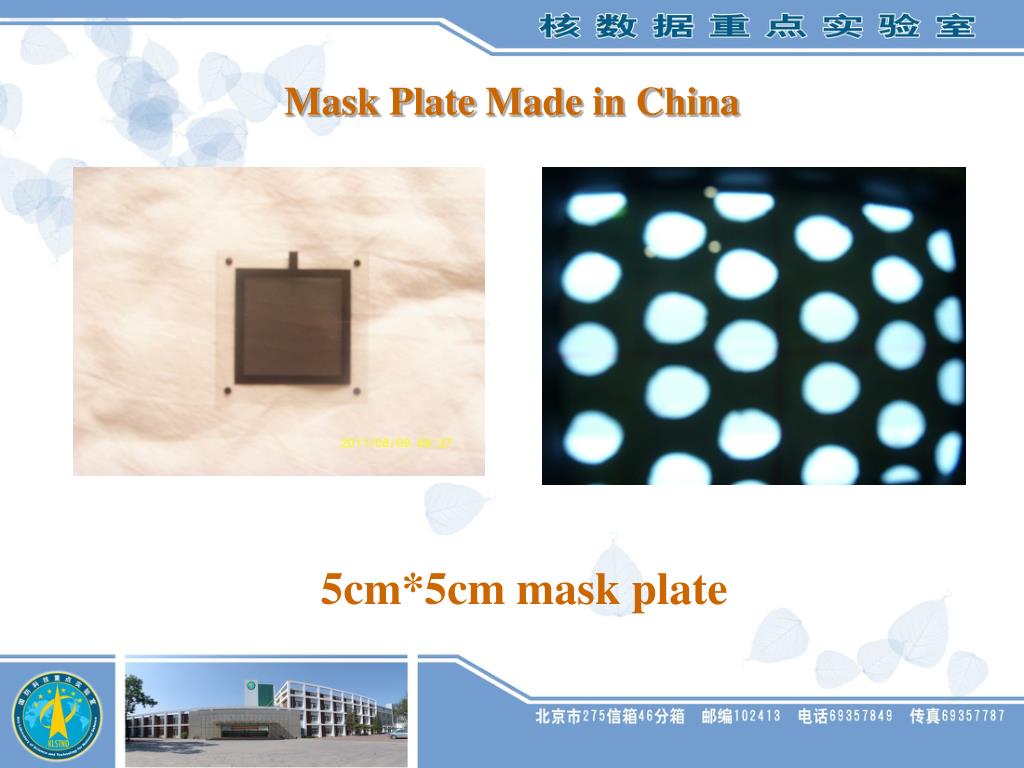

Mask PlateMade in China

5cm*5cm mask plate


N uclear pore foil production at ciae

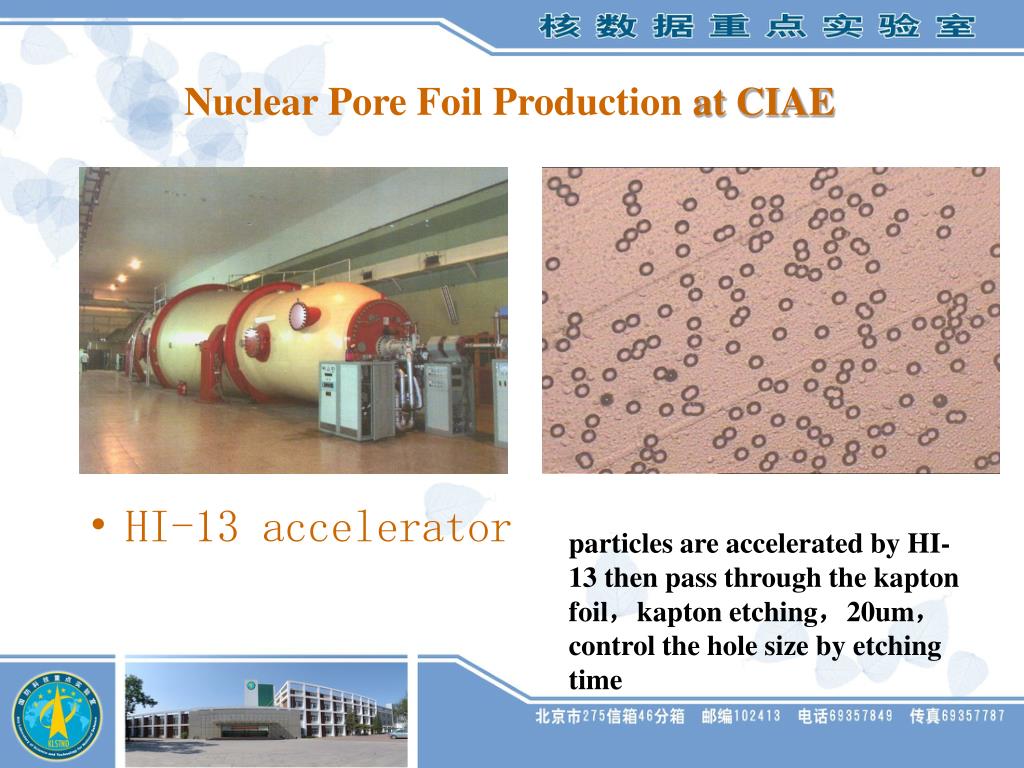

Nuclear Pore Foil Production at CIAE

HI-13 accelerator

particles are accelerated by HI-13 then pass through the kapton foil,kapton etching,20um,control the hole size by etching time

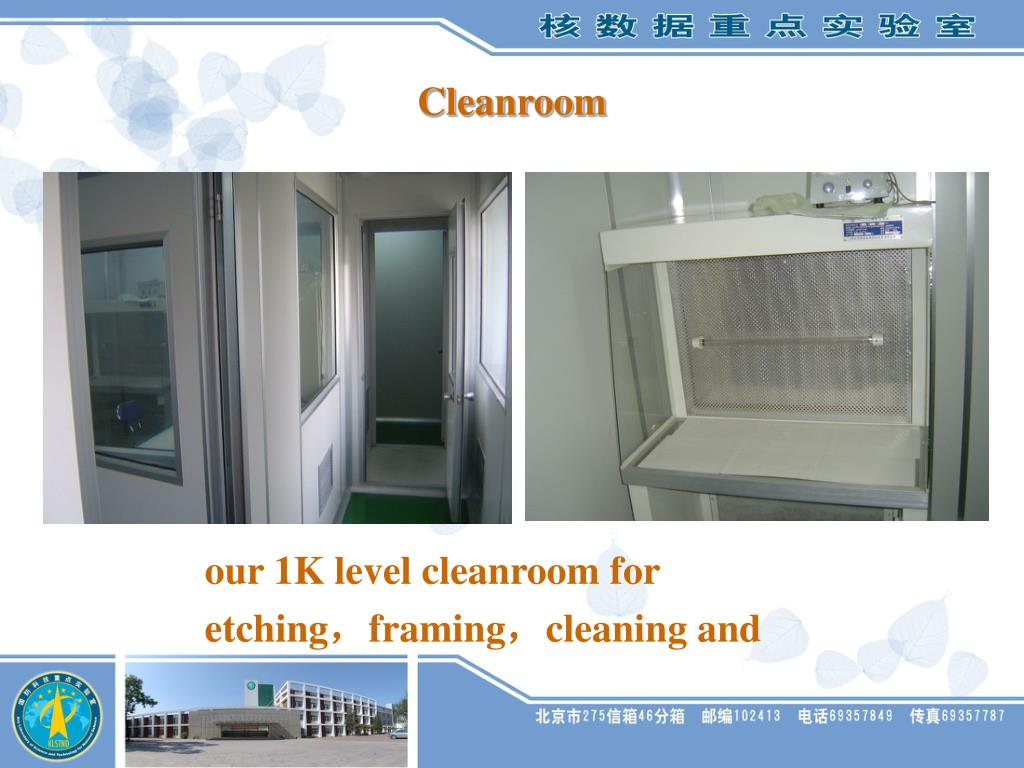

Cleanroom

Cleanroom

our 1K level cleanroom for

etching,framing,cleaning and


The work of gem foil at ciae

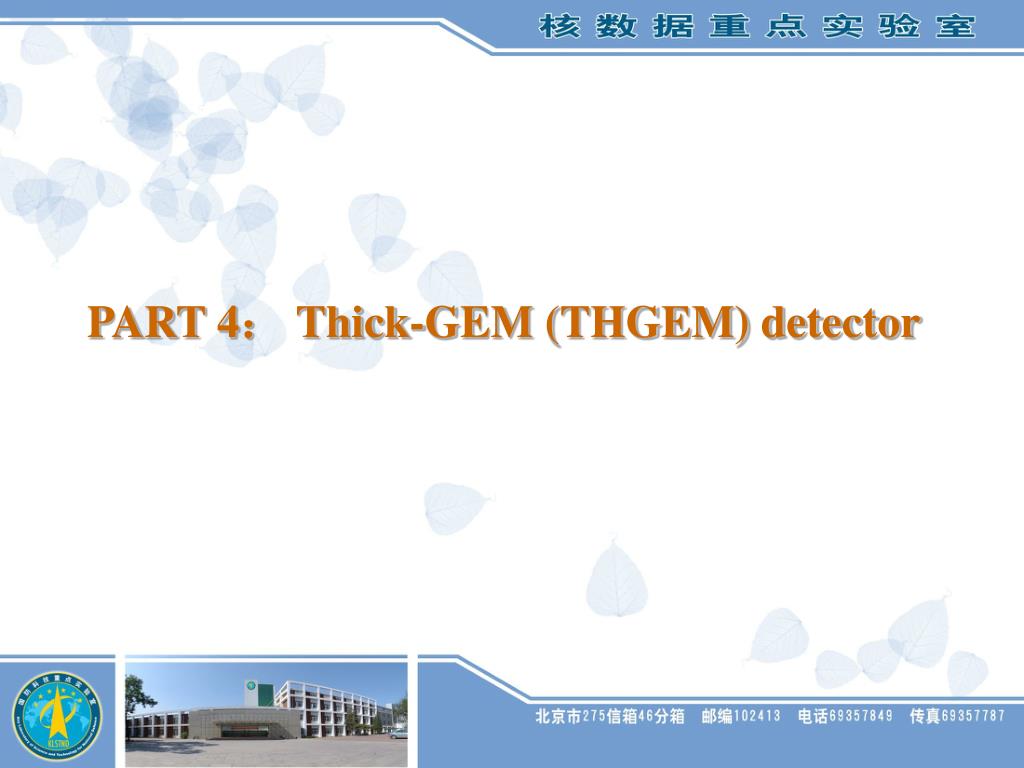

PART 4: Thick-GEM (THGEM) detector

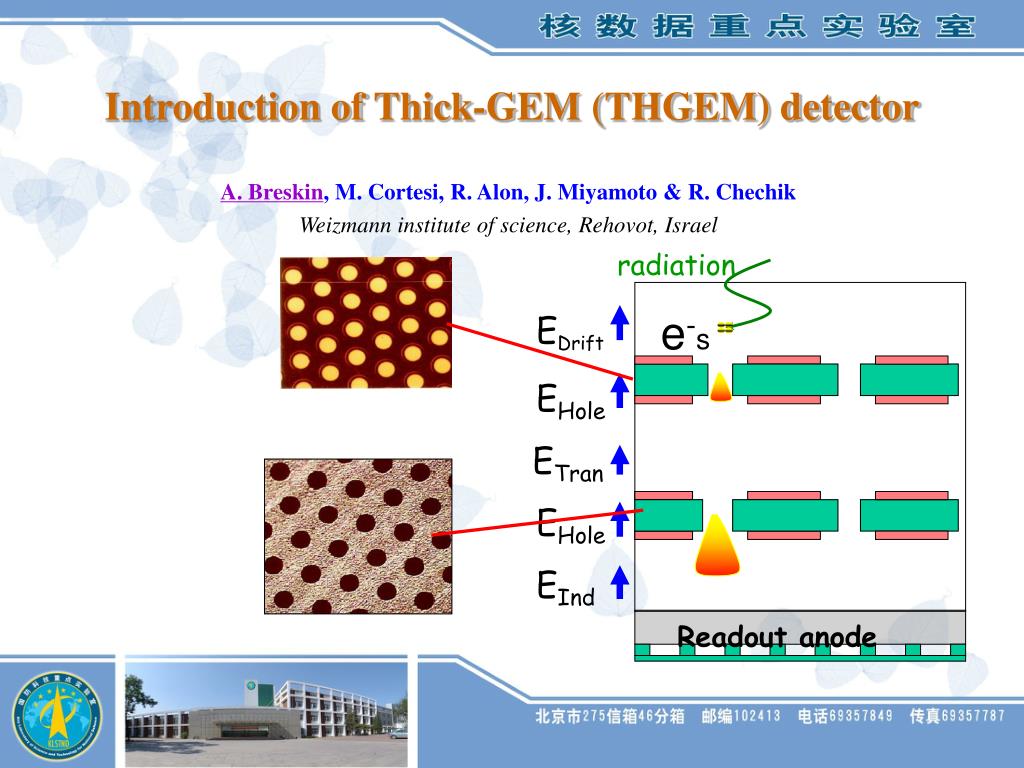

Introduction of thick gem thgem detector

Introduction of Thick-GEM (THGEM) detector

A. Breskin, M. Cortesi, R. Alon, J. Miyamoto & R. Chechik

Weizmann institute of science, Rehovot, Israel

radiation

e-s

EDrift

EHole

ETran

EHole

EInd

Readout anode

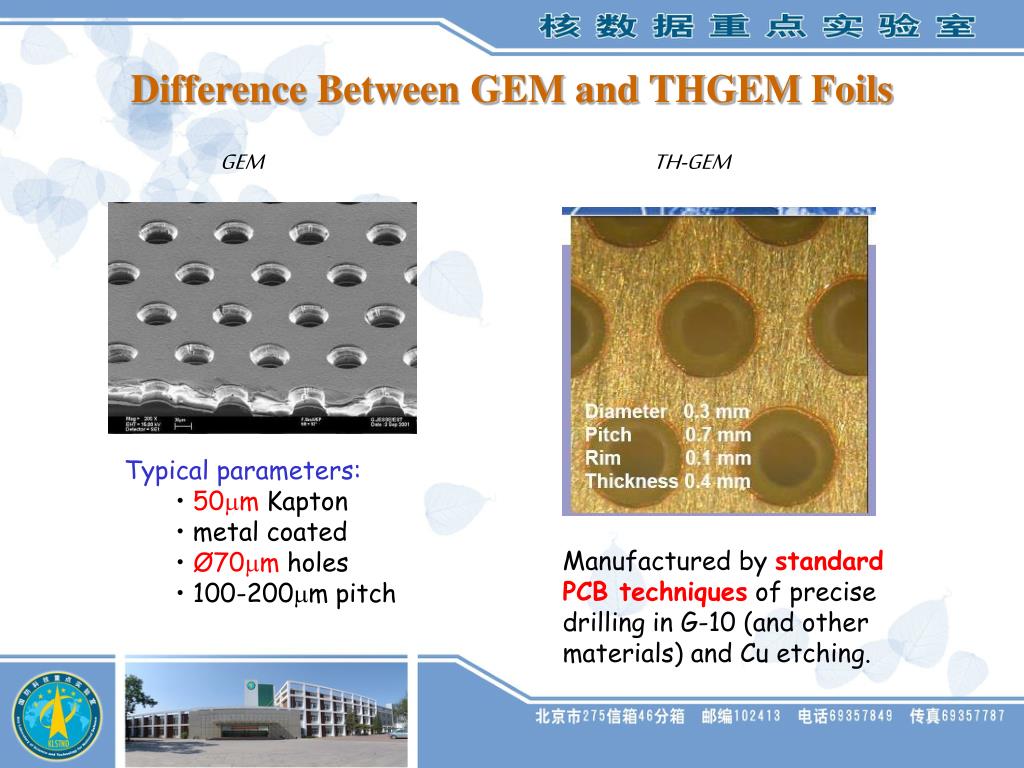

Difference between gem and thgem foils

Difference Between GEM and THGEM Foils

GEM

TH-GEM

  • Typical parameters:

    • 50mm Kapton

    • metal coated

    • Ø70mm holes

    • 100-200mm pitch

Manufactured by standard PCB techniques of precise drilling in G-10 (and other materials) and Cu etching.


Some results of thgem from breskin

Some Results of THGEM from Breskin

VHOLE [Volt]

single electrons

Single THGEM Gain 104-105

Double THGEMs gain 106-107

THGEM - Gain vs rim size

Double-THGEM

6 keV x-rays

104

pitch = 1 mm; diameter = 0.5 mm;

rim=40; 60; 80; 100; 120 mm

Recent Advances in Thick-GEM(THGEM) Detectors -Feb.2008 A. Breskin


Thgem foil made in china

THGEM Foil Made in China

THGEM from Breskin

Drills with milling cutter

40-120 mm rims

  • THGEM from IHEP

  • No such technology manufactories

  • Copper etching


Thick gem test at ihep

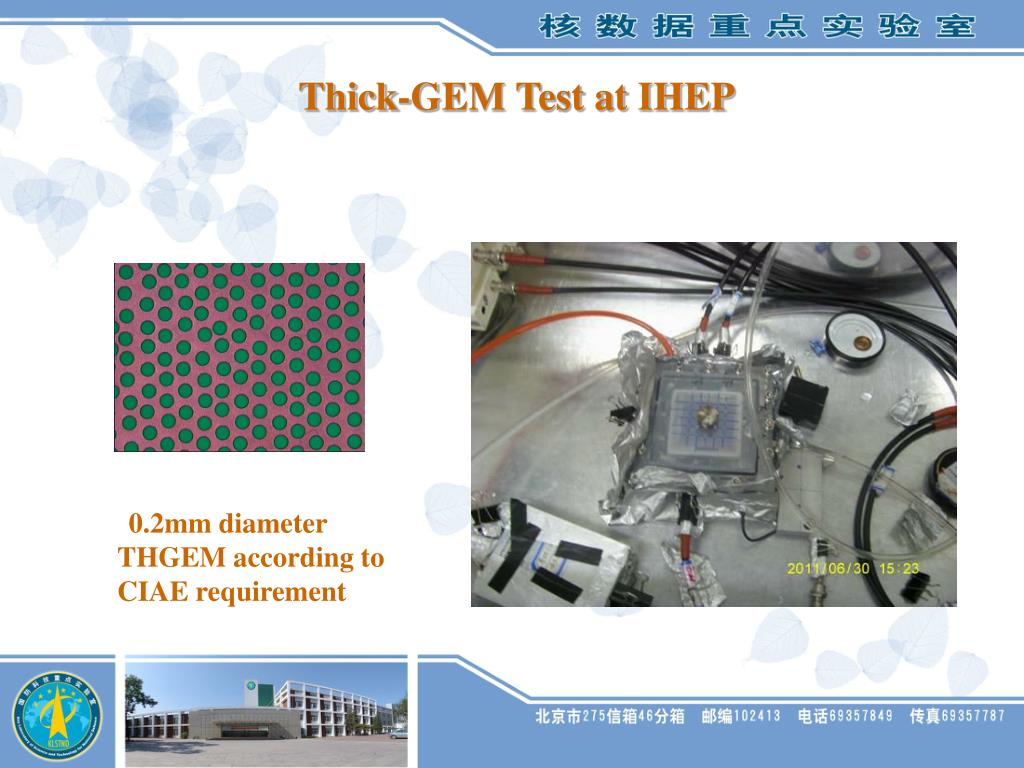

Thick-GEM Test at IHEP

0.2mm diameter THGEM according to CIAE requirement


Test of 0 2mm d iameter thgem

Test of 0.2mm Diameter THGEM


The work of gem foil at ciae

sdf

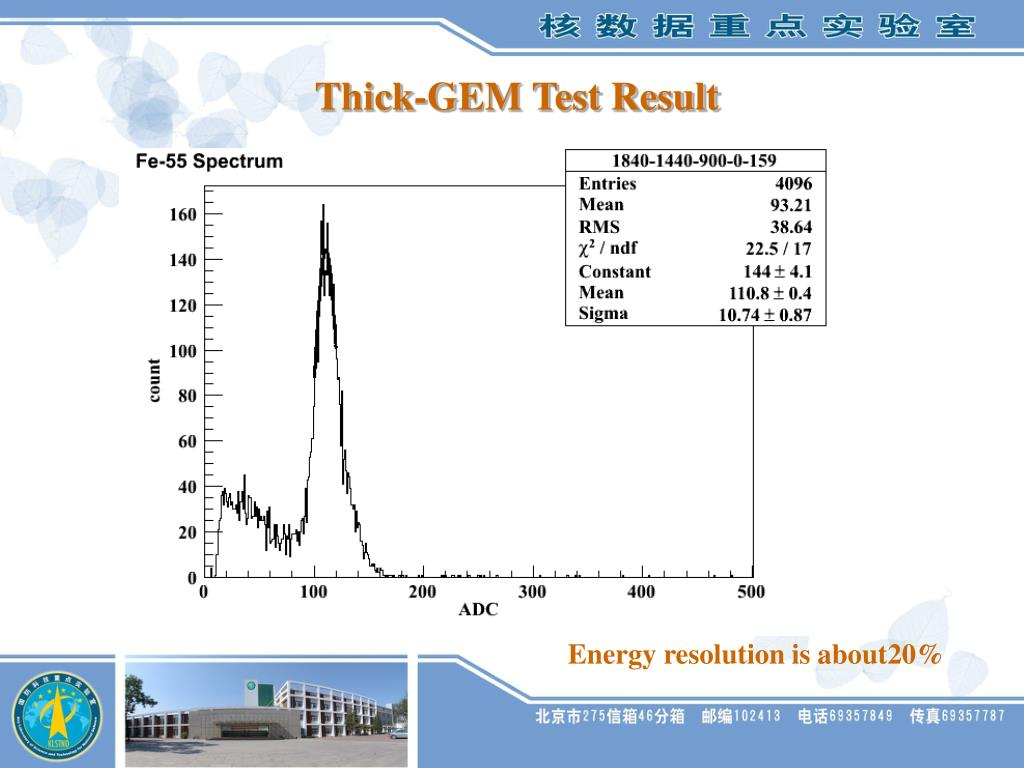

Thick-GEM Test Result

we lost some gain,but we save lots of money!cheap(~200 doller/m2)

breakdown won't damage the THGEM foil or electronics


Thick gem test result

Thick-GEM Test Result

Energy resolution is about20%


Thick gem test result1

Thick-GEM Test Result

stable in 24 hours

stability


Compare with gem detector

Compare with GEM detector

GEM THGEM

some technical difficulties most PCB factories can make

high cleanliness requirements you can put in your pocket

easily damaged durable

expensive cheap

high detection efficiency lower

spatial resolution 70μ estimate limit value is 300μm


Part 5 next step

Part 5:Next step

Copper etching

Make read-out strips

RPC manufacture(see Shouyang HU’s talk)

Use APV25 electronic test GEM spatial resolutions

Make and test GEM and THGEM detectors using the foils made in China


The work of gem foil at ciae

Thank you !
