  1. Chapter 13 Data Pump

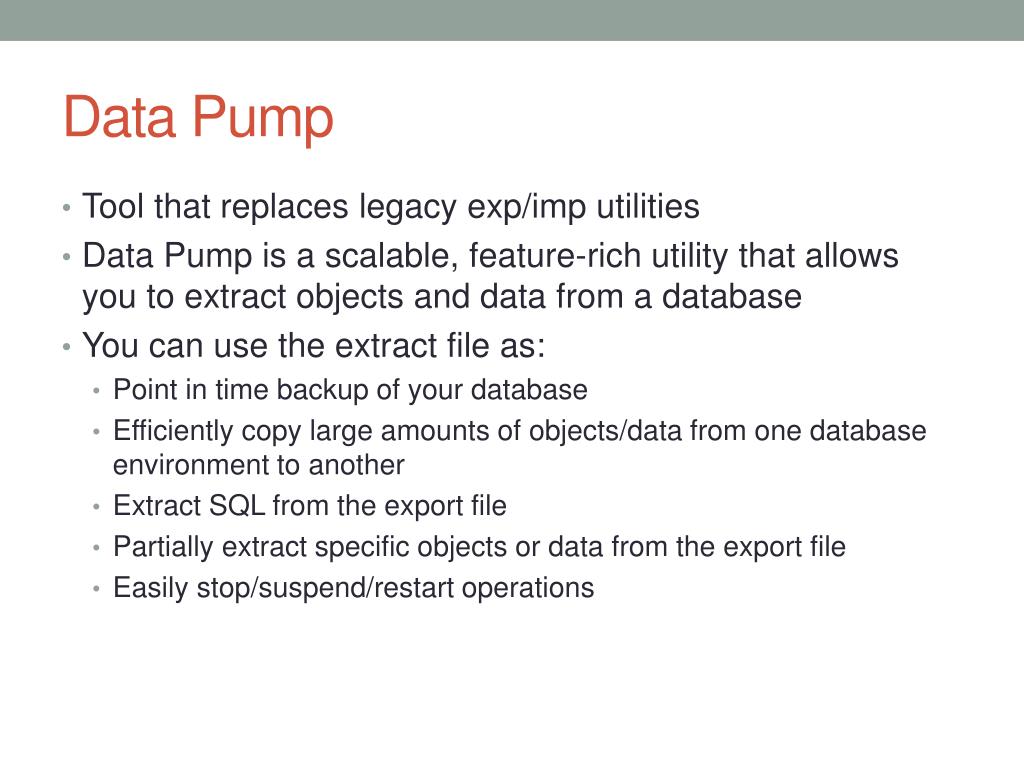

  2. Data Pump • Tool that replaces legacy exp/imp utilities • Data Pump is a scalable, feature-rich utility that allows you to extract objects and data from a database • You can use the extract file as: • Point in time backup of your database • Efficiently copy large amounts of objects/data from one database environment to another • Extract SQL from the export file • Partially extract specific objects or data from the export file • Easily stop/suspend/restart operations

  3. Data Pump Architectural Components • expdp (Data Pump export utility) • impdp (Data Pump import utility) • DBMS_DATAPUMP PL/SQL package (Data Pump API) • DBMS_METADATA PL/SQL package (Data Pump Metadata API)

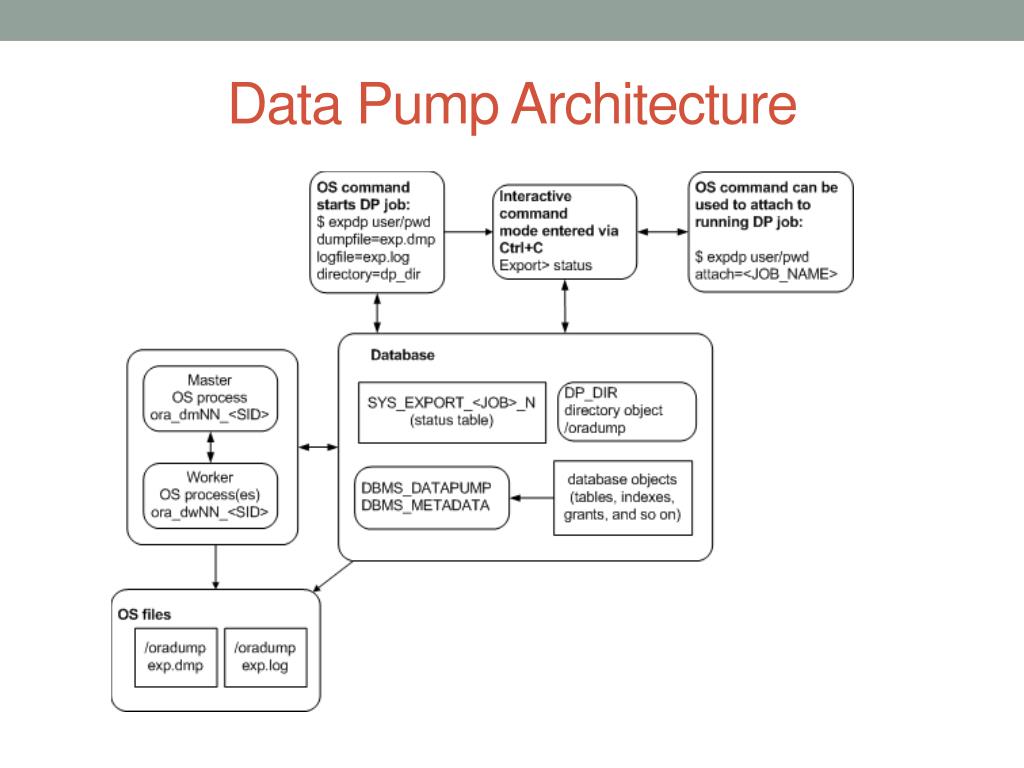

  4. Data Pump Architecture

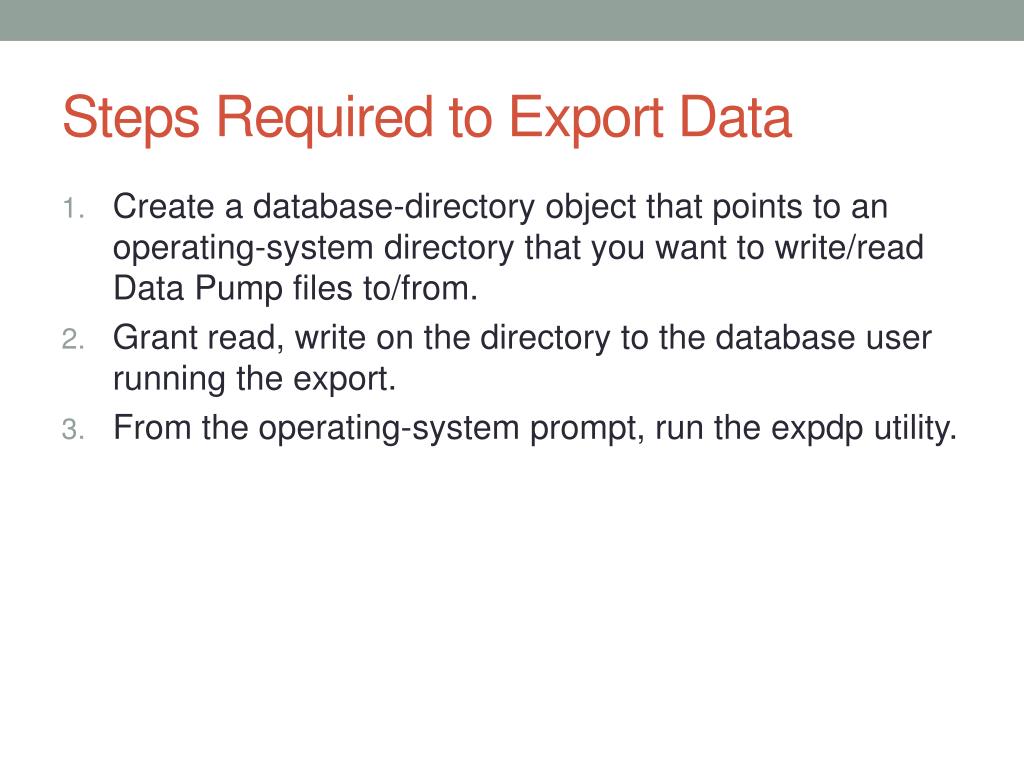

  5. Steps Required to Export Data • Create a database-directory object that points to an operating-system directory that you want to write/read Data Pump files to/from. • Grant read, write on the directory to the database user running the export. • From the operating-system prompt, run the expdp utility.

  6. Creating a Database Directory • Use CREATE DIRECTORY statement to create a directory: SQL> create directory dp_dir as '/oradump'; • View directory details: SQL> select owner, directory_name, directory_path from dba_directories;

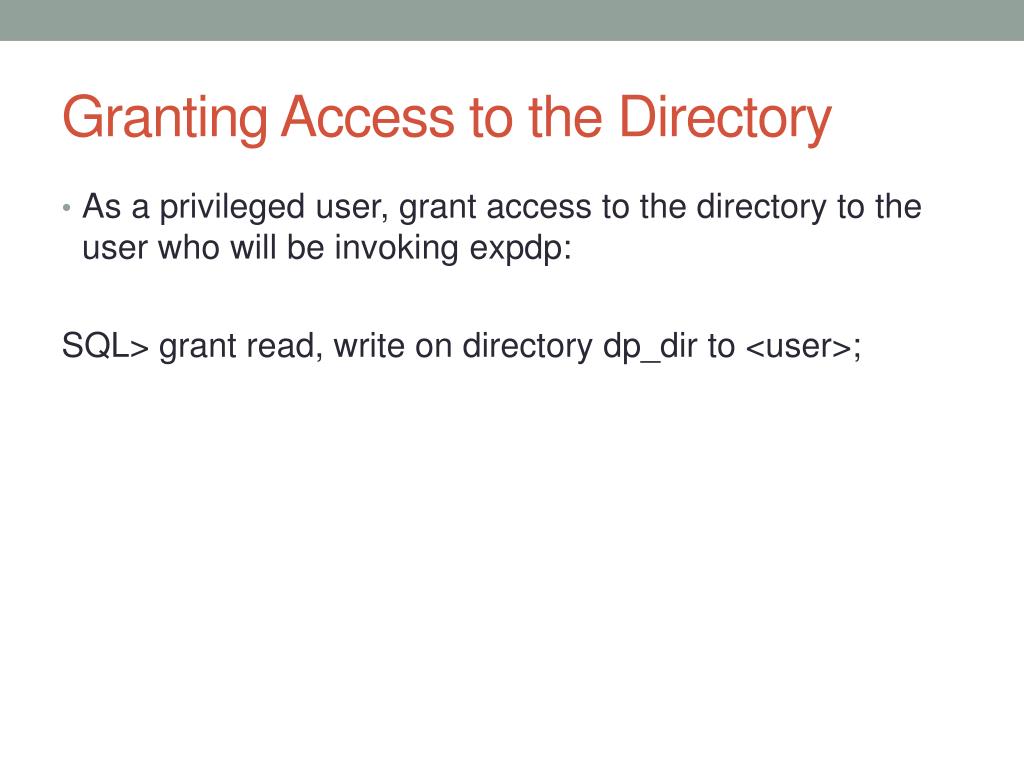

  7. Granting Access to the Directory • As a privileged user, grant access to the directory to the user who will be invoking expdp: SQL> grant read, write on directory dp_dir to <user>;

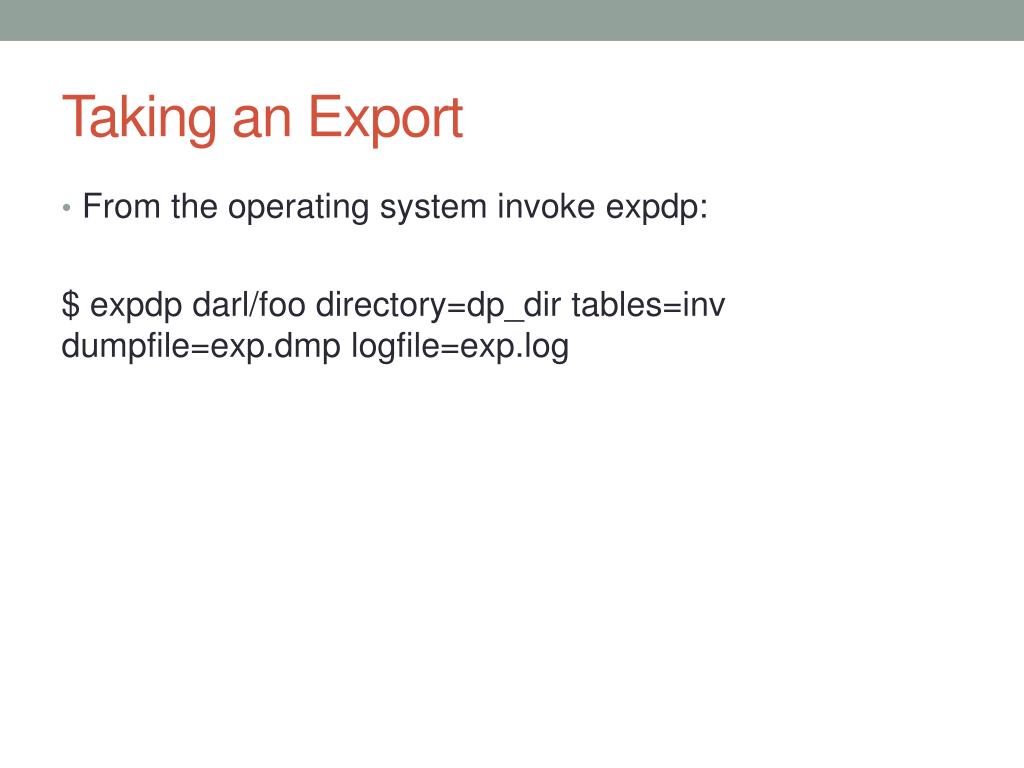

  8. Taking an Export • From the operating system invoke expdp: $ expdpdarl/foo directory=dp_dir tables=invdumpfile=exp.dmp logfile=exp.log

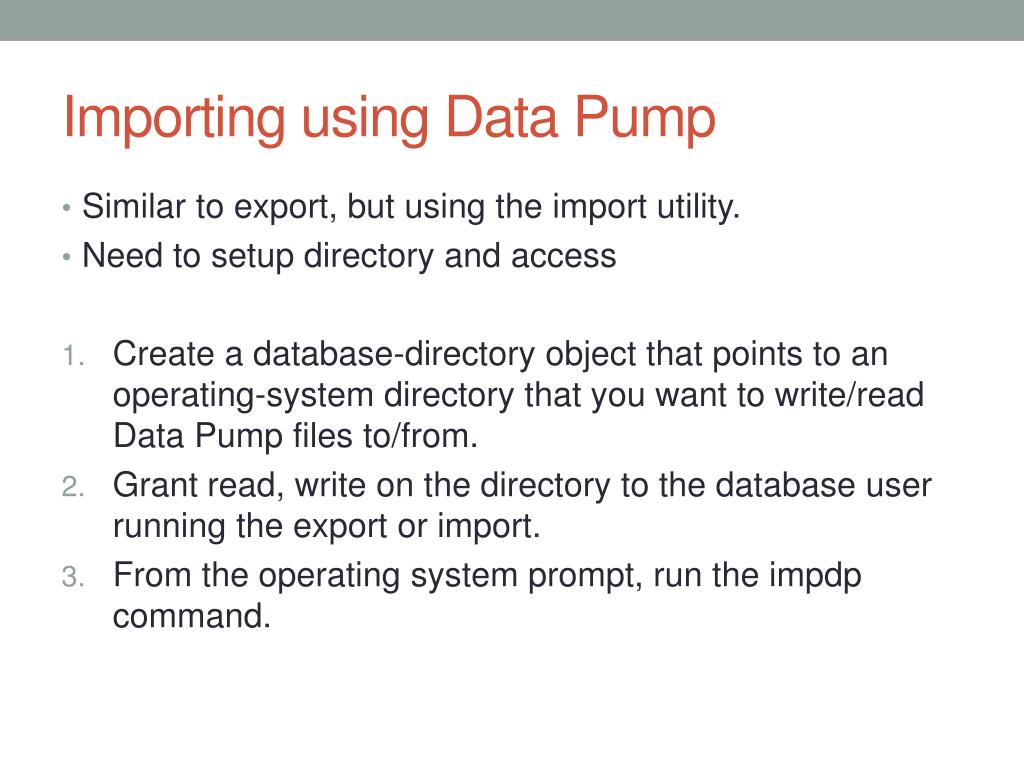

  9. Importing using Data Pump • Similar to export, but using the import utility. • Need to setup directory and access • Create a database-directory object that points to an operating-system directory that you want to write/read Data Pump files to/from. • Grant read, write on the directory to the database user running the export or import. • From the operating system prompt, run the impdp command.

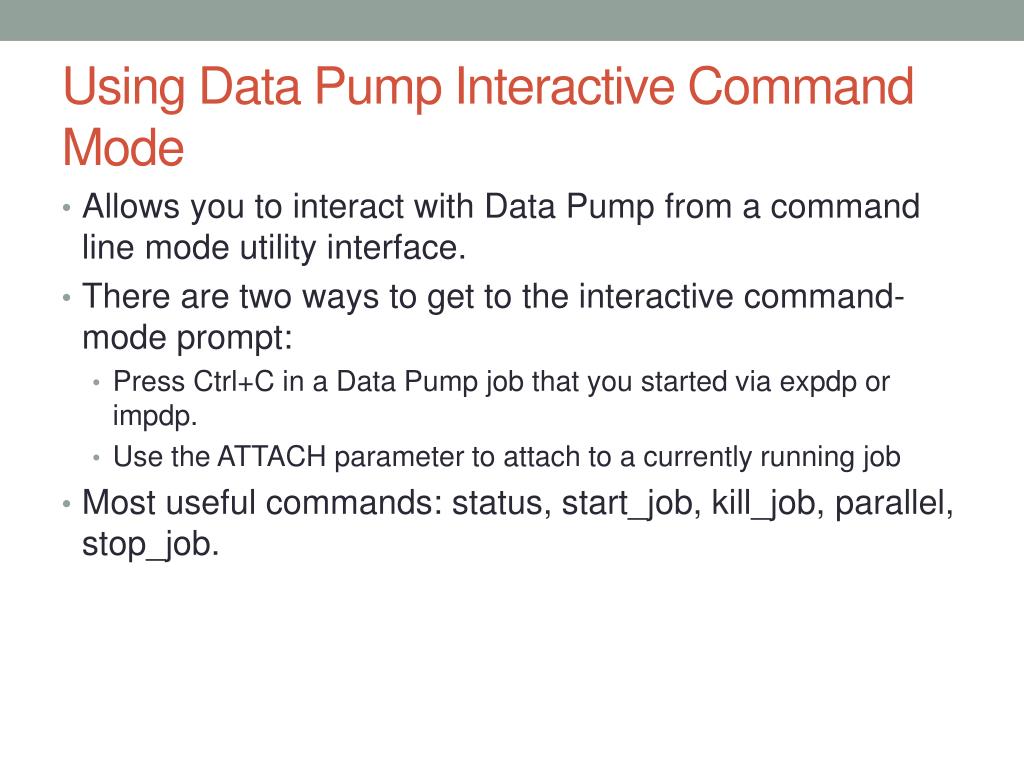

  10. Using Data Pump Interactive Command Mode • Allows you to interact with Data Pump from a command line mode utility interface. • There are two ways to get to the interactive command-mode prompt: • Press Ctrl+C in a Data Pump job that you started via expdp or impdp. • Use the ATTACH parameter to attach to a currently running job • Most useful commands: status, start_job, kill_job, parallel, stop_job.

  11. Attaching to a Running Job • You can attach to a currently running Data Pump job to view its status, stop/start it, and so on. • Determine the job name: SQL> select owner_name, operation, job_name, state from dba_datapump_jobs; • Use the ATTACH command line switch: $ impdpdarl/engdev attach=sys_import_schema_02

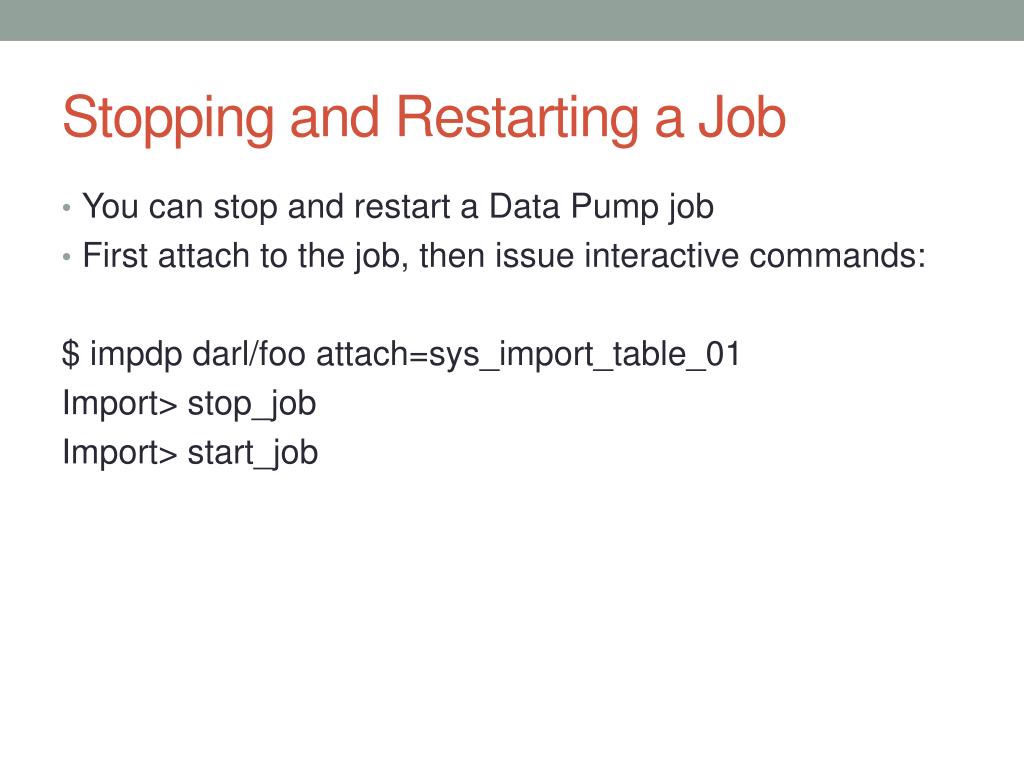

  12. Stopping and Restarting a Job • You can stop and restart a Data Pump job • First attach to the job, then issue interactive commands: $ impdpdarl/foo attach=sys_import_table_01 Import> stop_job Import> start_job

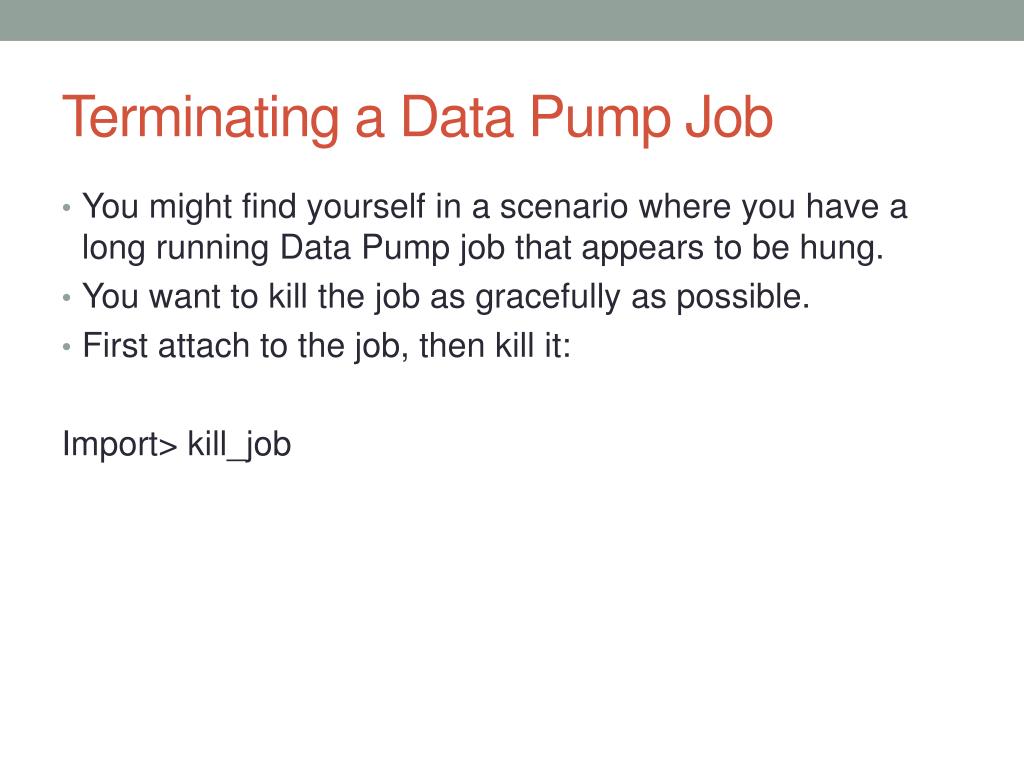

  13. Terminating a Data Pump Job • You might find yourself in a scenario where you have a long running Data Pump job that appears to be hung. • You want to kill the job as gracefully as possible. • First attach to the job, then kill it: Import> kill_job

  14. Using a Parameter File • Parameter files are useful for repeatability and consistency. • Parameter files also make it easier to handle parameters that use single and double quotes. • Sometimes single and double quotes are mis-interpreted by the OS when entered on the command line. userid=darl/foo directory=dp dumpfile=invp.dmp logfile=invp.log tables=f_sales $ impdpparfile=pfile.ctl

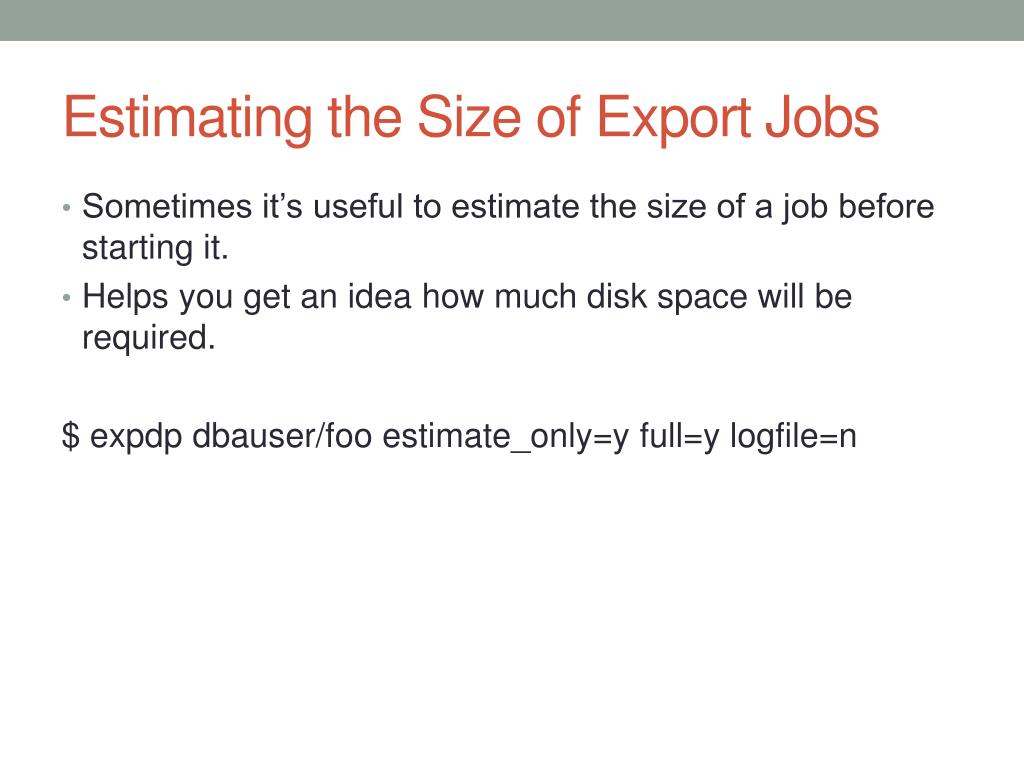

  15. Estimating the Size of Export Jobs • Sometimes it’s useful to estimate the size of a job before starting it. • Helps you get an idea how much disk space will be required. $ expdpdbauser/foo estimate_only=y full=y logfile=n

  16. Listing the Contents of Dump Files • Allows you to translate the contents of a dump file created by expdpinto SQL statements. • Very handy for generating a copy of the SQL required to re-create an environment. • Use the SQLFILE parameter: $ impdphr/hr DIRECTORY=dpump_dir1 DUMPFILE=expfull.dmp \ SQLFILE=dpump_dir2:expfull.sql • In this mode, impdp doesn’t import anything, it only creates a file that contains the SQL required to re-create objects within the dump file.

  17. Exporting and Importing Directly Across the Network • Powerful technique for copying environments. • Efficient way to copy users and data from one database to another. • Create users in target environment. • Create a database link • Create a directory object. • Run the impdp command using the NETWORK_LINK • parameter that points at the database link you created in the prior step.

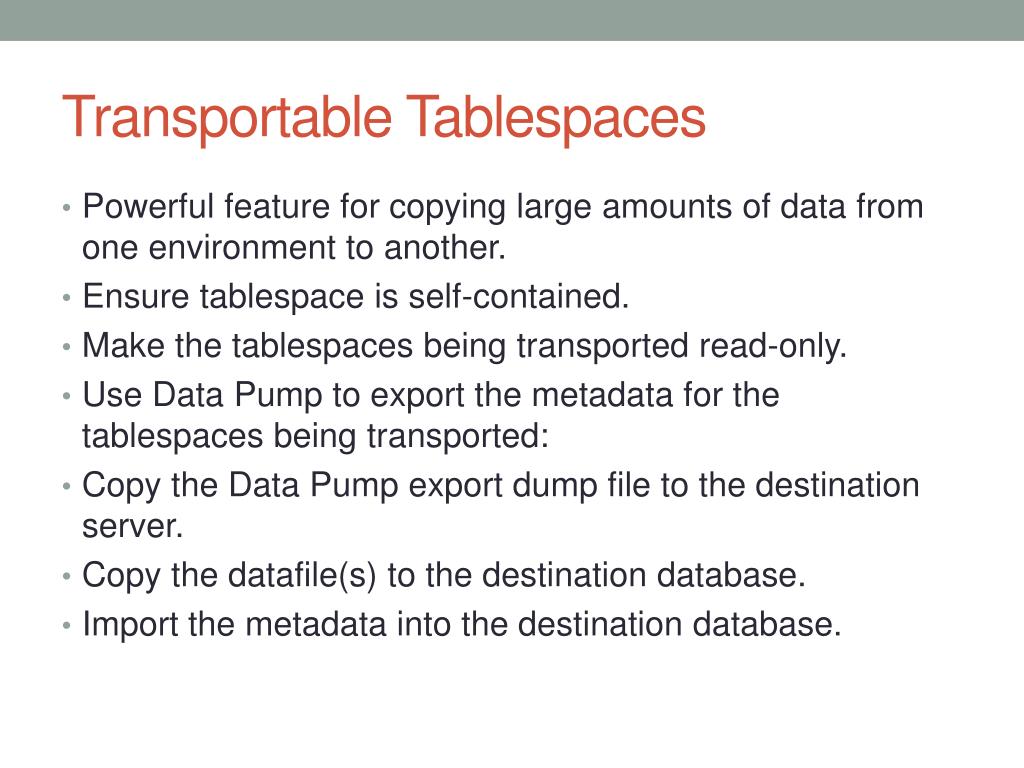

  18. Transportable Tablespaces • Powerful feature for copying large amounts of data from one environment to another. • Ensure tablespace is self-contained. • Make the tablespaces being transported read-only. • Use Data Pump to export the metadata for the tablespaces being transported: • Copy the Data Pump export dump file to the destination server. • Copy the datafile(s) to the destination database. • Import the metadata into the destination database.

  19. Exporting Tablespace Metadata • Sometimes it’s useful to capture tablespace information and transfer it to a new database environment. • Use a combination of FULL and INCLUDE=TABLESPACE. $ expdpdarl/foo directory=dpdumpfile=phredstg.dmp content=metadata_only full=y \ include=tablespace

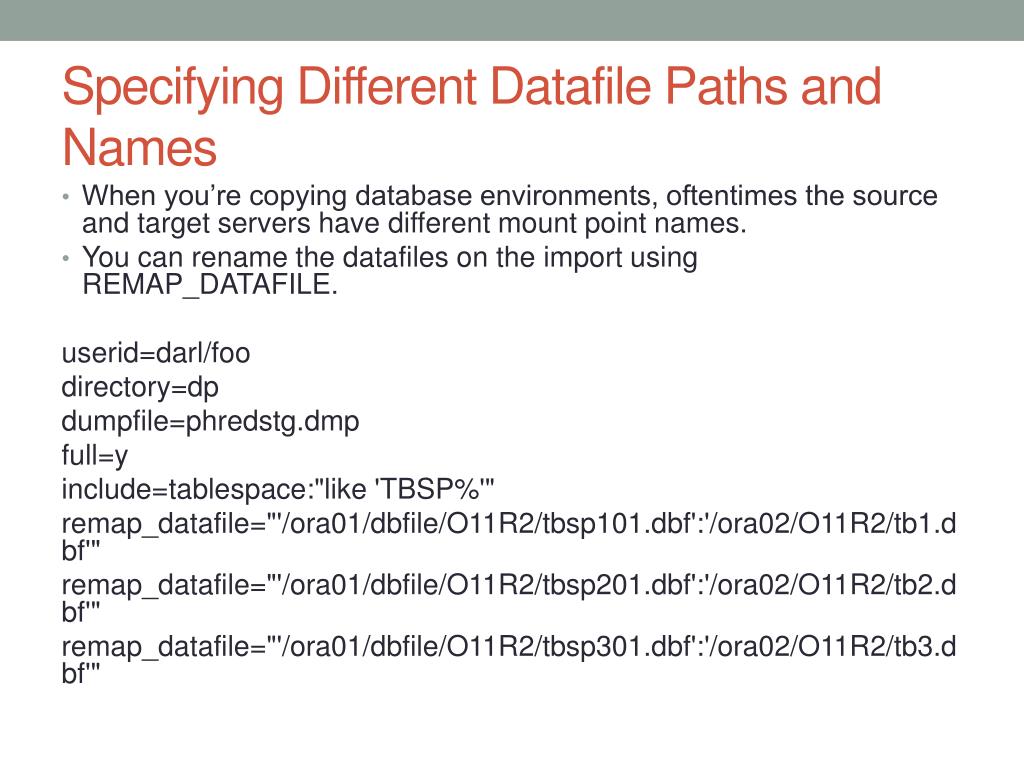

  20. Specifying Different Datafile Paths and Names • When you’re copying database environments, oftentimes the source and target servers have different mount point names. • You can rename the datafiles on the import using REMAP_DATAFILE. userid=darl/foo directory=dp dumpfile=phredstg.dmp full=y include=tablespace:"like 'TBSP%'" remap_datafile="'/ora01/dbfile/O11R2/tbsp101.dbf':'/ora02/O11R2/tb1.dbf'" remap_datafile="'/ora01/dbfile/O11R2/tbsp201.dbf':'/ora02/O11R2/tb2.dbf'" remap_datafile="'/ora01/dbfile/O11R2/tbsp301.dbf':'/ora02/O11R2/tb3.dbf'"

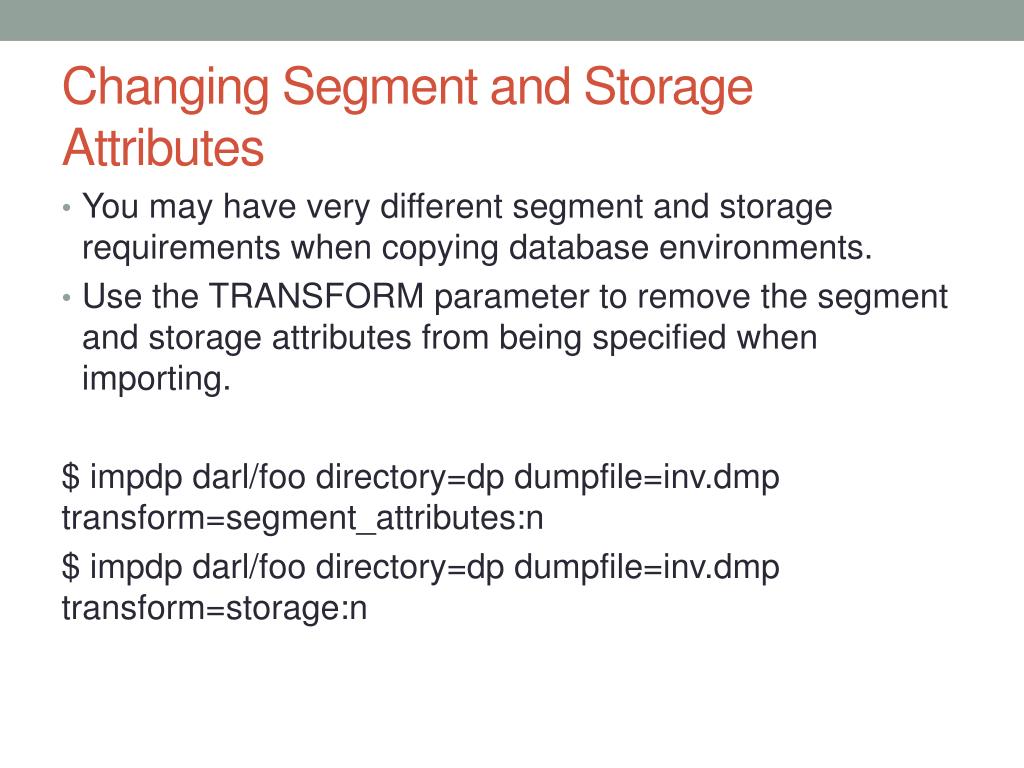

  21. Changing Segment and Storage Attributes • You may have very different segment and storage requirements when copying database environments. • Use the TRANSFORM parameter to remove the segment and storage attributes from being specified when importing. $ impdpdarl/foo directory=dpdumpfile=inv.dmp transform=segment_attributes:n $ impdpdarl/foo directory=dpdumpfile=inv.dmp transform=storage:n

  22. Importing into a Different Tablespace from the Original • You may want to export a user and when importing map the old user to a new username and map the old tablespaces associated with the user’s objects to new tablespace names. • Use REMAP_SCHEMA and REMAP_TABLESPACE $ impdpdarl/foo directory=dpdumpfile=rm.dmpremap_schema=HEERA:CHAYA \ remap_tablespace=TBSP1:V_DATA tables=heera.ticket

  23. Sophisticated Filtering Mechanisms • Use the QUERY parameter to export or import subsets of data. • Use the SAMPLE parameter to export a percentage of the rows in a table. • Use the CONTENT parameter to exclude or include data and metadata. • Use the EXCLUDE parameter to specifically name items to be excluded. • Use the INCLUDE parameter to name the items to be included (thereby excluding other non-dependent items not included in the list). • Use parameters like SCHEMA to specify that you only want a subset of the database’s objects (those that belong to the specified user or users).

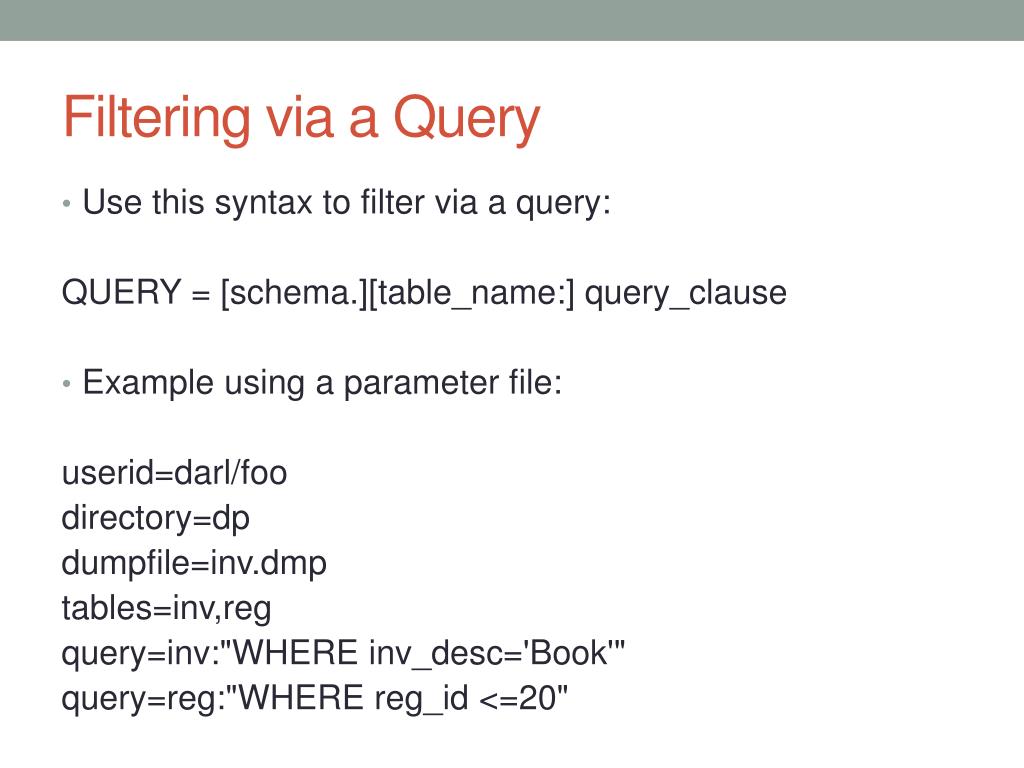

  24. Filtering via a Query • Use this syntax to filter via a query: QUERY = [schema.][table_name:] query_clause • Example using a parameter file: userid=darl/foo directory=dp dumpfile=inv.dmp tables=inv,reg query=inv:"WHERE inv_desc='Book'" query=reg:"WHERE reg_id <=20"

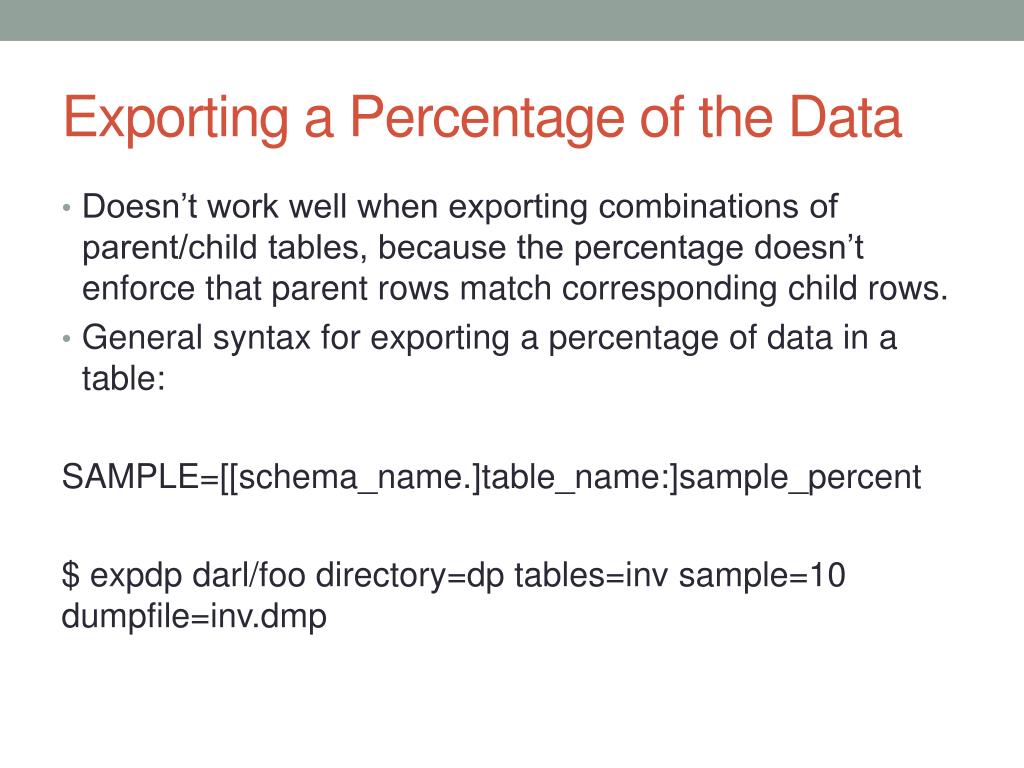

  25. Exporting a Percentage of the Data • Doesn’t work well when exporting combinations of parent/child tables, because the percentage doesn’t enforce that parent rows match corresponding child rows. • General syntax for exporting a percentage of data in a table: SAMPLE=[[schema_name.]table_name:]sample_percent $ expdpdarl/foo directory=dp tables=inv sample=10 dumpfile=inv.dmp

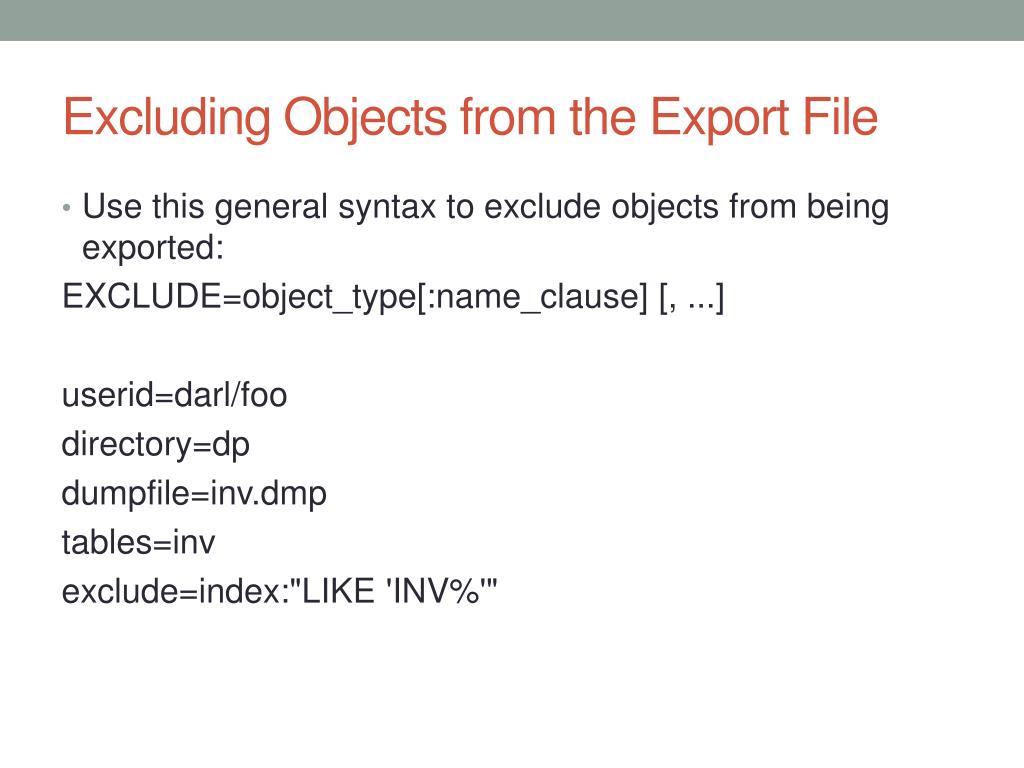

  26. Excluding Objects from the Export File • Use this general syntax to exclude objects from being exported: EXCLUDE=object_type[:name_clause] [, ...] userid=darl/foo directory=dp dumpfile=inv.dmp tables=inv exclude=index:"LIKE 'INV%'"

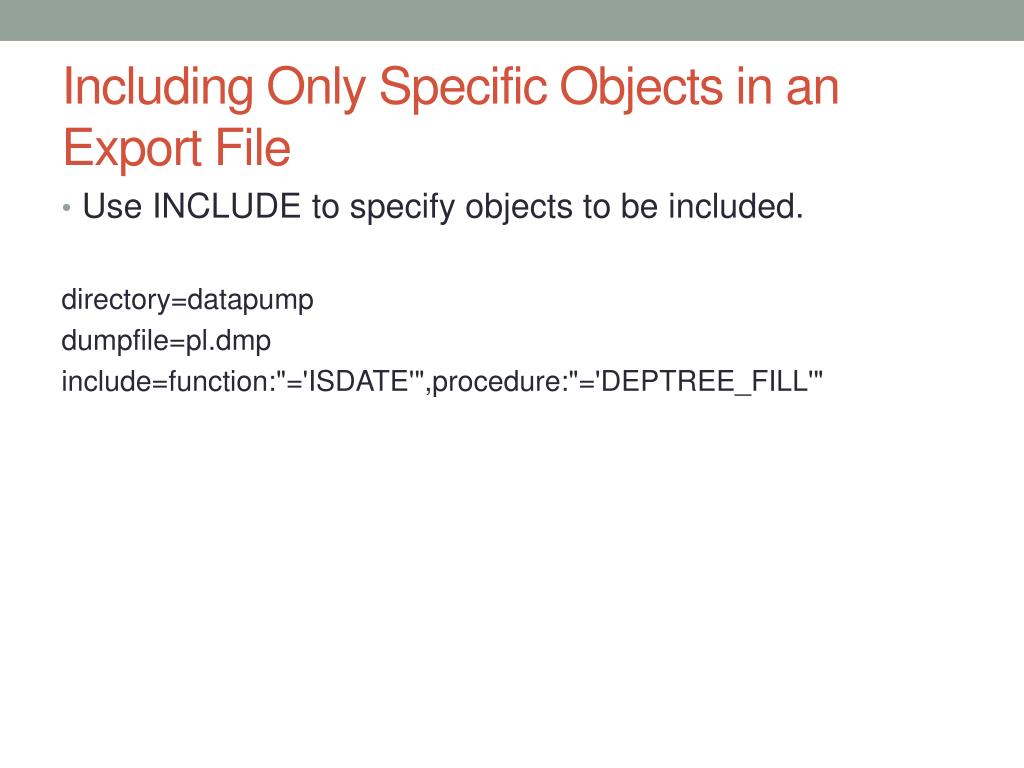

  27. Including Only Specific Objects in an Export File • Use INCLUDE to specify objects to be included. directory=datapump dumpfile=pl.dmp include=function:"='ISDATE'",procedure:"='DEPTREE_FILL'"

  28. Excluding Objects from Import • Use EXCLUDE to exclude objects on import. impdpdarl/foo dumpfile=d.dmp directory=dp exclude=TRIGGER,PROCEDURE

  29. Including Objects in Import • To only include objects on import, use INCLUDE: userid=darl/foo directory=dp dumpfile=h.dmp schemas=HEERA include=table:"like 'A%'"

  30. Creating a Consistent Export • No consistent=y switch (like the old exp utility) • Use flashback_scn or flashback_time SQL> select current_scn from v$database; $ expdpdarl/foo directory=dpflashback_scn=8400741902387

  31. Importing When Objects Already Exist • Use TABLE_EXISTS_ACTION to specify behavior if the object already exists • The TABLE_EXISTS_ACTION parameter takes the following options: • SKIP (default if not combined with CONTENT=DATA_ONLY) • APPEND (default if combined with CONTENT=DATA_ONLY) • REPLACE • TRUNCATE

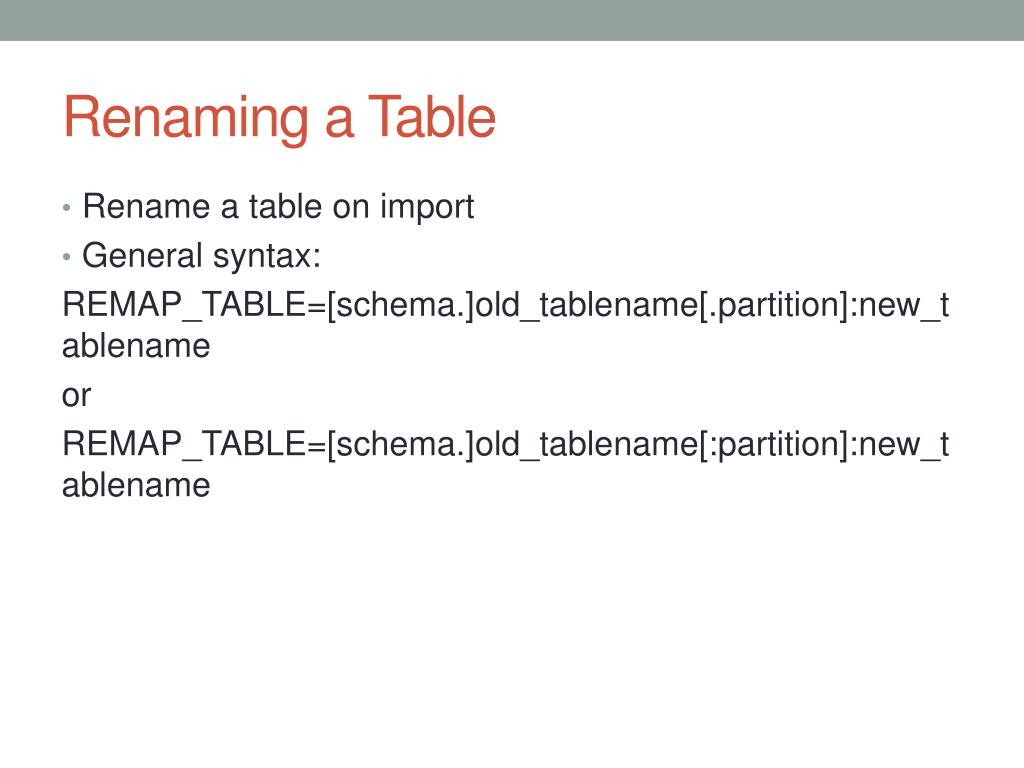

  32. Renaming a Table • Rename a table on import • General syntax: REMAP_TABLE=[schema.]old_tablename[.partition]:new_tablename or REMAP_TABLE=[schema.]old_tablename[:partition]:new_tablename

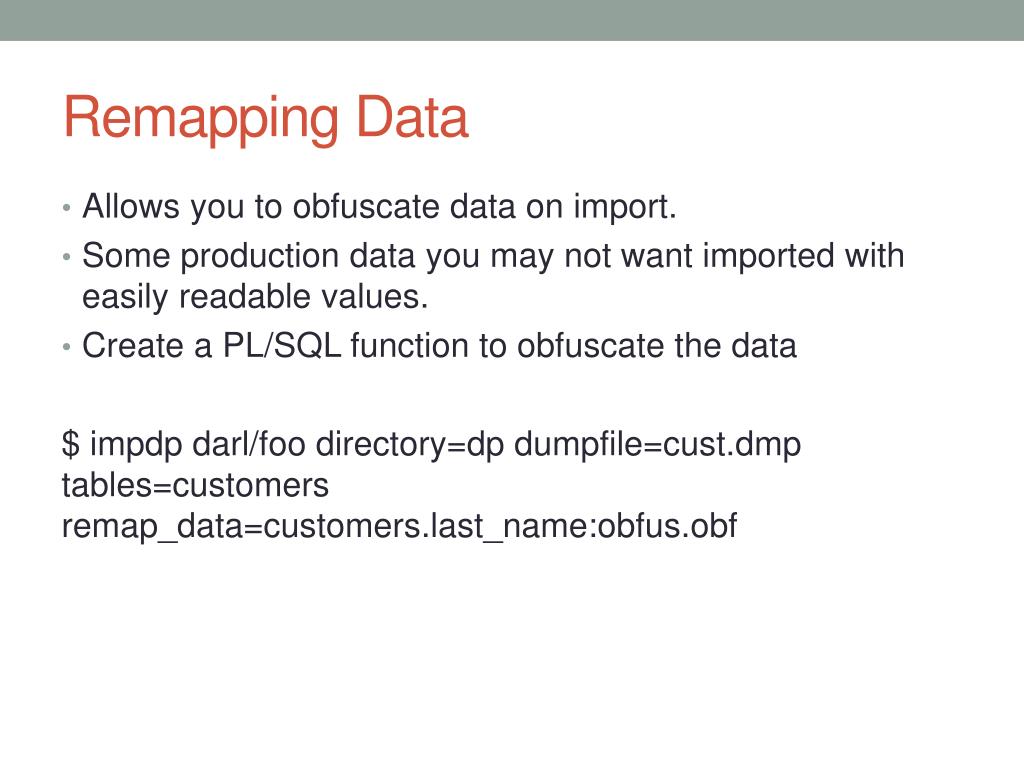

  33. Remapping Data • Allows you to obfuscate data on import. • Some production data you may not want imported with easily readable values. • Create a PL/SQL function to obfuscate the data $ impdpdarl/foo directory=dpdumpfile=cust.dmptables=customers remap_data=customers.last_name:obfus.obf

  34. Cloning a User • Use REMAP_SCHEMA to rename a user during import $ impdpdarl/foo directory=dpremap_schema=inv:inv_dwdumpfile=inv.dmp

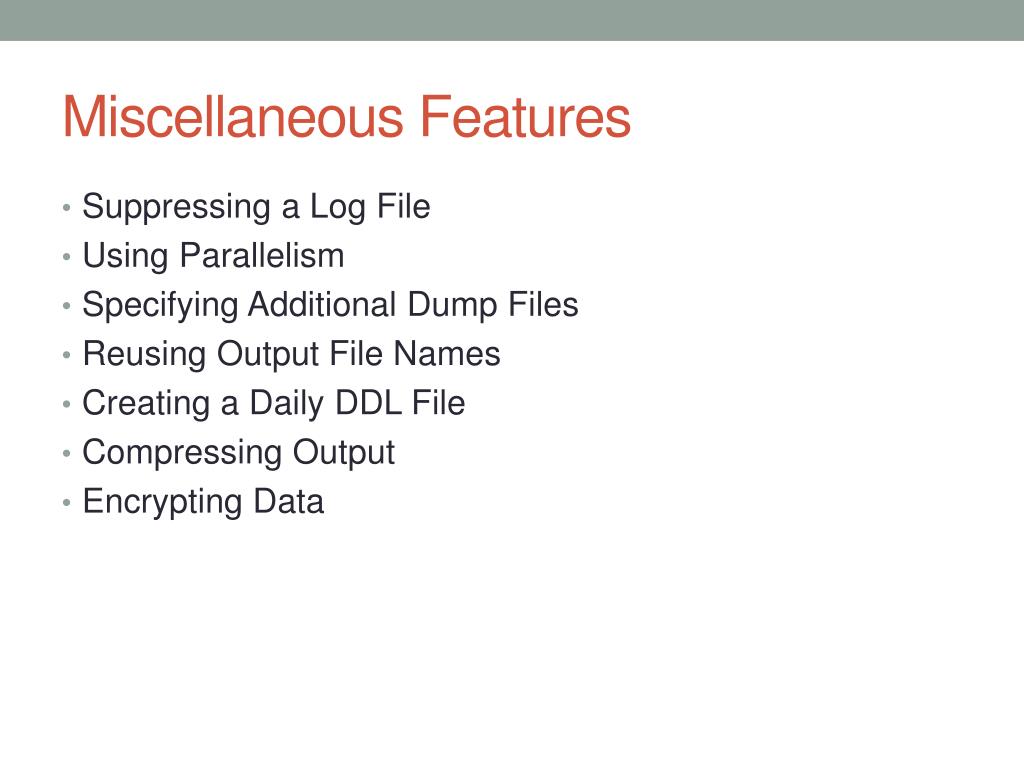

  35. Miscellaneous Features • Suppressing a Log File • Using Parallelism • Specifying Additional Dump Files • Reusing Output File Names • Creating a Daily DDL File • Compressing Output • Encrypting Data

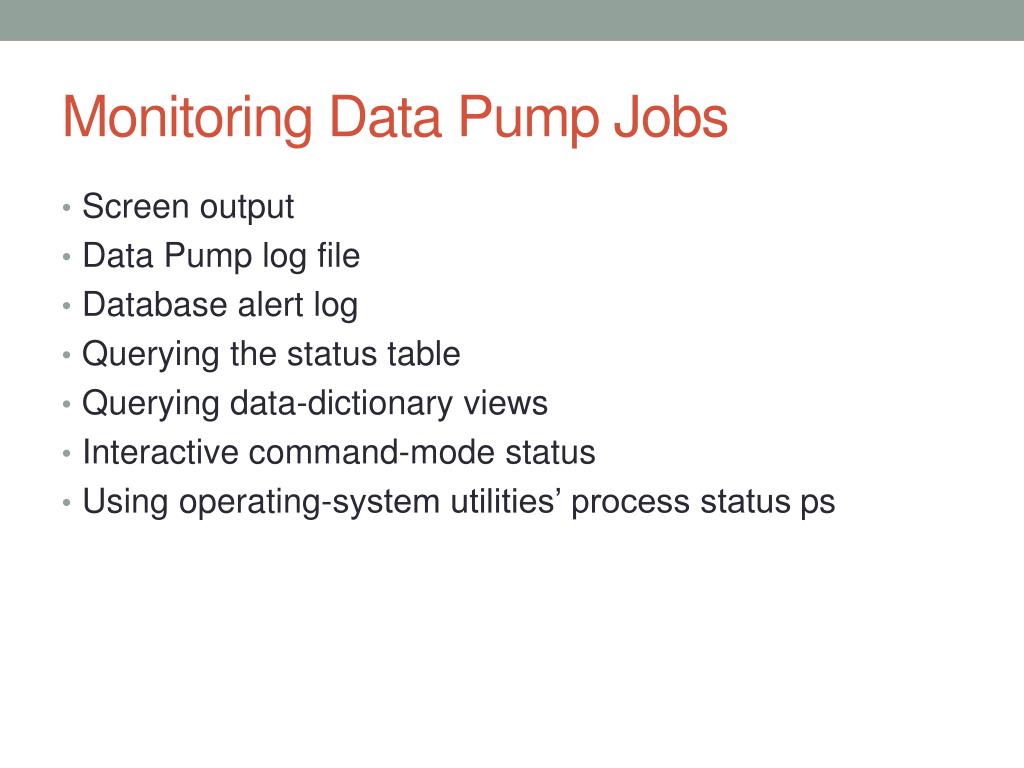

  36. Monitoring Data Pump Jobs • Screen output • Data Pump log file • Database alert log • Querying the status table • Querying data-dictionary views • Interactive command-mode status • Using operating-system utilities’ process status ps

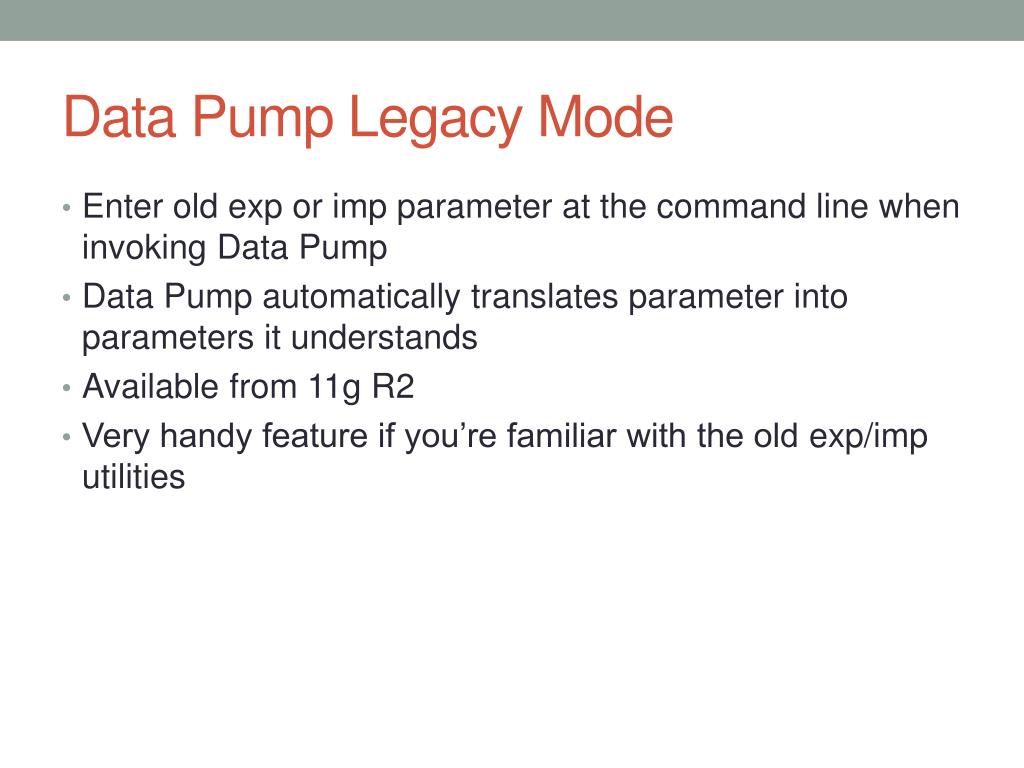

  37. Data Pump Legacy Mode • Enter old exp or imp parameter at the command line when invoking Data Pump • Data Pump automatically translates parameter into parameters it understands • Available from 11g R2 • Very handy feature if you’re familiar with the old exp/imp utilities

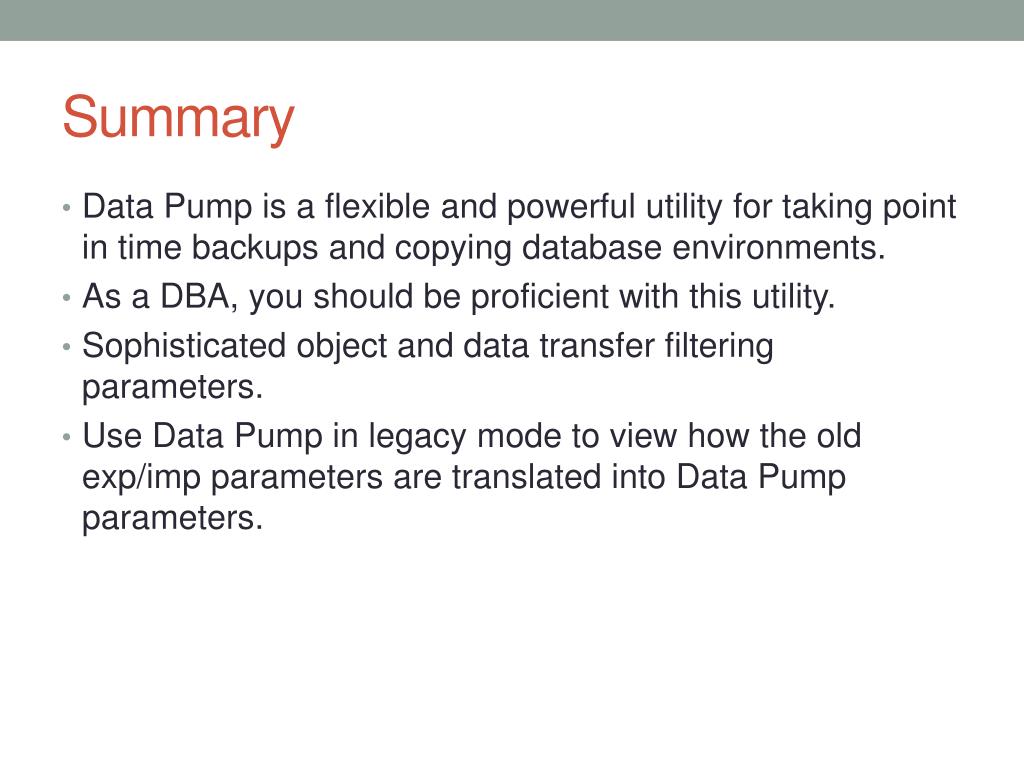

  38. Summary • Data Pump is a flexible and powerful utility for taking point in time backups and copying database environments. • As a DBA, you should be proficient with this utility. • Sophisticated object and data transfer filtering parameters. • Use Data Pump in legacy mode to view how the old exp/imp parameters are translated into Data Pump parameters.
