  1. Tools of Aeronautics

  2. Tools of Aeronautics • Four tools test aeronautics hypotheses • Wind tunnel testing • Computational fluid dynamics • Flight simulation • Flight test • Testing tools were developed only within the last 100 years

  3. Wind Tunnel • First tool to be developed • Used since the time of the Wright brothers • Moves wind past a stationary object instead of moving the object through the air • Advantages • Safer • Cheaper • Controlled environment

  4. Wind Tunnel • Disadvantages • Creation of wind tunnel airflow requires a lot of energy. • Maintenance of machinery, equipment, and tunnels is expensive. • Airplane models must be made with precision and durability, which requires time and money.

  5. Computational Fluid Dynamics • Idea conceived in the 1960s to run wind tunnel tests in a computer • Initial computers were large, slow, and cumbersome • Computers were able to accurately predict forces and pressures • Computers were able to graphically display fluid forces on an object

  6. Navier-Stokes Equations Aren’t you glad we have computers that perform these computations for us?

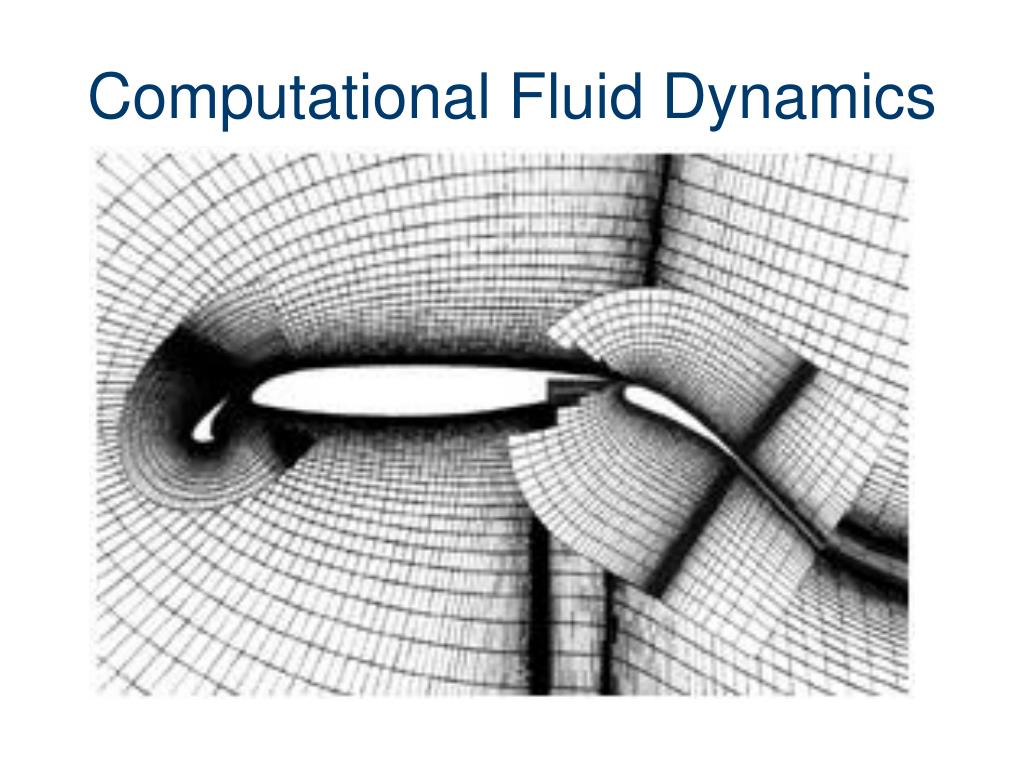

  7. Computational Fluid Dynamics

  8. Computational Fluid Dynamics

  9. Computational Fluid Dynamics • Many models are so complex that hours are needed, even with today’s computers, to analyze the data. • Graphics present an incredibly large amount of complex information in a manner that enables researchers to quickly and accurately draw conclusions from their data.

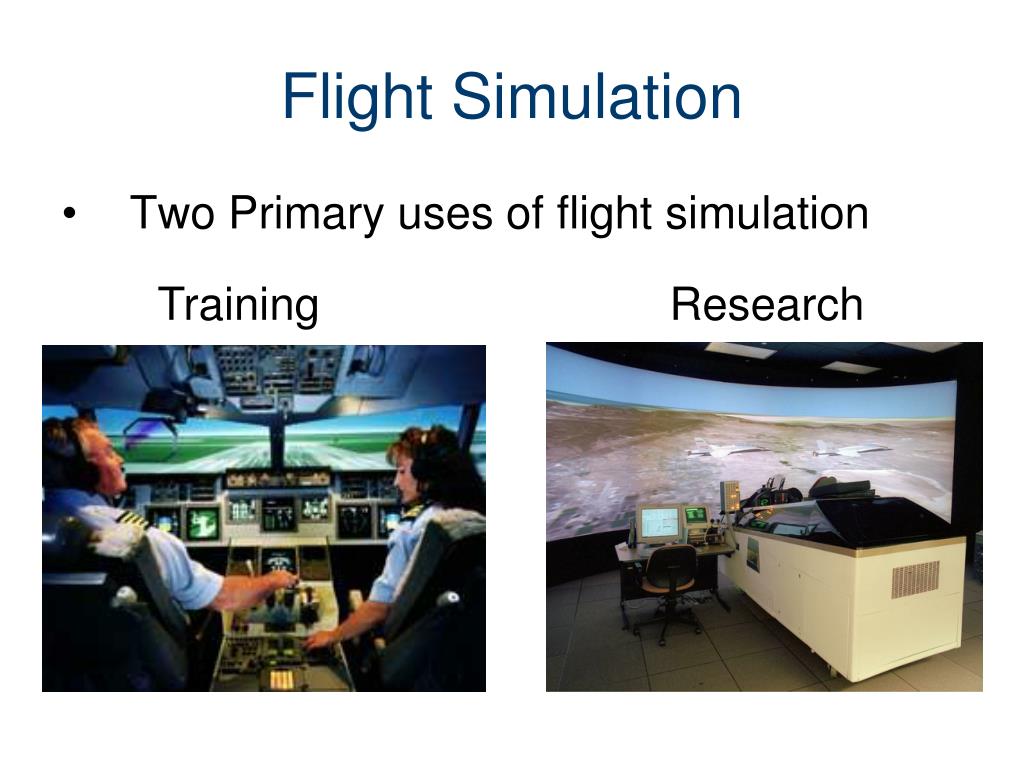

  10. Flight Simulation • Two Primary uses of flight simulation • Training Research

  11. Flight Simulation How Does It Work? • Similar to CFD, a math model of the test plane is programmed into a computer. • The computer controls a cockpit mock-up designed to look like the interior of an airplane. • A motion system simulates the movements of an airplane. • Computers create scenery for the pilot. • Sound systems and instruments work together to provide the pilot with an extremely realistic flying environment.

  12. Flight Test • Final phase of flight development • Flight testing verifies predictions made in prior phases of flight development • Based on the results of a flight test, an airplane may be tested further using one of the other three tools, or more flight tests may be recommended.
