  1. errata • EuSecWest website references IOActive • No longer IOActive employee • Independent contractor with IOActive • Research is the work of myself and does not relate to IOActive • No one at IOActive doing similar research

  2. What?! • Interpreters serve as abstraction layer • Conceptually similar to VMs used in managed languages (i.e. Java or .Net) • Attacks against interpreted languages typically focus around ‘traditional web-app attacks’ • Poison NULL byte complications • SQL Injection • Et cetera • Traditionally thought of as being immune to problems that plague other languages- i.e. buffer overflows /* PSz 12 Nov 03 * * Be proud that perl(1) may proclaim: * Setuid Perl scripts are safer than C programs … * Do not abandon (deprecate) suidperl. Do not advocate C wrappers. *

  3. Reason for Rhyme • Usage of web and managed applications only going to increase • Gap between how these are attacked • Protections against application based attack are C-centric • Stack cookies • Higher layers of abstraction may have their own call stacks • Heap cookies protect against heap memory corruption • Many languages implement their own allocator that lack cookies • The unlink() macro sanity checks the forward/backward pointers • Many languages implement their own allocator that lack sanity checks • Linked lists often implemented on top of block of memory • NX protects against execution • Byte code is read/interpreted, not executed • ASLR protects against return-to-libc/et cetera • Still valid

  4. But, the future of insecurity? • Hacking community is largely content with the world as it is • World is changing • Most OSs ship with some hardening anymore • GCC ships with SSP • Visual Studio 2005 is pretty effective • Interpreted & Managed language use on the rise • We don’t get to choose what the applications we break are written in • Adapt or die • Maybe not the future • But, I’m at least thinking about it

  5. Goals & Prior Art • Goals: • Memory Corruption bug in interpreter • Attack interpreted language metadata • Return into interpreted language bytecode • Stephan Esser • Hardened PHP, Month of PHP bugs, et cetera • Mark Dowd • Leveraging the ActionScript Virtual Machine

  6. Damn the torpedoes • In Mid-April 2008 Google rolled out ‘AppEngine’ • AppEngine ‘enables you to build web applications on the same scalable systems that power Google applications’ • AKA Here’s a python interpreter, you can’t break us. • A flagship example is the shell application • Literally a web-based interface to the interpreter • Interpreter runs in a restricted environment • All file-based I/O is (supposed to be) disabled and a Google specific datastore API is provided • Subprocesses, threads, et cetera disabled • No sockets • Many modules disabled or modified • Perfect target.

  7. Abba Zabba, you my only friend • Having direct access to the interpreter allows *a lot* of flexibility • Stopping address space leaks becomes incredibly problematic (sys._getframe() ?) • Attacker can manipulate interpreter state to match necessary conditions • Situation is the same that shared hosting providers have faced for years • Except now its Google, they’re pushing this for enterprise use, and the attack surface has been acknowledged

  8. But interpreted languages don’t have buffer overflows… • More common than expected • CVE-2008-1679: Multiple integer overflows in imageop module • CVE-2008-1887: Signedness issues in PyString_FromStringAndSize() • CVE-2008-1721: Signedness issues cause buffer overflow in zlib module • CVE-2008-XXXX: Integer overflow leads to buffer overflow in Unicode processing • CVE-2008-XXXX: Integer overflow leads to buffer overflow in Buffer objects • Et cetera • Interpreter code still relatively ‘virgin’ • Many in Python due to extensive use of signed integers

  9. On 0-day • Over next few slides several bugs are discussed • Some are reported and patched • Some are reported and unpatched • Some are undisclosed and unpatched • Not all bugs are equal • Most occur in unusual circumstances • Most require direct interpreter access • Others are typically unexploitable (i.e. memcpy() of 4G) • Most undisclosed were found in a very short period of time • Point is, they exist & they’re not hard to find

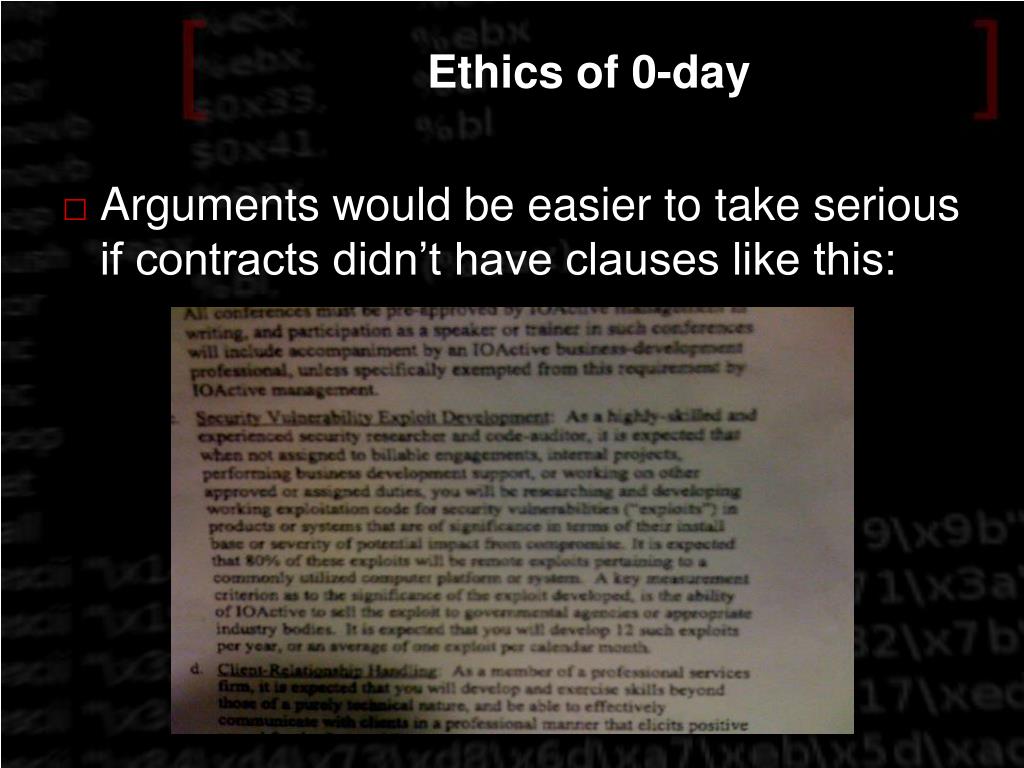

  10. Ethics of 0-day • Arguments would be easier to take serious if contracts didn’t have clauses like this:

  11. When good APIs go bad • Patched in CVS, broken in Python versions up to 2.5.2 • Also in PyBytes_FromStringAndSize() & PyUnicode_FromStringAndSize() 52 PyObject * 53 PyString_FromStringAndSize(const char *str, Py_ssize_t size) 54 { 55 register PyStringObject *op; 56 assert(size >= 0); 57 if (size == 0 && (op = nullstring) != NULL) { […] 63 } 64 if (size == 1 && str != NULL && 65 (op = characters[*str & UCHAR_MAX]) != NULL) 66 { […] 72 } 73 74 /* Inline PyObject_NewVar */ 75 op = (PyStringObject *)PyObject_MALLOC(sizeof(PyStringObject) + size);

  12. Where the wild things roam.. • Currently reported but unpatched • Like previous example causes faults in numerous places– including core data types 85 #define PyMem_New(type, n) \ 86 (assert((n) <= PY_SIZE_MAX / sizeof(type)) , \ 87 ((type *) PyMem_Malloc((n) * sizeof(type)))) 88 #define PyMem_NEW(type, n) \ 89 (assert((n) <= PY_SIZE_MAX / sizeof(type)) , \ 90 ((type *) PyMem_MALLOC((n) * sizeof(type)))) 91 92 #define PyMem_Resize(p, type, n) \ 93 (assert((n) <= PY_SIZE_MAX / sizeof(type)) , \ 94 ((p) = (type *) PyMem_Realloc((p), (n) * sizeof(type)))) 95 #define PyMem_RESIZE(p, type, n) \ 96 (assert((n) <= PY_SIZE_MAX / sizeof(type)) , \ 97 ((p) = (type *) PyMem_REALLOC((p), (n) * sizeof(type))))

  13. 0xbadc0ded • Reported, but currently unpatched static int unicode_resize(register PyUnicodeObject *unicode, Py_ssize_t length) {[...]oldstr = unicode->str;PyMem_RESIZE(unicode->str, Py_UNICODE, length + 1); [...]unicode->str[length] = 0; static PyUnicodeObject *_PyUnicode_New(Py_ssize_t length) { [...] /* Unicode freelist & memory allocation */ if (unicode_freelist) { […] if ((unicode->length < length) && unicode_resize(unicode, length) < 0) { […] else {unicode->str = PyMem_NEW(Py_UNICODE, length + 1);

  14. 0xbadc0ded • Reported and patched in CVS, versions up to 2.5.2 are vulnerable 768 static PyObject * 769 PyZlib_unflush(compobject *self, PyObject *args) 770 { 771 int err, length = DEFAULTALLOC; 772 PyObject * retval = NULL; 773 unsigned long start_total_out; 774 775 776 if (!PyArg_ParseTuple(args, "|i:flush", &length)) 777 return NULL; 778 if (!(retval = PyString_FromStringAndSize(NULL, length))) 779 return NULL; […] 783 start_total_out = self->zst.total_out; 784 self->zst.avail_out = length; 785 self->zst.next_out = (Byte *)PyString_AS_STRING(retval); 786 787 Py_BEGIN_ALLOW_THREADS 788 err = inflate(&(self->zst), Z_FINISH);

  15. 0xbadc0ded • Currently undisclosed & unpatched static PyObject * array_fromunicode(arrayobject *self, PyObject *args) { Py_UNICODE *ustr; Py_ssize_t n; if (!PyArg_ParseTuple(args, “u#:fromunicode", &ustr, &n)) return NULL; [...] if (n > 0) { Py_UNICODE *item = (Py_UNICODE *) self->ob_item; if (self->ob_size > PY_SSIZE_T_MAX - n) { return PyErr_NoMemory(); } PyMem_RESIZE(item, Py_UNICODE, self->ob_size + n); if (item == NULL) { PyErr_NoMemory(); return NULL; } self->ob_item = (char *) item; self->ob_size += n; self->allocated = self->ob_size;memcpy(item + self->ob_size - n, ustr, n * sizeof(Py_UNICODE));

  16. 0xbadc0ded • Currently undisclosed & unpatched static PyObject * encoder_encode_stateful(MultibyteStatefulEncoderContext *ctx, PyObject *unistr, int final) { PyObject *ucvt, *r = NULL; Py_UNICODE *inbuf, *inbuf_end, *inbuf_tmp = NULL; Py_ssize_t datalen, origpending; [...] datalen = PyUnicode_GET_SIZE(unistr); origpending = ctx->pendingsize;if (origpending > 0) { if (datalen > PY_SSIZE_T_MAX - ctx->pendingsize) { […] }inbuf_tmp = PyMem_New(Py_UNICODE, datalen + ctx->pendingsize); […] memcpy(inbuf_tmp, ctx->pending, Py_UNICODE_SIZE *ctx->pendingsize);

  17. ya dig? • Currently undisclosed & unpatched static PyObject * posix_execv(PyObject *self, PyObject *args) { […] if (!PyArg_ParseTuple(args, "etO:execv", Py_FileSystemDefaultEncoding, &path, &argv)) return NULL; if (PyList_Check(argv)) { argc = PyList_Size(argv); […] else if (PyTuple_Check(argv)) { argc = PyTuple_Size(argv); […]argvlist = PyMem_NEW(char *, argc+1); [...] for (i = 0; i < argc; i++) { if (!PyArg_Parse((*getitem)(argv, i), "et", Py_FileSystemDefaultEncoding, &argvlist[i])) { [...]

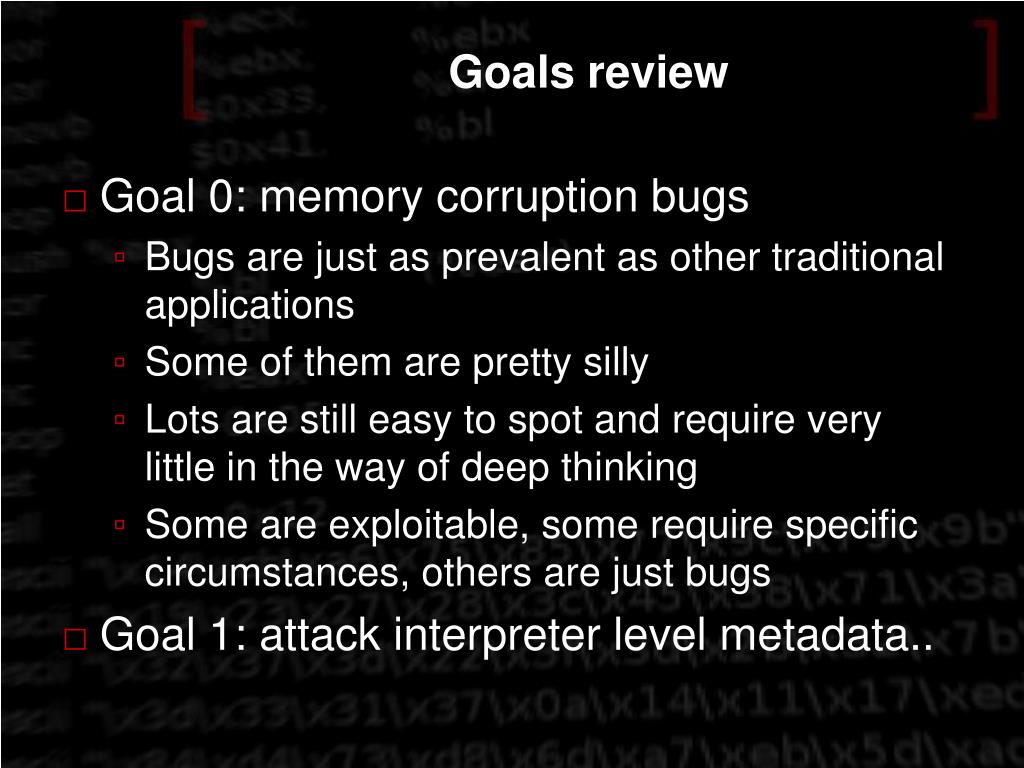

  18. Goals review • Goal 0: memory corruption bugs • Bugs are just as prevalent as other traditional applications • Some of them are pretty silly • Lots are still easy to spot and require very little in the way of deep thinking • Some are exploitable, some require specific circumstances, others are just bugs • Goal 1: attack interpreter level metadata..

  19. Python Call stack • Simple test program: #!/usr/bin/python import time while 1: time.sleep(500) gdb> r […] Program received signal SIGINT, Interrupt. [Switching to Thread 0x2b9d5bdd4d00 (LWP 28588)] 0x00002b9d5bb4f043 in select () from /lib/libc.so.6 gdb> bt #0 0x00002b9d5bb4f043 in select () from /lib/libc.so.6 #1 0x00002b9d5bdd869f in time_sleep […] #2 0x0000000000486097 in PyEval_EvalFrameEx […] #3 0x0000000000488002 in PyEval_EvalCodeEx […] #4 0x00000000004882a2 in PyEval_EvalCode […] #5 0x00000000004a969e in PyRun_FileExFlags […] #6 0x00000000004a9930 in PyRun_SimpleFileExFlags […] #7 0x0000000000414630 in Py_Main […] #8 0x00002b9d5bab2b74 in __libc_start_main […] #9 0x0000000000413b89 in _start ()

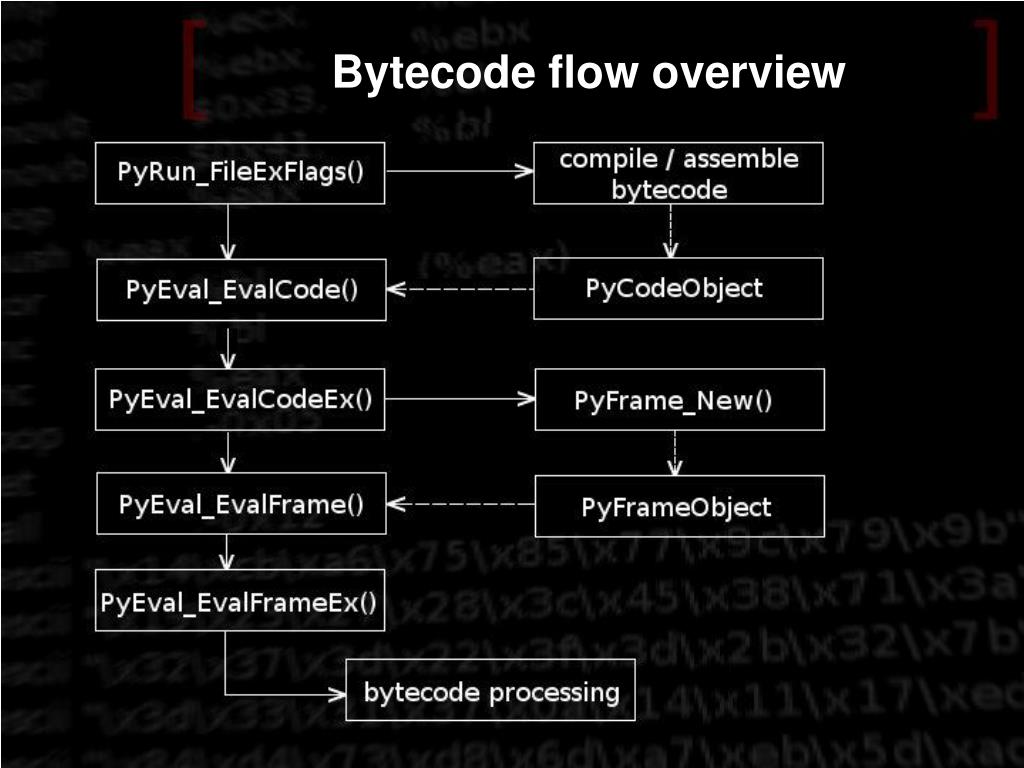

  20. Bytecode flow overview

  21. Python Objects • Most (interesting) object types start with a reference to PyObject_VAR_HEAD • i.e.: typedef struct _xyz { PyObject_VAR_HEAD […] • PyObject_VAR_HEAD macro expands to: • Contain the objects reference count • Contain pointers to next/previous in-use object (doubly linked list) • Contains a pointer to the objects type • This point is way more important at first may seem

  22. PyCodeObject /* Bytecode object */ typedef struct { PyObject_HEAD int co_argcount; /* #arguments, except *args */ int co_nlocals; /* #local variables */ int co_stacksize; /* #entries needed for evaluation stack */ int co_flags; /* CO_..., see below */ PyObject *co_code; /* instruction opcodes */ PyObject *co_consts; /* list (constants used) */ PyObject *co_names; /* list of strings (names used) */ PyObject *co_varnames; /* tuple of strings (local variable names) */ PyObject *co_freevars; /* tuple of strings (free variable names) */ PyObject *co_cellvars; /* tuple of strings (cell variable names) */ PyObject *co_filename; /* string (where it was loaded from) */ PyObject *co_name; /* string (name, for reference) */ int co_firstlineno; /* first source line number */ PyObject *co_lnotab; /* string (encoding addr<->lineno mapping) */ void *co_zombieframe; /* for optimization only (see frameobject.c) */ } PyCodeObject;

  23. PyEval_EvalCodeEx() • PyEval_EvalCode() is a simple wrapper to PyEval_EvalCodeEx() • Uses default arguments for last seven parameters – passes NULL or 0 • Takes a PyCodeObject as a parameter • Creates a PyFrameObject • Sets up local/global/et cetera variables • Serves essentially to setup environment

  24. PyFrameObject typedef struct _frame { PyObject_VAR_HEAD struct _frame *f_back; /* previous frame, or NULL */ PyCodeObject *f_code; /* code segment */ PyObject *f_builtins; /* builtin symbol table (PyDictObject) */ PyObject *f_globals; /* global symbol table (PyDictObject) */ PyObject *f_locals; /* local symbol table (any mapping) */ PyObject **f_valuestack; /* points after the last local */ /* Next free slot in f_valuestack. Frame creation sets to f_valuestack. Frame evaluation usually NULLs it, but a frame that yields sets I to the current stack top. */ PyObject **f_stacktop PyObject *f_trace; /* Trace function */ […] PyThreadState *f_tstate; int f_lasti; /* Last instruction if called */ […] int f_iblock; /* index in f_blockstack */ PyTryBlock f_blockstack[CO_MAXBLOCKS]; /* for try and loop blocks */ PyObject *f_localsplus[1]; /* locals+stack, dynamically sized */ } PyFrameObject;

  25. PyFrameObject destruction • As frames go out of scope, frame_dealloc() is called to destroy them • During destruction, only locals, exception and debugging information is cleared • Frame can end up in the PyCodeObject’s zombie frame, the free list, or just destroyed void frame_dealloc(PyFrameObject *f) { [...]for (p = f->f_localsplus; p < valuestack; p++) Py_CLEAR(*p);[...]Py_CLEAR(f->f_locals);Py_CLEAR(f->f_trace);Py_CLEAR(f->f_exc_type);Py_CLEAR(f->f_exc_value);Py_CLEAR(f->f_exc_traceback);co = f->f_code;if (co->co_zombieframe == NULL) co->co_zombieframe = f;else if (numfree < MAXFREELIST) { ++numfree; f->f_back = free_list; free_list = f;}

  26. Zombies attack!!1 PyFrameObject *PyFrame_New(PyThreadState *tstate, PyCodeObject *code, PyObject *globals, PyObject *locals) { [...] if (code->co_zombieframe != NULL) { f = code->co_zombieframe; code->co_zombieframe = NULL; assert(f->code == code); } else { [...]} f->f_stacktop = f->f_valuestack; f->f_builtins = builtins;Py_XINCREF(back);f->f_back = back;Py_INCREF(code);Py_INCREF(globals);f->f_globals = globals;[...]return f; }

  27. Unleashing your zombie army.. • Attacking zombie frame not always necessary, or doing so may not make sense • Many heap overflows occur in direct control of byte stream • Many others either also allow direct control of the argument stack or both • Plenty of instances where you don’t hit either • Zombie frame is useful for pointer sized writes anywhere in memory • On smaller overflows, fairly typical to corrupt members of object • Many objects destructors use linked lists with unprotected unlinking functionality

  28. PyEval_EvalFrameEx() • Implements state-machine for processing bytecode #define INSTR_OFFSET() ((int))(next_instr – first_instr)) #define NEXTOP() (*next_instr++) #define NEXTARG() (next_instr += 2, (next_instr[-1]<<8) + next_instr[-2]) PyObject * PyEval_EvalFrameEx(PyFrameObject *f, int throwflag) {[...]first_instr = (unsigned char*) PyString_AS_STRING(co->co_code);[...]next_instr = first_instr + f->f_lasti + 1;stack_pointer = f->f_stacktop;[...]for (;;) { [...] f->f_lasti = INSTR_OFFSET(); [...]opcode = NEXTOP(); oparg = 0; /* allows oparg to be stored in a register because it doesn't have to be remembered across a full loop */ if (HAS_ARG(opcode))oparg = NEXTARG(); […] switch (opcode) {

  29. Important variables • first_instr: • Taken directly from f->f_code->co_code • Determines first instruction in PyCodeObject/bytecode to be executed • Local (stack based) variable in PyEval_EvalFrameEx() • Points to heap data • next_instr: • Derived from first_instr– starts out pointing to same location • Incremented by one to three bytes per opcode • Dictates next instruction in bytecode to be interpreted • Local (stack based) variable in PyEval_EvalFrameEx() • Points to heap data • stack_pointer: • Derived from f->f_stacktop • Determines next argument to given opcode • Makes up data stack • Local (stack based) variable in PyEval_EvalFrameEx() • Points to heap data

  30. Only handguns and tequila allow bigger mistakes faster #define JUMPTO(x) (next_instr = first_instr + (x))while (why != WHY_NOT && f->f_iblock > 0) { PyTryBlock *b = PyFrame_BlockPop(f); assert(why != WHY_YIELD); if (b->b_type == SETUP_LOOP && why == WHY_CONTINUE) { PyFrame_BlockSetup(f, b->b_type, b->b_handler,b->b_level); why = WHY_NOT;JUMPTO(PyInt_AS_LONG(retval)); Py_DECREF(retval); break; } [...] if (b->b_type == SETUP_LOOP && why == WHY_BREAK) { why = WHY_NOT;JUMPTO(b->b_handler); break; } if (b->b_type == SETUP_FINALLY || (b->b_type == SETUP_EXCEPT && why == WHY_EXCEPTION)) { [...] why = WHY_NOT;JUMPTO(b->b_handler); break; }} /* unwind stack */

  31. Other interpreter targets.. • Python’s debugging functionality allows for tracing of the application • Whether the currently executing byte-code is being traced is determined by a member in the stack frame • Tracing allows for calls before opcode execution, function entry, exception handling, et cetera • Many Objects have functionality that can be abused with small amounts of memory corruption • Be creative, they haven’t been beat on like the various libc’s, so they haven’t hardened their implementations

  32. Goal Review • Goal 1: Attack interpreter level metadata • In most cases overwriting a PyCodeObject or the stack_pointer is trivial • In others attacking the zombie frame allows for an interesting and humorous exercise • Python’s exception handling can also be abused • Objects are unhardened • This allows us to bypass many of the hardening functionality in existence, i.e. stack/heap cookies, unlink() hardening, et cetera • Goal 2: Return into byte-code…

  33. opcodes • Python opcodes are a single char • As of 2.5.2 there are 103 opcodes • Opcodes take optional 16-bit modifier • Can be thought of as like a sub-opcode • Arguments/parameters are pointed to by stack_pointer • Thus, parameters need to be placed on the stack first, then the opcode in question called • i.e.: >>> def test(): … print “PsychoAlphaDiscoBetaBioAquaDoLoop” … >>> __import__(‘dis’).dis(test) 2 0 LOAD_CONST 1 ('PsychoAlphaDiscoBetaBioAquaDoLoop') 3 PRINT_ITEM 4 PRINT_NEWLINE 5 LOAD_CONST 0 (None) 8 RETURN_VALUE

  34. Our House.. • Easiest method is to abuse the support for run-time functions (lambda’s) • Opcode is MAKE_FUNCTION case MAKE_FUNCTION: v = POP(); /* code object */ x = PyFunction_New(v, f->f_globals); Py_DECREF(v); /* XXX Maybe this should be a separate opcode? */ if (x != NULL && oparg > 0) { v = PyTuple_New(oparg); if (v == NULL) { Py_DECREF(x); x = NULL; break; } while (--oparg >= 0) { w = POP(); PyTuple_SET_ITEM(v, oparg, w); } err = PyFunction_SetDefaults(x, v); Py_DECREF(v); } PUSH(x); break;

  35. In the middle of our street.. • Python natively generates code that has a STORE_FAST/LOAD_FAST • Don’t think they’re necessary • Pressed for time, so didn’t investigate whether they were necessary or not #define GETLOCAL(i) (fastlocals[i]) #define SETLOCAL(i, value) do { PyObject *tmp = GETLOCAL(i); \ GETLOCAL(i) = value; \ Py_XDECREF(tmp); } while (0) case LOAD_FAST: x = GETLOCAL(oparg); if (x != NULL) { Py_INCREF(x); PUSH(x); goto fast_next_opcode; } […] break; case STORE_FAST: v = POP(); SETLOCAL(oparg, v); goto fast_next_opcode;

  36. Let there be light. • Now that we’ve built the function and setup the argument stack, its just time to call it • Accomplished via CALL_FUNCTION opcode case CALL_FUNCTION: { PyObject **sp; PCALL(PCALL_ALL); sp = stack_pointer;#ifdef WITH_TSC x = call_function(&sp, oparg, &intr0, &intr1);#else x = call_function(&sp, oparg);#endif stack_pointer = sp; PUSH(x); if (x != NULL) continue; break; }

  37. Calling the call_function() function static PyObject * call_function(PyObject ***pp_stack, int oparg#ifdef WITH_TSC , uint64* pintr0, uint64* pintr1#endif ) { int na = oparg & 0xff;int nk = (oparg>>8) & 0xff;int n = na + 2 * nk;PyObject **pfunc = (*pp_stack) - n - 1;PyObject *func = *pfunc;PyObject *x, *w; if (PyCFunction_Check(func) && nk == 0) { [...] if (flags & METH_NOARGS && na == 0) { C_TRACE(x, (*meth)(self,NULL)); } else if (flags & METH_O && na == 1) { PyObject *arg = EXT_POP(*pp_stack);C_TRACE(x, (*meth)(self,arg)); Py_DECREF(arg); } [...]

  38. calling the call_function() function static PyObject * call_function(PyObject ***pp_stack, int oparg #ifdef WITH_TSC , uint64* pintr0, uint64* pintr1 #endif ) { […] if (PyCFunction_Check(func) && nk == 0) { [...] } else { if (PyMethod_Check(func) && PyMethod_GET_SELF(func) != NULL) { PyObject *self = PyMethod_GET_SELF(func); [...] } else [...] if (PyFunction_Check(func)) x = fast_function(func, pp_stack, n, na, nk); […]

  39. A final note about call_function() • Often after overflow the code returned into is call_function() • call_function() cleans up the argument stack after calling the function: while ((*pp_stack) > pfunc) { w = EXT_POP(*pp_stack); Py_DECREF(w); PCALL(PCALL_POP); } • Py_DECREF() will almost certainly cause a destructor to get called • If data stack_pointer pointed to was corrupted, this will be the first place its felt • Unless you’re ready for a ret-into-libc type attack, make sure that w points to valid memory that has a value greater than 1

  40. PyCodeObject’s don’t grow on trees you know! • Where to get a PyCodeObject? • Two options, dependant on context: • AppEngine, et al: x = unicode(compile(‘print “zdravstvoyte mir!”, ‘<string>’, ‘exec’)) • x will contain string along the lines of: <code object <module> at 0x4e058f1c37daf18, file “<string>”, line 1> • Now stack_pointer just needs to point at 0x4e058f1c37daf18 • Less controlled environments: • Use compile() to obtain code object • References in header need to be updated-- PyCodeObject->co_code • Requires address space leak

  41. But.. • Returning into bytecode in AppEngine doesn’t make much sense? • Already have control of the interpreter • Return into same restricted environment • Not exactly true-- but ret-into-libc or similar eventually becomes necessary • Ret-into-libc requires address space info • Non-AppEngine attacks require address space info

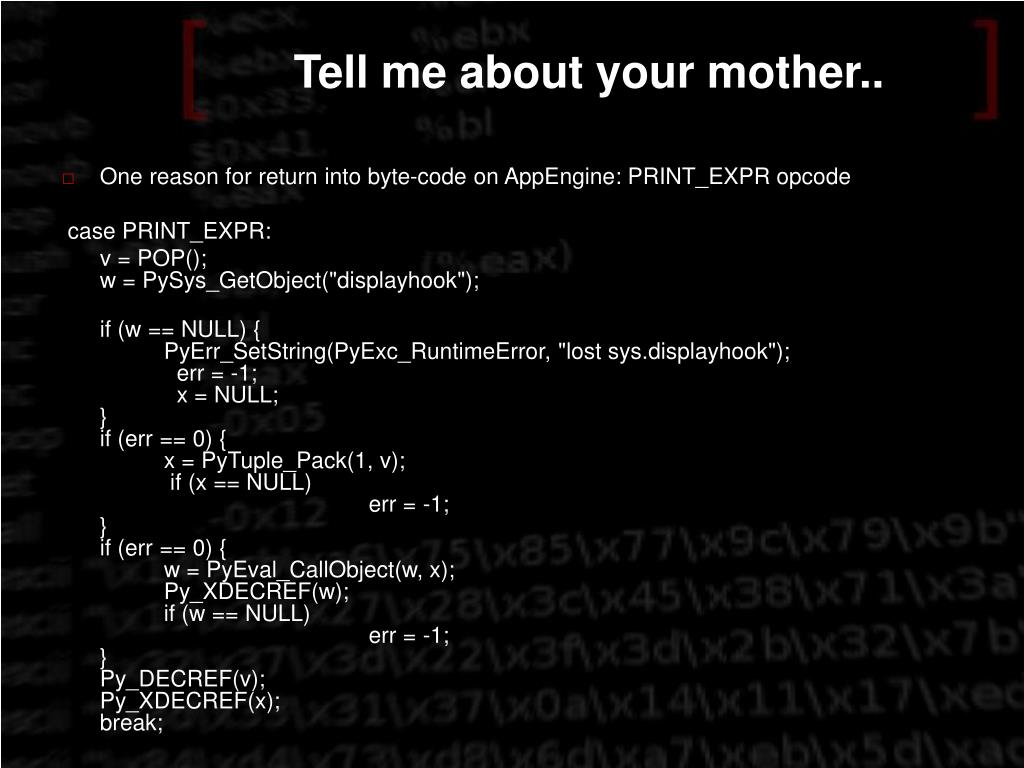

  42. Tell me about your mother.. • One reason for return into byte-code on AppEngine: PRINT_EXPR opcode case PRINT_EXPR: v = POP();w = PySys_GetObject("displayhook"); if (w == NULL) { PyErr_SetString(PyExc_RuntimeError, "lost sys.displayhook"); err = -1; x = NULL;}if (err == 0) { x = PyTuple_Pack(1, v); if (x == NULL) err = -1;}if (err == 0) { w = PyEval_CallObject(w, x); Py_XDECREF(w); if (w == NULL) err = -1;}Py_DECREF(v);Py_XDECREF(x);break;

  43. All we had to do was ask.. • Typical results of memory leak: ‘\x00\x00\x00\x00\x00\x00\x00\x0f\x00\x00\x80\x00\x00\x01\x00\x00\x00\x01\x00\x00\x00\xa0\x91\x81\x00\x00\x00\x00\x00\x00\x90\x91\x81\x00\x00\x00\xb0\x91\x81\x12\x1e\x01\x00\x00\x02\[…]’ • Leaking heap addresses in this example: 0x8191XXXX • If stack_pointer is controlled, can point anywhere in the address space • Leak is really only bounded by how much byte-code you can get into the stream • Objects used to verify typing information are statically allocated and use fixed offsets– thus once you know the low-order bytes, you can spot them easily • Problematic because it prints to standard out, which can be redirected but post-overflow is a lot of trouble • Good strategy is to take advantage of fact that we’re dealing with a web-app that can crash an infinite number of times

  44. Loose APIs sink ships. • Python is one of those overly helpful languages • Pretty much all objects can be printed out • When you print an object, the address of the object is leak • Object can also be converted to a string where the same string that gets printed ends up in string, i.e. unicode(compile(…)) gives you the address of a PyCodeObject • Leak PyFrameObject addresses: • sys._getframe() – returns frame object • sys._currentframes() – returns a dictionary with each threads current frame • builtin function id() • Each object has a unique id • This is accomplished by using the address of the object for the id • i.e. id(None) yields address of None object (think about that in context of obtaining type object addresses) • Builtin functions dir() and getattr() • dir() allows you to enumerate attributes of an object • getattr() allows you to obtain its value • Useful when function pointers cannot be avoided

  45. Goals in review • Goal 2: return into interpreter byte-code • Easier to accomplish than initially thought • Process of executing byte-code is more problematic due to type-checks • Successful exploitation absolutely requires address space leaks • Python provides us with nice opcodes to allow leaking • Easiest method is to use MAKE_FUNCTION/CALL_FUNCTION combination as bootstrap mechanism • Restricted interpreters require return-into-C code to break out of • Returning into byte-code provides these advantages: • Non-executable memory is not necessary- byte-code is interpreted not executed • Because its not executed we can use it to dump address space info

  46. 2+2 • Overall process: • Obtain address space information via memory corruption and executing PRINT_EXPR opcode • Obtain addresses that were valid at one time and fix up data with addresses • Craft a PyCodeObject either in the address space or in the shellcode, update PyCodeObject header information if injecting into address space • Execute following opcodes: MAKE_FUNCTION/STORE_FAST/LOAD_FAST/CALL_FUNCTION • Return into PyCodeObject • From PyCodeObject return into executable memory

  47. Other available opcodes • LOAD_CONST – loads constant onto argument stack using oparg index into consts member of PyCodeObject • POP_TOP – removes member from top of argument stack, decreases reference • ROT_TWO/ROT_THREE/ROT_FOUR – rotates position of argument stack, moving 2, 3 or 4 arguments around • DUP_TOPX – duplicates either 2 or 3 pointers on argument stack • STORE_SLICE+X – some code paths do not have type checks and instead create a new object, allows object creation • PRINT_ITEM_TO – allows redirection of output, pops output data from variable stack, falls through to PRINT_ITEM which may redirect to stdout • LOAD_LOCALS – places f->f_locals onto argument stack, great opcode to prefix PRINT_X opcodes • YIELD_VALUE – takes return value from argument stack, sets f->f_stacktop to point to stack_ponter • POP_BLOCK – Obtains PyTryBlock from argument stack, decrements references for each record • STORE_GLOBAL / LOAD_GLOBAL – same as with other STORE_X/LOAD_X opcodes, except operates on globals

  48. More opcodes • JUMP_ABSOLUTE – like JUMP_FORWARD except is not relative to first_instr • FOR_ITER – makes function pointer call from pointer retrieved from argument stack, good once address space layout is known • EXTENDED_ARGS – advances to next opcode, obtains another 16-bit oparg and combines it with existing 16-bit oparg, combined with JUMP_ABSOLUTE allows byte-code to exist anywhere (on 32-bit machines) • LOAD_CLOSURE – places pointer on argument stack from different section of heap memory • BUILD_X – several opcodes, allows for creation of Tuples, Lists, Maps and Slices • JUMP_FORWARD – advances position in bytecode by oparg bytes • Other opcodes perform type checks or have callbacks • Many of the ones with type checks can be coaxed into usage by first building an object via one of the BUILD_X opcodes • Once address space is know, opcodes with callbacks are not dangerous

  49. python.fin() • Bugs in Python exist and are easy to find • Data structures and general metadata is easy to abuse • Byte-code is position independent and thus easy to make • Because of its PIC nature– argument stack exists elsewhere • Ownership can be transferred with one or the other, but made more difficult • Hardest part of returning into byte-code is ASLR • Python is really helpful there.
