  1. Scalable TCP: Improving Performance in Highspeed Wide Area Networks Paper by Tom Kelly Presented by Christoph Jechlitschek

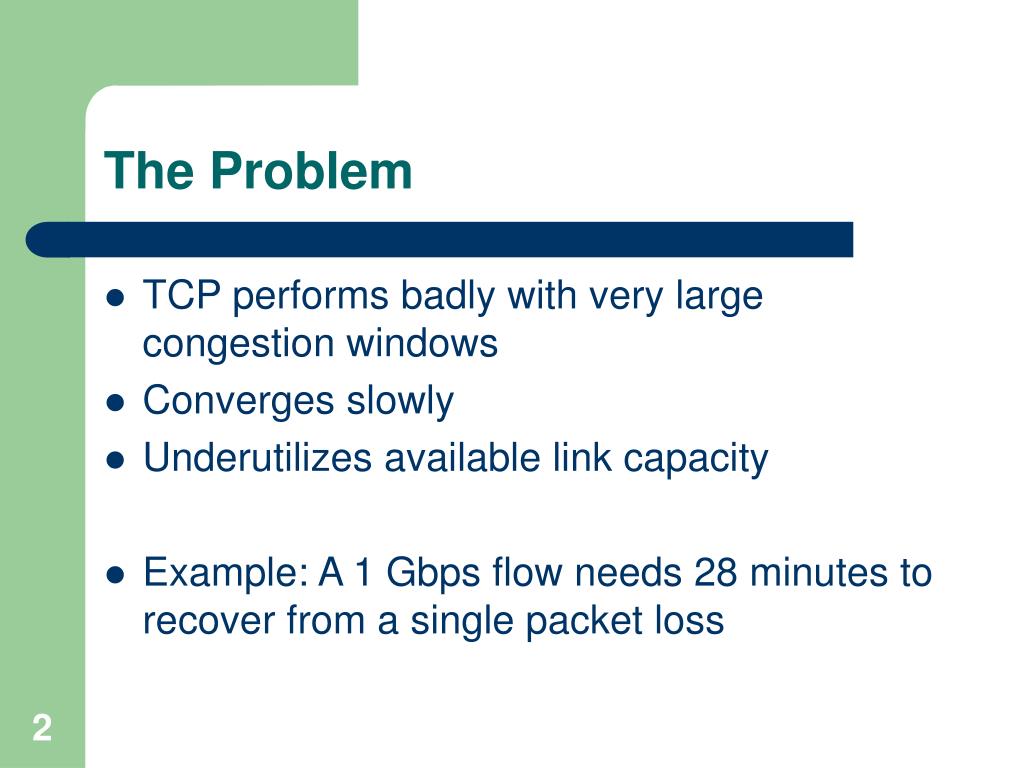

  2. The Problem • TCP performs badly with very large congestion windows • Converges slowly • Underutilizes available link capacity • Example: A 1 Gbps flow needs 28 minutes to recover from a single packet loss

  3. TCP congestion window update • cwnd  cwnd + 1/cwnd; - if no loss was detected • cwnd  cwnd/2; - if a loss was detected

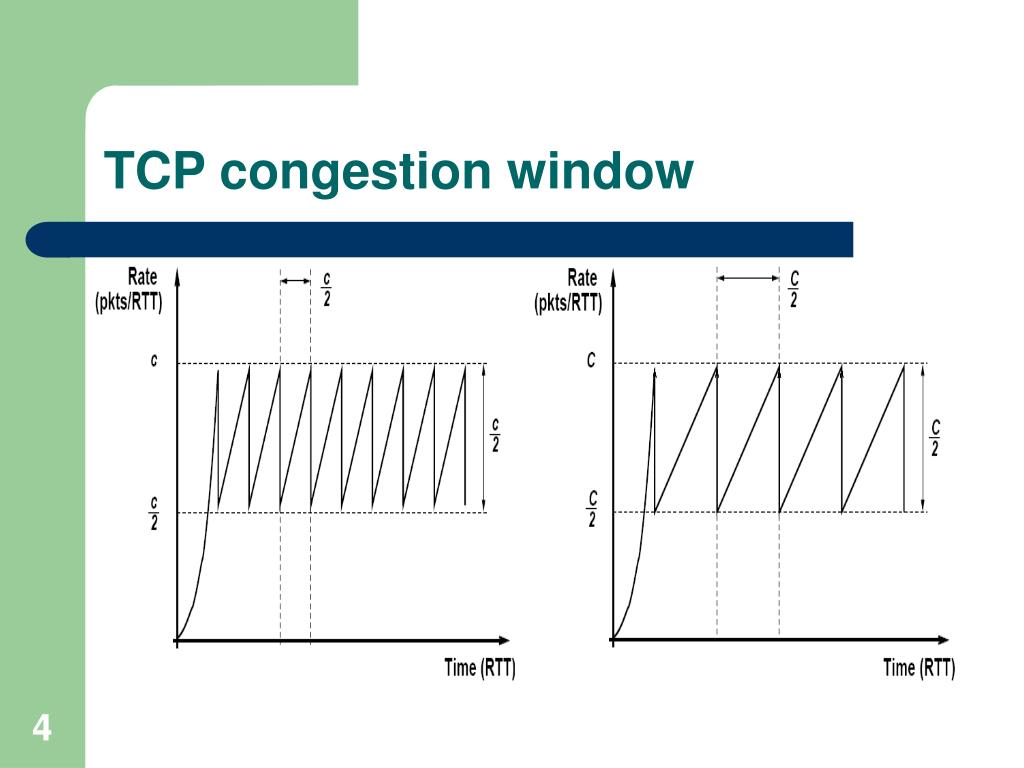

  4. TCP congestion window

  5. Scalable TCP congestionwindow update • cwnd  cwnd + 0.01; - if no loss was detected • cwnd  cwnd – 0.125 * cwnd; - if a loss was detected

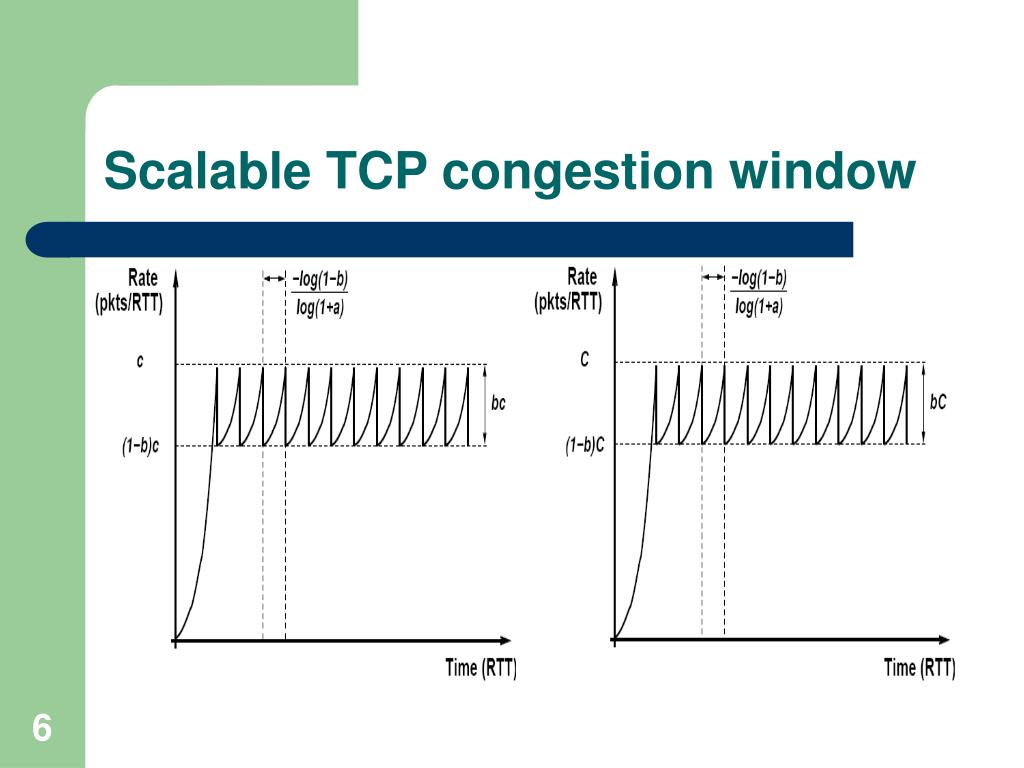

  6. Scalable TCP congestion window

  7. Analysis • Generalized form of update function: cwnd  cwnd + a; if no loss detected cwnd  cwnd – b * cwnd; if loss detected • What makes a = 0.01 and b = 0.125 a good choice?

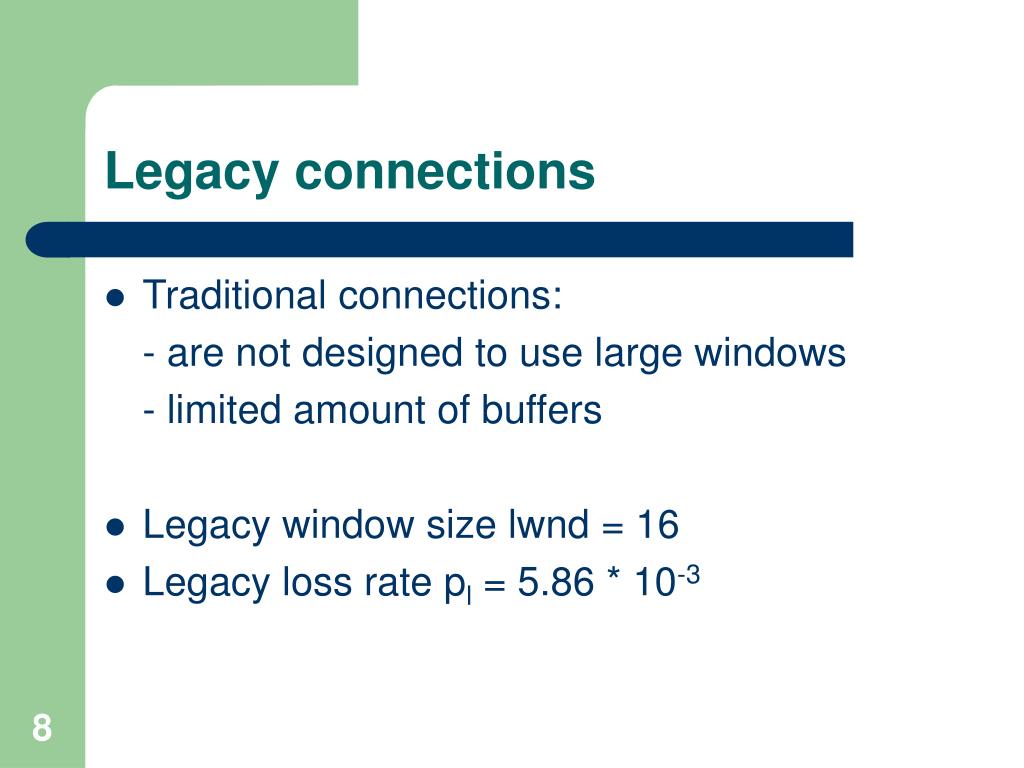

  8. Legacy connections • Traditional connections: - are not designed to use large windows - limited amount of buffers • Legacy window size lwnd = 16 • Legacy loss rate pl = 5.86 * 10-3

  9. Response curve • Relates a and b • Choosing one fixes the other

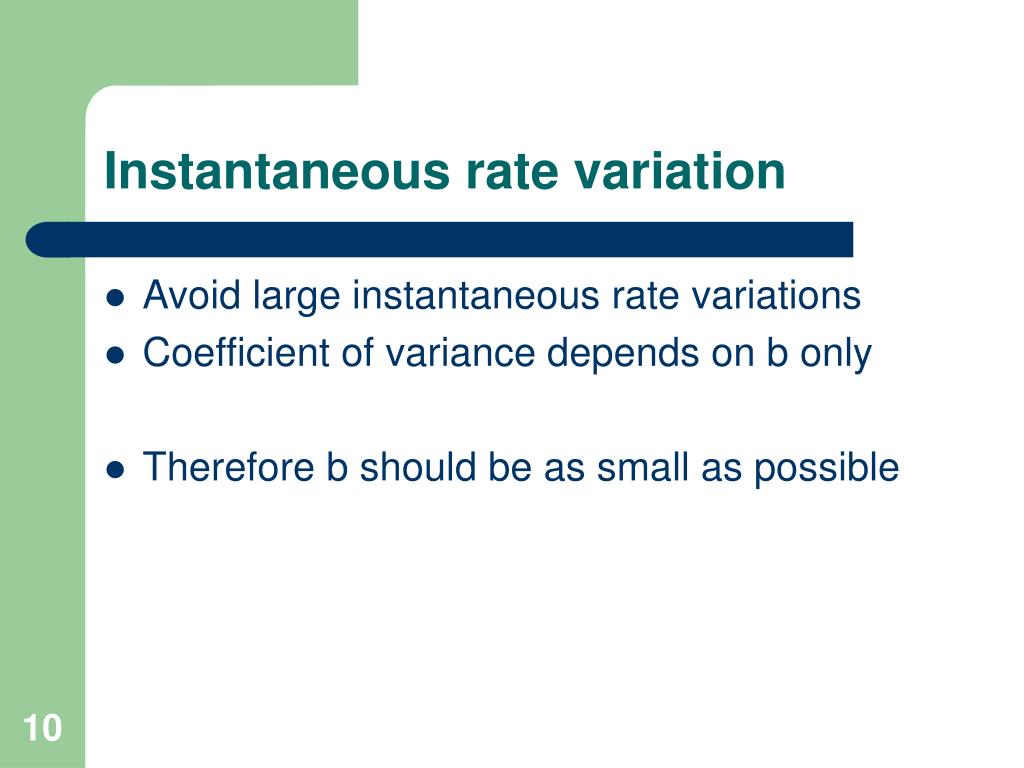

  10. Instantaneous rate variation • Avoid large instantaneous rate variations • Coefficient of variance depends on b only • Therefore b should be as small as possible

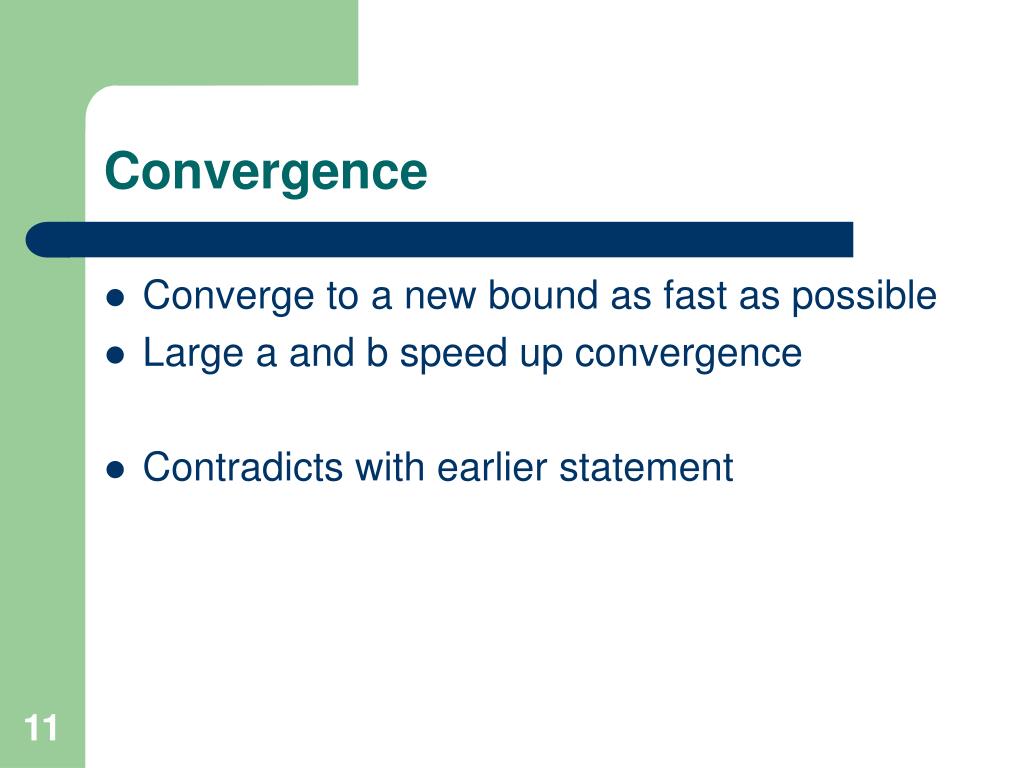

  11. Convergence • Converge to a new bound as fast as possible • Large a and b speed up convergence • Contradicts with earlier statement

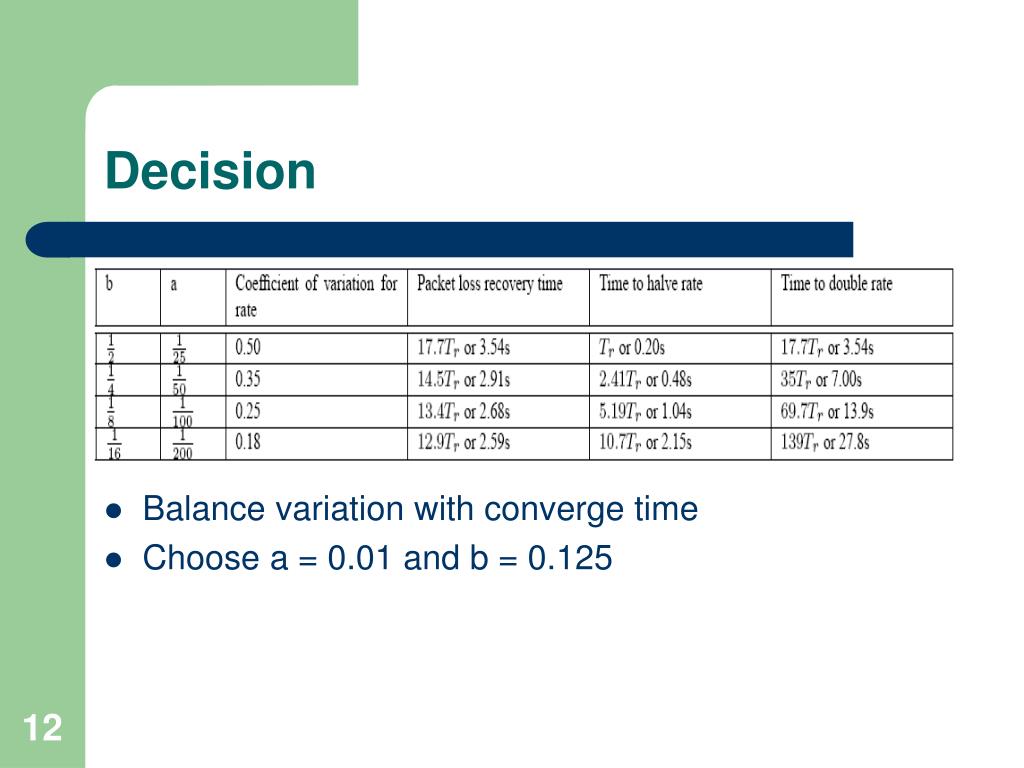

  12. Decision • Balance variation with converge time • Choose a = 0.01 and b = 0.125

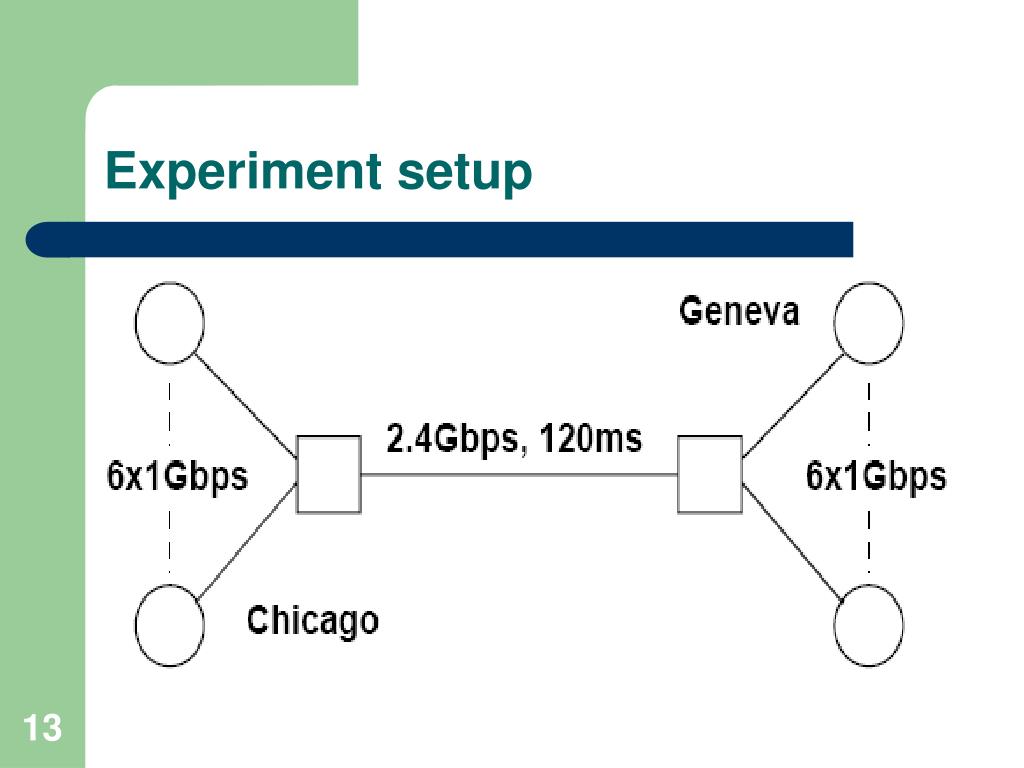

  13. Experiment setup

  14. Gigabit kernel modifications • Increases size of kernel interface queues • Avoids unnecessary packet copying • Removes debug counters

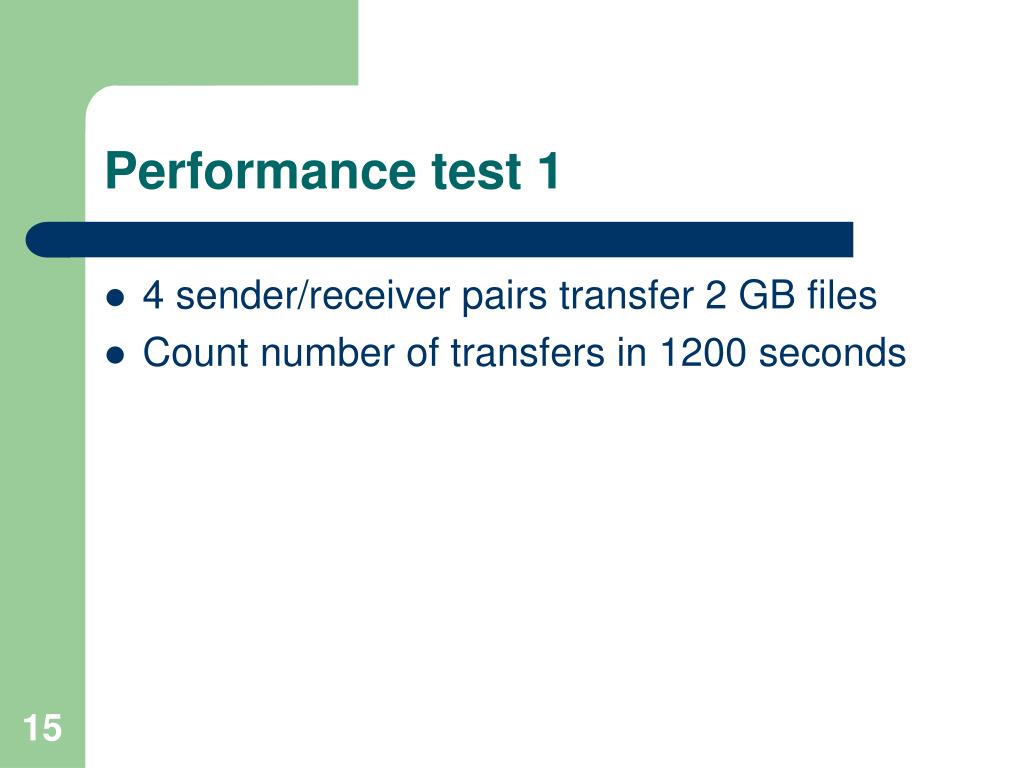

  15. Performance test 1 • 4 sender/receiver pairs transfer 2 GB files • Count number of transfers in 1200 seconds

  16. Performance test 1 results

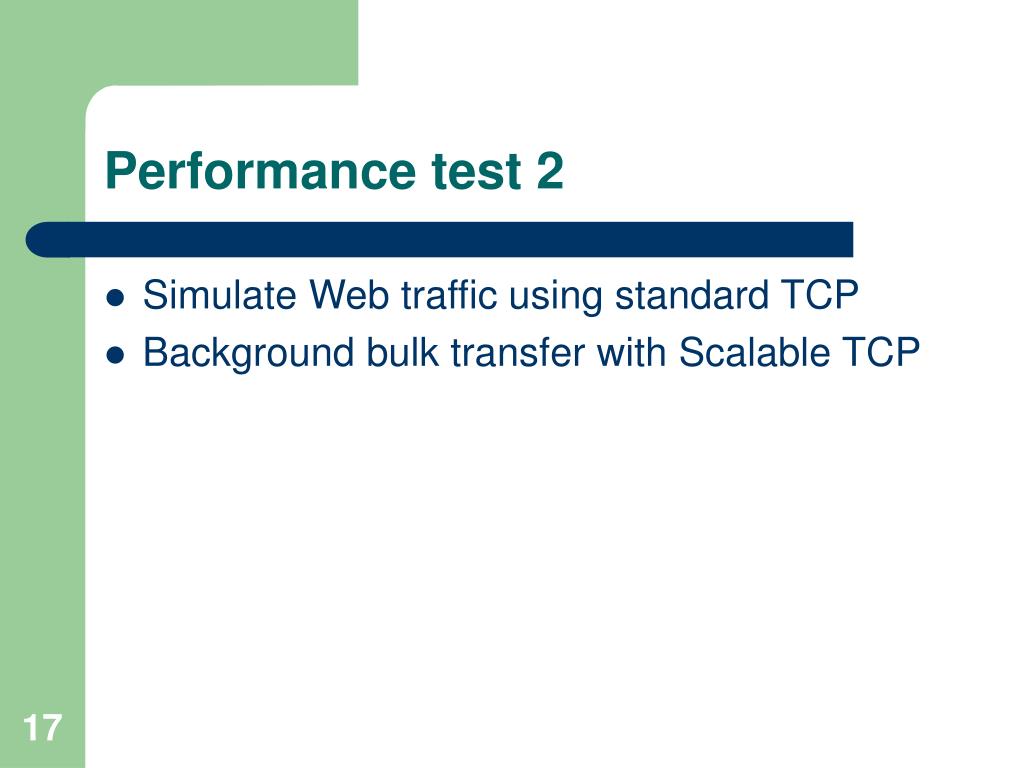

  17. Performance test 2 • Simulate Web traffic using standard TCP • Background bulk transfer with Scalable TCP

  18. Performance test 2 results

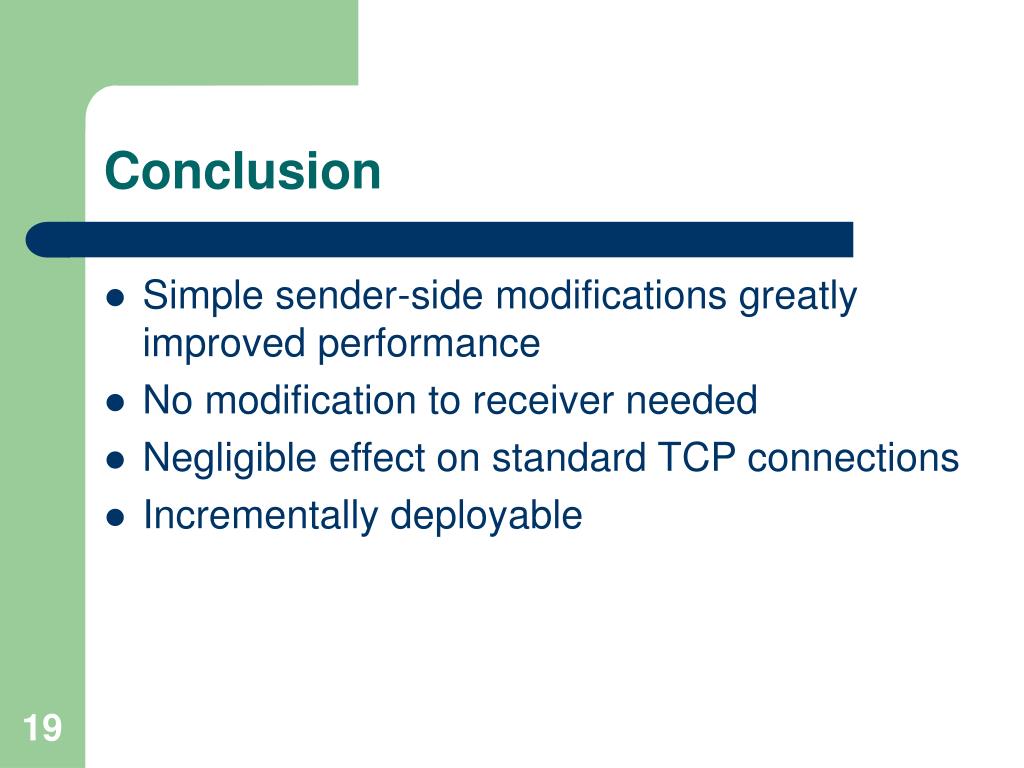

  19. Conclusion • Simple sender-side modifications greatly improved performance • No modification to receiver needed • Negligible effect on standard TCP connections • Incrementally deployable

  20. Questions?
