Yusuf oz fatih bolukbas huseyin anil karabulut

YUSUF OZ

FATIH BOLUKBAS

HUSEYIN ANIL KARABULUT

PrefabrIcatedcontaInerhousIng


INTRODUCTION

HOW DOES A CONTAINER BECOME HOUSE?

DESIGN EXAMPLES

A NEW HOME IN 12 STEPS

TECHNICAL SPECIFICATIONS

TABLE OF CONTENTS

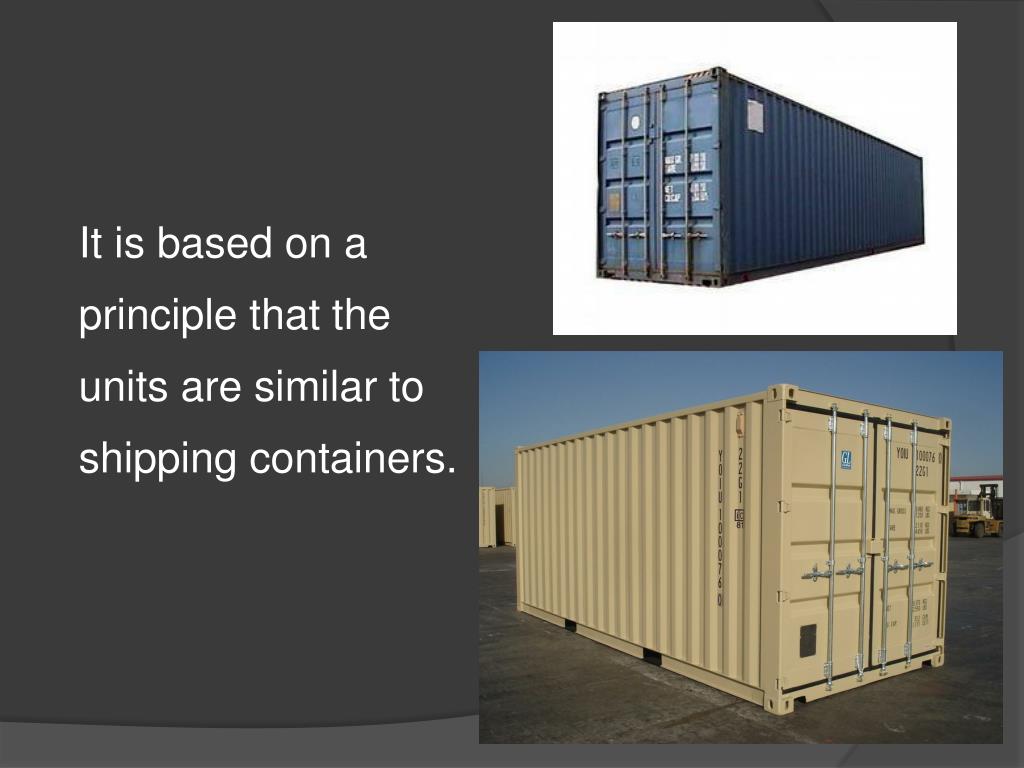

The container sizes are defined in  shipping containers.ISO Standards:

  • 2.4 m wide

  • 2.6 m high

  • 6 or 12 m long


Container becomes house
Container Becomes House… shipping containers.

  • The pipes for ventilation, sewage, water and heating/cooling and the wiring for power and data all come together.

  • Overall internal insulation (heat / cold, noise, fire resistance).

  • Sustainable use of materials.


Container becomes house1
Container Becomes House… shipping containers.

  • Large windows for sufficient daylight and view.

  • single unit (2,4 m wide) or a combination of 2 units (4,8 m wide).

  • They costs between 250-500 € per m2


6 m long container, single room shipping containers.


Single room with balconies, 25 m shipping containers.2 floor area



Wider rooms shipping containers.


Double room with a hallway shipping containers.


A new home in 12 steps
A new home in 12 steps shipping containers.


A new home in 12 steps1

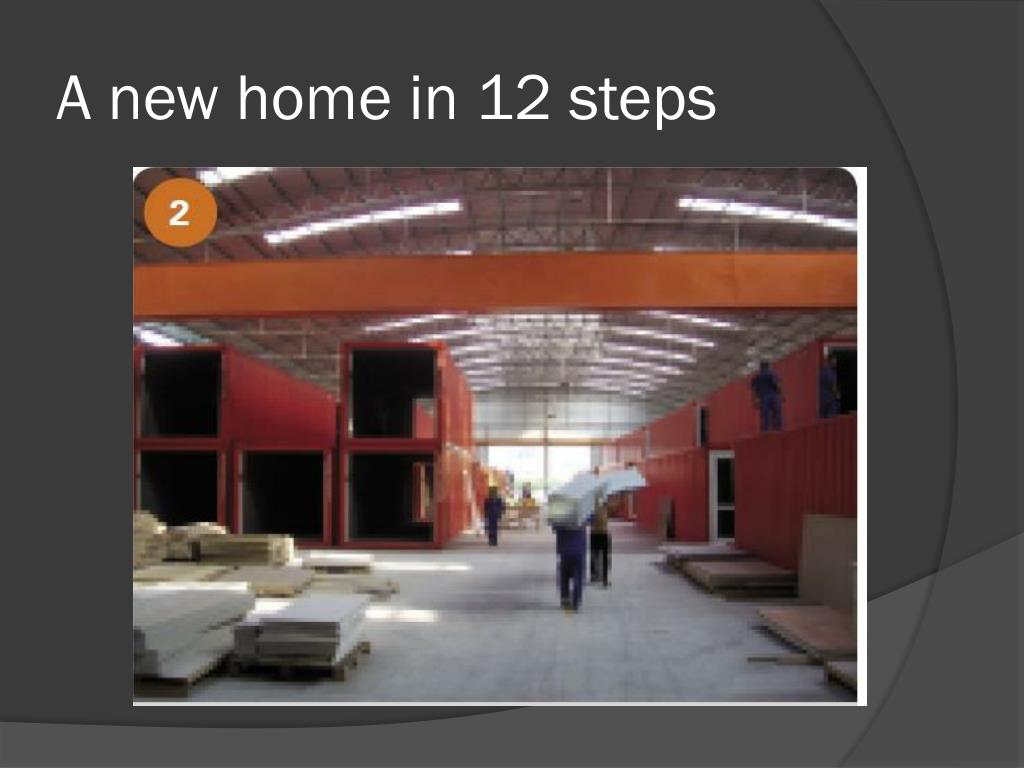

A new home in 12 steps shipping containers.


A new home in 12 steps2
A new home in 12 steps shipping containers.


A new home in 12 steps3
A new home in 12 steps shipping containers.


A new home in 12 steps4
A new home in 12 steps shipping containers.


A new home in 12 steps5
A new home in 12 steps shipping containers.


A new home in 12 steps6
A new home in 12 steps shipping containers.


A new home in 12 steps7
A new home in 12 steps shipping containers.


A new home in 12 steps8
A new home in 12 steps shipping containers.


A new home in 12 steps9
A new home in 12 steps shipping containers.


A new home in 12 steps10
A new home in 12 steps shipping containers.


A new home in 12 steps11
A new home in 12 steps shipping containers.


Technical specifications

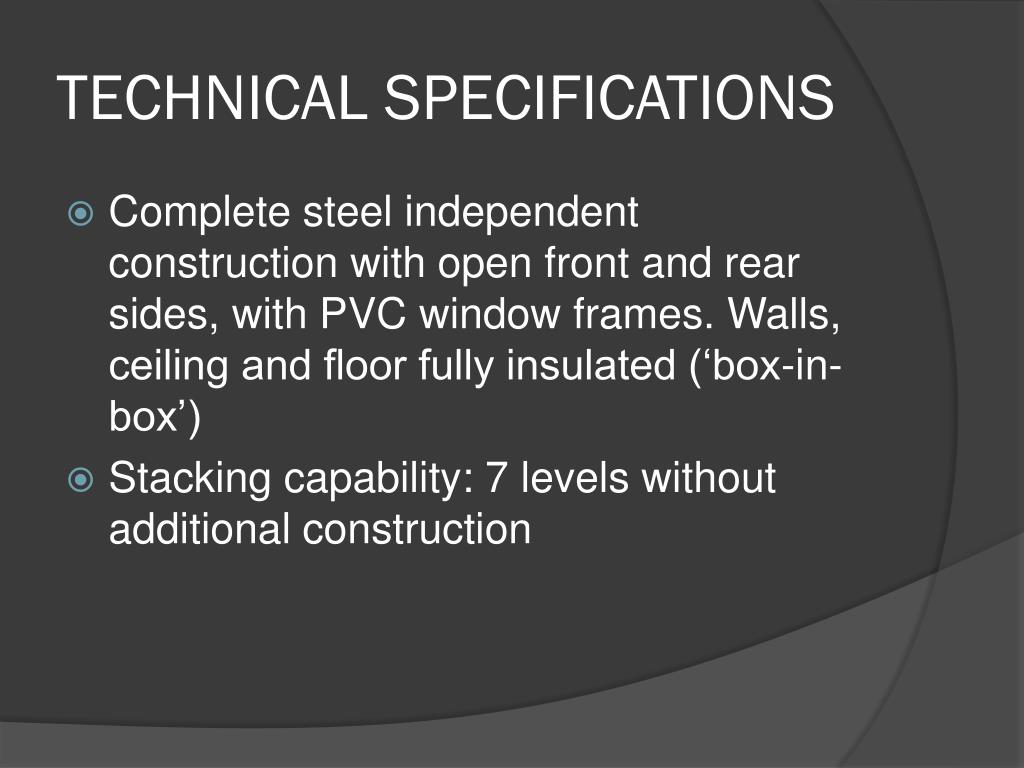

TECHNICAL SPECIFICATIONS shipping containers.

  • Complete steel independent construction with open front and rear sides, with PVC window frames. Walls, ceiling and floor fully insulated (‘box-in-box’)

  • Stacking capability: 7 levels without additional construction


Technical specifications1

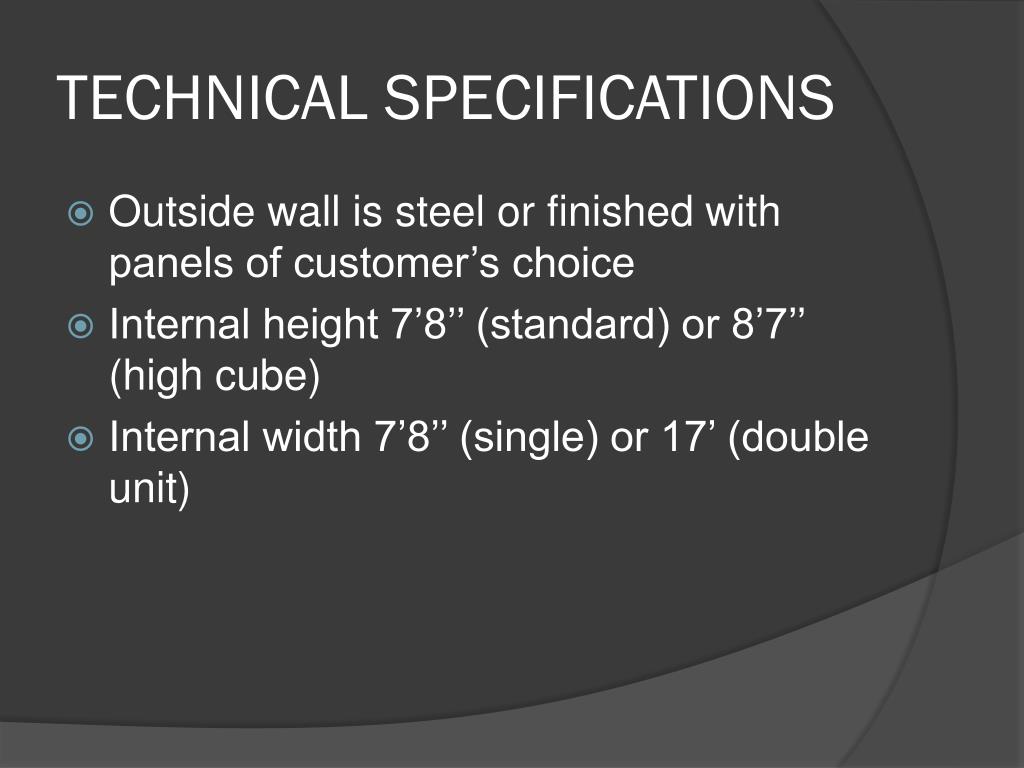

TECHNICAL SPECIFICATIONS shipping containers.

  • Outside wall is steel or finished with panels of customer’s choice

  • Internal height 7’8’’ (standard) or 8’7’’ (high cube)

  • Internal width 7’8’’ (single) or 17’ (double unit)


Technical specifications2

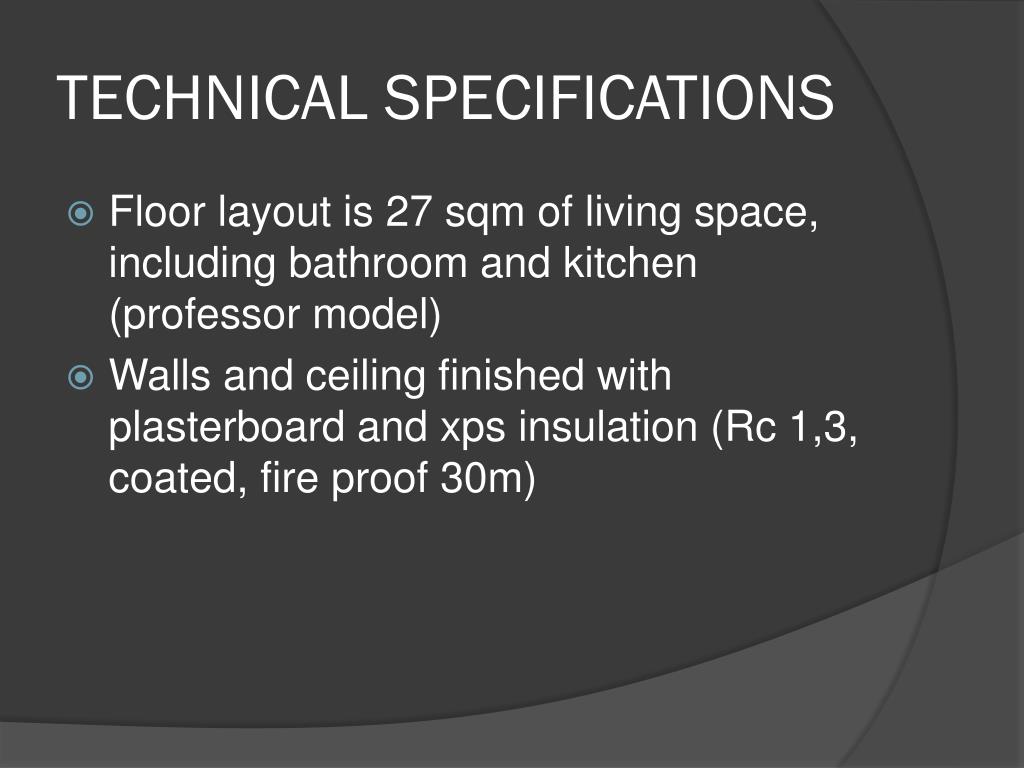

TECHNICAL SPECIFICATIONS shipping containers.

  • Floor layout is 27 sqm of living space, including bathroom and kitchen (professor model)

  • Walls and ceiling finished with plasterboard and xps insulation (Rc 1,3, coated, fire proof 30m)


Technical specifications3

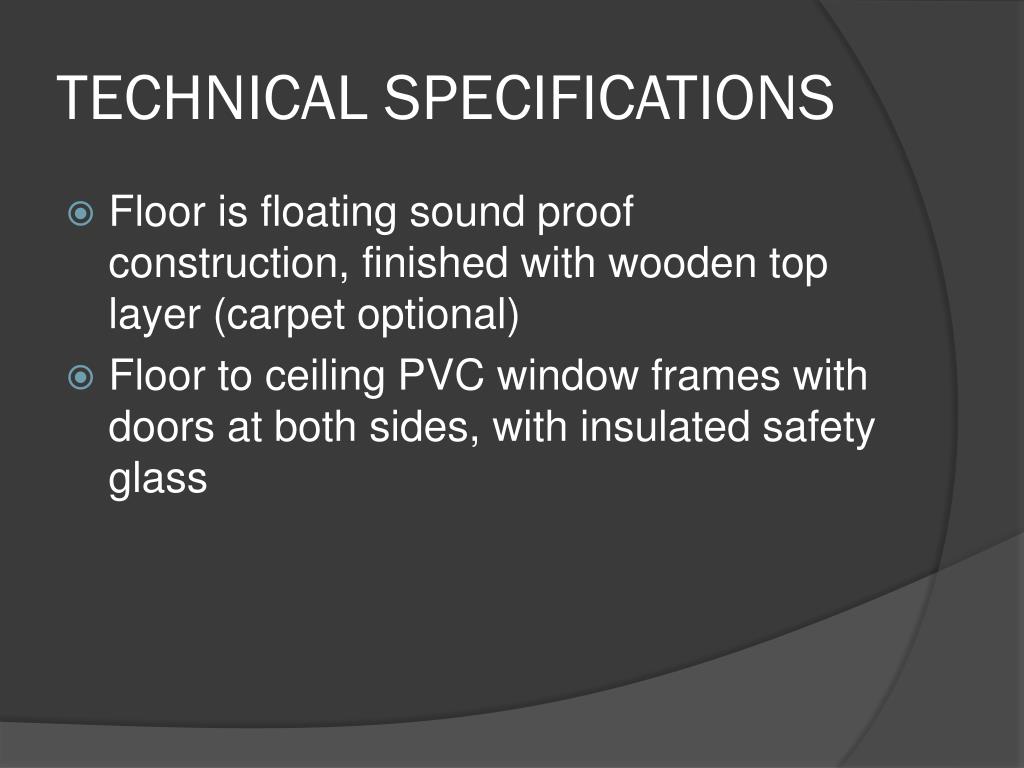

TECHNICAL SPECIFICATIONS shipping containers.

  • Floor is floating sound proof construction, finished with wooden top layer (carpet optional)

  • Floor to ceiling PVC window frames with doors at both sides, with insulated safety glass


Technical specifications4
TECHNICAL SPECIFICATIONS shipping containers.

  • High quality steel locks and hinges (antitheft provisions included)

  • Bathroom complete with: sink, shower, toilet, mirror, heating

  • Full wiring, 7 double wall sockets, fuse box, double circuit breakers, 4 light fixtures, automatic mechanical ventilation


References

Http://www.tempohousing.com shipping containers.

STRANDPARKEN

REFERENCES


Thanks
THANKS… shipping containers.
