Presentation Transcript

Fig 39

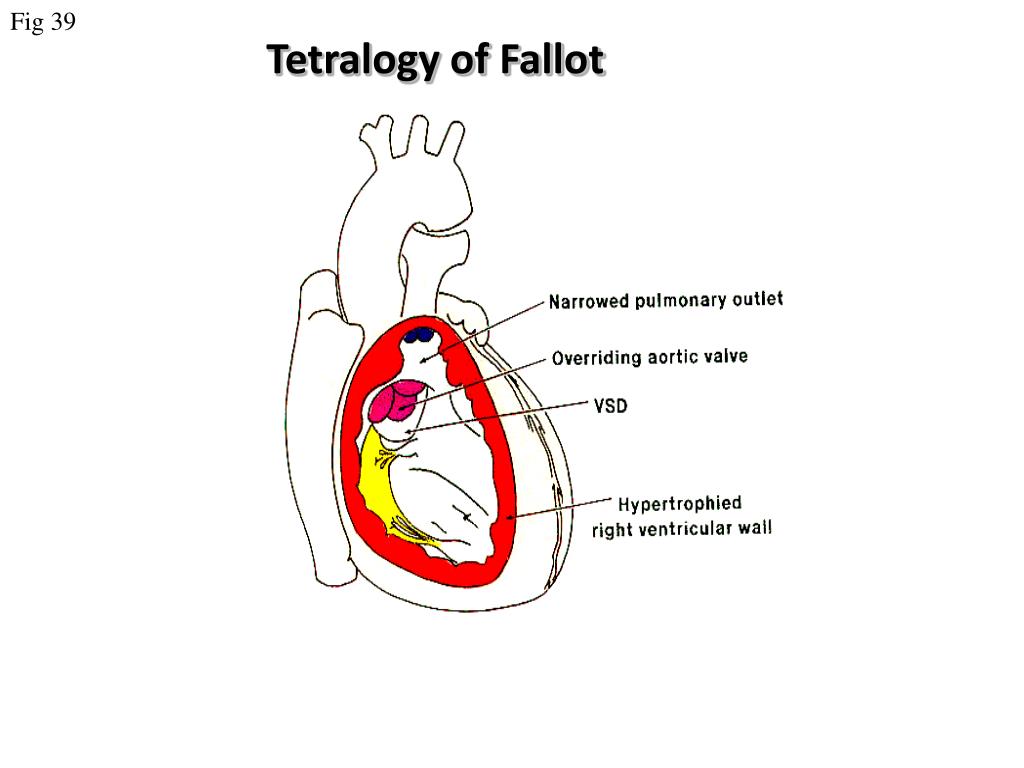

Tetralogy of Fallot


Tetralogy of fallot

Fig 40

Tetralogy of Fallot

RVOT

RV

VSD

Ao

LV

Ao

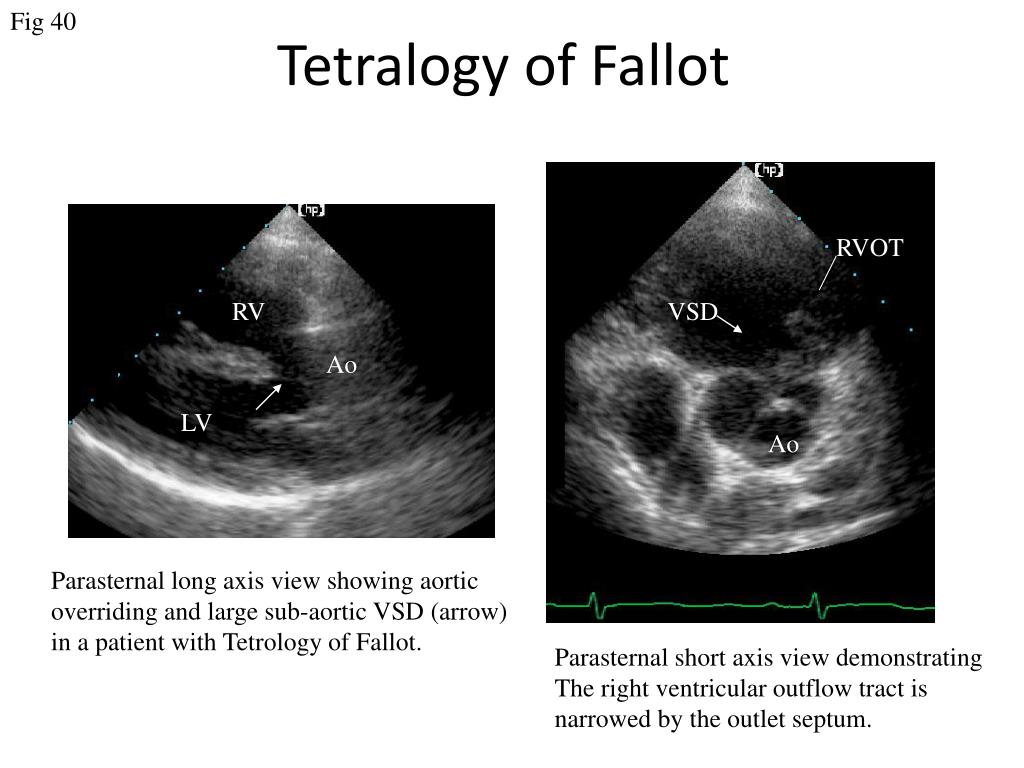

Parasternal long axis view showing aortic

overriding and large sub-aortic VSD (arrow)

in a patient with Tetrology of Fallot.

Parasternal short axis view demonstrating

The right ventricular outflow tract is

narrowed by the outlet septum.


Tetralogy of fallot1

Fig 41

Tetralogy of Fallot

RVOT

Ao

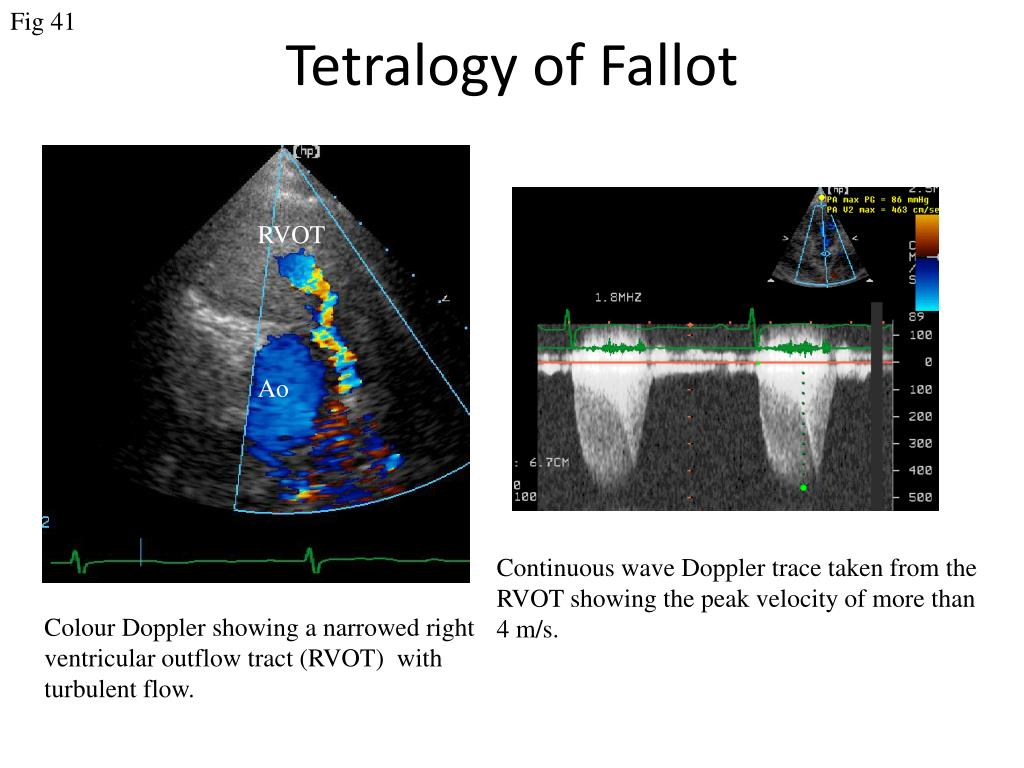

Continuous wave Doppler trace taken from the

RVOT showing the peak velocity of more than

4 m/s.

Colour Doppler showing a narrowed right

ventricular outflow tract (RVOT) with

turbulent flow.


Fig 42

Repaired Fallot

LV

RV

RVOT

LA

Ao

RA

RA

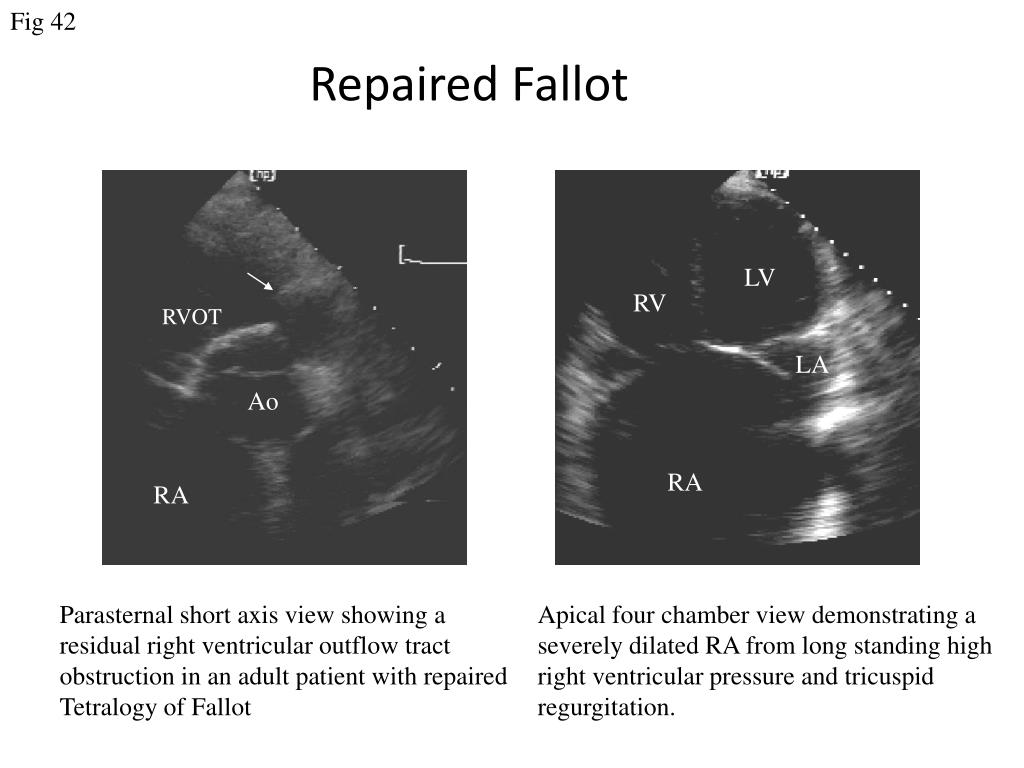

Parasternal short axis view showing a

residual right ventricular outflow tract

obstruction in an adult patient with repaired

Tetralogy of Fallot

Apical four chamber view demonstrating a

severely dilated RA from long standing high

right ventricular pressure and tricuspid

regurgitation.
