Deafness and red-green colorblindness in humans are determined by recessive alleles at X-chromosome loci that are 32 map units apart. Consider the pedigree shown below. What are the possible genotypes for individual III-3 ? What is the probability for each possible genotype?

bevis-hodges
Download Presentation

I II III

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Deafness and red-green colorblindness in humans are determined by recessive alleles at X-chromosome loci that are 32 map units apart. Consider the pedigree shown below. • What are the possible genotypes for individual III-3? What is the probability for each possible genotype? • What is the probability that individual III-3 can have a colorblind son with deafness? • What are the possible genotypes for individual III-5? What is the probability for each possible genotype? • What is the probability that individual III-5 can have a colorblind son with deafness? I II III Problem 5 Problem Set 1Fall 2007 1 2 3 4 5 6 7

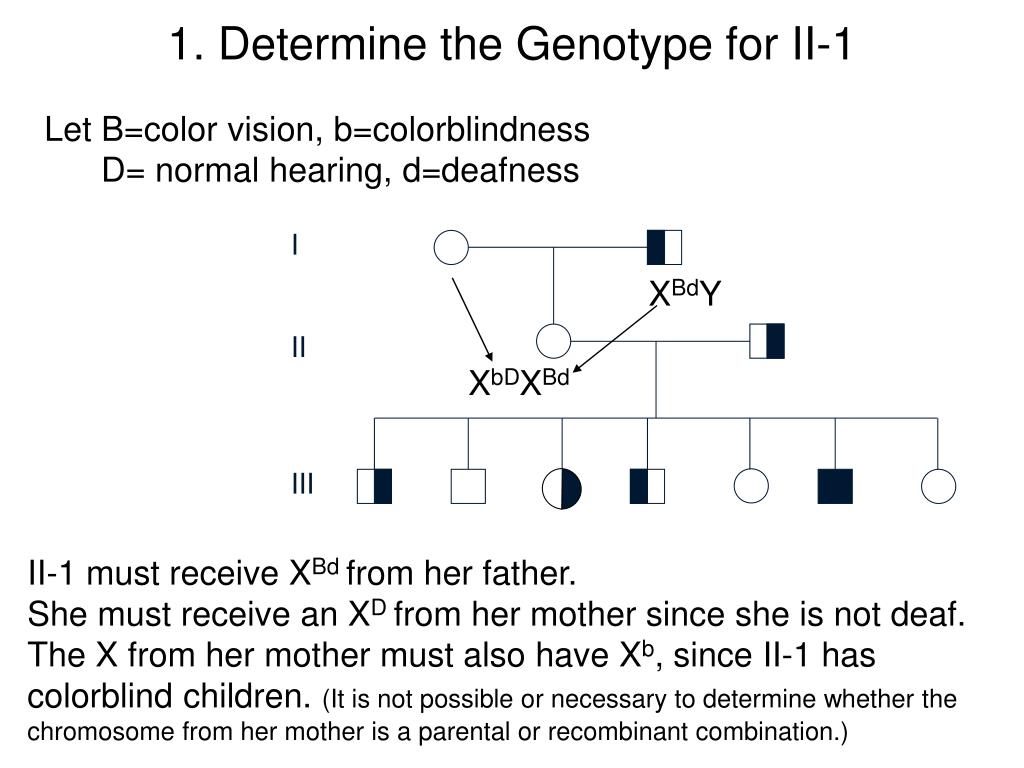

  2. XbD XBd 1. Determine the Genotype for II-1 Let B=color vision, b=colorblindness D= normal hearing, d=deafness I II III XBdY II-1 must receive XBd from her father.She must receive an XD from her mother since she is not deaf.The X from her mother must also have Xb, since II-1 has colorblind children. (It is not possible or necessary to determine whether the chromosome from her mother is a parental or recombinant combination.)

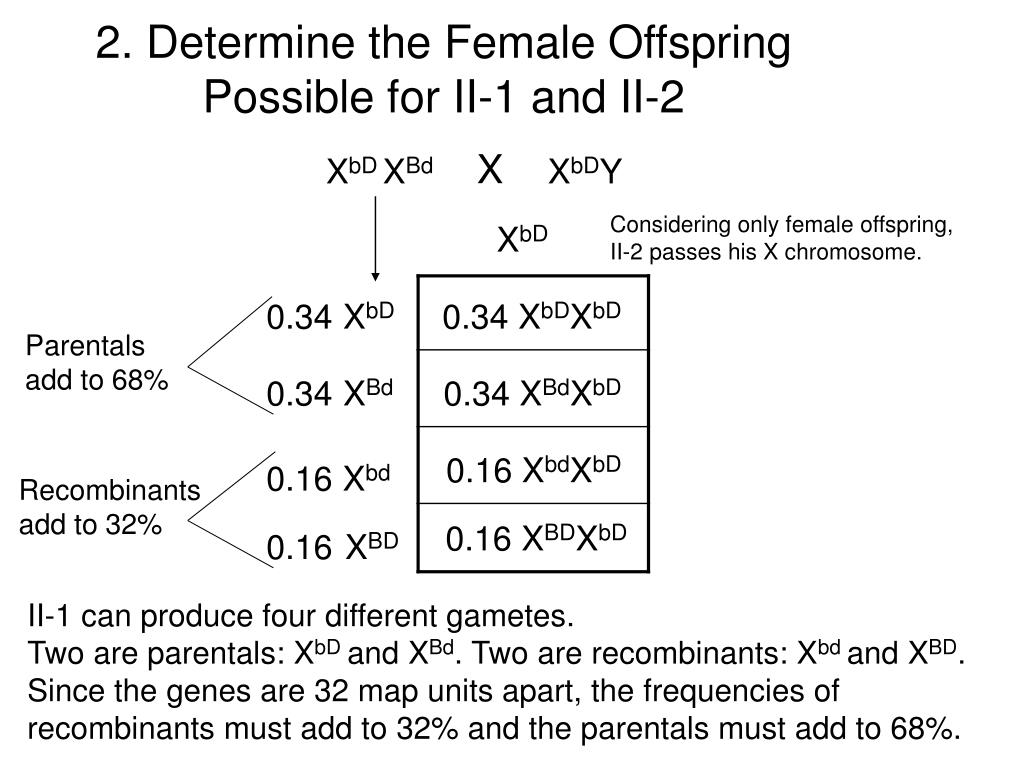

  3. Parentals add to 68% Recombinantsadd to 32% 2. Determine the Female Offspring Possible for II-1 and II-2 X XbD XBd XbDY Considering only female offspring, II-2 passes his X chromosome. XbD 0.34 XbD 0.34 XbDXbD 0.34 XBd 0.34 XBdXbD 0.16 XbdXbD 0.16 Xbd 0.16 XBDXbD 0.16 XBD II-1 can produce four different gametes. Two are parentals: XbD and XBd. Two are recombinants: Xbd and XBD. Since the genes are 32 map units apart, the frequencies of recombinants must add to 32% and the parentals must add to 68%.

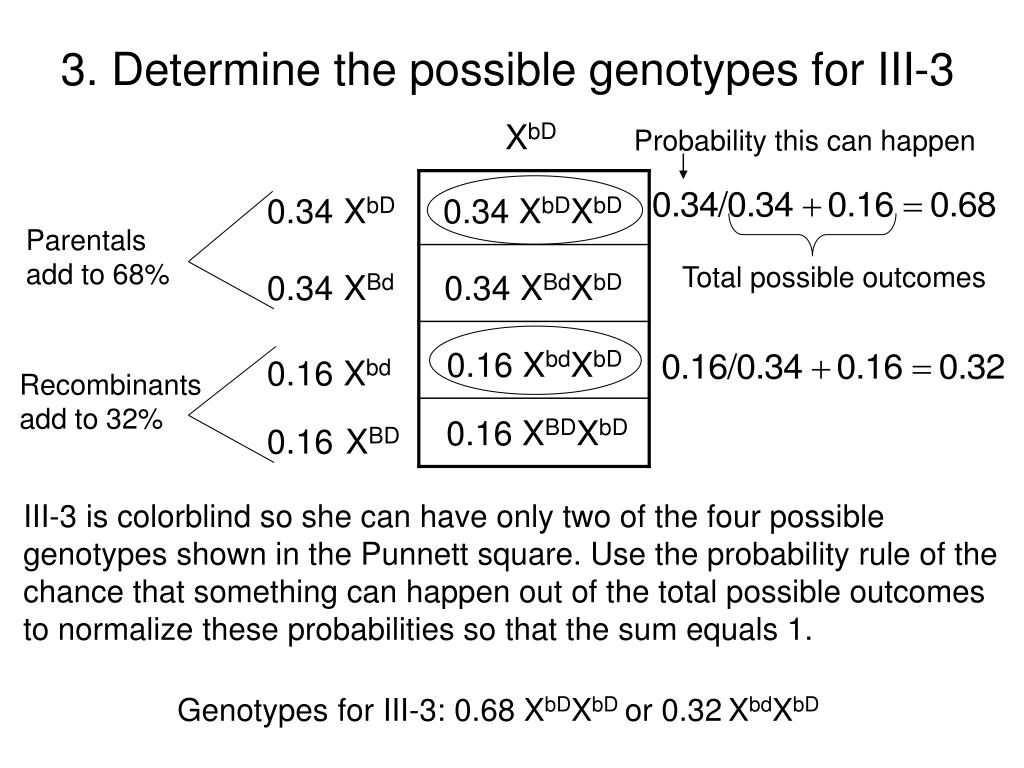

  4. Probability this can happen Total possible outcomes Parentals add to 68% Recombinantsadd to 32% 3. Determine the possible genotypes for III-3 XbD 0.34 XbD 0.34 XbDXbD 0.34 XBd 0.34 XBdXbD 0.16 XbdXbD 0.16 Xbd 0.16 XBDXbD 0.16 XBD III-3 is colorblind so she can have only two of the four possible genotypes shown in the Punnett square. Use the probability rule of the chance that something can happen out of the total possible outcomes to normalize these probabilities so that the sum equals 1. Genotypes for III-3: 0.68 XbDXbD or 0.32XbdXbD

  5. 0.68 XbD 0.32 Xbd XbD 3A. An easier way to determine the possible genotypes for III-3 I II III XBdY XbD XBd XbDY XbD III-3 is female, so she must have received the XbD chromosome from her father. She is colorblind, so she must receive an Xb from her mother. This Xb can be part of a recombinant chromosome, Xbd, which should occur with 32% probability. Or it can be part of a parental chromosome, XbD,which should occur with 68% probability.

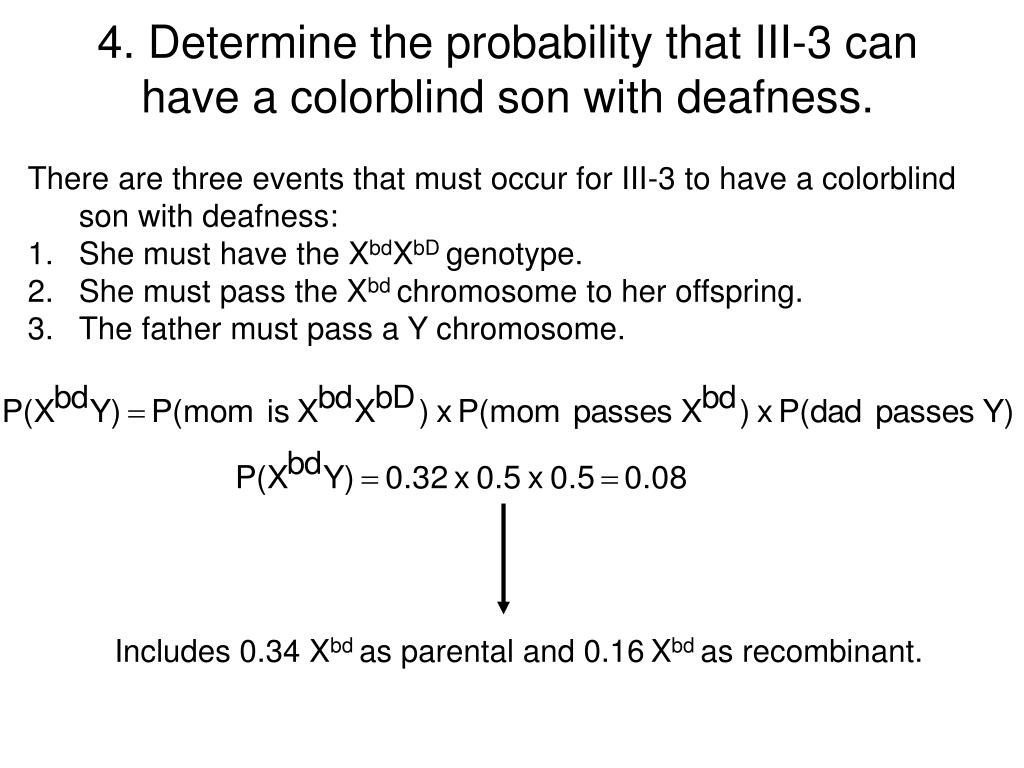

  6. Includes 0.34 Xbd as parental and 0.16Xbd as recombinant. 4. Determine the probability that III-3 can have a colorblind son with deafness. • There are three events that must occur for III-3 to have a colorblind son with deafness: • She must have the XbdXbD genotype. • She must pass the Xbd chromosome to her offspring. • The father must pass a Y chromosome.

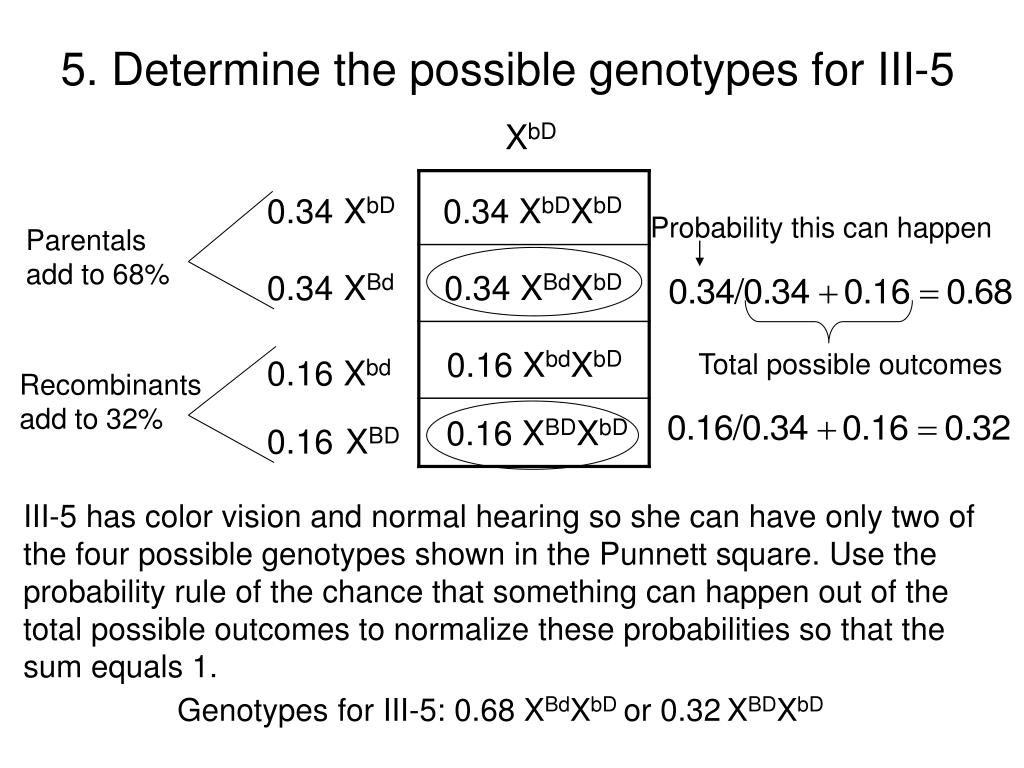

  7. Probability this can happen Total possible outcomes Parentals add to 68% Recombinantsadd to 32% 5. Determine the possible genotypes for III-5 XbD 0.34 XbD 0.34 XbDXbD 0.34 XBd 0.34 XBdXbD 0.16 XbdXbD 0.16 Xbd 0.16 XBDXbD 0.16 XBD III-5 has color vision and normal hearing so she can have only two of the four possible genotypes shown in the Punnett square. Use the probability rule of the chance that something can happen out of the total possible outcomes to normalize these probabilities so that the sum equals 1. Genotypes for III-5: 0.68 XBdXbD or 0.32XBDXbD

  8. 0.32 XBD XbD 0.68 XBd 5A. An easier way to determine the possible genotypes for III-5 I II III XBdY XbD XBd XbDY XbD III-5 is female, so she must have received the XbD chromosome from her father. She is not colorblind, so she must receive an XB from her mother. This XB can be part of a recombinant chromosome, XBD, which should occur with 32% probability. Or it can be part of a parental chromosome, XBd,which should occur with 68% probability.

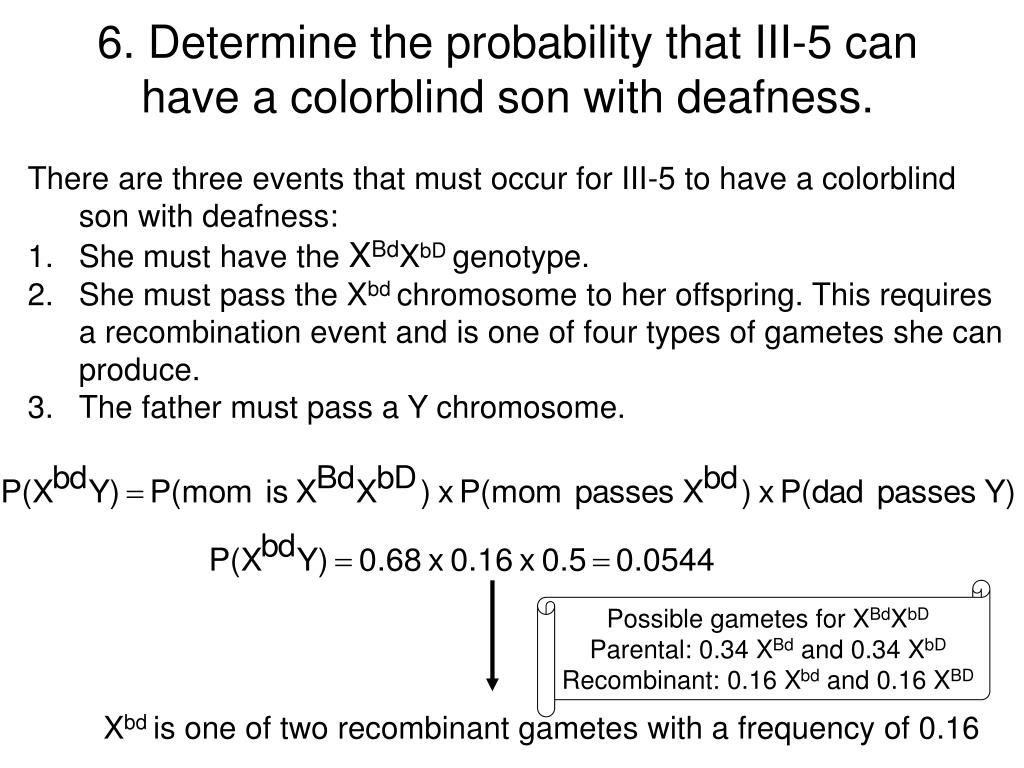

  9. Xbd is one of two recombinant gametes with a frequency of 0.16 6. Determine the probability that III-5 can have a colorblind son with deafness. • There are three events that must occur for III-5 to have a colorblind son with deafness: • She must have the XBdXbD genotype. • She must pass the Xbd chromosome to her offspring. This requires a recombination event and is one of four types of gametes she can produce. • The father must pass a Y chromosome. Possible gametes for XBdXbDParental: 0.34 XBd and 0.34 XbDRecombinant: 0.16 Xbd and 0.16 XBD
