Nato armaments support services user training

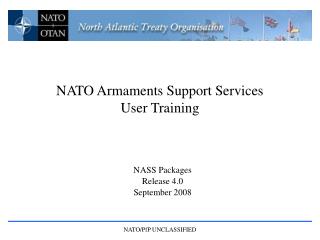

NATO Armaments Support ServicesUser Training

NASS Packages

Release 4.0

September 2008

NATO/PfP UNCLASSIFIED


Agenda

Agenda

  • Introduction

  • Overview

  • Development Environment

  • SCPP

  • Configuration

  • Packages

  • Autotest

  • Closing

NATO/PfP UNCLASSIFIED


Packages 1

Packages (1)

NATO/PfP UNCLASSIFIED


Packages 2

Packages (2)

NATO/PfP UNCLASSIFIED


Packages 3

Packages (3)

NATO/PfP UNCLASSIFIED


Packages 4

Packages (4)

NATO/PfP UNCLASSIFIED


Nass base types 1

NASS.Base_Types (1)

  • Base Types

    • Define various numbers types

    • Has several child packages

  • Base_Types.Coordinate_Systems

    • Geography related types, such as

      • Azimuth, Distance, Easting, Northing, Altitude, etc.

      • Datum_Codes, Ellipsoids

    • Geography related functions, such as

      • Normalize_Azimuth

      • Get_Ellipsoid_Data

      • Semi_Major_Axis

NATO/PfP UNCLASSIFIED


Nass base types 2

NASS.Base_Types (2)

  • Base_Types.FCI

    • Type definitions used for Fire Control Inputs, such as:

      • String types (e.g. Fuze_Model_String)

      • Numeric (e.g. Fork)

      • Constants (e.g. Max_Number_of_Phases)

      • Enumerations (e.g. Safety_Type)

  • Base_Types.FCI.CPH

    • FCI types related to Copperhead projectiles

      • E.g. Glide_Angle_Type

NATO/PfP UNCLASSIFIED


Nass base types 3

NASS.Base_Types (3)

  • Base_Types.Fire_Mission

    • Defines types related to fire mission

    • Used mainly by NABK Fire Mission Layer, but potentially useful to other S4 products

    • Defines types such as:

      • Arrays (e.g. Integer_Config_Item)

      • Enumeration (e.g. Projectile_Mode)

      • Numeric (e.g. FF_Clear_Type)

NATO/PfP UNCLASSIFIED


Nass base types 4

NASS.Base_Types (4)

  • Base_Types.Met

    • Type Definitions for Meteorological Data, such as:

      • Numeric types (e.g. Air_Pressure, Wind_Speed)

      • Constants (e.g. Standard_Air_Temperature)

  • Base_Types.Met.CPH

    • Types for Met Data related to Copperhead Projectiles

      • e.g. Cloud_Ceiling_Type

NATO/PfP UNCLASSIFIED


Nass basic pool

NASS.Basic_Pool

  • Manages data records in a static storage pool

generic Size : in Integer;type Concrete_Type istaggedprivate; type Concrete_Access_Type isaccessall Concrete_Type'Class; package NASS.Basic_Pool is

NATO/PfP UNCLASSIFIED


Nass pool

NASS.Pool

  • Derived from Basic_Pool – same set of services

  • Instead of dealing with the concrete type, it deals with the ancestor type of the concrete type

    genericSize: in Integer;type Root_Type isabstracttaggedprivate;type Concrete_Type isnew Root_Type withprivate;type Root_Access_Type isaccessall Root_Type'Class;

    Package NASS.Pool is

NATO/PfP UNCLASSIFIED


Nass bounded length n

NASS.Bounded_LengthN

  • A set of .ads files that define bounded string types of various constant lengths:

    • 4, 6, 8, 16, 32, 64, 128, 256, 512 characters

    • NASS.Bounded_Length_Large is configurable

      • Configured by constant NASS.Config_Pkg. Large_Bounded_String_Size

      • Default length is 1024 characters

NATO/PfP UNCLASSIFIED


Nass cli pkg 1

NASS.CLI_Pkg (1)

  • CLI = Command Line Interface

  • Package to process command line arguments and to return information associated with such arguments to calling applications.

  • Applications can use standard CLI Argument types defined in CLI_Pkg or can extend the basic type to add fields or functionality.

  • Currently located in Non-Core portion of NASS

NATO/PfP UNCLASSIFIED


Nass cli pkg 2

NASS.CLI_Pkg (2)

  • Capabilities:

    • Define the command line arguments

    • Classify an argument as mandatory / optional

    • Define upper and lower bounds of argument values

    • Define subarguments

    • Validate command line parameters

NATO/PfP UNCLASSIFIED


Nass config pkg 1

NASS.Config_Pkg (1)

Debugging constants for static storage pools

  • Trace_Pool_Size - Flag indicates whether “pool size” events should be logged

    • False – not logged

    • True – logged

  • Trace_Allocate_Deallocate_Pools - Flag indicates whether pool allocation/de-allocation events should be logged

    • False – not logged

    • True – logged

NATO/PfP UNCLASSIFIED


Nass config pkg 2

NASS.Config_Pkg (2)

Constants related to the Flight_Path object

  • Trajectory_Extra_Data - flag used to determine if the extra trajectory data is to be logged

    • FALSE => only Time and Position are logged

    • TRUE => extra data is logged

  • Trajectory_List_Size – number of integration points stored in a flight path object.

    • A list size of 600 is usually adequate

NATO/PfP UNCLASSIFIED


Nass config pkg 3

NASS.Config_Pkg (3)

  • config_pkg\nass-config_pkg.ads

NATO/PfP UNCLASSIFIED


Nass constants

NASS.Constants

  • Contains constants such as:

    • Math constants (e.g. PI)

    • Conversion constants (e.g. Cvt_Rad_To_Mils)

    • Scientific constants (e.g. P0 (standard air pressure))

NATO/PfP UNCLASSIFIED


Nass containers bounded bounded ordered maps

NASS.Containers.Bounded.Bounded_Ordered_Maps

  • Generic package to create ordered maps associated with objects of a type which has an underlying partial order

  • Implements the Ada2005 functionality for ordered maps

  • Can be instantiated using constrained types or access types

  • If the underlying object is unconstrained or class-wide, then Bounded_Ordered_Maps must be instantiated with access types and it is the responsibility of the application to predefine the objects which will be used to prevent dynamic memory issues.

NATO/PfP UNCLASSIFIED


Nass crest violations

NASS.Crest_Violations

  • Defines various types related to crest violations (e.g. Crest_Results_Type)

  • Defines a Violation Check Record

  • Defines status messages related to crest violations (e.g. “Far_Crest_Impact”)

NATO/PfP UNCLASSIFIED


Nass flight path 1

NASS.Flight_Path (1)

  • Represents a trajectory as a series of points

  • Instantiation of NASS.List_Pkg with a record of data:

    • Time and Position (Cartesian coordinates)OR

    • Time, Position, Velocity, Spin,Yaw, Met Data etc.

  • Content of record is affected by configuration parameter Log_Trajectory_Extra_Data

NATO/PfP UNCLASSIFIED


Nass flight path 2

NASS.Flight_Path (2)

  • Other flight path variants:

    • NASS.Geo_Flight_Path – position stored as Latitude, Longitude and Altitude

    • NASS.TM_Flight_Path – position stored as TM Easting, Northing and Altitude

NATO/PfP UNCLASSIFIED


Nass generic buffer

NASS.Generic_Buffer

  • Performs low level actions to read data from a text file

  • These services include the services to:

    • load a specified text file to a buffer in memory, parse the contents and access it.

  • Structurally each Buffer contains an array of lines.

  • Each Line consists of one or more bounded string(s)

NATO/PfP UNCLASSIFIED


Nass generic location pkg 1

NASS.Generic_Location_Pkg (1)

  • Extends the NASS.Geographic_Location_Pkg

  • Provides services for creation and manipulation of UTM or BNG locations

    • Compute_Distance

    • Compute_Azimuth

    • Etc.

  • Instantiated to create NASS.Location and NASS.Unconstrained_Location

  • As an example, NASS.Location is extended by NABK to create NABK.FMNL.Location

NATO/PfP UNCLASSIFIED


Nass generic location pkg 2

NASS.Generic_Location_Pkg (2)

  • Coding examples from NASS unit test

  • Package spec:

  • generic_location\nass-generic_location_pkg.ads

  • Test code:

  • generic_location\nass-test_frame-generic_location_pkg.ads

  • generic_location\nass-generic_location_pkg-unit_test.adb

NATO/PfP UNCLASSIFIED


Nass generic real arrays

NASS.Generic_Real_Arrays

  • Defines Real Matrix and Real Vector types

  • Provides operations (+, -, *) for these types

  • NASS.Real64_Arrays is a NASS.Base_Types.Real64 instance of NASS.Generic_Real_Arrays

NATO/PfP UNCLASSIFIED


Nass generic tm

NASS.Generic_TM

  • Transformations/conversions for TM locations

    • Zone_to_Zone

    • Grid_Declination

    • TM_To_Geographic

    • Etc.

NATO/PfP UNCLASSIFIED


Nass geographic location pkg 1

NASS.Geographic_Location_Pkg(1)

  • This package provides services for creation and use of geographic (i.e. latitude / longitude) locations. Services include

    • Compute_Distance

    • Compute_Azimuth

    • Compute_Location

  • Child package Datum_Trans converts location between WGS84 and any Datum

  • Child package Data holds data for datum transforms. Possible to define own datum and ellipsoid here.

  • Child package Datum_Text provides Name and Region of any Datum

NATO/PfP UNCLASSIFIED


Nass geographic location pkg 2

NASS.Geographic_Location_Pkg(2)

  • Coding examples from NASS unit test

  • Package spec:

  • geographic_location\nass-geographic_location_pkg.ads

  • Test Code:

  • geographic_location\nass-geographic_location_pkg-unit_test.adb

NATO/PfP UNCLASSIFIED


Nass geo flight path

NASS.Geo_Flight_Path

  • Extension of List_Pkg

  • Position stored as Latitude, Longitude, Altitude, Range and Time

  • Extended for TEDM to include Ground_Altitude and Safety_Clearance

NATO/PfP UNCLASSIFIED


Nass geo utility pkg

NASS.Geo_Utility_Pkg

  • Provides additional utility services for Lat/Long positions

  • Defines DMS Type and services on this such as:

    • Convert_to_Decimal_Degrees

    • “+”, “-”, “=”

    • Etc…

NATO/PfP UNCLASSIFIED


Nass location pkg

NASS.Location_Pkg

  • UTM Instantiation of Generic_Location_Pkg

NATO/PfP UNCLASSIFIED


Nass integration

NASS.Integration

  • Generic package to perform numerical integration using a first order Predictor-Corrector method

  • Integration64: real64 Instance of Integration

NATO/PfP UNCLASSIFIED

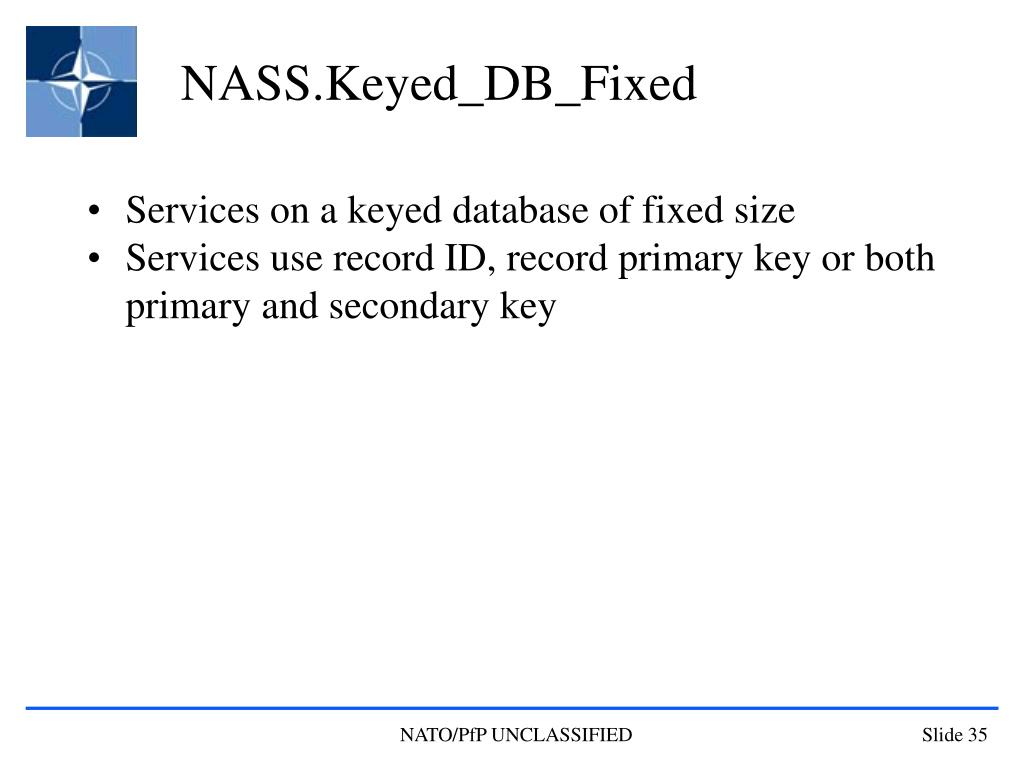

Nass keyed db fixed

NASS.Keyed_DB_Fixed

  • Services on a keyed database of fixed size

  • Services use record ID, record primary key or both primary and secondary key

NATO/PfP UNCLASSIFIED

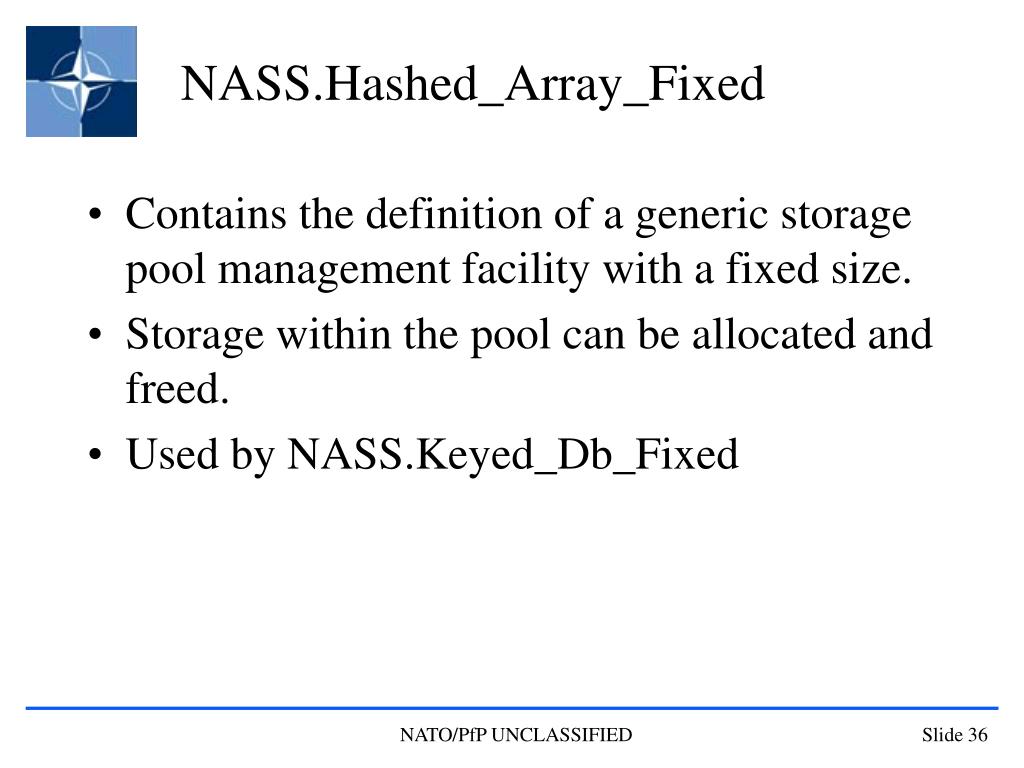

Nass hashed array fixed

NASS.Hashed_Array_Fixed

  • Contains the definition of a generic storage pool management facility with a fixed size.

  • Storage within the pool can be allocated and freed.

  • Used by NASS.Keyed_Db_Fixed

NATO/PfP UNCLASSIFIED


Nass list pkg nass linked list 1

NASS.List_Pkg & NASS.Linked_List(1)

  • List_Pkg

    • Manages data records in an array list

    • Array size is determined at instantiation

  • Linked_List

    • Manages data records in a double linked list

NATO/PfP UNCLASSIFIED


Nass list pkg nass linked list 2

NASS.List_Pkg & NASS.Linked_List(2)

  • Coding examples from NASS unit test

  • Package spec:

  • list_pkg\nass-list_pkg.ads

  • Test code:

  • list_pkg\nass-test_frame-list_pkg.ads

  • list_pkg\nass-list_pkg-unit_test.adb

NATO/PfP UNCLASSIFIED


Nass mac

NASS.MAC

  • Implementation of a variant of the RSA MD5 message digest algorithm

NATO/PfP UNCLASSIFIED


Nass mac io

NASS.MAC.IO

  • Used by the NABK to ‘authenticate’ data files to determine if a files has been changed since is was originally ‘fingerprinted’.

  • When a file is ‘fingerprinted’, a 128 bit number is computed and stored in the file.

  • When a file is ‘authenticated’ the fingerprint is recomputed and compared to the fingerprint stored in the file.

NATO/PfP UNCLASSIFIED


Nass math

NASS.Math

  • Provides math functions.

  • This package is a rename of the standard Ada package Ada.Numerics.Generic_Elementary_Functions.

  • NASS.Math32 and NASS.Math64 are NASS.Base_Types.Real32 and 64 instances of NASS.Math

NATO/PfP UNCLASSIFIED


Nass status 1

NASS.Status(1)

  • Defines Status types

    • Severity, Kind_Type, etc.

  • Provides services for Status messages

    • Image, Sort, etc.

  • Defines NASS status messages

    • SUCCESS, UNDEFINED, etc.

NATO/PfP UNCLASSIFIED


Nass status 2

NASS.Status(2)

  • Coding examples from NASS unit test

  • Package spec:

  • status\nass-status.ads

  • Test code:

  • status\nass-status-unit_test.adb

NATO/PfP UNCLASSIFIED


Nass string16 list

NASS.String16_List

  • Instance of List_Pkg to hold list of Bounded_Length16.Bounded_String:s

  • List size: Config_Pkg.String16_Maximum_List_Size (default to 200)

NATO/PfP UNCLASSIFIED


Nass string test

NASS.String_Test

  • Provides functions to test if a given String contains a real or integer number. Leading and trailing blanks or tabs are ignored.

  • Additionally also converts string to real64

NATO/PfP UNCLASSIFIED


Nass string utilities

NASS.String_Utilities

  • Provides a collection of functions on strings that are commonly performed:

    • Upper_Case_Trim for all Bounded_Length strings

NATO/PfP UNCLASSIFIED


Nass text io

NASS.Text_Io

  • Rename of Ada.Text_Io

NATO/PfP UNCLASSIFIED


Nass unconstrained location pkg

NASS.Unconstrained_Location_Pkg

  • Instance of Generic_Location_Pkg constrained by the safe range of real64

NATO/PfP UNCLASSIFIED


Nass unconstrained location pkg datum trans

NASS.Unconstrained_Location_Pkg_Datum_Trans

  • Instance of NASS.Unconstrained_Location_Pkg.Datum_Trans constrained by the safe range of real64

NATO/PfP UNCLASSIFIED


Nass vectors

NASS.Vectors

  • Provides basic mathematic operations on 3-dimension (x, y, z) vectors

  • Vectors64: real64 instance of Vectors

NATO/PfP UNCLASSIFIED


Nass moving object pkg

NASS.Moving_Object_Pkg

  • Provides services to manipulate moving object data:

    • Set

    • Get

    • Clear

    • Is_Defined

    • Compute_Velocity_Vector

  • Child package Moving_Weapon_Pkg handles a slewing barrel. Provides services:

    • Set

    • Get

    • Clear

    • Compute_Barrel_Velocity_Vector

NATO/PfP UNCLASSIFIED


Nass numerics 1

NASS.Numerics (1)

  • Provides services for Random Number generation

  • Algorithms used:

    • Mersenne Twister for uniform Unsigned_32

    • Ziggurat for normal distribution

  • Child packages:

    • Numerics.Mersenne_Twister

      • Basis of others and returns Interfaces.Unsigned_32

      • The “core” of the Mersenne_Twister method

    • Numerics.Normal_Random

      • Returns a Float with a normal distribution.

      • The “core” of the Ziggurat method

    • Numerics.Discrete_Random

      • Returns a Natural

      • The only generic package

      • Directly mirrors Ada.Numerics.Discrete_Random

NATO/PfP UNCLASSIFIED


Nass numerics 2

NASS.Numerics (2)

  • Child packages (continued):

    • Numerics.Float_Random

      • Returns a Float in range 0.0 to 1.0 (inclusive)

      • Directly mirrors Ada.Numerics.Float_Random.

    • Numerics.Integer_Random

      • Returns an Integer

      • Instantiation of the provided Discrete_Random

    • Numerics.Natural_Random

      • Returns a Natural

      • Instantiation of the provided Discrete_Random

    • Numerics.Element_Random

      • Provides a random Ada.Streams.Stream_Element value

NATO/PfP UNCLASSIFIED


Nass numerics 3

NASS.Numerics (3)

  • All packages provide the services:

    • function Random

      • Gives the random number

    • procedure Reset

      • Resets or initialises the random number generator

    • procedure Save

      • Saves the internal state of the generator

    • function Image

      • Produces the string representation of a State

    • function Value

      • reconstructs a State from an Image String

NATO/PfP UNCLASSIFIED


Nass numerics 4

NASS.Numerics (4)

  • Coding examples from NASS unit test

  • Package spec:

  • numerics\NASS-Numerics-Float_Random.ads

  • Test code:

  • numerics\nass-numerics-float_random-test.adb

NATO/PfP UNCLASSIFIED


Supporting documentation

Supporting Documentation

  • IDIUG for the NATO Armaments Support Services

  • DDD for the NATO Armaments Support Services

  • “The MD5 Message Digest Algorithm”, R. Rivest, MIT Laboratory for Computer Science and RSA Data Security, Inc., April 1992.

  • “Handbook for Transformations of Datums, Projections, Grids and Common Coordinate Systems (TEC-SR-7)”, US Army Corps of Engineers, Topographical Engineering Center, January 1996

  • “Transverse Mercator Projection (constants, formulae and methods)”, UK Ordnance Survey Leaflet No 72, March 1983

NATO/PfP UNCLASSIFIED


More coding examples if time

More coding examples if time….

  • basic_pool\nass-basic_pool.ads

  • basic_pool\nass-test_frame-basic_pool.ads

  • basic_pool\nass-basic_pool-unit_test.ads

  • basic_pool\nass-basic_pool-unit_test.adb

  • flight_path\nass-flight_path.ads

  • flight_path\nass-flight_path-unit_test.adb

  • hashed_array_fixed\nass-hashed_array_fixed.ads

  • hashed_array_fixed\nass-test_frame-hashed_array_fixed.ads

  • hashed_array_fixed\nass-hashed_array_fixed-unit_test.adb

NATO/PfP UNCLASSIFIED


  • Login
