Presentation Transcript


Mx250 power on and off console mode

MX250 — Power on and off, Console Mode


Power supply

Power Supply

  • MX250 has ac and dc inputs

    • ac 100 to 240 V, 5A, 50 to 60 Hz

    • dc –48 V, 6A

    • worldwide safety and compliance approvals

  • If ac portion of power supply fails

    • dc portion continues to operate

    • use the BPS12 for 6 hours of backup


Power on

Power On

  • Automatically powers up

    • when ac or dc is plugged in

    • reset button does not need to be pressed

  • If ac or dc is already connected

    • press reset button to turn power on


Boot sequence

Boot Sequence

  • Internal processors load software from hard disc

  • Indicate the boot status using the LEDs

    • details in MX250 hardware manual

  • Less than one minute to become operational


Startup log

Startup Log

  • Created every time the MX250 boots up

    • accessed through MX250 web server

    • point browser at external IP address of MX250

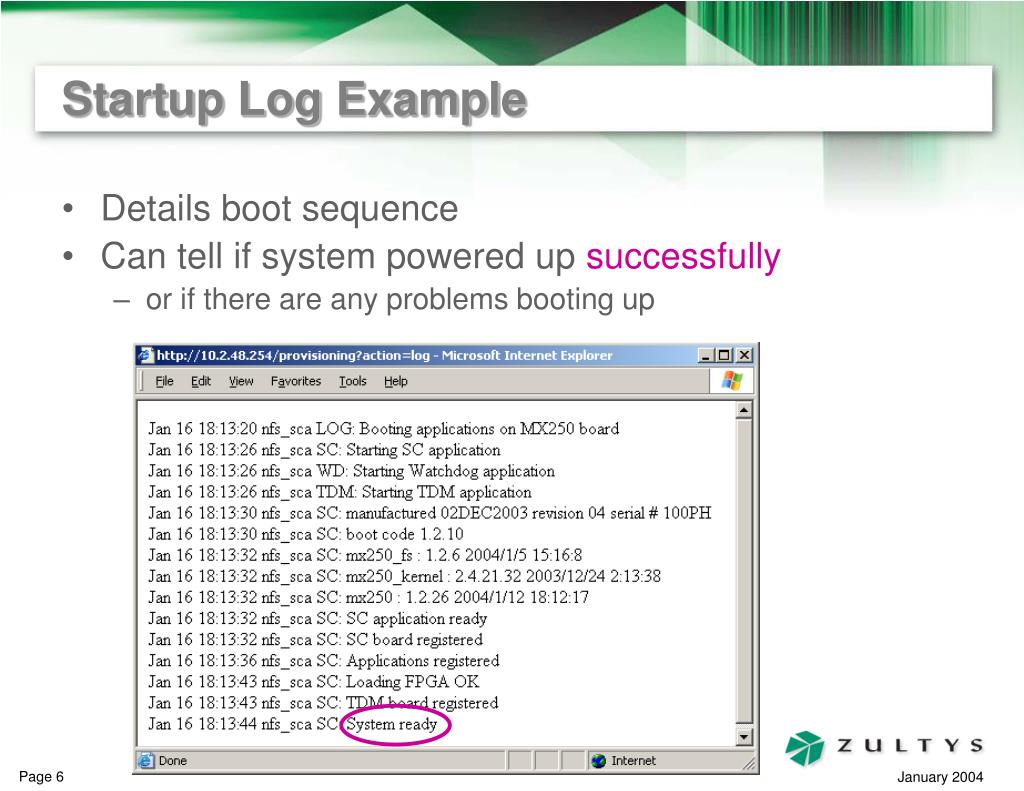

Startup log example

Startup Log Example

  • Details boot sequence

  • Can tell if system powered up successfully

    • or if there are any problems booting up


Console mode

Console Mode

  • Activated by pressing the console button

  • Can be activated

    • during startup phase

    • during normal operation

  • Provides access to special functions

    • not available in normal mode

    • through connection on port 2


Console mode how to activate at power up

Console Mode — How to Activate at Power Up

  • Press and hold the console button

  • Power up the MX250

  • Do not release console button until

    • Status LED flashes green, red, orange, and off*

      • this could take up to 1 minute

  • Reboot required to exit console mode

*In version 1.2 of software, Status LED flashes green and off


Console mode activated at power up

Console Mode — Activated at Power Up

  • Assigns fixed IP address 192.168.1.100 to MX250

  • Runs a DHCP server, leases one IP address

    • 192.168.1.101

    • directly connect your laptop to console port

  • Allows you to:

    • change external IP address of the MX250

    • reset master password

    • perform emergency recovery


Console mode how to activate during operation

Console Mode — How to Activate During Operation

  • Press and hold the console button

  • Do not release console button until

    • status LED flashes green, red, orange, and off

      • this takes 2 seconds

  • No reboot required to exit console mode

    • press and hold console button for 2 seconds

    • Status LED returns to previous condition


Console mode activated during operation

Console Mode — Activated During Operation

  • DOES NOT assign fixed IP address 192.168.1.100 to MX250

  • DOES NOT run a new DHCP server

  • Allows you to:

    • change external IP address of the MX250

    • reset master password

    • perform emergency recovery


Console mode imitation

Console Mode — Imitation

  • If External IP Address is 192.168.1.100

    • MX250 acts as if it is in console mode


Automatic shutdown

Automatic Shutdown

  • Allows you to safely shutdown system

    • press and hold reset button for one second

    • Status LED flashes orange

  • System applications are properly shutdown

    • safely shuts down the database

    • terminates all active processes

    • turns off the power


Forced shutdown

Forced Shutdown

  • Allows you to shutdown the MX250

    • when it cannot shut down on its own

    • same feature on PCs with ATX power supplies

  • Initiate during normal operation by holding down reset button for 10 seconds

  • May cause database corruption


Immediate shutdown

Immediate Shutdown

  • Initiated from Admin UI

    • Maintenance | Shutdown MX

  • All active calls are terminated immediately

  • Terminates all processes gracefully


Graceful stop

Graceful Stop

  • Allows current calls to be completed before shutting down the system

  • No further calls can be set up


Safe shutdown when 48 vdc input drops

Safe Shutdown — When 48 Vdc input drops

  • When ac fails

    • MX250 should be connected to a BPS12

  • MX250 monitors –48 Vdc level

  • When voltage level drops to a certain level

    • MX250 initiates safe shutdown


Syslog reporting of events

Syslog Reporting of Events

  • Events sent to a Syslog server

  • Indicate status changes

    • power on and off

    • console mode activation and deactivation


Summary

Summary

  • MX250 can be powered on and off

    • by hardware or software

  • Detailed logs

    • startup

    • Syslog

  • Console access to MX250

    • used for initial configuration

    • when you forget the master password

    • when you forget the external IP address
