Presentation Transcript

Slide1 l.jpg

Partial Materials in the Final Lab Exam (Nov. 28/29): Labs #9-23 (All labs after the first lab exam)Please also read the review sheets I handed out on Nov. 20 in lab. I will have office hour M/Th: 9:15 a.m. - 10:15 a.m. at DH 553 or DH 543 (my lab)

Lab 9 single colony isolation l.jpg

LAB 9: Single Colony Isolation

Know how to obtain single colonies through the “Streak for Isolation” on an agar plate technique.

Slide3 l.jpg

Streak Plate technique

Slide5 l.jpg

Lab #9

Micrococcus luteus

Staphylococcus aureus

All in NA plates

Serratia marcescens

Klebsiella rosea

Slide6 l.jpg

Blood agar(BA) is a differential medium.

- Some bacteria produce an enzyme that is able to lyse RBCs –

this process is hemolysis.

- By growing bacteria on blood agar we can determine if the

bacteria produce hemolysin and thus lyse the RBCs.

- Blood agar is NA to which sheep RBCs have been added.

- If hemolysin is produced by the bacteria it will be secreted

into the medium and the RBCs will be lysed

(the medium will be clear rather than red).

- So presence of clearing around the bacterial growth indicates


- Growth on BA differentiates between the hemolytic and

non-hemolytic bacteria.

Slide7 l.jpg

Gamma hemolysis = No hemolysis

Alpha hemolysis = Partial

Beta hemolysis = Complete

Lab 10 stock and working slants l.jpg

Lab 10: Stock and Working Slants

  • Why did we prepare a stock and a working stock slant for the unknown?

  • Why did we grow the unknown in different media and under different conditions?

Slide10 l.jpg

“Working” “Stock”

Lab 11 simple staining bacterial smear l.jpg

Lab 11: Simple Staining & Bacterial Smear

Understand simple, negative, and positive staining.

Know how to prepare a bacteria smear

Slide12 l.jpg

Demos: simple stains of:

Neisseria (diplococci) Pseudomonas (bacilli)

Slide13 l.jpg

Lab 12: Differential Staining (Gram Stain)

Know the entire Gram Staining procedure and the function of each step.

Know the Endospore procedure (in Appendix, p. 121)

Gram stain l.jpg


E coli (Gm -)

Staph epidermidis (Gm+)

Endospore stain l.jpg


Bacillus megaterium

See Appendix IV, p. 121

Outcome for endospore + for Micr20

Bacillus anthracis

Clostridium tetani

Slide16 l.jpg

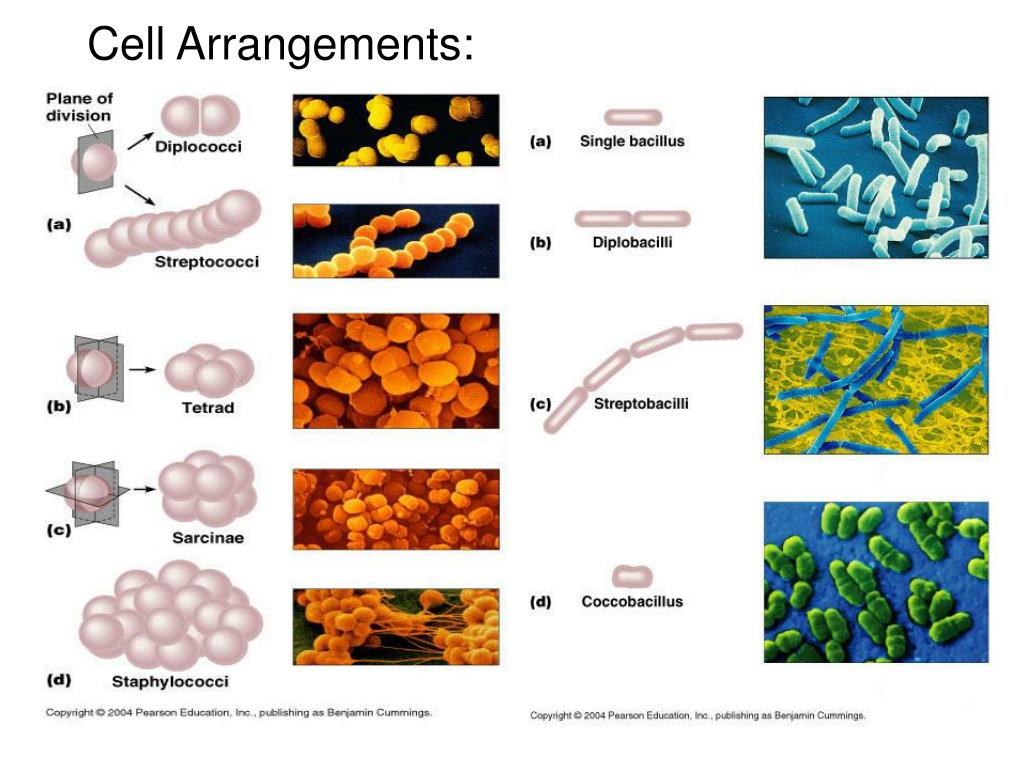

Cell Arrangements:

Lab 13 selective and differential media l.jpg

Lab 13: Selective and Differential Media

  • EMB: Eosin-Methylene Blue

    a.Differential and selective properties.

    b.Contains bile salts and the dyes eosin and methylene blue; all inhibitory to Gram-positive bacteria (e.g. Staphylococcus aureus).

    c.Selects for Gram-negative bacteria (e.g. Escherichia. coli).

    d.Differentiates lactose fermenting (dark color with metallic sheen) from non-lactose-fermenting (colorless) bacteria.

Slide18 l.jpg

Salmonella pullorum

E. coli

Staph. epidermidis

Staph. aureus

Slide19 l.jpg

Lab 13: Selective and Differential Media

TGA: Tellurite Glycine Agar

a.Selects for coagulase-positive staphylococci.

b.Differential: coagulase-positive cocci form black colonies.

c.Coagulase-negative cocci are generally inhibited. The ones that grow are gray.

d.Most Bacilli and Pseudomonas (Gm+) are inhibited.

e.Proteus sp rarely grows and form brown colonies.

Slide20 l.jpg

Staph. aureus

E. coli

Staph. epidermidis

Salmonella pullorum

Slide21 l.jpg

Know all the media we covered in Micro20 since lab #9: The purpose of the medium, how to read a positive and a negative result, what those results mean, and the MAJOR components of the medium.

Slide22 l.jpg

Lab 14: Antibiotic Sensitivity

  • Antibiotics are chemicals that are produced by other bacteria/fungi

  • that have the ability to prevent other organisms (bacteria) from

  • growing or killing them.

  • Sensitivity X Resistance to antibiotics.

  • Bacteriostasis (stopping bacterial growth) X bacteriocide (killing of bacteria).

  • Broad spectrumantibiotics- effective against a wide range of bacteria (G+ and G-).

  • Narrow spectrumantibiotics - effective against a small specific group of bacteria (either G+ or G-).

Slide23 l.jpg

Lab 14: Antibiotic Sensitivity; Disc Diffusion Method

Lab 15 catalase amylase gelatinase proteinase mrvp l.jpg

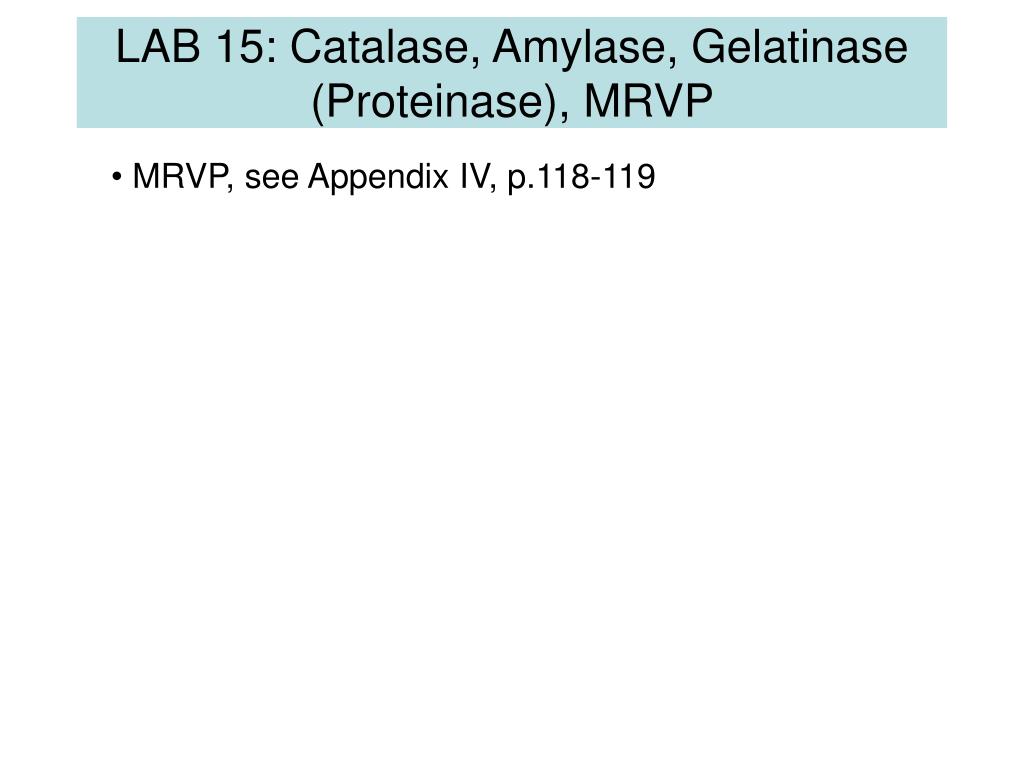

LAB 15: Catalase, Amylase, Gelatinase (Proteinase), MRVP

  • MRVP, see Appendix IV, p.118-119

Catalase l.jpg





Enterococcus faecalis

Streptococcus aureus

Amylase starch hydrolysis l.jpg

Amylase: Starch Hydrolysis



Flood with Iodine solution


Bacillus subtilis

E coli - (neg.)

Bacillus subtilis + (pos.)

Slide27 l.jpg

Gelatinase test: Plate was flooded with Frazier’s Developer

Gelatinase +



Lab 16 urease sim agar citrate l.jpg

LAB 16: Urease, SIM agar, Citrate

Urease l.jpg


  • UREASE TEST: Urease is an enzyme that breaks the carbon-nitrogen bond of amides (e.g. urea) to form carbon dioxide, ammonia, and water. Members of genus Proteus are known to produce urease. When urea is broken down, ammonia is released and the pH of the medium increases (becomes more basic). This pH change is detected by a pH indicator that turns pink in a basic environment. A pink medium indicates a positive test for urease.

Sim agar l.jpg

SIM agar

  • SIM = Sulfide, Indole, Motility.

  • INDOLE TEST: Indole is a component of the amino acid tryptophan. Some bacteria have the ability to break down tryptophan for nutritional needs using the enzyme tryptophanase. When tryptophan is broken down, the presence of indole can be detected through the use of Kovacs' reagent. Kovac's reagent, which is yellow, reacts with indole and produces a red color on the surface of the test tube.

Sim agar31 l.jpg

SIM agar

Motility l.jpg


Motile bacterium

Non-motile bacterium

(e.g. Staph aureus)

(e.g. Pseudomonas aeruginosa)

Slide33 l.jpg

Citrate: The Simmon’s Citrate medium tests the ability of the

bacteria culture to be able to use citrate as the sole C source.

Bacteria that are able to produce the enzyme citrase are able to

transport the citrate into the cell and use it as a source of C.

Since the medium does not contain any other source for C, only

those bacteria that can produce citrase are able to grow in this


When cultures are able to use the citrate they break it down,

producing sodium bicarbonate, which changes the pH of the

medium to alkaline.

The pH indicator in the medium (bromothymol blue) changes to a

blue color from its original green color.


Lab 17 carbohydrate utilization l.jpg

LAB 17: Carbohydrate Utilization

Lab 17 kia medium l.jpg

Lab 17: KIA medium

  • C = Uninoculated3 = Glucose fermenter + H2S producer

  • 1 = Non-fermenter4 = Glucose+Lactose fermenter, gas

  • 2 = Glucose fermenter5 = Gluc + Lact ferm + H2S producer

Slide36 l.jpg

Lab 17: Fermentation of Carbohydrates

F- tubes

Sugar fermentation l.jpg

SUGAR Fermentation

Detection is based on acid production due to sugar fermentation. The pH indicator is PHENOL RED. Phenol red turns yellow under acidic conditions. Hence, yellow means a positive result.

Slide38 l.jpg

The ability to ferment specific sugars is dependant on the ability of the

bacterium to produce the specific enzymes required for the

transport and metabolism of that particular sugar.

Thus fermentation of various sugars can be used to characterize bacteria.

The F-tubes use phenol red in the medium as pH indicator and the use

of inverted tubes to detect production of gases.

Results are recorded as Negative (no metabolism); Acid (+ reaction);

Acid + Gas (+ with gas production).

Lab 18 unknown single colony isolation l.jpg

LAB 18: Unknown & Single Colony Isolation

Know how to use the Dichotomous Key to identify a bacterium based on morphology, Gram staining, endospore production, and various metabolic reactions. See p.58-61of lab manual.

Lab 19 pour plate l.jpg

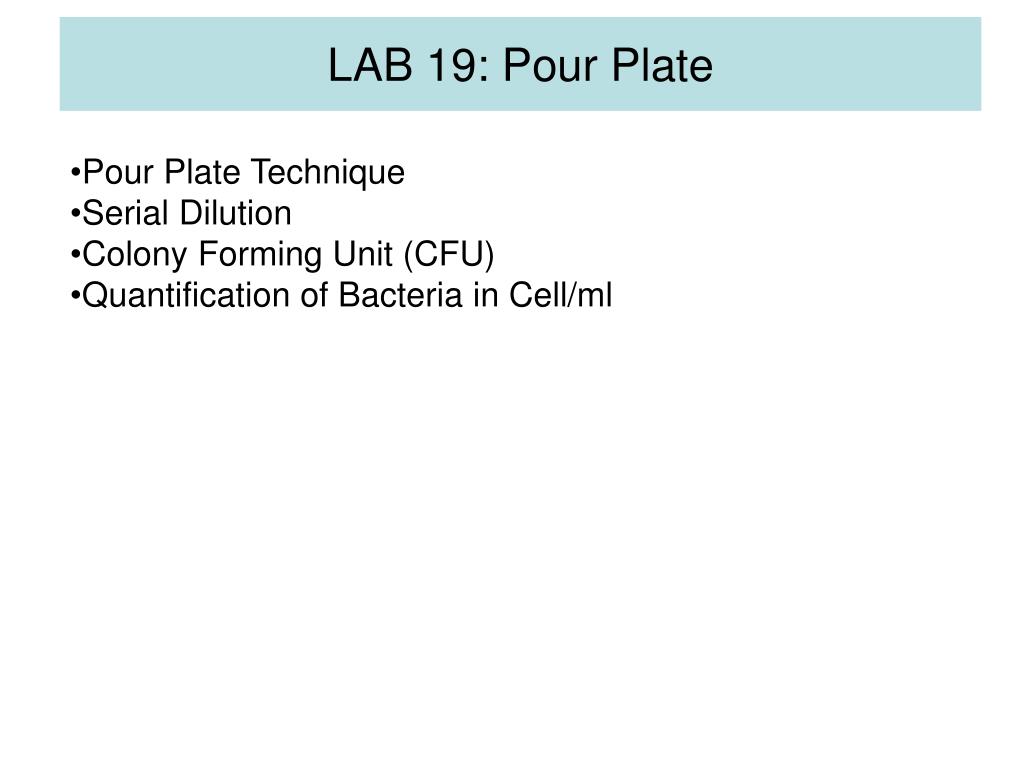

LAB 19: Pour Plate

  • Pour Plate Technique

  • Serial Dilution

  • Colony Forming Unit (CFU)

  • Quantification of Bacteria in Cell/ml

Lab 19 pour plate42 l.jpg

1 2 3 4 5

  • *Best 30-300 CFU

    • CFU = 100

    • Dilution = 1000

    • Hence 100 X 1,000 =

    • 100,000 = 1x105

(1:1 1:10 1:100 1:1000 1:10,000)

TMTC 1000 400 100* 20 (CFU)

Lab 19: Pour Plate

Dilution Series:

100 10-1 10-2 10-3 10-4 (Dilution)

  • Bacteria Enumeration





Bacteria enumeration l.jpg

Bacteria Enumeration



Cell /ml= (CFU X dilution factor) / volume

Lab 20 most probable number l.jpg

LAB 20: Most Probable Number

  • MPN method, MPN table

  • Durham tubes

  • Presumptive, Confirmed, and Completed tests

Lab 20 most probable number mpn l.jpg

Lab 20: Most Probable Number (MPN)

Bacteria Enumeration (Presumptive)

MPN method:

1st- Presumptive test: growth on lauryl tryptose broth

2nd - Confirmed test: on Eosine-Methylene Blue Agar (EMB)

3rd - Completed tests

Lab 21 phage characterization and quantification l.jpg

LAB 21: Phage Characterization and Quantification

  • Plaque, Plaque Forming Unit (PFU)

  • Serial Dilution, Phage quantification

  • T1phage

Bacteriophage l.jpg


1x10-4 Dilution


(clear zone)

1x10-6 Dilution

Lab 22 bacterial aggutination immunoprecipitation l.jpg

LAB 22: Bacterial Aggutination & Immunoprecipitation

Slide49 l.jpg

  • Immunoprecipitation

  • - is the reaction between a soluble antigen and its specific antibodies

  • soluble antigens are smaller and in solution; complexing with antibodies make these

  • bigger and they fall out of solution as a precipitate –visible to the eye.

Antibody specificity known (toxin, protein, etc.)

Antigen presence or identity not known (?)

Precipitationreaction between antibody and soluble antigen

Slide50 l.jpg


Antibody specificity known (toxin, protein, etc.)

Antigen presence or identity not known (?)

Precipitationreaction between antibody and soluble antigen

Slide51 l.jpg


Slide52 l.jpg





Reaction of nonidentity

Lab 23 staphyloslide latex test kit l.jpg

LAB 23:Staphyloslide Latex Test Kit

  • Example of Agglutination

Slide54 l.jpg

Bacterial agglutination

S. aureus

S. epidermidis


no agglutination


Slide55 l.jpg

Bacterial agglutination (new procedure).

S. aureus

S. epidermidis


Mark your bacterial agglutination cards

Slide56 l.jpg

Bacterial agglutination

S. aureus

S. epidermidis


Mix the latex agglutination reagent dropper bottle

and dispense one drop onto each circle

Slide57 l.jpg

Bacterial agglutination

S. aureus

S. epidermidis


Using a sterile toothpick , pick up and smear 1 suspect colony from your negative control in the proper ring.


Using a NEW sterile toothpick , pick up and smear 1 suspect colony from your positive control in the proper ring.


Using a NEW sterile toothpick , pick up and smear 1 suspect colony from your unknown in the proper ring.

Slide58 l.jpg

Bacterial agglutination (Part B).

S. aureus

S. epidermidis


Pick up and gently rock the card for 20 seconds and observe for agglutination under normal lighting conditions
