Nike’s Software Architecture and Infrastructure:Enabling Integrated Solutions for Gigahertz Designs

V. Nagbhushan, Nike Development, DT, Intel Corp.

Yehuda Shiran, Nike Development, DT, Intel Corp.

Satish Venkatesan, Nike Development, DT, Intel Corp.

Tamar Yehoshua, Nike Development, DT, Intel Corp.


Agenda l.jpg

Agenda

  • Introduction

  • External & Internal Vectors

  • Drawback of existing architectures

  • Nike’s software architecture

    • LaMA, Principles, Data model

  • Development environment

  • Development cycle & Validation

  • Conclusion


Introduction l.jpg

Introduction

  • Nike was developed at the Design and Test Technology (DT) of Intel®

  • intended to provide the future generation CAD tool suite

  • First release – Q3, 1999

VLSI CAD seminar 2004


External vectors l.jpg

External Vectors

  • Industry technology increases exponentially towards chips with over 100M transistors, and beyond 10GHz frequencies

  • Feature sizes decrease, aggressive circuit styles becoming norm

    • Second order effects like noise and inductance become key factors

  • Need increased visibility into data for multiple domains (circuit, layout, etc.)

VLSI CAD seminar 2004


External vectors cont l.jpg

External Vectors – cont.

  • Marketing deadline demands, forces decrease in design time

  • Computing environment changes with the emergence of Windows NT* on Intel® architecture

VLSI CAD seminar 2004


Internal vectors l.jpg

Internal Vectors

  • Growth in coverage of tool suite & overall software size

  • Extensibility and maintainability

    • Persistence of core architecture

    • Add new feature without massive code changes

    • customizable

VLSI CAD seminar 2004


Internal vectors cont l.jpg

Internal Vectors – cont.

  • Tool quality and Development efficiency

    • Reduce design iterations

    • Well defined software development methodology

    • Avoid numerous cycles to fix defects

VLSI CAD seminar 2004


Drawbacks of existing archs l.jpg

Drawbacks of existing archs.

  • Non-modular

    • Severely impacts development efficiency

    • Local implementations of similar/identical functionality causes inconsistent behavior

    • Difficult reuse

    • Existence of several data models

VLSI CAD seminar 2004


Drawbacks cont l.jpg

Drawbacks – cont.

  • Difficult data exchange across domains

    • Inconsistent terminology, interfaces & implementations

    • Difficult implementation of unified data mapping across domains (e.g. circuit  layout data translation) often results in data loss when ad-hoc mapping fashion is used

VLSI CAD seminar 2004


Drawbacks cont10 l.jpg

Drawbacks – cont.

  • Ad-hoc persistence mechanisms

    • ASCII files used to store data persistently

    • Inadequate use of industry standard formats

      • Proliferation of files

      • Multiple readers/writers

      • Semantic mismatches

VLSI CAD seminar 2004


Drawbacks cont11 l.jpg

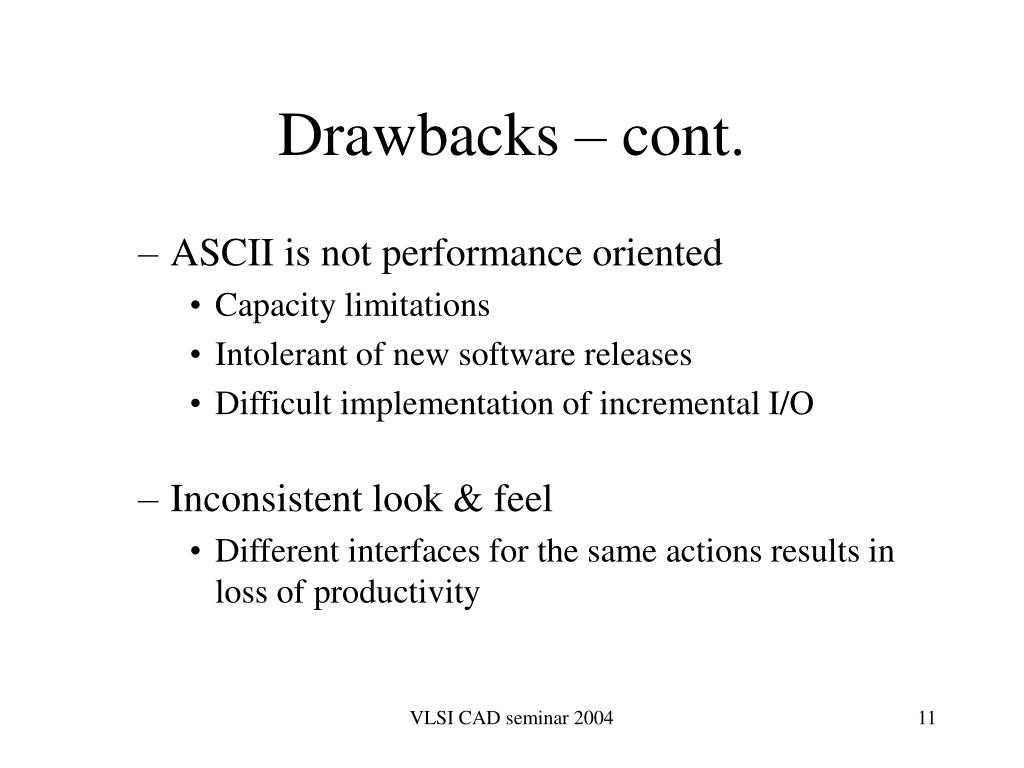

Drawbacks – cont.

  • ASCII is not performance oriented

    • Capacity limitations

    • Intolerant of new software releases

    • Difficult implementation of incremental I/O

  • Inconsistent look & feel

    • Different interfaces for the same actions results in loss of productivity

VLSI CAD seminar 2004


Short summary up to this point l.jpg

Short summary - up to this point

  • Several vectors (internal/external) and drawbacks of existing technologies,requires a better technology to be able to develop the next generation of chips

VLSI CAD seminar 2004


Nike s software architecture l.jpg

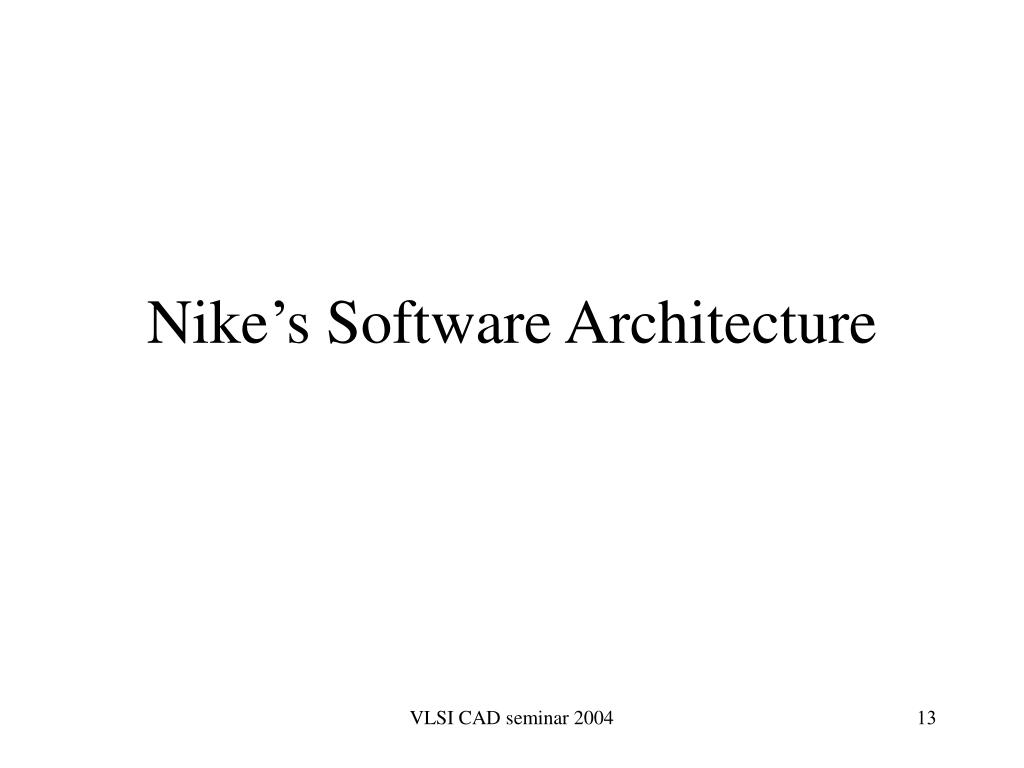

Nike’s Software Architecture

VLSI CAD seminar 2004


Slide14 l.jpg

LaMA

  • Layered Modular Architecture

  • Hierarchical decomposition of a complex tool suite

    • More than 100 tools

    • More than 1,000,000 code lines

VLSI CAD seminar 2004


Lama cont l.jpg

LaMA – cont.

VLSI CAD seminar 2004


Lama cont16 l.jpg

LaMA – cont.

  • The overall suite consists of several subsystems

  • Sub-systems

    • Each one is targeted at a particular user flow.

    • Comprised of several capabilities

VLSI CAD seminar 2004


Lama cont17 l.jpg

LaMA – cont.

  • Capabilities

    • Represents a user-visible functionality

    • Implemented by one or more software modules

  • The modules and atoms are designed with well-defined interfaces to facilitate reuse by several capabilities.

VLSI CAD seminar 2004


Lama cont18 l.jpg

LaMA – cont.

VLSI CAD seminar 2004


Software architecture principles l.jpg

Software Architecture Principles

  • Set to meet or beat high-level specifications set forth

  • Integrated tool suites (cockpits)

    • Enables users to execute flow or perform similar operations

    • Improves user productivity

VLSI CAD seminar 2004


Software arch principles cont l.jpg

Software Arch. Principles – cont.

  • Modular design

    • Common, unified services

    • Well documented interface per component

    • Similar functional components should be implemented as common services

VLSI CAD seminar 2004


Software arch principles cont21 l.jpg

Software Arch. Principles – cont.

  • Common look & feel

    • Similar visual appearance for UI for objects performing similar operations

    • Feel (behavior) of similar operations and data objects should be similar

    • Improves predictability and productivity

VLSI CAD seminar 2004


Software arch principles cont22 l.jpg

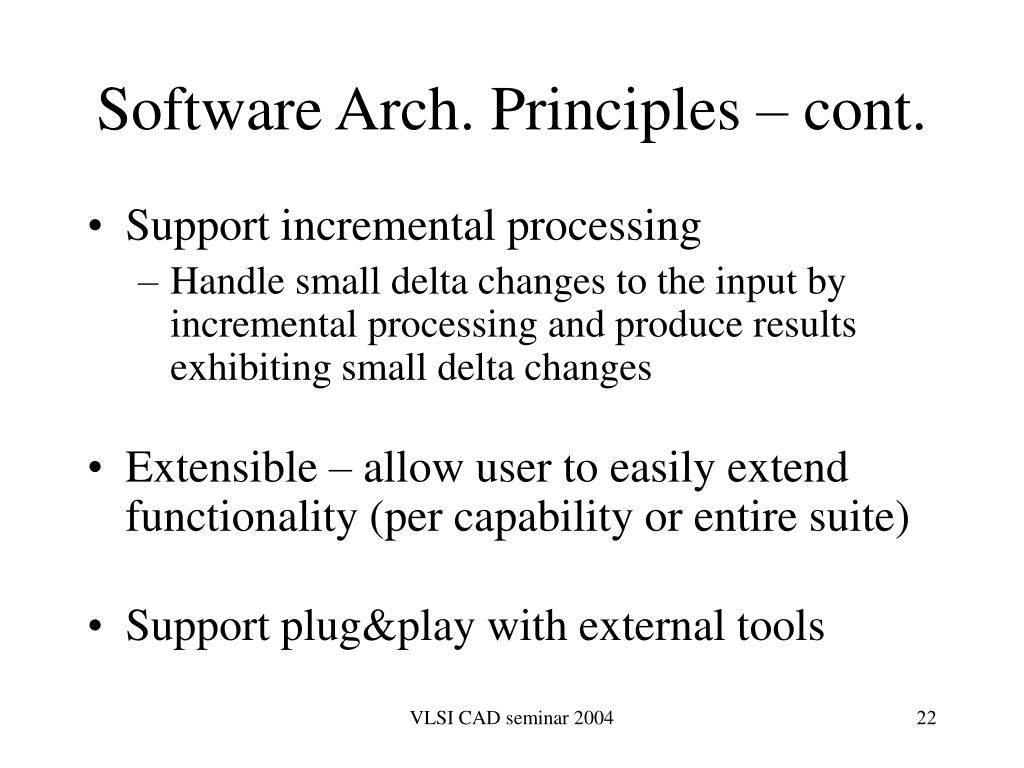

Software Arch. Principles – cont.

  • Support incremental processing

    • Handle small delta changes to the input by incremental processing and produce results exhibiting small delta changes

  • Extensible – allow user to easily extend functionality (per capability or entire suite)

  • Support plug&play with external tools

VLSI CAD seminar 2004


Nike layout software arch l.jpg

Nike Layout Software Arch.

VLSI CAD seminar 2004


Nike layout sw arch cont l.jpg

Nike Layout SW Arch. – cont.

  • Each module has a well defined procedural interface (API)

  • Data Model (DM)

    • In-memory repository for all primary, non-derivable data of the system

    • All modules access CAD data through its API

VLSI CAD seminar 2004


Nike layout sw arch cont25 l.jpg

Nike Layout SW Arch. – cont.

  • Data Model (DM) – cont.

    • Example: layout data (UDM – Unified Data Model), contains data such as cells, wires, nets, transistors etc.

    • API guarantees consistency of data structures and semantics

    • I/O module – specialized engine, enablesfast I/O

VLSI CAD seminar 2004


Nike layout sw arch cont26 l.jpg

Nike Layout SW Arch. – cont.

  • Engines

    • Well defined functionality

    • e.g. Algorithmic engine, core editing engine

    • Work off data from DM but may create temporary derived data for efficiency

VLSI CAD seminar 2004


Nike layout sw arch cont27 l.jpg

Nike Layout SW Arch. – cont.

  • Capabilities

    • Environments addressing the traditional sub-domains such as full-chip layout, block layout and leaf cell

    • Provides functionality and customization appropriate to the capability

    • Can directly expose an engine functionality to the user (through UI) or hide or modify it

VLSI CAD seminar 2004


Nike layout sw arch cont28 l.jpg

Nike Layout SW Arch. – cont.

  • User interface

    • Visibility of functionality and data

    • Common look

    • Instantiation of GUI items by capabilities and engines

    • Extension system enables customization for easy access to data and functionality

VLSI CAD seminar 2004


Nike layout sw arch cont29 l.jpg

Nike Layout SW Arch. – cont.

  • User interface – cont.

    • Tcl interpreter and Windows* automation interfaces for DM, engine and capability modules

    • VBA for GUI customization on Windows NT*

VLSI CAD seminar 2004


Data modeling l.jpg

Data Modeling

  • Design cycle involves many iterations, both within a phase and between phases

VLSI CAD seminar 2004


Data modeling motivation l.jpg

Data Modeling – Motivation

  • Data models should facilitate smoother automation/integration between different design tools

  • Should provide users with better capabilities to make tradeoffs/optimizations across design domains and between tools within a domain

VLSI CAD seminar 2004


Data modeling motivation32 l.jpg

Data Modeling – Motivation

  • Nike System architecture goals

    • Enable a flexible configuration that facilitates a plug&play system architecture

    • Achieve semantic consistency in data representation across layout, circuit & logic domains

    • Promote reuse of common components

    • Insulate individual CAD capabilities from persistent storage issues

VLSI CAD seminar 2004


Data model architecture l.jpg

Data Model Architecture

  • On representation multiple CAD tools act as producers and consumers

    • Layout editor is a design producer

    • Simulators and verification tools are consumers

  • Data flow between producers and consumers may transcend domain boundaries

VLSI CAD seminar 2004


Data model architecture cont l.jpg

Data Model Architecture – cont.

  • Diversity of elements and need for multi-way data sharing complicates Data modeling for CAD

  • A modeling framework that can accommodate an assortment of data types and be extensible to new types is required

VLSI CAD seminar 2004


Data model architecture cont35 l.jpg

Data Model Architecture – cont.

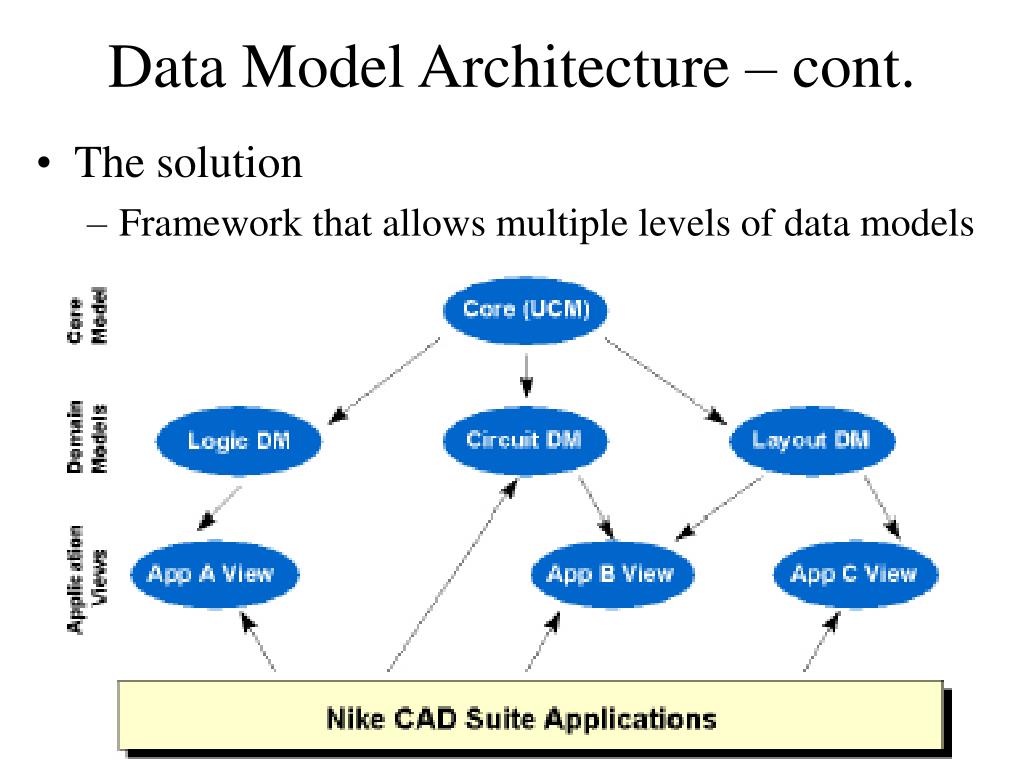

  • The solution

    • Framework that allows multiple levels of data models

VLSI CAD seminar 2004


Data model architecture cont36 l.jpg

Data Model Architecture – cont.

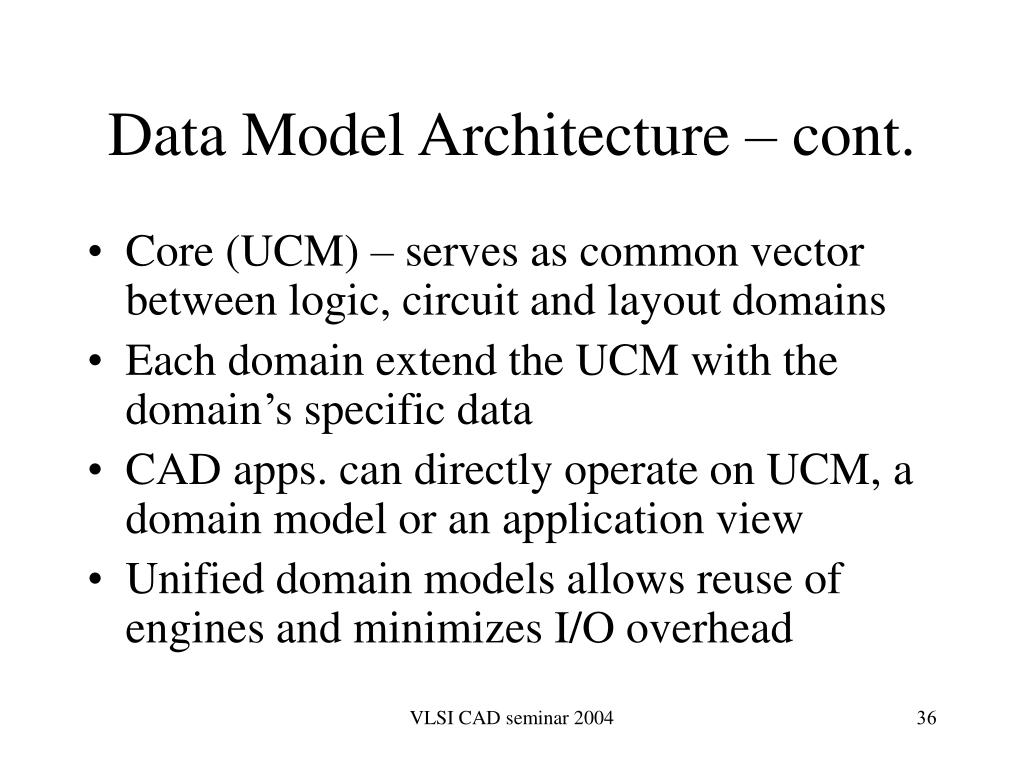

  • Core (UCM) – serves as common vector between logic, circuit and layout domains

  • Each domain extend the UCM with the domain’s specific data

  • CAD apps. can directly operate on UCM, a domain model or an application view

  • Unified domain models allows reuse of engines and minimizes I/O overhead

VLSI CAD seminar 2004


Data model architecture cont37 l.jpg

Data Model Architecture – cont.

VLSI CAD seminar 2004


Data model architecture cont38 l.jpg

Data Model Architecture – cont.

  • UCM serves as basis for enabling data-driven interactions between capabilities

  • Mapper modules – translates design objects between domains

  • incremental data exchange (by modules and methodologies that can provide this service)

VLSI CAD seminar 2004


Data model architecture cont39 l.jpg

Data Model Architecture – cont.

  • Summary – two key architectural goals have been addressed here

    • Facilitate interactive interactions across CAD tool boundaries

    • Enable incremental iterations through the design cycle

VLSI CAD seminar 2004


Short summary up to this point40 l.jpg

Short summary - up to this point

  • LaMA model for setting modularity

  • SW development principles and how they were implemented

  • The Data model and it’s unique significance

VLSI CAD seminar 2004


Software infrastructure l.jpg

Software Infrastructure

  • Nike architecture requires strong focus on software quality

  • Common data model, high-level of module reuse magnify software defects

  • Complexity of multi-site development

VLSI CAD seminar 2004


Standard development env sde l.jpg

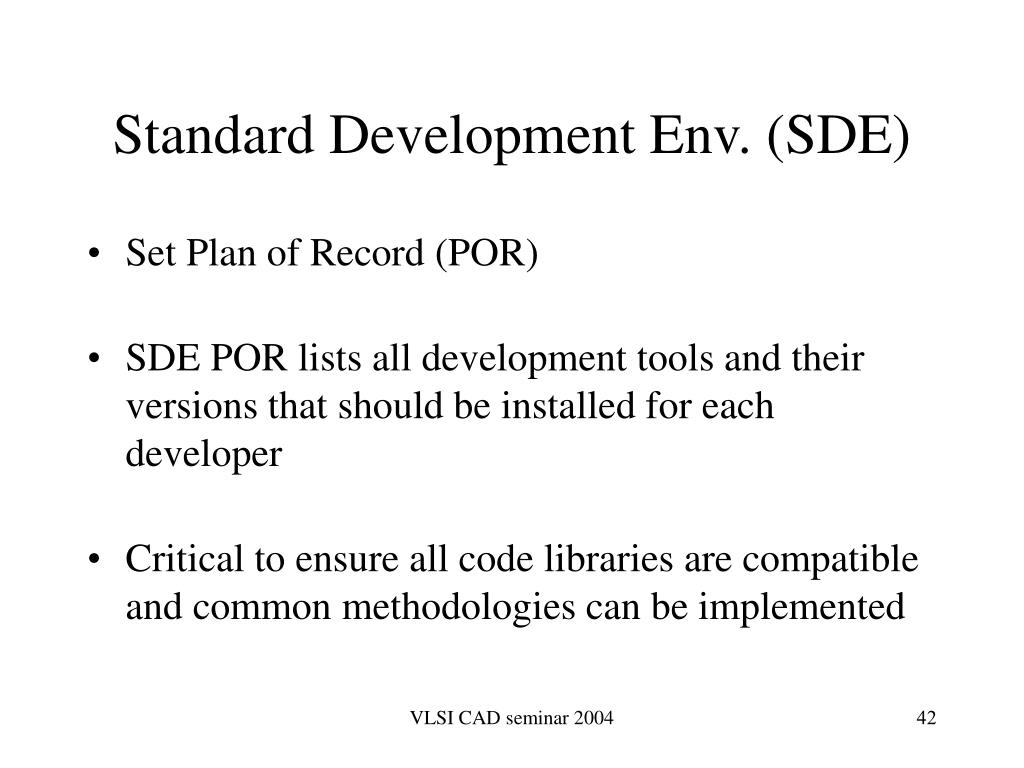

Standard Development Env. (SDE)

  • Set Plan of Record (POR)

  • SDE POR lists all development tools and their versions that should be installed for each developer

  • Critical to ensure all code libraries are compatible and common methodologies can be implemented

VLSI CAD seminar 2004


Configuration management l.jpg

Configuration Management

  • Code management tool – Rational’s ClearCase

    • Dynamic view

    • Parallel development

    • One virtual repository

  • Methodology of usage was set

    • Directory structure for the code and libraries for tagging of versions

    • naming conventions for branches

  • All Nike developers use identical setup, and can share & navigate the same source code (including multi-sited – Rational’s Multisite)

VLSI CAD seminar 2004

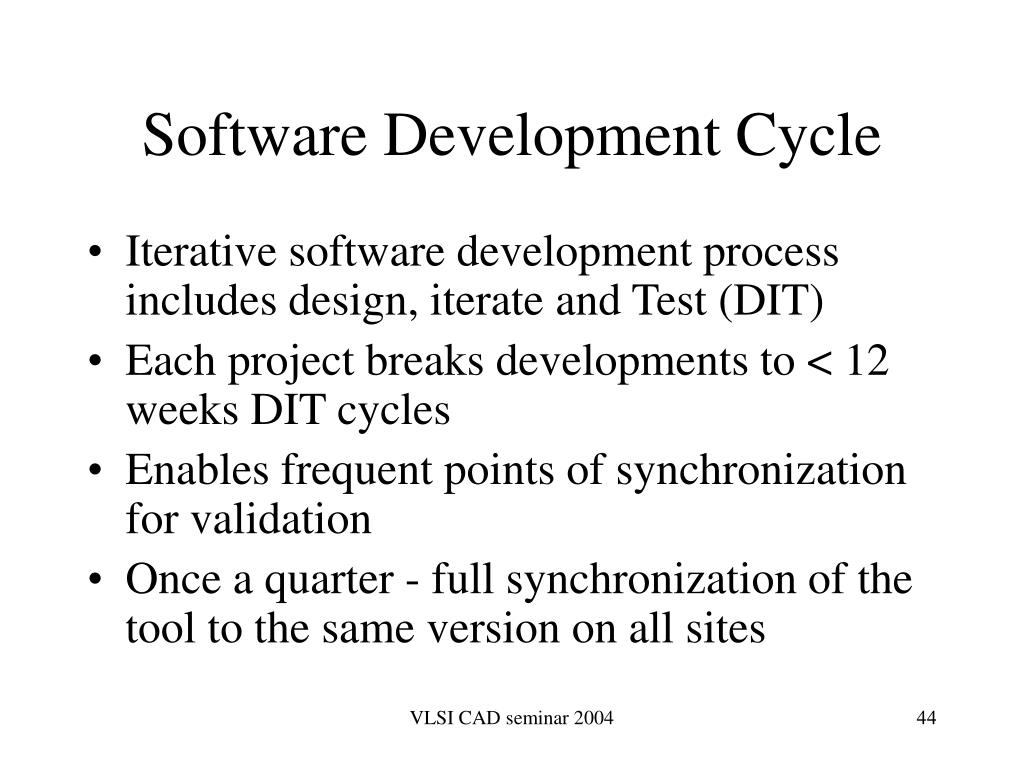

Software development cycle l.jpg

Software Development Cycle

  • Iterative software development process includes design, iterate and Test (DIT)

  • Each project breaks developments to < 12 weeks DIT cycles

  • Enables frequent points of synchronization for validation

  • Once a quarter - full synchronization of the tool to the same version on all sites

VLSI CAD seminar 2004


Sw development cycle cont l.jpg

SW Development Cycle – cont.

  • Goal – as common modules mature and stabilize, to get to weekly synchronization and eventually daily

  • Bug-tracking system is used to track down defects to achieve the required stability

VLSI CAD seminar 2004


Sw development cycle cont46 l.jpg

SW Development Cycle – cont.

  • Require all Nike tools to write a Market Requirements Document, Product Proposal, External Product Spec, Internal Product Spec and Test Plan

  • Each document has to be approved by the key customers, the system architects and the software architects

VLSI CAD seminar 2004


Slide47 l.jpg

VLSI CAD seminar 2004


Validation l.jpg

Validation

  • Nike was going for a breakthrough in both quality and productivity

  • External vendors did not meet the specific demands for a test management system that will insure achieving these goals

  • Olympus – an internal test management tool developed by DT

VLSI CAD seminar 2004


Conclusion l.jpg

Conclusion

  • Nike was introduced with the intension to be a breakthrough in the CAD world by setting new standards of robustness and modular software architecture that are essential for developing the next generations of modern chips

VLSI CAD seminar 2004


Conclusion cont l.jpg

Conclusion – cont.

  • We have seen how the need for this architecture evolved

  • We have seen how the architecture was designed and implemented

  • We have seen how the development process was set and executed

VLSI CAD seminar 2004


Acknowledgments l.jpg

Acknowledgments

  • Nike Development, DT, Intel Corp.

    • V. Nagbhushan

    • Yehuda Shiran

    • Satish Venkatesan

    • Tamar Yehoshua

  • Avi Han, DT, Intel Corp.

VLSI CAD seminar 2004


Slide52 l.jpg

Q & A

VLSI CAD seminar 2004


  • Login
