Never Thirsty. DrinkMaster 8000 Stephan Zebrecky Daniel Hudepohl Brandon Davis Ryan Rhodes. RPG. LCD. Motor. Infrared Sensors (3). S.V 1. S.V 16. Valve/Sensor µCtrl. Main µCtrl. Weight Sensors (3). Heat/Cool Pump. Heating & Cooling µCtrl. Thermoelectric Peltier. PC.

beth
Download Presentation

Never Thirsty

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Never Thirsty DrinkMaster 8000 Stephan Zebrecky Daniel Hudepohl Brandon Davis Ryan Rhodes

  2. RPG LCD Motor Infrared Sensors (3) S.V 1 S.V 16 Valve/Sensor µCtrl Main µCtrl Weight Sensors (3) Heat/Cool Pump Heating & Cooling µCtrl Thermoelectric Peltier PC Bluetooth Ctrl Temperature Sensor (4) Block Diagram – Electronics

  3. PSSC – Project Specific Success Criteria • An ability to communicate wirelessly with a personal computer via the Bluetooth protocol. • An ability to view the status of the mechanical components of the device on the PC. • An ability to create drinks at a specified time using an on-board timer circuit. • An ability to interface with a user with a LCD screen and a rotary pulse generator. • An ability to heat/cool and control the flow of water/powder for drinks using a secondary microprocessor control chip.

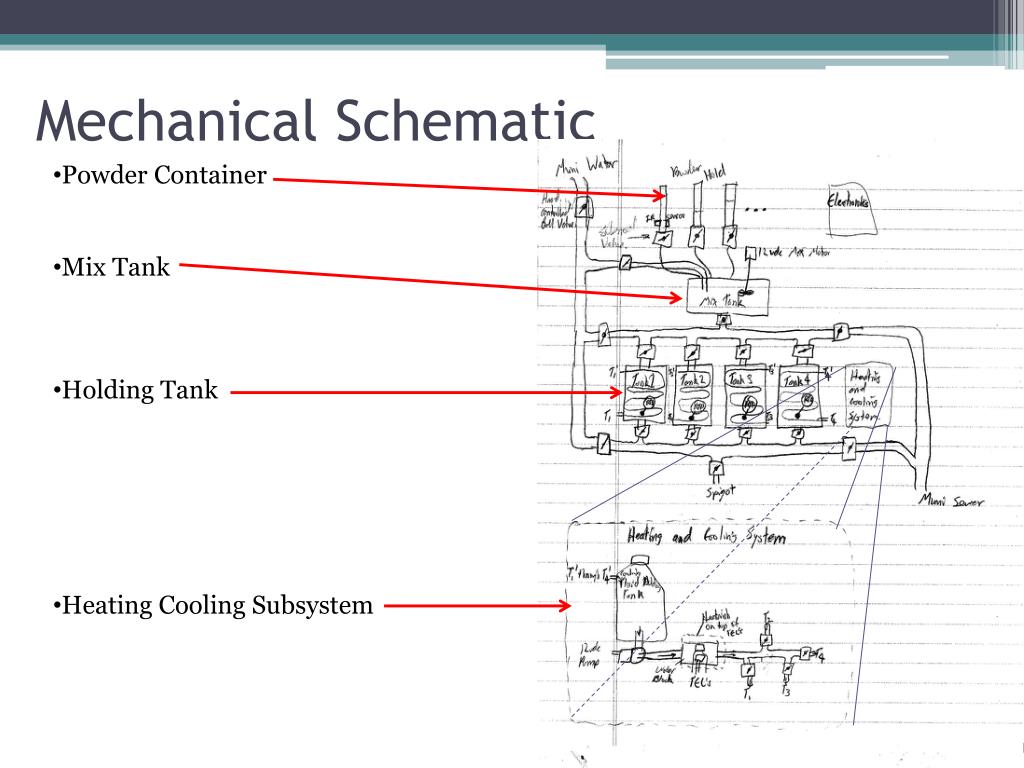

  4. Mechanical Schematic • Powder Container • Mix Tank • Holding Tank • Heating Cooling Subsystem
