  1. L10. Laser Scanners EECS 598-2: Algorithms for Robotics

  2. Administrative • PS2 is due today • PS3 posted later tonight.

  3. Last Time • Topological Mapping • Key ideas • Data Association • Nearest Neighbor • Joint Compatibility • RANSAC

  4. Today • Finish up Data Association • Laser scanners • Principles of operation, noise characterization • Feature Extraction • Contours • Lines • Split and Fit • Agglomerative Line Fitting • Matching Features

  5. Data Association: NN • Simplest data association scheme: • Nearest neighbor. • We have probabilistic estimates of where our landmarks are • When we get an observation, which landmark does it match “best”? • E.g., use Mahalanobis distance Observation Mahl=1.2 Mahl = 4.2 Landmark 1 Landmark 2

  6. Computing Joint Compatibility • Hypothetical data association • observed three landmarks: • (Nice linear observation model this time) • What is the Mahalanobis distance of the observation with respect to the noisy observation of the RHS? • What is the mean and covariance of the RHS?

  7. RANSAC: Preview • RANdomSAmple Consensus: • Randomly generate models • Test the model. • Pick the best model. • Alternative approach to NN, JCBB • (Typically) non-probabilistic • Can be applied to many problems, not just data association: • Outlier rejection • Line fitting

  8. RANSAC • Idea: If we knew the rigid body transformation that aligned us with the global coordinate frame, NN would work well. • Let’s focus our attention on computing the RBT! • Method: • Randomly pick two landmark pairs, compute the rigid-body transformation that they imply. • Project all observations using that transformation • How many observations have good NN matches to landmarks? • Our “Consensus” Score • Keep the best RBT. (Optional: Refit the RBT based on the consensus set.)

  9. RANSAC • How many random trials do we need? • We have to guess “right” twice in order to get a correct RBT. • Suppose probability of guessing right is p. • Probability of guessing right twice in a row is p2. • If we have 1/p2 trials, we expect to find the right answer about once. • Use K/p2 trials to “make sure we aren’t unlucky”.

  10. RANSAC example

  11. RANSAC • Even with small values of ‘p’, we don’t need that many iterations… • a few thousand, maybe. • In some cases, we can exhaustively try all possible combinations. (“exhaustive RANSAC”?)

  12. RANSAC: Discussion • Complexity? • What about higher dimensions/more complex models? • Upsides: • Works well in low-noise/high-ambiguity situations • Allows us to compute a good hypothesis • Very fast in low dimensions • Useful in many contexts: a great general-purpose tool • Easy to incorporate negative information • Downsides: • Not very rigorous • Parameters to tune by hand • What is “close enough” to increase consensus score?

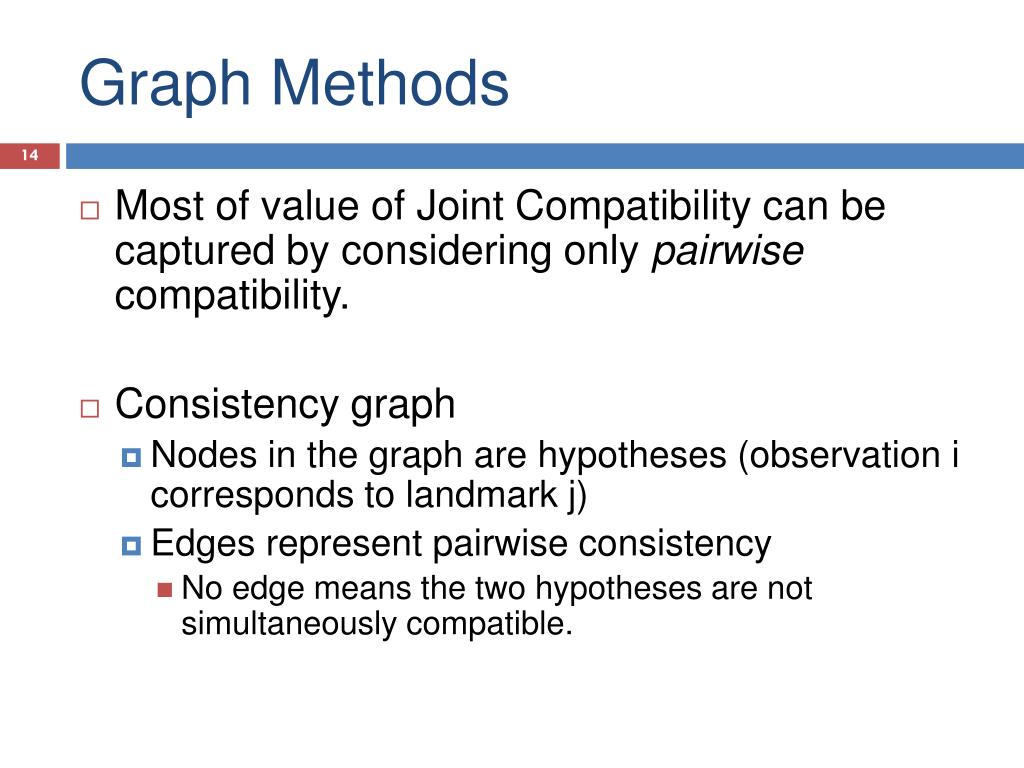

  13. Graph Methods • Most of value of Joint Compatibility can be captured by considering only pairwise compatibility. • Consistency graph • Nodes in the graph are hypotheses (observation i corresponds to landmark j) • Edges represent pairwise consistency • No edge means the two hypotheses are not simultaneously compatible.

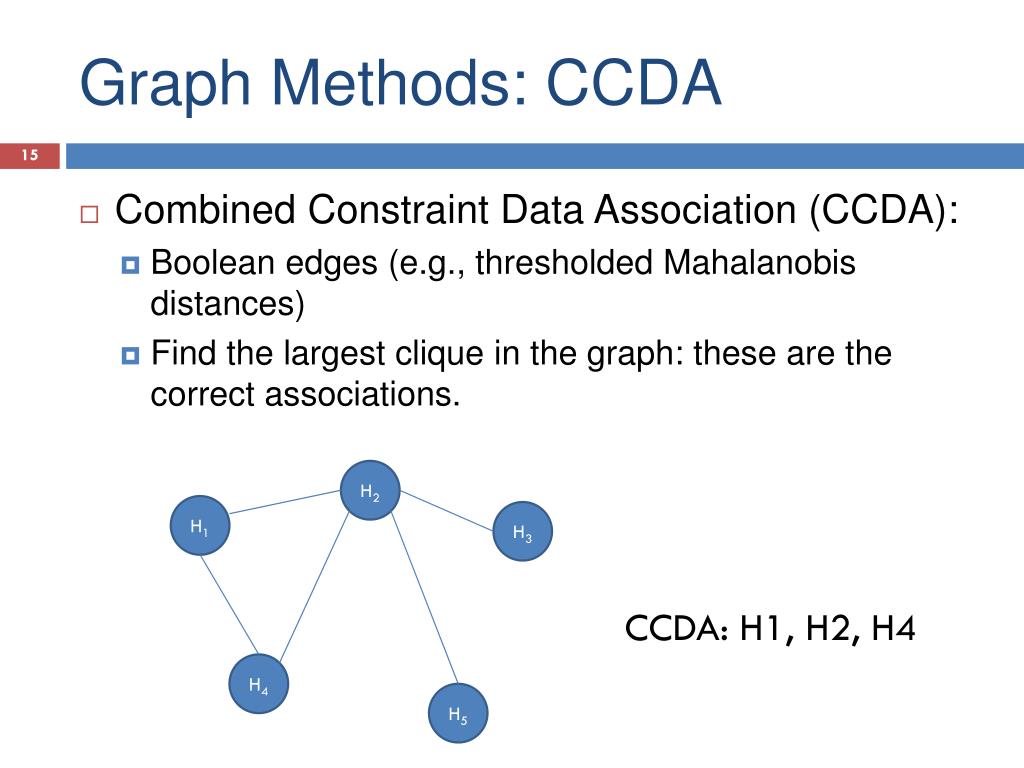

  14. Graph Methods: CCDA • Combined Constraint Data Association (CCDA): • Boolean edges (e.g., thresholded Mahalanobis distances) • Find the largest clique in the graph: these are the correct associations. H2 H1 H3 H4 H5 CCDA: H1, H2, H4

  15. Graph Methods: SCGP • Single Cluster Graph Partitioning (SCGP) • Edges have weights (more expressive) • Finds densely-connected subgraph • Doesn’t have to be a clique • Detects ambiguity (two dense subgraphs possible?) • O(N2) H2 H2 H1 H1 H3 H3 H4 H4 H5 H5 CCDA, SCGP: H1, H2, H4 CCDA: ?? SCGP: H1, H2, H4, H5

  16. SCGP sketch • Indicator vector: • Vector of {0,1} which says which nodes to keep • Quantity to maximize: • Differentiate λ with respect to v, obtain: Sum of all pair-wise consistencies between hypotheses in v • vTAv • λ = • vTv Av = λv Number of hypotheses in v

  17. Laser Scanners • Measure range via time-of-flight • SICK • Industrial safety • 180 samples, 1 degree spacing, 75Hz • Resolution ~1cm, ~0.25 deg. • Interlacing • Max range: “80m”  30m fairly reliable • Intensity • $4500 • Hokuyo • ~520 samples, 0.25deg spacing, 15Hz • $2600 - $5000

  18. Laser Scanners

  19. Laser Scanners

  20. Aligning Scans = Measuring motion • Two important cases: • Incremental motion. Use lidar to augment (or replace!) odometry. • Loop closing. Identify places we’ve been before to over-constrain robot trajectory.

  21. Feature Extraction • Our plan: • Extract features from two scans • Match features • Compute rigid-body transformation • Possible features: • Lines • Corners • Occlusion boundaries/depth discontinuities • Trees (!)

  22. Line Extraction • Given laser scan, produce a set of 2D line segments • Two basic approaches: • Divisive (“Split N Fit”) • Agglomerative • Our plan: • If we know which points belong to a line, how do we fit a line to those points? • How do we determine which points belong together?

  23. Optimal Line Derivation • Assume we know a set of points belong to a line. How do we compute parameters of the line? • How to parameterize the line? • Slope + y intercept? • Endpoints of line • A point on the line + unit vector • R + theta

  24. Optimal Line Derivation • Error for one point • Cost function • Solution found by minimizing pi e pi-q q, a point on the line θ

  25. Optimal Line Derivation • Method: work in terms of moments:

  26. Optimal Line Derivation • Solution: • Because all quantities are written in terms of moments, we can compute this quantity incrementally and without storing all the points!

  27. Line Fitting: Divisive • Init: All points belong to a single line • Split-N-Fit(points) • Fit line to points • if line error < thresh then • return the line • else • Which point fits the worst? • Split the line into two lines at that point • return Split-N-Fit(leftpoints) U Split-N-Fit(rightpoints)

  28. Line Fitting: Divisive

  29. Line Fitting: Divisive • Pros: • Easy to implement • Cons: • Assumes points are in scan order • Doesn’t always generate good answers • Can split points that should belong together • “Split-N-Fit-N-Merge” • Complexity?

  30. Line Fitting: Agglomerative • Agglomerative-Fit(points) • Init: create N-1 lines for each pair of adjacent points • do forever • for each pair of adjacent lines i, i+1 • Compute error for line that merges those two lines • if minimum error > thresh then • return lines • else • merge lines with minimum error

  31. Line Fitting: Agglomerative

  32. Line Fitting: Agglomerative • Pros: • Good quality, matches human expectations • Cons: • Assumes points are in scan order • A little bit tricky to implement quickly (use a min-heap) • Complexity?

  33. Line Fitting: RANSAC • Pros: • Easy • Does not require points to be in scan order • Cons: • Hard to exploit points being in scan order • Not obvious how to extract more than one line

  34. Line Fitting: Hough Transform • Each point is evidence for a set of lines • Vote for each of the possible lines. • Lines with lots of evidence get many votes.

  35. Other Features • Corners • Intersections of nearby (?) lines. • Easy to extract from lines. • Only need ONE corner correspondence to compute RBT. • Trees (Victoria Park) • Depth Discontinuities • Beware of viewpoint effects

  36. Contour Extraction • Divisive/Agglomerative line fittings need points to be grouped together • Consider stair railing • Simple agglomerative process works well!

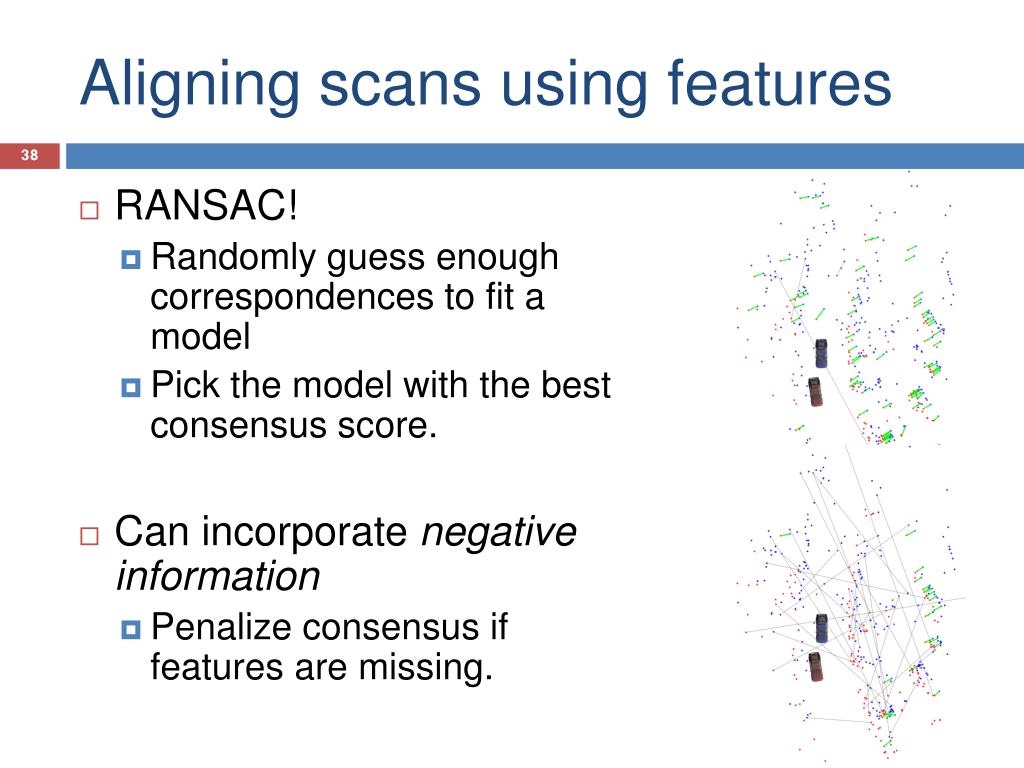

  37. Aligning scans using features • RANSAC! • Randomly guess enough correspondences to fit a model • Pick the model with the best consensus score. • Can incorporate negative information • Penalize consensus if features are missing.

  38. Next Time • Aligning scans without extracting features
