Comments on av transmission recommended practice

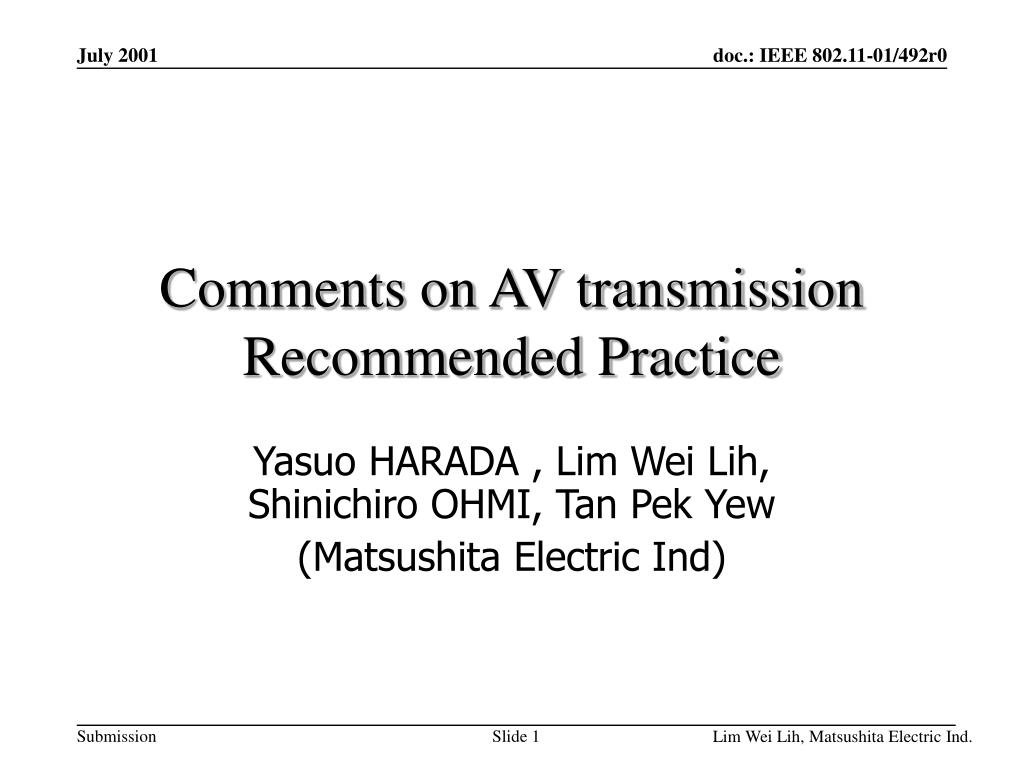

Comments on AV transmission Recommended Practice

Yasuo HARADA , Lim Wei Lih, Shinichiro OHMI, Tan Pek Yew

(Matsushita Electric Ind)

Lim Wei Lih, Matsushita Electric Ind.


Requirements for av transmission
Requirements for AV Transmission

  • Bandwidth requirement

    • HD:24mbps x 1ch (unicast)

    • SD: 7mbps x 3ch (unicast)

  • Guarantee of quality for AV stream

    • AV streams for interactive applications require very short delay

    • Enable AV delivery to be registered with HC

    • Longer term uninterrupted bandwidth allocation for AV delivery

  • To avoid denial of service to other high priority non AV data

Lim Wei Lih, Matsushita Electric Ind.


Application example

Broadband STB

Home Gateway

802.11e

802.11e

802.11e

Home Server

Personal Computer

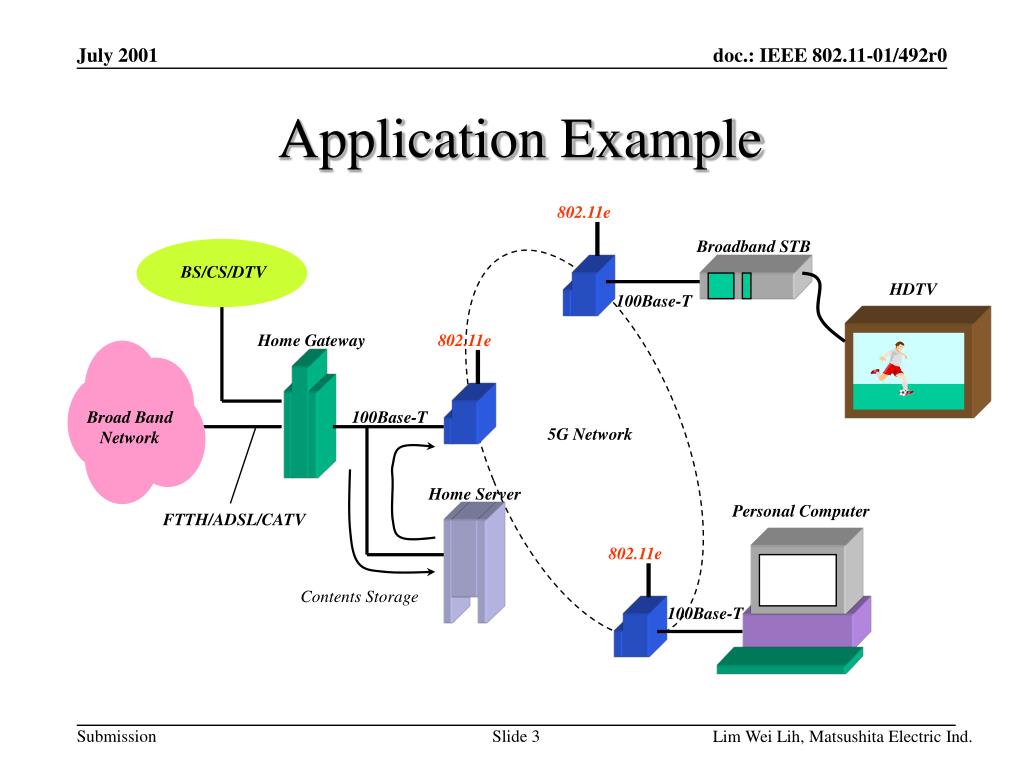

Application Example

BS/CS/DTV

HDTV

100Base-T

Broad Band

Network

100Base-T

5G Network

FTTH/ADSL/CATV

Contents Storage

100Base-T

Lim Wei Lih, Matsushita Electric Ind.


Protocol stack

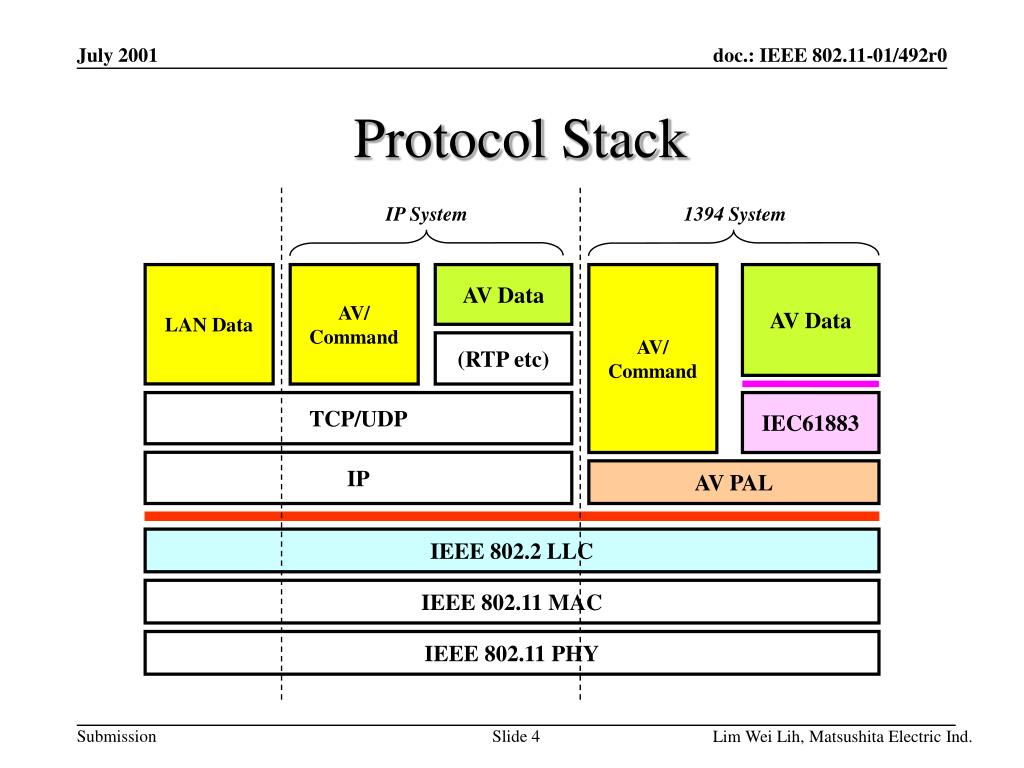

Protocol Stack

IP System

1394 System

LAN Data

AV/

Command

AV Data

AV/

Command

AV Data

(RTP etc)

TCP/UDP

IEC61883

IP

AV PAL

IEEE 802.2 LLC

IEEE 802.11 MAC

IEEE 802.11 PHY

Lim Wei Lih, Matsushita Electric Ind.


Allocation structure

Beacon

Beacon

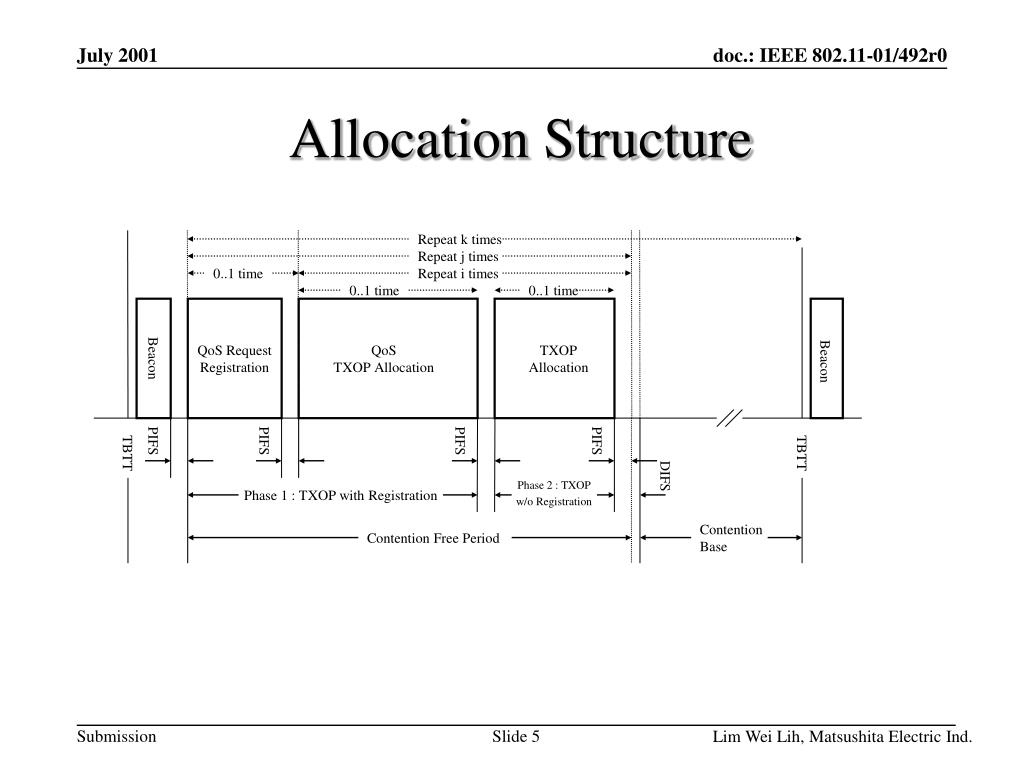

Allocation Structure

Repeat k times

Repeat j times

0..1 time

Repeat i times

0..1 time

0..1 time

QoS Request Registration

QoS

TXOP Allocation

TXOP Allocation

PIFS

PIFS

PIFS

PIFS

TBTT

TBTT

DIFS

Phase 2 : TXOP

w/o Registration

Phase 1 : TXOP with Registration

Contention Base

Contention Free Period

Lim Wei Lih, Matsushita Electric Ind.


Realization example of av transmission 24mbps over phy 36mbps

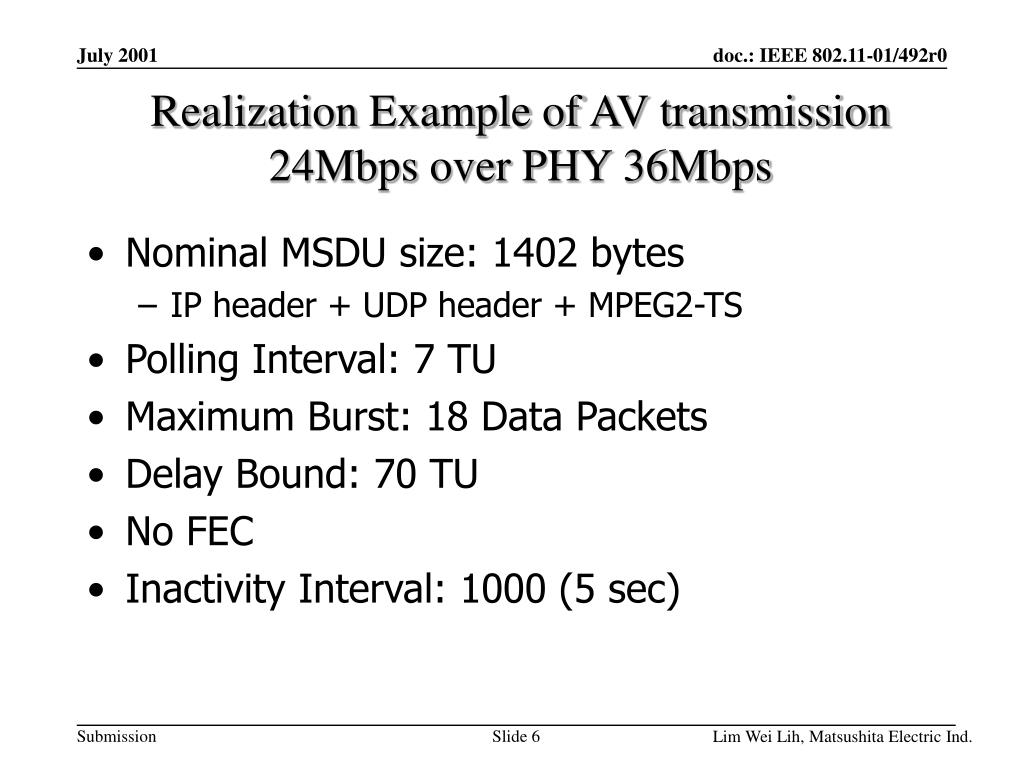

Realization Example of AV transmission 24Mbps over PHY 36Mbps

  • Nominal MSDU size: 1402 bytes

    • IP header + UDP header + MPEG2-TS

  • Polling Interval: 7 TU

  • Maximum Burst: 18 Data Packets

  • Delay Bound: 70 TU

  • No FEC

  • Inactivity Interval: 1000 (5 sec)

Lim Wei Lih, Matsushita Electric Ind.


Comments on recommended practice doc for avsg

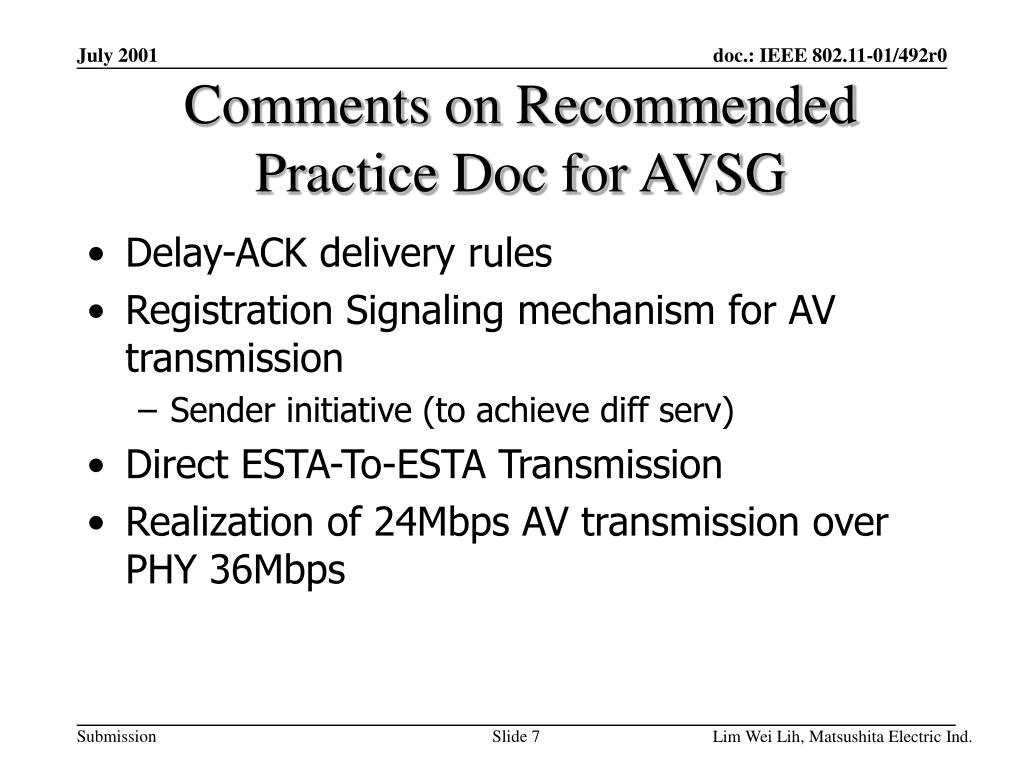

Comments on Recommended Practice Doc for AVSG 36Mbps

  • Delay-ACK delivery rules

  • Registration Signaling mechanism for AV transmission

    • Sender initiative (to achieve diff serv)

  • Direct ESTA-To-ESTA Transmission

  • Realization of 24Mbps AV transmission over PHY 36Mbps

Lim Wei Lih, Matsushita Electric Ind.
