  1. Principle of Superposition Electrostatics in Vacuum, in Conductors and in the Presence of Linear Dielectrics Charges were at rest

  2. Magnetostatics • Look into the Forces between the charges which are in motion • ….the Types of Current distributions • Continuity Equation • Magnetic Field of a Steady Current • The Divergence and Curl of B • Magnetic Vector Potential A

  3. The Forces between the charges which are in motion (a) Current in opposite direction (b) Current in same direction

  4. What we are encountering is:The Magnetic Force • Other Example is : Magnetic Compass ….. the Needle will point towards the direction of the local magnetic field …..for instance towards the Geographic North. What if it is in the vicinity of a current carrying wire??

  5. Current carrying wires v X B (Due to wire 1) F 1 2

  6. In the presence of an Electrostatic Field E …justified by the experiments as well…

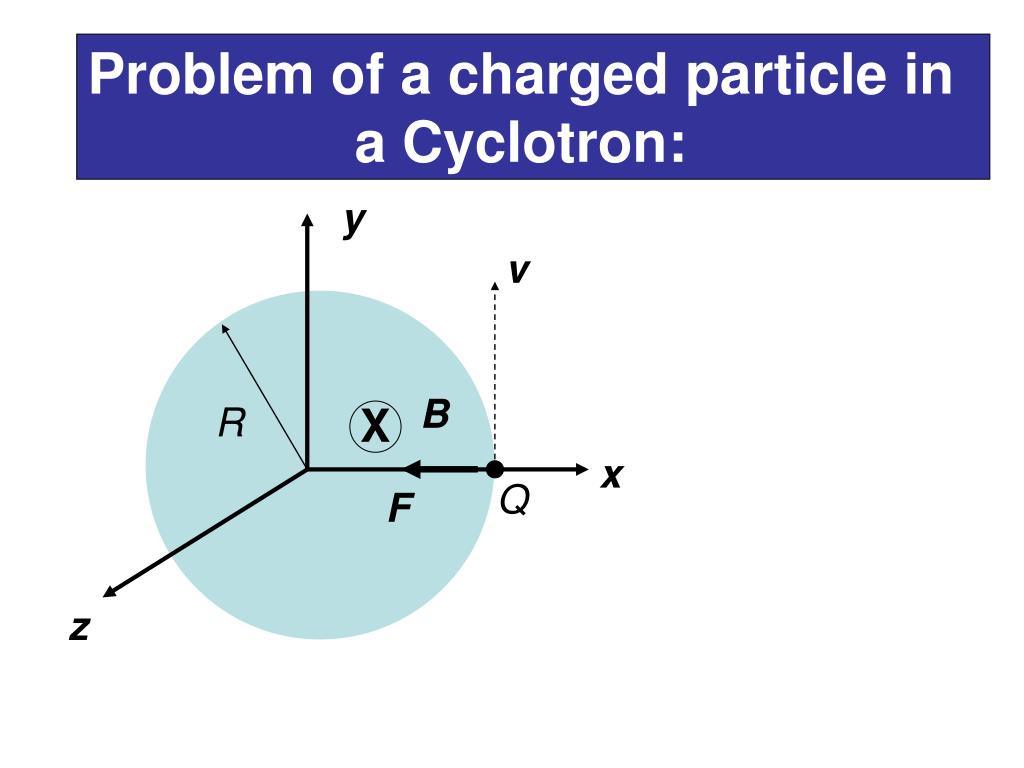

  7. Problem of a charged particle in a Cyclotron: y v B R X x Q F z

  8. z E y B x …trajectory of a Charged particle in the presence of an Uniform Electric field which is at Right angles to a Magnetic Field.

  9. y Emcosωt x B z Practice Problem: Answer

  10. Magnetic Forces do not Work Homework Problem: Example 5.3

  11. ….the Types of Current distributions • Line Currents • Surface Currents • Volume Currents

  12. Line Currents

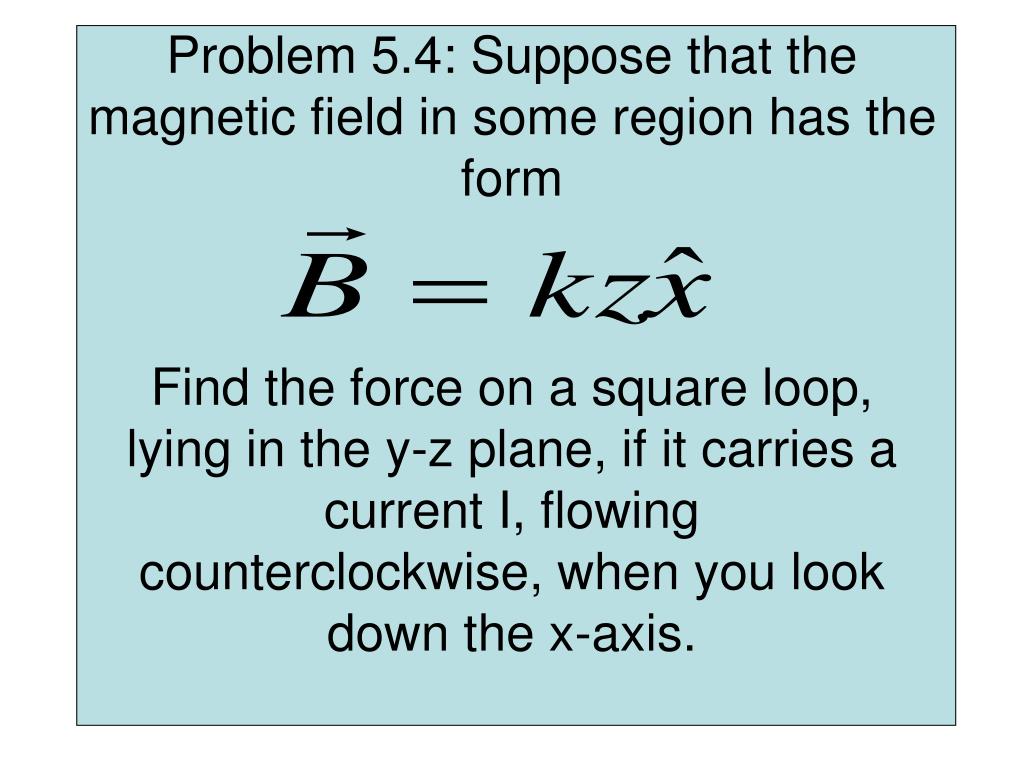

  13. Problem 5.4: Suppose that the magnetic field in some region has the form Find the force on a square loop, lying in the y-z plane, if it carries a current I, flowing counterclockwise, when you look down the x-axis.

  14. z 3 a I 2 y 4 x 1

  15. Surface Currents Flow K

  16. Problem 5.6 (a) A Phonograph record carries a uniform density of “static electricity” σ. If it rotates at angular velocity ω, what is the surface current density K at a distance rfrom the center? z ω 0 r y x

  17. Volume Currents Flow

  18. Problem 5.6(b) A uniformly charged solid sphere, of radius R and total charge Q, is centered at the origin and spinning at a constant velocity ωabout thezaxis. Find the current densityJ at any point (r,θ,Φ) within the sphere. z ω P θ r y Φ x

  19. Problem 5.5 A current I flows down a wire of radius a. (i) If it is uniformly distributed over the surface,what is the current density K ?(ii) If it is distributed in such a manner that the volume current density is inversely proportional to the distance from the axis, what is J? a z

  20. Problem: (a) A current I is uniformly distributed over a wire of circular cross-section, with radius a. Find the current density J. (b) Suppose the current density is proportional to the distance from the axis,J=ks. Find thetotalcurrent in the wire. a z

  21. The Continuity Equation The Arrows indicate charge leaving the volume V Q(t) …which is precisely the mathematical statement of local charge conservation.

  22. Magnetic Field of a Steady Current • Why Steady Current is required here and which type of magnetic fields do steady currents give rise to?? • What is the form of the continuity equation in this case? • ….and the “Biot-Savart Law”…

  23. The Biot-Savart Law: The magnetic field of a steady current is given by: I rs P

  24. P Ө1 rs Ө Ө2 s α I L/ Wire Segment I dL/ Long Wire Problem: Find the magnetic field a distance sfrom a long straight wire carrying a steady current I.

  25. Problem: Find the magnetic field a distance z above thecenterof acircular loop of radius R, which carries a steady current I. z rs R

  26. Ө2 P z Ө1 a Problem:5.11 Find the magnetic field at point P on the axis of a tightly wound solenoid (helical coil) consisting of n turns per unit length wrapped around a cylindrical tube of radius a and carrying current I.

  27. I I b a R P I I I R P I Problem: 5.9 Find the magnetic field at point P for each of the steady current configurations shown below:

  28. Problem:5.45 A semicircular wire carries a steady current I. Find the magnetic field at a point P on the other semicircle. P R Ө I

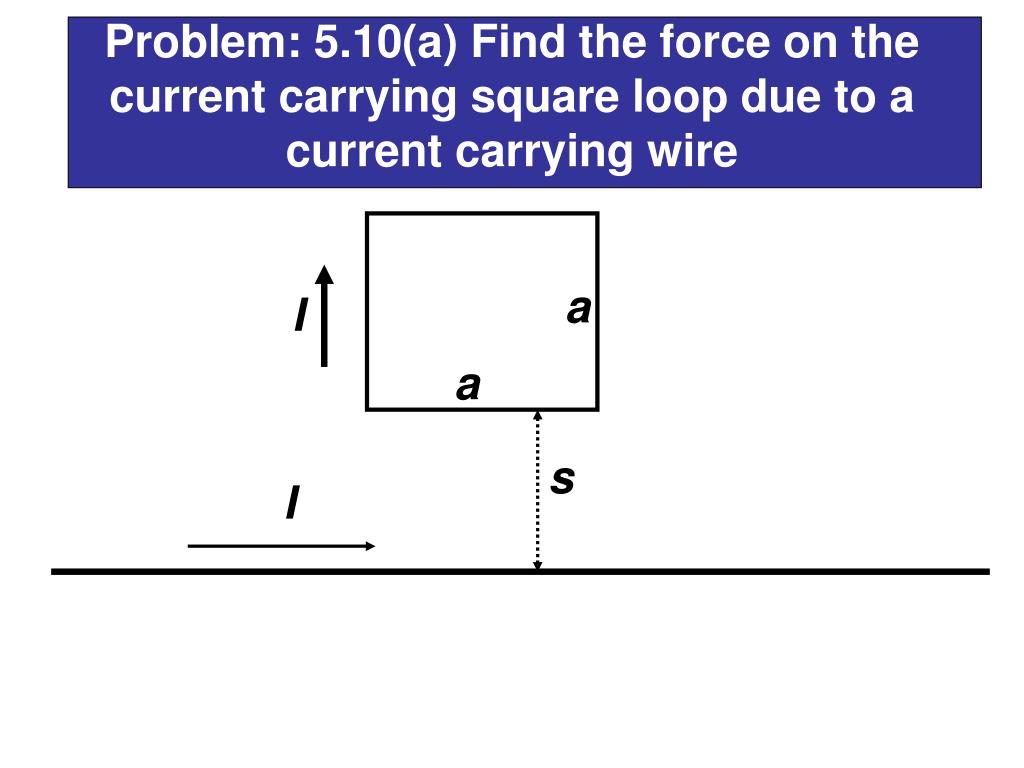

  29. Problem: 5.10(a) Find the force on the current carrying square loop due to a current carrying wire a I a s I

  30. Problem:5.46 The magnetic field on the axis of a circular current loop is far from uniform (it falls off sharply with increasing z). However, one can produce a more nearly uniform field by using two such loops a distance d apart. z R I z=0 d R I

  31. (a) Find the field B as a function of z, and show that ∂B/∂z is zero at the point midway between them (z=0). Now, if you pick d just right the second derivative of B will also vanish at the midpoint. (b) Determine d such that ∂2B/∂z2=0 at the midpoint, and find the resulting magnetic field at the center.

  32. This arrangement is known as a Helmholtz coil; it’s a convenient way of producing relatively uniform fields in the laboratory. z R I z=0 d R I
