Some geophysical parameters as inputs for tsunami surge models dr k s r murthy

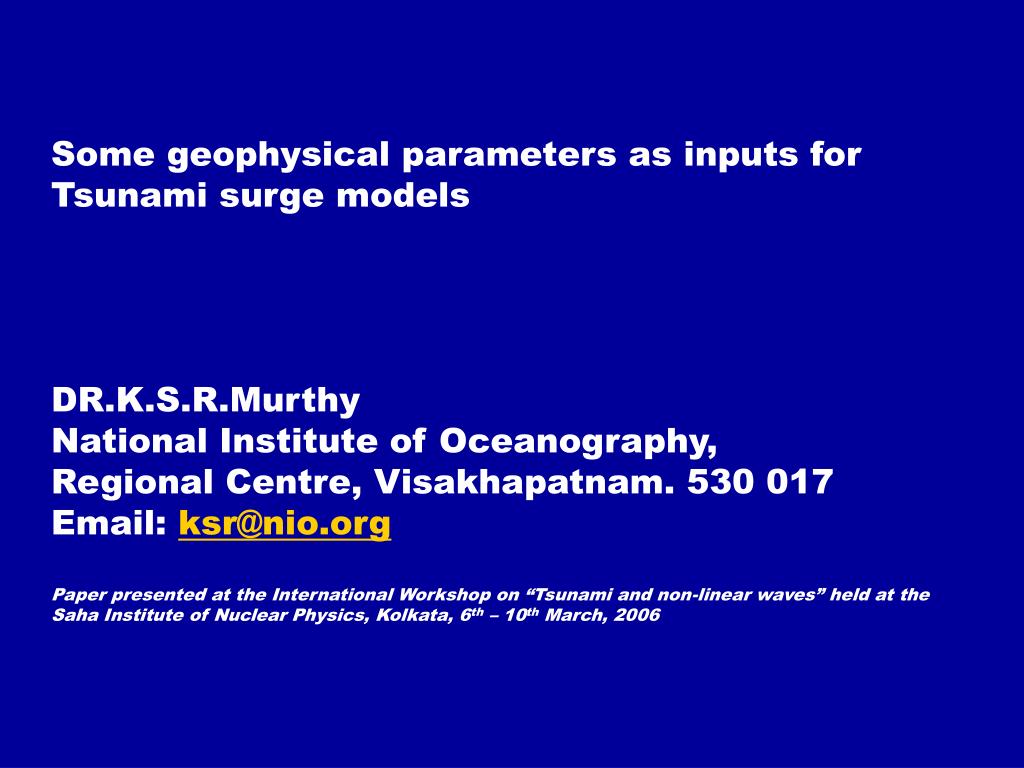

Some geophysical parameters as inputs for Tsunami surge models

DR.K.S.R.Murthy

National Institute of Oceanography,

Regional Centre, Visakhapatnam. 530 017

Email: [email protected]

Paper presented at the International Workshop on “Tsunami and non-linear waves” held at the Saha Institute of Nuclear Physics, Kolkata, 6th – 10th March, 2006


Some geophysical parameters as inputs for tsunami surge models dr k s r murthy

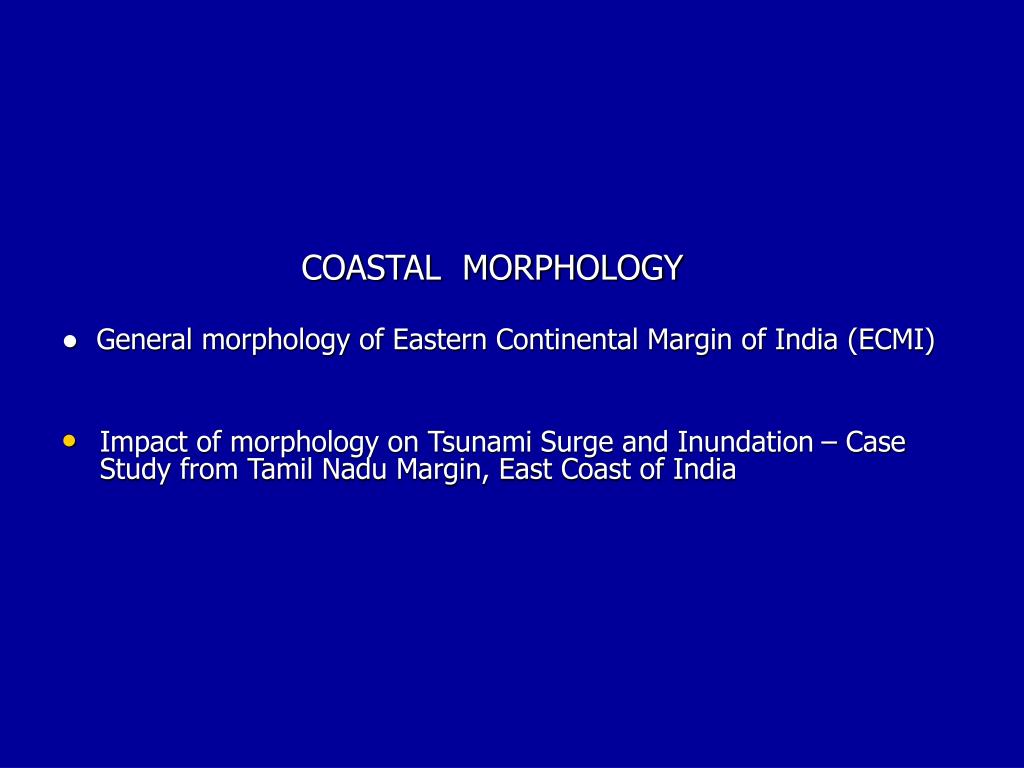

COASTAL MORPHOLOGY

● General morphology of Eastern Continental Margin of India (ECMI)

  • Impact of morphology on Tsunami Surge and Inundation – Case Study from Tamil Nadu Margin, East Coast of India


Some geophysical parameters as inputs for tsunami surge models dr k s r murthy

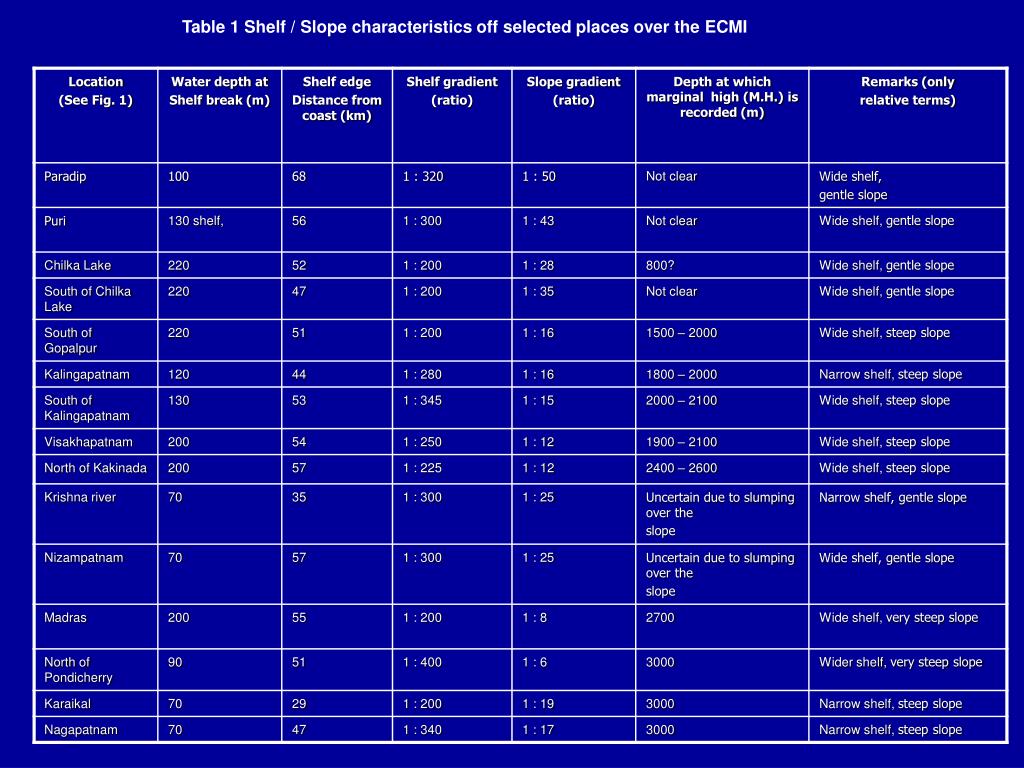

Table 1 Shelf / Slope characteristics off selected places over the ECMI


Some geophysical parameters as inputs for tsunami surge models dr k s r murthy

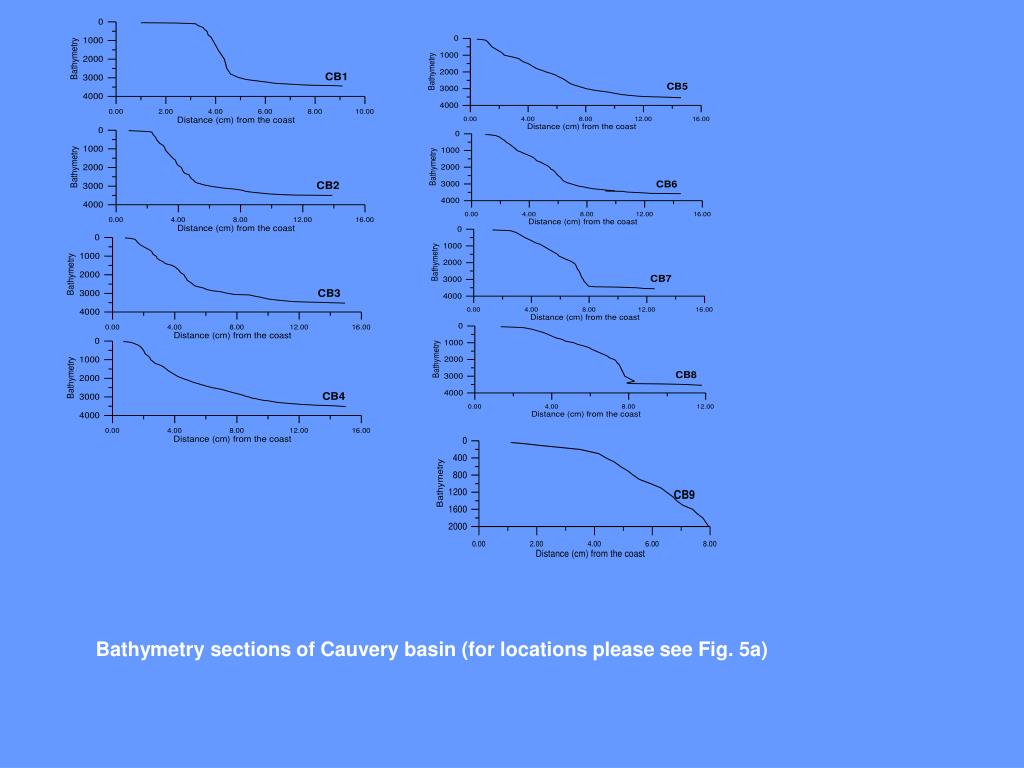

Bathymetry sections of Cauvery basin (for locations please see Fig. 5a)


Some geophysical parameters as inputs for tsunami surge models dr k s r murthy

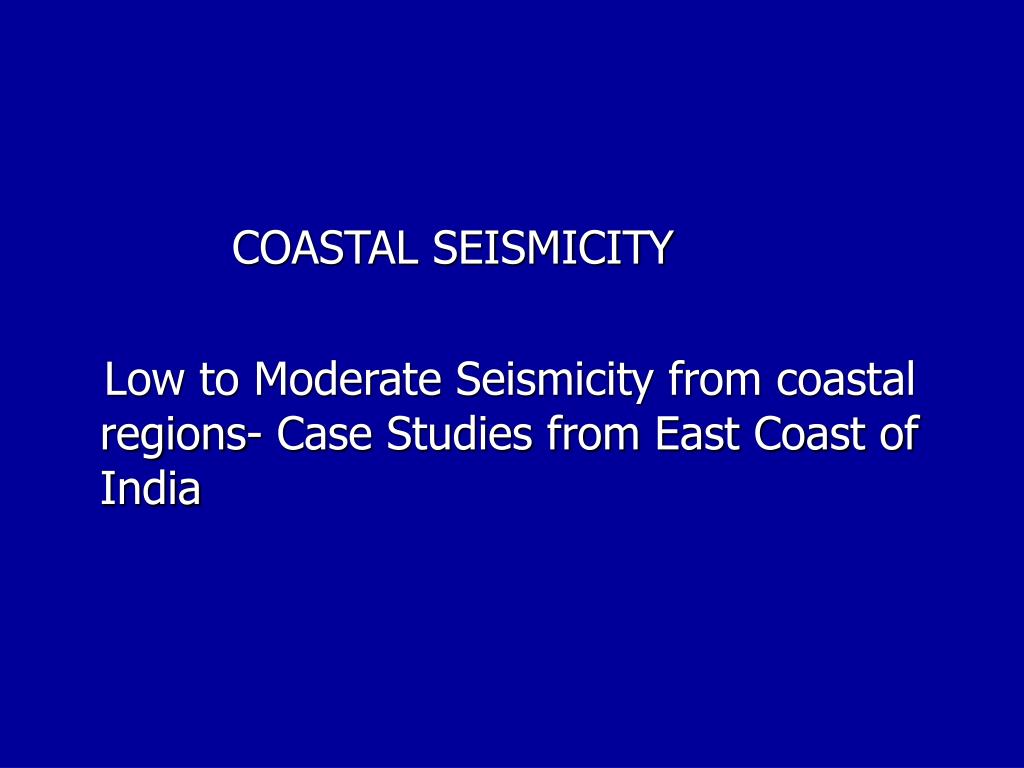

COASTAL SEISMICITY

Low to Moderate Seismicity from coastal regions- Case Studies from East Coast of India


Natural hazards in the indian sub continent

Peninsular India is often faced with two major natural hazards namely the cyclone and storm surges in the coastal areas and the intraplate seismicity in the main land and coastal areas.

We have now fairly a well established weather forecasting mechanism to cope up with high cyclone and storm surges.

The other natural hazards is the continental earthquakes like the Latur (1993), Jabalpur (1997), Bhuj (2001) which caused huge devastation, including heavy human losses. These earthquakes are the result of the reactivation of subsurface weak zones beneath the continental shield. The reactivation is due to compressional stress accumulated on the Indian Plate as it moves northward in the overall plate Kinematics of this part of the earth.

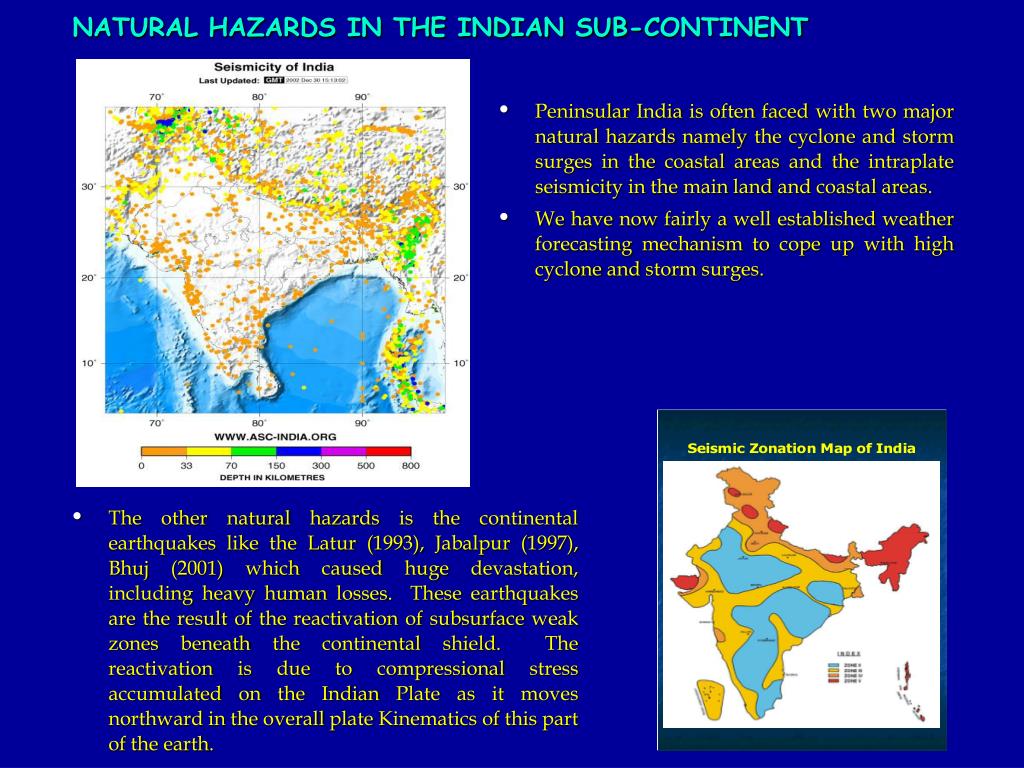

NATURAL HAZARDS IN THE INDIAN SUB-CONTINENT


Some geophysical parameters as inputs for tsunami surge models dr k s r murthy

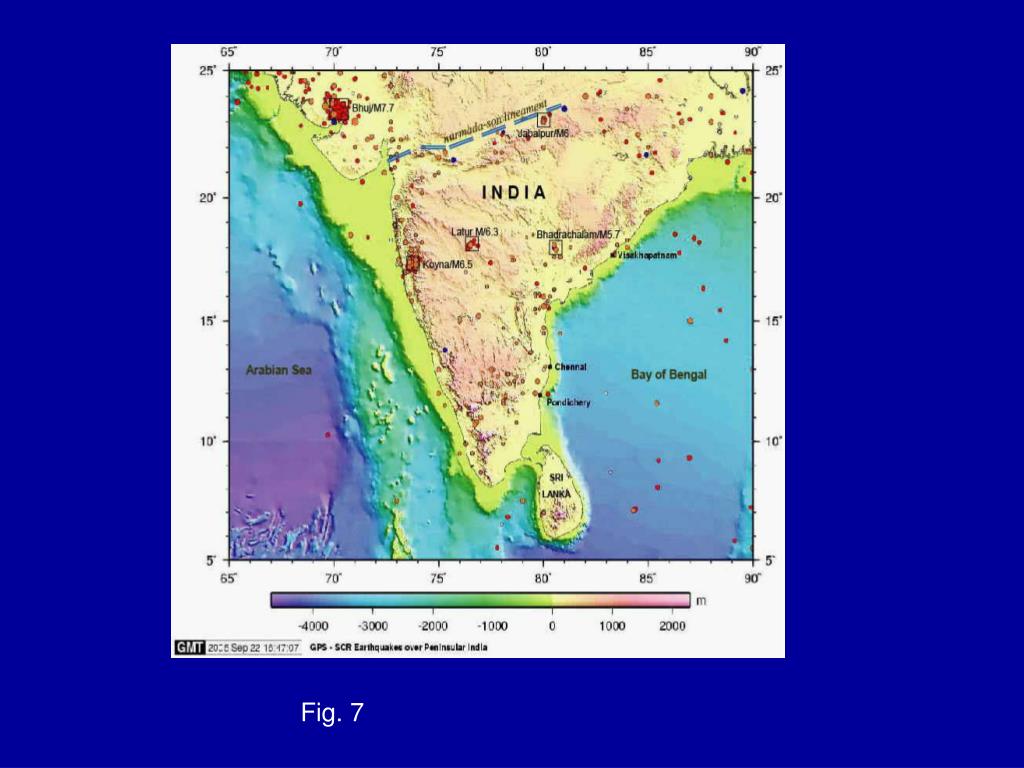

Fig. 7
