Besiii tof digitization

BESIII TOF Digitization

Deng ziyan

2005.10.26


Outline

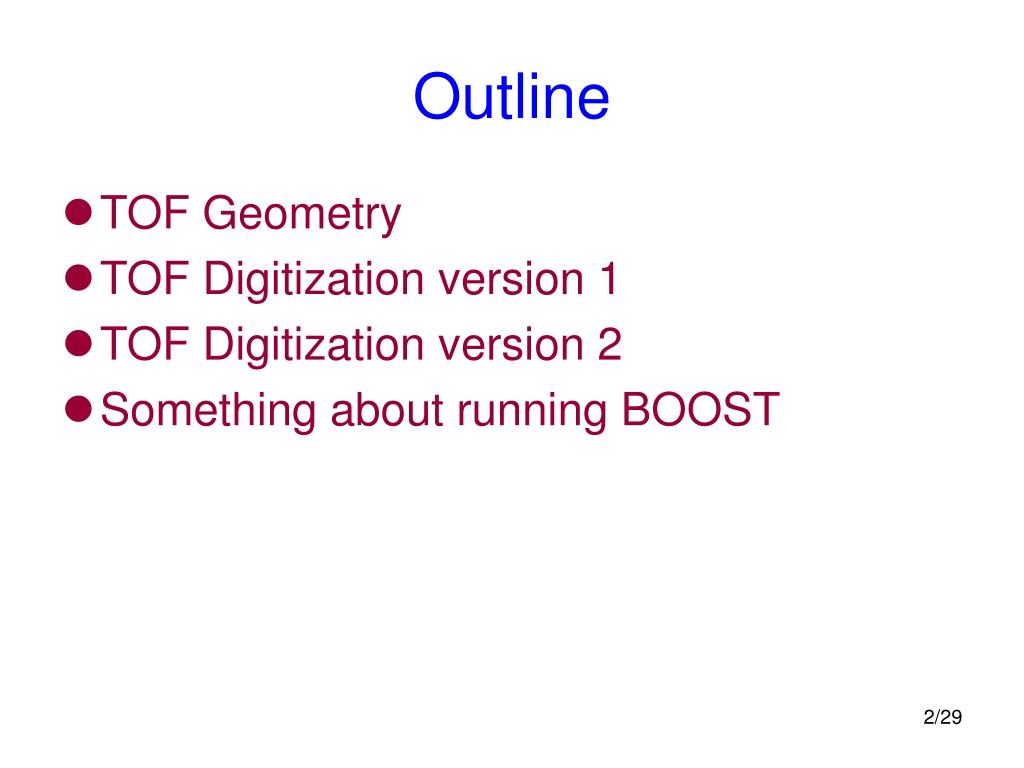

Outline

  • TOF Geometry

  • TOF Digitization version 1

  • TOF Digitization version 2

  • Something about running BOOST


Besiii tof digitization

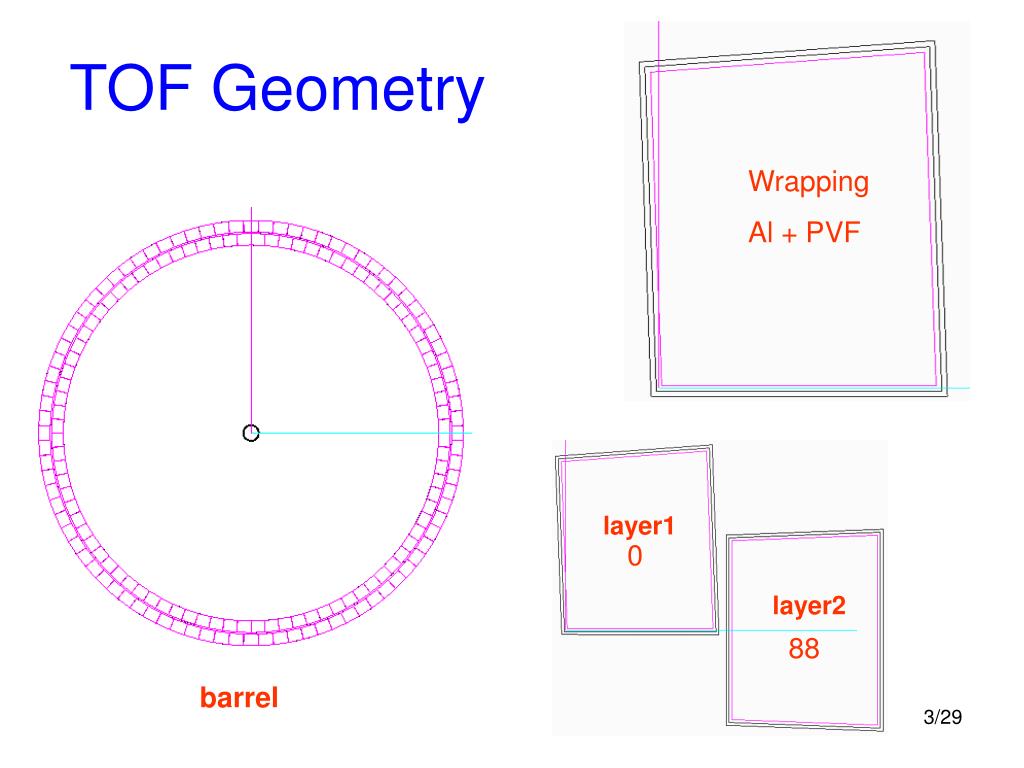

TOF Geometry

Wrapping

Al + PVF

layer1

0

layer2

88

barrel


Besiii tof digitization

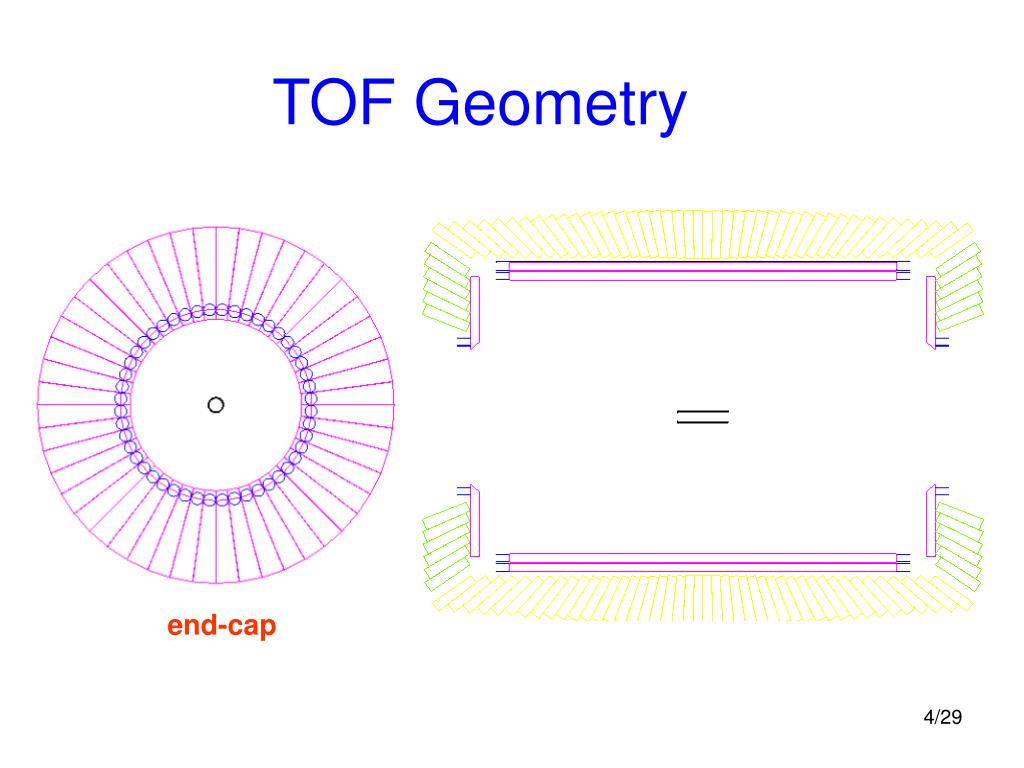

TOF Geometry

end-cap


Digitization from hits

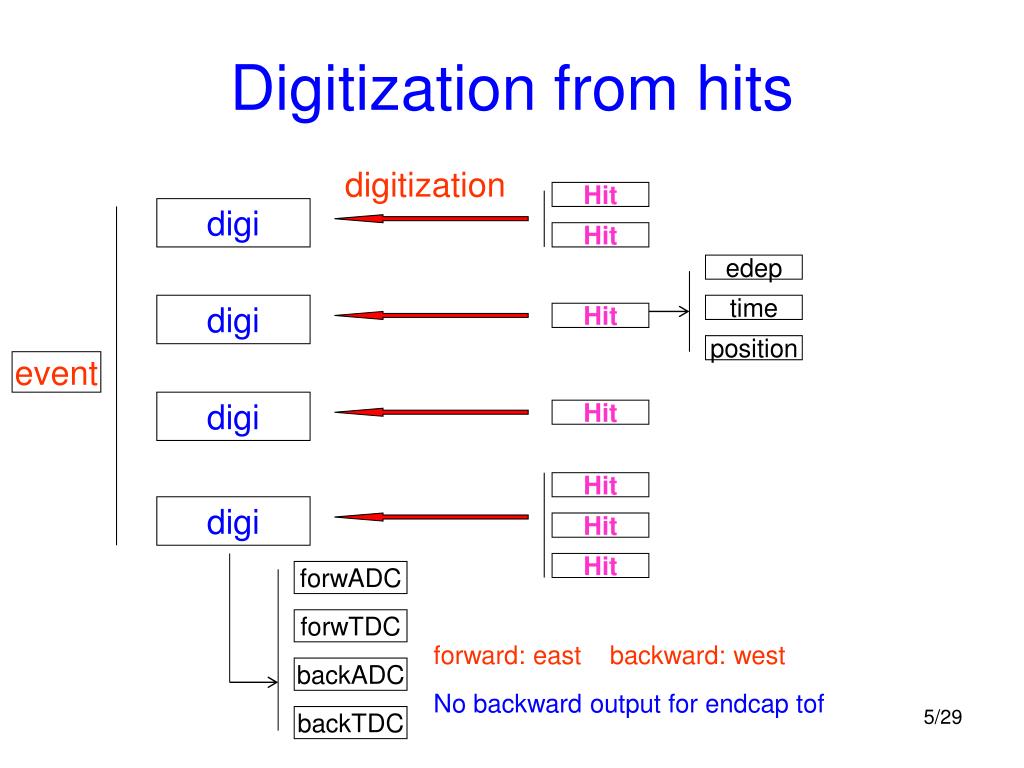

Digitization from hits

digitization

Hit

digi

Hit

edep

digi

time

Hit

position

event

digi

Hit

Hit

digi

Hit

Hit

forwADC

forwTDC

forward: east backward: west

backADC

No backward output for endcap tof

backTDC

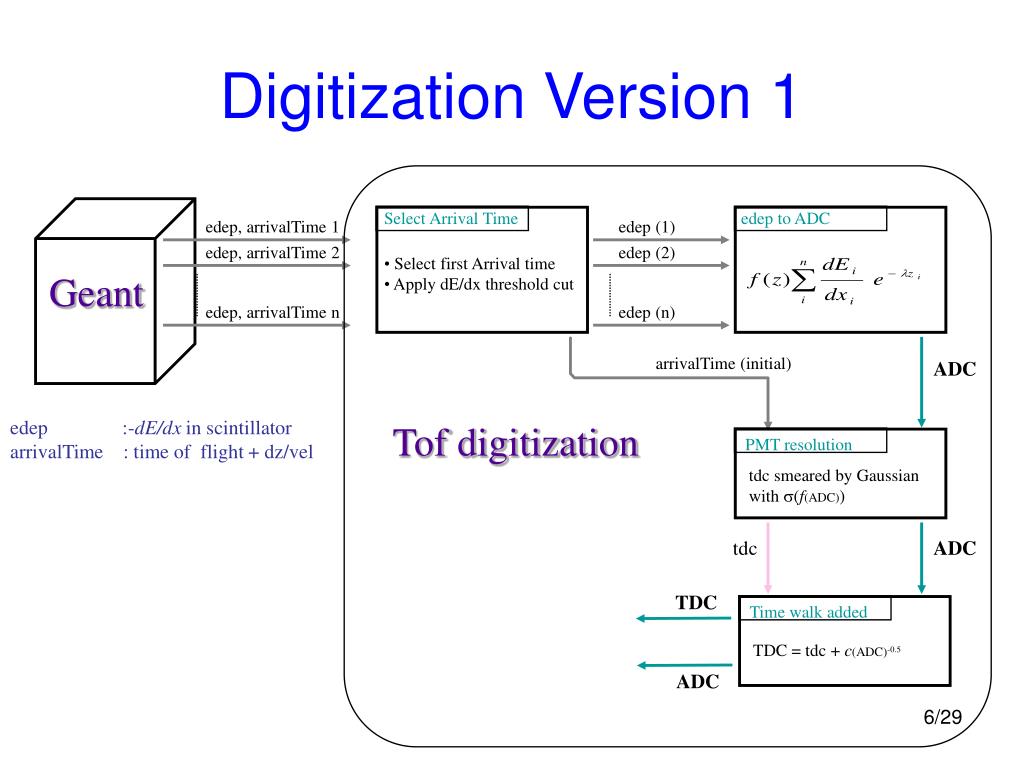

Digitization version 1

edep, arrivalTime 1

edep (1)

edep, arrivalTime 2

edep (2)

edep, arrivalTime n

edep (n)

Time walk added

TDC = tdc + c(ADC)-0.5

Digitization Version 1

Select Arrival Time

edep to ADC

  • Select first Arrival time

  • Apply dE/dx threshold cut

Geant

arrivalTime (initial)

ADC

edep :-dE/dx in scintillator

arrivalTime : time of flight + dz/vel

Tof digitization

PMT resolution

tdc smeared by Gaussian with s(f(ADC))

tdc

ADC

TDC

ADC

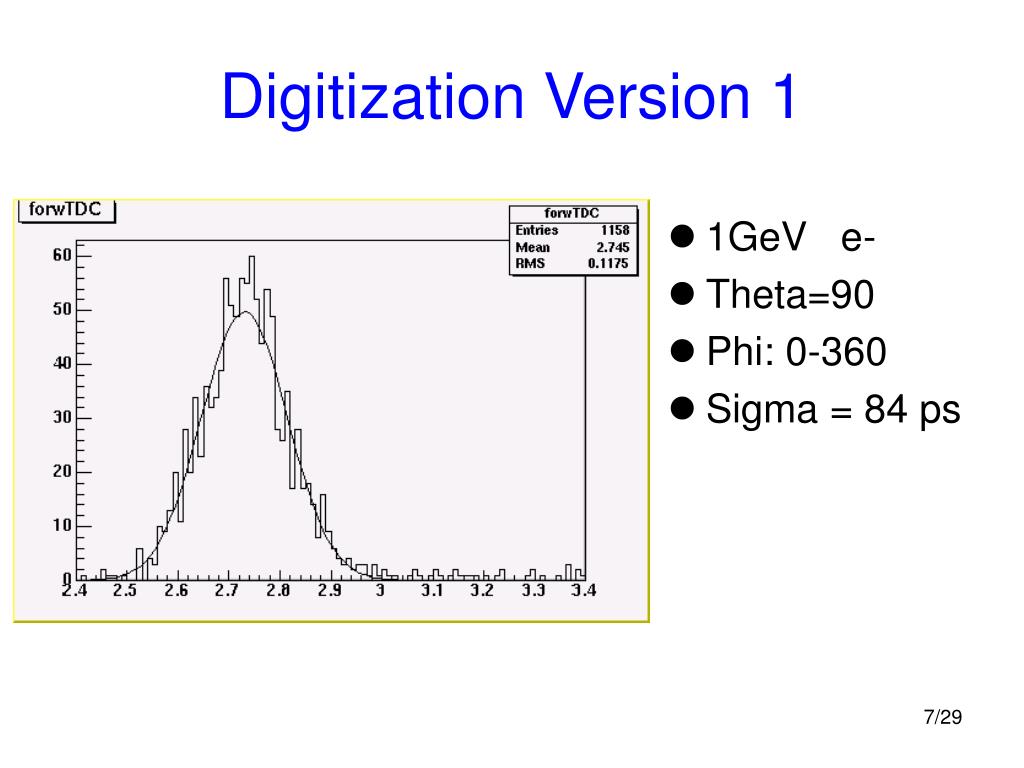

Digitization version 11

Digitization Version 1

  • 1GeV e-

  • Theta=90

  • Phi: 0-360

  • Sigma = 84 ps

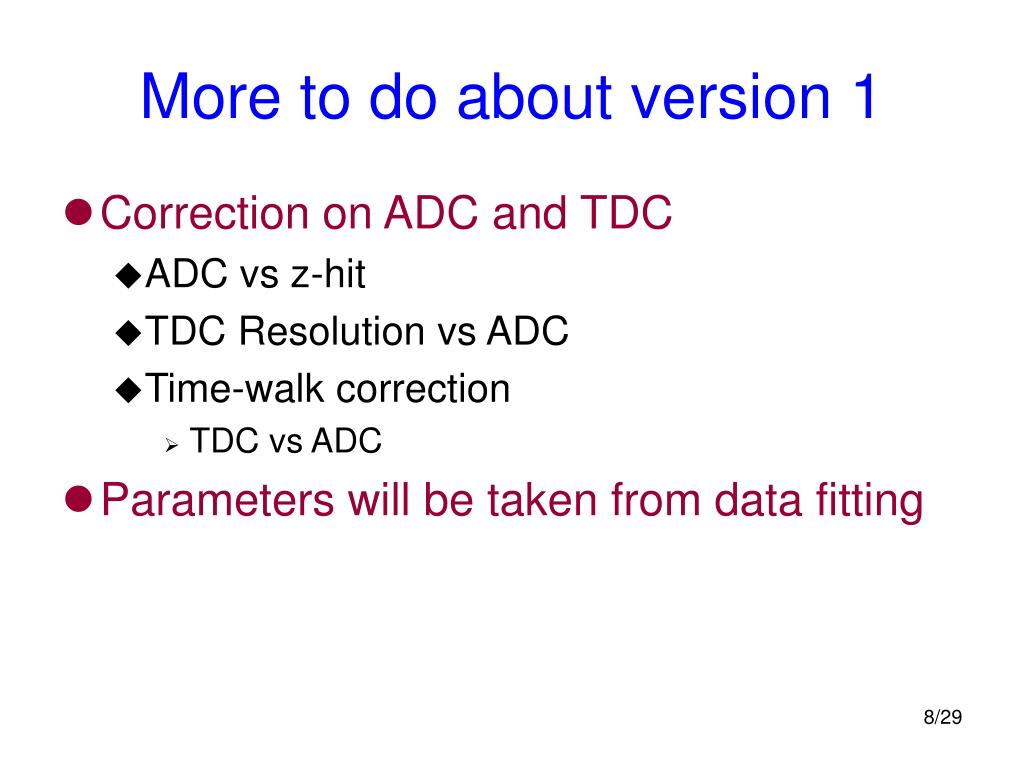

More to do about version 1

More to do about version 1

  • Correction on ADC and TDC

    • ADC vs z-hit

    • TDC Resolution vs ADC

    • Time-walk correction

      • TDC vs ADC

  • Parameters will be taken from data fitting


Digitization version 2

Digitization Version 2

  • Full simulation

    • Scintillation light emission in each step

    • Light propagation in scintillator upto PMT

    • PMT response

      • Photoelectron production

      • Signal pulse production

    • Discrimation of PMT signal at two levels

      • If pulse height>HL, then make T,Q output

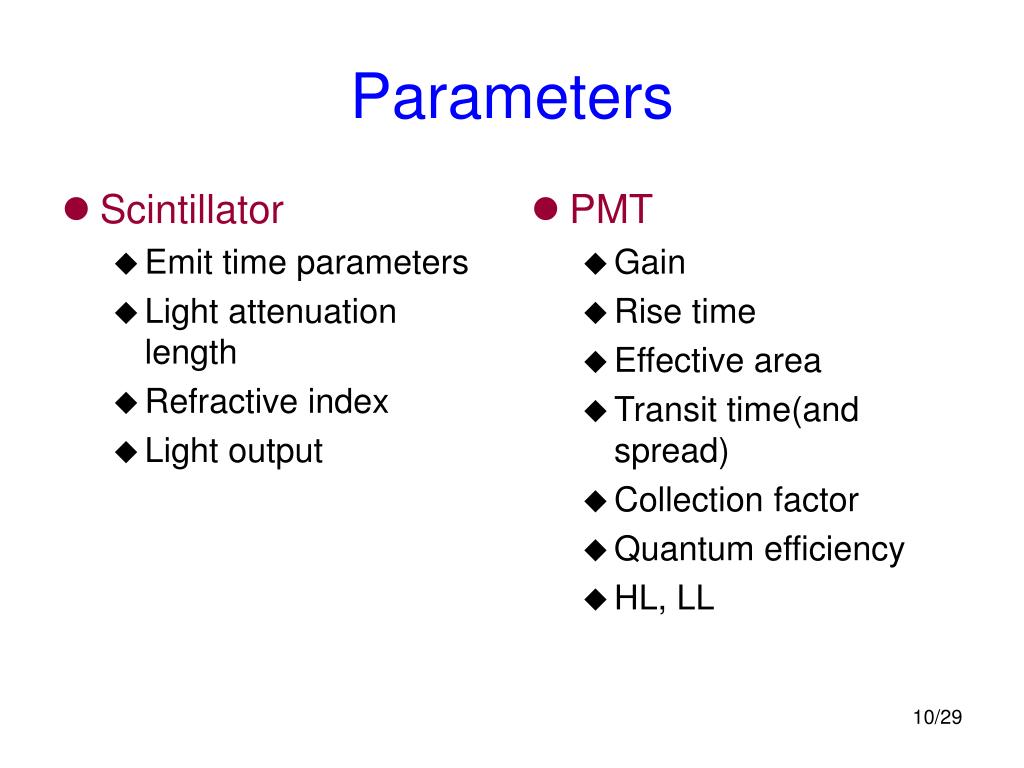

Parameters

Scintillator

Emit time parameters

Light attenuation length

Refractive index

Light output

PMT

Gain

Rise time

Effective area

Transit time(and spread)

Collection factor

Quantum efficiency

HL, LL

Parameters


Scintillation light emission

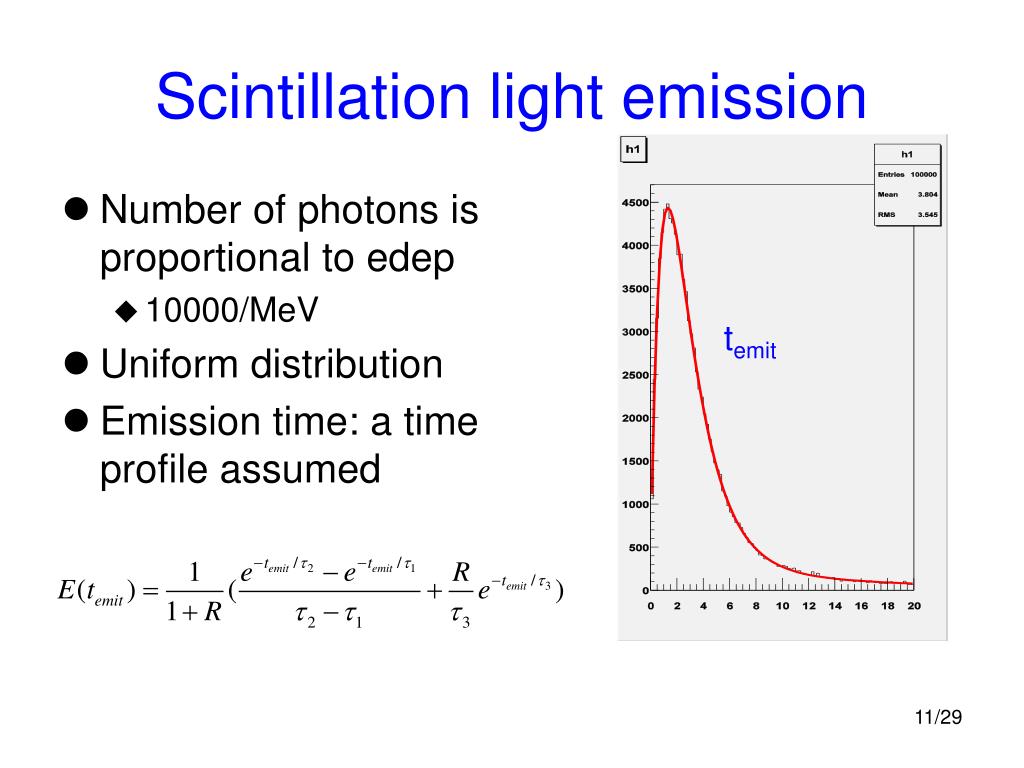

Scintillation light emission

  • Number of photons is proportional to edep

    • 10000/MeV

  • Uniform distribution

  • Emission time: a time profile assumed

temit


Light propagation

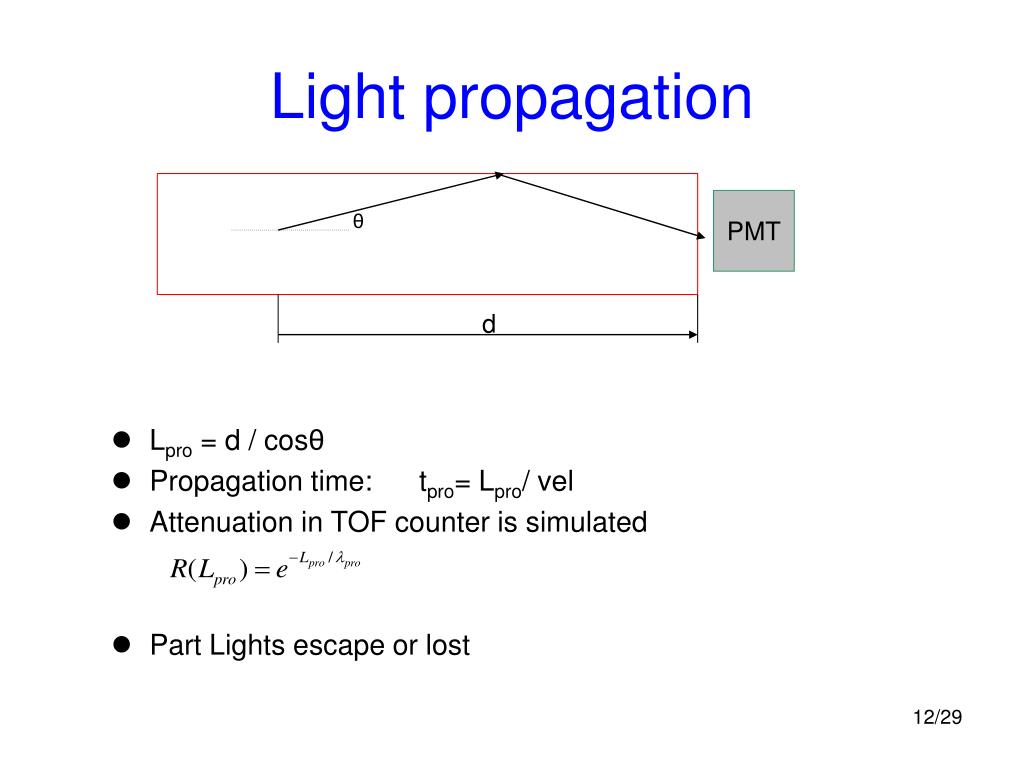

Light propagation

  • Lpro = d / cosθ

  • Propagation time: tpro= Lpro/ vel

  • Attenuation in TOF counter is simulated

  • Part Lights escape or lost

PMT

θ

d


Pmt response

PMT response

  • Photoelectron production

    • Photoelectrons are produced with quantum efficiency

    • Number of photoelectrons is reduced due to the dynode structure

    • Transit time is added

  • PMT response for single photon electron


Pmt response1

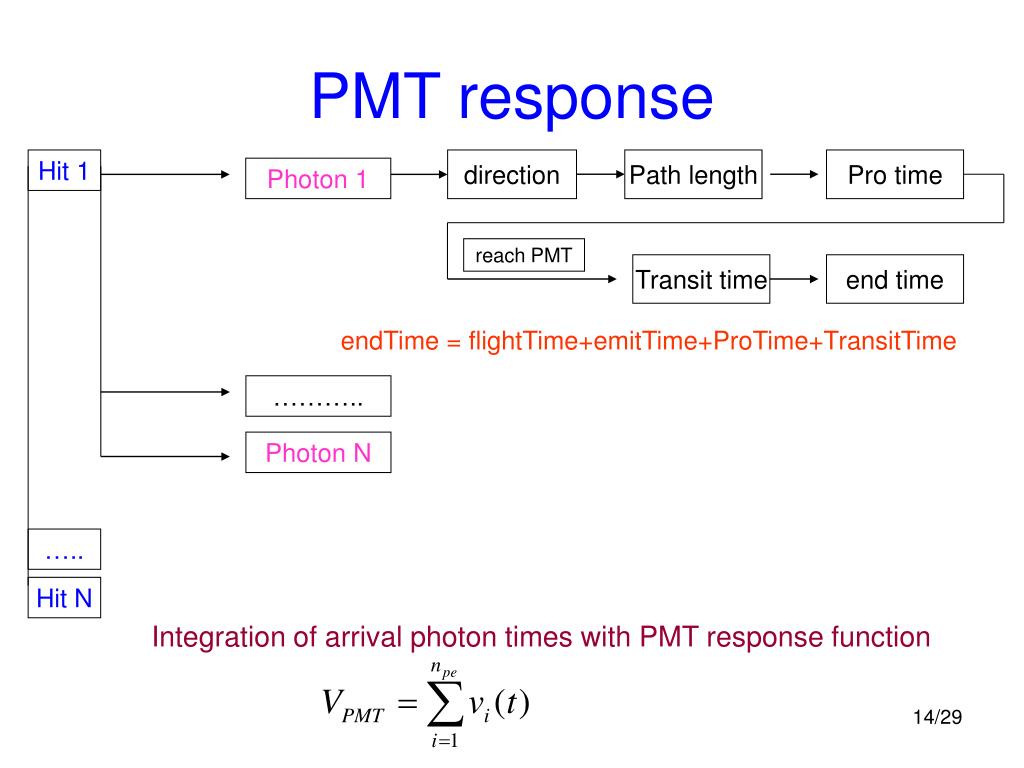

PMT response

Hit 1

direction

Path length

Pro time

Photon 1

reach PMT

Transit time

end time

endTime = flightTime+emitTime+ProTime+TransitTime

………..

Photon N

…..

Hit N

Integration of arrival photon times with PMT response function


Pmt response2

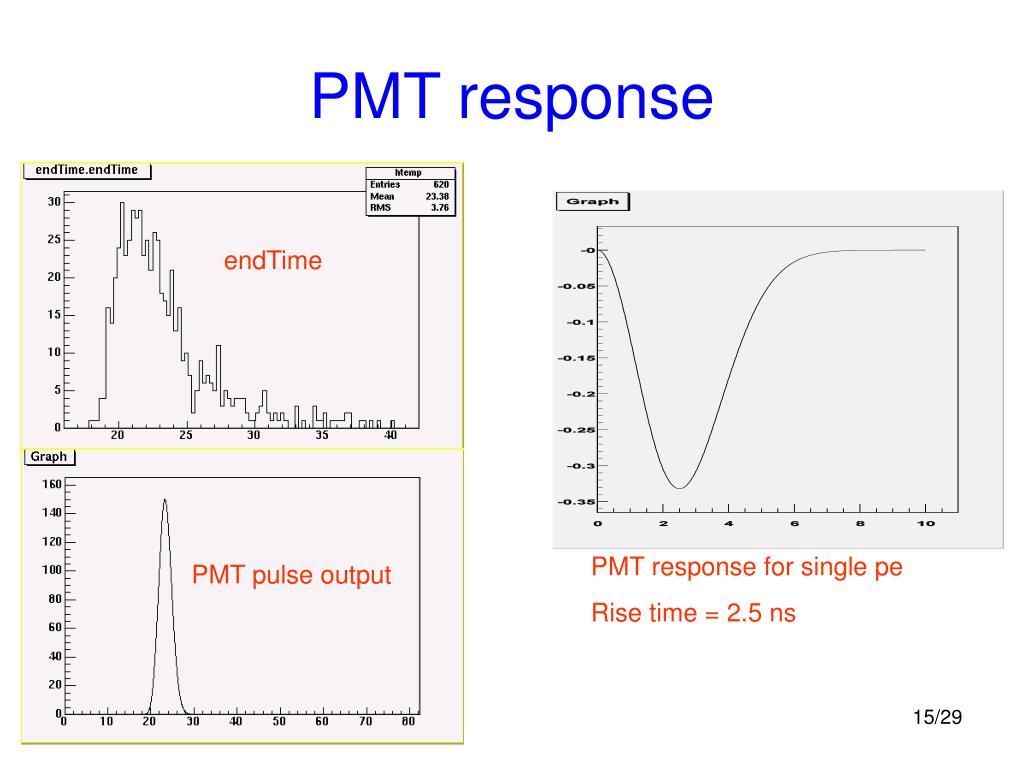

PMT response

endTime

PMT response for single pe

Rise time = 2.5 ns

PMT pulse output


Time distribution

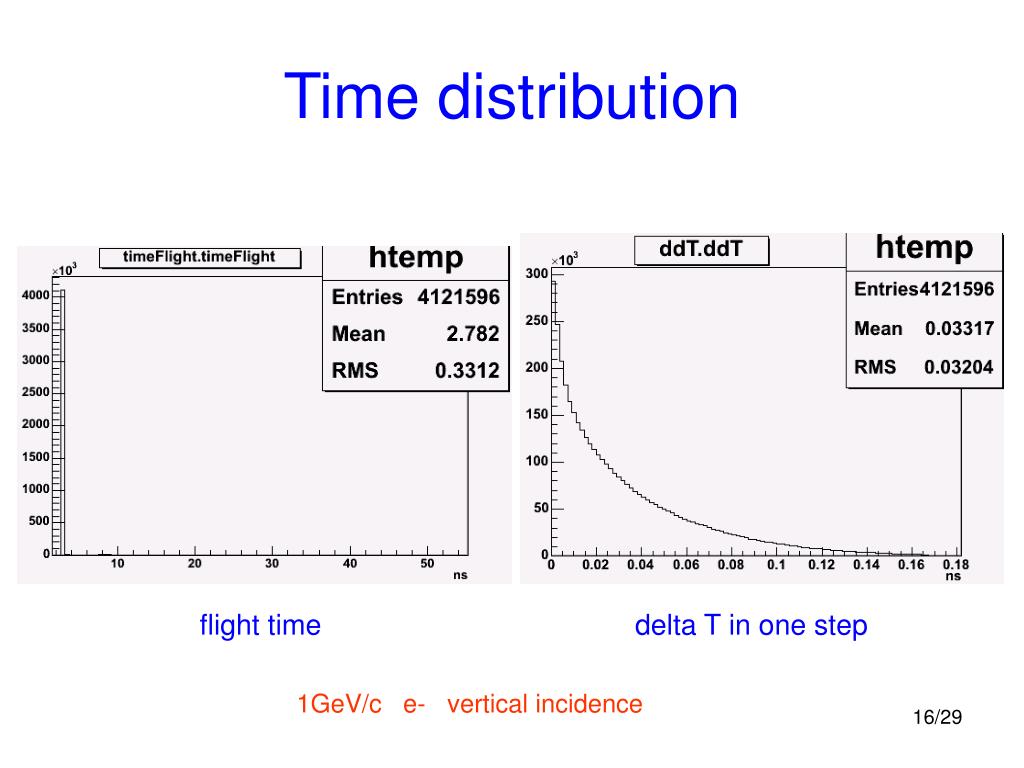

Time distribution

flight time

delta T in one step

1GeV/c e- vertical incidence


Besiii tof digitization

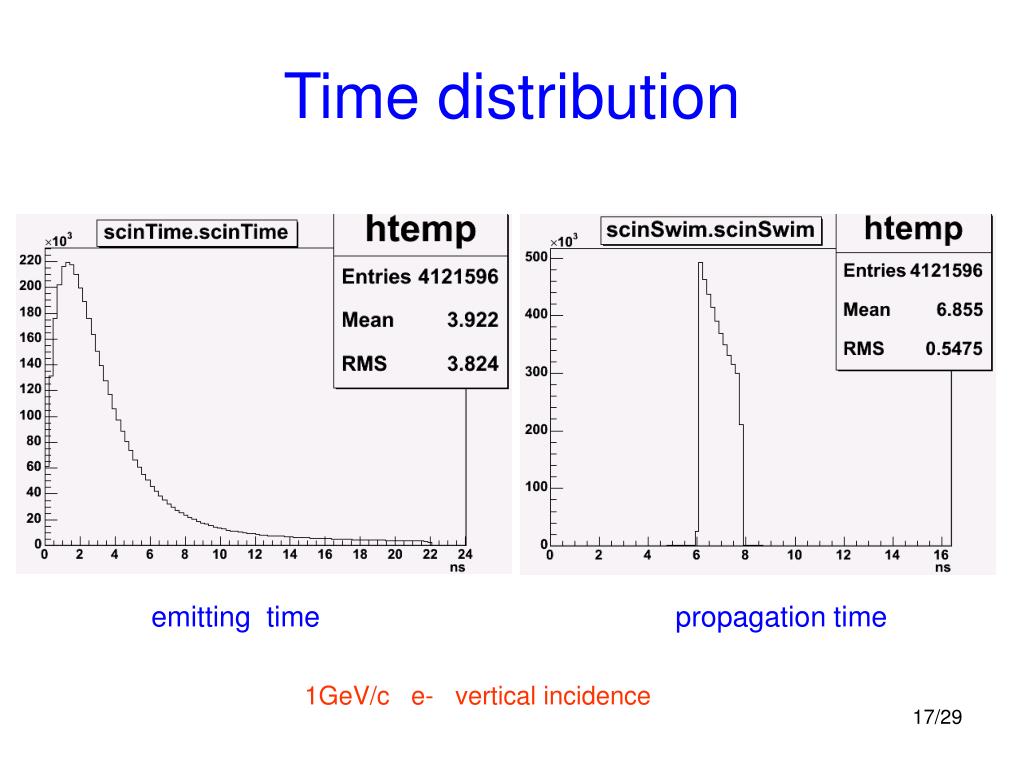

Time distribution

emitting time

propagation time

1GeV/c e- vertical incidence


Besiii tof digitization

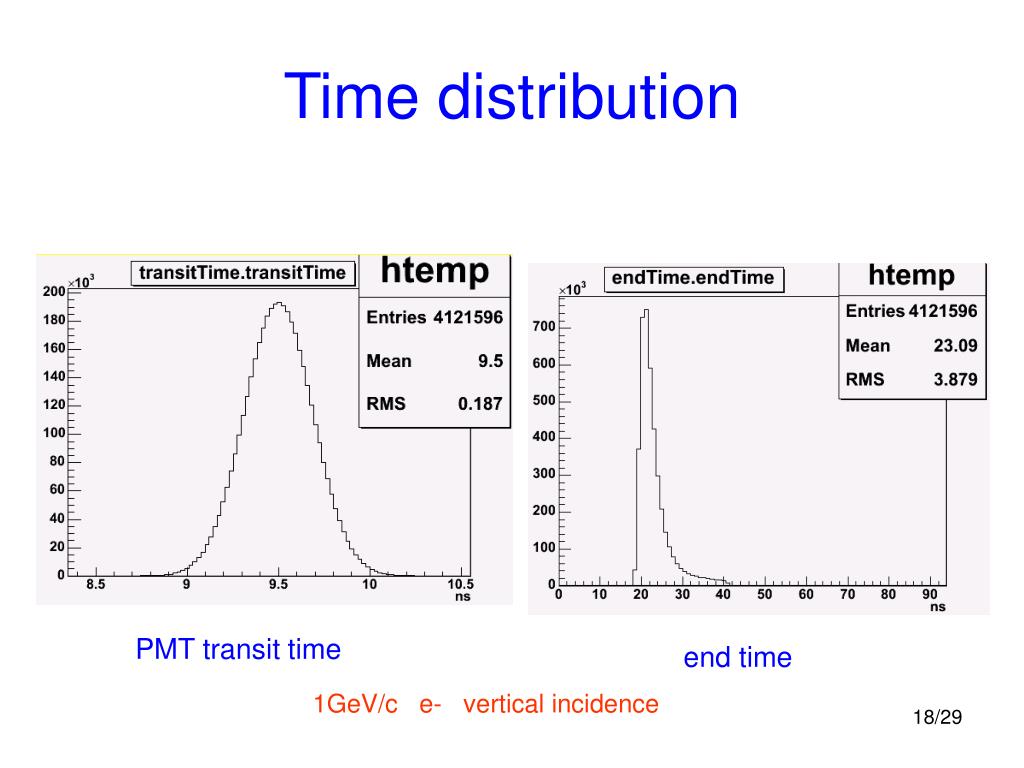

Time distribution

PMT transit time

end time

1GeV/c e- vertical incidence

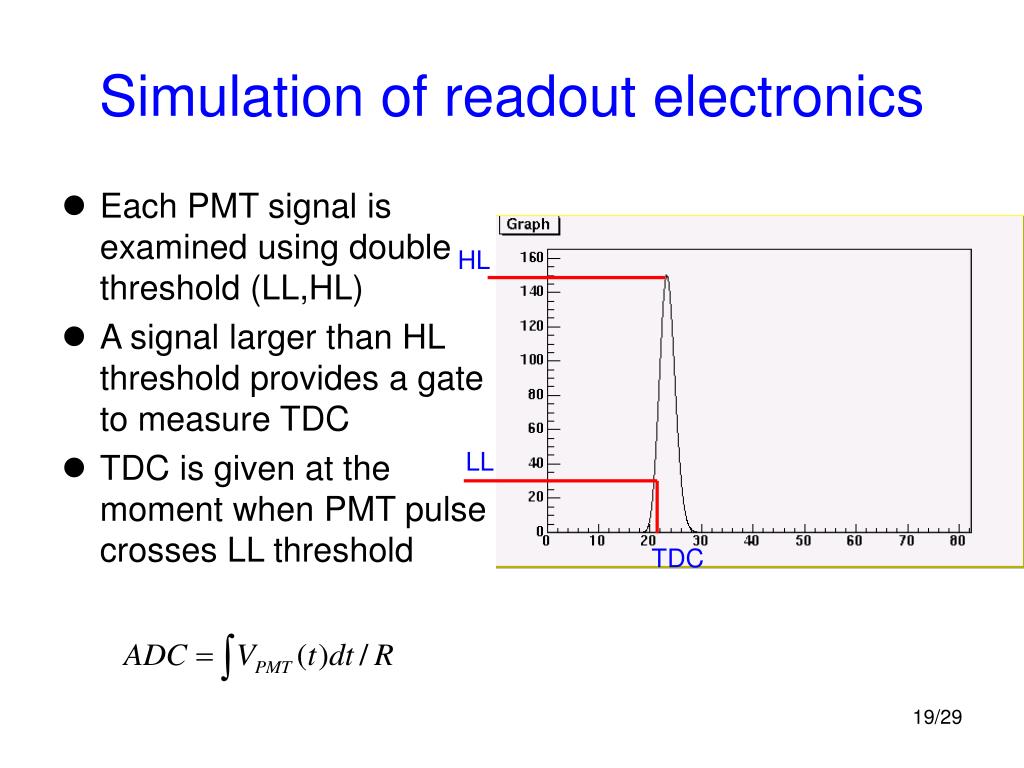

Simulation of readout electronics

Simulation of readout electronics

  • Each PMT signal is examined using double threshold (LL,HL)

  • A signal larger than HL threshold provides a gate to measure TDC

  • TDC is given at the moment when PMT pulse crosses LL threshold

HL

LL

TDC

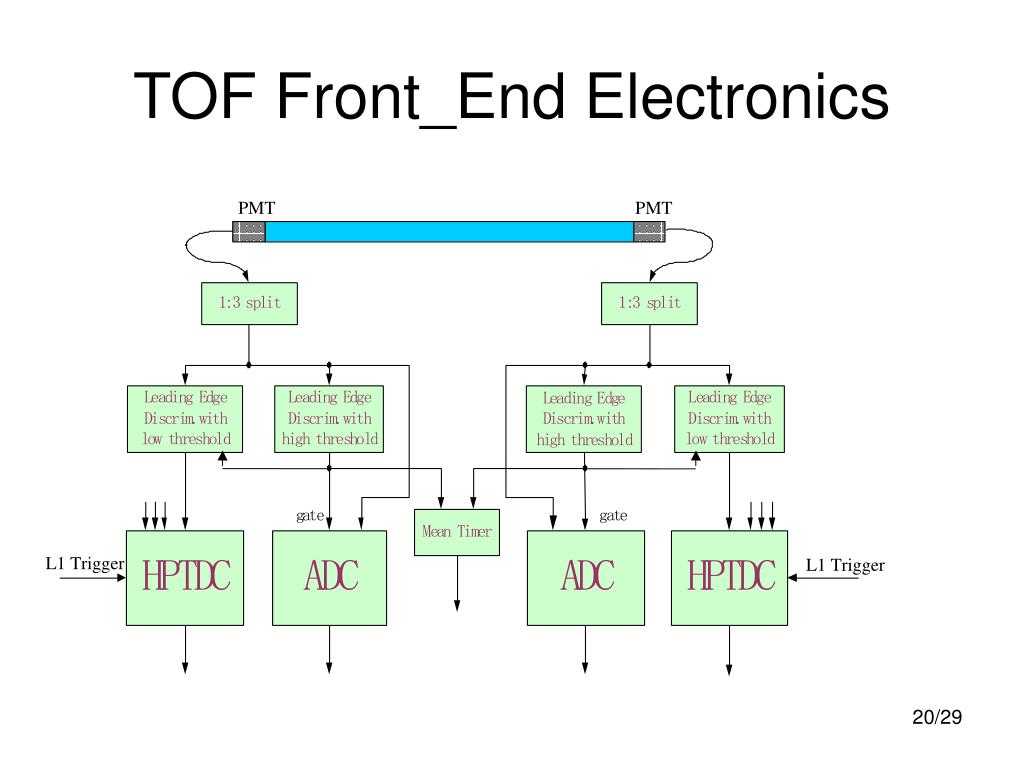

Tof front end electronics

TOF Front_End Electronics


Besiii tof digitization

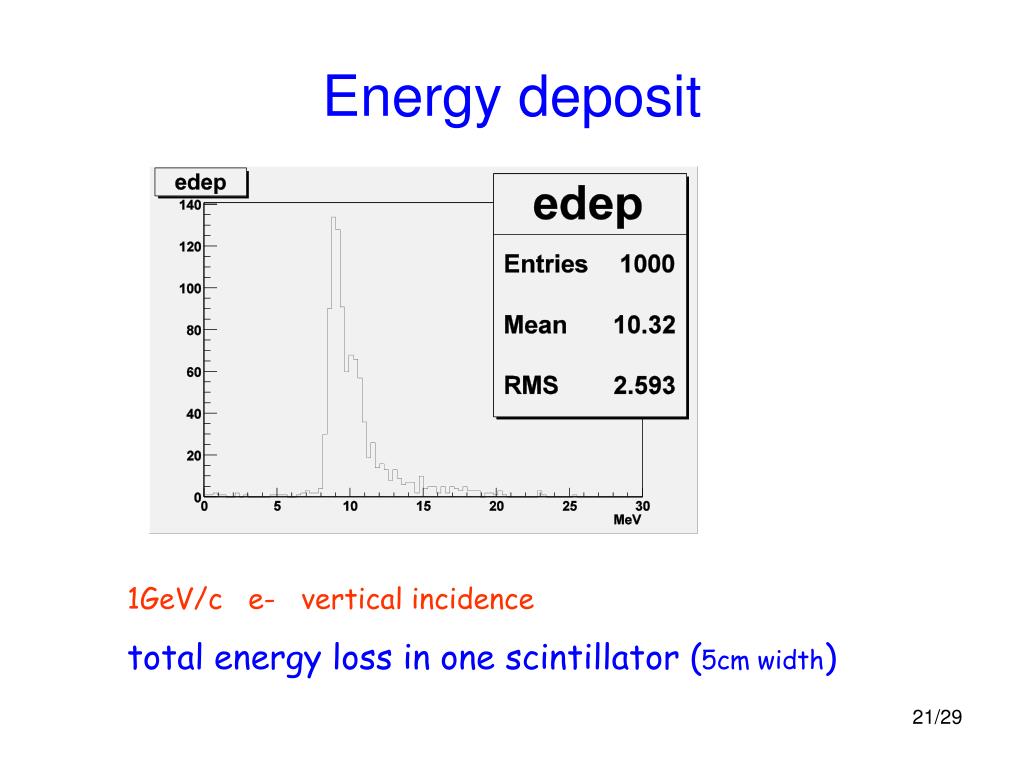

Energy deposit

1GeV/c e- vertical incidence

total energy loss in one scintillator (5cm width)


Besiii tof digitization

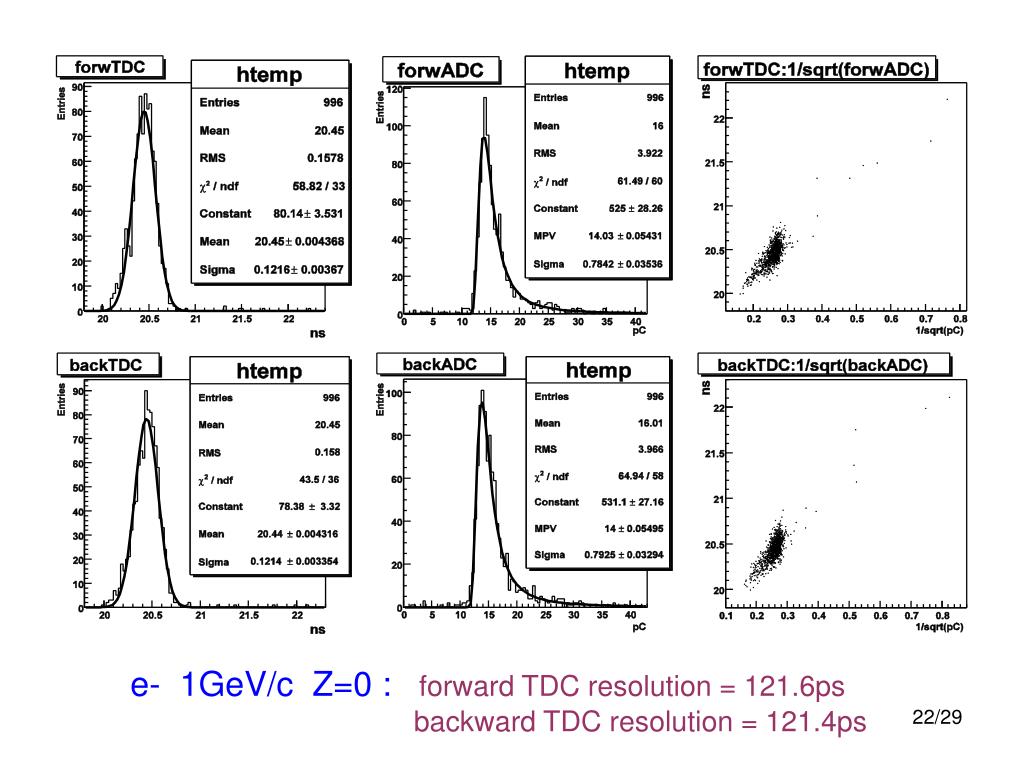

e- 1GeV/c Z=0 :forward TDC resolution = 121.6ps backward TDC resolution = 121.4ps


Besiii tof digitization

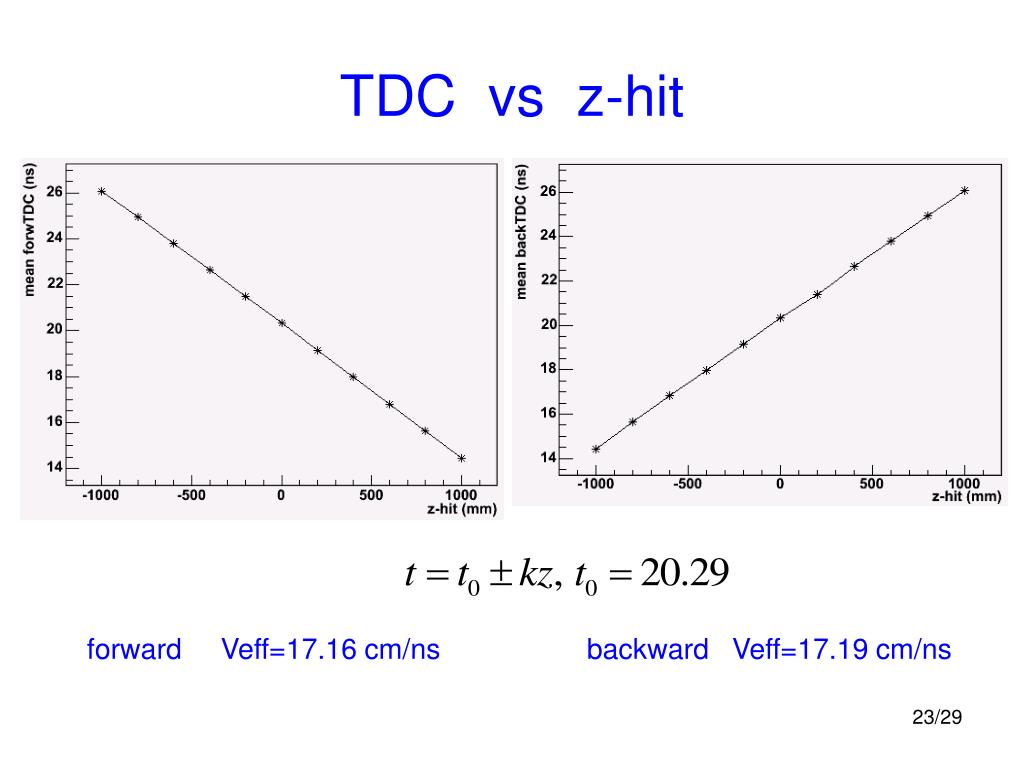

TDC vs z-hit

forward Veff=17.16 cm/ns

backward Veff=17.19 cm/ns


Besiii tof digitization

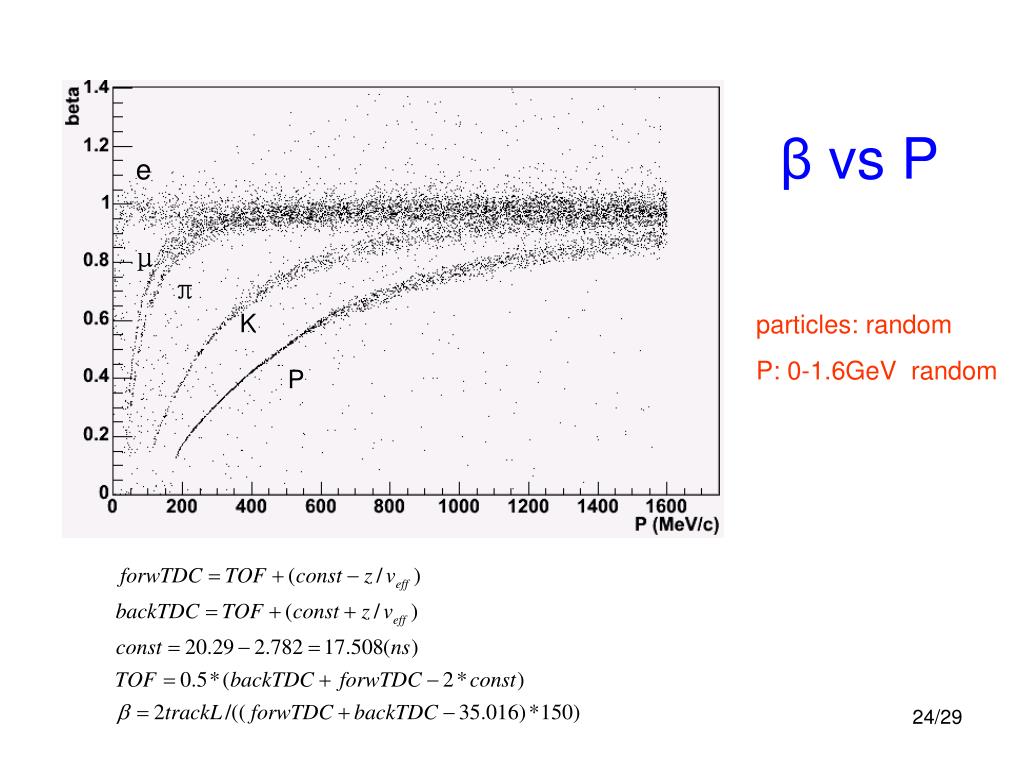

β vs P

particles: random

P: 0-1.6GeV random


Besiii tof digitization

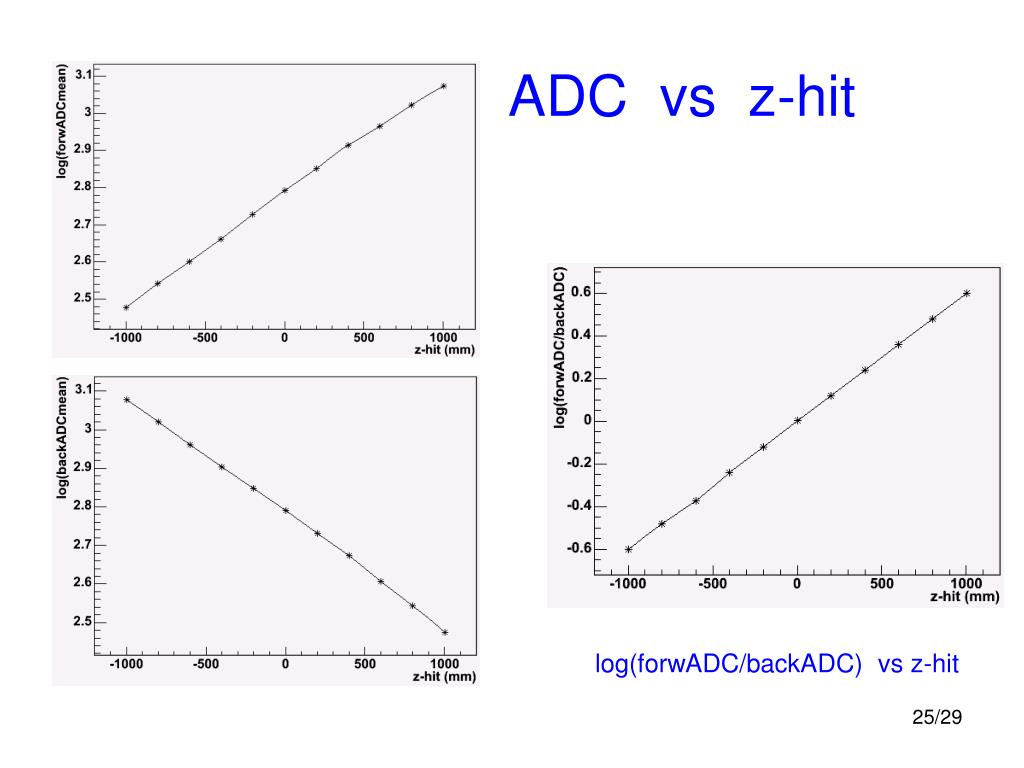

ADC vs z-hit

log(forwADC/backADC) vs z-hit


Besiii tof digitization

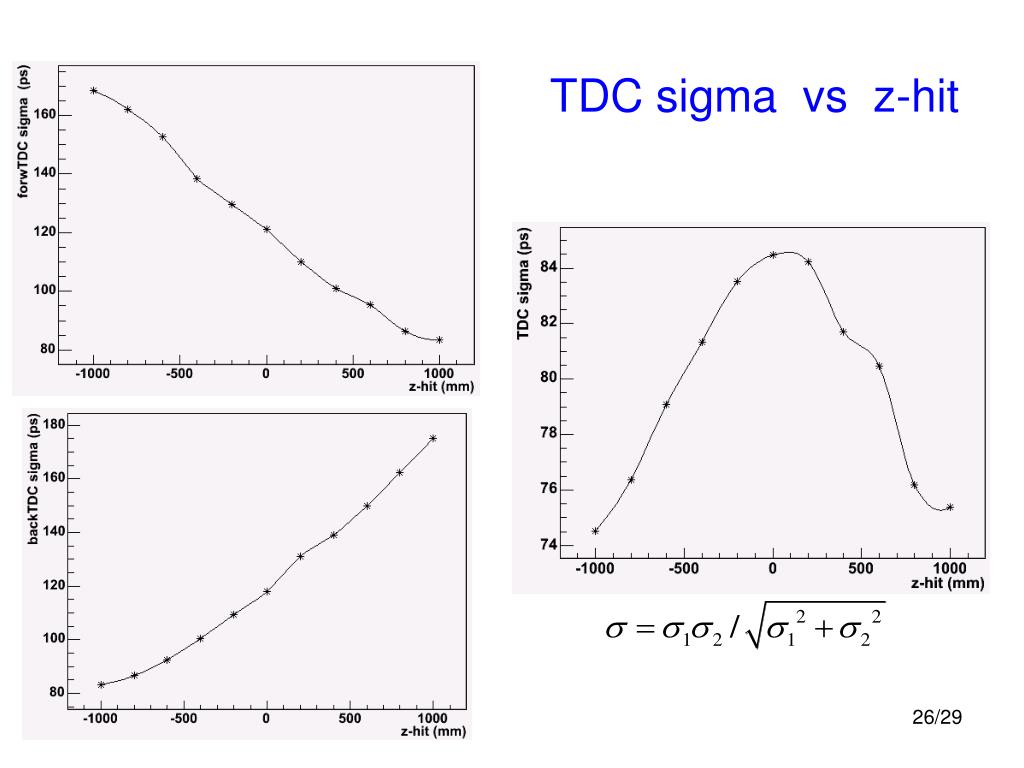

TDC sigma vs z-hit

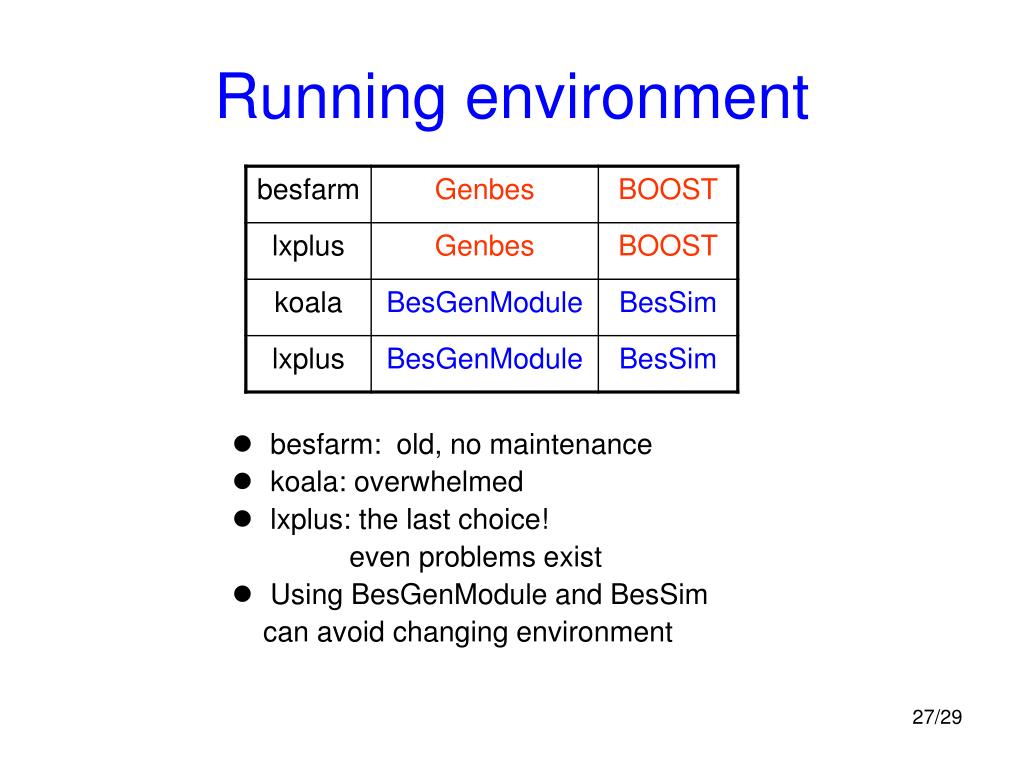

Running environment

besfarm: old, no maintenance

koala: overwhelmed

lxplus: the last choice!

even problems exist

Using BesGenModule and BesSim

can avoid changing environment

Running environment


Running environment1

Running environment

  • lxplus04, 05

    • /ihepbatch/bes/dengzy

    • /afs/ihep.ac.cn/users/d/dengzy (2G)

    • /ihepbatch/besdata/public/dengzy (5G)

  • more document

    • G4ParticleList

    • GenbesParticleId

    • PDGscheme

http://boss.ihep.ac.cn/SofPro/simulation.html


The end

The end

Thanks!
