StreamInsight03 – Designing SQL Server 2008 R2 StreamInsight Event Models and Adapters

SQL10R2UPD05-DECK-03

[Presenter Name][Presenter Title] [Company Name]


Module overview l.jpg

Module Overview

  • Introducing StreamInsight

  • Querying Events in StreamInsight

  • Designing StreamInsight Event Models and Adapters

  • Installing, Deploying, and Maintaining the StreamInsight Runtime Engine


Agenda l.jpg

Agenda

  • Event-related StreamInsight Objects

  • Maintaining Query Responsiveness Through CTI Entries

  • Demo: Working with CTI Entries

  • Working with StreamInsight Adapters

  • Demo: Creating an Input Adapter


Event flow and control l.jpg

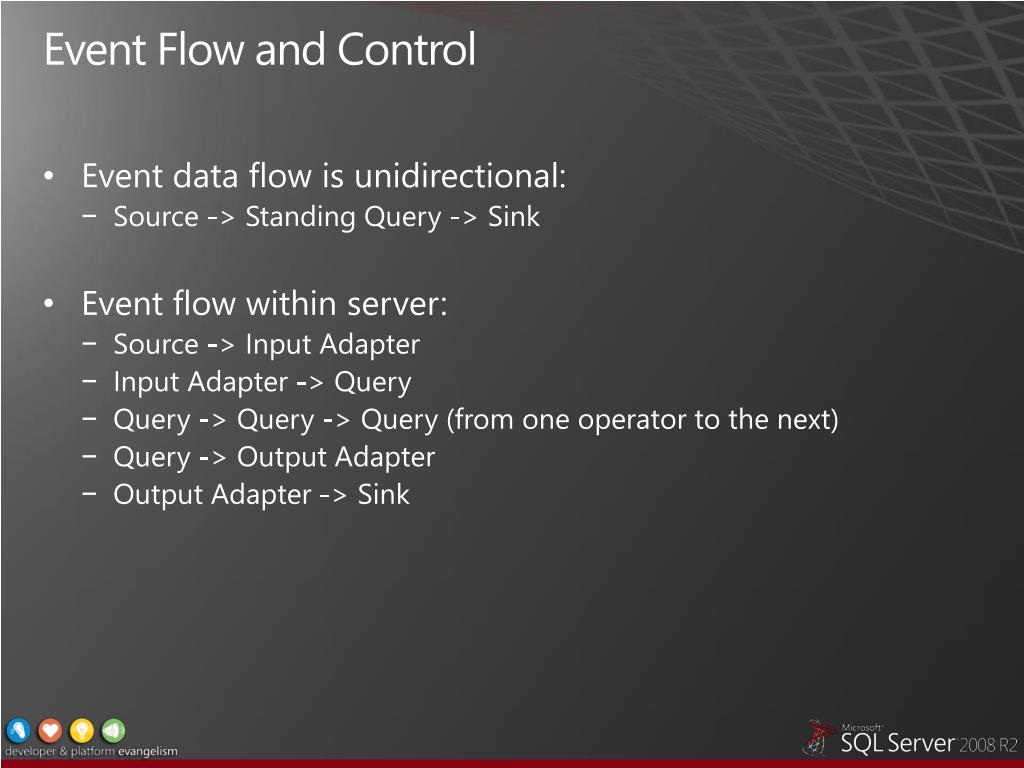

Event Flow and Control

  • Event data flow is unidirectional:

    • Source -> Standing Query -> Sink

  • Event flow within server:

    • Source -> Input Adapter

    • Input Adapter -> Query

    • Query -> Query -> Query (from one operator to the next)

    • Query -> Output Adapter

    • Output Adapter -> Sink


Streams l.jpg

Streams

  • All data organized into Streams

  • Potentially unending

  • Data may change over time

  • Often represent the same value over time


Events l.jpg

Events

  • Data in streams is packaged into events

  • Two parts to an event

    • Header (kind of event and timestamps)

    • Payload (.NET data structure)

  • Timestamps are DateTimeOffset data type

    • All times normalized to UTC in server


Event kind l.jpg

Event Kind

  • Two event kinds

    • INSERT (new data for the stream)

    • CTI (current time increment)

  • CTI allows

    • Processing out of order data

    • Responsive stream


Event models l.jpg

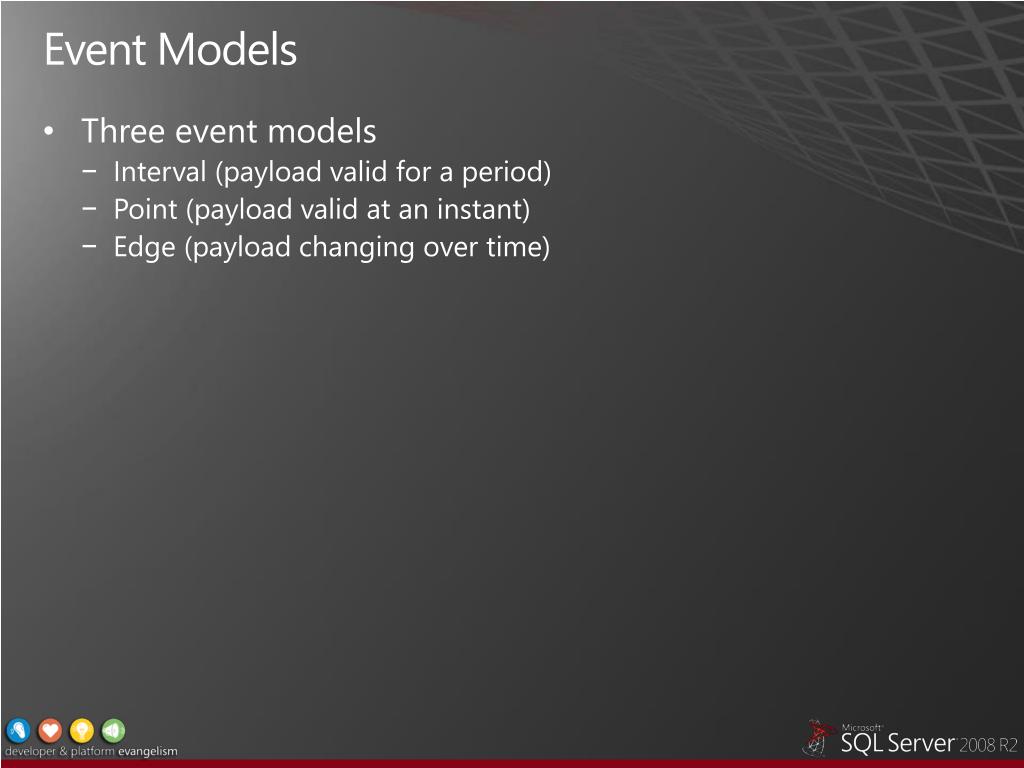

Event Models

  • Three event models

    • Interval (payload valid for a period)

    • Point (payload valid at an instant)

    • Edge (payload changing over time)


Event models interval l.jpg

Event Models: Interval

  • StartTime and EndTime

  • Values are valid for the defined interval

  • EndTime is not included in the interval


Event models point l.jpg

Event Models: Point

  • StartTime

  • Event occurrence at a single point in time

  • EndTime is inferred by server as StartTime + 1 cronon


Event models edge l.jpg

Event Models: Edge

  • StartTime

  • End Time initially unknown (set to DateTime.MaxValue)

  • Important to know event occurring prior to completion


Payload l.jpg

Payload

  • .NET struct or class

  • Fixed structure once declared

  • Must use public fields or properties

    • Private fields, properties, and methods are ignored


Payload considerations l.jpg

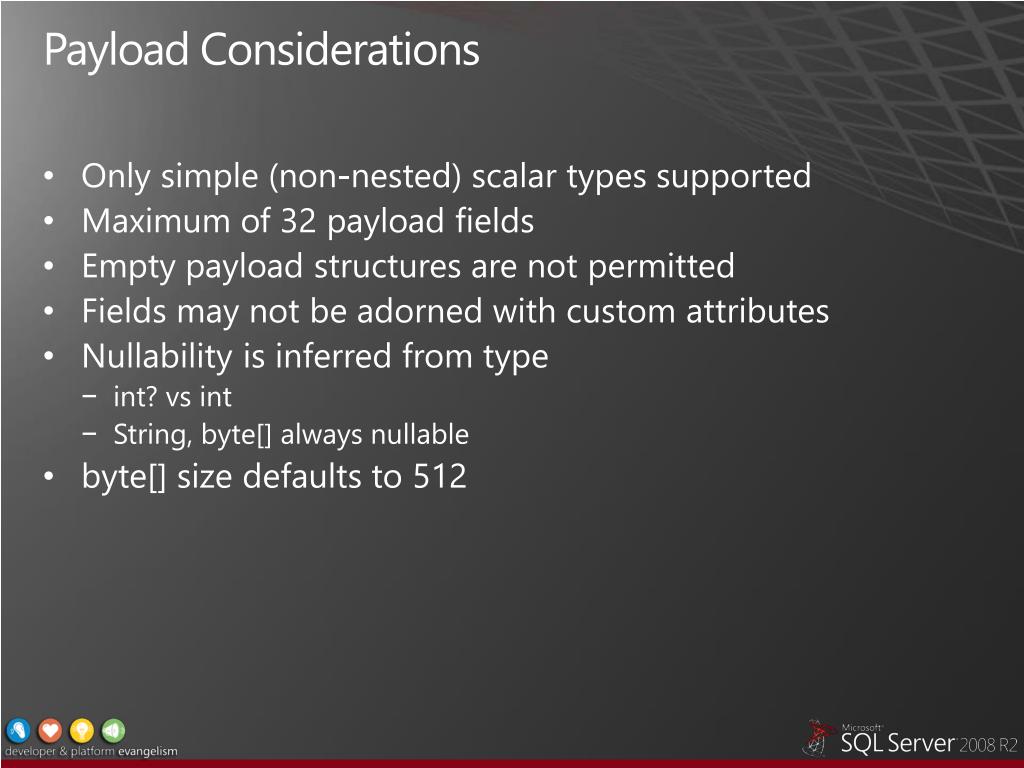

Payload Considerations

  • Only simple (non-nested) scalar types supported

  • Maximum of 32 payload fields

  • Empty payload structures are not permitted

  • Fields may not be adorned with custom attributes

  • Nullability is inferred from type

    • int? vs int

    • String, byte[] always nullable

  • byte[] size defaults to 512


Sample payload definition l.jpg

Sample Payload Definition

publicclassTollPayload

{

publicintTollBoothID { get; set; }

publicintLaneID { get; set; }

publicintVehicleType { get; set; }

publicStringTagID { get; set; }

}


Field order l.jpg

Field Order

  • Event types are ordered lists of fields in server

  • .NET Framework structures do not impose order

  • Order of event fields is critical for untyped adapters

    • Fields are not known at adapter design time

    • Field access is by ordinal

    • Suggest using classes instead


Agenda16 l.jpg

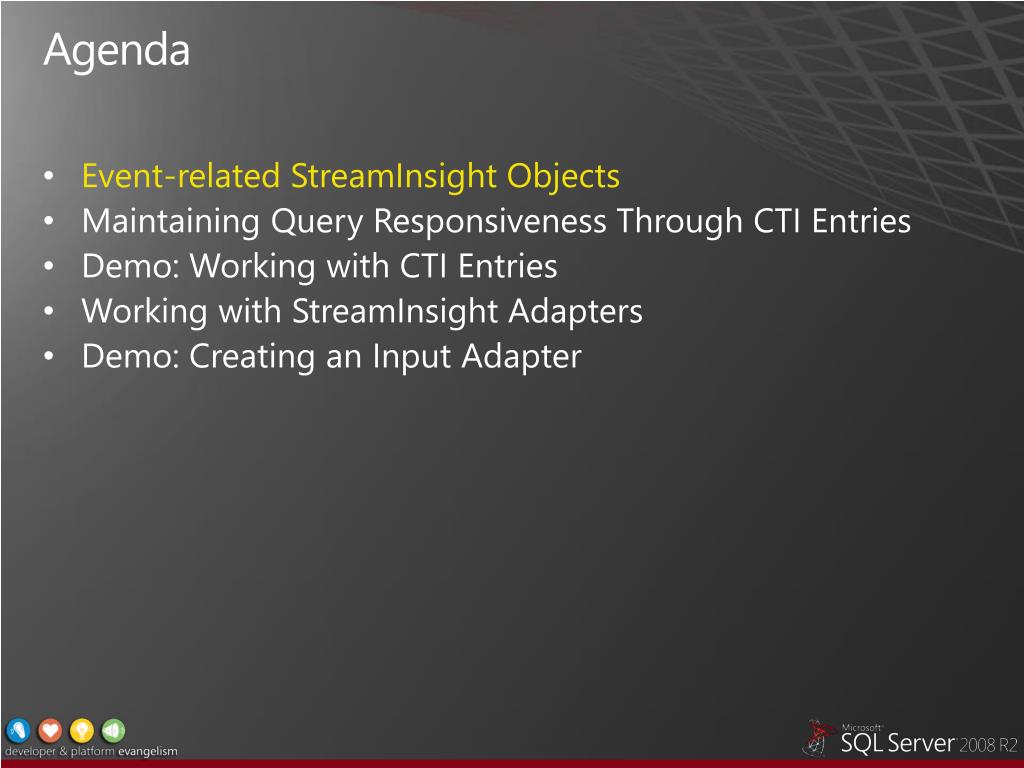

Agenda

  • Event-related StreamInsight Objects

  • Maintaining Query Responsiveness Through CTI Entries

  • Demo: Working with CTI Entries

  • Working with StreamInsight Adapters

  • Demo: Creating an Input Adapter


Slide17 l.jpg

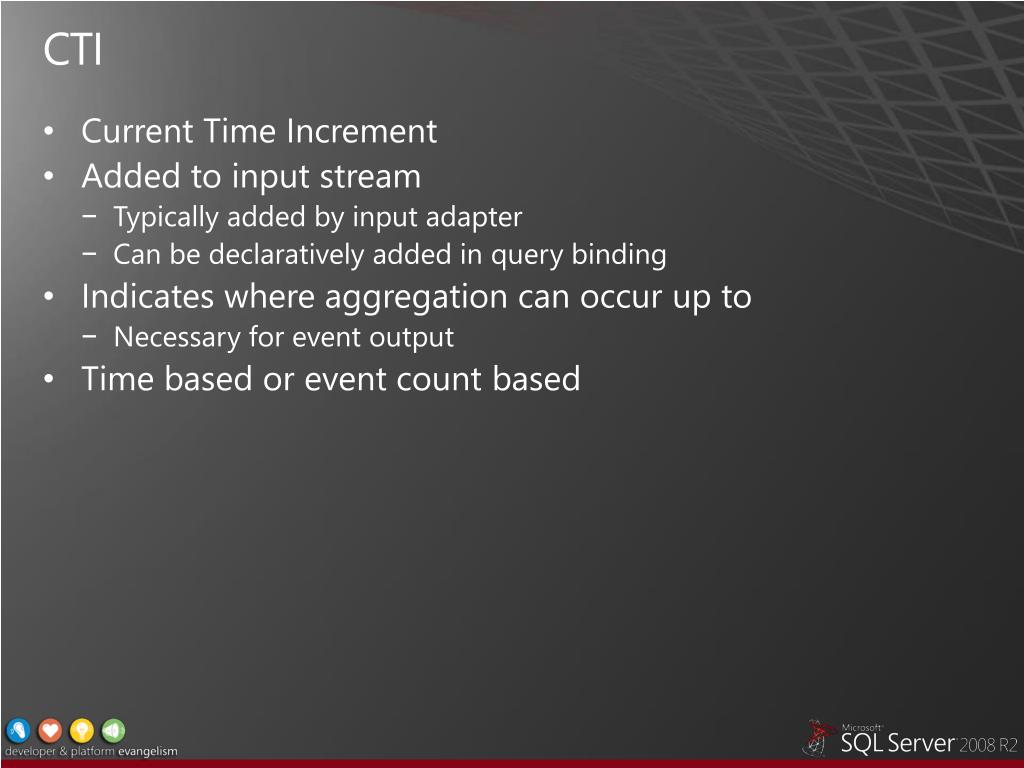

CTI

  • Current Time Increment

  • Added to input stream

    • Typically added by input adapter

    • Can be declaratively added in query binding

  • Indicates where aggregation can occur up to

    • Necessary for event output

  • Time based or event count based


Stream liveliness l.jpg

Stream Liveliness

?

?

Time


Query binding cti behavior l.jpg

Query Binding: CTI Behavior

  • Two policies provided

    • Drop

    • Adjust


Query element timestamp modification l.jpg

Query Element: Timestamp Modification

  • Useful if you need to modify the timestamp of an event

// shift events by 15 minutes into the future.

var shifted = inputStream.ShiftEventTime(e => e.StartTime +

TimeSpan.FromMinutes(15));

// set event duration to 1 hour.

varonehour = inputStream.AlterEventDuration(e => TimeSpan.FromHours(1));

// double event duration.

var doubled = inputStream.AlterEventDuration(e => e.Lifetime * 2);

// shift event 1 minute into the past, but leave duration unchanged.

varnewStream = inputStream.AlterEventLifetime(TimeSpan.FromMinutes(-1),

e => e.Lifetime + TimeSpan.FromMinutes(1));

// set lifetime to a single tick

var points = inputStream.ToPointEventStream();


Working with cti entries l.jpg

Working with CTI Entries

SQL10R2UPD05-DEMO-04

Demo


Agenda22 l.jpg

Agenda

  • Event-related StreamInsight Objects

  • Maintaining Query Responsiveness Through CTI Entries

  • Demo: Working with CTI Entries

  • Working with StreamInsight Adapters

  • Demo: Creating an Input Adapter


Adapter development tasks l.jpg

Adapter Development Tasks


Adapter types l.jpg

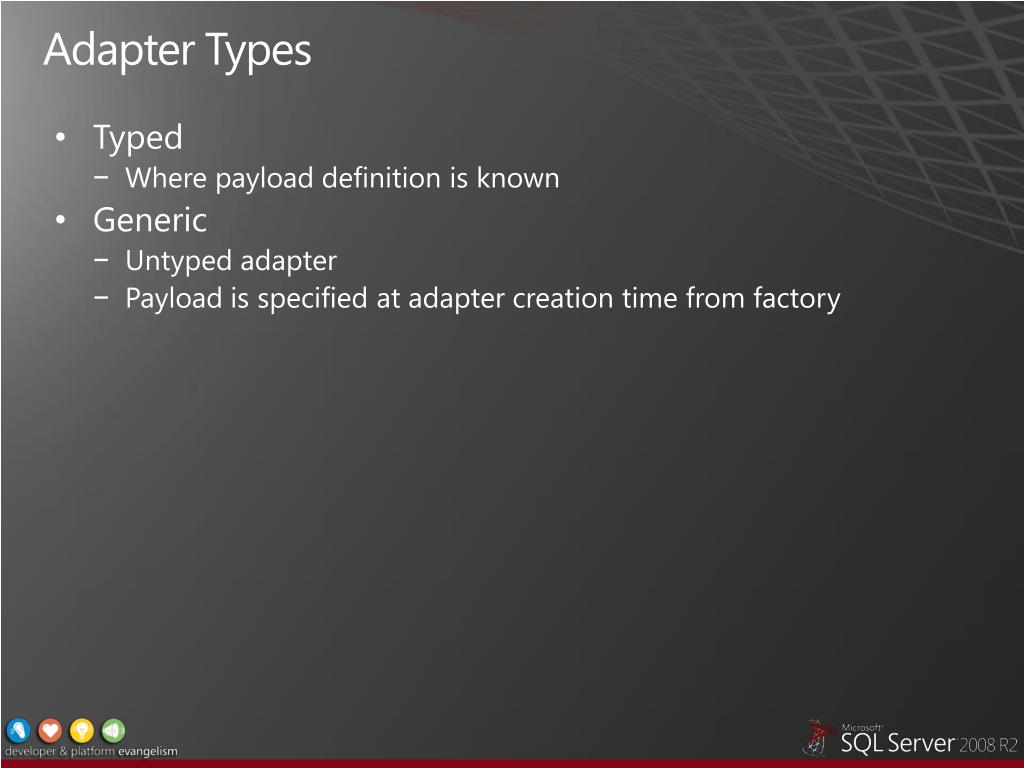

Adapter Types

  • Typed

    • Where payload definition is known

  • Generic

    • Untyped adapter

    • Payload is specified at adapter creation time from factory


Choose adapter base class l.jpg

Choose Adapter Base Class


Adapterfactory l.jpg

AdapterFactory

public class MyFactory :ITypedInputAdapterFactory<MyConfig>,

ITypedDeclareAdvanceTimeProperties<MyConfig>

{

publicInputAdapterBase

Create<Payload>(MyConfigconf, EventShapeev)

{

return newMyAdapter(conf);

}

public void Dispose()

{ ... }

publicAdapterAdvanceTimeSettings

DeclarAdvanceTimeProperties<Tpayload>

(MyConfigconf, EventShapeev)

{

return ats;

}

}


Adapter l.jpg

Adapter

publicclassMyAdapter :TypedPointInputAdapter<MyPayload>

{

public MyAdapter(MyConfig conf)

{ ... }

public override void Start()

{ ... }

public override void Resume()

{ ... }

}


Untyped adapters l.jpg

UntypedAdapters

  • Useful where configuration provides field list

    • Must be available at query binding time

  • Able to configure a source or sink to handle multiple event types

  • Example sources

    • CSV files

    • SQL queries


Requirements for untyped adapters l.jpg

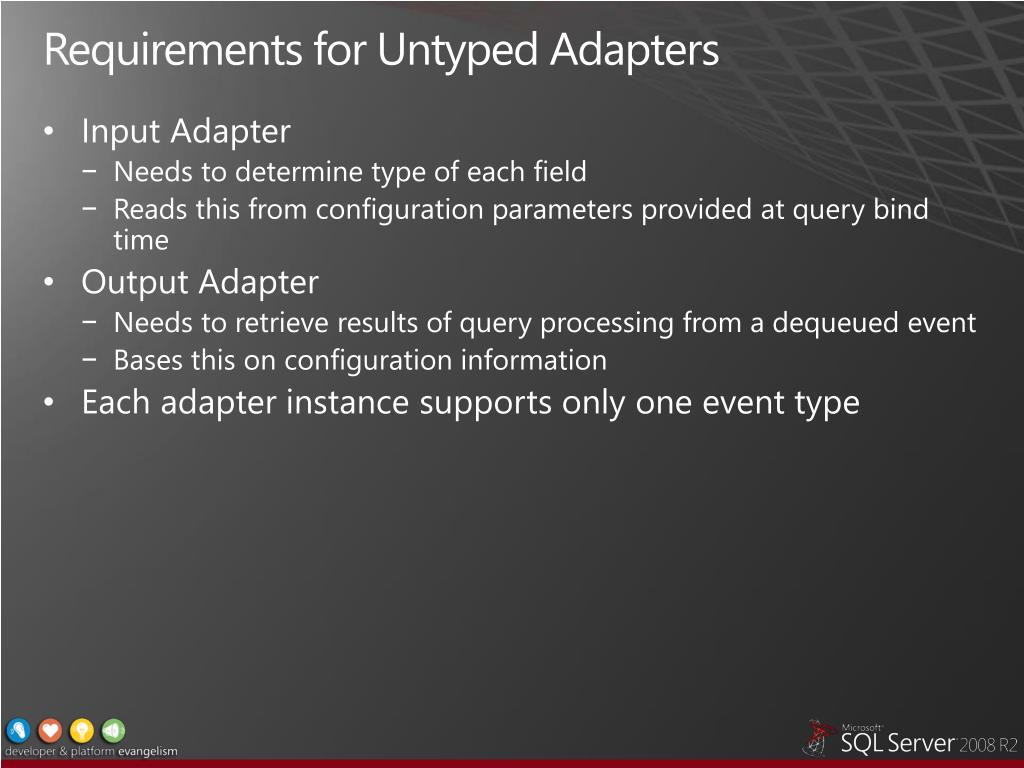

Requirements for Untyped Adapters

  • Input Adapter

    • Needs to determine type of each field

    • Reads this from configuration parameters provided at query bind time

  • Output Adapter

    • Needs to retrieve results of query processing from a dequeued event

    • Bases this on configuration information

  • Each adapter instance supports only one event type


Push vs pull model l.jpg

Push vs. Pull Model

  • Interaction points support both

    • Events pushed from provider to consumer

    • Events pulled by the consumer from the provider

  • Consumer can throttle input

    • Consumer communicates its ability to handle events

    • Policy to avoid overload of events


Compile and test adapter l.jpg

Compile and Test Adapter

  • Build the .NET assembly

  • Test with simple passthrough operations

    • Avoid complex query processing

    • Validate that the adapter is reading or writing


Creating an input adapter l.jpg

Creating an Input Adapter

SQL10R2UPD05-DEMO-05

Demo


Resources l.jpg

Resources

  • StreamInsight Website

    • http://www.microsoft.com/sqlserver/2008/en/us/R2-complex-event.aspx

  • StreamInsight Books Online

    • http://msdn.microsoft.com/en-us/library/ee362541(SQL.105).aspx

  • StreamInsight Forums

    • http://social.msdn.microsoft.com/Forums/en-US/streaminsight/threads

  • StreamInsight Whitepaper

    • http://download.microsoft.com/download/F/D/5/FD5E855C-D895-45A8-9F3E-10AFADBE51A/Microsoft%20CEP%20Overview.docx


Slide34 l.jpg
